THE 2807950 MINI ITX MOTHERBOARD
2807950 User's Manual

Introduction
Product Description
The 2807950 Mini ITX board incorporates the Mobile Intel® GM965 Express
Chipset for Embedded Computing, consisting of the Intel® GM965 Graphic
Memory Controller Hub (GMCH) and Intel® I/O Controller Hub (ICH8-M), an
optimized integrated graphics solution with a 533MHz and 800MHz front-side
bus. Dimensions of the board are 170mm x 170mm.
The integrated powerful 3D graphics engine, based on Intel® Graphics Media
Accelerator X3100 (Intel® GMA X3100) architecture, operates at core speeds of
up to 400 MHz. It features a low-power design, is validated with the Intel® Core
2 Duo and Intel® Celeron processors on 65nm process. With dual channel
DDR2 667MHz two DIMM socket on board, the board supports up to 4GB of
DDR2 system memory.
Intel® Graphics supports a unique intelligent memory management scheme
called Dynamic Video Memory Technology (DVMT). DVMT handles diverse
applications by providing the maximum (384MB) availability of system
memory for general computer usage, while supplying additional graphics
memory when a 3D-intensive application requests it. The Intel GMA X3100
graphics architecture also takes advantage of the high-performance Intel
processor. Intel GMA X3100 graphics supports Dual Independent Display
technology.
The main features of the board are:
Supports Intel® CoreTM 2 Duo (Merom 800MHz), Intel® Celeron
Supports up to 2.4GHz, 533MHz/800MHz FSB
Two DDR2 SDRAM DIMM, Max. 4GB memory
Onboard 10/100 BaseT and Marvell PCI-Express Gigabit LAN
Intel® GM965 Express VGA for CRT / LVDS
2x SATA, 6x USB 2.0, 2x COM, Watchdog timer, 1394
1x MiniPCI, 1x PCI, 1xPCI-E(x1) slots, optional DVI
Optional daughter cards:
3901080: Chrontel 7308, supports 24 bit single or dual LVDS channel
3901220: Chrontel 7021, supports CRT
3901100: Chrontel 7307C, single DVI (connector on cable)
3901090: Chrontel 7307C, dual DVI (connector on cable)
3901180: Chrontel 7307C, dual DVI (one connector on card and one on cable)
2807950A only
1
2807950 User's Manual

Checklist
Your 2807950 package should include the items listed below.
•The 2807950 Mini-ITX motherboard
•This User’s Manual
•1 CD containing chipset drivers and flash memory utility
•Cable kit (IDE, Serial port, Serial ATA)
2
2807950 User's Manual

2807950 Specifications
CPU Supported Intel® CoreTM 2 Duo, Intel Celeron mobile processors
CPU Voltage 0.700V ~ 1.5V (IMVP-6)
System Speed Up to 2.4GHz or above
CPU FSB 533MHz/800MHz FSB
Cache 1MB/2MB/4MB
Green /APM APM1.2
CPU Socket mPGA Socket 478
Chipset Intel GM965 Chipset
GMCH: GM965 1299-pin Micro-FCBGA
ICH8M: 82801HBM 678-pin mBGA
BIOS Award BIOS, support ACPI Function
Memory DDR2 667/533 SDRAM DIMM x2 (w/o ECC function), Max. 4GB
VGA GMA965 built-in, supports CRT
SDVO (Dual CH) Through 3901080 card (Chrontel 7308, 24+24 bits single/dual channel
LVDS, Chrontel 7021, CRT)
Through 3901100 card (Chrontel 7307C, DVI single or Dual)
LVDS LCD Panel GM965 built-in, supports 24+24 bits (Type 1 only), single or dual channel
LVDS
LAN 1. ICH8M 10/100/gigabit MAC + PHY (dual footprint option):
•Intel 82566DC Nineveh 10/100/1000 (2807950A)
•
2. Marvell 88E8053 PCI-e Gigabit LAN controller x1 (2807950C/D)
USB ICH8M built-in USB 2.0 host controller, support 6 ports
Serial ATA Ports ICH8M built-in SATA controller, supports 2 ports
1394 TI TSB43LV22(dual port)
Parallel IDE ICH8M built-in one channel Ultra DMA 33/66/100,CF Type II
Audio ICH8M Built-in audio controller + AC97 Codec ALC885 w/ 7.1 channels,
SPDIF-OUT
LPC I/O W83627EHF: COM1, COM2 (RS232/RS422/RS485), slim FDC 1.44MB,
IrDA x1 & hardware monitor (3 thermal, 4 voltage monitor inputs, 2 fan
headers)
Digital IO 4 in & 4 out
Keyboard/Mouse Supports PS/2 Keyboard/Mouse Connector
Expansion Slots PCI slot x1, PIC-E (x1) slot x1 and Mini PCI socket x1
Edge Connector PS/2 connector x1 for keyboard/mouse
Gbit LAN RJ-45 + dual USB stack connector
10/100 LAN RJ45 + dual USB stack connector
DB9 x1 for COM 1; DB15 x1 for VGA
SPDIF-OUT connector x1; 1394 connector x1
RCA Jack 3x2 for Audio (Front-Out, Line-In, Mic, Center/LFE, Surround &
Surround Back)
Onboard Header/
Connector 40 pins box-header x1 for IDE1; 26 pins header x1 for slim floppy
CF Connector x1 @ solder side
10 pins pin-headerx1 for Digital I/O; 10 pins pin-header x1 for COM2
10 pins pin-header x 1 for USB 5,6; 5 pins pin-header x 1 for IrDA
DF13 connector x2 for LVDS;
10 pins pin-header x1 for audio Line-Out & Mic
4 pins pin-header x1 for CD in; 7 pins pin-header x1 for 1394
SATA connector x2 for SATA ports
Watchdog Timer Yes (256 segments, 0, 1, 2…255 sec/min)
System Voltage +5V, +3.3V, +12V, -12V, 5VSB (2A)
Others Modem Wakeup, LAN Wakeup
Board Size 170mm x 170mm (Mini ITX)
3
2807950 User's Manual

IMPORTANT NOTE: When the system boots without the CRT being
connected, there will be no image on screen when you insert the
CRT/VGA cable. To show the image on screen, the hotkey must be
pressed (CTRL-ALT-F1).
THE 2807950 MINI ITX MOTHERBOARD
4
2807950 User's Manual

Installations
This section provides information on how to use the jumpers and
connectors on the 2807950 in order to set up a workable system. The
topics covered are:
Installing the CPU........................................................................ 6
Installing the Memory.................................................................. 7
Setting the Jumpers...................................................................... 8
Connectors on 2807950 ................................................................ 11
5
2807950 User's Manual

Installing the CPU
The 2807950 board supports a Socket 478MN (MEROM) processor
socket for Intel® CoreTM 2 Duo, Intel® Celeron mobile processors.

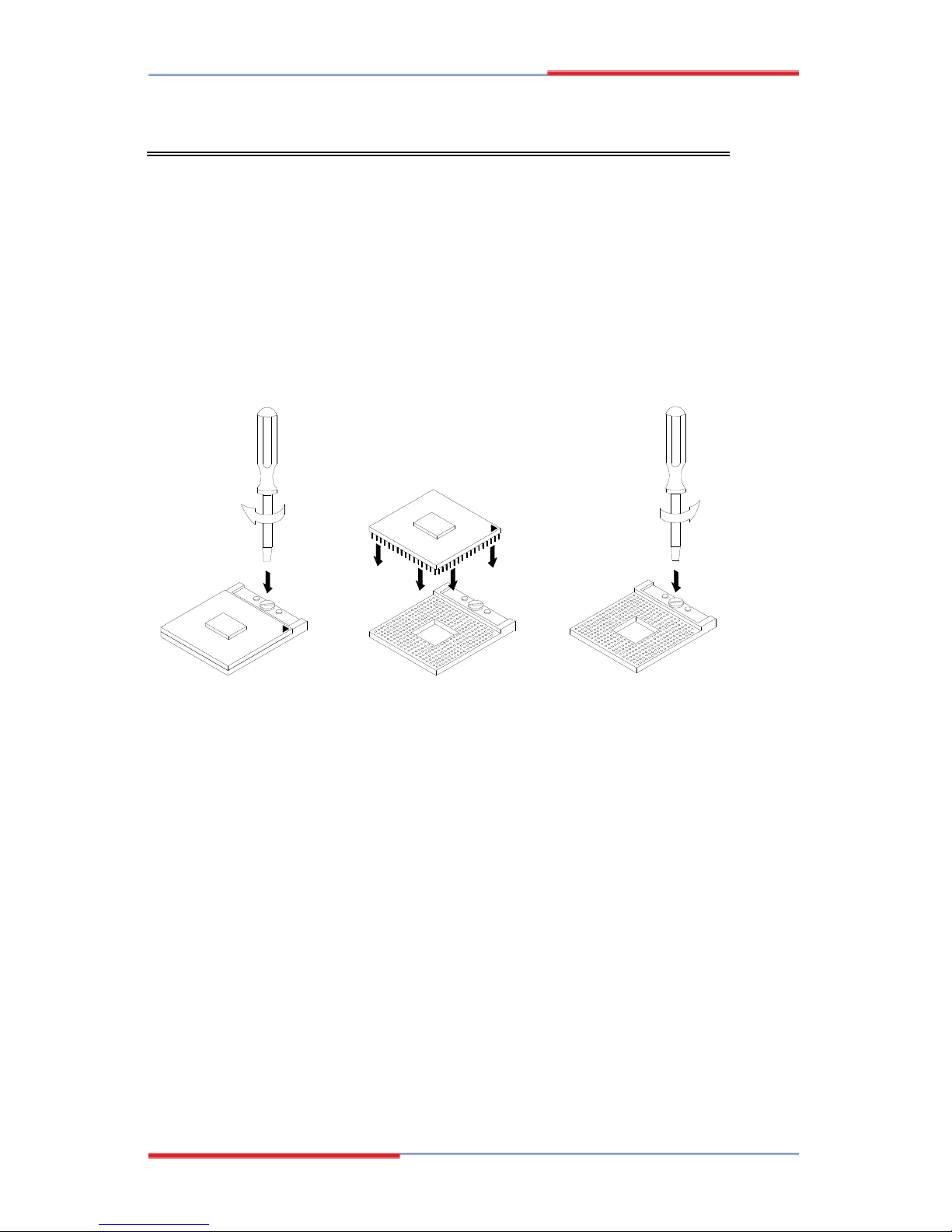

The processor socket comes with a screw to secure the processor. As
shown in the left picture below, loosen the screw first before inserting
the processor. Place the processor into the socket by making sure the
notch on the corner of the CPU corresponds with the notch on the inside
of the socket. Once the processor has slide into the socket, fasten the
screw. Refer to the figures below.
NOTE: Ensure that the CPU heat sink and the CPU top surface are in
total contact to avoid CPU overheating problem that would
cause your system to hang or be unstable.
6
2807950 User's Manual

Installing the Memory
The 2807950 board supports two DDR2 memory socket for a maximum
total memory of 4GB in DDR2 memory type.
Installing and Removing Memory Modules

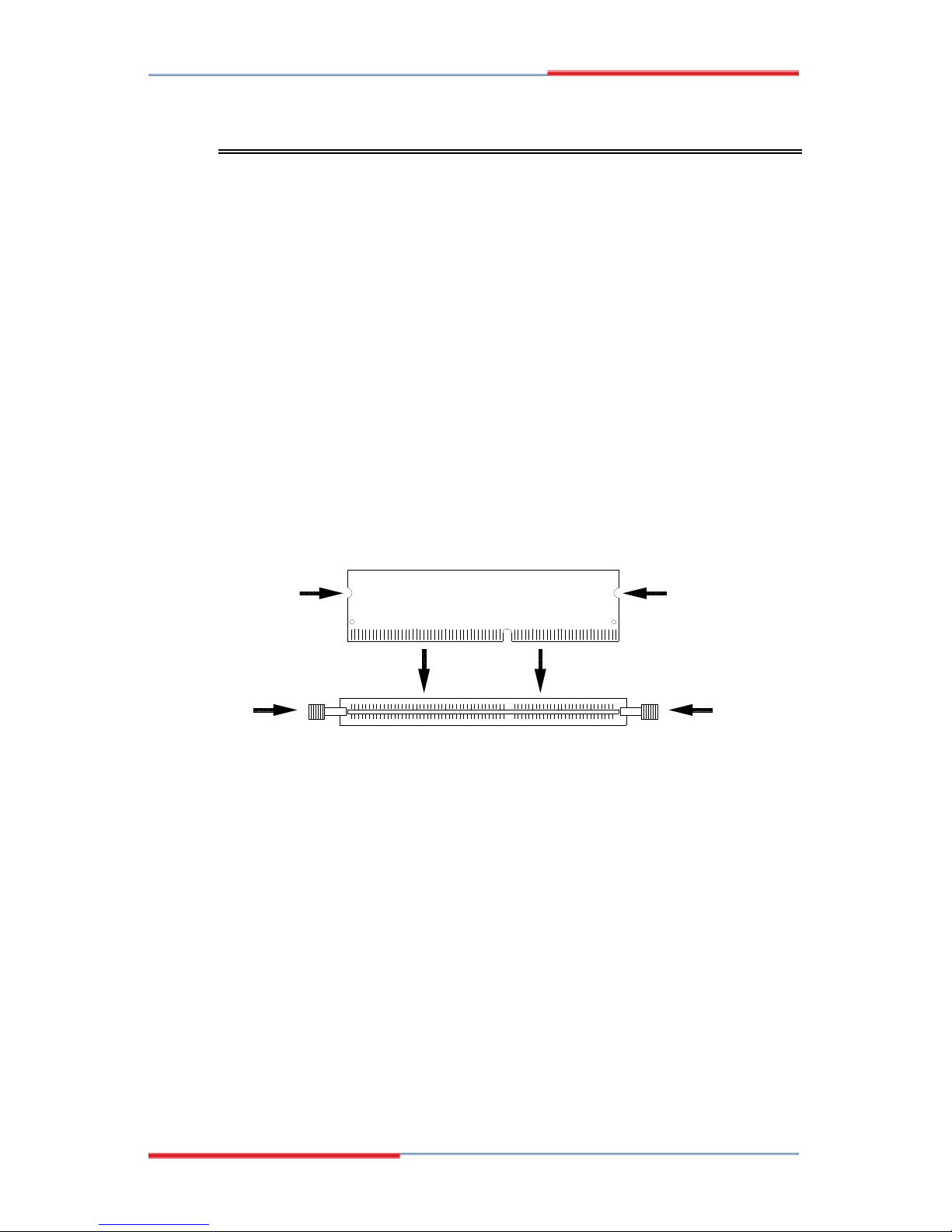

To install the DDR2 modules, locate the memory slot on the board and
perform the following steps:
1. Hold the DDR2 module so that the key of the DDR2 module aligned
with that on the memory slot.
2. Gently push the DDR2 module in an upright position until the clips of
the slot close to hold the DDR2 module in place when the DDR2
module touches the bottom of the slot.
3. To remove the DDR2 module, press the clips with both hands.
DDR2 Module
Lock Lock
Lock Lock
7
2807950 User's Manual

Setting the Jumpers
Jumpers are used on 2807950 to select various settings and features
according to your needs and applications. Contact your supplier if you
have doubts about the best configuration for your needs. The following
lists the connectors on 2807950 and their respective functions.
Jumper Locations on 2807950.......................................................9
JP5: LCD Panel Power Selection..................................................10
JP9: PCI/PCIE Riser Card Selection ............................................10
JBAT1: Clear CMOS Setting .......................................................10
JP8: CompactFlash Slave/Master Selection..................................10
IMPORTANT NOTE: When the system boots without the CRT being
connected, there will be no image on screen when you insert the
CRT/VGA cable. To show the image on screen, the hotkey must be
pressed.
8
2807950 User's Manual

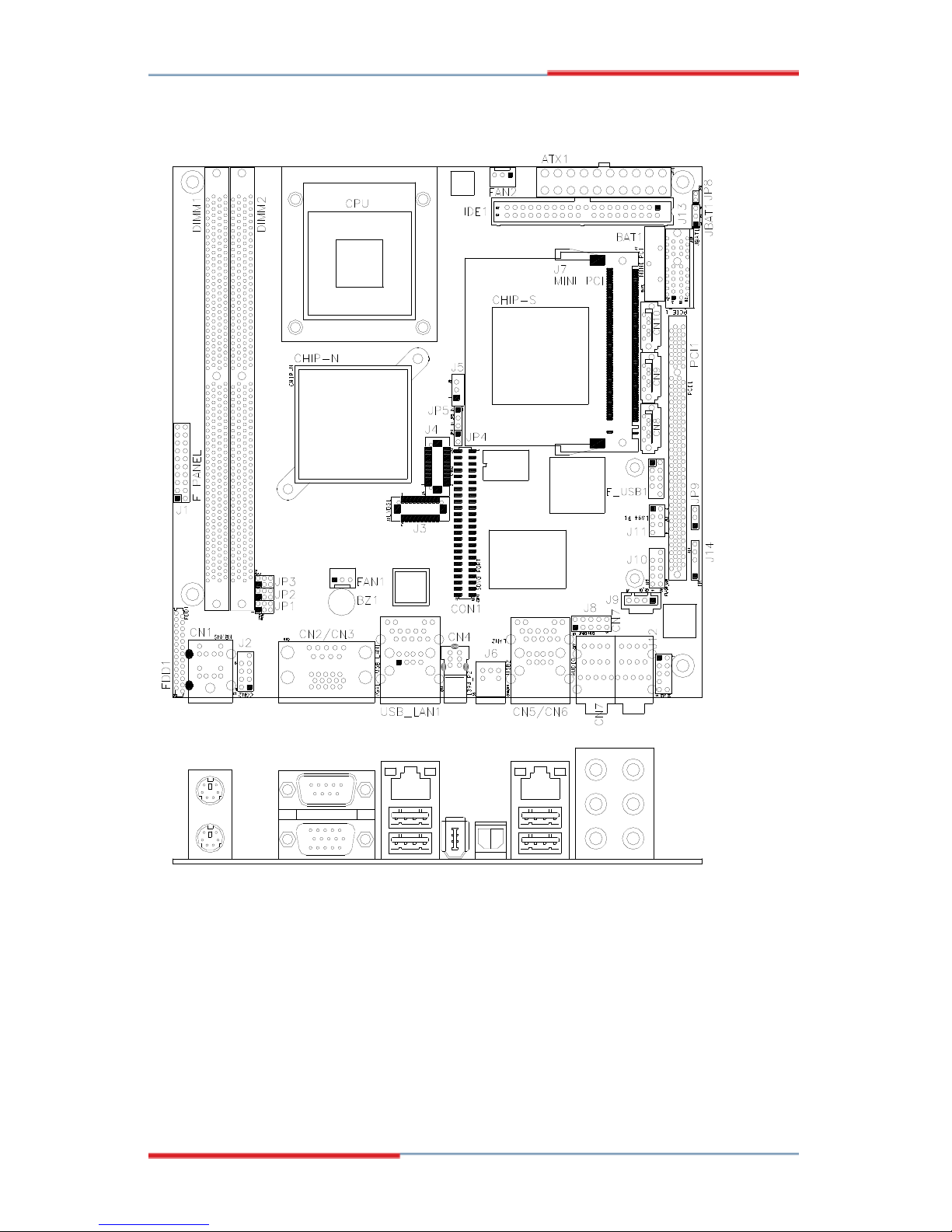

Jumper Locations on 2807950
Jumpers on 2807950............................................................................Page
JP5: LCD Panel Power Selection ................................................. 10
JP9: PCI/PCIE Riser Card Selection............................................ 10
JBAT1: Clear CMOS Setting....................................................... 10
JP8: CompactFlash Slave/Master Selection ................................. 10
9
2807950 User's Manual

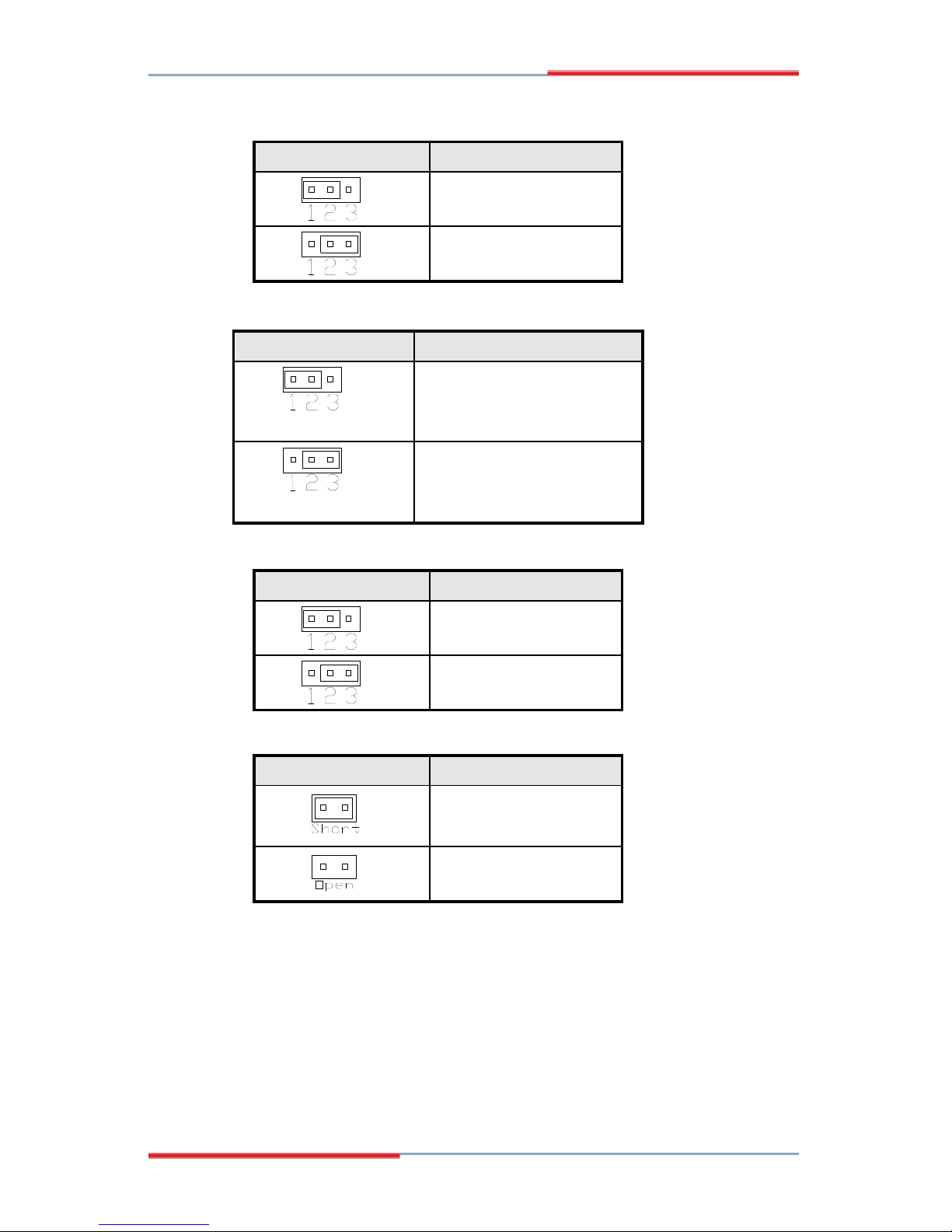

JP5: LCD Panel Power Selection
JP5 LCD Panel Power
3.3V
5V
JP9: PCI/PCIE Riser Card Selection
JP9 Riser Card
IP390 Riser Card
Install
IP151, IP240 Riser Card
Install
JBAT1: Clear CMOS Setting
JBAT1 Setting
Normal
Clear CMOS
JP8: CompactFlash Slave/Master Selection
JP8 CF Setting
Master
Slave
[
10
2807950 User's Manual

Connectors on 2807950
CN1: PS/2 Keyboard and PS/2 Mouse Connectors...................... 14
CN2, CN3: COM1 and VGA Connector...................................... 14
USB_LAN1: 10/100 RJ-45(2807950A), GbE RJ45(2807950C/D)
and USB1/2 Ports......................................................................... 15
CN4: 1394 Connector................................................................... 15
J6: SPDIF Out Connector............................................................. 15
CN5, CN6: GbE RJ-45(2807950C/D) and USB3/4 Ports ........... 15
CN7: Audio Connector................................................................. 15
FAN1: System Fan Power Connector .......................................... 15
FAN2: CPU Fan Power Connector .............................................. 15
IDE1: IDE Connector................................................................... 16
FDD1: Floppy Drive Connector................................................... 16
ATX1: ATX Power Supply Connector ........................................ 17
J1 (F_PANEL): System Function Connector............................... 17
F_USB1: USB0/USB1 Connector................................................ 19
JP1, JP2, JP3: RS232/422/485 (COM2) Selection....................... 19
J2: COM2 Serial Port ................................................................... 20
J3, J4: LVDS Connectors (1st channel, 2nd channel).................. 20
J5: LCD Backlight Connector...................................................... 20
J7: Mini PCI Connector................................................................ 20
CN8, CN9: SATA Connectors..................................................... 20
J8: Digital I/O............................................................................... 21
J9: CD-In Pin Header................................................................... 21
J10: SPI Flash Connector (factory use only)................................ 21
J11: 1394 Connector..................................................................... 21
J12: Front Audio Connector......................................................... 21
J13: PCI-E(x1) Slot...................................................................... 21
J14: IrDA Connector.................................................................... 22
J15: Compact Flash Connector..................................................... 22
PCI1: PCI Slot (supports 2 Master).............................................. 22
CON1: SDVO Port Connector ..................................................... 22
Headers and Connectors on 2807950 Daughter Cards................. 23
3901080 – JP4 LCD Panel Power Selection .................................................... 23
3901080 – J1 LCD Backlight Setting ............................................................. 23
3901080 – J3 and J2 1st/2nd LVDS Channel Connectors.................................... 23
3901220 – J4 VGA Connector ...................................................................... 24
3901100 – J2 DVI Connector........................................................................ 25
3901090 – J1, J2 1st/2nd DVI Connectors......................................................... 25
11
2807950 User's Manual

Connector Locations on 2807950
12
2807950 User's Manual

2807950 Solder Side
13
2807950 User's Manual

CN1: PS/2 Keyboard and PS/2 Mouse Connectors
PS/2 Mouse
PS/2 Keyboard
Signal Name Keyboard Mouse Signal Name
Keyboard data 1 1 Mouse data
N.C. 2 2 N.C.
GND 3 3 GND
5V 4 4 5V
Keyboard clock 5 5 Mouse clock
N.C. 6 6 N.C.
CN2, CN3: COM1 and VGA Connector
[
Signal Name Pin # Pin # Signal Name
DCD 1 6 DSR
RXD 2 7 RTS
TXD 3 8 CTS
DTR 4 9 RI
GND 5 10 Not Used
[[[[
Signal Name Pin # Pin # Signal Name
Red 1 2 Green
Blue 3 4 N.C.
GND 5 6 GND
GND 7 8 GND
N.C. 9 10 GND
N.C. 11 12 N.C.
HSYNC 13 14 VSYNC
NC 15
14
2807950 User's Manual

USB_LAN1: 10/100 RJ-45(2807950A), 10/100/1000 RJ45
(2807950C/D)and USB1/2 Ports
CN4: 1394 Connector
J6: SPDIF Out Connector
CN5, CN6: GbE RJ-45(2807950C/D) and USB3/4 Ports
CN7: Audio Connector
FAN1: System Fan Power Connector
FAN1 is a 3-pin header for system fans. The fan must be a 12V
(500mA).
Pin # Signal Name
1 Ground
2 +12V
3 Rotation detection
FAN2: CPU Fan Power Connector
FAN2 is a 3-pin header for the CPU fan. The fan must be a 12V fan.
Pin # Signal Name
1 Ground
2 +12V
3 Rotation detection
15
2807950 User's Manual

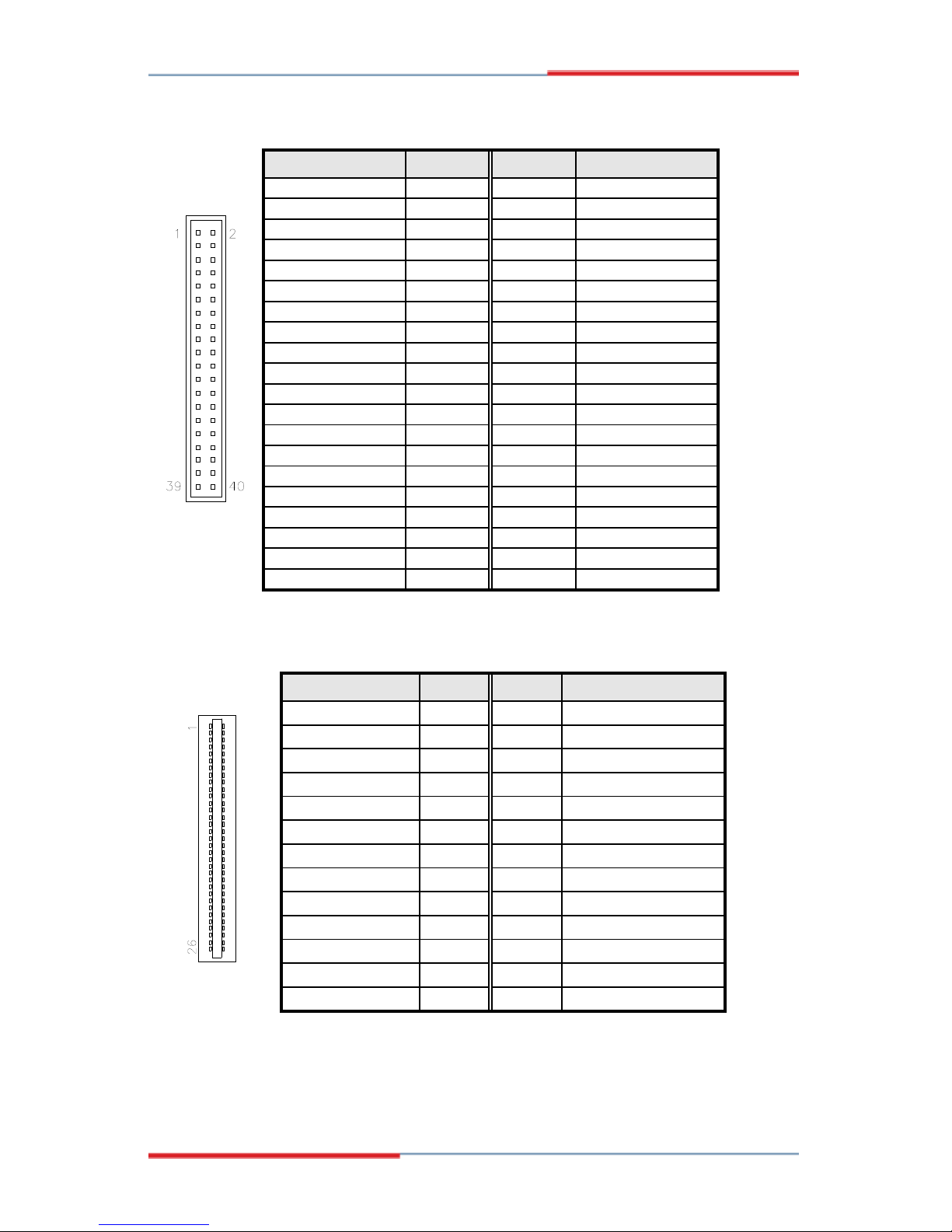

IDE1: IDE Connector
Signal Name Pin # Pin # Signal Name
Reset IDE 1 2 Ground
Host data 7 3 4 Host data 8
Host data 6 5 6 Host data 9
Host data 5 7 8 Host data 10
Host data 4 9 10 Host data 11
Host data 3 11 12 Host data 12
Host data 2 13 14 Host data 13
Host data 1 15 16 Host data 14
Host data 0 17 18 Host data 15
Ground 19 20 Protect
p
in
DR
Q
0 21 22 Ground
Host IOW 23 24 Ground
Host IOR 25 26 Ground
IOCHRDY 27 28 Host ALE
DACK0 29 30 Ground
IR
Q
14 31 32
N
o connec
t
Address 1 33 34
N
o connec
t
Address 0 35 36 Address 2
Chi
p
select 0 37 38 Chi
p
select 1
Activit
y
39 40 Ground
FDD1: Floppy Drive Connector
FDD1is a slim 26-pin connector and will support up to 2.88MB FDD.
Signal Name Pin # Pin # Signal Name
VCC 1 2 INDEX
VCC 3 4 DRV_SEL
VCC 5 6 DSK_CH
NC 7 8 NC
NC 9 10 MOTOR
DINST 11 12 DIR
NC 13 14 STEP
GND 15 16 WDATA
GND 17 18 WGATE
GND 19 20 TRACK
NC 21 22 WPROT
GND 23 24 RDATA
GND 25 26 SIDE
16
2807950 User's Manual
