Glowworm Betacom2 24 User manual

Betacom2 24
G.C. No. 47-019-16
Betacom2 28
G.C. No. 47-019-17
condens
Instructions for Use

- 1 -
READ CAREFULLY BEFORE USING
1 Read me .................................................................................................3
1.1 Welcome ....................................................................................... 3
1.2 Guarantee Pack ............................................................................. 3
1.3 Servicing ...................................................................................... 3
1.4 Benchmark.................................................................................... 3
1.5 Quick reference guide .................................................................... 4
2 Introducing your appliance ......................................................................4
2.1 Appliance description .................................................................... 4
2.2 Accessories ................................................................................... 4
3 Product documentation ...........................................................................4
3.1 Document storage ......................................................................... 4
3.2 Explanation of symbols .................................................................. 5
4 Safety ....................................................................................................5
4.1 What to do if you smell gas? ........................................................... 5
4.2 Safety recommendations ............................................................... 5
4.3 Safety regulations ......................................................................... 6
5 Guarantee / Responsibility ......................................................................7
5.1 Detailed guarantee ....................................................................... 7
5.2 Appliance use / manufacturer responsibility ................................... 7
6 Recycling ................................................................................................8
6.1 Appliance ..................................................................................... 8
6.2 Packaging ..................................................................................... 8

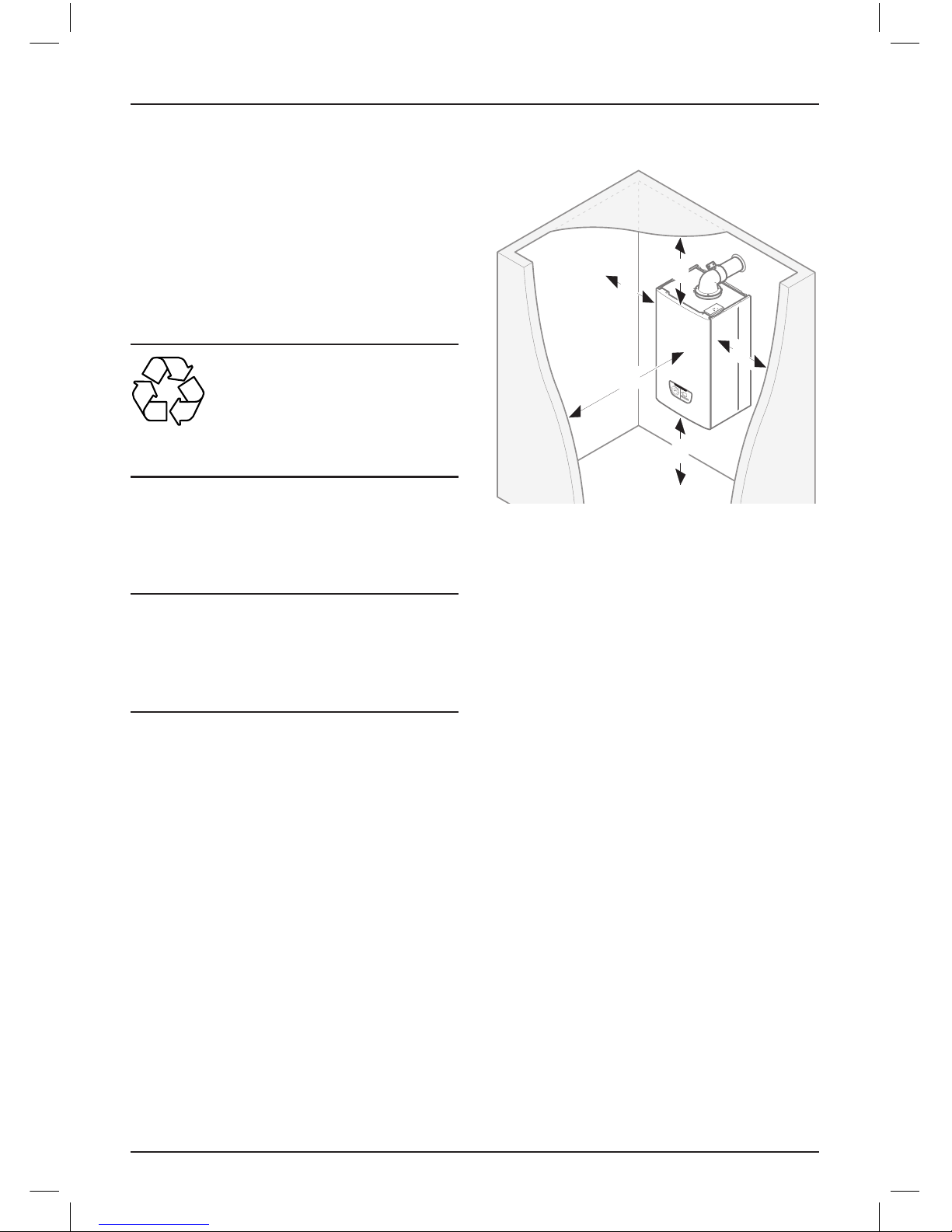

7 Clearances ..............................................................................................8
HOW TO USE YOUR APPLIANCE
8 Overview ................................................................................................9

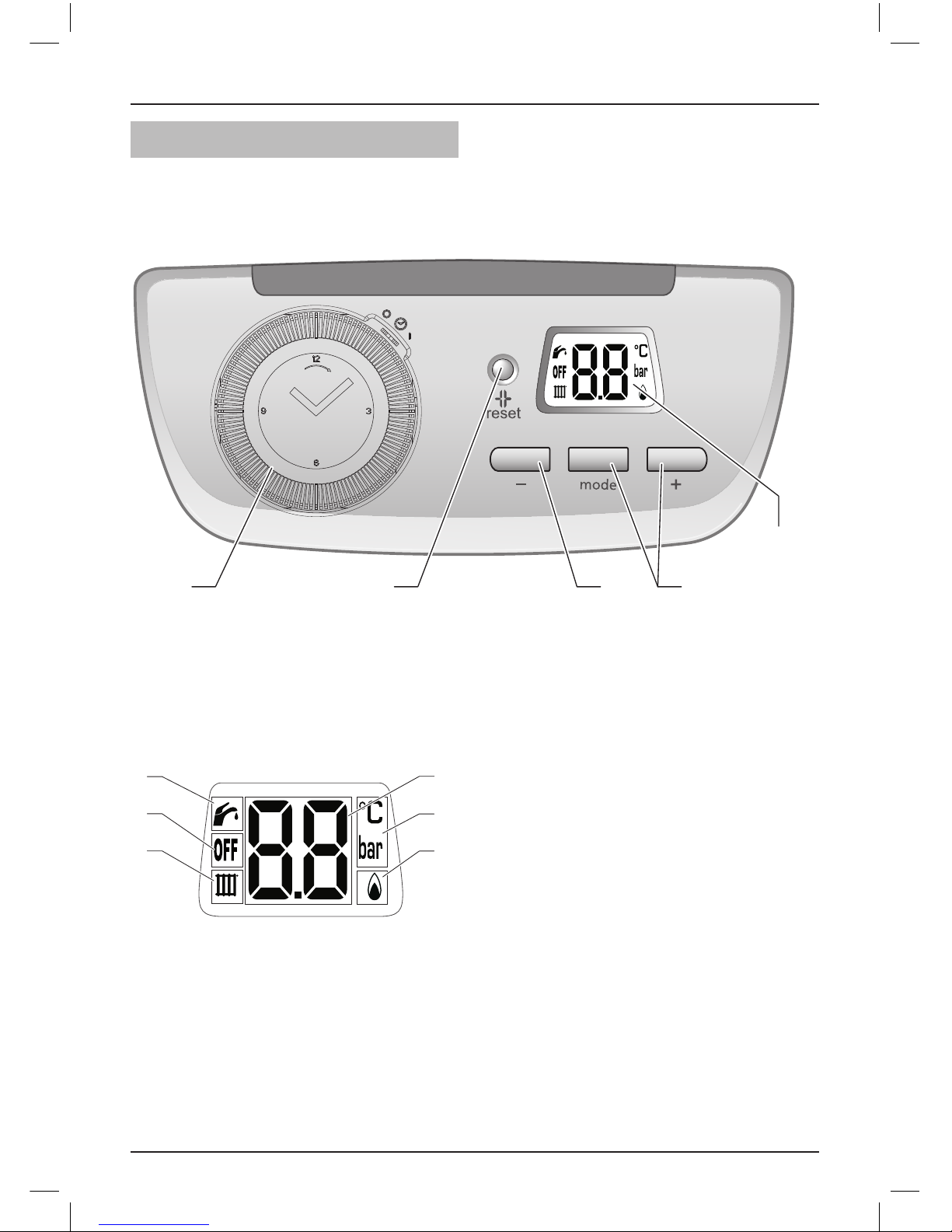

8.1 Fascia ........................................................................................... 9
8.2 Display ......................................................................................... 9
8.3 Switching On................................................................................10
8.4 Turning o ....................................................................................10
8.5 User Controls ...............................................................................10

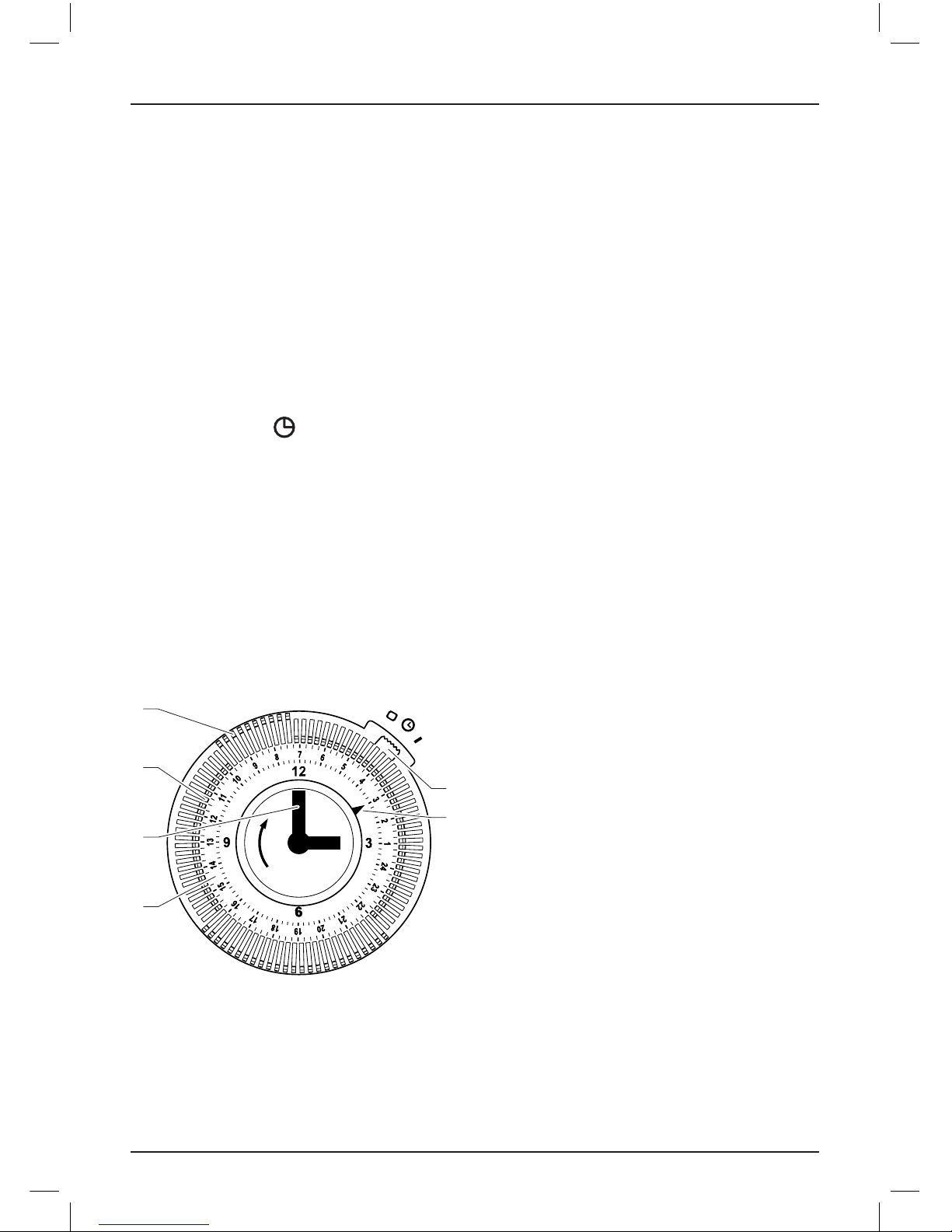

8.6 TIMER ..........................................................................................10
TABLE OF CONTENTS

- 2 -
ANY ASSISTANCE?

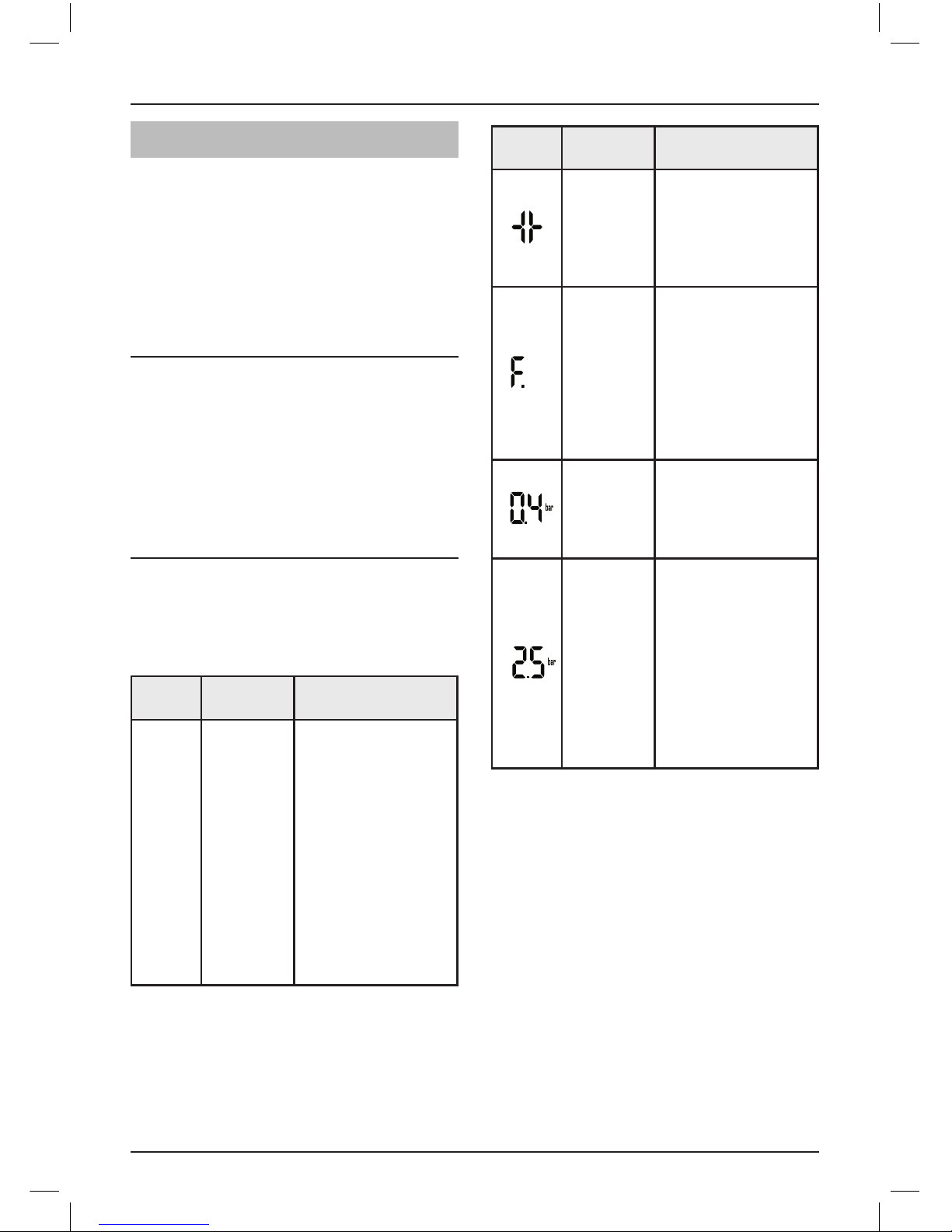

9 Fault Finding ......................................................................................... 12
10 Appliance safety devices........................................................................ 13
10.1 Boiler Shutdown ...........................................................................13
10.2 Protecting against frost .................................................................13
10.3 Condensate Drain Blockage ...........................................................13
10.4 Safety Discharge Valve ..................................................................13
11 Appliance maintenance and servicing ..................................................... 14
11.1 Cleaning ......................................................................................14
11.2 Regular servicing ..........................................................................14
11.3 Spare Parts ..................................................................................14
11.4 Sealed Water Systems ..................................................................14
12 Tips for saving energy ............................................................................15
13 Contact your after-sales organisation .....................................................15
TABLE OF CONTENTS

0020145066_01 - 02/12 - Glow-worm - 3 -
READ CAREFULLY BEFORE USING
READ CAREFULLY BEFORE USING
1 Read me
1.1 Welcome
These instructions are an integral part of
the boiler and must, to comply with the
current issue of the Gas Safety (Installation
and Use) Regulations, be left with the user.
Please ensure that the installer has fully
completed the Benchmark Checklist in the
centre pages of the installation instructions
supplied with the product and that you
have signed it to say that you have received
a full and clear explanation of its operation.
The installer is legally required to complete
a commissioning checklist as a means of
complying with the appropriate Building
Regulations (England and Wales).
All installations must be notied to Local
Area Building Control either directly or
through a Competent Persons Scheme. A
Building Regulations Compliance Certicate
will then be issued to the customer who
should, on receipt, write the Notication
Number on the Benchmark Checklist.
• Please read these instructions and
follow them carefully for the safe and
economical use of your boiler.
i IMPORTANT:
Donotforgettoreadthechapters
“Safety”and“Guarantee”where
youwillndimportantinformation
foryoursafety.
1.2 Guarantee Pack
The pack contains the letter of introduction
and the guarantee. The extended guarantee
is supplied loose and we recommend that
you should read it.
• Complete and return as soon as possible
your guarantee registration card.
If your guarantee registration card is
missing you can obtain a copy or record
your registration by telephoning
the Glow-worm Customer Service number
0800 073 2142.
1.3 Servicing
This product should be serviced regularly
to optimise its safety, eciency and
performance. The service engineer should
complete the relevant Service Record on
the Benchmark Checklist after each service.
The Benchmark Checklist may be required
in the event of any warranty work and as
supporting documentation relating to home
improvements in the optional documents
section of the Home Information Pack.
To ensure the continued ecient and safe
operation of the boiler it is recommended
that it is checked and serviced at regular
intervals. The frequency of servicing will
depend upon the site conditions and
usage, but in general, once a year should
be enough.
• To obtain service, please call your
installer or Glow-worm’s own service
organisation.
1.4 Benchmark
Glow-worm is a licensed member of
the Benchmark Scheme which aims to
improve the standards of installation and
commissioning of domestic heating and hot
water systems in the UK and to encourage
regular servicing to optimise safety,
eciency and performance.
Benchmark is managed and promoted by
the Heating and Hotwater Industry Council.
• For more information visit
www.centralheating.co.uk

0020145066_01 - 02/12 - Glow-worm
- 4 -
READ CAREFULLY BEFORE USING
1.5 Quick reference guide
We designed this Quick reference guide
so that you can start using your appliance
right away.
This Quick reference guide assumes that
the appliance have been installed and
commissioned by a competent person.
NOTES: If the central heating (C.H.)
pressure falls below 0.4bar the display
will ash the current pressure and the
boiler will not operate, refer to fault nding
section.
If fault persists contact your Installation/
Servicing company or Glow-worm Service.
2 Introducing your appliance
2.1 Appliance description
The Betacom2 range of boilers are
designed for use as part of a sealed water
central heating system with fully pumped
circulation. The pump, expansion vessel
and associated safety devices are all tted
within the boiler.
The domestic hot water is delivered directly
to the tap without the need for storage.
Intelligent controls are available as
accessories from Glow-worm.
Contact your Installer or Glow-worm sales
for further information.
The Betacom2 boiler is an appliance
that uses condensing technology, which
recovers heat from the ue gases, this
operating principle, consumes less energy
and contributes to the reduction of your
household CO2 emissions.
This appliance is a room-sealed type
equipped with a ue system for air supply
and the removal of combustion products.
This ue system oers the possibility to
install the appliance in any room without
the need for additional ventilation.
Installation and commissioning of the
appliance should only be carried out by a
competent person. They are responsible for
the installation and the commissioning in
accordance with standards in force.
You should also consult a competent
person for maintenance and repair of the
appliance as well as for any adjustment
necessary.
2.2 Accessories
The Betacom2 is compatible with most
makes of programmable room thermostats.
The boiler can supply either 230V or 24V
depending on the type.
For increased system compatibility and
increased energy saving with intelligent
control Glow-worm oer a range of
controls dedicated to work using a unique
communication system - eBus.
• For further details please contact your
installer.
3 Product documentation
3.1 Document storage
• Make sure that this manual is stored
close to your appliance for future
reference. Should you move home
ensure that this manual is handed over
to the new home owners.
• Read these instructions and follow them
carefully for the safe and ecient use of
your appliance.
No responsibility or liability can be
accepted for damages caused by failure to
follow the instructions in this manual.

0020145066_01 - 02/12 - Glow-worm - 5 -
READ CAREFULLY BEFORE USING
3.2 Explanation of symbols
a DANGER:
Riskofinjuries.
b ATTENTION:
Riskofdamagetotheapplianceor
toitssurroundings.
i IMPORTANT:
Importantinformation.
4 Safety
4.1 What to do if you smell gas?
- isolate your gas supply at the gas
emergency control valve.
- Eliminate all sources of ignition, i.e.
smoking, blowlamps, hot air guns etc.
- do not operate electrical lights or
switches, either on or o. Open all doors
and windows, ventilate the area.
- open immediately windows and doors in
order to ventilate the property.
- do not search for gas leaks with a naked
ame.
- call the gas suppliers emergency phone
number: 0800 111 999
- alert other building occupants.
4.2 Safety recommendations
You must comply with the following
recommendations and safety instructions:
• Never perform any maintenance or repair
of the appliance yourself.
Only competent persons are allowed to
work on the appliance.
• Never tamper with safety devices.
• Do not attempt to modify the appliance
or its immediate surroundings as
this may aect on the safe use of the
appliance.
• Under no circumstances must the user
interfere with or adjust sealed parts.
• Do not allow children to operate the
appliance.
• Do not obstruct the ue system
Certain home improvements may adversely
aect the operation of your appliance – you
should consult your installer for advice
before carrying out any work.
• Do not expose the appliance to high
humidity.
• Do not use or store explosive or
inammable materials (e.g. petrol,
aerosols, solvents, chlorine based
detergents, paint, glue etc.) in the same
room as the appliance. Under certain
conditions, these substances can prove
to be corrosive.
• Do not touch the heated surfaces of the
appliance, such as outlet duct, hydraulic
connections, also after the appliance
operation because, for a certain time,
these surfaces may become hot. Any
contact with them can cause burns.
• The hot water delivered by the appliance
can be very hot. The appliance hot
water temperature can be adjustable to
suit your specic needs as part of the
commissioning. Particular care must
be taken should the system be used by
young children, the very old and those
with sensory loss. In these instances
lower distribution temperatures should
be used or the system protected by a
tempering valve.

0020145066_01 - 02/12 - Glow-worm
- 6 -
READ CAREFULLY BEFORE USING
This appliance contains metal parts
(components) and care should be taken
when handling and cleaning, with
particular regard to edges.
• In the case of any water leak,
immediately turn o the cold water
supply to the appliance and have the
leak repaired by your competent person.
• Do not store or place articles on the
appliance.
4.3 Safety regulations
Servicing/maintenance should be carried
out by a competent person approved at the
time by the Health and Safety Executive,
in accordance with the rules in force in the
countries of destination.
If this boiler is installed in a rented property
in the UK there is a duty of care imposed
on the owner of the property by the current
issue of the Gas Safety (Installation and Use)
Regulations, Section 35.
GasSafety(InstallationandUse)
Regulations
In your own interests and that of safety, it is
the Law that ALL gas appliances have been
installed by a competent person approved
at the time by the Health and Safety
Executive, in accordance with the current
issue of these regulations.
GasCategory
This boiler is for use only on G20 natural
gas but can be converted for use on G31
propane.
ElectricalConnection
The boiler MUST be earthed.
The boiler MUST be connected to a
permanent 230V ac, 50Hz supply, fused at
3A.
Connection of the whole electrical system
of the boiler, including any heating
controls, to the electrical supply must be
through one common isolator.
The colours of three core exible cable
are, blue - neutral, brown - live, green and
yellow - earth.
TestingandCertication
This boiler is certicated to the current
issue of EN 483 for performance and safety.
It is important that no alteration is made to
the boiler unless approved, in writing, by
Glow-worm.
Any alteration not approved by Glow-worm,
could invalidate the certication, boiler
warranty and may also infringe the current
issue of the statutory requirements.
CEMark
This boiler meets the requirements of
Statutory Instrument, No.3083 of the Boiler
(Eciency Regulations, and therefore
is deemed to meet the requirements of
Directive 92/42/EEC on the eciency
requirements for new hot water boilers re
with liquid or gaseous fuels.
Type test for purposes of Regulation 5
certied by: Notied body 1312.
Product/production certied by: Notied
body 0086.
The CE mark on this appliance shows
compliance with:
- Directive 2009/142 EEC on the
approximation of the laws of the Member
States relating to appliances burning
gaseous fuels.
- Directive 2006/95/EEC on the
harmonisation of the Laws of the
Member States relating to electrical

0020145066_01 - 02/12 - Glow-worm - 7 -
READ CAREFULLY BEFORE USING
equipment designed for use within
certain voltage limits.
- Directive 2004/108/EEC on the
approximation of the Laws of
the Member States relating to
electromagnetic compatibility.
The CE mark shows that this
appliance has been designed
according to the safety
techniques and rules in force.
The compliance of this
appliance with the relevant
standards has been certied.
5 Guarantee / Responsibility
5.1 Detailed guarantee
Thank you for installing a new Glow-worm
appliance in your home.
Glow-worm appliances are manufactured to
the very highest standard so we are pleased
to oer our customers a Comprehensive 24
month Guarantee.
5.2 Appliance use / manufacturer
responsibility
Maintenance should be carried out by a
competent person approved at the time
by the Health and Safety Executive, in
accordance with the rules in force in the
countries of destination.
b ATTENTION:
Theguaranteeisapplicableonthe
conditionthat:
- The appliance is installed by a
competent person in accordance with
installation instructions.
- The appliance is used for normal
domestic purposes and in accordance
with the manufacturer’s operating and
maintenance instructions.
- The appliance is serviced, maintained,
by a competent person.
- The repair or replacement of parts during
the guarantee period does not have the
eect of extending the period.
b ATTENTION:
Themanufacturerhasno
responsibilitywhatsoeverforany
damageresultingfrom:
- Any defects or damage resulting
from incorrect or poor installation,
inadequate servicing, or maladjustment
of the gas or water used.
- Any defects in the system to which the
appliance is connected.
- Any defects caused by inadequate frost
protection.
- Any deterioration or maladjustment
following changes in the nature or
pressure of the gas or the water used,
or a change in the characteristics of the
electrical supply voltage.
• For further details, refer to your Terms
and Conditions.
a DANGER:
Thisapplianceisintendedto
beinstalledonlywithinthe
designatedcountriesdisplayedon
thetypeplate.
This appliance is not designed to be used
by persons (including children) with
physical, sensory or mental restrictions,
or a lack of experience or knowledge. To
ensure the safety of these persons, they
must seek help from and be guided by
persons who are competent to explain the
usage of this appliance.
• Make sure that children do not play with
this appliance.

0020145066_01 - 02/12 - Glow-worm
- 8 -
READ CAREFULLY BEFORE USING
6 Recycling
The packaging, the appliance and the
contents of the package should be recycled
in compliance with the regulations in force.
6.1 Appliance
Most of the appliance is made of recyclable
materials.
This symbol indicates that
this appliance must not be
disposed of with household
waste, that it should be
selectively collected for energy
recovery, reuse or recycling.
• Take the appliance to an appropriate
collection point.
6.2 Packaging
i IMPORTANT:
Therecyclingofthepackaging
mustbecarriedoutbythequalied
professionalwhoinstalledthe
appliance.
• Recycle the appliance packaging by
sorting the waste to separate those
which can be recycled (cartons,
plastics...) from those that cannot
(strapping ...).
7 Clearances
600*
min.
0
min.
0
min.
200
min.
150
min.
NOTE:
* A removable compartment door can
be placed a minimum 5 mm in front of
appliance. A clearance of 600 mm is
required from a xed surface.

0020145066_01 - 02/12 - Glow-worm - 9 -
HOW TO USE YOUR APPLIANCE
HOW TO USE YOUR APPLIANCE
8 Overview
8.1 Fascia
12 3
5
4
Key
1 Anolouge clock
2 Reset button
3 Mode selection button
4 Temperature adjustment
5 Display
8.2 Display
6
5
4
2
1
3
Key
1 Heating
2 OFF
3 Domestic hot water
4 DHW/CH water temperature/CH pressure
5 Symbol indicates temperature or pressure
6 Symbol indicates burner ON

0020145066_01 - 02/12 - Glow-worm
- 10 -
HOW TO USE YOUR APPLIANCE
8.3 Switching On
Check that all isolating valves and the gas
service cock on the appliance are open and
that water ows from the hot water taps,
close the taps.
a DANGER:
Donotoperatetheboilerwithout
water.
• Make sure that:
- The appliance has electrical power,
- The gas service cock is open
- The mains water supply is turned on
- Check that the clock/external controls
are calling for heat.
a DANGER:
Ifyouareinanydoubtabout
theboilerbeinglledwithwater
contactyourinstallerorGlow-
worm'sownserviceorganisation
usingthetelephonenumber
showninthechapter"Contact
yourafter-salesorganisation".
The control-panel display switches on. After
an initiation cycle that lasts a few seconds,
the appliance is ready to function.
8.4 Turning o
• Switch the power supply o to your
appliance.
The appliance is no longer powered and the
display switches o.
a DANGER:
Ifyouintendtoleaveyourproperty
emptyforaprolongedperiod,
pleaserefertotheAppliance
SafetyDevicessection.
8.5 User Controls
8.5.1 Selection of operating mode(s)
To change the operating mode:
• Select the function mode by pressing
.
Pictogram mode
Heating + domestic hot
water
Heating only
Domestic hot water only
i IMPORTANT:
Whenneitherofthe2pictograms
isdisplayed,theboilerisinfrost-
protectionmode.
8.5.2 Adjusting the domestic hot water
temperature
• Press the buttons or of the
function to adjust the temperature of
domestic hot water.
Temperature of the water °C
Minimum 38
Maximum 60
NOTE: If a Glow-worm outdoor sensor or
Glow-worm intelligent controls are tted,
the temperature of the water in the heating
circuit is calculated by the boiler. It is
neither necessary nor possible to adjust it
manually.
8.6 TIMER
8.6.1 Setting the time
• Refer to diagram below.
• Rotate the minute hand (2) clockwise
on the 24 hour clock dial (1) until the

0020145066_01 - 02/12 - Glow-worm - 11 -
HOW TO USE YOUR APPLIANCE
triangle (6) lines up with the current
time.
8.6.2 Setting the programme “ON and
OFF” times.
• Refer to diagram below.
• Select the ON times by pushing the black
tappets to the outside (4).
• Select the OFF times by pushing the
black tappets to the inside (3).
• Position the selector switch (5) to the
middle position .
The heating will now operate your chosen
programme.
8.6.3 To override the timer.
• Move the selector switch (5) to the I
position and the heating will operate
continuously.
• Move the selector switch (5) to the 0
position to switch the heating OFF.
1
2
3
4
5
6
Key
1 24 hour clock dial
2 Minute hand
3 O tappets to the inside
4 On tappets to the outside
5 Selector switch
6 Triangle

0020145066_01 - 02/12 - Glow-worm
- 12 -
ANY ASSISTANCE ?
ANY ASSISTANCE?
9 Fault Finding
In this section fault codes that are
displayed, which CAN be carried out by
the USER to restore appliance operation
(Corrective action: ...). Other fault codes
MUST be solved by a competent person
only.
i IMPORTANT:
Likeallcondensingboilersitwill
produceaplumeofcondensation
fromtheueterminalincool
weather.
Thisisduetothehigheciency
andhencelowuegas
temperatureoftheboiler.Itis
normalandnotafaultindication.
• If after carrying out this basic advice and
your appliance still does not work, leave
it turned o and contact your competent
person.
Fault
code
Possible
causes
Solution
The
boiler
stops
working
Electrical
circuit
interrupted
Check that there is
no power cut and
that the appliance is
correctly connected.
When electrical
power comes back
on, the appliance
automatically
comes back into
service. If the fault
persists, contact your
Installation/Servicing
company or Glow-
worm Service.
Fault
code
Possible
causes
Solution
Reset
Press the reset
button, then wait 5
secs. Should a fault
be indicated, a further
2 more attempts can
be made.
xx Fault
A fault is indicated by
a ashing, alternating
'F' and number. If the
fault persists after
3 reset attempts,
contact your
Installation/Servicing
company or Glow-
worm Service.
Lack of
water
in the
installation
(< 0.5 bars)
Contact your
Installation/Servicing
company or Glow-
worm Service, to have
your system checked.
Excess
water
in the
installation
With central heating
o, open the vent
(bleed screw) on
a radiator to allow
water to escape and
reduce the pressure
in the heating circuit,
or contact your
Installation/Servicing
company or Glow-
worm Service.

0020145066_01 - 02/12 - Glow-worm - 13 -
ANY ASSISTANCE ?
10 Appliance safety devices
10.1 Boiler Shutdown
The boiler software is designed to
recognise the potential for an overheat
lockout and will shutdown before this
happens.
• To restart the boiler, press the reset
button, see chapter «Quick reference
guide».
If the boiler fails to resume normal
operation and all external controls are
calling for heat, then call your Installation/
Servicing company or Glow-worm service.
10.2 Protecting against frost
10.2.1 Appliance Protecion
In case of the risk of frost:
• Make sure that the electrical and gas
supply to the appliance is turned on.
• The frost-protection system starts the
appliance’s pump when the temperature
in the heating circuit goes below 12°C.
The pump stops when the temperature of
the water in the heating circuit reaches
15°C. If the temperature in the heating
circuit goes below 7°C, the burner is lit
until the temperature reaches 35°C.
If the boiler is in «Domestic Hot Water»
mode only, the frost-protection system is
also active.
10.2.2 System Protection
The boiler alone cannot ensure that the
installation is protected against frost.
NOTE: Any other exposed areas of the
system should be protected by a separate
frost thermostat.
In case of prolonged absence, where power
to the dwelling and the boiler is switched
o, contact your Installation/Servicing
company or Glow-worm Service to have the
installation drained or to have the heating
circuit protected by adding an anti-freeze
specially designed for heating systems.
b CAUTION:
Yourdomesticwatercircuit(hotand
cold)isnotprotectedbytheboiler.
10.3 Condensate Drain Blockage
As a safety feature the boiler will stop
working if the condensate drain becomes
blocked. During freezing conditions this
may be due to the forming of ice in the
condense drain external to the house or in
an unheated area such as a cellar or loft.
• Release an ice blockage by the use of
warm cloths on the pipe.
b Warningnote:
Donotuseboilingwater.
The boiler should then restart.
• Contact your Installation/Servicing
company or Glow-worm service if the
fault persists.
10.4 Safety Discharge Valve
The safety discharge valve and discharge
pipe is tted to the boiler.
• If there is any discharge from the pipe,
switch o the boiler electrical supply,
then call your Installation/Servicing
company or Glow-worm service.

0020145066_01 - 02/12 - Glow-worm
- 14 -
ANY ASSISTANCE ?
11 Appliance maintenance and
servicing
11.1 Cleaning
a DANGER:
Beforecleaningturntheappliance
o.
The appliance casing can be cleaned using
a mild liquid detergent with a damp cloth,
then a dry cloth to polish.
i IMPORTANT:
Donotuseanyformofabrasive
orsolventcleanerasyoumay
damagethepaintwork.
11.2 Regular servicing
Regular servicing of the appliance is
important to the prolonged, safe and
ecient use of your appliance.
a DANGER:
Incorrectorinadequateservicing
canseverelyaectthesafetyofthe
applianceandcanleadtoinjury.
We recommend that your appliance is
serviced every year.
• Only use a competent person.
The service engineer should complete
the relevant Service Record on the
Benchmark Checklist after each service.
The Benchmark Checklist may be required
in the event of any warranty work and as
supporting documentation relating to home
improvements in the optional documents
section of the Home Information Pack.
To obtain service, please call your installer
or Glow-worm’s own service organisation.
11.3 Spare Parts
In order to guarantee the safe and
prolonged life of the product, insist that
only the manufacturer’s genuine spare
parts are used.
• Do not use reconditioned or copy parts
that have not been clearly authorised by
Glow-worm.
• If replacement parts are required contact
Glow-worm’s own service organisation
for advice using the telephone number
below.
Tel: [phone]
or for approved stockist, visit www.glow-
worm.co.uk.
• Please quote the name and model of the
boiler.
The name and model badge is on the front
case.
• If in doubt seek advice from the local
gas company or Glow-worm’s own
service organisation using the telephone
number below.
Tel: [phone]
11.4 Sealed Water Systems
The draining, relling and pressurising
MUST be carried out by a competent person
approved at the time by the Health and
Safety Executive.
• Contact Glow-worm’s own service
organisation using the telephone
number below.
Tel: [phone]

0020145066_01 - 02/12 - Glow-worm - 15 -
ANY ASSISTANCE ?
12 Tips for saving energy
Your installer will be able to give energy
saving advice about your system and its
controls.
For energy saving advice you can contact
the Energy Savings Trust for advice or
visit www.energysaving trust.org.uk who
oer simple eective advice about saving
energy.
Regular servicing of your boiler will help
maintain its eciency - servicing once a
year is recommended.
Turn your thermostat down. Reducing your
room temperature by 1°C could cut your
heating bills by up to 10 percent. Set your
heating and hot water at the time controller
to come on only when required rather than
all the time.
13 Contact your after-sales
organisation
Customerservicecall
Tel: [phone]
Technicalhelpline
Tel: [phone]

0020145066_01 - 02/12 Subject to engineering changes
GLOW-WORM
Nottingham Road,
Belper, Derbyshire.
DE56 1JT
Because of our constant endeavour for
improvement, details may vary slightly
from those shown in these instructions.
www.glow-worm.co.uk
GLOW-WORM
Nottingham Road,
Belper, Derbyshire.
DE56 1JT
Because of our constant endeavour for
improvement, details may vary slightly
from those shown in these instructions.
www.glow-worm.co.uk
