GNC P530 Guide

1
P530 PUMP
Operations and Parts Manual
(P10W)
GNC Industries, Inc., 1401 Pace Rd., Pocahontas, AR 72455
1-870-248-9901
Fax: [phone] Email: [e-mail]
Website: www.gncindustries.com
Specifications
Maximum Flow…………………………………………………… 10 GPM
Maximum Pressure…………………………………………….. 600 PSI
Maximum RPM…………………………………………………. 800 RPM
Maximum Temperature…………………………………………. 140 F
Inlet Port…………………………………………………………………...1”
Outlet Port (Pressure)………………………………………………..3/8”
Outlet Port (Regulator Return Line)…………………….……...3/4”
Shaft Size……………………………………………….………………24mm
Dimensions:
Tall/Compact Mounted:………..…….19”H x 12”W x 15”L
Low Mounted…………………………... 14”H x 12”W x 15”L
Weight………………………………………….…………………….. 35 Lbs.

WARRANTY
GNC Industries, Inc., P-Series Pumps are warranted by GNC Indus-
tries, Inc. GNC Industries, Inc. will repair or replace (at GNC In-
dustries, Inc.’s option) any part or assembly, free of charge, if that
part or assembly fails within twelve months (1 year) from the
date of purchase, provided the failure is due to an unmistakable de-
fect in material or workmanship.
No allowance will be made for consequential damage, labor or ex-
penses incurred as the results of a proven defect. In no event will
GNC Industries, Inc. be liable for any loss of profits or other conse-
quential damages, even if GNC Industries, Inc. has been advised of
the possibility of such damages.
GNC Industries, Inc. assumes no responsibility for accidents or inju-
ries resulting from maintenance or adjustment of product while prod-
uct is in operation.
Since GNC Industries, Inc. has no control over the operational tech-
niques or chemicals used, GNC Industries, Inc. assumes no liability for
the consequences of the use or misuse of any equipment by the pur-
chaser, their employees or others.
Maximum operation speed and pressure is specified in individual and
applicable instructions.
GNC Industries, Inc. reserves the right to improve any product with-
out being obligated to provide that change on equipment sold and/or
shipped prior to the product change.
Modification of equipment voids all warranties written or implied.

3
 Warning:
1. Never point the spray gun at people or animals.
2. The pump will produce high temperatures when operating.
3. Keep hands and clothing clear of the belts and pulleys when operating the
pump.
 Before Use/Start Up:
1. Check every fastener, including all hose clamps, to make sure that the spray-
er and the engine are installed firmly to the frame.
2. Align the pump and engine pulleys in a straight line and tighten the belts ap-
propriately.
3. Check engine (see engine manual) and pump oil (non-detergent). Fill as
needed to recommended levels. DO NOT OVER FILL!
4. Check engine fuel. Fill as needed, with engine manufacture recommended
fuel.
5. Attached the spray gun to the spray hose and tighten all clamps.
6. Set the pump pressure regulator to “Pressure Release” and make sure the
pressure regulator knob is set to “Start”.
7. Check the on/off switches of engine.
8. Start engine.
9. Set the pump pressure regulator to “Spraying”.
10.Adjust the pressure by turning the adjustable pressure regulator valve clock-
wise.
 During Use:
1. Make sure the pump has sufficient liquid supply to allow the pump to reach
its working pressure.
2. To prolong the life of the pump, always operate the machine within its speci-
fied pressure limits. Adjust the pressure by turning the adjustable regulator
knob clockwise.
3. In order to avoid any damage to the packing and the pump, shut off the en-
gine or motor when temporarily stopping the unit for more than 5 minutes.
4. Avoid running the pump without liquid.

Page 3
 After Each Use:
1. Set the pressure regulator switch to “Pressure Release”, and run the pump
with clean water to prolong the life of the pump.
2. Set the pressure regulating knob to “START” when the pump is not in use.
 Maintenance:
1. Change the oil in the pump after the first 10-15 hours of use. After this,
change the oil in the pump after every 70 hours of use. NOTE: Always make
sure the oil is clean and visible thru the oil sight gauge Ref#11A before
operating.
2. Change or replace components, based on the symptoms as listed in the
trouble shooting section.
 How to Change Oil:
1. Remove Ref # 12A Drain Plug. Allow the oil and any sludge to drain from
the crankcase into an EPA approved collection device.
2. Replace Ref # 12A Drain Plug once the crankcase has been drained.
3. Remove Ref # 7A Oil Fill Cap and fill crankcase with NON Detergent oil (see
chart) until the oil level reaches the center mark in Ref # 11A Oil Window.
4. Once filled, replaced Ref # 7A Oil Fill Cap.
Specifications
Maximum Flow…………………………………………………… 10 GPM
Maximum Pressure…………………………………………….. 600 PSI
Maximum RPM…………………………………………………. 800 RPM
Maximum Temperature…………………………………………. 140 F
Inlet Port…………………………………………………………………...1”
Outlet Port (Pressure)………………………………………………..3/8”
Outlet Port (Regulator Return Line)…………………….……...3/4”
Shaft Size……………………………………………….………………24mm
Dimensions:
Tall/Compact Mounted:………..…….19”H x 12”W x 15”L
Low Mounted…………………………... 14”H x 12”W x 15”L
Weight………………………………………….…………………….. 35 Lbs.
Engine Oil
Recommendations
Pump Oil
Non-Detergent
SAE30 Weight
NOTE: Not following proper procedures as listed in the detailed product manual may void
all warranties

5

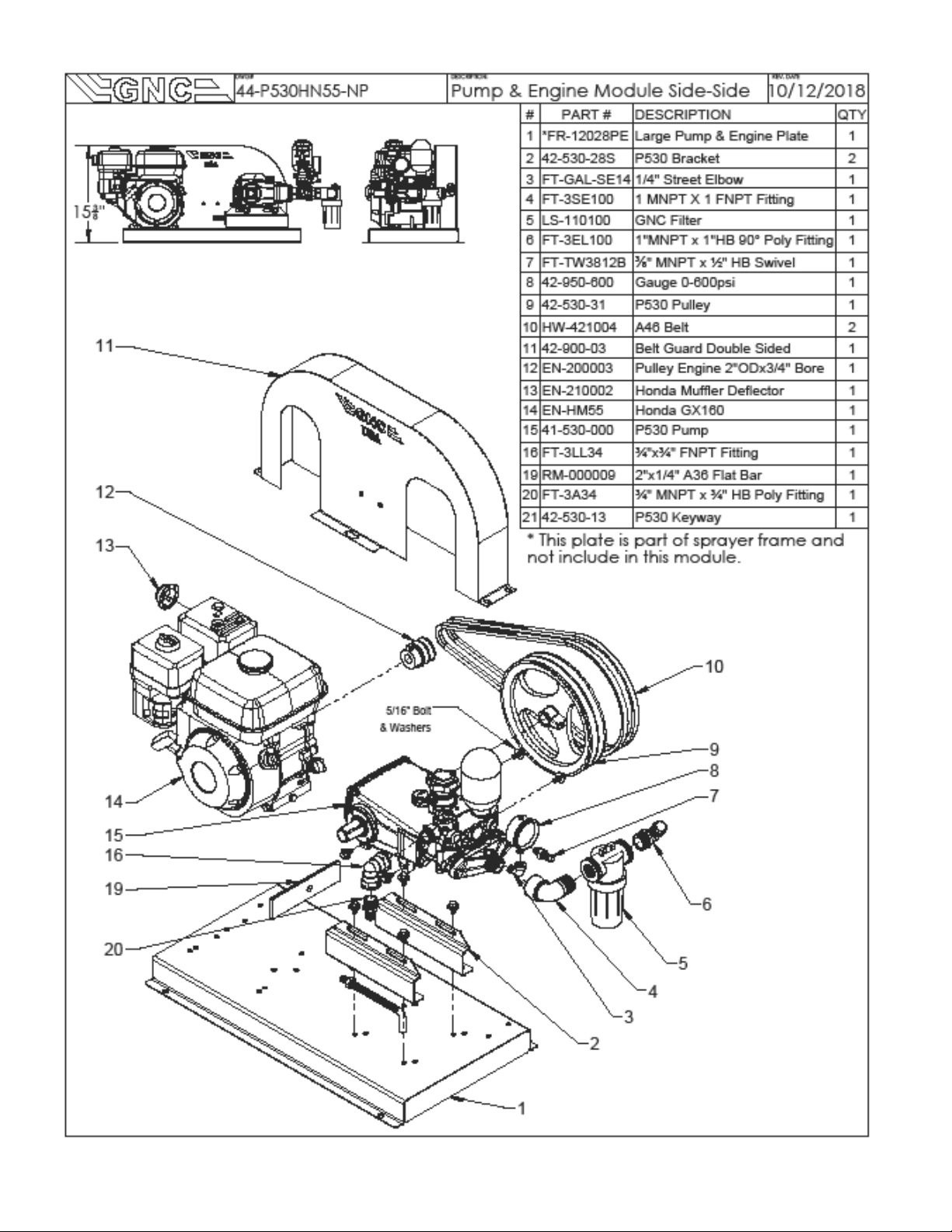

7

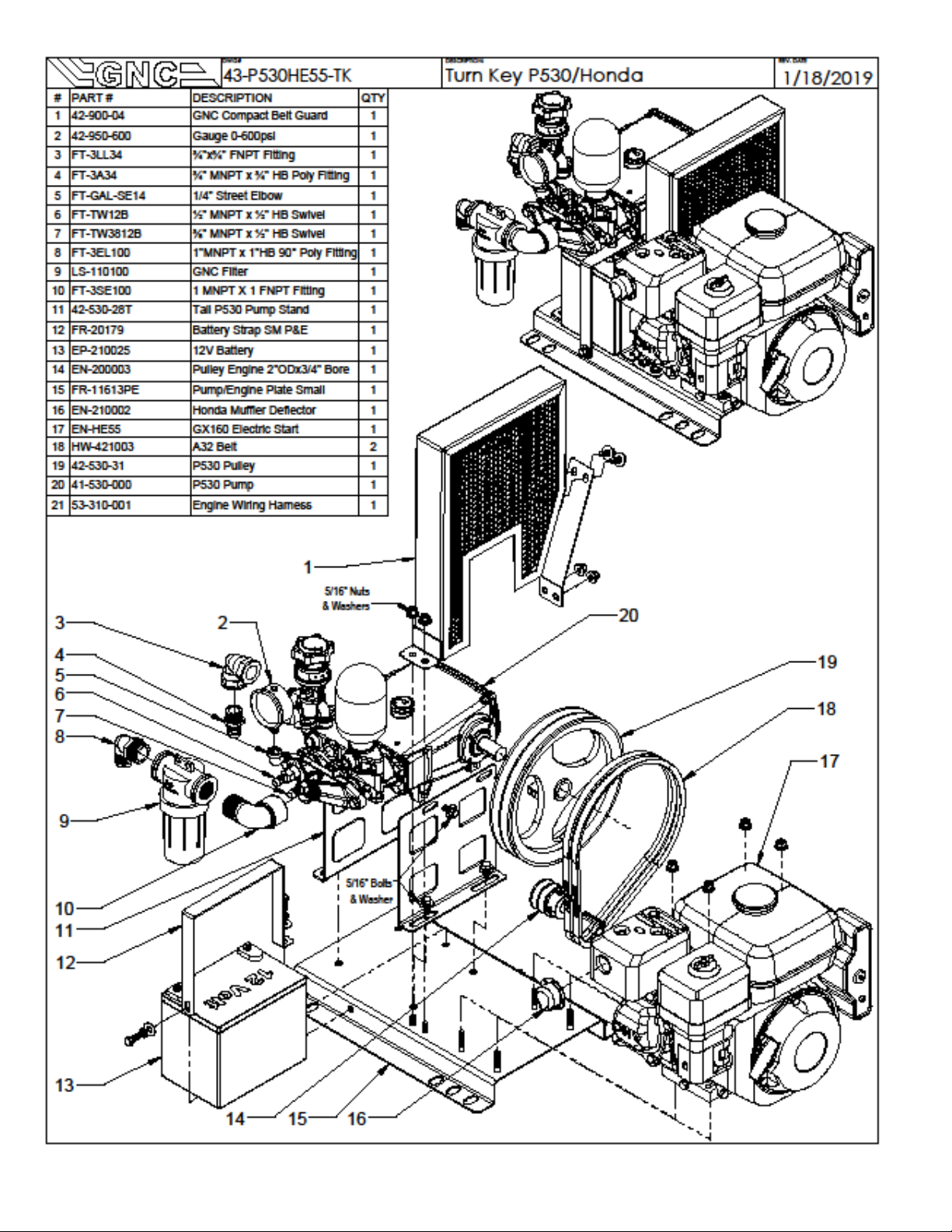

9
REF # PART # DESCRIPTION
1A 42-530-01 Crank Case w/Set Pin & Plate
2 42-530-02 Piston Oil Seal
5 42-530-05 Screw
6 42-530-06 Crankshaft Oil Seal Cover
7A 42-530-07 Oil Inlet Cover Assy.
8 42-530-08 Rear Cover Packing
9 42-530-09 Crankshaft Rear Cover
10 42.530.10 Screw
11A 42-530-11 Oil Window Assy.
12A 42-530-12 Drainage Screw Assy.
13 42-530-13 Crankshaft Key
14 42-530-14 Crankshaft
15A 42-530-15 Connecting Rod Assy.
16 42-530-16 Bearing
17 42-530-17 Crankshaft Oil Seal
18 42-530-18 Crankshaft Oil Seal Cover
19A 42-530-19 Piston Assy.
26 42-530-26 Piston Pin
28* 42-530-28S Crankcase Stand (Short)
28* 42-530-28T Crankcase Stand (Tall)
29A 42-530-29 Set Bolt w/Washer
31A 42-530-31 Pulley & Bolt
40 42-530-40 Cylinder
41A 42-530-41 Set Bolt w/Washer
42A 42-530-42 Double-End Screw w/Nut
&Spring Washer
45K ▲■ Waterproof Packing Assy. ▲■
45K ▲■ U-Packing ▲■
45K ▲■ O-Ring ▲■
REF # PART # DESCRIPTION
45K ▲■ U-Packing Plate ▲■
45K ▲■ U-Packing ▲■
51A 42-530-51 Suction Chamber w/
Connector
53A 42-530-53 Set Bolt w/Washer
54A 42-530-54 ● ■Valve Assy.-Sold ONLY In Kit
60A 42-530-60 Connecting Hose w/O-Ring
65 42-530-65 Outlet Chamber
70 42-530-70 Plug
74 42-530-74 Air Chamber—O-Ring
75 42-530-75 Air Chamber / Surge Tank
200 43-530-200 Complete Regulator
Pump Kits
43-530-200 P530 Regulator Assembly Ref # 200
43-530-325▲Pump Packing Rebuild Kit Includes Ref # 45—49N
43-530-335 Pump Cylinder Assembly Ref # 40, 45-49N & 60A
43-530-350 ● Pump Valve Kit Includes 6 of Ref # 54A
43-530-380 ■Pump Rebuild Kit Includes Kit 43.530.325 & 43.530.350
GNC Industries, Inc., 1401 Pace Rd.,
Pocahontas, AR 72455
1-870-248-9901
Fax: [phone] Email: [e-mail]
Website: www.gncindustries.com

Ref: 2, 3, 6, 7, 8, 11, 15,16
Ref: 1,2, 3, 4, 5, 6, 10,
11, 12, 13, 14, 15, 16

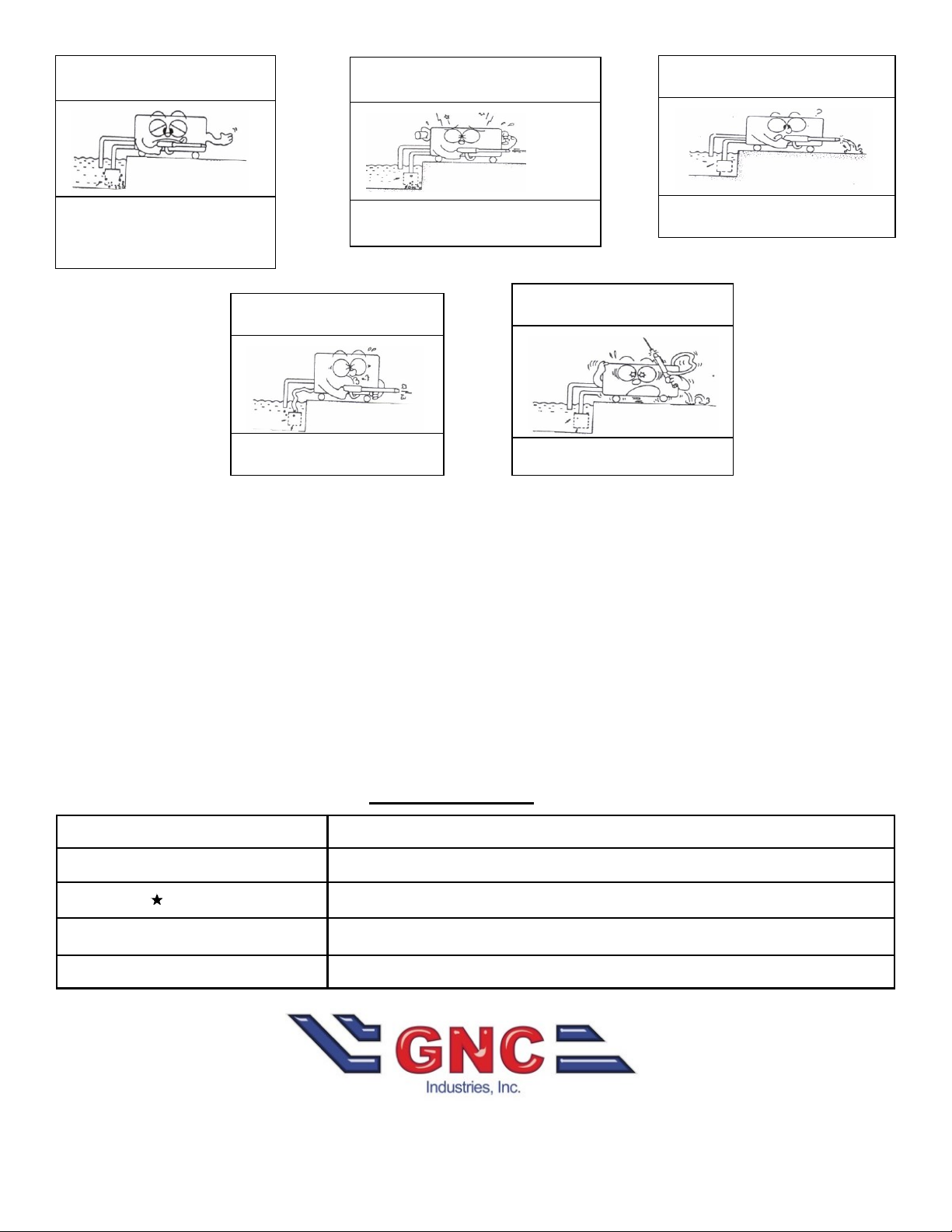

Abnormal Vibration
No Liquid at Spray Gun
Abnormal Pump Noise
Ref: 2, 11, 14, 15, 16
Ref: 2, 3, 7, 8, 11, 15, 16
Abnormal Suction
Low or Lost Pressure
Ref: 9
1. Spray gun tip too large or worn
2. Suction filter clogged
3. Loose suction line connection
4. Malfunctioning pressure gauge
5. Malfunctioning pressure regulator
6. Worn pump suction and discharge valves
7. Over speeding the pump
8. Suction line too small
9. Pulsation dampening chamber full of water
10.Worn pump valve chamber
11.Foreign object in suction line
12.Plunger packing worn
13.Pump drive belts loose
14.Pressure regulator by-pass valve open
15.Suction line valve closed
16.Drive pulley spinning on pump or engine shaft.
Replace drive key.
TROUBLESHOOTING REFERENCE
REPAIR KITS
43-530-200 P530 Regulator Assembly Ref # 200
43-530-325▲Pump Packing Rebuild Kit Includes Ref # 45—49N
43-530-335 Pump Cylinder Assembly Ref # 40, 45-49N & 60A
43-530-350 ● Pump Valve Kit Includes 6 of Ref # 54A
43-530-380 ■Pump Rebuild Kit Includes Kit 43.530.325 & 43.530.350
