GAMEMAKER TORCH
2. If accidentally left at the temperatures above, allow it to reach room temperature before inflating.
3. Do not drag your Gamemaker Torch on concrete, asphalt or gravel.
4. Battery and Charger not included. Please refer to the Battery purchasing card included with your
Gamemaker torch for purchase information.
5. Check bags and all pockets before assembling or ordering parts.
6. Save these instructions and your proof of purchase (receipt) in the event that the manufacturer has to be
contacted for replacement parts.
PLEASE READ AND FOLLOW THIS MANUAL IN ITS ENTIRETY BEFORE USE. DOING SO WILL PROVIDE
HELPFUL HINTS THAT WILL AID IN GETTING MAXIMUM USE OUT OF YOUR GAMEMAKER TORCH.
1. Do not store in temperatures below 32⁰ F. or above 100⁰ F. be aware of keeping your Gamemaker in
Trunk of cars or garages that could reach these temperatures.

2
PARTS LIST
Description
Part # Qty.
GM0001W - GAMEMAKER TORCH
4A-7990-00
4A-7991-00
4A-7992-00
8S-7704-00
2S-9256-00
4A-7894-00
4A-7994-00
3A-6067-00
3A-6068-01
4A-7995-00
3A-6068-00
2L-7589-00
2L-7590-00
4L-8224-00
TORCH BASE
TORCH LIGHT
TORCH BAG
“L” STAKES
“U” STAKES
SAND BAGS
BATTERY BAG
SMALL PUMP
NOZZLE
METAL RING ASSEMBLY
HOSE
MANUAL
INSTRUCTION CARD
BATTERY PURCHASING CARD
1
1
1
3
3
3
1
1
1
1
1
1
1
1
*Battery and Charger NOT INCLUDED.

STEP 1:
Transporting the Gamemaker
Torch onto a level surface.
Open the three legs into standing position.
STEP 2:
Pre-Inflation Position for
Gamemaker Torch.
3
INFLATING THE GAMEMAKER
After carrying (Do Not Drag) Gamemaker Torch bag
to desired location, place the bag on the ground
(Make sure not to place Torch on rocks, or other
rough surfaces). A quick setup guide can be found
connected to the inside of the Gamemaker bag top.
Please do not lose it. Unpack and separate all items
from the carry bag and unfold inflatable stanchion.
STEP 1:
STEP 2:
NEED TO UPDATE QUICK
SET UP GUIDE TO SHOW
RED LINE. AND ALSO USE
THE SAME PIC FOR THE
MANUAL.

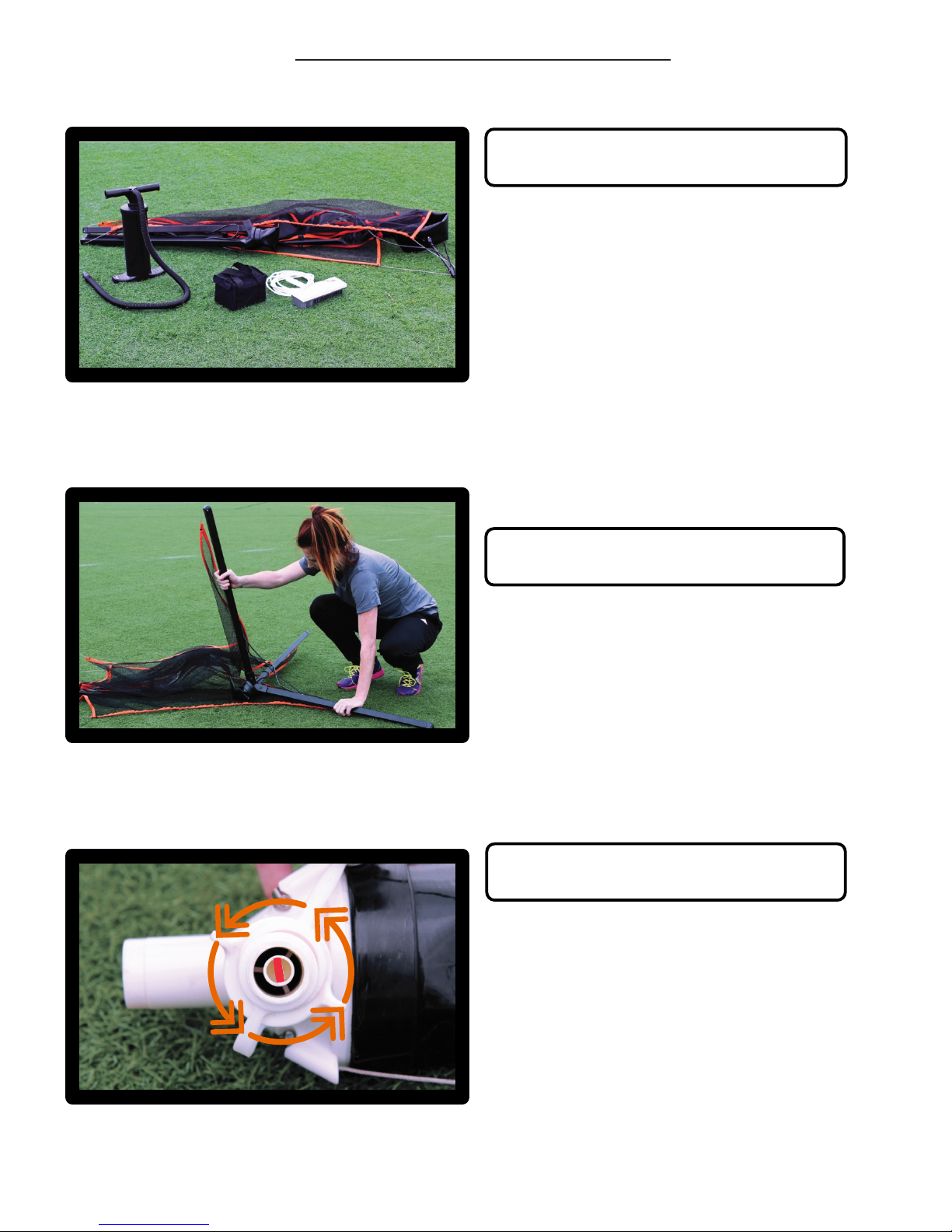

To inflate the Torch, first unscrew the cap located on the
valve see Picture on the Left. Then grab the inflation
valve (The piece with the stripe on the top) and red
push it inward. After doing this, it might be possible to
either twist it clockwise or counterclockwise. To inflate
the Torch, turn counterclockwise and then release. The
nozzle should spring outwards. It is now in the inflate
position. The valve will remain in this position until it is
time to deflate the Torch.
STEP 3:
Properly Setting the Valve
for Inflation.

STEP 4:
Properly Setting the Pump
for Inflation.

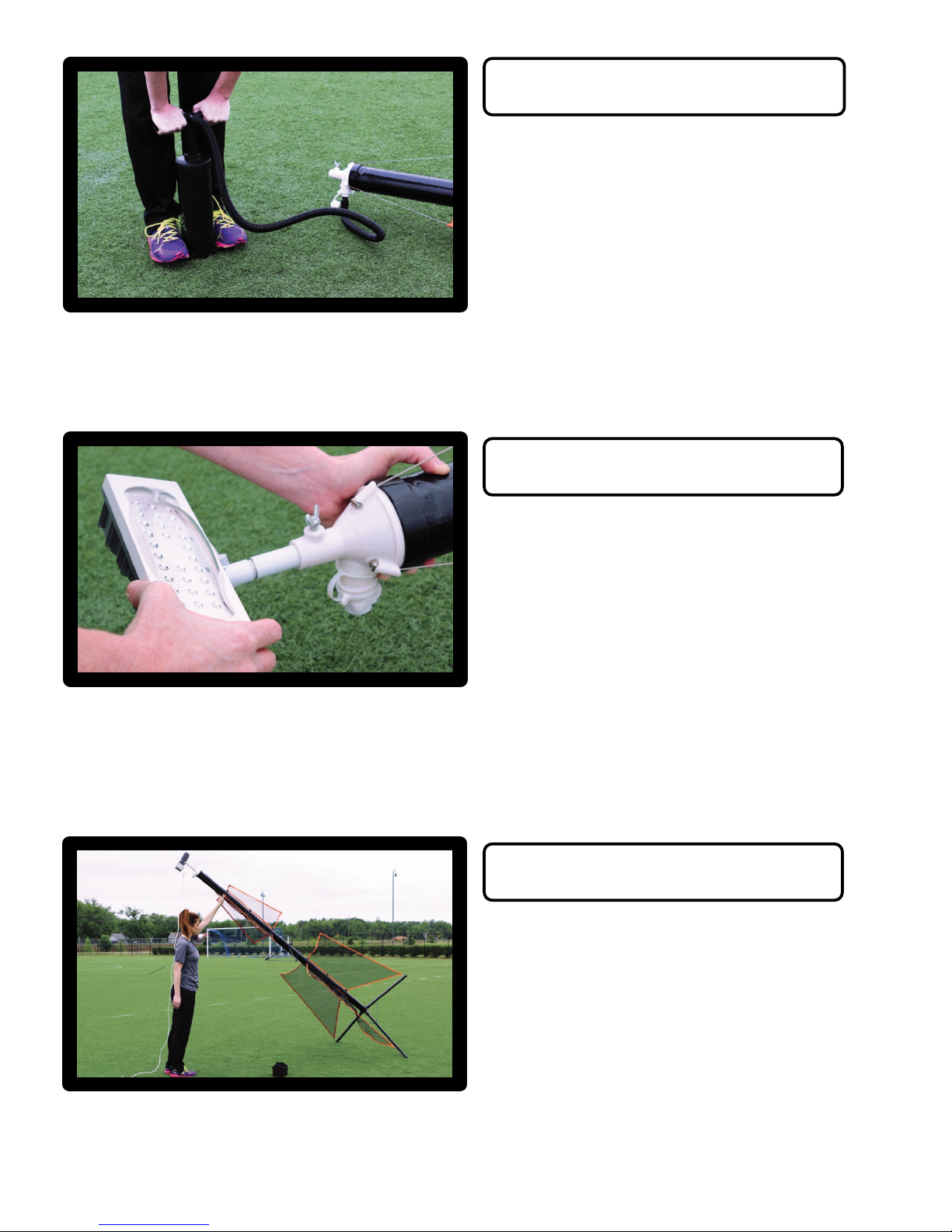

Attach light module to the top end of the structure
and fully tighten the butterfly bolt to ensure it is fully
secured.
STEP 5:
Attaching the Light.
4
Take the hose and place it into the INFLATE port on
the pump handle and push the other end into the
Torch valve opening. The top of the pump states
which side is for inflation and deflation. Once
inflated, screw the valve cap back on.
Note: The pump hose does not need to be
forcefully inserted into the opening, doing this
may damage your valve.
Stand the inflated stanchion as shown.
STEP 6:
Standing the Gamemaker
Torch.

STEP 7:
Place battery in battery bag.
Close and hang battery bag from hook located on
bottom of stanchion.
STEP 8:
Hang Battery.
Place the battery (Not Included) into the provided bag
and connect the battery cable through the hole in the
bag. Brown wire = Positive, Blue Wire = Negative.
5
TO DISASSEMBLE:
Reverse of previous steps using the DEFLATE option on
the pump to remove residual air. Remove the hose from
the valve, and set it back into the inflate position by
pushing in, twisting counterclockwise, and letting it pop
out. Fold the stanchion back into bag.
STORAGE:
The Torch is now ready to be stored in a temperature
controlled environment. Do not store in a garage or
car trunk as extreme temperatures, especially cold,
can be harmful to the Gamemaker Torch.
STEP 9:
Deflating and storage.

6

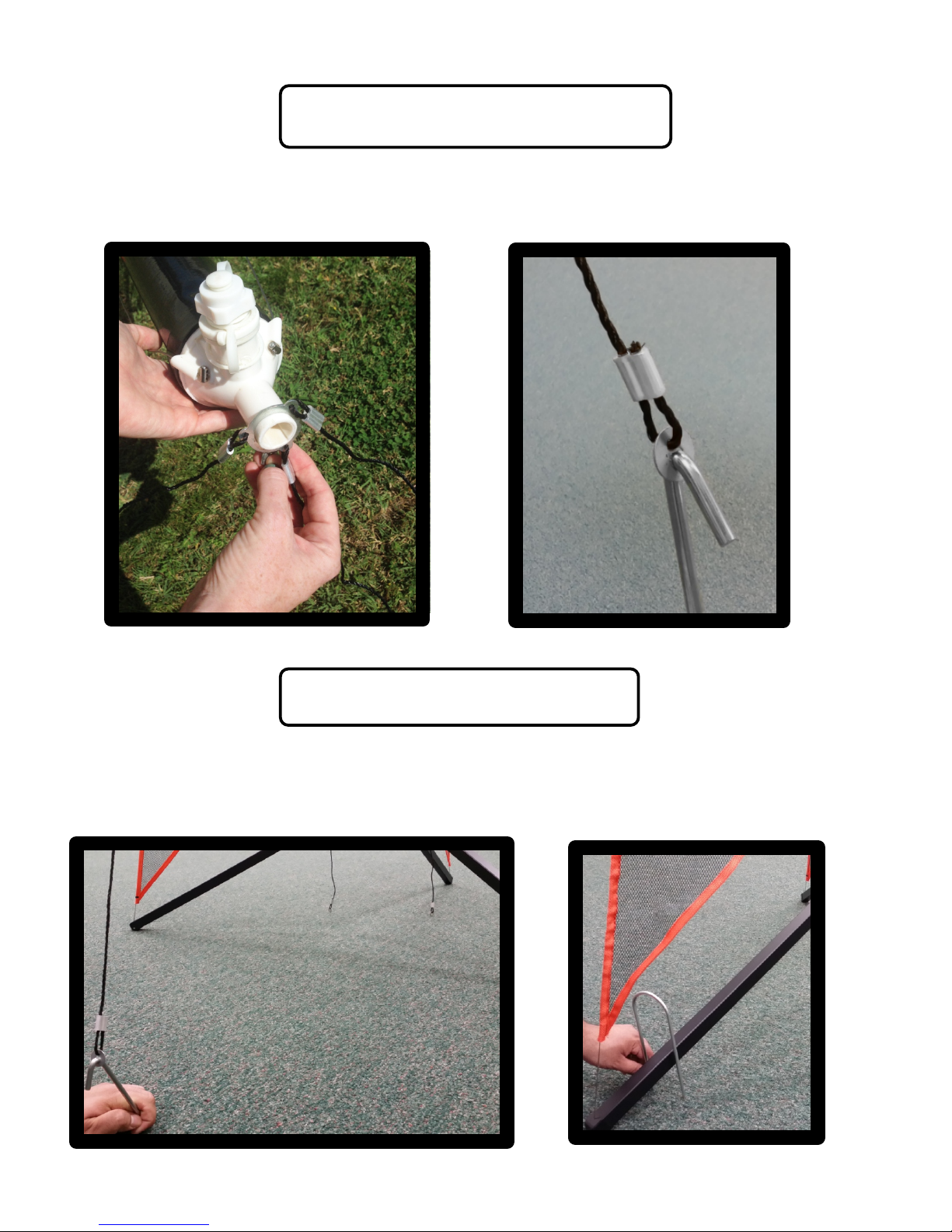

Secure the “L” stake into the ground and repeat for the other two “L” stakes, make sure that each string
is taut and that each stake is positioned between the tripod legs, see picture C. Secure the “U” style
stakes to each Tripod leg and insert into the ground as shown in picture D. If further stabilization is
needed, fill the provided sandbags an place on top of each tripod leg.
STEP 11:
Attaching “L” & “U” Stakes.
B
STEP 10:
Attaching Metal Ring Assembly
and “L” Stakes.
SET UP FOR WINDY CONDITIONS
A
Remove LED light and attach Metal Ring Assembly as shown in Picture A. Attach LED light back on and stand
the stanchion back up. Insert the “L” style stake to the hanging ring as shown in Picture B.
C D

7
