Welcome
Thank you for purchasing GOLBONG IP bird box camera!
This user manual is designed to be a reference tool for the installation and operation of your IP bix box
camera.
Here you can find information about the camera's features and functions, as well as information to aid in
troubleshooting.
Many of the setup and installation sections below have corresponding videos on YouTube
To access the setup videos, please go to https://www.youtube.com/golbongtoday
For access to the quick start guide and other support information, go to
http://www.golbong.com/support.asp
To contact GOLBONG support, please do one of the following:
a. Visit http://www.golbong.com/contact-us.asp and use the email form
b. or Email GOLBONG Customer Support: [e-mail]
Important Security Warning
In order to keep your GOLBONG camera secure and prevent unauthorized access, please make sure to
follow the steps below: Never use the default password for your camera. Always ensure that your
password is at least 8-10 characters long and contains a combination of lowercase characters,
uppercase characters as well as numbers.

4
Product Overview
Hardware Installation
Attach the External Power Adapter
Connect the power adapter to the power connector on your camera, then plug the power adapter
into a wall outlet

5
Smartphone or Tablet Apps
Download app
1. Download: Search and install the app “XMEYE” in app store or Google play.
Registration
1. Register: click “login problems”, press “register” to create a new account.
3. Input E-mail, press the icon “get code” to receive a register code.
4. Create a username and password after receive the code.

6
NOTE: the email must be valid to receive the code. The mail box also will use to recover the password in
future.
4. Login: return to the login page, input your username and password, click “Cloud Login”.
Connecting to your ip camera on an smart phone or tablet.
1. Click the icon “+” on the upper right corner to enter search screen.
2. Press the “search” button .

7
NOTE: Make sure your phone has connected to your the local network.
3. Select the check-box, then press the button icon“ Add” .
NOTE: Input the password if required, the default password is blank.

8
Live view interface
1. Click the camera name in the device list, the live view will display.
2. Press the square icon on the upper right corner to enlarge the video to full screen.
NOTE: The users can zoom in/out on the screen with fingers.
3. Click “SD/HD” to choose the video quality.
NOTE: “SD”: standard definition; “HD”: high definition.
Optional1: How to change the video quality to adapt to low
bandwidth network.
1. In the Live Video page, click the Home icon
2. Touch “Encode” in the menu

9
3. Adjust the main stream and the sub stream to adapt to your network bandwidth.
NOTE: higher frame rate and resolution require higher bandwidth
Set a Password for the Camera.
1. In the Live Video page, click the Home icon
2. In the Menu page, press the “Change password ”

10
3. Input old password and a new password. Click “Save”
NOTE: default password is blank.(No need)
4. Click return icon to enter Device list
5. click the edit icon , a new dialog pop up
6. Select “Edit”

11
7. Name the device, key in the new password. Click OK to save.
Saving live stream to your smart phone
1. In Live Video page, press “camcorder” button to start recording
NOTE: Camcorder button will change to Blue when recording is activated.
2. Press camcorder button again to save the video
3. Click return icon to enter Device list

12

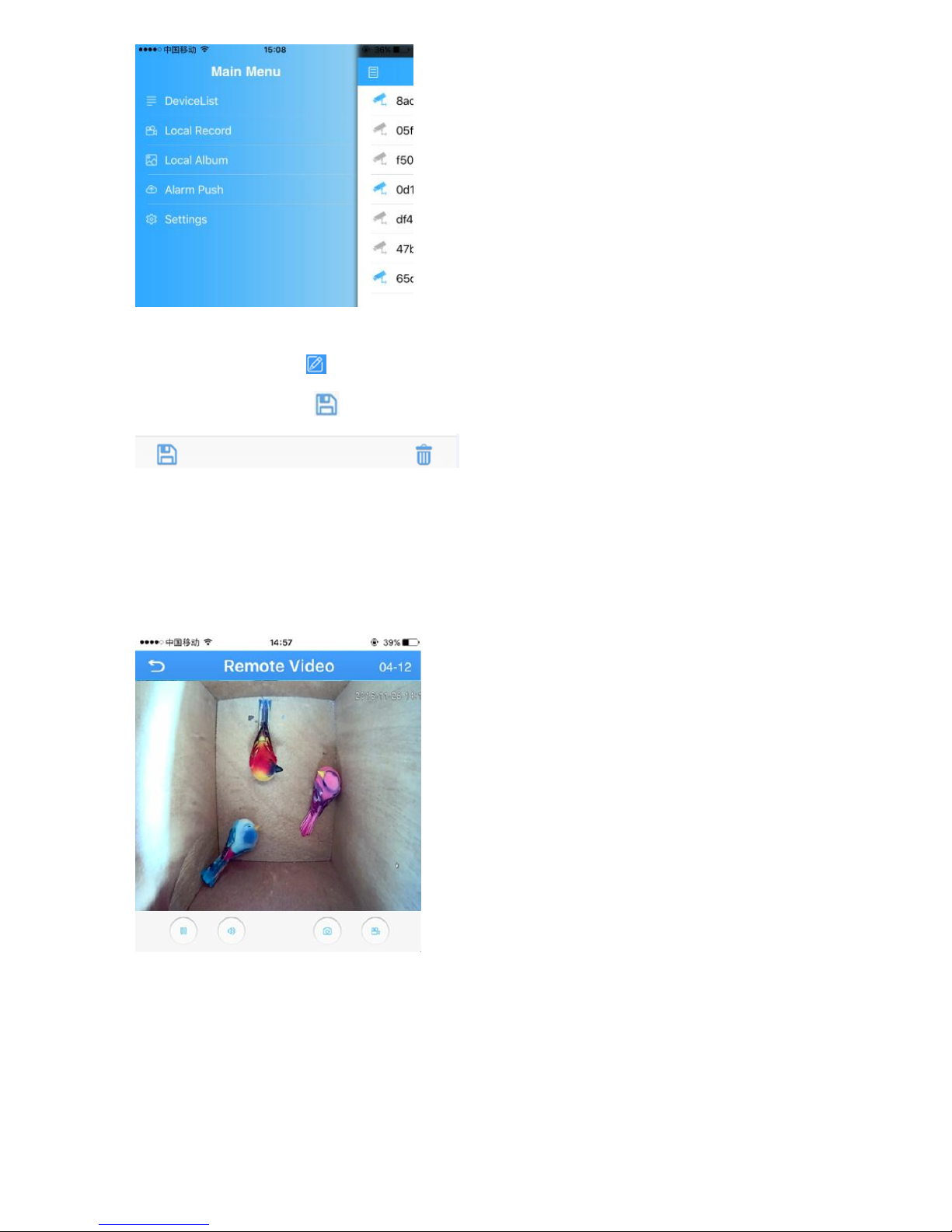

4. Press the list icon to enter the main menu
5. Touch “local record” to locate the video on your smart phone. Press the snapshot will start play
the video on your phone.
6. Press the edit icon on top right corner, press snapshot to select the video.
7. Press the save icon to save the video to your phone.
View snapshot at local files
1. Click return icon to enter Device list
2. Press the list icon to enter the main menu

13
3. Touch “Local Album” to view the snapshot.
4. Press the edit icon on top right corner, select the snapshot to view the picture.
5. Press the save icon to save the snapshot to your phone.
Playback video on TF memory card (cameras with microSD
only)
1. Touch home icon in the live view page.
2. Press “Remote playback” from the menu

14
3. The playback video will display. Press the button on right corner, you can select the time unit:
h/m/s
NOTE: the footage block in Yellow is the video with motion detection. You need to enable the motion
recording function in the camera to see the yellow block.
4. Press the speaker icon to activate the sound.
NOTE: Your camera must support audio and connects to audio pick up.
Download video from TF memory card (Cameras with
microSD only)
1. In the live, press Home to enter “Menu”, press “Download”

15
2. Choose either download by file or by time
3. Click the “Download” icon, the app start downloading by file
4. Click icon twice to return to device list
5. Press the icon to enter the main menu

16
6. Touch “local record” to view the download video.
Optional Receive the IP setting from your local network (DHCP)
If the IP camera don’t have correct IP setting, especially DDNS, it will failed to receive the push
message.
1. Touch home icon in the live view page.
2. Touch “set Network” from the menu, enter a new screen.
3. slide the enable to right turn on DHCP. The camera will reboot and receive the IP setting from
your local network.
4. Check the “set Network” again after 1-2 minutes, slide the enable to left if you want to fix the IP
address.

17
Using CMS5 for PC or Mac
System Requirements
CPU
Core 2 Duo 3.0GHz
Operating System
Windows™ 8/7/Vista
Memory
2GB
Video
512 MB of video memory and above
Network (LAN)
10/100 Base-T Network
Network (WAN)
1 Mbps upstream
High-speed Internet service is required to remotely
connect to your system.
Installing Software
Download the latest version of the windows PC software using the link below.
https://goo.gl/NHg7C3
Network connection and settings
Connect to IP Camera
1. Click icon CMS5, a dialog will appear. Key in the username and password to enter Main
console.

18
NOTE: The default username and password of the software is “admin”
If you want to revise the login username and password of the software, go to the “Main” click "User Manager"
, change the new password.
2. In the "Main" , Click “Add Cameras” to enter a new screen.
3. Click “IPV4 search”button. The available devices will display on the left screen.
4. Mark the checkbox in front of the IP address, click “Add ” button. The IP camera will move to
right.

19
5. Click the pen icon under “operation”, a new dialog pop up, name the camera, Click “OK”
to save.
NOTE: NO password required for camera/NVR in default. You can jump to page-11 to change camera’s
password.
NOTE: If you want to access the camera over internet, choose cloudID in “Login Type”
6. Once the software has connected the camera successfully, the “Status”will change to
“connected”
Optional 1: How to add the cameras to CMS5 outside of LAN.
1. Click “Manual Add” button at the lower right corner. A new dialog appear.
2. Name the camera, Choose the login type.
NOTE: if you didn’t configure the port forwarding in your router, you properly need to choose the cloudID in
login type.
3. Key in Static IP or cloudID
NOTE: You can mark down the cloudID when you connect the camera in the LAN
4. Key in password, and click “OK” to save.

20
Optional 2: How to Configure the network setting of the camera manually.
1. In the "Main" , Click “Device Config”, a new screen appear.
2. Select the camera from the list in the top left. All the icon will be activated with color
NOTE: If the icon remain black/white, check the connection status of your camera.
3. Click Network icon, a new screen will appear with “TCP/IP” setting.
