Gold Note A6 EVO User manual

A6 EVO
3 WAY SLIM FLOOR STANDING LOUDSPEAKER
OWNERʼS MANUAL

P. 3
P. 4
P. 5
P. 6
P. 11
P. 12
P. 13
INDEX
2
INTRODUCTION....................................................................................................................................
SPECIFICATION AND KEY FEATURES.......................................................................................................
CONNECTING THE SPEAKERS.................................................................................................................
SPEAKER POSITIONING.........................................................................................................................
WARRANTY AND SERVICE......................................................................................................................
TROUBLESHOOTING.............................................................................................................................
IMPORTANT SAFETY INFORMATION.......................................................................................................
P. 3
P. 4
P. 5
P. 6
P. 11
P. 12
P. 13
INDEX
2

The A6-EVO is a compact but extremely powerful floor standing
loudspeaker designed to provide a natural and smooth sound
reproduction: it's simply the best speaker of this size we have
ever made and it's distinctive in its beautiful slim diamond
shaped design.
The new 12 cm SEAS treated paper front mid-woofer drivers
feature massive magnets to control power guaranteeing ultra-
extended bass response while offering a higher efficiency for
maximum resolution.
To provide exceptionally fast transient response and retain full
natural music reproduction, the two mid-bass drivers have a
12dB/Octave set up at 2000Hz/60Hz range, where the 15cm
SEAS ultra rigid woven polypropylene internal subwoofer driver
kicks in.
The subwoofer is located in a separate sealed chamber at the
bottom of the speaker and features a dedicated crossover
network and bass reflex port faced to the floor that with the
help of its special designed wooden stand allows no critical
room positioning and perfect bass power impact.
The subwoofer driver is realized through metal injection
moulding to create a supporting structure specifically designed
for powerful bass reflex speakers and combined with a special
spider ring and ultra-elastic suspensions with insertion cuts to
achieve greater extension and power but also finer details.
The custom 1” silk dome tweeter is tuned to match the speaker
shape and features an rigid aluminum flange to deliver crystal
clear high-frequencies with full power.
The cabinet features two diamond shaped side panels with
aluminum inserts thus resulting in a stronger, more rigid
structure to enhance power control.
The speaker lays on a solid and elegant wooden stand
with a bottom bass reflex port.
The crossover components are exclusively made by Mundorf
and Clarity: no compromises have been made on the design
and only top quality parts have been chosen.
3
INTRODUCTION

KEY FEATURES:
The A6 EVO is a slim tower speaker indicated for
relatively small to mid-large sized rooms featuring
drivers as follows:
- 25 mm elliptical silk dome tweeter made for Gold Note in
France by Audax
- 2 x 12 cm recessed paper Mid-Bass drivers custom made
for Gold Note in Norway by SEAS
- 15 cm woven polypropylene cone Mid-woofers internal
symmetrical design sub-woofer made for Gold Note in
Norway by SEAS
SPECIFICATIONS
Tower 3 way double Bass Reflex loudspeaker featuring
easy positioning design and floor faced sub-woofer bass
reflex port.
Frequency response: 40-20000Hz ±3dB
Sensitivity: 88dB SPL 2,83V/1m
Nominal Impedance: 4Ω
Tweeter:
1” AUDAX silk dome driver
Mid-woofer:
2 x 5’’ SEAS treated paper cones
Sub-woofer: 6’’ SEAS woven polypropylene cone
Suggested power amplifier:
min. 20Watt
Max Power Handling: 150W RMS
Crossover:
60Hz and 2000Hz @ 12dB/Oct.
Connectors: Gold Note gold plated nickel-free
Upgrades Crossover: special components on demand
DIMENSIONS AND WEIGHT
Dimensions: 230 mm W 1080 mm H 285 mm D
Weight:
Kg. 60/pr. net - Kg. 80/pr. boxed
FINISHES
Cabinet: Black
Side panels:
Glossy Italian Walnut or Black Glossy
SPECIFICATION AND KEY FEATURES
4

-+
-+-+
-+
Stereo Power Amplier
Right
Speaker
Left
Speaker
R L
CONNECTING THE SPEAKERS
5

Identifying the ideal sound/acoustic room to play an audio system well is not that strictly related to the
proportional dimensions of the rooms as many audiophiles believe.
The sound played through an audio system is just “Energy diffused in a closed environment” that is all
absorbed, reflected and dispersed.
The loudspeaker position is the most important aspect because managing the reflections is a key factor to get
the best sound. The first two reflections are crucial, after them the energy of the reflection starts being lower
and does not particularly affect the sound performance.
The first reflection creates a 25m/s delay. Such delay is not favorable because it creates a disturb overwhelming
the sound while the delay in between 40 and 80m/s creates what is called ambience.
Therefore it is very important to reduce the first reflection keeping the speaker as far as possible from the side
walls and using some carpets on the floor in front of them is advisable.
A symmetrical position of the speakers in the room, having the same distance from the side and rear walls is also
very important and should be implemented when possible. The better the positioning the better the focus and the
sound stage will be.
WALL MATERIAL
Generally, most of the walls are thick therefore there is the best bass extension control as well as good acoustic
isolation.
Dry walls vibrate quite a bit, therefore they are usually not favorable or should be treated accordingly.
CEILING
The higher the better. The ideal works between 250 and 360cm having the same regular height.
The vaulted ceiling is quite critical because it works like a magnifier lens increasing the power in specific areas.
In case of an attic where typically the ceiling slopes down it is better to position the speakers closer to the lower
ceiling and place the listening point in the higher ceiling area.
FLOOR
Marble floors are the worst because they are extremely reflecting but even the all carpet floors don’t work well
because they absorb indiscriminately
The best option are wooden floors. In any case, all floors can be easily corrected with a 2/4cm thick carpet placed
in front of the speakers.
SIDE WALLS
Covering the side walls with a carpet is wrong but leaving them naked is not the ideal solution either. Pictures with
frames on the walls are ok if they come without glass protection and are placed symmetrically on both sides of the
speakers. Eventually some small specific traps could be a good solutions.
SPEAKER POSITIONING
6

REAR WALL
The rear wall does not need to be symmetrical like the side walls but some additional acoustic treatment will be able to diffract
the energy of the sound wave which is important to get good results.
A traditional library with books and records is a very good “no cost” solution.
OPPOSITE WALL
The wall opposite of the stereo system is not that critical. If it is too close to the listening point itself it would be better covering
it with some absorbing material or with a thick curtain.
WINDOWS AND DOORS
They always vibrate. It would be better to not have them situated in the room’s corners or in the middle of the side walls.
Treating them with absorbing material could be good but they also must be well closed not waving. Having a door behind the
listening point could work fine once opened.
Curtains in front of the windows should be light to avoid stopping too much energy, except for the optional ones behind the
listening point.
FURNITURE
Ideally, avoid using big furniture with glass/many doors. Open shelf furniture is the best.
If possible, avoid placing the table in between the speakers and the listening point because tables tend to reflect
heavily the high and mid-frequencies.
AUDIO RACKS
Though the best position of audio racks usually is not in the middle of the speakers, some special racks such like the Gold Note
Galileo can beπlaced there because its special all curved shape helps diffracting the sound waves very well. If you are using
standard racks placed in the middle of the speakers, it is preferable to have rather small ones which enhance a better sound
focus.
SUBWOOFER
A general thinking believes the subwoofer does not have any direct emission of sound so the position is not important.
In fact, the energy of the waves generated by the subwoofer creates a sound stage which follows rules similar to the full
range speakers therefore the same rules should be applied to it as well.
7
SPEAKER POSITIONING

WIDER STEREO SOUND STAGE SPEAKER POSITION
(for some instrumental music, symphonic orchestra, etc.)
WIDE STEREO IMAGE SPEAKER POSITION
(for some instrument music, synfonic orcherstra etc.)
Listening Point
• The distance of both the speakers to the listening point should be the same
• The distance between both the speakers and the side walls should be the same
• The distance between both the speakers and the rear wall should be the same
The more distance there is between the speakers the wider the sound stage will get but less focus will the obtained.
To balance the focus, the speakers can be directed to the listening point as indicated in the images of the pages 9
and 10 of this manual.
8
SPEAKER POSITIONING

NARROWER STEREO SOUND STAGE SPEAKER POSITION
(Optionally for solo instrument music like piano, guitar and voice etc.)
WIDE STEREO IMAGE SPEAKER POSITION
(for some instrument music, synfonic orcherstra etc.)
Listening Point
The closer the two speakers stand the better the focus but worse the wide realistic sound stage.
9
SPEAKER POSITIONING

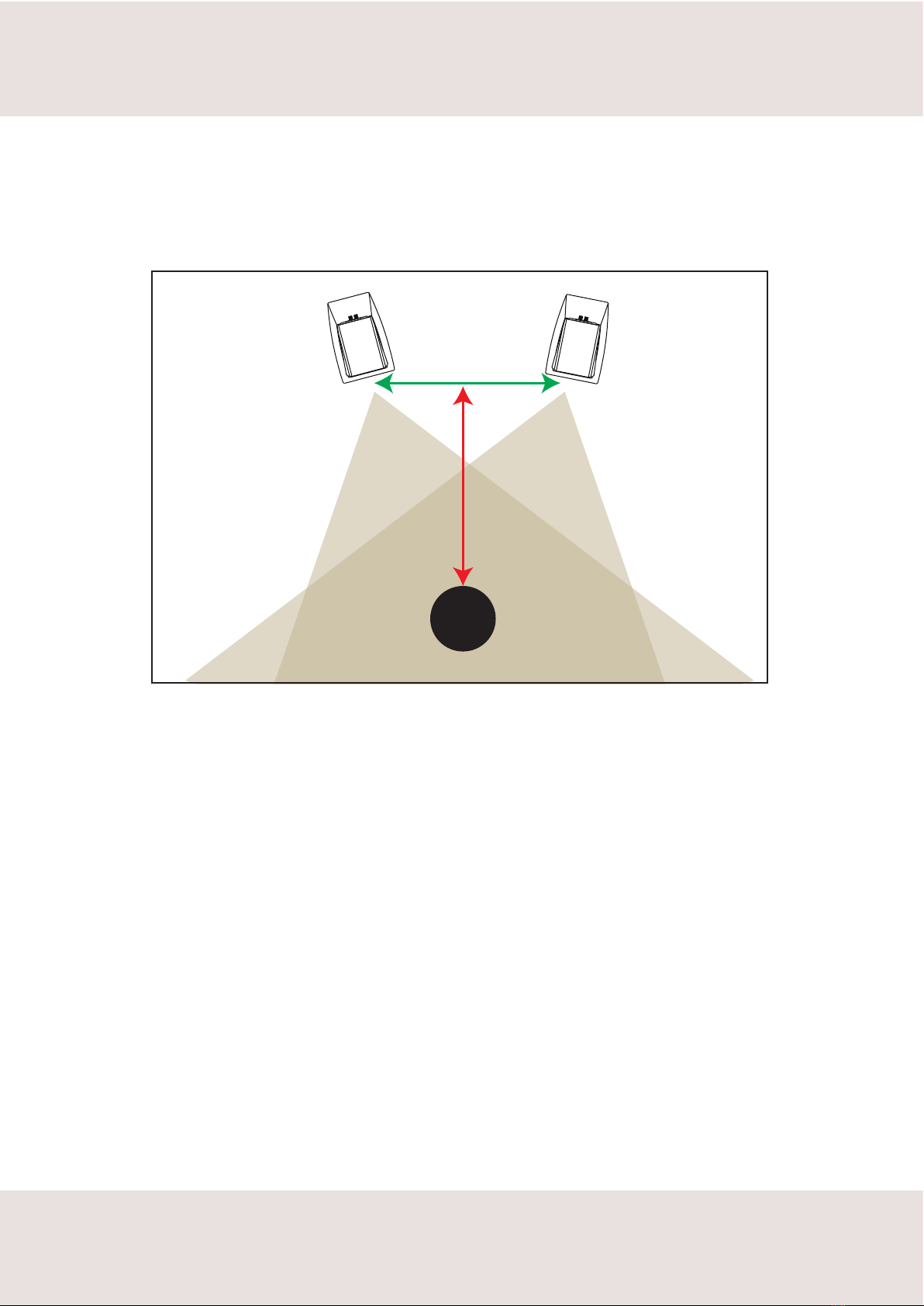

DISTANCE BETWEEN SPEAKER AND LISTENING POINT ORIENTATION
Listening Point
A
B
C
The distance between the speakers should be the same of the one to the speakers.
If the distance is shorter the speaker must be directed to the Listening point accordingly.
Empirical tests are necessary to find the right proportion between wide stereo sound stage
focus and crispy details.
DESCRIPTION AND SPECIFICATIONS
10

WARRANTY
To validate the warranty is necessary to register the unit on the Gold Note internet web site within 15 days from the purchase
on the appropriate area of the web site: www.goldnote.it/warranty
If the unit is not registered correctly or has been purchased from a different country of the purchaser home address the unit
will not be covered by any warranty and the registration will be refused.
The warranty does not cover in any case: Tubes, Phono Cartridge Stylus and Batteries.
SERVICE
Every GOLD NOTE® product is the result of meticulous technological research, and consequently their correct functioning
is guaranteed. In spite of this it is possible that problems may emerge which non-specialist users cannot resolve.
In this case, contact your dealer to be advised on how the fault can be solved.
Do not return any object directly to the factory or to the distributor without being authorised to do so.
In such cases both GOLD NOTE® and the distribution agents decline responsibility of any kind.
For more information please visit www.goldnote.it/service
PLEASE NOTE
Descriptions and technical characteristics may vary at any time and without notice.
WARRANTY AND SERVICE
11

ACTION DESCRIPTION HOW TO ADJUST IT
CLEANING THE UNIT •The Unit is dirty and needs to
be cleaned
•With EXTREME care use ONLY diluted alcohol
and a very soft 100% cotton cloth to sweep
dust and stains out.
•Any acid or not extremely soft cloth will
irreversibly damage the loudspeaker’s fine
aesthetic.
•Do not use any alcohol to clean the unit
anodised label, or printed parts. Only dry cloth
is allowed.
SYMPTOM DESCRIPTION CAUSE REMEDY
SPEAKER HUMMING
PROBLEMS
OUT of PHASE
SOME DRIVERS DO NOT
WORK
•The unit is not correctly coupled
with the ground on DC.
The sound does not
have a proper focus
even when well
positioned.
The speakers hum
when the amplifier is
connected to the
system.
• The speaker terminals (negative/
positive poles) are
inverted in some way on the amp or
on the speaker.
• The bridges are not well
connected to the speaker terminal
(Binding Posts).
•Turn Off the amplifier first and then
rewire the speaker terminals correctly.
•Connect the bridges well.
•Connect the cables properly.
•Verify the connectivity and that the
music is played through a correct source.
•The speaker cables are not well
connected to the speaker.
•The amplifier does not play
music.
•The interconnect input and/or
output cables are not shielded.
•Be sure your area and personal
environment are well grounded
eventually isolate the ground Pin of the
power chord plug for verification.
•Be sure to always use shielded cables
for the amp connections.
For spare parts visit the official Gold Note store at:
www.akamaiaudio.it
TROUBLESHOOTING
FAQ
FAQ AND TROUBLESHOOTING
12

IMPORTANT SAFETY INFORMATION
13
This appliance has a serial number located on the rear panel.
Please record the model and serial number and retain them for your records.
Serial Number:
Model:
Do not disassemble any part of the product.
Do not use any part of the product for other purposes.
For service and problems of any kind, contact qualified Gold Note personnel.
Protect the product from rain and humidity and keep away from heat sources, electric and electronic motors etc.
The power Chord supplied must be used only on this unit.
Gold Note does not have responsibility for any improper use of this unit.
CAUTION!
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER ONLY TO QUALIFIED GOLD NOTE SERVICE PERSONNEL FOR SERVICE
WARNING!
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE

1. Read these instructions and store them.
2. Heed all warnings.
3. Follow the instructions.
4. Do not use this apparatus near water.
5. Clean only with a dry cloth.
6. Do not block the ventilation openings and install in accordance
with the manufacturer's instructions.
7. Do not install near heat sources such as radiators, heat
registers, stoves or other apparatus (including amplifiers) that
produce heat.
8. Do not defeat the safety purpose of the polarised or
grounding-type plug: a polarised plug has two blades with one
wider than the other.
A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong are provided for your
safety.
If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
9. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
10. Only use attachments/accessories specified by the
manufacturer.
11. Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
12. Unplug this apparatus during lightning storms or when
unused for long periods of time.
13. Refer all servicing to qualified service personnel only.
Servicing is required when the apparatus has been damaged
in any way (such as when the power cord or plug is damaged,
liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or
moisture) and in any case when the apparatus does not
operate normally or has been dropped.
14
IMPORTANT SAFETY INFORMATION

NOTES
15

NOTES
16

NOTES
17

Gold Note Audio
goldnote_italy Gold Note
Akamai S.r.l.
ser[email protected]
www.goldnote.it
