Gold unitflame GBC873W User manual

Outdoor LP Gas Barbecue Grill
Model No. GBC873W
Manufactured in China for:
Blue Rhino Global Sourcing, Inc
Winston-Salem, NC USA
1.800.762.1142, www.bluerhino.com
© 2007 Blue Rhino Global Sourcing, Inc. All Rights Reserved
UniFlame®is a Registered Trademark of Blue Rhino Global Sourcing, Inc.. All Rights Reserved. GBC873W-OM-103 ES
WARNING
FOR YOUR SAFETY:
1. Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage.
2. Read the installation, operation, and
maintenance instructions thoroughly before
installing or servicing this equipment.
3. Failure to follow these instructions could
result in fire or explosion, which could cause
property damage, personal injury, or death.
Save these instructions for future reference.
If you are assembling this unit for someone else,
give this manual to him or her to read and save
for future reference.
WARNING
FOR YOUR SAFETY:
For Outdoor Use Only
(outside any enclosure)
Table of Contents
ImportantSafeguards...........................................Page2
ExplodedView&Hardware........................................... 3
AssemblyInstructions............................................... 4
InstalllingLPGasTank............................................. 10
InsertLPGasTank............................................... 10
SecureLPGasTank.............................................. 10
ConnectLPGasTank............................................. 10
OperatingInstructions.............................................. 11
CheckingforLeaks.............................................. 11
OperatingMainBurners .......................................... 11
OperatingSearBurner............................................ 11
OperatingSideBurner............................................ 12
OperatingInfraredBackBurner..................................... 12
OperatingDigitalTimer........................................... 12
CleaningandCare ................................................ 13
ProductRegistration............................................... 13
LimitedWarranty ................................................. 13
Troubleshooting.................................................. 14
The use and installation of this product must conform to local codes. In absence of
local codes, use the National Fuel Gas Code, ANSI Z223.1/NFPA 54, CAN/CGA-B149.1,
Natural Gas and Propane Installation Code.
California Proposition 65: Chemicals known to the State of California to cause cancer,
birth defects, or other reproductive harm are created by the combustion of propane.
GOLD
OWNER’S MANUAL
Made from 70% Bagasse
(Environmentally Friendly Sugar
Cane Pulp By-product)

GOLD
Outdoor LP Gas Barbecue Grill Model No. GBC873W Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
DANGER
If you smell gas -
1. Shut off gas to appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the appliance and immediately
call your gas supplier or your fire department.
This grill is for outdoor use only, and shall not be used in a building,
garage, or any other enclosed area.
Do NOT operate, light or use this appliance within 8 feet of walls,
structures or buildings.
This grill is NOT for commercial use.
This grill is for use with liquid propane (LP) gas only. The conversion to
or attempted use of natural gas in this LP gas grill is dangerous and will
void your warranty.
LP gas Characteristics:
a. LP gas is flammable and hazardous if handled improperly. Become
aware of the characteristics before using any LP gas product.
b. LP gas is explosive under pressure, heavier than air, and settles and
pools in low areas.
c. LP gas in its natural state has no odor. For your safety, an odorant is
added that smells like rotten cabbage.
d. Contact with LP gas can cause freeze burns to skin.
LP gas tank needed to operate. Only tanks marked “propane” may be
used.
The LP gas supply tank must be constructed and marked in accordance
with the Specifications for LP gas Cylinders of the U.S. Department of
Transportation (DOT) or the National Standard of Canada, CAN/CSA-B339,
Cylinders, Spheres and Tubes for the Transportation of Dangerous Goods;
and Commission.
LP gas tank must be arranged for vapor withdrawal.
The LP gas tank must have a listed overfilling prevention device (OPD).
Only use 20-pound cylinders equipped with a cylinder connection device
compatible with the connection for outdoor cooking appliances.
The LP gas tank must have a tank collar to protect the tank valve.
Never use an LP gas tank with a damaged body, valve, collar, or footing.
Dented or rusted LP gas tanks may be hazardous and should be checked
by your LP gas supplier prior to use.
The LP gas tank should not be dropped or handled roughly.
Tanks must be stored outdoors out of the reach of children and must not
be stored in a building, garage, or any other enclosed area. Your tank
must never be stored where temperatures can reach over 125°F.
Never keep a filled LP gas tank in a hot car or car trunk. Heat will cause
the gas pressure to increase, which may open the relief valve and allow
gas to escape.
Place dust cap on cylinder valve outlet whenever the cylinder is not in
use. Only install the type of dust cap on the cylinder valve outlet that is
provided with the cylinder valve. Other types of caps or plugs may result
in leakage of propane.
Do not store a spare LP gas tank under or near this appliance.
Never fill the tank beyond 80 percent full.
A fire causing serious injury or damage to property may occur if the
above is not followed exactly.
Never attempt to attach this grill to the self-contained LP gas system of
a camper trailer, motor home, or house.
The use of alcohol, or prescription or non-prescription drugs may
impair the consumer’s ability to properly assemble or safely operate the
appliance.
Never use charcoal, lighter fluid, lava rocks, gasoline, kerosene, or
alcohol with this product.
Your grill has been checked at all factory connections for leaks.
Recheck all connections as described in the “Operating Instructions”
section of the manual, as movement in shipping can loosen connections.
Check for leaks even if your unit was assembled for you by someone
else.
Do not operate if gas leak is present. Gas leaks may cause a fire or
explosion.
You must follow all leak-checking procedures before operating. To
prevent fire or explosion hazard when testing for a leak:
a. Always perform leak test before lighting the grill and each time the
tank is connected for use.
b. No smoking. Do not use or permit sources of ignition in the area
while conducting a leak test.
c. Conduct the leak test outdoors in a well-ventilated area.
d. Do not use matches, lighters, or a flame to check for leaks.
e. Do not use grill until any and all leaks are corrected.
If you are unable to stop a leak, disconnect the LP gas supply. Call a
gas appliance serviceman or your local LP gas supplier.
Do not store or use gasoline or other flammable liquids or vapors within
25 feet (7.62 m) of this appliance.
Do not use in an explosive atmosphere. Keep grill area clear and free
from combustible materials, gasoline and other flammable vapors and
liquids.
Minimum clearance from sides and back of unit to combustible
construction, 21 inches from side and 21 inches from back. Do not use
this appliance under overhead combustible surfaces.
It is essential to keep the grill’s valve compartment, burners, and
circulating air passages clean. Inspect grill before each use.
Do not alter grill in any manner.
Do not use the grill unless it is COMPLETELY assembled and all parts are
securely fastened and tightened.
This grill should be thoroughly cleaned and inspected on a regular basis.
Clean and inspect the hose before each use of the appliance. If there
is evidence of abrasion, wear, cuts, or leaks, the hose must be replaced
prior to the appliance being put into operation.
Use only the regulator and hose assembly provided. The replacement
regulator and hose assembly shall be that specified by the manufacturer.
Use only Blue Rhino Global Sourcing, Inc. factory authorized parts. The
use of any part that is not factory authorized can be dangerous. This will
also void your warranty.
Do not use this appliance without reading “Operating Instructions” in
this manual.
Do not touch metal parts of grill until it has completely cooled (about
45 min.) to avoid burns, unless you are wearing protective gear (pot
holders, gloves, BBQ mittens, etc.).
When cooking, fire extinguishing materials shall be readily accessible.
In the event of an oil grease fire, do not attempt to extinguish with water.
Use type BC dry chemical fire extinguisher or smother with dirt, sand or
baking soda.
Do not install or use in or on boats or recreational vehicles.
Do not use grill in high winds.
Never lean over the grill when lighting.
Do not leave a lit grill unattended, especially keep children and pets
away from grill at all times.
Do not attempt to move grill when in use. Allow the grill to cool before
moving or storing.
Storage of grill indoors is permissible only if the tank is disconnected,
removed from the grill and properly stored outdoors.
Always open grill lid carefully and slowly as heat and steam trapped
within grill can severely burn you.
Do not attempt to disconnect the gas regulator from the tank or any gas
fitting while the grill is in use.
Always place your grill on a hard non-combustible, level surface. An
asphalt or blacktop surface may not be acceptable for this purpose.
Move gas hoses as far away as possible from hot surfaces and dripping
hot grease.
Keep all electrical cords away from a hot grill.
Do not use grill for indoor cooking or heating. TOXIC fumes can
accumulate and cause asphyxiation.
After a period of storage and/or nonuse, check for leaks, burner
obstructions and inspect for any abrasion, wear, cuts to the hose.
Failure to open lid while igniting the grill’s burners, or not waiting 5
minutes to allow the gas to clear if the grill does not light, may result in
an explosive flame-up.
If grill is not in use, the gas must be turned off at the supply tank.
Never operate grill without heat plates installed.
Always use a meat thermometer to ensure food is cooked to a safe
temperature.
Please use protective gloves when assembling this product.
Do not force parts together as this can result in personal injury or
damage to the product.
Never cover entire cooking area with aluminum foil.
Deaths, serious injury or damage to property may occur if the above is
not followed exactly.
DANGER: Failure to follow the dangers, warning and cautions in this manual may result in serious bodily injury or death, or in a fire or an explosion
causing damage to property.
WARNING:
WARNING
FOR YOUR SAFETY
1. Do not store or use gasoline or other flammable liquids or vapors in the
vincinity of this or any other appliance.
2. An LP cylinder not connected for use shall not be stored in the vicinity of
this or any other appliance.

Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
page no.
3
Hardware
AScrew M4x8 Nickel Plated Phillips Truss Head 20 pcs
BScrew M6x15 Nickel Plated Phillips Truss Head 29 pcs
CScrew M6x15 Nickel Plated Hex Head 21 pcs
DScrew M6x46 Nickel Plated Phillips Truss Head 11 pcs
ENut M6 Zinc Plated 7 pcs
FWasher ø6.5 Nickel Plated 8 pcs
GAAA Batteries 2 pcs
Tools Required for Assembly (Included)
#1 Phillips Head Screwdriver
#2 Phillips Head Screwdriver
M10-M6 Wrench
1
2
6
12
10
13
9
20
19
11
15
23 24
Parts List
1Warming Rack 55-07-551
2Cooking Grid (3) 55-07-501
3Heat Plate (3) 55-08-076
4Grease Tray 55-07-509
5Thermometer 55-07-547
6Basket (2) 55-08-067
7Tool Hook (8) 55-07-549
8Towel Bar (2) 55-07-548
9Left Side Shelf Side 55-08-081
10 Left Side Shelf 55-08-079
11 Grill Body Assembly 55-08-074
12 Side Burner Grid 55-07-543
13 Left Side Shelf Front 55-08-080
14 Digital Timer 55-08-073
15 Infrared Back Burner 55-07-513
16 Main Burner (3) 55-08-086
17 Sear Burner 55-08-109
18 Side Burner 55-08-110
19 Right Side Shelf 55-08-094
20 Right Side Shelf Side 55-08-096
21 Grease Cup 55-07-507
22 Grease Cup Support 55-07-508
23 Regulator 55-08-091
24 Right Side Shelf Front 55-08-095
25 Control Knob Support (6) 55-08-071
26 Control Knob (6) 55-08-070
27 Basket Support A (4) 55-08-065
28 Basket Support B (2) 55-08-066
29 Left Cart Panel 55-08-077
30 Rear Cart Panel 55-08-090
31 Tank Retainer Wire 55-07-522
32 Right Cart Panel 55-08-092
33 Left Door 55-08-078
34 Door Handle (2) 55-08-011
35 Right Door 55-08-093
36 Lighting Rod 55-07-520
37 Front Cart Support 55-07-505
38 Base Cart Panel 55-08-064
39 Left Skirt 55-08-082
40 Locking Wheel (2) 55-07-528
41 Wheel (2) 55-07-506
42 Right Skirt 55-08-097
43 Center Skirt 55-08-069
44 LP Gas Tank Tray 55-08-085

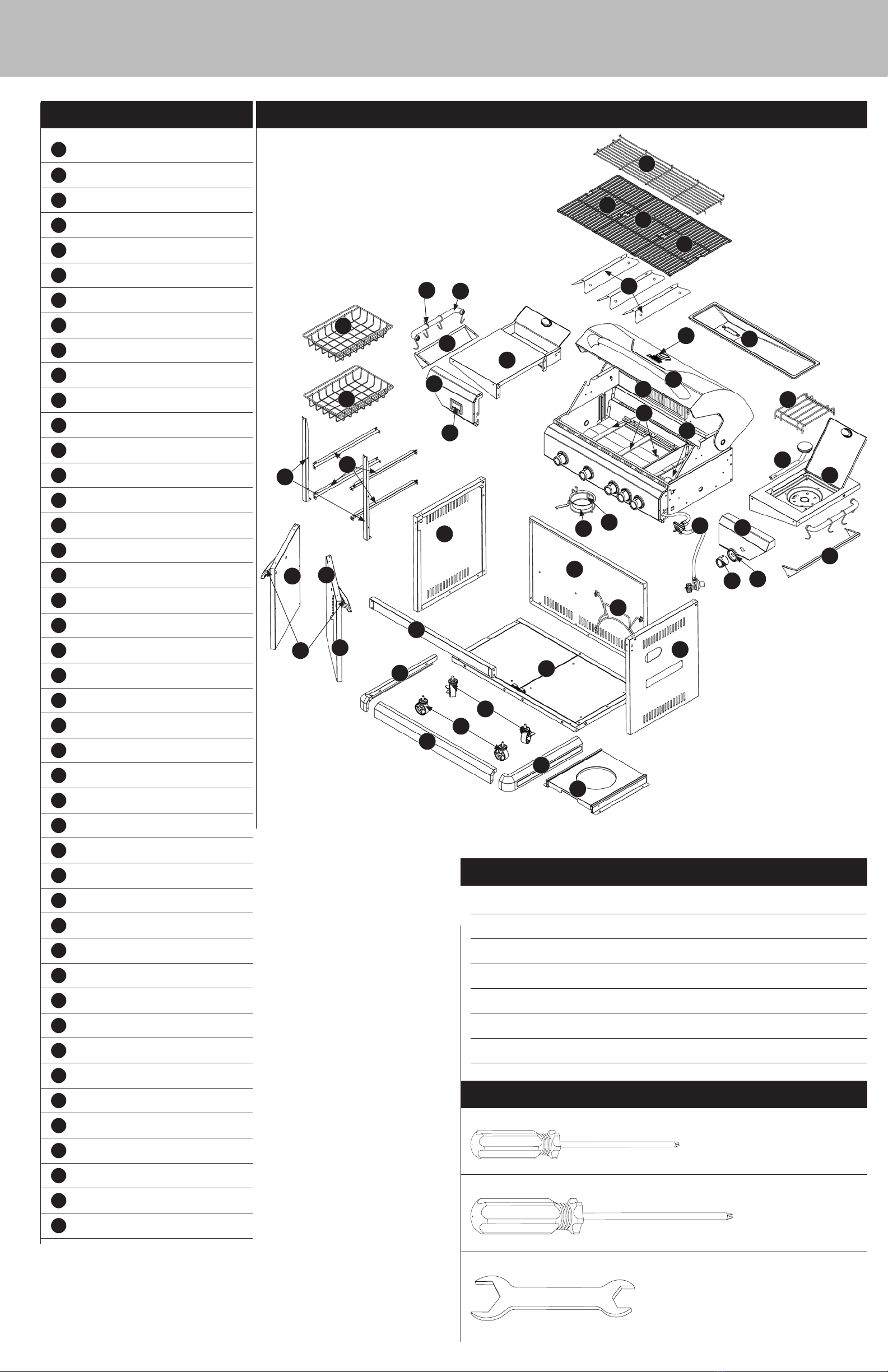

Exploded View
54
18
2
2
29
30
31
32
37
33 35
36
39
42
43
44
3
78
25
16
17
28
26
27
21
22
38
34
40
41
14
6

GOLD
Outdoor LP Gas Barbecue Grill Model No. GBC873W Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
1
DO NOT RETURN PRODUCT TO STORE.
For assistance call 1.800.762.1142 toll free. Please have
your owner’s manual and serial number available for
reference.
Note: The serial number can be found on the back of the cart
assembly.
For Easiest Assembly:
• To avoid losing any small components or hardware, assemble
your product on a hard level surface that does not have cracks
or openings.
• Clear an area large enough to layout all components and
hardware.
• When applicable, tighten all hardware connections by hand
first. Once the step is completed go back and fully tighten all
hardware.
• Follow all steps in order to properly assemble your product.
To complete assembly you will need:
• (1) Leak Detection Solution (Instructions on how to make
solution are included in the “Operating Instructions” section of
this manual)
• (1) Precision Filled LP Gas Grill Tank with Acme Type 1 external
threaded valve connection (4-5 gallon size)
Note: You must follow all steps to properly assemble the grill.
Typical assembly: approximately 1 (one) hour.
3

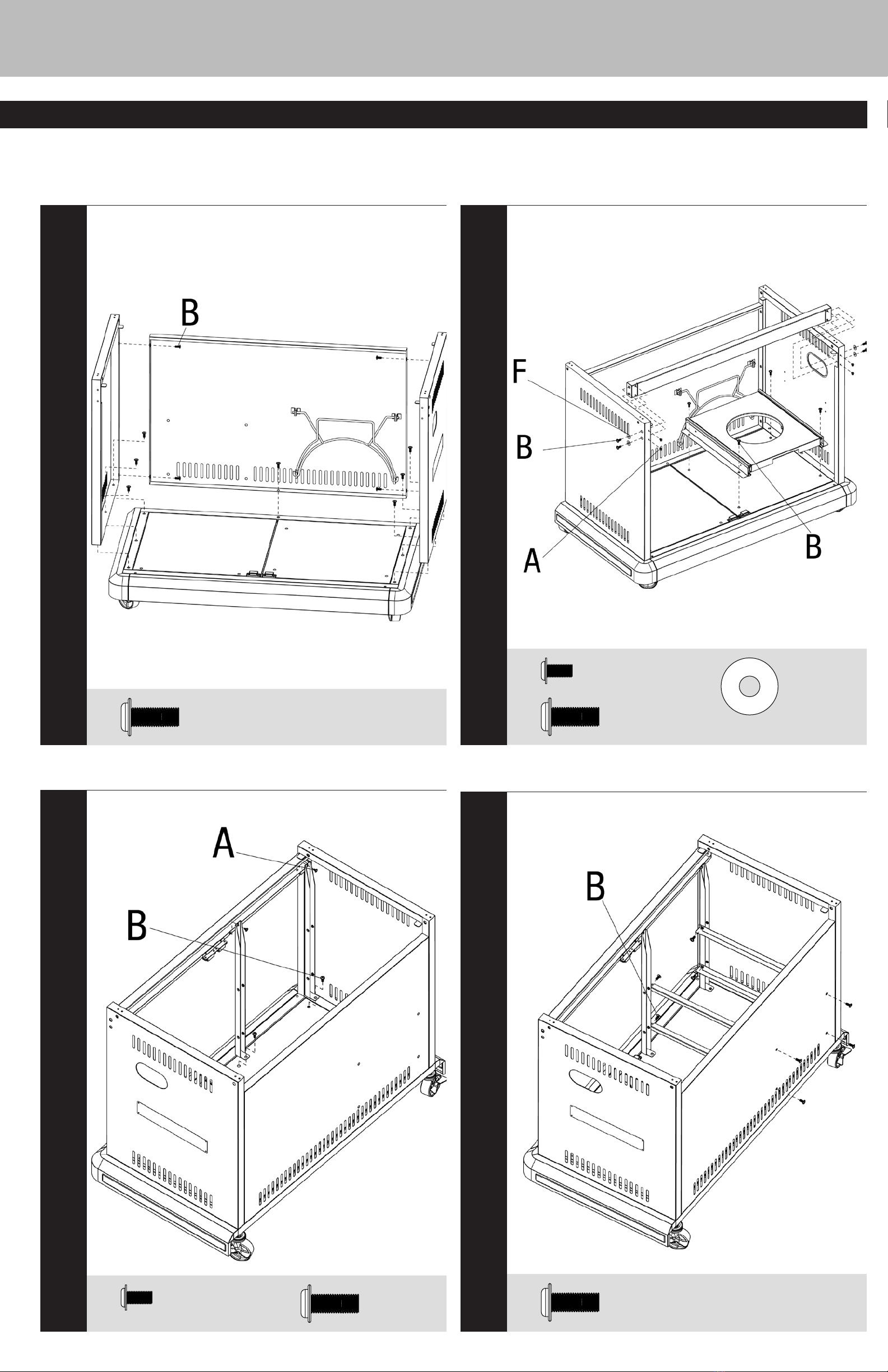

Attach Skirt to Base Cart Panel
Dx 7
Ex 7
4
Attach Wheels
Note: Locking wheels should be placed at the back.
Assembly Instructions
2
Assemble Skirt
Ax 4

Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
page no.
5
8
Attach Basket Supports A
Bx 8
6
Attach Front Cart Support and LP Gas Tank Tray
Ax 4
Bx 8
Fx 4
7
Attach Basket Supports B
Ax 2 Bx 2
Assembly Instructions
5
Attach Side Panels
Bx 11

GOLD
Outdoor LP Gas Barbecue Grill Model No. GBC873W Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
Assembly Instructions (continued)
12
Attach Left Side Shelf Front and Towel Bar
Cx 4
9
Attach Doors and Insert Baskets
10
Attach Grill Body
Dx 4
Fx 4
11
Remove Digital Timer Battery Cover
Install Digital Timer AAA Batteries
Gx 2

Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
page no.
7

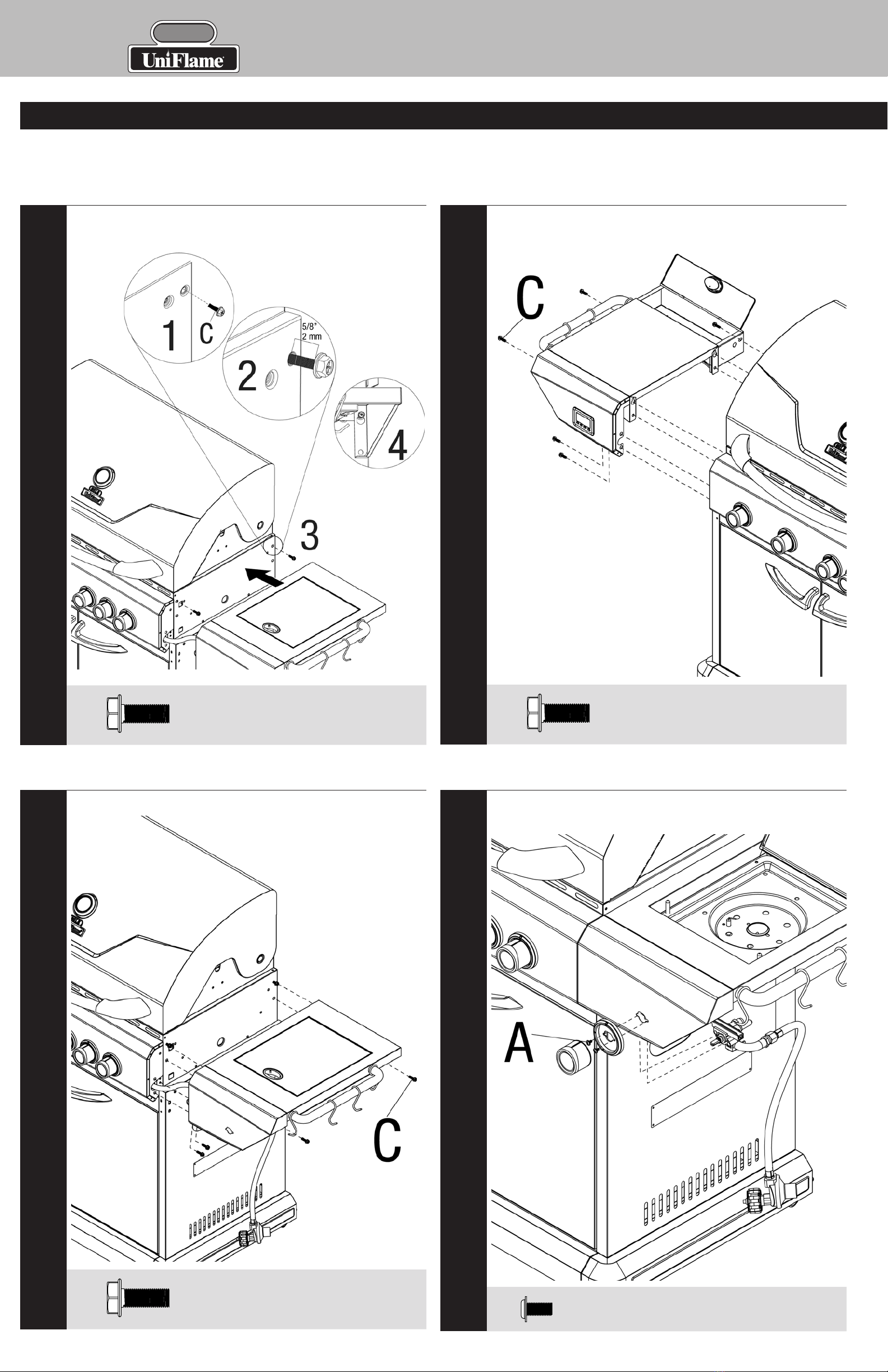

Assembly Instructions (continued)
13
Attach Left Side Shelf Panel
Ax 3
14
Attach Right Side Shelf Front and Towel Bar
Cx 4
15
Attach Right Side Shelf Panel
Ax 3
16
Attach Left Side Shelf Assembly
Note: Leave 5/8” (2 mm) of bolt threads exposed. Do not fully tighen until step 18.
Cx 2

GOLD
Outdoor LP Gas Barbecue Grill Model No. GBC873W Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
Assembly Instructions (continued)
20
Attach Regulator, Control Knob Support and Control
Knob
Ax 2
19
Secure Right Side Shelf Assembly
Cx 4
17
Attach Right Side Shelf Assembly
Note: Leave 5/8” (2 mm) of bolt threads exposed. Do not fully tighen until step 19.
Cx 2
18
Secure Left Side Shelf Assembly
Cx 5

Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
page no.
9
Assembly Instructions (continued)
22
Insert Heat Plates
23
Insert Cooking Grid and Warming Rack
24
Insert Grease Tray
21
Attach Side Burner, Side Burner Grid, and Igniter Wire
Ax 2

GOLD
Outdoor LP Gas Barbecue Grill Model No. GBC873W Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
Installing LP Gas Tank
To operate you will need (1) precision-filled standard grill LP gas
tank (20#) with external valve threads.
Note: An empty standard grill LP gas tank weighs approximately
18 lbs. A precision-filled standard grill LP gas tank should weigh
no more than 38 lbs.
Insert LP Gas Tank
Place precision filled LP gas tank upright into hole in the tank tray so the tank valve is facing
the gas line connection.
Secure LP Gas Tank
Slide the tank tray all the way back and secure by sliding tank retainer wire over shoulder of LP
gas tank.
Connect LP Gas Tank
Before connecting, be sure that there is no debris caught in
the head of the LP gas tank, head of the regulator valve or
in the head of the burner and burner ports.
Connect gas line to tank by turning knob clockwise until it
stops.
Disconnect LP Gas Tank
Before disconnecting make sure the LP gas tank valve is
“OFF”.
Disconnect gas line from LP gas tank by turning knob
counterclockwise until it is loose.
Need a tank of gas? Try tank exchange service. It’s easy, fast, safe,
and available at tens of thousands of conveniently located retail outlets
nationwide. You can purchase a new full tank or exchange your empty for
a precision filled one.
Assembly Instructions (continued)
25
Attach Grease Cup and Grease Cup Support

Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
page no.
11
Operating Instructions
Checking for Leaks
Burner Connections
1. Make sure the regulator valve and hose connections
are securely fastened to the burner and the tank.
If your unit was assembled for you, visually check
the connection between the burner venturi pipe and
orifice. Make sure the burner venturi pipe fits over
the orifice.
WARNING: Failure to inspect this
connection or follow these instructions
could cause a fire or an explosion
which can cause death, serious bodily
injury, or damage to property.

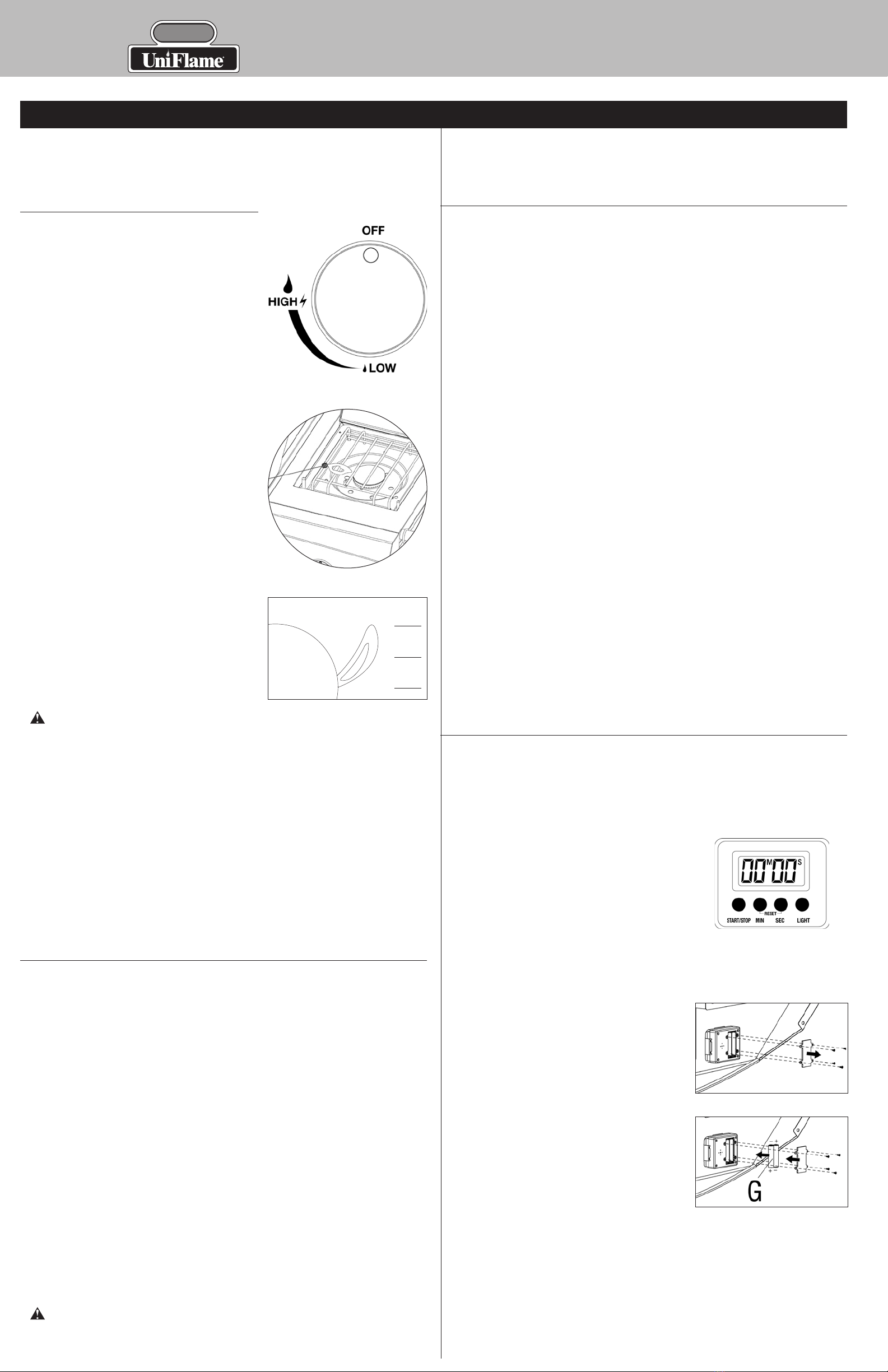

2. Please refer to diagram for proper installation.
(Figure 1 and 2)
3. If the burner pipe does not rest flush to the orifice,
please contact 1.800.762.1142 for assistance.
Tank/Gas Line Connection
1. Make 2-3 oz. of leak solution by mixing one part
liquid dishwashing soap with three parts water.
2. Make sure control knobs are “OFF”. (Figure 3)
3. Turn LP gas tank “ON” at valve.
4. Spoon leak check solution at all “X” locations
(Figure 4)
a. If any bubbles appear turn LP gas tank “OFF”,
reconnect and re-test.
b. If you continue to see bubbles after several
attempts, turn LP gas tank “OFF” and disconnect
LP gas tank and contact 1.800.762.1142 for
assistance.
c. If no bubbles appear after one minute turn tank
“OFF”, wipe away solution and proceed.
Operating Main Burners
First Use
1. Make sure all labels, packaging and protective films
have been removed from the grill.
2. Remove manufacturing oils before cooking on this
grill for the first time, by operating the grill for at
least 15 minutes on “HIGH” with the lid closed. This
will “heat clean” the internal parts and dissipate
odors.
Lighting
1. Open lid. Attempting to light the burner with the
lid closed may cause an explosion!
2. Make sure there are no obstructions of airflow to
the burners. Spiders and insects can nest within
and clog the burner / venturi tube at the orifice. A
clogged burner tube can lead to a fire beneath the
appliance.
3. All control knobs must be in the “OFF” position.
(Figure 3)
4. Turn ON gas at LP gas tank.
5. Push and turn control knob slowly about 1/4 turn
counter clockwise until a click is heard. The burner
should light. If the burner does not light, repeat up to
three times.
6. If ignition does not occur, turn control knob to “OFF”,
wait 5 minutes and repeat lighting procedure.
7. To light other burners, repeat the same procedure
for the adjacent burner and continue in sequence
until all desired burners are lit.
8. If igniter does not light burner, use a lit match
secured with the lighting rod provided to light
burners manually. Access the burners through the
cooking grid and heat plates. Position the lit match
near side of the burner. (Figure 5)
Important: Always use the lighting rod provided when
lighting burners with a match.
9. After lighting, observe the burner flame, make sure
all burner ports are lit and flame height matches
illustration. (Figure 6)
Caution: If burner flame goes out during operation, immediately turn
the gas “OFF” and open lid to let the gas clear for about 5 minutes
before re-lighting.
Turning Off
1. Turn gas OFF at LP gas tank.
2. Turn all control knobs clockwise to the “OFF” position.
Direct Cooking
Cooking directly over hot burners. Ideal for grilling food requiring less than 25 minutes of
grilling time, such as steaks, hamburgers, hot dogs, chicken parts, vegetables and fruit.
1. Open lid and ignite the desired amount of burners per lighting instructions in owner’s manual.
2. Close lid and preheat grill on “HIGH”.
3. Wear protective gloves and use long handle tongs to place food onto cooking grids above the
lit burners.
4. Adjust controls to desired temperature.
5. With lid open or closed, cook until desired internal food temperatures are achieved.
6. Turn grill OFF by first closing the valve on the propane tank. Burn off remaining gas in lines
by waiting 15 seconds then turn all burner controls to the OFF position. A “poof” sound is
normal as the last of the LP gas is burned.
Indirect Cooking
Not cooking directly over hot burners. Ideal for slow cooking and foods requiring more than 25
minutes such as most roasts, loins, chops, whole chickens, turkey, fish and baked goods.
1. Open lid and ignite the desired amount of burners per lighting instructions in owner’s manual.
2. Close lid and preheat grill on “HIGH”.
3. Wear protective gloves and use long handle tongs to place food onto cooking grids above the
un-lit burners.
4. Adjust controls to desired temperature.
5. With lid closed, cook until desired internal food temperatures are achieved.
6. Turn grill OFF by first closing the valve on the propane tank. Burn off remaining gas in lines
by waiting 15 seconds then turn all burner controls to the “OFF” position. A “poof” sound is
normal as the last of the LP gas is burned.
For more tips on indirect cooking please see “Tips for Better Cookouts and Longer Grill Life”
Operating Sear Burner
First Use
1. Make sure all labels, packaging and protective films have been removed from the grill.
2. Remove manufacturing oils before cooking on this grill for the first time, by operating the grill
for at least 15 minutes on “HIGH” with the lid closed. This will “heat clean” the internal parts
and dissipate odors.
Lighting
NOTE: Infrared sear burner can be used while main burners are operating.
1. Open lid. Attempting to light the burner with the lid closed may cause an explosion!
2. Make sure there are no obstructions of airflow to the gas unit. Spiders and insects can nest
within and clog the burner / venturi tube at the orifice. A clogged burner tube can lead to a
fire beneath the appliance.
3. Control knob must be in the “OFF” position. (Figure 3)
4. Turn ON gas at LP gas tank.
5. Push and turn control knob slowly about 1/4 turn counter clockwise until a click is heard. The
burner should light. If the burner does not light, repeat up to three times.
6. Hold the knob 3 to 5 seconds to allow gas to reach and light the burner.
7. Burner should turn red after 2 to 3 minutes.
8. Turn control knob “OFF” if burner is not lit. Wait 5 minutes and repeat lighting procedure.
Caution: If burner flame goes out during operation, immediately turn
the gas “OFF” and open lid to let the gas clear for about 5 minutes
before re-lighting.
Turning Off
1. Turn gas OFF at LP gas tank.
2. Turn all control knobs clockwise to the “OFF” position.
Cooking
Ideal for searing in juices and flavor in food, such as steaks, roasts, and chicken parts.
1. Open lid and ignite the burner per lighting instructions.
2. Close lid and preheat grill on “HIGH”.
3. Wear protective gloves and use long handle tongs to place food onto cooking grids above the
burner.
4. Adjust control to desired temperature.
5. Keep an eye on the food to make sure the food does not burn, as it will take a very short time
to sear each side of the food. Turn as desired.
Figure 1
LP Gas
Connection
LP Gas Valve
with Orifice
Burner
venturi
pipe
Main Burners
Figure 2
Burner
venturi pipe
LP Gas
Connection
LP Gas
Valve with
Orifice
Side Burner
Figure 3
Figure 4
X
X
X
X
X
Figure 5
Figure 6
Burner
Flame Slight
Yellow
Slight
Blue
Dark
Blue

GOLD
Outdoor LP Gas Barbecue Grill Model No. GBC873W Contact 1.800.762.1142 for assistance. Do not return to place of purchase.

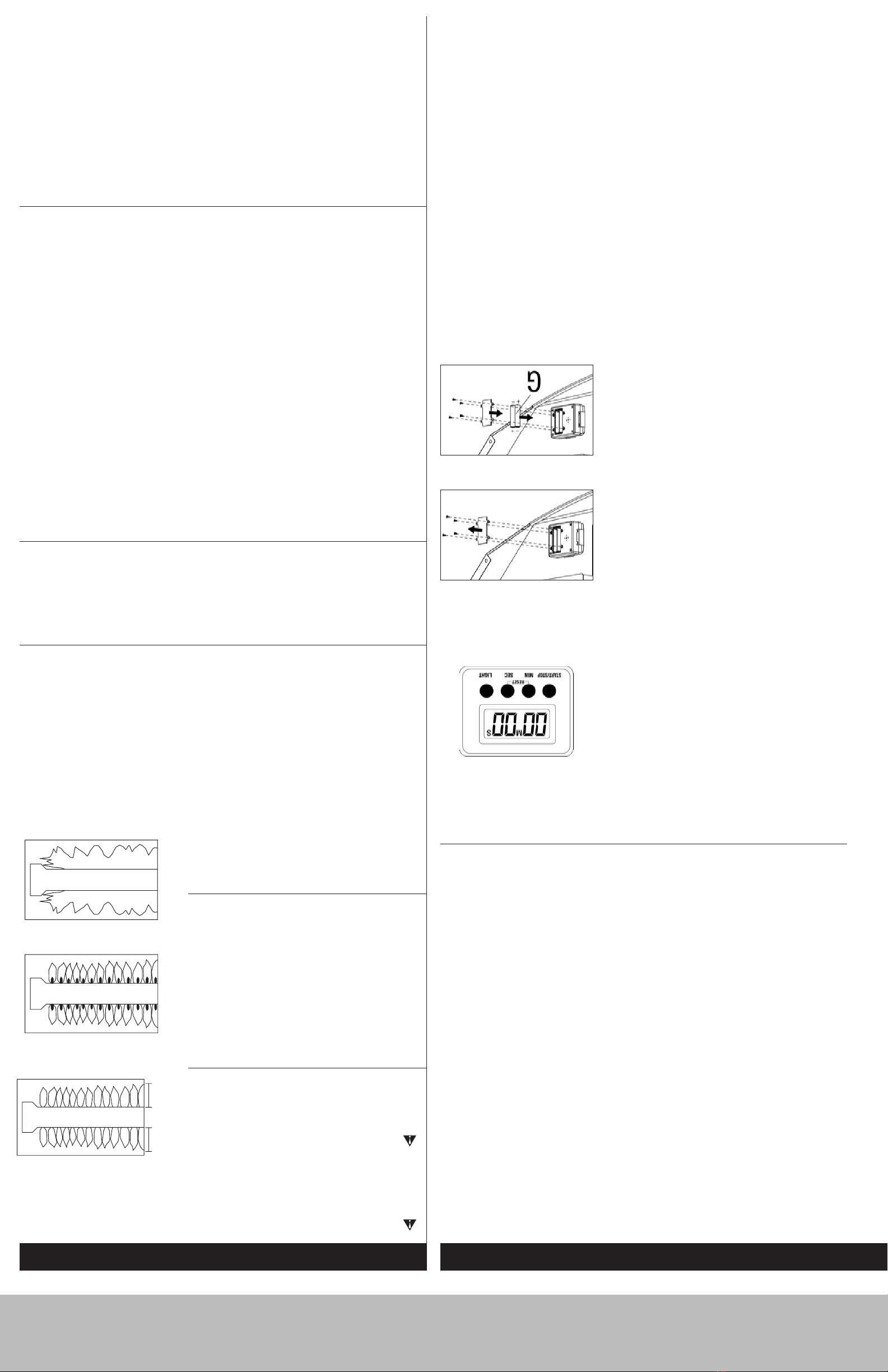

Turning Off
1. Turn gas OFF at LP gas tank.
2. Turn all control knobs clockwise to the “OFF” position.
Tips for Better Cookouts and Longer Grill Life
1. For food safety tips visit: http://www.fsis.usda.gov/Fact_Sheets/Barbecue_Food_Safety/
2. Use the upper cooking grid (warming rack) for keeping cooked food warm, toasting breads or
cooking delicate foods in aluminum foil pouches.
3. Use the side burner of this appliance like a normal kitchen range for boiling, sautéing or
frying.
4. To keep food from sticking to the grids, spray or coat with cooking oil before lighting.
5. To reduce flare-up keep grill clean, use lean cuts of meat (or trim fat) and avoid cooking on
very high temperatures.
6. Place delicate foods like fish and vegetables in aluminum foil pouches and indirect cook or
place on upper cooking levels (warming rack).
7. To avoid losing natural juices, use long handled tongs or spatulas instead of forks and turn
foods over just once during cooking.
8. When direct cooking adjust your burners to different levels so foods can be prepared to
different internal temperatures in the same time frame.
9. When indirect cooking roasts and larger cuts of meat, place meat onto a roasting rack inside
a heavy gauge metal pan. Place pan over the un-lit burners.
10. Try water pans to reduce flare-ups and cook juicer meats. Before starting grill remove
cooking grids and place a heavy duty shallow pan directly on heat plates. Fill half way with
water, fruit juices or other flavored liquids. Replace cooking grids and position food over the
loaded pan.
11. Enhance food flavors by using wood chips in smoker boxes or aluminum foil pouches.
Follow the wood manufacturer’s instructions.
12. Rotisseries, grill baskets, vertical poultry holders and other accessories can enhance your
experiences, reduce cooking times and aid in clean-up.
13. Clean cooking grids and racks after every use with a quality grill bush designed for your
grid material. Wear protective gloves and gently remove the build-up while grids are hot.
14. After every use, allow grill to cool. Then protect clean cooking grids with a light coat of
cooking oil, empty grease pan, wipe outside surfaces with a suitable kitchen cleaner and
protect surfaces with a quality cover that properly fits your grill.
15. Visit websites like www.bluerhino.com, watch barbecue themed TV shows or purchase
related barbecue cookbooks to learn more interesting tips like –
A gas grill is ideal for reheating leftover pizza. Set burners on low and place pizza slices
directly on preheated cooking grid. Close lid and cook until cheese starts to bubble.
Operating Digital Timer
Count-Up
1. Press the ‘Start/Stop’ button. The timer will begin
counting up from 0:00.
2. Press the ‘Start/Stop’ button. The timer will stop.
Count-Down
1. Press the ‘minute’ button to set the desired number
of minutes.
2. Press the ‘Seconds’ button to set the desired
number of seconds.
3. Press the ‘Start/Stop’ button. The timer will begin
counting down from the pre-set time.
4. When the timer reaches 0:00 a loud beep will sound
for up to 1 minute.
5. To stop the count-down at any time or stop the
alarm from sounding, press the ‘Start/Stop’ button.
Light
Press the ‘Light’ button and the LCD will illuminate for
10 seconds.
Resetting the timer
If you have stopped the timer during count-up or
count-down mode, you can reset it back to 0:00 by
pressing and holding the two buttons indicated by the
‘reset’ lines.
Auto Shut-off
In order to increase the battery life, the digital timer
will automatically shut off when not in use after 30
seconds. To turn it back on press the ‘Start/Stop’
button
Replacing the batteries
1. Remove the back cover off of the timer as shown.
(See Figure 11)
2. Remove the old batteries and insert 2 new AAA batteries
3. Replace the cover back onto the timer.
Operating Instructions (continued)
Figure 10
Digital Timer
Figure 11
Remove Digital Timer Back
Replace Digital Timer Back
6. Turn grill OFF by first closing the valve on the propane tank. Burn off remaining gas in lines
by waiting 15 seconds then turn all burner controls to the OFF position. A “poof” sound is
normal as the last of the LP gas is burned.
Operating Side Burner
NOTE: Side burner can be used while main burners
are operating.
Never use side burner as a grill.
Lighting
1. Open lid. Attempting to light the burner with the
lid closed may cause an explosion!
2. Make sure there are no obstructions of airflow to the
burner. Spiders and insects can nest within and clog
the burner / venturi tube at the orifice. A clogged
burner tube can lead to a fire beneath the appliance.
3. Control knob must be in the “OFF” position.
(Figure 7)
4. Turn ON gas at LP gas tank.
5. Push and turn control knob slowly about 1/4 turn
counter clockwise until a click is heard. The burner
should light. If the burner does not light, repeat up to
three times.
6. If ignition does not occur, turn control knob to “OFF”,
wait 5 minutes and repeat lighting procedure.
7. If ignition does not occur in 5 seconds, turn burner
control knob “OFF”, wait 5 minutes, and repeat
lighting procedure.
8. If igniter does not light burner, use a lit match
secured with the lighting rod provided to light
burners manually. Position the lit match near side of
the burner. (Figure 8)
Important: Always use the lighting rod provided when
lighting burners with a match.
9. After lighting, please observe the burner flame,
make sure all burner ports are lit and flame height
matches illustration. (Figure 9)
CAUTION: If burner flame goes out during operation, immediately turn
the gas “OFF” and open lid to let the gas clear for about 5 minutes
before re-lighting.
Turning Off
1. Turn gas OFF at LP gas tank.
2. Turn control knob clockwise to the “OFF” position.
Note: A “poof” sound is normal as the last of the LP gas is burned.
Cooking
1. Light burner.
2. Set burner to desired temperature
3. Place pan on center of grid.
4. Cook and adjust temperature as needed.
Operating Infrared Back Burner
First Use
1. Make sure all labels, packaging and protective films have been removed from the grill.
2. Remove manufacturing oils before cooking on this grill for the first time, by operating the grill
for at least 15 minutes on “HIGH” with the lid closed. This will “heat clean” the internal parts
and dissipate odors.
Lighting
NOTE: Infrared back burner can be used while main burners are operating.
1. Open lid. Attempting to light the burner with the lid closed may cause an explosion!
2. Make sure there are no obstructions of airflow to the gas unit. Spiders and insects can nest
within and clog the burner / venturi tube at the orifice. A clogged burner tube can lead to a
fire beneath the appliance.
3. Control knob must be in the “OFF” position. (Figure 3)
4. Turn ON gas at LP gas tank.
5. Push and turn control knob slowly about 1/4 turn counter clockwise until a click is heard. The
burner should light. If the burner does not light, repeat up to three times.
6. Hold the knob 3 to 5 seconds to allow gas to reach and light the burner.
7. Burner should turn red after 2 to 3 minutes.
8. Turn control knob “OFF” if burner is not lit. Wait 5 minutes and repeat lighting procedure.
Caution: If burner flame goes out during operation, immediately turn
the gas “OFF” and open lid to let the gas clear for about 5 minutes
before re-lighting.
Figure 9
Burner
Flame Slight
Yellow
Slight
Blue
Dark
Blue
Figure 7
Figure 8

Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
page no.
13

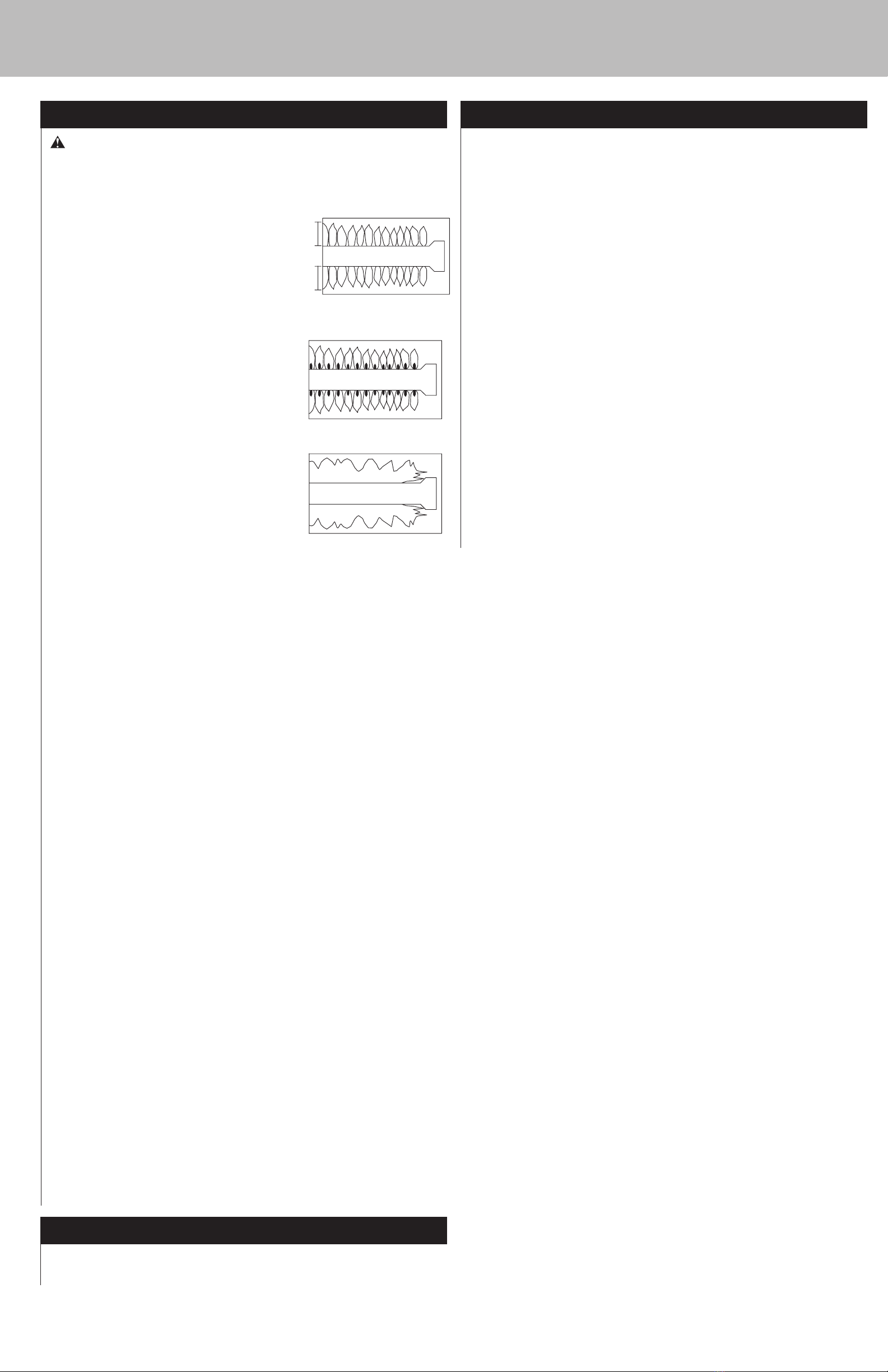

Cleaning and Care
CAUTION:
1. All cleaning and maintenance should
be done when grill is cool and with
the fuel supply disconnected.
2. DO NOT clean any grill part in a self
cleaning oven. The extreme heat will
damage the finish.
Notices
1. This grill should be thoroughly cleaned and
inspected on a regular basis.
2. Abrasive cleaners will damage this product.
3. Never use oven cleaner to clean any part of grill.
4. Do not clean any grill part in a self cleaning
oven. The extreme heat will damage the finish.
Before Each Use:
1. Keep the grill area clean and free from any
combustible materials, gasoline, and other
flammable vapors and liquids.
2. Do not obstruct the flow of the combustion of LP
and the ventilation air.
3. Keep the ventilation opening(s) of the LP gas tank
area free and clear from debris.
4. Visually check the burner flames, to make sure your
grill is working properly.
5. See sections below for proper cleaning instructions.
6. Check and clean the burner/venturi tubes for insects
and insect nests. A clogged tube can lead to a fire
beneath the grill.
Cleaning Surfaces
1. Wipe surfaces clean with mild dishwashing detergent or baking soda.
2. For stubborn surfaces use a citrus based degreaser and a nylon scrubbing brush.
3. Rinse clean with water.
Cleaning Main Burner
1. Turn gas “OFF” at the control knobs and LP gas tank.
2. Remove cooking grid and heat plates.
3. Remove burner by removing the fasteners securing the burner to the grill bottom.
4. Lift burner up and away from gas valve orifice.
5. Disconnect wire from spark electrode.
6. Clean inlet (venturi) of burner with small bottle brush or compressed air.
7. Remove all food residue and dirt on burner surface.
8. Clean any clogged ports with a stiff wire (such as an opened paper clip)
9. Inspect burner for any damage (cracks or holes). If damage is found, replace with new
burner.
10. Reinstall burner, check to insure that gas valve orifice is correctly positioned inside burner
inlet (venturi). Also check position of spark electrode.
11. Replace heat plate and cooking grid.
12. Perform leak test.
Cleaning Side Burner
1. Turn gas “OFF” at the control knobs and LP gas tank.
2. Remove side burner grid.
3. Remove burner by removing the screws securing the burner to the side shelf.
4. Lift burner up and away from gas valve orifice.
5. Clean inlet (venturi) of burner with small bottle brush or compressed air.
6. Remove all food residue and dirt on burner surface.
7. Clean any clogged ports with a stiff wire (such as an opened paper clip)
8. Inspect burner for any damage (cracks or holes). If damage is found, replace with new
burner.
9. Reinstall burner, check to insure that gas valve orifice is correctly positioned inside burner
inlet (venturi). Also check position of spark electrode.
10. Replace cooking grid.
11. Perform leak test.
Product Registration
For faster warranty service, please register your product immediately at www.bluerhino.com or
call 1.800.762.1142.
Figure 12
Burner Flame Conditions
Use this chart check to see if your
burners need to be cleaned.
1-2 in. /
25.4 - 50.8 mm
1-2 in. /
25.4 - 50.8 mm
Normal: Soft blue flames with
yellow tips between 1 in. - 2 in.
hight.
Needs Cleaning: Noisy with hard
blue flames.
Has to be cleaned: Wavy with
yellow flames.
Limited Warranty
Blue Rhino Global Sourcing, Inc (“Vendor”) warrants to the original retail purchaser of this
product, and to no other person, that if this product is assembled and operated in accordance
with the printed instructions accompanying it, then for a period of one (1) year from the date
of purchase, all parts in such product shall be free from defects in material and workmanship.
Vendor may require reasonable proof of your date of purchase. Therefore, you should retain
your sales slip or invoice. This Limited Warranty shall be limited to the repair or replacement of
parts, which prove defective under normal use and service and which Vendor shall determine
in its reasonable discretion upon examination to be defective. Before returning any parts, you
should contact Vendor’s Customer Service Department using the contact information listed
below. If Vendor confirms, after examination, a defect covered by this Limited Warranty in any
returned part, and if Vendor approves the claim, Vendor will replace such defective part without
charge. If you return defective parts, transportation charges must be prepaid by you. Vendor will
return replacement parts to the original retail purchaser, freight or postage prepaid.
This Limited Warranty does not cover any failures or operating difficulties due to accident,
abuse, misuse, alteration, misapplication, improper installation or improper maintenance or
service by you or any third party, or failure to perform normal and routine maintenance on
the product as set out in this owner’s manual. In addition, the Limited Warranty does not cover
damage to the finish, such as scratches, dents, discoloration, rust or other weather damage,
after purchase.
This Limited Warranty is in lieu of all other express warranties. Vendor disclaims all warranties
for products that are purchased from sellers other than authorized retailers or distributors,
including the warranty of merchantability or the warranty of fitness for a particular purpose.
VENDOR ALSO DISCLAIMS AND ANY ALL IMPLIED WARRANTIES, INCLUDING WITHOUT
LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. VENDOR SHALL NO LIABILITY TO PURCHASER OR ANY THIRD PARTY FOR ANY
SPECIAL, INDIRECT, PUNITIVE, INCIDENTAL, OR CONSEQUENTIAL DAMAGES. Vendor further
disclaims any implied or express warranty of, and assumes no responsibility for, defects in
workmanship caused by third parties.
This Limited Warranty gives the purchaser specific legal rights; a purchaser may have other
rights depending upon where he or she lives. Some jurisdictions do not allow the exclusion or
limitation of special, incidental or consequential damages, or limitations on how long a warranty
lasts, so the above exclusion and limitations may not apply to everyone.
Vendor does not authorize any person or company to assume for it any other obligation or
liability in connection with the sale, installation, use, removal, return, or replacement of its
equipment, and no such representations are binding on Vendor.
Blue Rhino Global Sourcing, Inc
Winston-Salem, North Carolina 27105 USA
1.800.762.1142

GOLD
Outdoor LP Gas Barbecue Grill Model No. GBC873W Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
Troubleshooting
Problem Possible Cause Prevention/Cure
Burner will not light using ignitor Wires or electrode covered with cooking residue. Clean wire and/or electrode with rubbing alcohol.
Electrode and burners are wet. Wipe dry with cloth.
Electrode cracked or broken - sparks at crack. Replace electrode.
Wire loose or disconnected. Reconnect wire or replace electrode/wire assembly
Wire is shorting (sparking) between ignitor and electrode. Replace ignitor wire/electrode assembly
Bad ignitor. Replace ignitor
Burner will not light with match No gas flow. Check if LP gas tank is empty. If LP gas tank is not empty, refer
to “Sudden drop in gas flow (reduced flame height). If empty,
replace or refill.
Coupling nut and regulator not fully connected. Turning the coupling nut about one-half to three quarters
additional turn until solid stop. Tighten by hand only-do not use
tools.
Obstruction of gas flow. Clear burner tubes. Check for bent or kinked hose.
Disengagement of burner to valve. Reengage burner and valve.
Spider webs or insect nest in venturi. Clean venturi.
Burner ports clogged or blocked. Clean burner ports.
Sudden drop in gas flow or reduced flame height Out of gas. Replace or refill LP gas tank
Excess flow safety device may have been activated. Turn off knobs, wait 30 seconds and light grill. If flames are still
too low Reset the excessive flow safety device by turning off
knobs and LP gas tank valve. Disconnect regulator. Turn burner
control knobs to HIGH. Wait 1 minute. Turn burner control knobs
off. Reconnect regulator and leak check connections. Turn LP
gas tank valve on slowly, wait 30 seconds and then light grill.
Irregular flame pattern, flame does not run the full length
of burner.
Burner ports are clogged or blocked. Clean burner ports.
Flame is yellow or orange. New burner may have residual manufacturing oils. Burn grill for 15 minutes with the lid closed
Spider webs or insect nest in venturi Clean venturi.
Food residue, grease or seasoning salt on burner. Clean burner.
Poor alignment of valve to burner venturi. Assure burner venturi is properly engaged with valve
Flame blow out High or gusting winds Turn front of grill to face wind or increase flame height to
“HIGH” setting
Low on LP Gas Replace or refill LP gas tank
Excess flow valve tripped Refer to “Sudden drop in gas flow”
Flare-up Grease buildup. Clean grill.
Excess fat in meat. Trim fat from meat before grilling.
Excessive cooking temperature. Adjust (lower) temperature accordingly.
Persistent grease fire. Grease trapped by food buildup around burner system Turn knobs to “OFF”. Turn gas off at LP gas tank. Leave lid in
closed position and let fire burn out. After grill cools, remove and
clean all parts.
Flashback (fire in burner tube(s)) Burner and/or burner tubes are blocked Clean burner and/or burner tubes
Inside of lid is peeling-like paint peeling The lid is stainless steel, not paint. Baked on grease buildup has turned to carbon and is flaking off.
Clean thoroughly.
For more assistance please visit us online at www.bluerhino.com or call 1.800.762.1142 for immediate assistance.

Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
page no.
15

GOLD
Outdoor LP Gas Barbecue Grill Model No. GBC873W

GOLD
Parrilla de gas propano para exteriores, modelo no. GBC873W

Si necesita ayuda llame al 1.800.762.1142. No vuelva al lugar de compra.
página
15
Resolución de problemas
Problema Causa posible Prevención/solución
El quemador no se enciende utilizando el encendedor. Cables o electrodos cubiertos con restos de alimentos. Limpie el cable y/o electrodo con alcohol isopropílico.
Los electrodos y los quemadores están mojados. Séquelo con un paño.
Electrodo agrietado o roto; chispas en las grietas. Sustituya el electrodo.
Cable suelto o desconectado. Vuelva a conectar el cable o sustituya el conjunto electrodo/cable.
El cable tiene un cortocircuito (chispeo) entre el encendedor y el
electrodo.
Sustituya el conjunto cable del encendedor/electrodo.
Dispositivo de encendido defectuoso. Sustituya el encendedor.
El quemador no se enciende con una cerilla. No hay flujo de gas. Compruebe si el tanque de propano líquido está vacío. Si el tanque
de propano líquido no está vacío, consulte la sección “Caída
repentina del flujo de gas” (tamaño de llama insuficiente). Si está
vacío, sustitúyalo o vuelva a llenarlo.
La tuerca de acoplamiento no está conectada por completo. Gire la tuerca de acoplamiento entre media vuelta y tres cuartos
de vuelta hasta que haga tope con firmeza. Apriete únicamente a
mano, sin utilizar ninguna herramienta.
Obstrucción del flujo de gas. Limpie los tubos del quemador. Verifique que la manguera no esté
torcida o doblada.
Desacoplamiento del quemador a la válvula. Vuelva a conectar el quemador y la válvula.
Telarañas o nidos de insectos en el venturi. Limpie el tubo de venturi.
Bocas del quemador atascadas u obstruidas. Limpie las bocas del quemador.
Caída repentina del flujo de gas o altura de la llama
insuficiente.
Sin gas. Compruebe si hay gas en el tanque de propano líquido.
Puede que se haya activado el dispositivo de seguridad de exceso
de flujo.
Gire las perillas a la posición “OFF” (apagado), espere 30 segundos
y encienda la parrilla. Si las llamas continúan siendo demasiado
bajas reinicie el dispositivo de seguridad de flujo excesivo girando
las perillas a la posición “OFF” y la válvula del tanque de propano
líquido. Desconecte el regulador. Gire las perillas de control del
quemador a la posición “HIGH” (alto). Espere 1 minuto. Gire las
perillas de control del quemador a la posición “OFF”. Vuelva
a conectar las conexiones del regulador y del dispositivo de
comprobación de fugas. Abra lentamente la válvula del tanque de
propano líquido, espere 30 segundos y, a continuación, encienda la
parrilla.
Falta de uniformidad en la llama, la llama no cubre toda la
longitud del quemador.
Las bocas del quemador están atascadas u obstruidas. Limpie las bocas del quemador.
La llama es de color amarillo o naranja. Puede que el nuevo quemador tenga aceites residuales del proceso
de fabricación.
Haga funcionar la parrilla durante 15 minutos con la tapa cerrada.
Telarañas o nidos de insectos en el venturi. Limpie el venturi.
Restos de alimentos, grasa o sal para condimentar en el quemador. Limpie el quemador.
Alineación incorrecta entre la válvula y el quemador de venturi. Asegúrese de que el quemador venturi está conectado
adecuadamente a la válvula.
La llama se apaga. Vientos fuertes o racheados. Gire el frente de la parrilla de cara al viento o aumente la altura de
la llama a la graduación “HIGH” (alto).
Nivel de gas del tanque de propano bajo. Sustituya el tanque o vuelva a llenarlo.
Válvula de exceso de flujo obstruida. Consulte la sección “Caída repentina del flujo de gas”.
Fogonazo. Formaciones de grasa. Limpie la parrilla.
Carne con exceso de grasa. Retire la grasa de la carne antes de ponerla en la parrilla.
Si está utilizando una temperatura excesiva para cocinar. Ajuste (baje) la temperatura según corresponda.
La grasa provoca un fuego persistente Grasa atascada por la acumulación de comida alrededor del
sistema de quemadores
Gire las perillas a la posición “OFF” (apagado). Cierre el gas del
tanque de propano líquido. Deje la tapa cerrada y deje que el fuego
se consuma. Una vez se haya enfriado la parrilla, quite y limpie
todas las piezas.
Centelleos (hay fuego en el(los) tubo(s) del quemador). El quemador y/o juegos de quemadores están bloqueados. Limpie el quemador y/o los tubos del quemador.
El interior de la tapa se está pelando; igual que cuando se
pela la pintura.
La tapa es de acero inoxidable, no pintada. La acumulación de grasa se ha convertido en carbón y se está
desmenuzando. Límpiela complatamente.
Para ayuda más detallada, sírvase visitarnos en www.bluerhino.com o llamarnos al 1.800.762.1142 para ayudarle inmediatamente.

GOLD
Parrilla de gas propano para exteriores, modelo no. GBC873W
Si necesita ayuda llame al 1.800.762.1142. No vuelva al lugar de compra.
7. Limpie los puertos que se encuentren obstruidos, usando un alambre firme (tal como un
sujetapapeles abierto).
8. Inspeccione el quemador para verificar si tiene daños (grietas o perforaciones). Si encuentra
daños, sustitúyalo con un nuevo quemador.
9. Vuelva a instalar el quemador, verificando que los orificios de la válvula de gas quedan
colocados correctamente dentro de la entrada del quemador (venturi). También verifique la
posición del electrodo de chispa.
10. Vuelva a colocar la parrilla de cocción.
11. Haga una prueba de fugas.
Registro del producto
Para beneficiar del servicio de garantía más rapidamente, sírvase registrar su unidad
inmediatamente visitando nuestro sitio Internet www.bluerhino.com o llamando al
1.800.762.1142.
Garantia limitada
Blue Rhino Global Sourcing, Inc (el “fabricante”) provee al comprador minorista de este
producto, y a ninguna otra persona, la garantía siguiente. Si el producto se ensambla y opera
de acuerdo con las instrucciones impresas que lo acompañan se garantiza que todas las
partes del mismo no presentarán defectos de materiales ni de mano de obra de acuerdo a las
siguientes estipulaciones: dos (2) años a partir de la fecha de compra para los quemadores y
un (1) año a partir de la fecha de compra para todas las piezas restantes. El fabricante podrá
requerir prueba razonable de la fecha de compra. Por lo tanto, usted debe conservar elrecibo
de venta o la factura. Esta Garantía Limitada estará limitada a la reparación o reemplazo de las
piezas que resulten defectuosas en condiciones de servicio y uso normal y las que un examen
indique, a satisfacción del fabricante, que están defectuosas. Antes de devolver cualquier pieza,
comuníquese con el Departamento de Servicio al Cliente (Customer Service Department) del
fabricante. Si el fabricante confirma el defecto y aprueba el reclamo, el fabricante decidirá
reemplazar tales partes sin costo alguno. Si se le pide que devuelva las partes defectuosas, los
costos de transporte deberán ser prepagados. El fabricante devolverá las partes al cliente con
costo de transporte o envío prepagados.
Esta garantía limitada no cubre fallas o dificultades de operación debidas a accidente, abuso,
mal uso, alteración, empleo en usos inapropiados, instalación defectuosa o mantenimiento
o servicio inapropiado o falla en la realización de mantenimiento normal y rutinario como se
prescribe en este manual del usuario. Además, la garantía limitada no cubre daños al terminado
de la unidad, tales como rasguños, abolladuras, descoloridos, oxidaciones y otros daños
causados por la intemperie después de la compra de la unidad.
Esta garantía limitada reemplaza cualquier otra garantía. El fabricante no asume ninguna
responsabilidad por garantías de productos vendidos por quienes no sean distribuidores o
vendedores al detal autorizados. Esta exención de responsabilidad incluye cualquier garantía
de comerciabilidad o la garantía de aptitud para un propósito en particular. EL FABRICANTE NO
SE HACE RESPONSABLE POR NINGUNA GARANTIA IMPLICITA INCLUYENDO, SIN LIMITACIONES,
LAS GARANTIAS IMPLICITAS DE COMERCIABILIDAD Y ADAPTABILIDAD A UN PROPOSITO
PARTICULAR. EL FABRICANTE NO ASUME RESPONSABILIDAD ANTE EL COMPRADOR O
ANTE CUALQUIER TERCERA PERSONA POR DAÑOS ESPECIALES, INDIRECTOS, PUNITIVOS,
INCIDENTALES O CONSEQUENCIALES. El fabricante, además, no asume responsabilidad por
garantías implícitas o expresas por defectos de mano de obra causados por terceras personas.
Esta garantía limitada le da al comprador derechos legales específicos y el comprador puede
tener otros derechos según el lugar donde el comprador o la compradora residan. Ciertas
jurisdicciones no permiten limitaciones en cuanto a la duración de una garantía implícita, de
manera que esta limitación puede no ser aplicable a usted.
El fabricante no autoriza a ninguna persona o compañía para asumir por el fabricante cualquier
otra obligación a responsabilidad relacionada con la venta, instalación, uso, remoción,
devolución o reemplazo de este equipo y cualquier representación de esta naturaleza no obliga
al fabricante.
Blue Rhino Sourcing, Inc
Winston-Salem, North Carolina 27105, EE.UU.
(800)-762-1142
Limpieza y cuidado (continuación)

Si necesita ayuda llame al 1.800.762.1142. No vuelva al lugar de compra.
página
13
Limpieza y cuidado
PRECAUCION: Todas la operaciones
de limpieza y mantenimiento deben
realizarse con la parrilla fría y con el
suministro de combustible del tanque
de propano líquido cerrado.
PRECAUCION: NO limpie ninguna
pieza de esta parrilla en un horno de
limpieza automática. El calor extremo
dañará el terminado.
Avisos
1. Esta parrilla debe limpiarse y verificarse
completamente de manera regular.
2. No use productos de limpieza abrasivos pues
dañarán este aparato.
3. No utilice nunca productos limpiahornos para
limpiar cualquier pieza de la parrilla.
4. Nunca use ninguna pieza de esta parrilla en
un horno de limpieza automática. El calor
extremo dañará el terminado.
Cada vez que vaya a usar la unidad:
1. Mantenga el rededor de la unidad limpio y libre de
materiales combustibles, gasolina, y otros líquidos y
vapores inflamables.
2. No obstruya el flujo aire de combustión del propano
líquido ni el aire de ventilación.
3. Mantenga la abertura o aberturas de la zona del
tanque de gas propano líquido abiertas y libres de
basura.
4. Visualmente examine la llama del quemador para estar seguro de que la parrilla está
funcionando adecuadamente.
5. Vea las instrucciones de limpieza más adelante para verificar que las observa
apropiadamente.
6. Examine y limpie el quemador y los tubos del venturi de insectos y nidos de insectos. Un
tubo atascado puede llevar a un incendio debajo de la parrilla.
Limpieza de las superficies
1. Limpie las superficies con un detergente suave de lavado de platos o con soda de hornear.
2. En superficies de limpieza difícil, use un desengrasador a base de cítricos y un cepillo de
nilón.
3. Enjuague las superficies con agua limpia.
Limpieza del quemador principal
1. Cierre el gas en las perillas de control y en el tanque de propano líquido.
2. Remueva las parrillas de cocción y las placas de calentamiento.
3. Remueva el quemador, quitando los tres ganchos que aseguran el quemador al fondo de la
parrilla.
4. Saque el quemador, levantándolo y alejándolo del orificio de la válvula de gas.
5. Desconecte el alambre del electrodo que produce la chispa.
6. Limpie la entrada (venturi) del quemador usando un cepillo pequeño de limpiar botellas o un
chorro de aire comprimido.
7. Remueva todo residuo de comida o desperdicio que haya quedado en la superficie del
quemador.
8. Limpie puertos que se encuentren obstruidos, usando un alambre firme (tal como un
sujetapapeles abierto).
9. Inspeccione el quemador para verificar si tiene daños (grietas o perforaciones). Si encuentra
daños, sustitúyalo con un nuevo quemador.
10. Vuelva a instalar el quemador, verificando que los orificios de la válvula de gas quedan
colocados correctamente dentro de la entrada del quemador (venturi). También verifique la
posición del electrodo de chispa.
11. Vuelva a colocar la placa de calentamiento y la parrilla de cocción.
12. Haga una prueba de fugas.
Limpieza del quemador lateral
1. Cierre el gas en las perillas de control y en el tanque de propano líquido.
2. Remueva la parrilla del quemador lateral.
3. Remueva el quemador, quitando los dos tornillos que aseguran el quemador en la repisa
lateral.
4. Saque el quemador, levantándolo y alejándolo del orificio de la válvula de gas.
5. Limpie la entrada del quemador (venturi) usando un cepillo pequeño de limpiar botellas o un
chorro de aire comprimido.
6. Remueva todo residuo de comida o desperdicio que haya quedado en la superficie del
quemador.
10. Ensaye el uso de ollas con agua para reducir la combustión de grasa y cocer carnes muy
jugosas. Antes de encender la unidad remueva las parrillas de cocción y coloque una olla
panda, para trabajo pesado, directamente sobre las placas de calor. Llene la olla hasta la
mitad con agua, jugos de fruta u otros líquidos para dar sabor. Vuelva a colocar las parrillas
de cocción y ponga los alimentos en la parrilla sobre la olla con líquido.
11. Realce el sabor de los alimentos usando astillas de madera en cajas metálicas para humear
o bolsas de papel de aluminio. Siga las instrucciones del fabricante de las astillas de
madera para esta operación.
12. Las canastas de asar, asadores, sostenes verticales para la carne de ave y otros accesorios
pueden hacer más agradable su experiencia, reducir el tiempo de cocción y facilitar la labor
de limpieza.
13. Limpie las parrillas de cocción y las rejillas después de cada uso con un cepillo de calidad
diseñado para el material de su parrilla. Use guantes de protección y remueva con cuidado
la acumulación de residuos en las parrillas mientras éstas están todavía calientes.
14. Después de cada uso deje que la parrilla se enfríe. Luego proteja las parrillas de cocción
ya limpias con una ligera capa de aceite de cocina, vacíe la bandeja de la grasa, limpie las
superficies exteriores con un limpiador de cocina apropiado y proteja las superficies con
una cubierta de calidad que se acomode apropiadamente su unidad.
15. Visite páginas de Internet - tales como
www.bluerhino.com - vea programas de televisión relacionados con la cocción de asados
a la parrilla o compre libros de cocina relacionados con este tema para obtener interesantes
sugerencias tales como:
Una parrilla a gas es ideal para volver a calentar una porción de pizza. Gradúe los
quemadores a nivel bajo y coloque las secciones de pizza directamente en la parrilla de
cocción, previamente calentada. Cierre la tapa y continúe el proceso de cocción hasta que
el queso principie a hacer burbujas.
Operación del temporizador digital
Conteo en aumento
1. Presione el botón “Start/Stop” (comienzo/ parada).
El temporizador principiará a contar a partir de
0:00.
2. Oprima el botón “Start/Stop” (comienzo/ parada).
El temporizador se detendrá.
Conteo en disminución
1. Oprima el botón “minute” (minutos) para fijar la
duración deseada en minutos.
2. Oprima el botón “Seconds” (segundos) para fijar el
número deseado de segundos.
3. Oprima el botón “Start/Stop” (comienzo/ parada). El
temporizador principiará contando en disminución
el tiempo pre-fijado.
4. Cuando el temporizador llega a 0:00 sonará una
alarma fuerte, hasta por un minuto.
5, Para detener el conteo en disminución en cualquier
momento o para que la alarma deje de sonar,
oprima el botón “Start/Stop” (comienzo/ parada).
Iluminación
Oprima el botón “Light” (luz) y la pantalla LCD se
iluminará por 10 segundos.
Nueva graduación del temporizador
Si ha detenido el temporizador durante su operación
en la modalidad de conteo de aumento o de conteo
en disminución, usted puede volver a graduar el
temporizador en 0:00 oprimiendo y mantenimiento
oprimidos los dos botones indicados por las líneas “Reset” (volver a la graduación inicial).
Apagado automático
Para aumentar la vida útil de la pila, el temporizador digital se apagará automáticamente
cuando no se use en un lapso de 30 segundos. Para encenderlo nuevamente, oprima el botón
“Start/Stop” (comienzo/parada).
Reemplazo de las pilas
1. Remueva la cubierta de atrás del temporizador como se indica en el diagrama (vea la
Figura 11.)
2. Remueva las pilas usadas e inserte dos pilas nuevas AAA.
3. Vuelva a colocar la cubierta de atrás en el temporizador.
Figura 11
Condiciones de la llama en
los quemadores
Use este cuadro para ver si es
necesario limpiar sus quemadores.
1-2 in. /
25.4 - 50.8 mm
1-2 in. /
25.4 - 50.8 mm
Normal: Llama de color azul
pálido con puntas amarillas de
2,5 a 5 cm de altura
Necesita limpieza: Hace ruido y
la llama es de un azul vivo.
Debe limpiarse: La llama es
amarilla y ondulante.
Figura 10
Temporizador digital
Figura 11
Remueva la cubierta
del temporizador digital
Vuelva a colocar la cubierta
del temporizador digital
