Golden Age Project PRE-73 DLX MKII User manual

WWW.GOLDENAGEPROJECT.COM I
Vintage Style Preamplifier

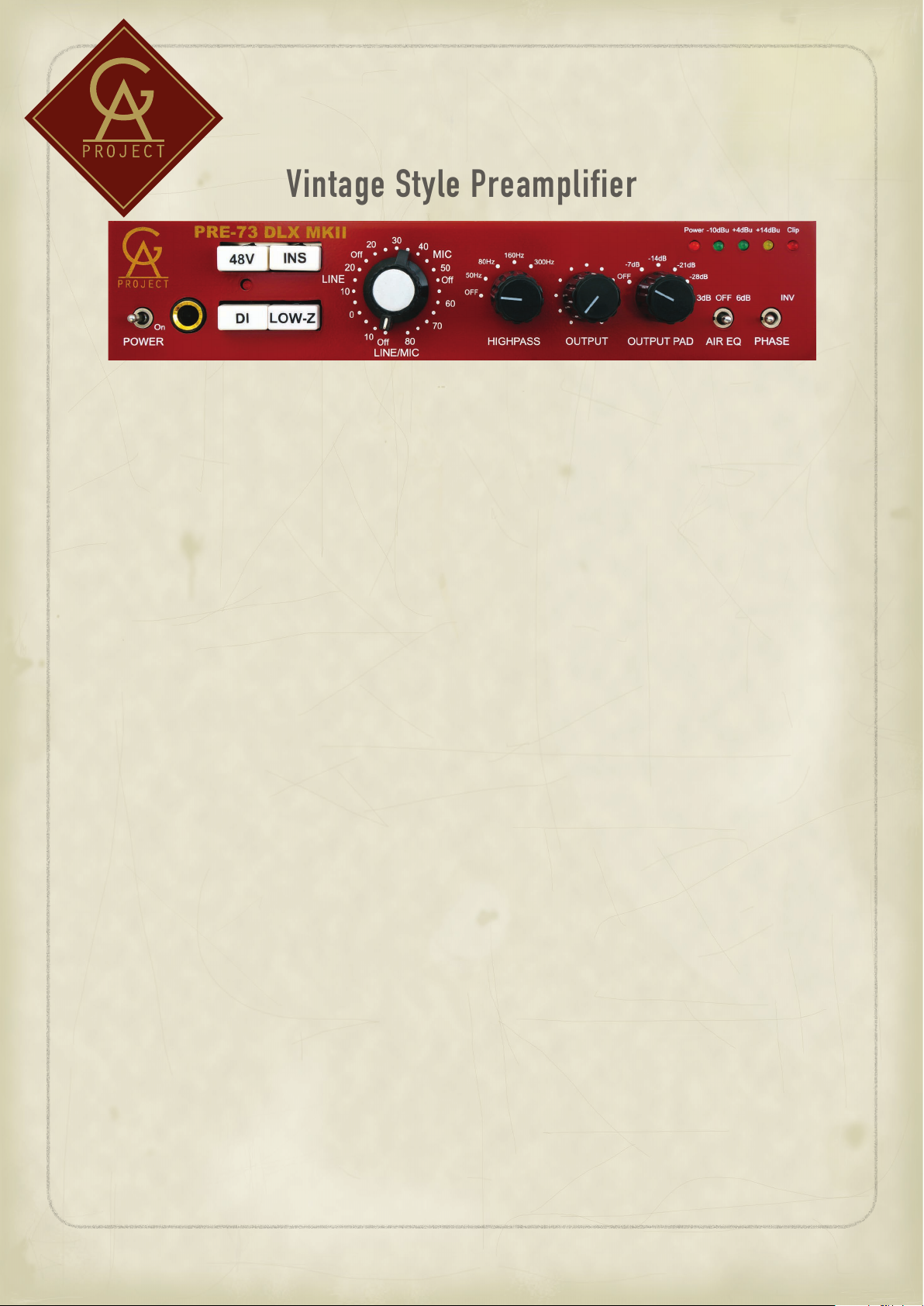

PRE-73 DLX MKII
INTRODUCTION
Congratulations on choosing the Golden Age Project PRE-73 DLX MKII microphone preamplifier!
The PRE-73 DLX MKII is a one-channel vintage style microphone-, line- and instrument preamplifier. The signal path uses only discrete
components like resistors, capacitors and transistors. The line and microphone input and the line output are transformer balanced, using
three different transformers, each one optimized for its purpose.
This is the way audio components were built before integrated circuits became available. The subjective sound quality delivered by
vintage equipment is often prefered over the one delivered by modern products, a situation that is even more obvious now when music is
recorded with clean sounding digital audio equipment.
The circuit used in the PRE-73 DLX MKII is similar to the preamp section in the classical 1073 module with a corresponding sound char-
acter that is warm, punchy, sweet and musical. These classic characteristics have been heard on countless recordings through the years
and it is a versatile sound that works very well on most sound sources and in most genres. The essence of this sound is now available at
a surprisingly low cost, making it available to nearly everyone.
FEATURES
- Vintage style electronics. No integrated circuits in the signal path.
- Custom made mic and line input and line output transformers and highpass inductor. The circuit board is prepared for the Carnhill
transformers and high pass inductor.
- Traditional 1073-style gain switch that is also used to select the mic or the line input jack.
- Combo XLR/TRS mic and line input jacks and separate output XLR and TRS jacks for flexible connections.
- Maximum gain on the mic input is 80 dB, enough to handle passive ribbon mics with quiet sound sources.
- Switchable impedance on the mic input, 1200 or 300 ohms. Changing the load impedance will change the tone of many mics.
- Gain range on the line input: -20 to + 10 dB.
- An active instrument input for guitar and bass that passes the signal through the mic input transformer, with selectable input imped-
ance, hi-Z or 100 kohm, by an internal jumper.
- Switchable phantom power and absolute phase. Gain switch plastic knob and metal knobs for the other controls.
- The phantom power can deliver up to 10 mA according to the specification standard. The 6.8 kohm phantom power resistors are
matched to within 0.1% to maintain good common-mode rejection in the circuit.
- Selectable 1073-style inductor based highpass filter at 50, 80, 160 or 300 Hz with a slope of 18 dB / octave.
- Selectable two position AIR EQ with a boost of about 3 or 6 dB at around 30 kHz.
- Insert jack for inserting EQ´s and other units. The insert jack can be switched in/out from the front panel. An internal jumper can select
if the insert jack always has an output signal or not.
- The output level control makes it possible to make fine gain adjustments and also to overload the main gain stage(s) for more character
and then lower the signal to a suitable level before the output stage.
- An output pad allows the user to add character by attenuating the output signal after the output transformer by -7, -14, -21 or -28 dB for
overdriving the output stage and the output transformer by adding gain and then lower the output signal to a suitable level with the pad.
- A simple but effective 4-step LED output level meter.
- Tantalum capacitors in the signal path.
- Switches on the back panel for 600 ohm output termination and ground lift.
- Relays are used to control internal switching for phantom power, mic low-Z, insert and DI for shorter circuit board signal paths. The
relays are controlled by front panel switches.
- Circuit board star grounding scheme.
- Power supply with separate regulators for the audio circuit and the relay and LED circuit.
- External power supply to avoid interaction with the audio circuits and transformers.
- A solid build quality that will last many years of normal use.

WWW.GOLDENAGEPROJECT.COM II
CIRCUIT DESCRIPTION
The signal first enters an input transformer,
one for the mic input and a one for the line
input. The primary of the mic input trans-
former has two windings that are either con-
nected in series or in parallell which results
in an input impedance of either 1200 Ohms or
300 Ohms for the microphone input.
The transformers are followed by two input
gain stages. For gains up to 50dB, only one
of them is being used. For gains above 50dB,
the second gain stage is inserted in the signal path. Both gain stages uses
only three transistors each.
The signal then goes to the insert relay, the highpass filter and the output
level potentiometer and from there on to the output stage. This stage again
only uses three transistors, the last one in the chain is a hefty 2N3055 power
transistor run in class-A mode, driving the output transformer that is followed
by the stepped output attenuator.
So, all in all, the complete signal chain only contains a maximum of nine
active elements. Compare that to the big number of transistors that are usu-
ally used in one single integrated circuit!
USING THE PRE-73 DLX MKII
Using a preamplifier is not rocket science. Here are some points though to
help you getting the maximum out of the PRE-73 DLX MKII:
- Connect the cable from the power adaptor to the 24V AC connector on the
back panel of the PRE-73 DLX MKII. Do position the adaptor away from the
preamp. Power on the unit with the POWER switch on the front panel.
- Connect your mic and/or line sources to the input XLR/TRS combo jacks on
the back panel. A mic and a line source can be connected at the same time,
- Switching between the mic and line input is simply done by setting the LINE/
MIC gain switch to one of the LINE or MIC positions.
- Connect a cable from the XLR or the TRS output jack to the next unit in the
signal chain. Both jacks are connected in parallel and carry the same signal.
The outputs can feed both balanced and unbalanced inputs.
- Engage +48V phantom power for any microphone that needs it. It is a good
procedure to always disengage the phantom power and wait for about 10
seconds before unplugging a microphone.
- When the LOW-Z switch is engaged, the input impedance of the mic input
drops from 1200 Ohms to 300 Ohms. This will change the tone of many micro-
phones and will give you one more soundshaping option. It will also increase
the signal level.
SOUND CHARACTER
If you want the smallest amount of coloration, always set the OUTPUT level
potentiometer at or close to maximum, the OUTPUT PAD to OFF and adjust the
output level with the stepped LINE/MIC gain switch.
If you want more character, you can do any, or both of the following:
1. Turn the OUTPUT level potentiometer counterclock-wise and increase gain
with the LINE/MIC switch. This will drive the input gain stage(s) harder and
provoke more character from them.
2. Engage the stepped output attenuator (OUTPUT PAD) and again increase
gain with the LINE/MIC switch. This will also drive the output stage and the
output transformer harder and add character.
Setting OUTPUT PAD at -14 dB is also useful if the input of the following unit
has the -10 dBu semi-professional operating level. The standard operating
level of the PRE-73 DLX is +4 dBu, the output level into a 600 ohm load will be
about 1,23V when the “0” VU LED is lit when OUTPUT PAD is OFF.
DI INPUT
Instruments can be connected to the active DI TRS input on the front panel.
The DI uses a FET-buffer and has an input impedance of about 1,5 Mohm.
Press the DI switch to engage this input. The DI input works in the MIC posi-
tions of the LINE/MIC switch. Mic and Line sources at the back can remain
connected. The output of the DI circuit is sent through the mic input trans-
former.
HIGHPASS FILTER
The PRE-73 DLX MKII has an inductor based highpass filter with a roll off of 18
dB/octave. This is a very useful tool to remove excessive bass energy.
AIR EQ
Engage one of the two positions of the AIR EQ if you want to add some level in
the upper frequency range. The center of the boost is at around 30 kHz.
The center OFF-position of the switch disengages the boost.
PHASE SWITCH
The phase switch simply reverses the phase by reversing the wires from
the secondary winding of the output transformer. Reversing the phase of the
signal is useful on a number of occasions, one example is phase reversing
the lower mic of a snare drum to make it sum in phase with the upper mic.
INSERT JACK
There is an unbalanced insert jack located on the back panel where you can
insert equalizers and other external effect units. It has an operating level of
about -18 dBu to -10 dBu. Send is on “tip” and return on “ring”.
The insert is engaged by pressing the INS switch on the front panel.
600 OHM TERM SWITCH
The output transformer used in the PRE-73 DLX MKII is designed for having
an ideal load of about 600 ohm. The input impedance of most modern units
is 10 kohm or more. The PRE-73 DLX MKII has a 600 ohm output termination
switch located on the back panel. Engaging the switch terminates the output
transformer with a resistor to bring down the load to about 600 ohms when
the PRE-73 DLX MKII is used with modern products that will typically have an
input impedance of about 10 kohm.
This switch should normally be engaged if you are connecting the PRE-73 DLX
MKII to a modern product but you can also choose not to engage the switch.
This will lift the high end frequency response slightly which can sometimes be
a good thing.
PLEASE NOTE: the output pad is designed for a load of 600 ohms meaning you
must have the termination switched engaged when the output of PRE-73 DLX
MKII is connected to a modern unit with a high-impedance input.
GROUND LIFT
There is a ground lift switch on the back panel that lifts the internal ground
from the cabinet. If the unit is mounted in a rack together with other units and
you experience ground loop problems, try engaging it.
CUSTOMIZING THE PRE-73 DLX MKII
There are several functions in the PRE-73 DLX MKII that can be customized
by the user. Remove the top panel of the box and follow the instructions below.
1. To change the input impedance of the active DI input to 100 kohm
Locate the jumper “DILowZ” just behind the DI TRS jack. Relocate the jumper
so that it covers both pins.
2. To cut the output signal to the insert jack when insert is not activated
Locate jumper “INSERT OUT” just behind the middle of the LINE input XLR
and the INSERT TRS jack. Remove the jumper and attach it to just one of the
two pins.
GAIN SETTING
There is a lot of gain available in the PRE-73 DLX MKII. If you ever experience
self oscillation, make sure that the OUTPUT level control is set at or close to
it´s maximum setting and reduce gain with the LINE/MIC switch. You can also
try to disengage the Air EQ if it is used.
Do not use the highest gain settings with the active DI input engaged, this is
not needed anyway.
CARNHILL UPGRADE
The circuit board of the PRE-73 DLX MKII is prepared for the Carnhill trans-
formers and highpass inductor, The upgrade work can be made by the dis-
tributor in your area or you can do it yourself if you have soldering experience.
Please note that the warranty will be void if work has been made on your unit
by anyone else than one of our distributors.
The Carnhill parts can be bought in our webshop at www.goldenagemusic.se.
WARRANTY
The PRE-73 DLX MKII is built to last. But as in any electronic device, compo-
nents can break down.
There is a 1,0A, slow blow fuse located inside the unit. If the unit dies, please
check this fuse. If it has blown, replace it with a new one. You can also try with
another 24V AC adaptor if you have one available.
If this doesn´t help, or if the unit has another problem, it will need repair and
you should then contact the reseller where you bought the unit.
The warranty period is decided by the distributor for your country. The dis-
tributor will support Golden Age Project resellers and end users with repairs
and spare parts.
REGISTRATION
You are welcome to register your unit at: www.goldenageproject.com
---------------------------
I would like to thank you for chosing the PRE-73 DLX MKII!
I hope it will serve you well and that it will help you in making
many great sounding recordings.
Bo Medin
Vintage character for modern ideas!
