Golden Eagle WOOD PELLET STOVE Manual

GoldenEagleStoveCompany
05/09
THE MONROE
WOOD PELLET STOVE
BY
Operating & Installation Manual











Manufacturedby:
NationalSteelcraftersofTexas,LLC.
Arlington,TX

www.goldeneaglestoves.com


PROFESIONALINSTALLATIONISHIGHLYRECOMMENDED
SAFETYINFORMATION

IFYOURAPPLIANCEISNOTPROPERLYINSTALLED
AHOUSEFIREMAYRESULT.FORYOURSAFETY,
FOLLOWTHEINSTALLATIONDIRECTIONS.
CONTACTLOCALBUILDINGORFIREOFFICIALS
ABOUTRESTRICTIONSANDINSTALLATION
INSPECTIONREQUIREMENTSINYOURAREA.
PLEASEREADTHISENTIREMANUALBEFORE
INSTALLATIONANDUSEOFTHISPELLETFUEL‐
BURNINGROOMHEATER.FAILURETOFOLLOW
THESEINSTRUCTIONSCOULDRESULTIN
PROPERTYDAMAGE,BODILYINJURY,OREVEN
DEATH.
SAVETHISMANUALFORFUTUREREFERENCE

TableofContents
WARNINGSANDSAFETYPRECAUTIONS.......................................................................................................3
SAFETYPRECAUTIONS....................................................................................................................................4
INTRODUCTION.............................................................................................................................................5
VENTING........................................................................................................................................................6
EquivalentVentLength(EVL)....................................................................................................................6
HorizontalPipe..........................................................................................................................................7
MultipleElbows........................................................................................................................................7
VentTerminations....................................................................................................................................7
INSTALLATION...............................................................................................................................................8
Preparation...............................................................................................................................................8
Specifications............................................................................................................................................9
Clearances.................................................................................................................................................9
FloorProtection........................................................................................................................................9
CombustionAirSupply............................................................................................................................10
ElectricalInstallation...............................................................................................................................10
SpecialMobileHomeRequirements......................................................................................................11
ExampleInstallations..............................................................................................................................12
OPERATION.................................................................................................................................................16
ButtonControls.......................................................................................................................................16
ProperFuel..............................................................................................................................................18
Pre‐Start‐UpCheck..................................................................................................................................18
BuildingaFire..........................................................................................................................................19
DamperControl......................................................................................................................................19
OptionalThermostat...............................................................................................................................22
OperatingSafetyPrecautions.................................................................................................................23
MAINTENANCE............................................................................................................................................24
AshRemoval............................................................................................................................................24
Cleaning...................................................................................................................................................26
Blowers...................................................................................................................................................27
ChimneyCleaning...............................................................................................................................28
TROUBLESHOOTINGGUIDE........................................................................................................................29
ElectricalDiagram...................................................................................................................................34

WARNINGSANDSAFETYPRECAUTIONS

SYMBOLS
Throughoutthemanualyouwillfindsymbolsusedinordertohighlightanimportantpieceof
information.Belowyouwillseeanexampleofthosesymbolsandadefinitionoftheirmeaning.




IMPORTANTSAFETYNOTE
Readcarefullyandbesuretofollowalldirections




SAFETYNOTE
Importantinformationtoavoiddamagetotheunitorpotentialsafetyconcern.
Readcarefullyandbesureyoufullyunderstandintentandmeaning.



DANGEROFELECTRICALSHOCK
Whileperformingthisactionthereisthepossibilityofelectricalshock.Besure
thattheunitisdisconnectedfrompowerwhileperformingthisaction.



IMPORTANTPIECEOFINFORMATION
Readcarefullyandbesureyoufullyunderstandthemeaningandintent



THISISANACTIONTHATSHOULDBEAVOIDED
ReadcarefullyanddoNOTdothis.



THISISSOMETHINGTHATSHOULDBECHECKED
Readcarefullyandbesuretofollowtheinstructionsprovided.


SAFETYPRECAUTIONS

Donotoperateyourstoveifyousmellsmokecoming
fromit.Turnitoff,monitorit,andcallyourdealer.
Nevertrytorepairorreplaceanypartofthestoveunless
instructionsareprovided.Atrainedtechnicianshoulddo
allotherwork.

Neverusegasoline,gasoline‐typelanternfuel,
kerosene,charcoallighterfluid,orsimilarliquidstostart
or“freshenup”afireinthisstove.Keepallsuchliquids
wellawayfromthestovewhileinuse.
Donotthrowthismanualaway.Thismanualhas
importantoperatingandmaintenanceinstructionsthat
youwillneedatalatertime.Alwaysfollowthe
instructionsinthismanual.Readthemanualthoroughly.

Neverblockfreeairflowthroughtheopenventsofthe
stove.
Donotplaceclothingorotherflammableitemsonor
nearthestove.

Keepforeignobjectsoutofthehopper.Besurethat
whenyouaddfueltothehopper,thepelletsorcorn
thatyouareusingisfreeofforeignmaterial.
Theviewingdoormustbeclosedandlatchedduring
normaloperation.

Thestovewillnotoperateduringapoweroutage.Ifan
outagedoesoccur,keepthestovedoorclosed,and
openawindowifanysmokespillsintotheroom.
Adequateverticalventpipeontheexhaustwillprevent
smokefromenteringthehome.

Donotoperatethestoveiftheflamebecomesdarkand
sootyoriftheburnpotoverfillswithfuel.Turnthestove
off,inspectit,andcallyourdealeroraqualified,trained
technician.

Disconnectthepowercordbeforeperformingany
maintenanceorrepairsonthestove.NOTE:Turning
thestove“off”doesnotdisconnectallpowerfromthe
stove.
CAUTION:Hotwhileinoperation.Keepchildren,clothing,
andfurnitureaway.Contactmaycauseskinburns.
Educateallchildrenofthedangerofahightemperature
stove.Youngchildrenshouldbesupervisedwhentheyare
inthesameroomasthestove.

DONOTopentheviewingdoorduringthestartup
period.

Ifthestoveisinstalledinaroomwithoutairconditioning,
orinanareawheredirectsunlightcanshineontheunit,
itispossiblethiscancausethetemperatureofthestove
torisetooperationallevels;oneofthesensorscouldthen
makethestovestartonitsown.Itisrecommendedthat
thestovebeunpluggedwhennotinuseforextended
amountsoftime(i.e.duringthesummermonths).

Donotunplugthestoveifyoususpectamalfunction.
Turnthestoveoff,inspectit,andcallyourdealeror
qualified,trainedtechnician.
Donotuseanadapterplugorseverthegroundingplug.
DonotuseaGFCIplugorcircuit.Donotroutethe
electricalcordunderneath,infrontof,oroverthestove.

Contactyourlocalbuildingofficialstoobtainapermit
andinformationonanyinstallationrestrictionsor
inspectionrequirementsinyourarea.Notifyyour
insurancecompanyofthisstoveaswell.
Theexhaustsystemmustbecompletelyairtightand
properlyinstalled.Theexhaustventjointsmustbesealed
withRTV500°F(260°C)siliconesealant,andwithUL‐181‐
APfoiltape.

Thisunitmustbeproperlyinstalledtopreventthe
possibilityofahousefire.Theinstructionsmustbe
strictlyadheredto.Donotusemakeshiftmethodsor
compromiseintheinstallation.
Allowthestovetocoolbeforecarryingoutany
maintenanceorcleaning.Ashesmustbedisposedina
metalcontainerwithatightlidandplacedonanon‐
combustiblesurfacewellawayfromthehomestructure.


Yourstoverequiresperiodicmaintenanceandcleaning.
Failuretomaintainyourstovemayleadtosmoke
spillageinyourhome,orevenamoredangerous
situation.RefertotheMAINTENANCESECTIONofthis
manualorourwebsiteforspecificmaintenance
instructions.
Thisstoveisdesignedandapprovedforpelletizedwood
fuelandcornonly.Anyothertypeoffuelburnedinthis
heaterwillvoidthewarrantyandsafetylisting,andmay
resultinahazardouscondition.

Thisstovemustbeconnectedtoastandard3prong120
V.,60Hzgroundedelectricaloutlet.
Wheninstalledinamobilehome,thestovemustbe
boltedtothefloor,haveoutsideairconnected(seepage
3),andNOTBEINSTALLEDINABEDROOM(PerH.U.D.
requirements).Theintegrityofthefloorandceilingmust
bemaintained.Checkwithlocalbuildingofficials.

Theexhaustsystemshouldbecheckedregularly.Itis
recommendedthattheexhaustsystembeinspected
onceamonth,orforeverytonofpelletsburned.Ata
minimum,evenifburninglessthanatonperyear,the
exhaustshouldbecheckedtwiceaburningseason.
GoldenEagleStovesgrantsnowarranty,impliedor
stated,fortheinstallationormaintenanceofyourstove,
andassumesnoresponsibilityofanyconsequential
damage(s).


INTRODUCTION
ThankyouforpurchasingtheGoldenEagleWoodPelletBurningStove.Youarenowpreparedtoburnwoodinthemost
efficient,convenientwaypossible.Toachievethesafest,mostefficientandmostenjoyableperformancefromyourstove,
youmustdothreethings:1)Installitproperly;2)Operateitcorrectly;and3)Maintainitregularly.Thepurposeofthis
manualistohelpyoudoallthree.
ThisstovehasbeenindependentlytestedtoASTME1509‐04StandardSpecificationforRoomHeaters,PelletFuelBurning
Type1,ULC/ORD1482‐90StandardforSolidFuelRoomHeaters,andOregonAdministrativeRulesforMobileHomes(814‐
23‐900through814‐23‐909)andInstallationasaStoveHeater.
Thisapplianceisdesignedspecificallyforuseonlywithpelletizedwood.Itisdesignedforresidentialinstallationaccording
tocurrentnationalandlocalbuildingcodesasafreestandingroomheater.Itisalsoapprovedasamobilehomeheater
whichisdesignedforconnectiontoanoutsidecombustionairsource.
Thisstoveisdesignedtoprovidetheoptimumproportionsoffuelandairtothefireinordertoburnalmostfreeofsmoke
andsoot.Anyblockageoftheairsupplytoorfromthestovewillseriouslydegradeitsperformanceandwillbeevidenced
byasmokingexhaustandasootingwindow.Forbestoperationtheashcontentofthepelletfuelshouldbelessthan1%
andthecalorificvalueapproximately8200BTU/LB.Avoidhighashcontentfuelsbecausethiswillrapidlyfilluptheburnpot
andeventuallycutoffthecombustionairsupply.


PLEASEREADTHISENTIREMANUALBEFOREINSTALLATIONANDUSEOFTHISPELLETFUEL‐
BURNINGROOMHEATER.FAILURETOFOLLOWTHESEINSTRUCTIONSCOULDRESULTIN
PROPERTYDAMAGE,BODILYINJURYOREVENDEATH.


Keepthismanualhandyforfuturereference.


THISPELLETSTOVE,WHENINSTALLED,MUSTBEELECTRICALLYGROUNDEDINACCORDANCE
WITHLOCALCODES,ORINTHEABSENCEOFLOCALCODES,WITHTHENATIONALELECTRICAL
CODE,ANSI/NFPA70.



Theauthorityhavingjurisdiction(suchasmunicipalbuildingdepartment,firedepartment,fire
preventionbureau,etc.)shouldbeconsultedbeforeinstallationtodeterminetheneedto
obtainapermit.



THESTOVEWILLNOTOPERATEUSINGNATURALDRAFTORWITHOUTAPOWERSOURCEFOR
THEBLOWERSYSTEMSANDFUELFEEDSYSTEMANDMUSTNOTBEBURNEDWITHANYTYPE
OFFUELBESIDESWOODPELLETS.



COMMERCIALANDINDUSTRIALINSTALLATIONSOFPELLETSTOVESSHOULDNOTBEUSED
SINCEOPERATIONALCONTROLISOFTENNOTWELLMANAGEDINTHESESETTINGS.






WARRANTYREGISTRATION
Toreceivefullwarrantycoverage,youwillneedtoshowevidenceofthedateyoupurchasedyourstove.Wesuggestthat
youmakeacopyandattachyoursalesinvoicetothismanual,sothatyouwillhavealltheinformationyouneedinone
placeshouldtheneedforserviceorinformationoccur.Alsobesuretocompletethewarrantyregistrationformonour
webpage(preferredmethod)ormailintheonethatcamewiththestove.Whenregisteringyourstoveforwarrantya
copyofthesalesinvoicemustbeincludedeitherinelectronicformatifregisteredviatheinternet,oralegiblecopyifyou
mailinthewarrantyregistrationcardthatcamewithyourstove.

VENTING
Thechoicesyoumakewhendetermininghowyourventpipeisconfiguredisveryimportantandwill
haveanimpactontheperformanceofyourunit.Inordertogetthebestperformancefromyour
stovewehighlyencourageyoutofollowallinstallationdirectionsinthismanual.Itwillsaveyoua
greatdealoftimeandtroubleifyouproperlyventyourunit.

TheMonroeiscertifiedforusewithlistedTYPEL‐Vent,3”or4”diameterinsize.Thestovewas
testedwithSimpsonDuraventbrand.Class“A”chimneyisnotrequired.Refertotheinstructions
providedbytheventmanufacturer,especiallywhenpassingthroughawall,ceilingorroof.

THISISAPRESSURIZEDEXHAUSTSYSTEM.ALLVENTCONNECTORJOINTSMUSTBE
SEALEDWITH500F(260C)RTVSILICONESEALANTTOENSURECONSISTENT
PERFORMANCEANDAVOIDSMOKESPILLAGE.ALLHORIZONTALCONNECTORJOINTS
MUSTBESEALEDWITHUL‐181‐APFOILTAPE.


DONOTCONNECTTHISUNITTOACHIMNEYFLUESERVINGANOTHERAPPLIANCE.



DONOTINSTALLAFLUEDAMPERINTHEEXHAUSTVENTINGSYSTEMOFTHISUNIT.
INSTALLVENTATCLEARANCESSPECIFIEDBYTHEVENTMANUFACTURER.


EquivalentVentLength(EVL)
Priortopurchasingyourpelletventpipe(typeL)youshouldplanyourventingscenariointo
determinethediameterofventpipeyoushoulduse.Pelletventpipecomesin3"and4"diameter.

Inordertodetermineifyoucanuse3"diameterpipe,youneedtocalculateyourEVL(Equivalent
VentLength).ToproperlycalculateyourEVLyoushouldmakeasimplesketchofyourplanned
installation.ThenusethefiguresbelowtodetermineyourEVL:
90degreeelbowsorcleanoutteescountas5'ofpipe
45degreeelbowscountas3'ofpipe
Piperunninghorizontallycountsas1'ofpipefor1'ofpipe
Piperunningverticallycountsas1/2'ofpipefor1'ofpipe

UsetheabovefigurestocalculatewhatyourplannedEVLwillbe.IfyourEVLislessthan15'youcan
use3"diameterpipe.IfyourEVLis15'ormoreyoushoulduse4"diameterpipe.Ifyouneedtouse
4"pipeyoushouldhavea3"to4"transitionrightoffthebackoftheunitandthenuse4"diameter
pipethroughouttheentireexhaustsystem.

Ifabove3,000'inelevation,youshoulduseonly4"diameterpipe.Inaddition,ifinstalling
theunitinacornerandgoingoutasidewall,wehighlyrecommendthatyouuse4"pipe
regardlessofyourEVLorelevation.




HorizontalPipe
Youshoulddoeverythingpossibletoreducetheamountofhorizontalpipeyouhaveinyourexhaust
configuration.Themorehorizontalpipethatyouhavetheharderyourcombustionblowerwillhave
towork.Youwillalsoneedtocleanyourexhaustpipemorefrequently,andinsomecasesyourunit
willfunctionverypoorlyifatall.

Itisbesttoalwayshaveverticalpipefollowinghorizontalpipe.Thiswillhelptooffsettherestriction
createdwiththehorizontalpipe.Ideallyanyhorizontalpipeinyourventingconfigurationwillbe
rightoffthebackoftheunit.Thiswouldthenbefollowedbyseveralfeetofverticalpipe.We
recommend7'ormoreofverticalpipeforallinstallations.


Youshouldneverhavemorethan5’ofhorizontalpipeonanyinstallation.Havingmore
than5’ofhorizontalpipewillpotentiallycauseseriousperformanceandefficiency
deficits.

MultipleElbows
Acommonmistakemadebypeopleistousetoomanyelbowsintheexhaustsystem.Younever
wanttohavemorethantwoelbowsinanexhaustifitcanbeavoided.Dependinguponyourexact
exhaustconfigurationyoumaybeabletousethreeelbows.Youshouldalwaysavoidusingfouror
moreelbows.

Youalsowanttoavoidhavingelbowstooclosetogether.Ideallyanyelbowsintheexhaust
configurationwillbeseparatedby3'ormoreofstraightpipe.Iftheelbowscannotbespacedatleast
3'apartyoushoulduse4"diameterpipetohelpreducesomeoftherestrictioncreatedbyhaving
elbowsspacedsoclosely.Theincreasedpipediameterwillnoteliminatealloftherestrictionthough,
andyoushouldexpectyourunittoburnlessefficientlythannormalifyoudothis.

YoushouldALWAYSavoidhavingtwo90degreeelbowsrightnexttoeachother.Having
two90degreeelbowsrightnexttoeachotherwillcreatean"S"curvethatcreatesa
tremendousamountofrestrictioninyourexhaustsystemresultinginextremelypoor
stoveperformance.


VentTerminations
Yourventingendcaporterminationmustconformtothefollowingregulationsandmustbeloacated
insuchamannerastoconformto:
A. Notlessthan3feetaboveanyforcedairinletlocatedwithin10feet.
B. Notlessthan4feetbeloworhorizontallyfrom,oronefootabove,anydoor,window
orgravityairinletintoanybuilding
C. Notlessthantwofeetfromanadjacentbuilding
D. Notlessthan7feetabovegradewhenlocatedadjacenttoapublicwalkway
E. Mobilehomeinstallationsmustuseasparkarrester.


INSTALLATION
Installationofyourpelletstoveisextremelyimportant.Installationoftheunitwillnotonlyhavean
effectuponthesafetyofyourstove,butalsoontheperformanceandefficiencyofthestove,and
alsoontheamountofmaintenanceyoumustperform.Forallofthesereasonsyouwanttomake
surethatyourstoveisproperlyinstalled.
Wheninstallingyourpelletstovethereareseveralthingsthatyoushouldkeepinmindandconsider
beforeyouactuallybegintheinstallation.Takingcaretoinstallyourpelletstovecorrectlywillensure
thatyou,yourfamily,andyourhomearesafe,andthatyourunitsperformsatpeakefficiency.
Keepthefollowingthingsinmindwhenyouplanyourinstallation:
1. Itisalwaysbesttohaveaminimumof5'ofverticalpipe,andweactually
recommend7'ormore.
2. Checkwithlocalbuildingorfireofficialsforanyadditionalinstallationorpermitting
requirements.
3. Useonlyqualitymaterialsfromknownmanufacturersanddistributors.
4. Itisbesttohavetheunitventedonthelowpressuresideofthehouse.Thisistheside
oppositeofprevailingwinds.
5. Flexpipeisonlyapprovedforuseinsideofamasonryfireplace.
6. Eliminateasmuchhorizontalpipeandelbowsaspossible.
7. Usethesamesizepipediameterforyourentireexhaustsystem.
8. DoNOTplugthestoveintoaGFCIsocketorcircuit.
9. Alwaysuseaqualitysurgeprotector.

Preparation
Factorypackagingmustberemoved,andsomeminorassemblyworkisrequiredpriortoinstallation.
Accesstotherearofthestoveisnecessary.

Planyourinstallationpriortoactuallyinstallingtheunit.Itisagoodideatomakeasketchofyour
proposedinstallation.CalculatetheEVL(EquivalentVentLength)priortopurchasingyourventpipe
toensurethatyouhavethecorrectdiameter(seeVENTINGformoredetails).

Makesurethatyourplannedinstallationwillallowproperclearancetobemaintainedon
allsidesofthestoveandtheexhaustflue.



DONOTUSEMAKESHIFTMATERIALSORCOMPROMISESINTHEINSTALLATIONOFTHIS
UNIT.


Specifications
Width:21.5”
Height:28.5”
Depth:24”
Weight:225lbs.
Fluesize:3”or4”

HopperCapacity:Upto45lbs.
(Thiscanvarywidelydependingonpelletsize,
length,anddiameter)

EPAstatus:ExemptBurntime:1lb.to4.5lbs.perhour
BTUrange:8,200to36,000

Approvedinstallations:mobilehome,alcove,conventional
Clearances
TheMonroewoodpelletstovehasbeenindependentlytestedandlistedforusewiththefollowing
clearancerequirements.Allclearancesaremeasuredininchesfromthesides,rear,andface(door
opening)orstovebody.


FloorProtection
Freestandinginstallationsrequireaminimum21”wideby28”
deepfloorprotection.Thestovemustbeplacedonacontinuous
(groutedjoints)noncombustiblematerialsuchasceramictile,
cementboard,brick,3/8”millboardorequivalent,orother
approvedorlistedmaterialsuitedforfloorprotection.

THEMATERIAL(S)USEDMUSTHAVE,ORCOMBINE
TOHAVE,AMINIMUMINSULATIVERATINGOF‘R1’.



Ceramictile,oranytile,requiresacontinuoussheet
beneathtopreventthepossibilityofembersfalling
throughtothecombustiblefloorifcracksorseparationshouldoccurinthefinished
surface,thiswouldincludefloorprotectionforBuilt‐inraisedhearths.Checklocalcodes
forapprovedalternatives.
Figure1
Figure2

CombustionAirSupply
A2”insidediametermetallicpipe,eitherflexibleor
rigid,maybeattachedtotheinletatthestove’srear
(refertofigure3).Arodentguard(minimum¼”wire
mesh)/windhoodmustbeusedattheterminus(refer
tofigure4).Allconnectionsmustbesecuredand
airtightbyeitherusingtheappropriatelysizedhose
clampand/orUL‐181‐APfoiltape.

Formobilehomeinstallationsonly:2”inside
diameterpipemaybeusedforthefirst5feetof
combustionairsupplyrun;from5to10feetuse2¾”
orlargerinsidediameterpipe.

SourcesofOutsideCombustionAir
1. Infireplaces
Chimneytop.
Ashcleanoutdoor.
2. Forfreestandinginstallations
Aholeinfloornearstoverearterminatingonlyinaventilatedcrawlspace.
Aholeinthewallbehindthestove.

Ifoutsideairisnotused,itisimportant
thatcombustionairiseasilyavailableto
theairinlet.Acloseableoutsideair
registercanbeusedintightlyinsulated
homes.

FORAMOBILEHOMEINSTALLATIONTHE
STOVEMUSTBECONNECTEDTOAN
OUTSIDESOURCEOFCOMBUSTIONAIR.

FORMOBILEHOMEINSTALLATIONSNO
COMBUSTIONAIRSUPPLYMAYEXCEED10FEET.

ElectricalInstallation
Voltagevariationscanleadtoseriousperformanceproblems.Theelectricalsystemisdesignedfor
120VACwithnomorethan5%variation.GoldenEagleStoveCompanycannotacceptresponsibility
forpoorperformanceordamageduetoinadequatevoltage.Ifconnectedtoanoldertwo‐prong
outlet,aseparategroundwireshouldberuntoaproperground(referthistoaqualifiedtechnician).
Alwaysroutetheelectricalcordsothatitwillnotcomeintocontactwithanyhotpartofthestove.

DONOTCONNECTTHEUNITTOAGFCISOCKETORCIRCUIT.


Werecommendconnectingtoagoodqualitysurgeprotectorthatispluggedintoa
standardthree‐prong,120V,60Hzelectricaloutlet.
Figure3
Figure4

SpecialMobileHomeRequirements

Thestovemustbegroundedtothesteelchassisofthehomewith8Ga.Copperwireusingaserrated
orstarwashertopenetratepaintorprotectivecoatingtoensurepropergrounding.

Thestovemustbesecurelyfastenedtothefloorofthemobilehomethroughthetwoholesinthe
rearofthestoveusingtwo¼”lagboltsthatarelongenoughtogothroughbothahearth(ifused)
andthefloorofthehome.(Seefigure5).


Figure5

THESTRUCTURALINTEGRITYOFTHEMOBILEHOMEFLOOR,WALL,ANDCELINING/ROOFMUST
BEMAINTAINED.

INSTALLATIONSHOULDBEINACCORDANCEWITHTHEMANUFACTUREDHOMEANDSAFETY
STANDARD(HUD),CFR3280,PART24.

DONOTINSTALLINASLEEPINGROOM.


ExampleInstallations

Therearemanywaysthatastovecanbeproperlyinstalled.Thepotentialvariablesinanyinstallation
canvarygreatlydependinguponwhereyouplaceyourstove,yourplannedexhaustconfiguration,
andotherfactors.Forthatreasonwecannotshoweverypossibleinstallation.However,belowyou
willfindseveralexamplesofthepreferredinstallationsthatwerecommend.Ifyouinstallyournew
stoveinthesamemannerastheseexampleinstallationsyouwillgetthebestperformancefromyour
unit.

HORIZONTALLYTHROUGHWALL
Thisinstallation(refertoFigure6)istheidealwaytoventyourstove.Youshouldmakeevery
attempttoventyourunitasshowninthisexampleasitwillprovideyouwiththegreatestefficiency
andperformanceofyourunit.Inaddition,thisinstallationwillhelptoensurethatyouhaveaclean
andefficientburnsolongasyouareusingaqualityfuelandproperdampercontrol.

Thefurtheryoudeviatefromthisrecommendedinstallation,thelessefficientlyyourunit
willfunction.

NOTE:FollowL‐Ventchimneymanufacturer’sinstructions.

1. Positionstove,adheringtoclearancesshowninFigure1.
2. Locatepositionofholeinwall;directly
behindstoveexhaustvent(refertofigure
3).
3. Alwaysmaintain3”clearancefrom
combustiblematerials.
4. InstallL‐VentwallthimbleperL‐Vent
manufacturer’sinstructions.
5. Attachenoughpipingtopenetrateand
extendatleast6”beyondexteriorwalls.An
8‐footverticalpiperunissuggestedwhere
possibletoreducethepossibilityofsmoke
spillageintheeventofalossofnegative
pressure.
6. Attachcapandsealoutsidewallthimbles
withnon‐hardeningwaterproofmastic.
7. Terminationshouldnotbelocatedsothat
hotexhaustgasescanignitetrees,shrubs,or
grassesorbeahazardtochildren.Exhaust
gasescanreachtemperaturesof500ºFandcauseseriousburnsiftouched.


FOLLOWYOURVENTPIPEMANUFACTURERSINSTRUCTIONSREGARDINGALLASPECTS
OFVENTINSTALLATIONANDCLEARANCES.



Figure6

VERTICALLYWITHNEWCHIMNEYSYSTEM
(RefertoFigure7)

OPTION:Toachieveacentervertical
installationa45ºelbowandaclean‐outtee
canbeusedtooffsetthepipefromthe
exhaustoutlettotherearcenterofthe
stove.

OPTION:InstallL‐Ventelbowinplaceof
clean‐outtee.Locatestove.Dropplumb
bobtocenterofteeoutlet,markpointon
ceiling.InstallceilingsupportandL‐Vent
pipeperL‐Ventmanufacturer’s
instructions.

1. Alwaysmaintain3”clearancefrom
combustiblematerials.Whenpassing
throughadditionalfloorsorceilings,
alwaysinstallfirestopspacer.

2. Afterliningupforholeinroof,cuteithera
roundorsquareholeinroof,always3”largerallthewayaroundpipe.Installupperedgeand
sidesofflashingunderroofingmaterials,nailtotheroofalongupperedge.Donotnaillower
edge.Sealnailheadswithnon‐hardeningwaterproofmastic.

3. Applynon‐hardening,waterproofmasticwherethestormcollarwillmeettheventandflashing.
Slidestormcollardownuntilitsitsontheflashing.Sealandinstallcap.Mobilehomeinstallations
mustuseasparkarrester.


VERTICALLYINTOEXISTINGCHIMNEYSYSTEM
Ifyouhaveandexistingchimneysystemyoucanrunyournew
L‐Ventpipeupthroughthecenterofyourexistingchimney
system.(refertofigure8)


Followguidelinesforequivalentventlength.



FOLLOWYOURVENTPIPEMANUFACTURERS
INSTRUCTIONSREGARDINGALLASPECTSOFVENT
INSTALLATIONANDCLEARANCES.


Figure7
Figure8

VERTICALLYINTOEXISTINGMASONRYFIREPLACE
(Refertofigure9)
1. Havethemasonrychimney
inspectedbyaqualifiedchimney
sweeporinstallertodetermineits
structuralcondition.
2. Youwillneedapipelengthequal
tothechimneyheightfromthe
hearth.Ifoutsidecombustionair
istobeused,youwillneedapipe
lengthequaltothechimney
heightplus18inches.
3. Installablankingplateandthe
chimneypipe,andifusedthe
outsideairpipe,asshownin
Figure9.
4. AttachtheL‐ventadapter,a
sectionofpipeandcleanouttee,
makingsurethecleanoutteeis
centeredinthechimneyfluearea.
UseRTV,metallictape,anda
minimumofthreeself‐taping
screwsatalljointconnectionsto
ensureatightseal.
5. Positionthestove,adheringtotheclearancesinFigure1.
6. Measureandbuildchimneytopplate.Cutoutholesforchimneypipe,andifusedtheoutsideair
pipe.Installandsealwithnon‐hardeningmastictopreventwaterleakage.Installventcap.


FOLLOWYOURVENTPIPEMANUFACTURERSINSTRUCTIONSREGARDINGALLASPECTS
OFVENTINSTALLATIONANDCLEARANCES.



Followguidelinesforequivalentventlength.




Figure9

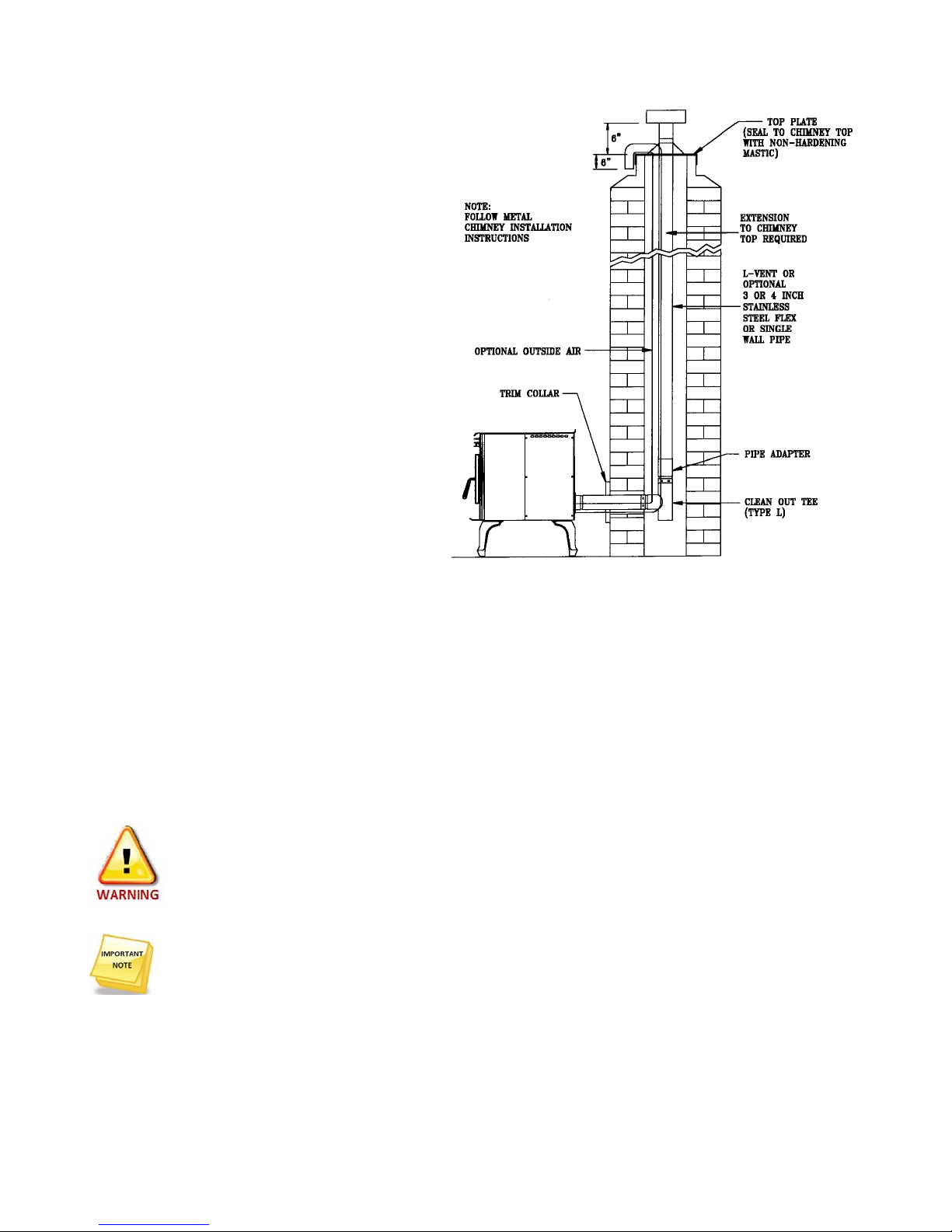

INSTALLATIONTHROUGHSIDEOFMASONRYCHIMNEY
(Refertofigure10)

1. Positionthestove,adheringtothe
clearancesinFigure1.Markthecenter
oftheholewherethepipeistopierce
themasonrychimney.
2. Itwillbenecessarytobreakoutthe
masonryaroundthelocationofthepipe
centermark.Usea4‐inchdiameterhole
for3‐inchpipeand5‐inchdiameterhole
for4‐inchpipe.
3. Measureandbuildchimneytopplate.
Cutoutholesforchimneypipe,andif
usedtheoutsideairpipe.
4. Installtheteeonthebottomofthe
verticalpipesystemandloweritdown
thechimneyuntilthecenterbranchof
theteeislevelwiththecenterofthe
holeinthemasonry,asshowninFigure
10.
5. Installandsealthetopplatefromstep3
withnon‐hardeningmastic.Slip
thestormcollaroverthepipe,and
whileholdingthepipeattheproperelevation,affixthecollarwithaminimumofthree¼”
stainlesssteelsheetmetalscrews.Sealalljointsandseamsaroundthecollar.
6. Connectthehorizontalpipebypushingitthroughtheholeinthemasonryandliningitupwith
thebranchinthetee.Pushthepipeintotheteewhiletwistingittolockitintothetee.
7. Ifdesired,oncethehorizontalpipeisinplace,thespacebetweenthepipeandmasonrymaybe
filledwithhigh‐temperaturegrout.
8. Installthetrimcollar.Anadjustablepipelengthandadaptermaybeneededtofinishthe
connectiontothestove.


FOLLOWYOURVENTPIPEMANUFACTURERSINSTRUCTIONSREGARDINGALLASPECTS
OFVENTINSTALLATIONANDCLEARANCES.



Followguidelinesforequivalentventlength.



Figure10

OPERATION
Theblowersandautomaticfuelsupplyarecontrolledfromapanelontheleft‐handsideofthestove. 
Thecontrolpanelfunctionsareasfollows.
ButtonControls
ON/OFFSWITCH

Whenpushedthestovewillautomaticallyignite.Nootherfirestarteris
necessary.Theigniterwillstayonforatleast10andupto15minutes,
dependingonwhenProofofFireisreached.Thefireshouldstartinabout
5minutes.
ThegreenlightlocatedabovetheOn/Offbutton(intheOn/Offbox)
willflashduringtheignitionstart‐upperiod.(Seefigure12)
TheHeatLevelAdvanceisinoperableduringtheignitionstartperiod.
WhenthegreenlightcontinuouslystaysontheHeatLevelAdvancecanbe
adjustedtoachievethedesiredheatoutput.

Ifthestovehasbeenshutoff,andyouwanttore‐startitwhileit
isstillwarm,the“on/off”buttonmustbehelddownfor2
seconds.



FUELFEEDBUTTON

Whenthe“FuelFeed”buttonispushedandhelddownthestovewillfeedpelletscontinuously
intotheburnpot.
Whilethestove’saugersystemisfeedingpelletsthegreenlight(inthe“FuelFeed”box)willbe
on.(Seefigure11)



DONOTUSETHEFUELFEEDBUTTONDURINGNORMALOPERATIONBECAUSEIT
COULDSMOTHERTHEFIREANDLEADTOADANGEROUSSITUATION.


HIGHFANSWITCH

Theroomairfanspeedvariesdirectlywiththefeedrate.The“HIGHFAN”switchoverridesthis
variablespeedfunction.Itwillsettheroomairblowerspeedtohighatanyfeedratesetting.
Whenthe“HIGHFAN”buttonispushedtheroomairfanwillswitchtoitshighestsetting.
Whenthisbuttonispushedagaintheroomairfanwillreturntoitsoriginalsettingbasedonthe
HeatLevelAdvancesetting.
Figure11


LOWFEEDADJUSTMENT

TheLowFeedAdjustmentbuttonisanoptionalfuelfeedcontrolthatmostpeoplewillneverneedto
use.TheLowFeedAdjustmentbuttonwillslightlychangethefeedrateofthenumberoneheatlevel
setting.Ithasnoaffectonanyoftheotherheatlevels.

Differentsizeandqualitypelletfuelmayrequireadjustmentofthe“1”feedsettingontheHeatLevel
Advancebargraph.Thisisusuallyaone‐timeadjustmentbasedonthefuelyouareusing.The“LOW
FEEDADJUSTMENT”buttonwhenadjustedwillallowfor3differentfeedratesettingsforthe#1feed
settingonly.Toadjustsimplypushthe“LOWFEEDADJUSTMENT”buttonwhilethestoveis
operatingatsetting“1”andwatchthebargraph.

Whenthe“1”&“3”lightsareilluminatedonthebargraphthelowfeedrateisatits“lowest”
setting.
Whenthe“1”lightisilluminatedonthebargraphthelowfeedrateisatits“normal”setting.
Whenthe“1”&“4”lightsareilluminatedonthebargraphthelowfeedrateisatits“highest”
setting.

YoushouldonlyusetheLowFeedAdjustmentbuttonunderlimitedcircumstances.Ifyouareunable
tokeepafiregoingonthenumberoneheatlevelsettingwiththedampercompletelyclosedthen
youshouldusetheLowFeedAdjustmentbuttonsothatwhentheunitisonthenumberoneheat
levelsettingthe#1and#4lightsareon.Thiswillfeedjustalittlebitmorefueltothefire.You
shouldalsodothisifyouareusingtheunitwithathermostatintheHigh/Lowthermostatmode.

TheLowFeedAdjustmentbuttononlychangesthefuelfeedrateforthe#1setting.Ithas
noeffectontheotherheatlevelsettings.

Whenthestoveisseton“1”the“LowFeedAdjustment”valueswillbeshownontheHeat
LevelAdvancebargraph.ForexampleiftheLowFeedAdjustmentissettoitslowest
settingeverytimethestoveissettolowthe“1”and“3”lightswillbeilluminatedonthe
bargraph.

WhenusingthestoveintheHigh/Lowthermostatmodewerecommendthatyouusethe
LowFeedAdjustmentbuttonsothatthe#1and#4lightsaredisplayedwhenonthelowest
setting.


HEATLEVELADVANCE

Thisbuttonwhenpushedwillsetthepelletfeedrate,hencetheheatoutputofyourstove.The
levelsofheatoutputwillincrementallychangeonthebargraphstartingfromlevel“1”to“5”.

WHENDROPPING3ORMOREHEATLEVELSETTINGS(4TO1,OR5TO2OR1)PUSHTHE
‘HIGHFAN’BUTTONANDALLOWTHEROOMAIRFANTORUNATTHATSETTINGFORAT
LEAST5MINUTESTOPREVENTTHESTOVEFROMTRIPPINGTHEHIGHTEMP
THERMODISK.

ProperFuel

Usingtheproperfuelwillhaveatremendousimpactoftheperformanceofyour
stove.WehighlyrecommendthatyouonlyusePFI(PelletFuelsInstitute)
approvedpellets.IfapellethasbeenPFIapprovedyouwillseethePFIlogo
prominentlydisplayeduponthebag.

Factory‐approvedpelletsarethose¼”or5/16”indiameterandnotover1”long.
Longerorthickerpelletssometimesbridgetheaugerflights,whichpreventsproper
pelletfeed.Thedesignofthestoveincorporatesautomaticfeedofthepelletfuelintothefireata
carefullyprescribedrate.Thestove’sperformancedependsheavilyonthequalityofyourpelletfuel.
Avoidpelletbrandsthatdisplaythesecharacteristics:

a. ExcessFines–“Fines”isatermdescribingcrushedpelletsorloosematerialthatlookslike
sawdustorsand.Pelletscanbescreenedbeforebeingplacedinhoppertoremovemostfines.
b. Binders–Somepelletsareproducedwithmaterialstoholdthetogether,or“bind”them.
c. Highashcontent–Poorqualitypelletswilloftencreatesmokeanddirtyglass.Theywillcreatea
needformorefrequentmaintenance.Youwillhavetoemptytheburnpotplusvacuumtheentire
systemmoreoften.Poorqualitypelletscoulddamagetheauger.GoldenEagleStovescannot
acceptresponsibilityfordamageduetopoorqualitypellets.Yourdealercanrecommendagood
qualitypelletdealerinyourarea.


THISSTOVEISAPPROVEDFORBURNINGPELLETIZEDWOODFUELONLY!


BURNINGWOODINFORMSOTHERTHANPELLETSISNOTPERMITTED.ITWILLVIOLATE
THEBUILDINGCODESFORWHICHTHESTOVEHASBEENAPPROVEDANDWILLVOIDALL
WARRANTIES.


DONOTBURNWETPELLETS.


ANYADDITIONALFUELINTRODUCEDBYHANDWILLNOTINCREASEHEATOUTPUTBUT
MAYSERIOUSLYIMPAIRTHESTOVESPERFORMANCEBYGENERATINGCONSIDERABLE
SMOKE.



PreStartUpCheck

Removeburnpot,makingsureitiscleanandnoneoftheairholesareplugged.Cleanthefirebox,and
thenreinstallburnpot.Cleandoorglassifnecessary(adryclothorpapertowelisusuallysufficient).
Neveruseabrasivecleanersontheglassordoor.Checkfuelinthehopper,andrefillifnecessary.


PFILogo

BuildingaFire

Inordertostartafire,simplycompletethepre‐start‐upcheck,closetheviewingdoor,andpressthe
On/Offbutton.Theunitwillenterapre‐programmedstart‐upcycleandyouwillhaveafireinabout
5minutesorso.

NEVERUSEAGRATEOROTHERMEANSOFSUPPORTINGTHEFUEL.USEONLYTHE
GOLDENEAGLEAPPROVEDBURNPOT.

Duringthestartupperiod:
1)DONOTopentheviewingdoor.
2)DONOTopenthedampermorethan¼”.
3)DONOTaddpelletstotheburnpotbyhand.
4)DONOTusetheFuelFeedbutton(unlessyouareprimingtheaugerafterrunning
outofpellets).Adangerousconditioncouldresult.

Duringthefirstfewfires,yourstovewillemitanodorasthehightemperaturepaintcures
orbecomesseasonedtothemetal.Maintainingsmallerfireswillminimizethis.Avoid
placingitemsonstovetopduringthisperiodbecausepaintcouldbeaffected.

THEHOTRODAUTOMATICFIRESTARTER

a. Fillhopperandcleanburnpot.
b. Press“On/Off”button.Makesurelightison.
c. Thedampershouldbecompletelyclosedoropennomorethan¼”duringstart‐up.Thiswillvary
dependingonyourinstallationandelevation.Oncefireisestablishedadjustfordesiredflame
increasingtheamountthedamperisopenastheheatsettingisincreased.(See“DAMPER
CONTROL”)
d. Adjustfeedratetodesiredsettingbypressing“HeatLevelAdvance”button.

Iffiredoesn’tstartin15minutes,press“On/Off”,waitafewminutes,cleartheburnpot,
andstartprocedureagain.


DamperControl

Thedampercontrolrodonthestove’slowerleftsideadjuststhecombustionair.Thiscontrolis
necessaryduetothevariedburncharacteristicsofindividualinstallations,differentpelletbrandsand
pelletfeedrates.Itallowsyoutoimprovetheefficiencyofyourstove.Providingcorrectcombustion
airwillreducethefrequencyofcleaningyourglassdoorandpreventtherapidbuildupofcreosote
insideyourstoveandchimney.

Youshouldadjustthedamperbasedonthefire’sappearance.Alow,reddish,dirtyfirecanbe
improvedbypullingthedamperoutslightly.A“blowtorch”firecanbeimprovedbypushingthe
damperinabit.


Asageneralrule,onlowerfeedratesettings,thedampershouldbeinfarther.Onhigherfeedrates,
thedampershouldbemoreopen.Throughtrialanderror,youwillfindthebestsetting.
NOTE:On“1”,dampershouldbeeithercompletelyclosedoroutapproximately⅛”to¼”.Ifdamper
isouttoofar,itcancausethefiretogoout.

OPENINGDOOR

Ifthedoorisopenedwhilethestoveisinoperationitmustbeclosedwithin30secondsorthestove
willshutdown.Ifthestoveshutsdownpushthe“On/Off”buttontore‐startyourstove.

ROOMAIRFAN

WhenstartingyourstovetheRoomAirFanwillnotcomeonuntilthestove’sheatexchangerwarms
up.Thisusuallytakesabout10minutesfromstart‐up.

RESTARTINGAWARMSTOVE

Ifthestovehasbeenshutoff,andyouwanttore‐startitwhileitisstillwarm,the“on/off”button
mustbehelddownfor2seconds.

IFSTOVERUNSOUTOFPELLETS

Thefiregoesoutandtheaugermotorandblowerswillrununtilthestovecools.Thiswilltake30to
45minutes.Afterthestovecomponentsstoprunningthe“On/Off”andtheBARGRAPHlightsstay
onfor10minutes.Afterthe10minutesthe“3”lightonthebargraphwillflashandthe“On/Off”
lightwillgooff.Torestart,refillhopperandpress“FuelFeed”buttonuntilpelletsbegintofallinto
burnpot.Press“On/Off”button.

REFUELING

Werecommendthatyounotletthehopperdropbelow¼full.

KEEPHOPPERLIDCLOSEDATALLTIMESEXCEPTWHENREFILLING.DONOTOVERFILL
HOPPER.

STOVEMAINTENANCETOOL

Atoolhasbeenprovidedtohelpwiththefollowingfunctions:
a. Stirringpelletsinhopper–unlikeliquidsinatank,pelletsdo
notdrainevenlyintotheauger.Bridgingacrosstheopening
canoccur.Pelletscanhanguponthesidesofthehopper.
Occasionally“stirring”thehoppercanhelp.
b. Scrapeashesfromburnpot.

