Goodman ComfortNet ACVC90704CXAA Use and care manual

*CVC9 90% C'Flow 2-Stage
Variable Speed Furnace
REPAIR PARTS
RP-508C
This manual is to be used by qualified technicians only.
www.goodmanmfg.com www.amana-hac.com
This manual replaces RP-508B
© 2009-2010 Goodman Manufacturing Company, L.P. ◊5151 San Felipe, Suite 500 ◊Houston, TX 77056
August 2010
A
CVC90704CXA
A
A
CVC90704CXAB
A
CVC90905DXA
A
A
CVC90905DXAB
A
CVC950714CXAA
A
CVC950915DXAA
GCVC90704CXA
A
GCVC90704CXAB
GCVC90905DXA
A
GCVC90905DXAB
GCVC91155DXA
A
GCVC91155DXAB
GCVC950714CXA
A
GCVC950915DXA
A

Important Information
For assistance within the U.S.A. contact:
International Division
Goodman Company, L.P.
7401 Security Way
Houston, Texas 77040
713-861-2500-Telephone
713-863-2382-Facsimile
For assistance outside the U.S.A. contact:
Index
Functional Parts List
Revision C: Changed ACVC950704CXAA to ACVC950714CXAA; changed ACVC950905DXAA to
ACVC950915DXAA; changed GCVC950704CXAA to GCVC950714CXAA; changed GCVC950905DXAA to
GCVC950915DXAA.
Illustration and Parts
...................................................................................................
...................................................................................................
Views shown are for parts illustrations only, not servicing procedures.
AR - As Required
NA - Not Available
NS - Not Shown
00000000 - See Note
QTY - Quantity Example (QTY 3) (If Quantity not shown, Quantity = 1)
M - Model Example (M1) (If M Code not shown, then part is used on all Models)
Text Codes:
Example
M1 - Model#1
M2 - Model#2
M3 - Model#3
Expanded Model Nomenclature:
Goodman Manufacturing Company, L.P. is not responsible for personal injury or property damage resulting from
improper service. Review all service information before beginning repairs.
Warranty service must be performed by an authorized technician, using authorized factory parts. If service is
required after the warranty expires, Goodman Manufacturing Company, L.P. also recommends contacting an
authorized technician and using authorized factory parts.
Goodman Manufacturing Company, L.P. reserves the right to discontinue, or change at any time, specifications
or designs without notice or without incurring obligations.
2
Consumer Affairs Department
Goodman Manufacturing Company, L.P.
7401 Security Way
Houston, Texas 77040
877-254-4729-Telephone
713-863-2382-Facsimile
International Division
Goodman Manufacturing Company, L.P.
7401 Security Way
Houston, Texas 77040
713-861-2500-Telephone
713-863-2382-Facsimile
www.goodmanmfg.com www.amana-hac.com
4 - 11
3
RP-508C

Functional Parts
Part
No: Description:
10735102S BECKETT BURNER (QTY AR)
D6723311S BLOWER WHEEL (M3, M4, M6, M9, M10, M11,
M12, M14)
B1368047A BLOWER WHEEL 10 X 10 (M1, M2, M5, M7,
M8, M13)
0130F00010 FLAME SENSOR
0151M00014 GAS VALVE - HONEYWELL 2-STAGE (M2,
M4, M5, M6, M8, M10, M12, M13, M14)
0151F00000P GAS VALVE - WHITE-RODGERS 2-STAGE
(M1, M3, M7, M9, M11)
20245903S ID BLOWER
B1141666 INDUCTOR-5.9 AMP
B1370818 INTERLOCK SWITCH
0130F00105 LIMIT SWITCH (M6, M14)
10123517 MANUAL RESET LIMIT (M3, M4, M5, M6, M9,
M10, M11, M12, M13, M14)
10123536 MANUAL RESET LIMIT 180ºF (M3, M4, M9,
M10, M11, M12)
10123534 MANUAL RESET LIMIT 220ºF (M1, M2, M7, M8)
10123534 MANUAL RESET LIMIT 220ºF (M1, M2, M7, M8)
0131M00113S MOTOR, 1 HP SERIAL ECM (M3, M4, M6, M9,
M10, M11, M12, M14)
0131M00112S MOTOR, 3/4 HP SERIAL ECM (M1, M2, M5,
M7, M8, M13)
10716003 ORIFICE (QTY AR)
PCBKF101S PCB, CONTROL, FURNACE
0130F00100 PRESSURE SWITCH (M5, M6, M13, M14)
0130F00070 PRESSURE SWITCH (M5, M6, M13, M14)
20197313 PRESSURE SWITCH-PINK (M1, M2, M3, M4,
M7, M8, M9, M10, M11, M12)
11177118 PRESURE SWITCH-LIME (M1, M2, M3, M4,
M7, M8, M9, M10, M11, M12)
20162903 PRIMARY LIMIT - BLUE (M1, M2, M7, M8)
20162908 PRIMARY LIMIT - GREEN (M3, M4, M9, M10)
0130F00038 PRIMARY LIMIT - LT BLUE 120º (M6, M14)
0130F00038 PRIMARY LIMIT - LT BLUE 120º (M5, M13)
20162904 PRIMARY LIMIT-TEMPERATURE CONTROL
(M5, M13)
20162905 PRIMARY LIMIT-YELLOW (M11, M12)
0130F00008S SINI IGNITOR
B1141605 TRANSFORMER 120V TO 24V, 40 VA
SPECIAL PARTS
HI-124 HOMEOWNERS INSTRUCTIONS
IO-341A INSTALLATION INSTRUCTIONS (M1, M3, M7,
M9, M11)
IO-341B INSTALLATION INSTRUCTIONS (M2, M4, M8,
M10, M12)
IO-341C INSTALLATION INSTRUCTIONS (M5, M6,
M13, M14)
IO-661 INSTALLATION INSTRUCTIONS
Expanded Model Nomenclature
M1 - ACVC90704CXAA
M2 - ACVC90704CXAB
M3 - ACVC90905DXAA
M4 - ACVC90905DXAB
M5 - ACVC950714CXAA
M6 - ACVC950915DXAA
M7 - GCVC90704CXAA
M8 - GCVC90704CXAB
M9 - GCVC90905DXAA
M10 - GCVC90905DXAB
M11 - GCVC91155DXAA
M12 - GCVC91155DXAB
M13 - GCVC950714CXAA
M14 - GCVC950915DXAA
3
RP-508C www.goodmanmfg.com www.amana-hac.com

Cabinet
4RP-508
C
www.goodmanmfg.com www.amana-hac.com

Cabinet
Ref.
No: Part No: Description: Ref. No: Part No: Description:
Image 1: AMANA NAMEPLATE (M1, M2, M3, M4, M5, M6)0161M00003P21
GOODMAN NAMEPLATE (M7, M8, M9, M10, M11,
M12, M13, M14)
0161F00000P21
DRAIN HOSE2020190281
GASKET (QTY 2)20179308111
GASKET (QTY 2)20179311121
GASKET (M1, M2, M5, M7, M8, M13)20179312131
GASKET (M3, M4, M6, M9, M10, M11, M12, M14)20179313131
STANDPIPE BAG ASSY10195518Q151
ACCESS DOOR (M1, M2, M5)0121F00067LG191
ACCESS DOOR (M3, M4, M6)0121F00068LG191
ACCESS DOOR (M7, M8, M13)0121F00073DGS191
ACCESS DOOR (M9, M10, M11, M12, M14)0121F00074DGS191
BLOWER DOOR (M1, M2, M5)0121F00064LGS201
BLOWER DOOR (M3, M4, M6)0121F00065LGS201
BLOWER DOOR (M7, M8, M13)0121F00070DGS201
BLOWER DOOR (M9, M10, M11, M12, M14)0121F00071DGS201
VIEW PORT BUSHING-BLOWER DOOR (QTY 2)B1392139281
DECK GASKET (M1, M2, M5, M7, M8, M13)22320002311
DECK GASKET (M3, M4, M6, M9, M10, M11, M12,
M14)
22320003311
FLUE PIPE (QTY 2)22309502371
PIPE GROMMETM0501301451
BUTTON PLUG (QTY 4)M0570808491
BUTTON PLUGM0570806501
BUTTON PLUG (QTY 2)M0570807511
GROMMET (QTY 2)A4691701601
BUTTON PLUG (QTY 2)M0310345621
UNIVERSAL BUSHING UB 875B1392104741
Image 2: RUBBER COUPLING (QTY 2)1025430312
HOSE CLAMP (QTY 4)0163M0004922
HOSE CLAMPM011920732
BUTTON PLUG (QTY 2)M057080742
DRAIN HOSE2020190162
DRAIN TUBE (QTY 2)2020180272
DRAIN TRAP2017170182
DRAIN ANGLE20214203112
HOSE CLAMP (QTY 3)M0119205142
2" MESH INSERTB2810816152
3" MESH INSERTB2810814162
HOSE CLAMPM0119206172
Expanded Model Nomenclature
M1 - ACVC90704CXAA
M2 - ACVC90704CXAB
M3 - ACVC90905DXAA
M4 - ACVC90905DXAB
M5 - ACVC950714CXAA
M6 - ACVC950915DXAA
M7 - GCVC90704CXAA
M8 - GCVC90704CXAB
M9 - GCVC90905DXAA
M10 - GCVC90905DXAB
M11 - GCVC91155DXAA
M12 - GCVC91155DXAB
M13 - GCVC950714CXAA
M14 - GCVC950915DXAA
5
RP-508C www.goodmanmfg.com www.amana-hac.com

Blower Assembly
6RP-508
C
www.goodmanmfg.com www.amana-hac.com

Blower Assembly
Ref.
No: Part No: Description: Ref. No: Part No: Description:
Image 1: BLOWER WHEEL (M3, M4, M6, M9, M10, M11,
M12, M14)
D6723311S21
BLOWER CUT-OFF (M3, M4, M6, M9, M10, M11,
M12, M14)
C612180731
BLOWER MOTOR GROMMET (M3, M4, M6, M9,
M10, M11, M12, M14)
A400270241
BLOWER SIDE RAIL (M3, M4, M6, M9, M10, M11,
M12, M14)
2017510181
MOTOR MOUNT BAND (M3, M4, M6, M9, M10,
M11, M12, M14)
10441601141
MOTOR MOUNT ARM (M3, M4, M6, M9, M10, M11,
M12, M14)
10441501151
MOTOR, 1 HP SERIAL ECM (M3, M4, M6, M9, M10,
M11, M12, M14)
0131M00113S181
BLOWER HOUSING ASSY 11 X 10 (M3, M4, M6,
M9, M10, M11, M12, M14)
0271F00047191
TC SCREW (M3, M4, M6, M9, M10, M11, M12, M14)M0221461231
TRANSFORMER 120V TO 24V, 40 VAB1141605381
INDUCTOR-5.9 AMPB1141666391
PCB, CONTROL, FURNACEPCBKF101S401
CONTROL MOUNT PANEL0121F00094461
MANUAL RESET LIMIT 180ºF (M3, M4, M9, M10,
M11, M12)
10123536521
PRIMARY LIMIT - LT BLUE 120º (M6, M14)0130F00038521
CONTROL HARNESS0259F00040NS
HARNESS, WIRING0159F00012NS
POWER HARNESS0259F00041NS
WIRE HARNESS-BLOWER0259F00024NS
Image 2: BLOWER WHEEL 10 X 10 (M1, M2, M5, M7, M8,
M13)
B1368047A22
BLOWER MOTOR GROMMET (M1, M2, M5, M7,
M8, M13)
A400270242
BLOWER BLOCK-OFF 10 X 10 (M1, M2, M5, M7,
M8, M13)
764741F52
MOTOR MOUNT BRACKET (M1, M2, M5, M7, M8,
M13)
C9443702152
MOTOR, 3/4 HP SERIAL ECM (M1, M2, M5, M7,
M8, M13)
0131M00112S182
BLOWER HOUSING ASSY 10 X 10 (M1, M2, M5,
M7, M8, M13)
0271F00004P192
TC SCREW (M1, M2, M5, M7, M8, M13)M0221461232
TRANSFORMER 120V TO 24V, 40 VAB1141605382
INDUCTOR-5.9 AMPB1141666392
PCB, CONTROL, FURNACEPCBKF101S402
CONTROL MOUNT PANEL0121F00094462
MANUAL RESET LIMIT 220ºF (M1, M2, M7, M8)10123534522
PRIMARY LIMIT - LT BLUE 120º (M5, M13)0130F00038522
AUXILIARY LIMIT BRACKET (M1, M2, M7, M8)2509503F562
PLASTIC PLUG, 1" (2713-BLK) (M1, M2, M5, M7,
M8, M13)
B1392021602
Image 2: CONTROL HARNESS0259F00040NS
HARNESS, WIRING0159F00012NS
POWER HARNESS0259F00041NS
WIRE HARNESS-BLOWER0259F00024NS
Expanded Model Nomenclature
M1 - ACVC90704CXAA
M2 - ACVC90704CXAB
M3 - ACVC90905DXAA
M4 - ACVC90905DXAB
M5 - ACVC950714CXAA
M6 - ACVC950915DXAA
M7 - GCVC90704CXAA
M8 - GCVC90704CXAB
M9 - GCVC90905DXAA
M10 - GCVC90905DXAB
M11 - GCVC91155DXAA
M12 - GCVC91155DXAB
M13 - GCVC950714CXAA
M14 - GCVC950915DXAA
7
RP-508C www.goodmanmfg.com www.amana-hac.com

Chassis
8RP-508
C
www.goodmanmfg.com www.amana-hac.com

Chassis
Ref.
No: Part No: Description: Ref. No: Part No: Description:
Image 1: BASE PAN (M1, M2, M5, M7, M8, M13)2027351011
BASE PAN (M3, M4, M6, M9, M10, M11, M12, M14)2027351211
BLOWER DECK (M1, M2, M5, M7, M8, M13)0121F0004631
BLOWER DECK (M3, M4, M6, M9, M10, M11, M12,
M14)
0121F0004931
BACK PANEL (M1, M2, M5, M7, M8, M13)2027321681
BACK PANEL (M3, M4, M6, M9, M10, M11, M12,
M14)
2027321881
HEAT EXCHANGER INSULATION (M3, M4, M6,
M9, M10, M11, M12, M14)
C641590991
HEAT EXCHANGER INSULATION (M1, M2, M5,
M7, M8, M13)
C641591191
DECK RAIL (M1, M2, M5, M7, M8, M13)0121F00019P101
DECK RAIL (M3, M4, M6, M9, M10, M11, M12, M14)20191303101
TOP COVER ASSY (M1, M2, M5, M7, M8, M13)0270F00104PS111
TOP COVER ASSY (M3, M4, M6, M9, M10, M11,
M12, M14)
0270F00105P111
SIDE RAIL (M1, M2, M5, M7, M8, M13)20191603121
SIDE RAIL (M3, M4, M6, M9, M10, M11, M12, M14)20191604121
SIDE PANEL LH0121F00093DG141
SIDE PANEL RH0121F00091DG151
INSULATION (M1, M2, M5, M7, M8, M13)20006602161
INSULATION (M3, M4, M6, M9, M10, M11, M12,
M14)
20006603161
SIDE INSULATION (QTY 2)20006604171
INTERLOCK SWITCHB1370818221
ELBOW20171802S241
ID BLOWER20245903S271
FA COUPLING (QTY 2)20049701281
PRESSURE SWITCH (M5, M6, M13, M14)0130F00070291
PRESSURE SWITCH-PINK (M1, M2, M3, M4, M7,
M8, M9, M10, M11, M12)
20197313291
PRESSURE SWITCH (M5, M6, M13, M14)0130F00100301
PRESURE SWITCH-LIME (M1, M2, M3, M4, M7,
M8, M9, M10, M11, M12)
11177118301
PLASTIC SEALERM0275521391
JUNCTION BOX0161F00004S411
JUNCTION BOX COVER0161F00005S431
ID BLOWER SHIELD11165107591
HOSE CLAMP (QTY 2)0163M00049611
TUBE PLUGM0326804701
GASKET (QTY 2)20194608791
GASKET (M1, M2, M5, M7, M8, M13)20194606811
GASKET (M3, M4, M6, M9, M10, M11, M12, M14)20194607811
ELBOW - 22 1/2 ELLC6455901891
PRESSURE SWITCH HOSE0164M00003NS
PRESSURE SWITCH HOSE (M1, M2, M5, M7, M8,
M13)
0164M00011NS
Image 1: PRESSURE SWITCH HOSE (M3, M4, M6, M9, M10,
M11, M12, M14)
0164M00013NS
Expanded Model Nomenclature
M1 - ACVC90704CXAA
M2 - ACVC90704CXAB
M3 - ACVC90905DXAA
M4 - ACVC90905DXAB
M5 - ACVC950714CXAA
M6 - ACVC950915DXAA
M7 - GCVC90704CXAA
M8 - GCVC90704CXAB
M9 - GCVC90905DXAA
M10 - GCVC90905DXAB
M11 - GCVC91155DXAA
M12 - GCVC91155DXAB
M13 - GCVC950714CXAA
M14 - GCVC950915DXAA
9
RP-508C www.goodmanmfg.com www.amana-hac.com

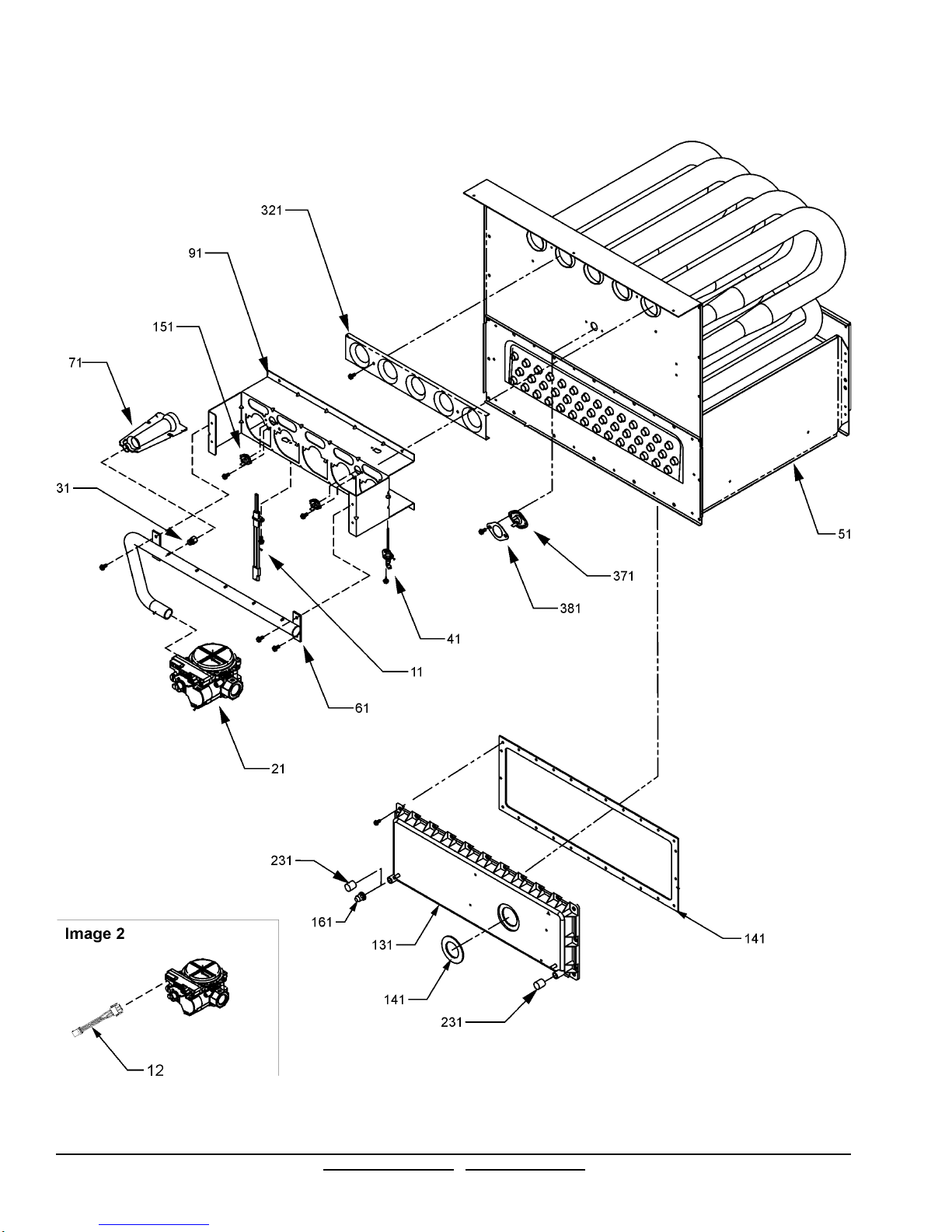

Heat Exchanger / Manifold / Gas Valve
10 RP-508
C
www.goodmanmfg.com www.amana-hac.com

Heat Exchanger / Manifold / Gas Valve
Ref.
No: Part No: Description: Ref. No: Part No: Description:
Image 1: SINI IGNITOR0130F00008S11
GAS VALVE - HONEYWELL 2-STAGE (M2, M4, M5,
M6, M8, M10, M12, M13, M14)
0151M0001421
GAS VALVE - WHITE-RODGERS 2-STAGE (M1,
M3, M7, M9, M11)
0151F00000P21
ORIFICE (QTY AR)1071600331
FLAME SENSOR0130F0001041
HEAT EXCHANGER ASSY (M13)0257F0019751
HEAT EXCHANGER ASSY (M14)0257F0019851
HEAT EXCHANGER ASSY (M5)0257F0020151
HEAT EXCHANGER ASSY (M6)0257F0020251
HEAT EXCHANGER ASSY 3B (M1, M2)0257F0015751
HEAT EXCHANGER ASSY 3B (M7, M8)0257F0016051
HEAT EXCHANGER ASSY 4B (M3, M4)0257F0015451
HEAT EXCHANGER ASSY 4B (M9, M10)0257F0015651
HEAT EXCHANGER ASSY 5B (M11, M12)0257F0016251
MANIFOLD - 3 BRNR (M1, M2, M5, M7, M8, M13)2019640261
MANIFOLD - 4 BRNR (M3, M4, M6, M9, M10, M14)2019640361
MANIFOLD - 5 BRNR (M11, M12)2019640461
BECKETT BURNER (QTY AR)10735102S71
BURNER BRACKET 3B (M1, M2, M5, M7, M8, M13)2019041191
BURNER BRACKET 4B (M3, M4, M6, M9, M10,
M14)
2019041291
BURNER BRACKET 5B (M11, M12)2019041391
FRONT COVER (M1, M2, M7, M8)20170901AS131
FRONT COVER (M5, M13)20170907A131
FRONT COVER (M3, M4, M9, M10)20171001AS131
FRONT COVER (M11, M12)20171004AS131
FRONT COVER (M6, M14)20171006A131
COIL GASKET (M1, M2, M5, M7, M8, M13)0154F00001P141
COIL GASKET (M3, M4, M6, M9, M10, M11, M12,
M14)
0154F00002P141
MANUAL RESET LIMIT (M3, M4, M5, M6, M9, M10,
M11, M12, M13, M14)
10123517151
MANUAL RESET LIMIT 220ºF (M1, M2, M7, M8)10123534151
TUBE PLUGM0326804161
CAP-VINYL .500 (QTY 2)A1781105231
ORIFICE SHIELD (M1, M2, M5, M7, M8, M13)11072202321
ORIFICE SHIELD (M3, M4, M6, M9, M10, M14)11072203321
ORIFICE SHIELD (M11, M12)11072204321
LIMIT SWITCH (M6, M14)0130F00105371
PRIMARY LIMIT - BLUE (M1, M2, M7, M8)20162903371
PRIMARY LIMIT - GREEN (M3, M4, M9, M10)20162908371
PRIMARY LIMIT-TEMPERATURE CONTROL (M5,
M13)
20162904371
PRIMARY LIMIT-YELLOW (M11, M12)20162905371
FRAME-WINDOW FUR10236702381
Image 2: WIRE HARNESS, ADAPTOR (M2, M4, M5, M6, M8,
M10, M12, M13, M14)
0259M0000412
Expanded Model Nomenclature
M1 - ACVC90704CXAA
M2 - ACVC90704CXAB
M3 - ACVC90905DXAA
M4 - ACVC90905DXAB
M5 - ACVC950714CXAA
M6 - ACVC950915DXAA
M7 - GCVC90704CXAA
M8 - GCVC90704CXAB
M9 - GCVC90905DXAA
M10 - GCVC90905DXAB
M11 - GCVC91155DXAA
M12 - GCVC91155DXAB
M13 - GCVC950714CXAA
M14 - GCVC950915DXAA
11
RP-508C www.goodmanmfg.com www.amana-hac.com

THIS PAGE INTENTIONALLY LEFT BLANK
12 RP-508C
