Goodman GME95 User manual

RT6612024r2
August2013

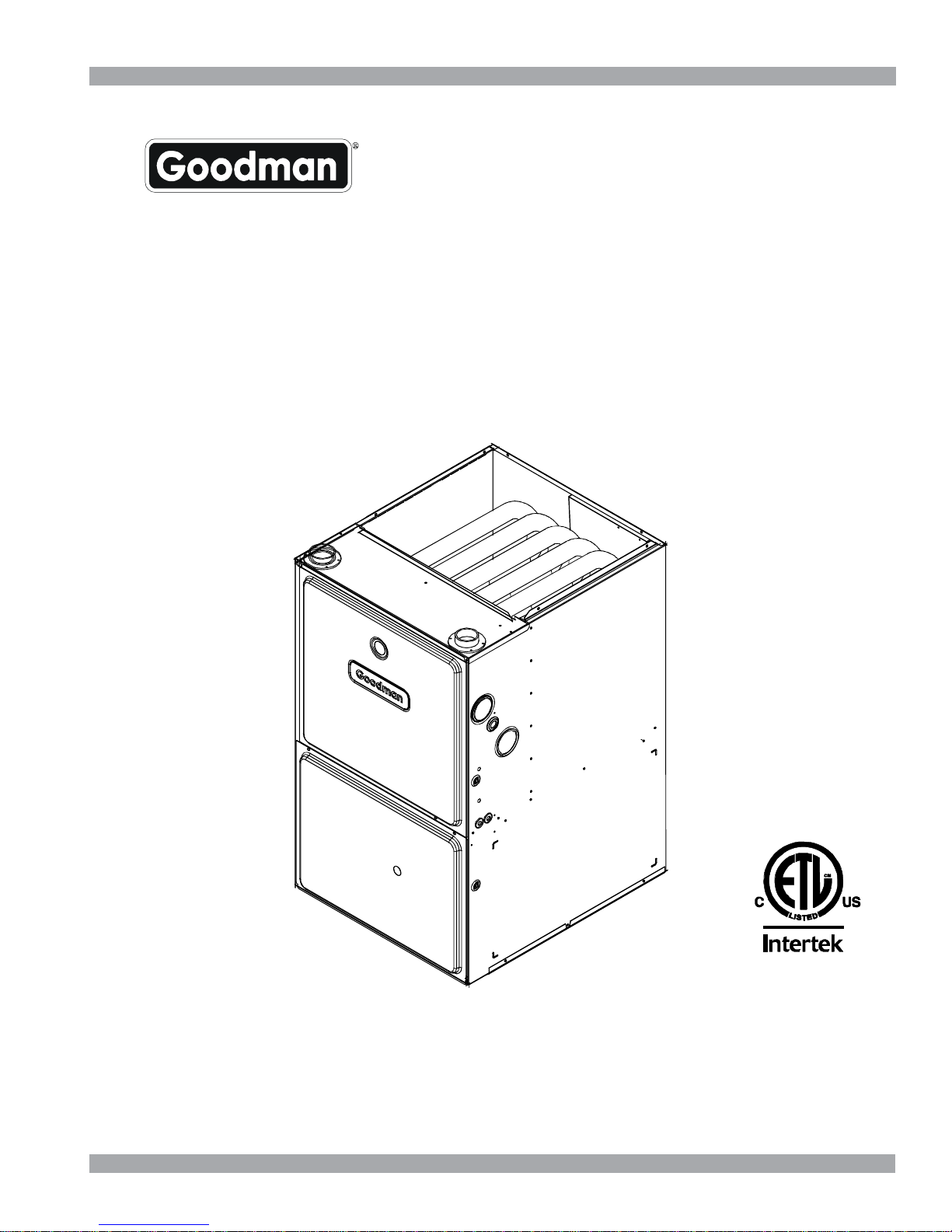

GME95
40" UP TO 96% Gas Furnace
•RefertoServiceManualRS6610004forinstallation,operation,andtroubleshootinginformation.
•Allsafetyinformation must be followedasprovided in the ServiceManual.
•RefertotheappropriatePartsCatalog for part number information.
•Modelnumbers listed on page 3.
Copyright © 2011, 2013 Goodman Manufacturing Company, L.P.
TECHNICAL MANUTECHNICAL MANU
TECHNICAL MANUTECHNICAL MANU
TECHNICAL MANUALAL
ALAL
AL
This manual is to be used by qualified, professionally trained HVAC technicians only.
Goodman does not assume any responsibility for property damage or personal
injury due to improper service procedures or services performed by an unqualified
person.

PRODUCT IDENTIFICATION
2
The model and manufacturing number are used for positive identification of component parts used in manufacturing.
Pleaseusethese numbers when requesting serviceorparts information.
WARNING
WARNING HIGH VOLTAGE!
Disconnect ALL power before servicing or installing this unit. Multiple power
sources may be present. Failure to do so may cause property damage, personal
injury or death.
Installation and repair of this unit
should be performed ONLY by in-
dividuals meeting, at a minimum,
the requirements of an "entry level technician", as speci-
fied by the Air-Conditioning, Heating, and Refrigeration
Institute (AHRI). Attempting to install or repair this unit
without such background may result in product damage,
personal injury or death.
Goodman will not be responsible
for any injury or property damage
arising from improper service or service procedures. If
you install or perform service on this unit, you assume
responsibility for any personal injury or property damage
which may result. Many jurisdictions require a license to
install or service heating and air conditioning equipment.
WARNING
WARNING WARNING
WARNING
G M E 95 060 3 B X A A
SUPPLY TYPE
M: Upflow/Horizontal
C: Downflow/Horizontal
FURNACE TYPE
E: Two Stage/
EEM motor
AFUE
95: 95%
NOMINAL INPUT
040: 40,000 Btuh
060: 60,000 Btuh
080: 80,000 Btuh
100: 100,000 Btuh
115: 115,000 Btuh
AIRFLOW
CAPABILITY
@ 0.5" ESP
3: 1200
4: 1600
5: 2000
CABINET
WIDTH
B: 17-1/2"
C: 21"
D: 24-1/2"
ADDITIONAL
FEATURES
N: Natural Gas
X: Low NOx
PRODUCT
TYPE:
G: Goodman
A: Amana
®
Brand
MAJOR
REVISION
A: Initial Release
MINOR
REVISION
A: Initial Release
isaregisteredtrademark of Maytag Corporation or itsrelatedcompaniesandisusedunder license to Goodman Company, L.P.,Houston,TX. Allrightsreserved.

PRODUCT IDENTIFICATION
3
GME950403BXA*
GME950603BXA*
GME950805CXA*
GME951005DXA*
The model and manufacturing number are used for positive identification of component parts used in manufacturing.
Pleaseusethese numbers when requesting serviceorparts information.
The United States Environmental Protection Agency (“EPA”) has issued various regulations re-
garding the introduction and disposal of refrigerants introduced into this unit. Failure to follow
these regulations may harm the environment and can lead to the imposition of substantial fines.
These regulations may vary by jurisdiction. Should questions arise, contact your local EPA office.
WARNING
WARNING
Do not connect or use any device
that is not design certified by
Goodman for use with this unit.
Serious property damage, personal injury, reduced unit
performance and/or hazardous conditions may result
from the use of such non-approved devices.
WARNING
WARNING To prevent the risk of property
damage, personal injury, or death,
do not store combustible materials or use gasoline or
other flammable liquids or vapors in the vicinity of this
appliance.
WARNING
WARNING

4
PRODUCT DESIGN 3. Installer must supply the following gas line fittings, de-
pendingon which entrance isused:
Left -- Two 90º Elbows, one close nipple, straight pipe.
Right --Straightpipe to reach gasvalve.
Accessibility Clearances (Minimum)
POSITION* FRONT SIDES REAR TOP FLUE FLOOR
Upflow30010C
Horizontal 3 6 0 6 0 C
*= All positioning is determined as installed unit is viewed from the front.
C= If placed on combustible floor, floor MUST be wood only.
MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS
(INCHES)
NC= For instalaltion on non-combustible floors only. A non-combustible
subbase must be used for installations on combustible flooring.
24"atfront is required forservicing or cleaning.
Note: Inall cases accessibility clearance shall take prece-
denceover clearances fromtheenclosurewhere accessibil-
ityclearancesaregreater. Alldimensionsaregivenininches.
MODEL
NUMBER
0 to
7,000 ft.
7,001 to
9,000 ft.
9,001 to
11,000 ft.
7,001 to
11,000 ft.
GME95*****XA*
LPM-061
Propane
Conversion Kit
(#55 Orifices)
N/A N/A N/A
PROPANE AND HIGH ALTITUDE KITS
1LPM-06* supports both Honeywell and White-Rodgers 2-stage valves
N
OTE: In Canada, gas furnaces are certified to 4500 feet.
GeneralOperation
The GME95 furnaces are equipped with an electronic igni-
tion device used to light the burners and an induced draft
blowerto exhaust combustion products.
Aninterlockswitchprevents furnace operation if theblower
door is not in place. Keep the blower access door in place
exceptforinspection and maintenance.
This furnace is also equipped with a self-diagnosing elec-
tronic control module. In the event a furnace component is
notoperatingproperly, the control module LED will flashon
and off in a factory-programmed sequence, depending on
theproblemencountered. This light canbeviewed through
theobservationwindowin the blower access door.Referto
theTroubleshootingChartforfurtherexplanation of theLED
codesandAbnormalOperation-IntegratedIgnitionControl
section in the Service Instructions for an explanation of the
possibleproblem.
Theratedheatingcapacity of the furnace should be greater
thanor equal to thetotal heat lossof the area tobe heated.
The total heat loss should be calculated by an approved
methodorinaccordance with “ASHRAE Guide” or “Manual
J-LoadCalculations”published by the AirConditioningCon-
tractors of America.
*Obtain from: American National Standards Institute 1430
BroadwayNewYork,NY10018
LocationConsiderations
• The furnace should be as centralized as is practical
with respect to the air distribution system.
• Donotinstallthefurnace directly on carpeting, tile, or
combustiblematerialotherthanwood flooring.
• When suspending the furnace from rafters or joists,
use 3/8" threaded rod and 2” x 2” x 3/8” angle as
shownin theInstallationandService Instructions.The
length of the rod will depend on the application and
clearancenecessary.
• When installed in a residential garage, the furnace
mustbepositioned so the burnersandignitionsource
are located not less than 18 inches (457 mm) above
the floor and protected from physical damage by ve-
hicles.
Notes:
1. Installermustsupply oneortwoPVCpipes: oneforcom-
bustionair(optional)andonefortheflueoutlet(required).
Ventpipemustbeeither2”or 3” in diameter, depending
uponfurnaceinput,numberofelbows,lengthofrunand
installation (1 or 2 pipes). The optional Combustion Air
Pipeis dependentoninstallation/coderequirementsand
must be 2” or 3” diameter PVC.
2. Linevoltagewiringcan enter throughtherightorleft side
ofthefurnace.Lowvoltage wiring can enter through the
rightor left side offurnace.
GME95furnacesare approved
for installations up to 7,000 ft. only.

5
COMPONENT IDENTIFICATION
Upflow/Horizontal
1 GasValve
2 GasLineEntrance(Alternate)
3 PressureSwitch
4 GasManifold
5 CombustionAirIntakeConnection/ “Coupling”
6 HotSurfaceIgniter
7 RolloutLimit
8 Burners
9 FlameSensor
10 FluePipeConnection/“Coupling”
11 FluePipe(Internal)
12 Primary Limit
13 Gas LineEntrance
14 FluePipeConnection(Alternate)
15 RubberElbow
16 InducedDraftBlower
17 Electrical ConnectionInlets(Alternate)
18 CoilFrontCover Pressure Tap
19 CoilFrontCoverDrainPort
20 DrainLinePenetrations
21 DrainTrap
22 Blower DoorInterlockSwitch
23 IntegratedControlModule
(withfuseand diagnostic LED)
24 24-VoltThermostatConnections
25 Transformer(40VA)
26 CirculatorBlower
27 Auxiliary Limit
28 Junction Box
29 Electrical ConnectionInlets
30 CoilFrontCover

COMPONENT IDENTIFICATION
6
GME95*****XA*
Note: Airflow area will be reduced by approximately 18% if duct flanges are not unfolded. This could cause performance issues and noise issues.
LOW VOLTAGE
ELECTRICAL HOLE
HIGH VOLTAGE
ELECTRICAL HOLE
SIDE CUT-OUT
LEFT SIDE VIEW
SIDE CUT-OUT
LOW VOLTAGE ELECTRICAL HOLE
RIGHT SIDE
DRAIN LINE
HOLES
STANDARD GAS SUPPLY HOLE
DRAIN
TRAP
19 3/4
AIR
INTAKE
PIPE
2" PVC
LEFT SIDE
DRAIN LINE HOLES
1 5/8
RIGHT SIDE VIEW
CONDENSATE
DRAIN TRAP
w/ 3/4" PVC
DISCHARGE
(RIGHT OR
LEFT SIDE)
2
C
B
FRONT VIEW
A
(DISCHARGE)
1 1/2
HIGH VOLTAGE ELECTRICAL HOLE
UNFOLDED FLANGES
1
22 1/16
FOLDED FLANGES
UNFOLDED FLANGES
FOLDED FLANGES
23 9/16
AIR
DISCHARGE
A
IR
DISCHARGE
CabinetSize A B C D E
13-5/8 17-1/2 20-7/8
All dimensions are in inches.
24-1/2
12-1/8
16
19-3/8
12-15/16 15-15/16
20-7/16
GME950403BXA* GME950603BXA*
GME950805CXA* GME951005DXA*
16
19-1/2
23
17-1/2
21

7
PRODUCT DESIGN
TRIP POINT
COIL COVER
PRESSURE
SWITCH
COIL COVER
PRESSURE
SWITCH
PART #
TRIP POINT
IDBLOWER
PRESSURE
SWITCH
ID BLOWER
PRESSURE
SWITCH
PART #
TRIP POINT
COIL COVER
PRESSURE
SWITCH
TRIP POINT
ID BLOWER
PRESSURE
SWITCH
HIGH
ALTITUDE
KIT
GME950403BXA* -1.65 -1.50 -0.25 -0.10 -0.10 20197308 -1.50 0130F00214 N\A N\A N\A GME950603BXA* -1.50 -1.35 -0.25 -0.10 -0.10 20197308 -1.35 0130F00110 N\A N\A N\A GME950805CXA* -1.50 -1.35 -0.25 -0.10 -0.10 20197308 -1.35 0130F00110 N\A N\A N\A GME951005DXA* -1.50 -1.35 -0.25 -0.10 -0.10 20197308 -1.35 0130F00110 N\A N\A N\A
NEGATIVE
PRESSURE
COIL COVER
WITHFLUE
FIRING
TYPICAL
SEA
LEVE
DATA(2)
NEGATIVE
PRESSURE
COIL COVER
WITH FLUE
NOT FIRING
TYPICAL
SEA
LEVEL
DATA(1)
(2) Data given is the least negative pressure required for pressure switch to remain closed.
PRESSURE SWITCH TRIP POINTS AND USAGE CHART
(1) Data given is least negative pressure required forpressure switch to close.
MODEL
0 to 7,000 ft.
PRESSURE SWITCH TRIP POINTS AND USAGE
7,001 to 11,000 ft.
NEGATIVE
PRESSURE
ID BLOWER
WITH FLUE
NOT FIRING
TYPICAL
SEA
LEVEL
DATA(1 )
NEGATIVE
PRESSURE
ID BLOWER
WITH FLUE
FIRING
TYPICAL
SEA
LEVE
DATA(2)

8
PRODUCT DESIGN
Part Number 10123535 10123519
Open Setting (°F) 150 160
GME950403BXA* 1
GME950603BXA* 1
GME950805CXA* 1
GME951005DXA* 1
AUXILIARYLIMIT SWITCHES
Part Number 10123533 10123517
Open Setting (°F) 200 210
GME950403BXA* 1
GME950603BXA* 2
GME950805CXA* 2
GME951005DXA* 2
ROLLOUTLIMIT SWITCHES
Part Number 0130M00063 20162904
Open Setting (°F) 140 150
GME950403BXA* 1
GME950603BXA* 1
GME950805CXA* 1
GME951005DXA* 1
PRIMARY LIMIT

9
PRODUCT DESIGN
Coil Matches:
Alargearray of Amana®brandcoils are availableforuse with the GMH95furnaces,in either upflow orhorizontalapplica-
tions. These coils are available in both cased and uncased models (with the option of a field installed TXV expansion
device). These 95%+ furnaces match up with the existing Amana®brand coils as shown in the chart below.
Coil Matches (for Goodman®units using R22 and R-410A):
• All CAPF coils in B, C, & D widths have insulated blank off plates for use with one size smaller furnaces.
• All CAPF coils have a CAUF equivalent.
• All CHPF coils in B, C & D heights have an insulated Z bracket for use with one size smaller furnace.
• All proper coil combinations are subject to being ARI rated with a matched outdoor unit.
C A P F 1824 A 6 A
PRODUCT
TYPE:
C: Indoor Coil
CABINET FINISH:
U: Unpainted
P:Painted
N: Unpainted Case
EXPANSION
DEVICE:
F: Flowrater
NOMINAL CAPACITY RANGE
@ 13 SEER
1824: 1 1/2 to 2 Tons
3030: 2 1/2 Tons
3636: 3 Tons
3642: 3 to 3 1/2 Tons
3743: 3 to 3 1/2 Tons
4860: 4 & 5 Tons
4961: 4 & 5 Tons
REVISION
A: Revision
NOMINAL WIDTH FOR GAS FURNACE
A:Fits14" Furnace Cabinet
B: Fits 17 1/2" Furnace Cabinet
C: Fits 21" Furnace Cabinet
D: Fits 24 1/2" Furnace Cabinet
N: Does Not Apply (Horizontal SlabCoils)
APPLICATION
A: Upflow/DownflowCoil
H: Horizontal A Coil
S: Horizontal Slab Coil
REFRIGERANT
CHARGE:
6: R-410A or R-22
2: R-22
4: R-410a

10
PRODUCT DESIGN
Filters:
Filters are required with this furnace and must be provided by the installer. The filters used must comply with UL900 or
CAN/ULCS111standards.Installing this furnace withoutfilterswill void the unitwarranty.
This furnace has provisions for the installation of return air filters at the side and/or bottom return. The furnace will
accommodatethe following filtersizes depending on cabinet size:
RefertoMinimumFilterAreatablestodeterminefilterarearequirement.NOTE:Filterscanalsobeinstalledelsewherein
the duct system such as a central return.
Upflow Filters
Disposable Minimum Filter Area (in2)
[Based on a 300 ft/min filter face velocity]
*Minimum filter area dictated by heating airflow requirement.
Permanent Minimum Filter Area (in2)
[Based on 600 ft/min filter face velocity]
*Minimum filter area dictated by heating airflow requirement.
Cabinet
Width
(in.)
Nominal
Filter Size
(in.)
Approx.
Flow Area
(in2)
Cabinet
Width
(in.)
Nominal
Filter Size
(in.)
Approx.
Flow Area
(in2)
All 16 x 25 x 1 400 17-1/2 14 x 25 x 1 350
21 16 x 25 x 1 400
24-1/2 20 x 25 x 1 500
BOTTOM RETURN
(1)
SIDE RETURN
(1) Flanges on bottom return must be unfolded
Thermostats:
NOTE: Complete lineup of thermostats can be found in the Thermostat Specification Sheets.
600 800 1000 1200 1400 1600 1800 2000
0403BXA* 194* 194* 240 288 --- --- --- ---
0603BXA* --- 324* 324* 324* 336 --- --- ---
0805CXA* --- --- --- 388* 388* 388* 480* 480*
1005DXA* --- --- --- 486* 486* 486* 486* 486*
Input__Airflow
COOLING AIRFLOW REQUIREMENT (CFM)
600 800 1000 1200 1400 1600 1800 2000
0403BXA* 388* 388* 480 576 --- --- --- ---
0603BXA* --- 647* 647* 647* 672 --- --- ---
0805CXA* --- --- --- 777* 777* 777* 960* 960*
1005DXA* --- --- --- 971* 971* 971* 971* 971*
COOLING AIRFLOW REQUIREMENT (CFM)
Input__Airflow

FURNACE SPECIFICATIONS
11
1. These furnaces are manufactured for natural gas operation. Optional kits are available for conversion to propane operation.
2. For elevations above 2000 feet the rating should be reduced by 4% for each 1000 feet above sea level. The furnace must not be derated, orifice changes should only
be made if necessary for altitude.
3. The total heat loss from the structure as expressed in TOTAL BTU/HR must be calculated by the manufacturers method or in accordance with the "A.S.H.R.A.E.
GUIDE" or "MANUAL J-LOAD CALCULATIONS" publishedby the AIR CONDITIONING CONTRACTORS OFAMERICA. The total heat loss calculated should beequal
to or less than the heating capacity. Output based on D.O.E. test procedures.
4. Minimum Circuit Ampacity calculated as: (1.25 x Circulator Blower Amps) + I.D. Blower Amps.
Unit specifications are subject to change without notice. ALWAYS refer to the units serial plate for the most up-to-date general and electrical information.
(1) Wire size should be determined in accordance with National Electrical Codes. Extensive wire runs will require larger wire sizes.
(2) Maximum Overcurrent Protection Device: May use Time Delay Fuse or HACR type Circuit Breaker of the same size as noted.
(3) Off Heating - this fan delay timing is adjustable (100 and 150 seconds). Furnaces are shipped with 150 second off delay.
(4) See Installation Instructions for appropriate vent diameter, length and number of elbows.
(5) See Installation Instructions for appropriate combustion air pipe diameter, length and number of elbows.
NOTE: This data is provided as a guide, it is important to electrically connect the unit and properly size fuses/circuit breakers and wires in
accordance with all national and/or local electrical codes. Use copper wire only.
GME95
MODEL GME95
0403BXA* GME95 0603BXA* GME95 0805CXA* GME95 1005DXA*
Btuh
Input (US) 40,000 60,000 80,000 100,000
Output (US) 38,400 57,700 76,900 96,100
Input (CAN) 40,000 60,000 80,000 100,000
Output (CAN) 38,400 57,700 76,900 96,100
A.F.U.E. 96.1% 96.1% 96.1% 96.1%
Rated External Static (" w.c.) .20 - .50 .20 - .50 .20 -.50 .20 - .50
Temperature Rise (°F) 15-45 30 - 60 30 - 60 35 - 65
ID Blower Pressure Switch Trip Point (" w.c.) -1.50 -1.35 -1.35 -1.35
Front Cover Pressure Switch Trip Point (" w.c.) -0.10 -0.10 -0.10 -0.10
Blower Wheel (D" x W") 10 x 8 10 x 8 10 x 10 11 x10
BlowerHorsepower 1/2 1/2 1 1
BlowerSpeeds 5 5 5 5
Max CFM@ 0.5E.S.P. 1200 1200 2000 2000
Power Supply 115-60-1 115-60-1 115-60-1 115-60-1
Minimum Circuit Ampacity (MCA)(1) 10.6 9.2 10.0 11.1
Maximum Overcurrent Device(2) 15.0 15.0 15.0 15.0
Transformer (VA) 40 40 40 40
Primary Limit Setting (°F) 150 140 140 150
Auxiliary Limit Setting (°F) 150 150 150 160
Rollout Limit Setting (°F) 200 200 210 200
Fan Delay On Heating 30 secs. 30 secs. 30 secs. 30 secs.
Off Heating (3) 150 secs. 150secs. 150 secs. 150 secs.
Fan Delay On Cooling 6 sec. 6 sec. 6 sec. 6 sec.
Off Cooling 45 secs. 45 secs. 45 secs. 45 secs.
Gas Supply Pressure (Natural/Propane) ("w.c.) 7 / 11 7 / 11 7 / 11 7 / 11
Manifold Pressure (Natural/Propane) ("w.c.) 3.5 / 10 3.5 / 10 3.5 / 10 3.5 / 10
Orifice Size (Natural/Propane) 45 / 55 45 / 55 45 / 55 45 / 55
Number of Burners 2 3 4 5
Vent Connector Diameter (inches)(4) 2222
Combustion Air Connector Diameter (inches)(5) 2222
Shipping Weight (lbs.) 120 124 144 162

BLOWER PERFORMANCE SPECIFICATIONS
12
1. CFM in chart is without filters(s). Filters do not ship with this furnace, but must be provided by the installer. If the furnace requires two return
filters, this chart assumes both filters are installed.
2. All furnaces ship as high speed cooling and medium-speed heating. Installer must adjust blower cooling & heating speed as needed.
3. For most jobs, about 400 CFM per ton when cooling is desirable.
4. INSTALLATIONISTOBEADJUSTEDTOOBTAINTEMPERATURERISEWITHINTHERANGESPECIFIEDON THERATINGPLATE.
5. The chart is for information only. For satisfactory operation, external static pressure must not exceed value shown on rating plate. The shaded
area indicates ranges in excess of maximum external static pressure allowed when heating. The data for 0.6" w.c. to 0.8" w.c. is shown for
air conditioning purposes only.
6. The above chart is for U.S. furnaces installed at 0-2000 feet. At higher altitudes, a properly de-rated unit will have approximately the same
temperature rise at a particular CFM, while the ESP at that CFM will be lower.
0.6 0.7 0.8
CFM RISE CFM RISE CFM RISE CFM RISE CFM RISE CFM CFM CFM
T1 - YELLOW 1.5 726 48 670 53 617 57 553 64 490 72 429 378 336
T2 - RED 2.0 905 39 860 41 812 43 761 46 712 49 663 610 574
T3 - ORANGE 2.5 1121 31 1074 33 1039 34 998 35 959 37 923 882 839
T4 - BLUE 3.0 1274 28 1239 28 1199 29 1166 30 1129 31 1096 1059 1021
T5 - BLACK 3.0 1306 27 1261 28 1232 29 1195 29 1162 30 1132 1090 1057
T1 - YELLOW 1.5 714 80 667 79 604 87 548 96 484 109 422 367 325
T2 - RED 2.0 904 58 851 62 804 66 761 69 708 75 664 612 572
T3 - ORANGE 2.5 1125 47 1075 49 1045 51 999 53 956 55 921 877 839
T4 - BLUE 3.0 1312 40 1271 42 1228 43 1202 44 1165 45 1127 1087 1044
T5 - BLACK 3.5 1423 37 1386 38 1354 39 1321 40 1278 41 1210 1134 1032
T1 - YELLOW 3.0 1297 54 1253 56 1209 58 1161 61 1111 63 1067 1022 974
T2 - RED 3.5 1507 47 1455 48 1422 49 1377 51 1334 53 1296 1251 1195
T3 - ORANGE 4.0 1677 42 1637 43 1602 44 1562 45 1526 46 1484 1441 1324
T4 - BLUE 4.0 1879 37 1842 38 1800 39 1762 40 1700 41 1566 1437 1319
T5 - BLACK 5.0 2044 35 1967 36 1894 37 1795 39 1702 41 1578 1452 1320
T1 - YELLOW 3.0 1331 66 1275 69 1206 73 1145 77 1080 81 1021 953 889
T2 - RED 3.5 1512 58 1452 60 1392 63 1336 66 1279 69 1219 1175 1115
T3 - ORANGE 4.0 1713 51 1666 53 1614 57 1569 56 1513 58 1468 1414 1364
T4 - BLUE 4.0 1892 46 1845 48 1802 49 1752 50 1707 52 1656 1614 1577
T5 - BLACK 5.0 2080 42 2038 43 2005 44 1960 45 1920 46 1879 1843 1791
GME950603BX*
(MED-HI)
GME950805CX*
(MED-HI)
(CFM & TEMPERATURE RISE VS. EXTERNAL STATIC PRESSURE)
0.4 0.5
GME950403BX*
(MED-HI)
GME951005DX*
(MED-HI)
EXTERNAL STATIC PRESSURE (Inches Water Column)
Model
--------------
Heating Speed
As Shipped 0.3
Motor
Speed
Tons
AC at
0.5"
ESP 0.1 0.2

BLOWER PERFORMANCE SPECIFICATIONS
13
30 40 50 60 70 80 90 110 120
100 130 140 150
100
90 80
70 60 50
40 30 20
10
OUTPUT BTU/HR x 1000

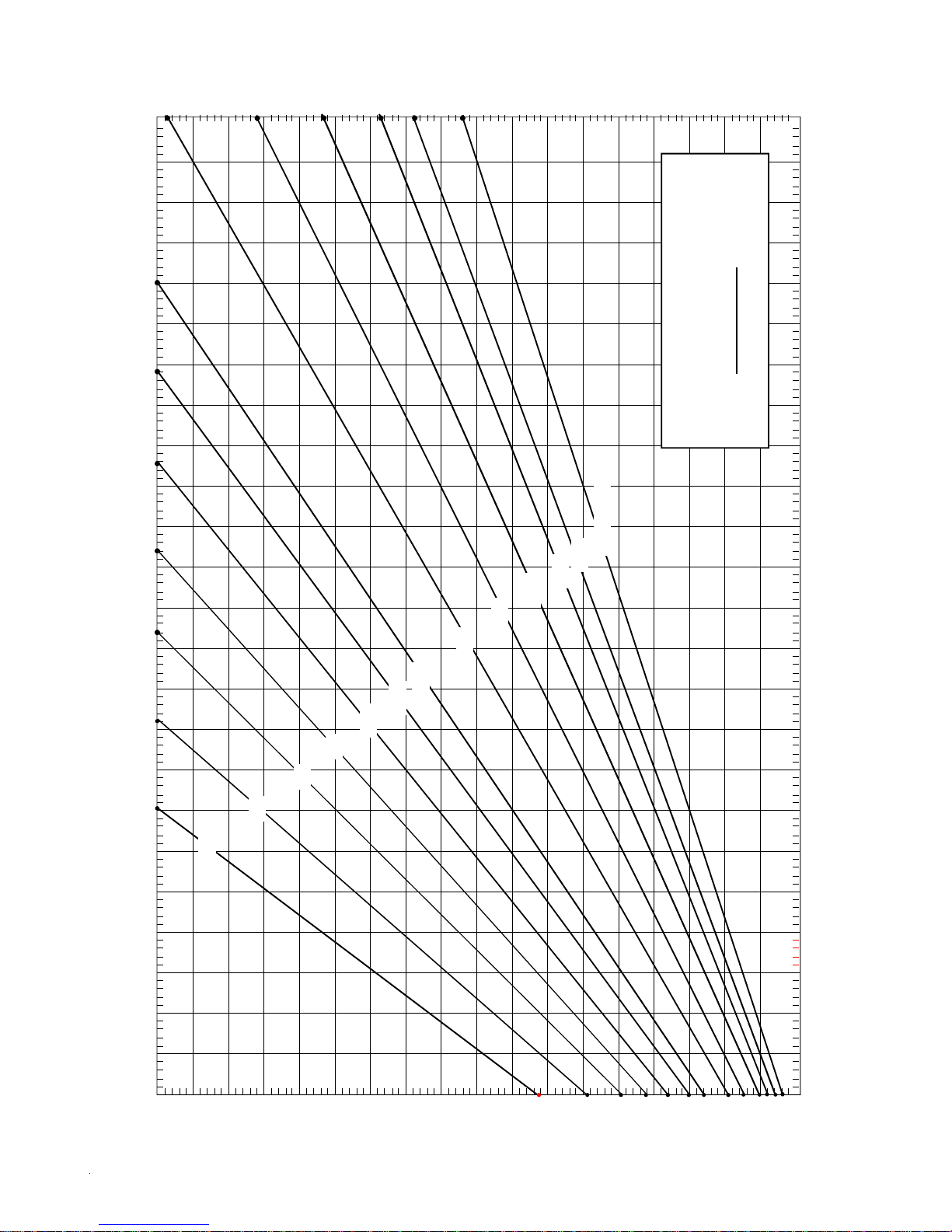

BTU OUTPUT vs TEMPERATURE RISE CHART
TEMPERATURE RISE
600 CFM
700
900
1000
1100
1200
1400
1600
1800
2000
2200
2400 CFM
FORMULAS
BTU OUTPUT = CFM x 1.08 x RISE
RISE = BTU OUTPUT
1.08 ÷ CFM
800

14
WIRING DIAGRAMS
Wiring is subject to change, always refer to the wiring diagram on the unit for the most up-to-date wiring.

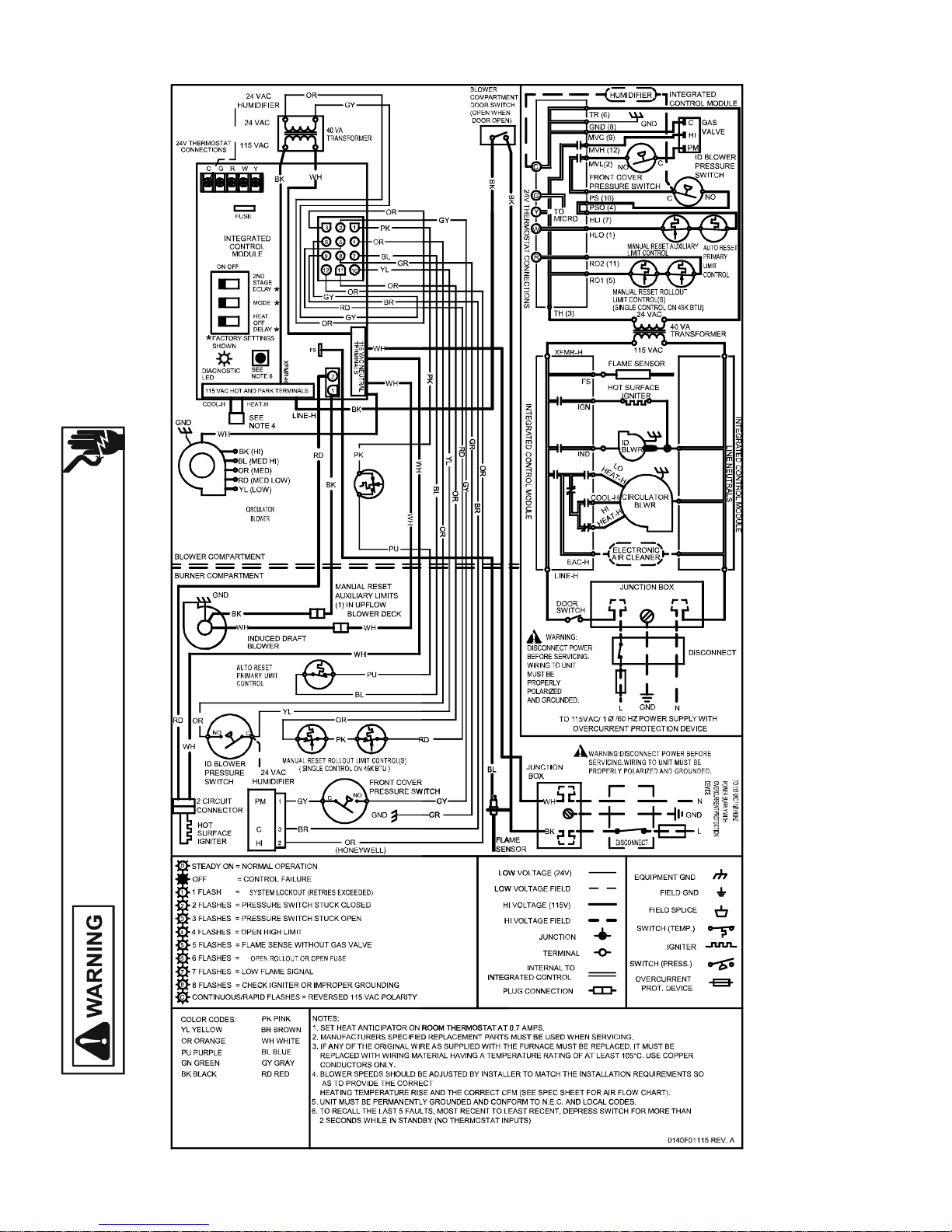

GME95*****XA*
HIGH VOLTAGE!
DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS
UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO
DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
GAS VALVE
