Gopel Electronic USB 4113 User manual

GOEPEL electronic GmbH
Goeschwitzer Str. 58/60 •D-07745 Jena
+ 49-3641-6896-597 • [e-mail] • www.goepel.com
USB/ basicCON 4113
1:4 LVDS Splitter
User Manual
(Translation of Original docu)
Document version 1.1

Issue: November 2014
© 2014 GOEPEL electronic GmbH. All rights reserved.
The software described in this manual as well as the manual itself are supplied under license
and may be used or copied only in accordance with the terms of the license.
The customer may make one copy of the software for safety purposes.
The contents of the manual is subject to change without prior notice and is supplied for information
only.
The hardware and software might be modified also without prior notice due to technical
progress.
In case of inaccuracies or errors appearing in this manual, GOEPEL electronic GmbH assumes
no liability or responsibility.
Without the prior written permission of GOEPEL electronic GmbH, no part of this documentation
may be transmitted, reproduced or stored in a retrieval system in any form or by any means
as well as translated into other languages (except as permitted by the license).
GOEPEL electronic GmbH is neither liable for direct damages nor consequential damages from
the company’s product applications.
Printed: 27.11.2014
All product and company names appearing in this manual are trade names or registered trade names of their respective owners

Table of Contents
USB 4113/ basicCON 4113 – User Manual I
1INSTALLATION..............................................................1-1
1.1 HARDWARE INSTALLATION ...................................................1-1
1.2 DRIVER INSTALLATION........................................................1-2
2HARDWARE ...................................................................2-1
2.1 DEFINITION .....................................................................2-1
2.2 TECHNICAL DATA ..............................................................2-3
2.2.1 Dimensions ............................................................2-3
2.2.2
Electrical Properties ................................................2-3
2.3 CONSTRUCTION AND FUNCTION.............................................2-4
2.3.1 General ..................................................................2-4
2.3.2
Hardware Initialization ............................................2-4
2.3.3
Addressing .............................................................2-5
2.3.4
Power Supply .........................................................2-5
2.3.5
Connector Pinout ....................................................2-5
2.4 ACCESSORIES...................................................................2-6
3G-API PROGRAMMING ..................................................3-1

Installation
USB 4113/ basicCON 4113 – User Manual 1-1
1Installation
1.1 Hardware Installation
We recommend to install the device driver software before
connecting the device to the PC/ Laptop.
The USB 4113 board can only be operated when it is installed in one
of the GOEPEL electronics USB Racks USB 1004, USB 1008 or USB 1016.
USB 4113:
Please make absolutely certain that all of the hardware installation
procedures described below are carried out with your system
switched off.
Select an empty slot of your USB Rack. First remove the slot sheet
covering the slot (if mounted). To do that, loose the two screws.
Insert the board carefully via the guides into the prepared slot.
Push it finally into the slot till to the arrester by applying a little
pressure.
Then, tighten the two outer screws at the front panel to fix the board.
When installing the board, touch it at its edges only.
Never touch the surface of the board, because otherwise it may be
destroyed by electrostatic discharge.
To remove the board from the USB Rack (if necessary), unscrew the
two outer screws. By the lever at the front panel the board can be
dissolved from the slot and then be unplugged.
basicCON 4113 can be directly connected to the PC or Laptop.
BasicCON 4113:
Connect the USB female at the device’s rear side to the PC/ laptop
using the supplied USB cable.
If necessary, see chapter Power Supply, connect the supplied power
supply unit or an own voltage source to the corresponding ext. Power
Supply connections at the device’s rear side.
Please refer to chapter Addressing regarding the addressing of several USB 4113 boards.
Please refer to chapter Connector Pinout regarding the connections
at the device’s front side.

Installation
1-2 USB 4113/ basicCON 4113 – User Manual
1.2 Driver Installation
Windows Device Driver
For proper installation of the GOEPEL electronics USB drivers on your
system, we recommend to execute the GUSB driver setup.
To do that, start the
GUSB-Setup-*.exe setup program
(of the supplied CD, to be find under
USB4113-basicCON4113 \ Driver ,
the asterisk “*” stands for the version number) and follow the
instructions.
At present, the available device driver supports Windows®XP as well
as Windows®7/ 32 Bit and Windows®7/ 64 Bit systems.
The USB interface uses the high-speed data rate according to the USB2.0 specification (if possible, otherwise full-speed).
Due to the plug-and-play ability of Windows®, the device will be
automatically recognized by the operating system.
On completion of the installation process, Windows®will request you
to reboot your computer.
For safe and reliable operation this step is strongly recommended.
After driver installation/ hardware installation, you can check by the
Device Manager whether the devices are properly embedded by the
system.
The following figure shows the successful embedding of a USB 4113
board or basicCON 4113 device:
Please note that the Device Manager shows all USB controllers.
Figure 1-1:
Device Manager Display

Hardware
USB 4113/ basicCON 4113 – User Manual 2-1
2Hardware
2.1 Definition
The USB 4113LVDS Splitter board with USB 2.0-Interface of GOEPEL
electronic GmbH is used to distribute LVDS signals (ANSI TIA/EIA-644).
The board is a 1 to 4 splitter for LVDS signals with a bandwidth up to
3.125 GBit/s at maximum.
Additionally, the board is used as a signal repeater.
USB 4113 boards can only be operated in one of the GOEPEL electronics USB Racks USB 1004, USB 1008 or USB 1016,
covering up to 16 GOEPEL electronics USB boards.
Power supply comes from the USB Rack.

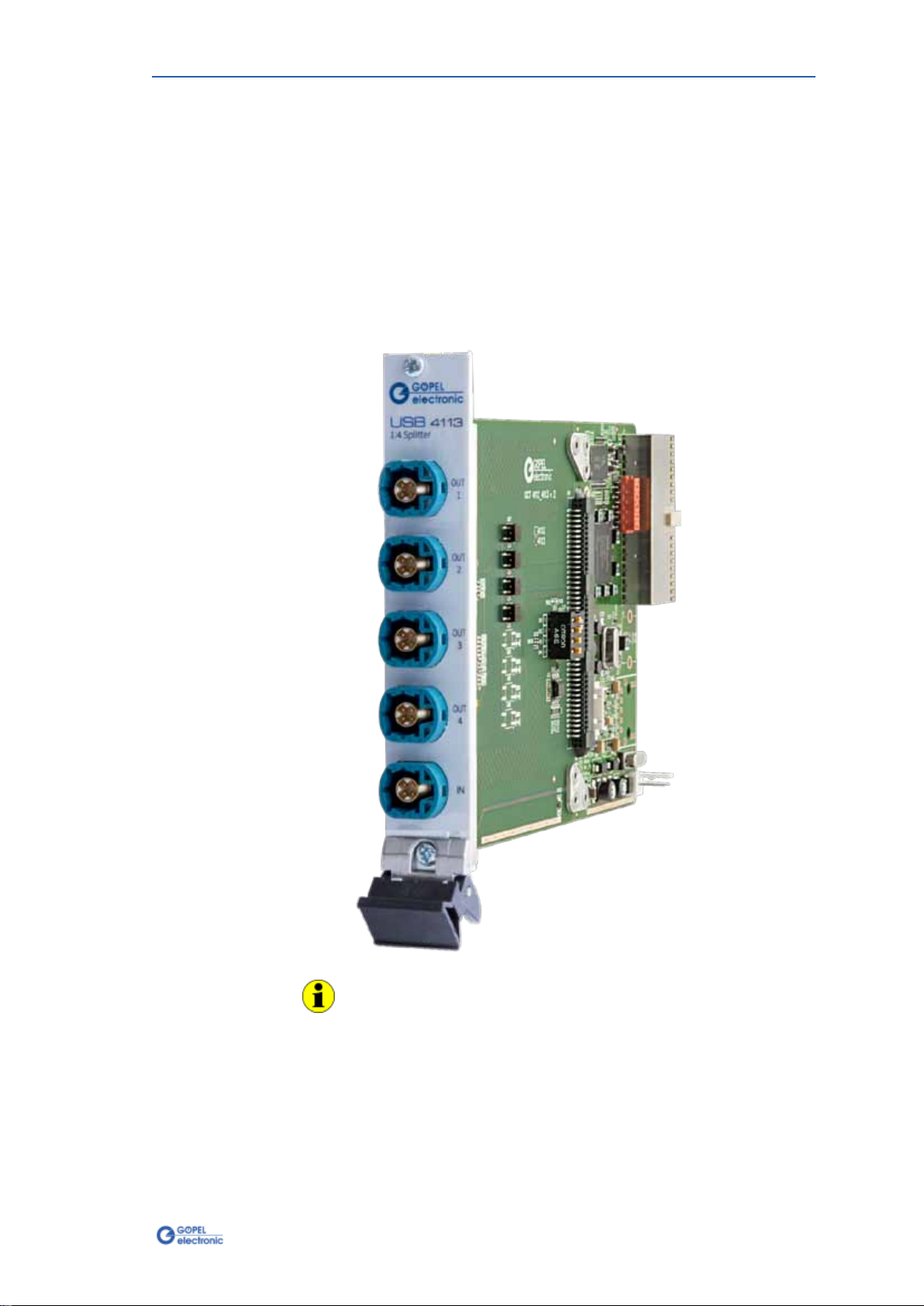

Figure 2-1:
USB 4113

Hardware
2-2 USB 4113/ basicCON 4113 – User Manual
basicCON 4113 is a GOEPEL electronic GmbH stand-alone device based
on a USB 4113board to be connected directly to a PC or Laptop. It has
been developed for the independent operation out of complex test
systems.
basicCON 4113 can be supplied via the USB interface or via the ext.
Power Supply connections (see Power Supply).
At the device’s rear side, there are the following connections:
♦USB-B female for the USB 2.0 interface
with USB standard assignment
♦DC female for the AC adaptor plug (part of delivery)
♦Banana females for power supply
Please use for external power supply either the banana females
OR the DC female for the AC adaptor plug.
Additionally, please refer also to the corresponding chapter
regarding Power Supply.
Figure 2-2:
basicCON 4113
Figure 2-3:
basicCON 4113 – rear side

Hardware
USB 4113/ basicCON 4113 – User Manual 2-3
2.2 Technical Data
(W x H x D):
♦USB 4113: 4 HP x 100 mm x 160 mm
♦basicCON 4113: 130 mm x 55 mm x 200 mm
The dimensions given for USB 4113 (without front panel and
connectors) correspond to standard dimensions in a
GOEPEL electronics USB-Rack.
Symbol Characteristic Value Min. Typ. Max. Unit Remarks
Supply
USS Supply voltage 5 V Supply via USB possible
(basicCON 4113)
ISS Supply current 200 400 mA
USExt External Power supply 7 12 25 V IMax = 170mA at 12V
Optionally for basicCON 4113
LVDS
UID Differential LVDS input voltage 1 V
IID Differential input current ±1 ±10 µA
RIN Input resistance 100 Ω
CIN Input capacity 1.7 pF
UOD Differential LVDS output voltage 250 350 450 mV
IOS Output short-circuit current ±55 mA
ROUT Output resistance 100 Ω
COUT Output capacity 1.2 pF
Control channel
UCTRL Voltage of the Control channel 40 V
ICTRL Current of the Control channel 250 mA
Please use the supplied USB cables to connect the devices to the
PC’s/ laptop’s USB interface.
Other cables may be inapplicable.
2.2.1 Dimensions
2.2.2 Electrical
Properties

Hardware
2-4 USB 4113/ basicCON 4113 – User Manual
2.3 Construction and Function
The USB 4113 splitter board (also used for basicCON 4113) distributes
the LVDS input signal (ANSI TIA/EIA-644) among any number of the
four LVDS outputs.
Moreover, the signal is regenerated by the repeaters on the board.
Additionally, a control signal (e.g. CAN/LIN) is distributed.
By cascading resp. interconnecting several USB 4113 boards with each
other it is possible to create a 1 to 64 splitter.
But we advise not to chain more than three splitters.
(As otherwise too much jitters would be on the LVDS signal.
Then no error-free transmission can be ensured.)
All boards have five HF connections at the frontal panel to connect the
LVDS cables.
At the rear side of the USB 4113 board there is a 132 poles backplane
connector for connecting the board in a GOEPEL electronics USB Rack.
The basicCON 4113 has a USB-B connector and connections for
external power supply.
If required, a Hardware Initialization can be carried out by means of
the switches on the board.
In Figure 2-4you can see that there is a switch 1..4for each of the
LVDS Out1..LVDS Out4output channels.
After switching on, when the Host Mode has not been activated, yet,
the device distributes the input signal as follows:
If all switches are switched OFF, the LVDS outputs are also switched
OFF.
If one switch is switched ON, the signal of the belonging input is
conducted to the corresponding output.
In the case several switches are switched ON, the input signal is
distributed among these several outputs.
1 2 3 4
ON
After the activation of the Host Mode, the switches are not active and
control is effected via USB. In the delivery state, all switches are
switched OFF.
If required, the switches should be set as needed before the
installation process. Due to this initialization, also an operation of the
Splitter board without software control is possible. For this, the board
must be powered in the USB rack.
Activate the Host Mode by G-API command G_Lvds_Splitter_HostControlMode_Set.
Please refer to the G-API User Manual regarding this command
and further G-API commands for the control of your
USB 4113/ basicCON 4113 module.
2.3.1 General
2.3.2
Hardware
Initialization

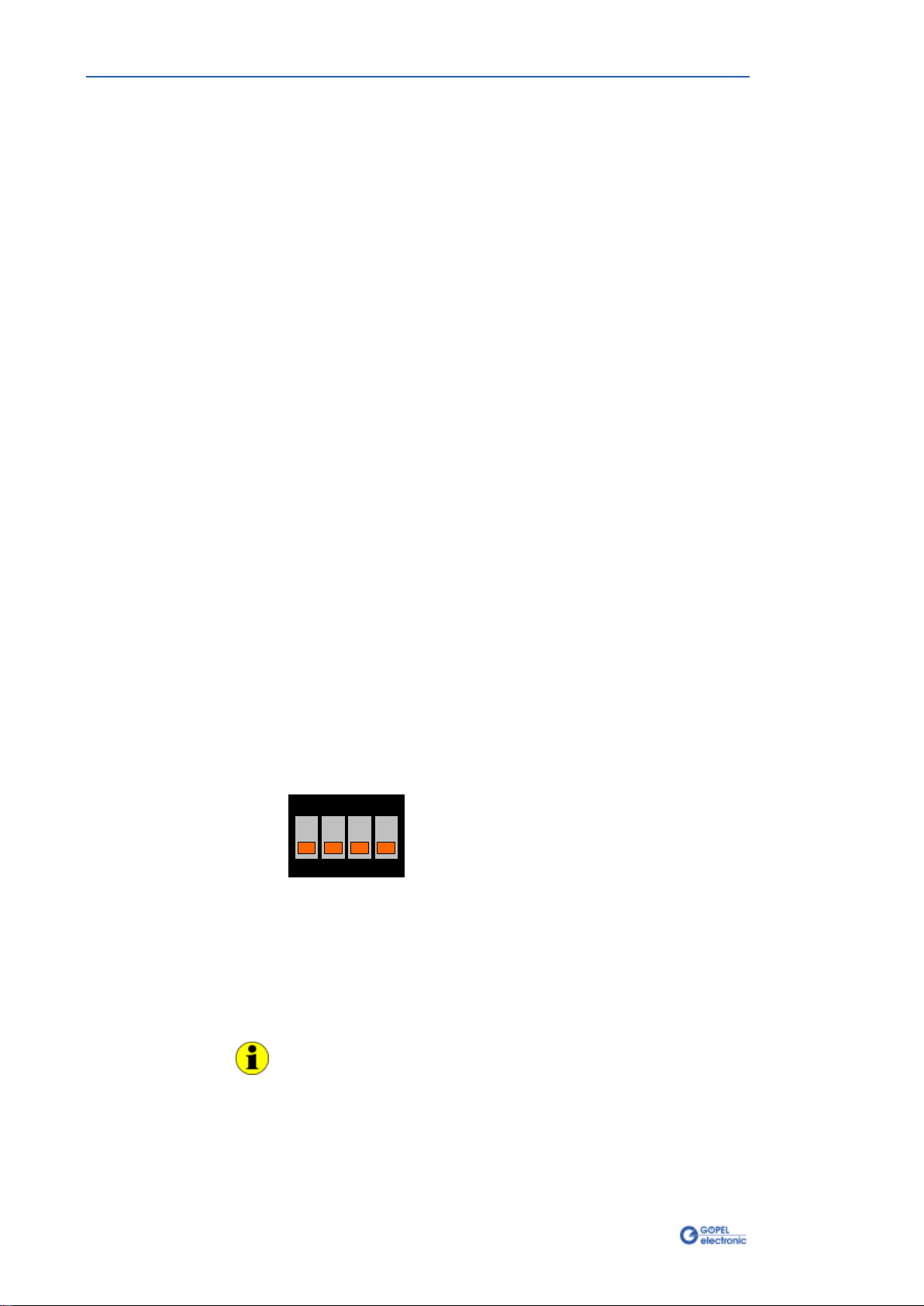

Figure 2-4:
Switches for Initialization

Hardware
USB 4113/ basicCON 4113 – User Manual 2-5
Addressing individual USB 4113boards in the GOEPEL electronicsUSB
Rack or basicCON 4113 devices takes place exclusively according to
their serial numbers: The device with the least serial number is always
the device with the number 1(but counting by considering all other
GOEPEL electronics USB devices in the same system).
To improve clarity, we recommend to arrange several USB 4113
boards (if applicable) in the order of ascending serial numbers
in a GOEPEL electronics USB Rack.
The USB 4113 board is supplied via the USB Rack in that it has been
installed.
Power supply for basicCON 4113 can be effected via the USB interface
(as far as it is configured for the required current of about 500 mA).
For operating the basicCON 4113 at passive USB hubs or laptops with
lower power supply, use the two banana females for ext. Power Supply
(red = plus/ blue = minus)
for supplying the device with a voltage of 7-25 VDC).
Alternatively, you may use the female for the delivered AC adaptor
plug with coaxial power plug (2.1 x 5.5mm/ plus polarity inside),
see also Figure 2-3.
Used connector:
Rosenberger D4S20A-40ML5-Z
Connector for connecting cable (recommened):
Rosenberger D4K10A-1D5A5-Z
1
2 3
4 1
2 3
4 1
2 3
4 1
2 3
4 1
2 3
4
Out
1Out 2Out 3Out 4In
Figure 2-5: Front panel USB 4113
The following table shows the pinout of the LVDS females:
Connection Pin Signal Connection Pin Signal
Out 1..4 1 LVDS- In 1 GND
2 Control 2 LVDS+
3 LVDS+ 3 Control
4 GND 4 LVDS-
2.3.3 Addressing
2.3.4 Power
Supply
2.3.5
Connector
Pinout

Hardware
2-6 USB 4113/ basicCON 4113 – User Manual
2.4 Accessories
The following accessories can be delivered
for USB 4113/ basicCON 4113 devices:
♦LVDS HF connecting cable
(when ordering, please state the required length
and the connector type of the transmitting side)

G-API Programming
USB 4113/ basicCON 4113 – User Manual 3-1
3G-API Programming
The G-API (GOEPEL-API) is the C-programming user interface for
GOEPEL electronics hardware under Windows®.
It provides a wide hardware independent command set for CAN, LIN,
K-Line, MOST, FlexRay, LVDS, ADIO and Diagnostic services.
No matter whether a PXI/ PCI, USB and Ethernet device is used, the
commands remain the same.
The hardware abstraction introduced with the G-API gives the test
application parallel access to the hardware, allowing one application to
access multiple hardware interfaces. As well as multiple applications
can access the same hardware interfaces in parallel.
Another feature introduced by the G-API is the asynchronous
hardware access. This means no blocking execution for pending
firmware commands. The command acknowledgement is provided via
callback mechanism.
Therefore no polling is required from the application.
With the HardwareExplorer GOEPEL electronics provides a hardware
configuration and management tool. Offering users an easy way to
manage their hardware configurations and identifying specific
hardware interfaces by logical names. Using logical interface names in
the application saves from rebuilding the application when porting it to
another interface or controller board, as the interface can be easily
reassigned in the HardwareExplorer.
Furthermore the HardwareExplorer provides a simple means of testing
the interaction between hardware and software by executing the
integrated self-tests.
Please consult the G-API documentation for further information.
This documentation and the installation software are located in the
G-API folder on the supplied Product CD.

Index
USB 4113/ basicCON 4113 – User Manual i
B
basicCON 4113
Connections...................2-2
G
G-API ...............................3-1
GOEPEL USB Racks............1-1
H
Hardware Explorer.............3-1
Hardware Initialization.......2-4
U
USB 4113
Accessories....................2-6
Addressing ....................2-5
Cascading......................2-4
Connections............2-4, 2-5
Definition.......................2-1
Dimensions....................2-3
Driver Installation...........1-2
Hardware Installation .....1-1
Pinout ...........................2-5
Power supply.................2-5
Stand-alone Device ........2-2
Use...............................2-4
USB cable .........................2-3
