ADF Web HD67D32-B2-868MHz User manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFINET
M
aster
Document code: MN67D32_ENG Revision 1. Page 1 of 28
User Manual
Revision 1.
English
LoRaWAN / PROFINET Master - Converter
(Order Code: HD67D32-B2-868MHz)
For Website information:
www.adfweb.com?Product=HD67D32-B2
For Price information:
www.adfweb.com?Price=HD67D32-B2-868MHz
Benefits and Main Features:
Very easy to configure
Power Supply 18…35V DC and 8…24 V AC
Temperature range: -4 °C/+85°C (-4 °F/+185°F)
For others LoRaWAN products, see also the following links:
Converter LoRaWAN to
www.adfweb.com?Product=HD67D 1 (Mod us Master)
www.adfweb.com?Product=HD67D 2 (Mod us Slave)
www.adfweb.com?Product=HD67D 3 (Mod us TCP Master)
www.adfweb.com?Product=HD67D 4 (Mod us TCP Slave)
www.adfweb.com?Product=HD67D 5 (Serial)
www.adfweb.com?Product=HD67D15 (M-Bus)
www.adfweb.com?Product=HD67D16 (BACnet Master)
www.adfweb.com?Product=HD67D17 (BACnet Slave)
www.adfweb.com?Product=HD67D18 (Ethernet)
www.adfweb.com?Product=HD67D19 (CAN)
www.adfweb.com?Product=HD67D2 (CANopen)
www.adfweb.com?Product=HD67D21 (DeviceNet Master)
www.adfweb.com?Product=HD67D22 (DeviceNet Slave)
www.adfweb.com?Product=HD67D23 (DMX)
www.adfweb.com?Product=HD67D24 (EtherNet/IP Master)
www.adfweb.com?Product=HD67D25 (EtherNet/IP Slave)
www.adfweb.com?Product=HD67D26 (J1939)
www.adfweb.com?Product=HD67D27 (KNX)
www.adfweb.com?Product=HD67D28 (NMEA 0183)
www.adfweb.com?Product=HD67D29 (NMEA 2000)
www.adfweb.com?Product=HD67D3 (PROFIBUS Master)
www.adfweb.com?Product=HD67D31 (PROFIBUS Slave)
www.adfweb.com?Product=HD67D33 (PROFINET Slave)
www.adfweb.com?Product=HD67D34 (IEC61850 Client)
www.adfweb.com?Product=HD67D35 (IEC61850 Server)
www.adfweb.com?Product=HD67D36 (MQTT)
www.adfweb.com?Product=HD67D37 (OPC UA Client)
www.adfweb.com?Product=HD67D38 (OPC UA Server)
www.adfweb.com?Product=HD67D39 (S7comm)
www.adfweb.com?Product=HD67D4 (SNMP Manager)
www.adfweb.com?Product=HD67D41 (SNMP Agent)
User Manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFINET
M
aster
Document code: MN67D32_ENG Revision 1. Page 2 of 28
INDEX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
POWER SUPPLY 7
FUNCTION MODES 8
LEDS 9
LORAWAN 1
ETHERNET 11
USE OF COMPOSITOR SW67D32 12
NEW CONFIGURATION / OPEN CONFIGURATION 13
SOFTWARE OPTIONS 14
SET COMMUNICATION 16

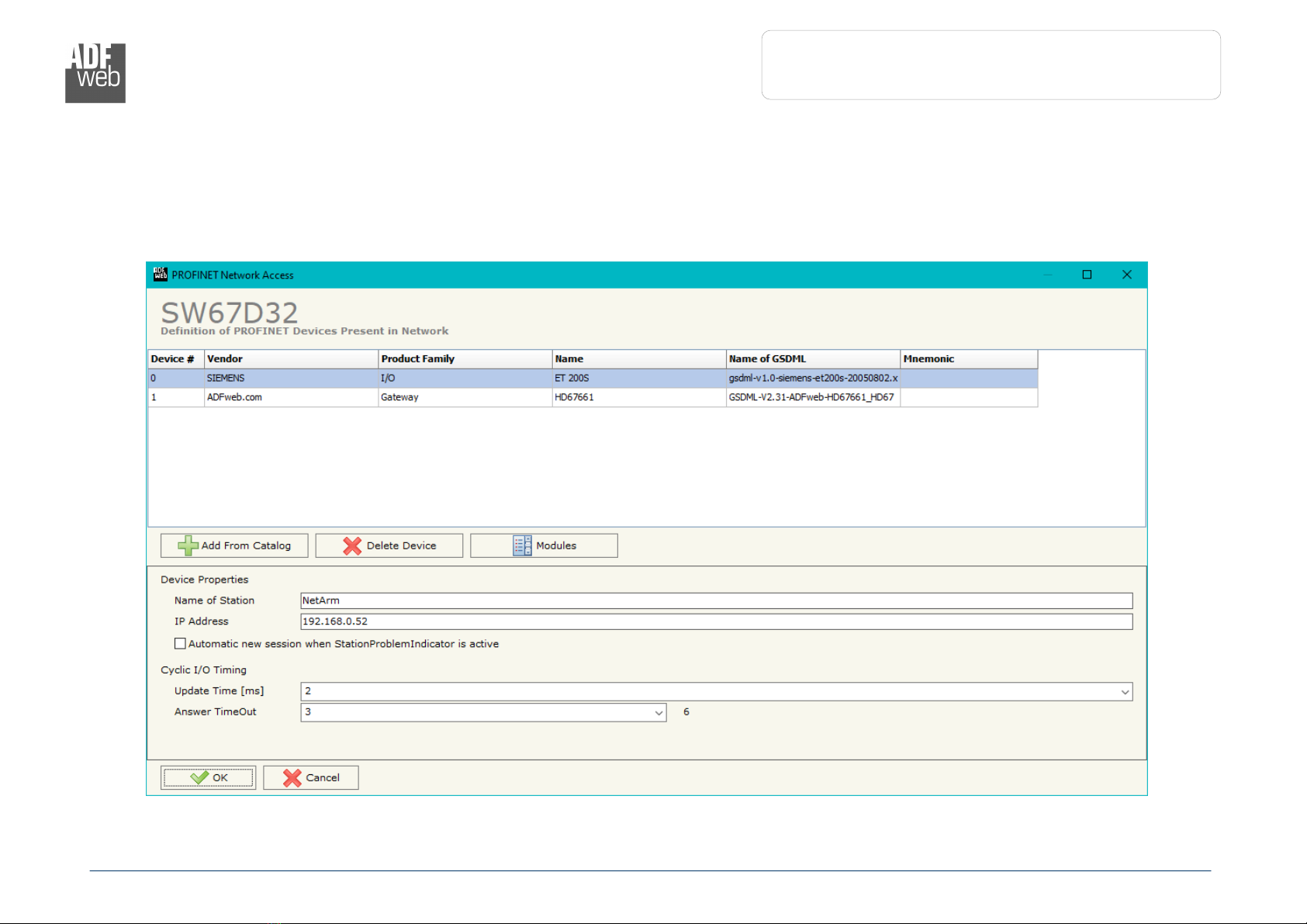

PROFINET ACCESS 18
UPDATE DEVICE 22
LORAWAN PAYLOAD 24
MECHANICAL DIMENSIONS 25
ORDERING INFORMATIONS 26
ACCESSORIES 26
DISCLAIMER 27
OTHER REGULATIONS AND STANDARDS 27
WARRANTIES AND TECHNICAL SUPPORT 28
RETURN POLICY 28
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REVISION LIST:
WARNING:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.
Revision Date Author Chapter Description
1. 4/12/2 2 Ff All First release version

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFINET
M
aster
Document code: MN67D32_ENG Revision 1. Page 3 of 28
SECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q UALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R ESIDUAL R ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFINET
M
aster
Document code: MN67D32_ENG Revision 1. Page 4 of 28

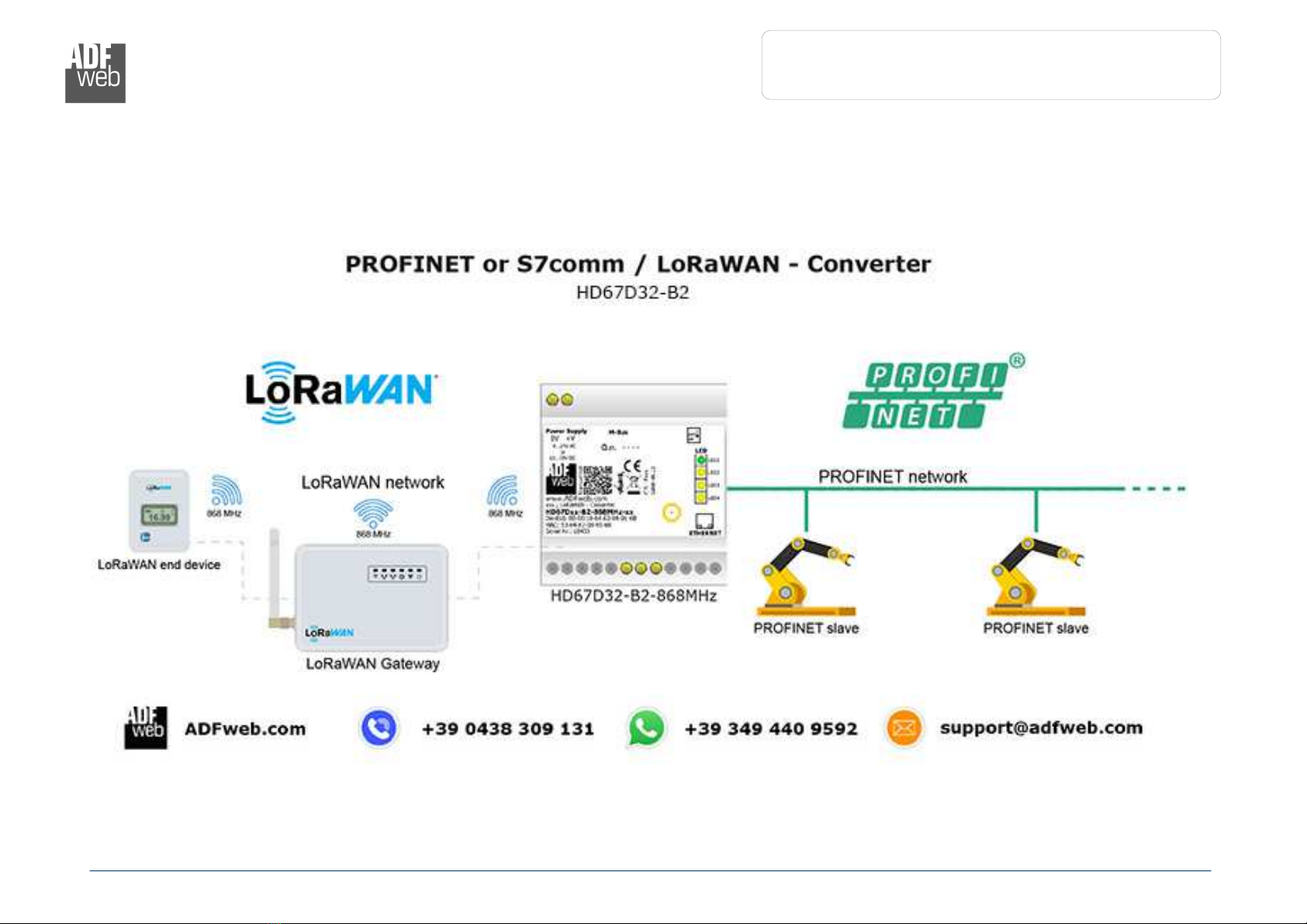

EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFINET
M
aster
Document code: MN67D32_ENG Revision 1. Page 5 of 28

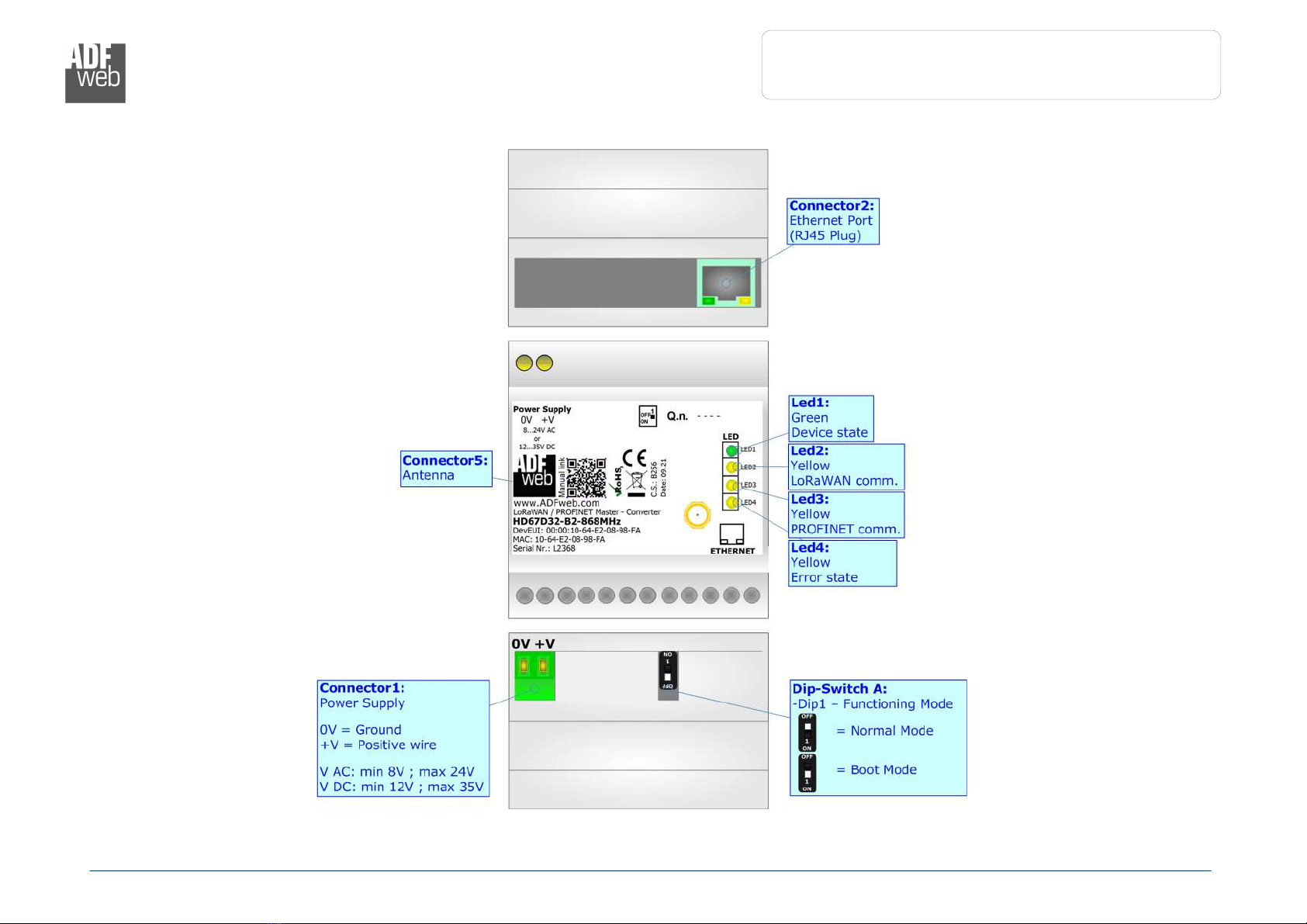

CONNECTION SCHEME:
Figure 1: Connection scheme for HD67D32- 2-xxxMHz

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFINET
M
aster
Document code: MN67D32_ENG Revision 1. Page 6 of 28
CHARACTERISTICS:
The HD67D32-B2 is a LoRaWAN / PROFINET Master Converter.
It allows the following characteristics:
Electrical isolation between PROFINET and Power Supply;
Two-directional information between LoRaWAN bus and PROFINET bus;
Mountable on 35mm Rail DIN;
Wide power supply input range: 12…35V DC and 8…24V AC;
Wide temperature range: -4 °C / 85°C [-4 °F / +185°F].
CONFIGURATION:
You need Compositor SW67D32 software on your PC in order to perform the following:
Define the parameter of PROFINET line;
Define the parameter of LoRaWAN line;
Define the list of LoRaWAN messages in uplink and downlink to the LoRaWAN gateway;
Define the list of PROFINET slave devices to read and write;
Update the device.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFINET
M
aster
Document code: MN67D32_ENG Revision 1. Page 7 of 28

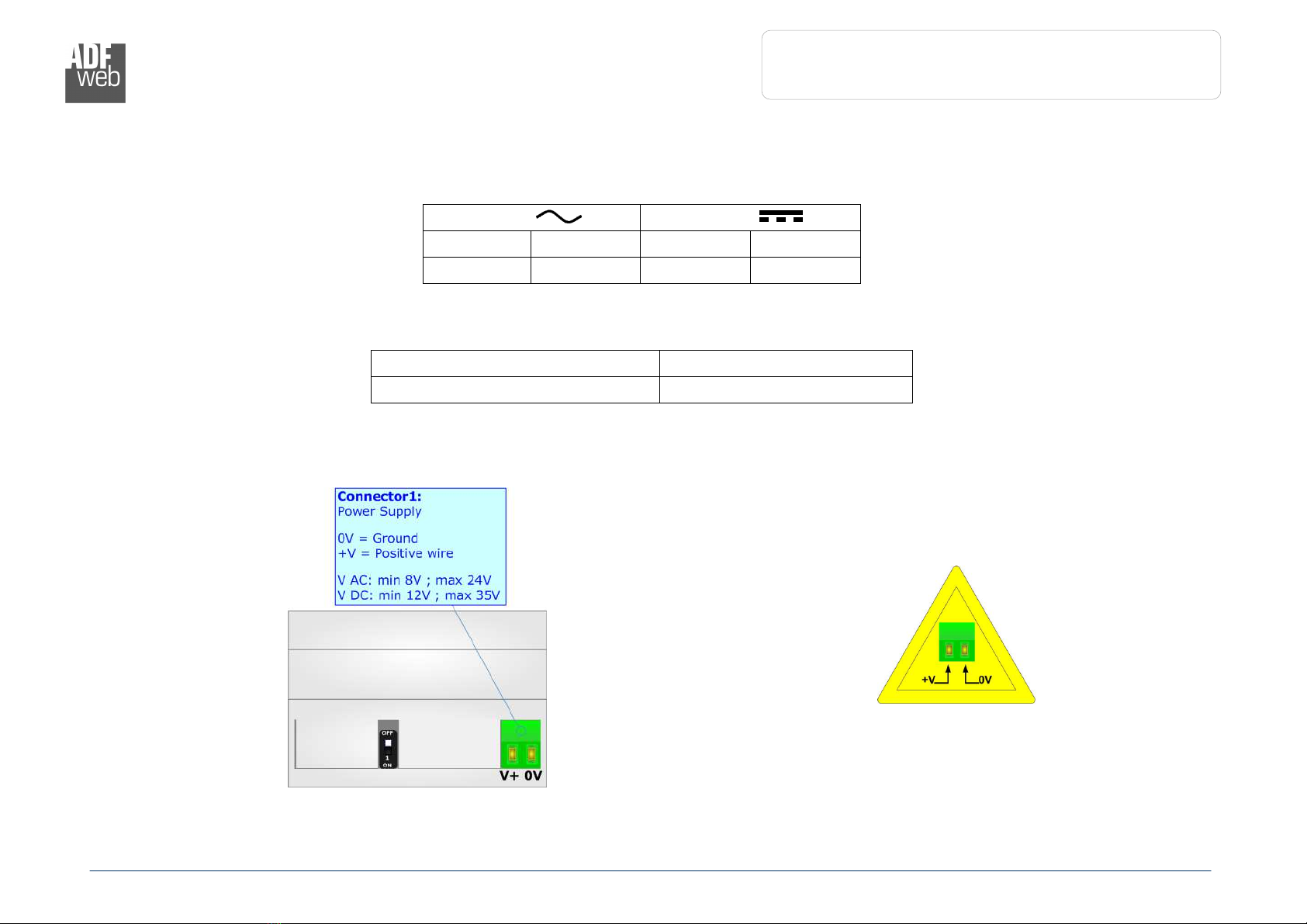

POWER SUPPLY:
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67D32-B2-xxxMHz 3.5
HD6
7D
3
2
-
B2
-
xxxMHz
Caution: Not reverse the polarity power

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFINET
M
aster
Document code: MN67D32_ENG Revision 1. Page 8 of 28

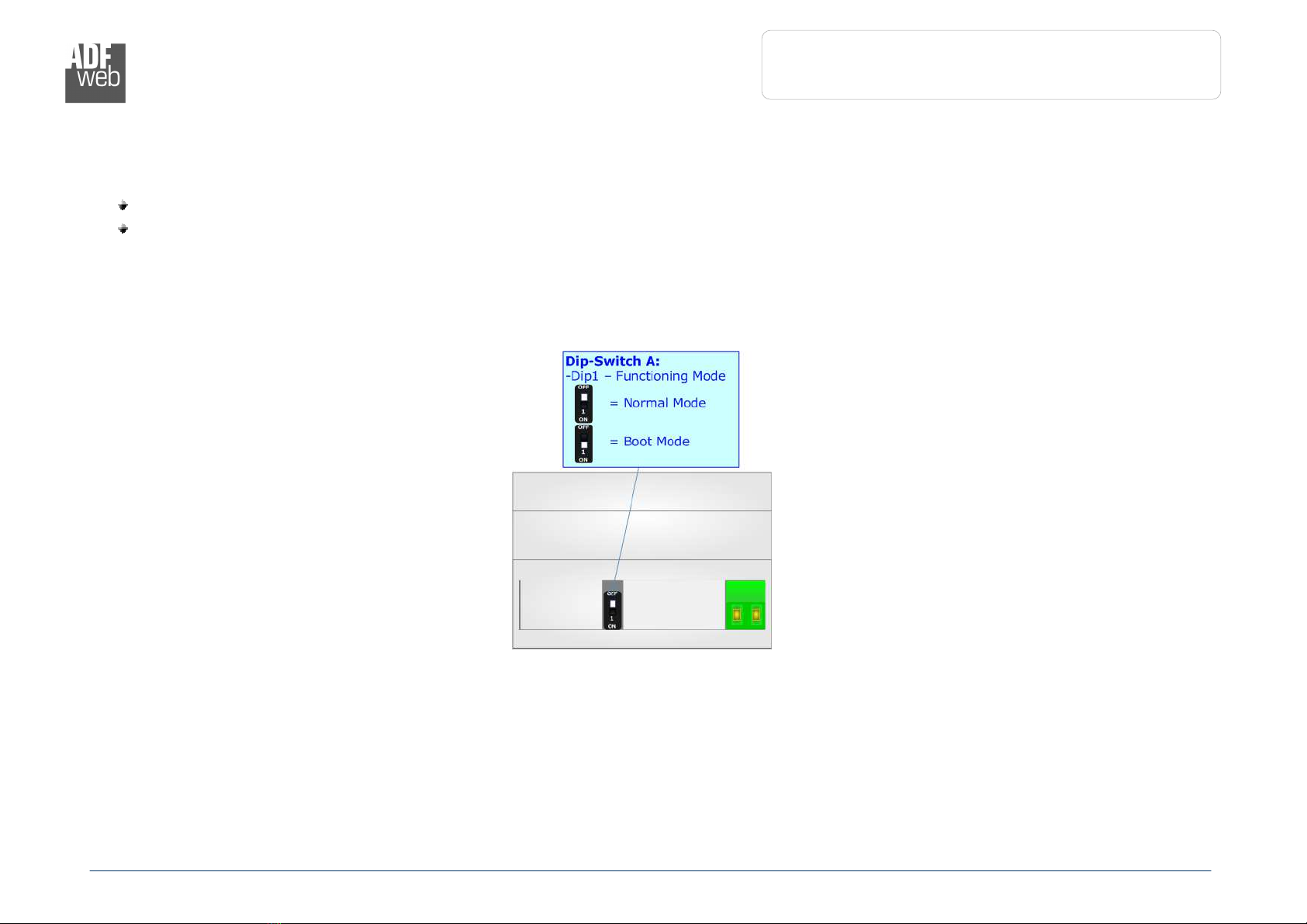

FUNCTION MODES:
The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the Project and/or Firmware.
For the operations to follow for the updating, see ‘UPDATE DEVICE’ section.
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFINET
M
aster
Document code: MN67D32_ENG Revision 1. Page 9 of 28
LEDS:
The device has got four LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: LoRaWAN communication
(yellow) Blinks when LoRaWAN data is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: PROFINET communication
(yellow) Blinks when a PROFINET response is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Error state (yellow) ON: An error in the communication busses occurs
OFF: No errors are present
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFINET
M
aster
Document code: MN67D32_ENG Revision 1. Page 1 of 28
LORAWAN:
The LoRaWAN® specification is a Low Power, Wide Area (LPWA) networking protocol
designed to wirelessly connect battery operated ‘things’ to the internet in regional, national
or global networks, and targets key Internet of Things (IoT) requirements such as bi-
directional communication, end-to-end security, mobility and localization services.
LoRaWAN® network architecture is deployed in a star-of-stars topology in which gateways
relay messages between end-devices and a central network server.
The wireless communication takes advantage of the Long Range characteristics of the LoRa
physical layer, allowing a single-hop link between the end-device and one or many
gateways. All modes are capable of bi-directional communication, and there is support for
multicast addressing groups to make efficient use of spectrum during tasks such as
Firmware Over-The-Air (FOTA) upgrades or other mass distribution messages.
Converters from HD67D32 serie act as end-devices and they can communicate with one or
more LoRwaWAN Gateways.
The converters support all the standard datarates and they work both on public and private
networks.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFINET
M
aster
Document code: MN67D32_ENG Revision 1. Page 11 of 28

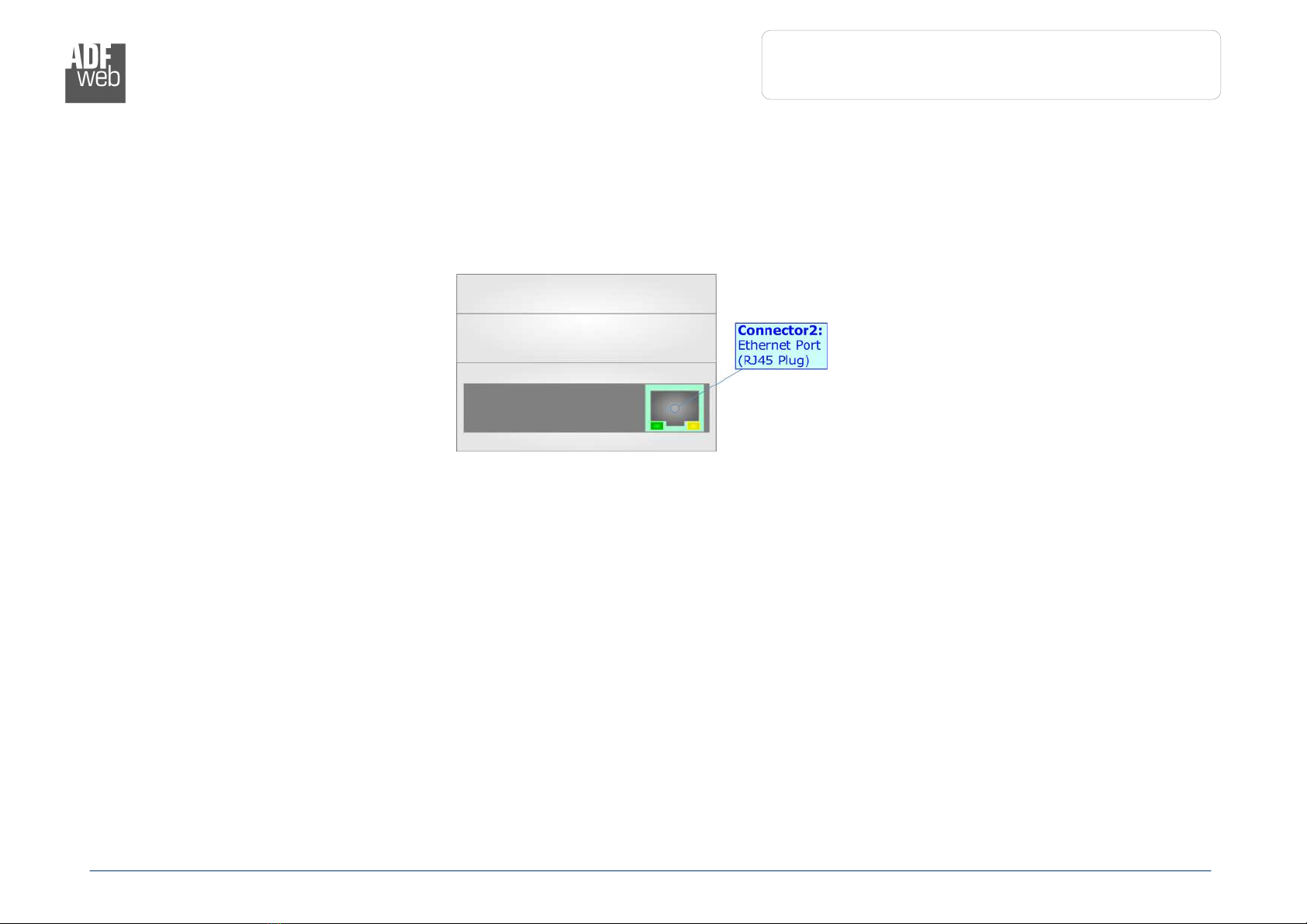

ETHERNET:
The Ethernet port is used for programming the device and for PROFINET communication.
The Ethernet connection must be made using Connector2 of HD67D32-B2 with at least a Category 5E cable. The maximum length of the
cable should not exceed 1 m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 1 Mbps. To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC is recommended the use of a cross cable.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFINET
M
aster
Document code: MN67D32_ENG Revision 1. Page 12 of 28
USE OF COMPOSITOR SW67D32:
To configure the Converter, use the available software that runs with Windows called SW67D32. It is downloadable on the site
www.adfweb.com and its operation is described in this document. The software works with MS Windows (XP, Vista, Seven, 8, 1 ; 32/64bit).
When launching the SW67D32, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure 2: Main window for SW67D
32

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFINET
M
aster
Document code: MN67D32_ENG Revision 1. Page 13 of 28
NEW CONFIGURATION / OPEN CONFIGURATION:
The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a Programmable “LoRaWAN / PROFINET Master -
Converter” in order to configure another device in the same manner, it is necessary to
maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFINET
M
aster
Document code: MN67D32_ENG Revision 1. Page 14 of 28

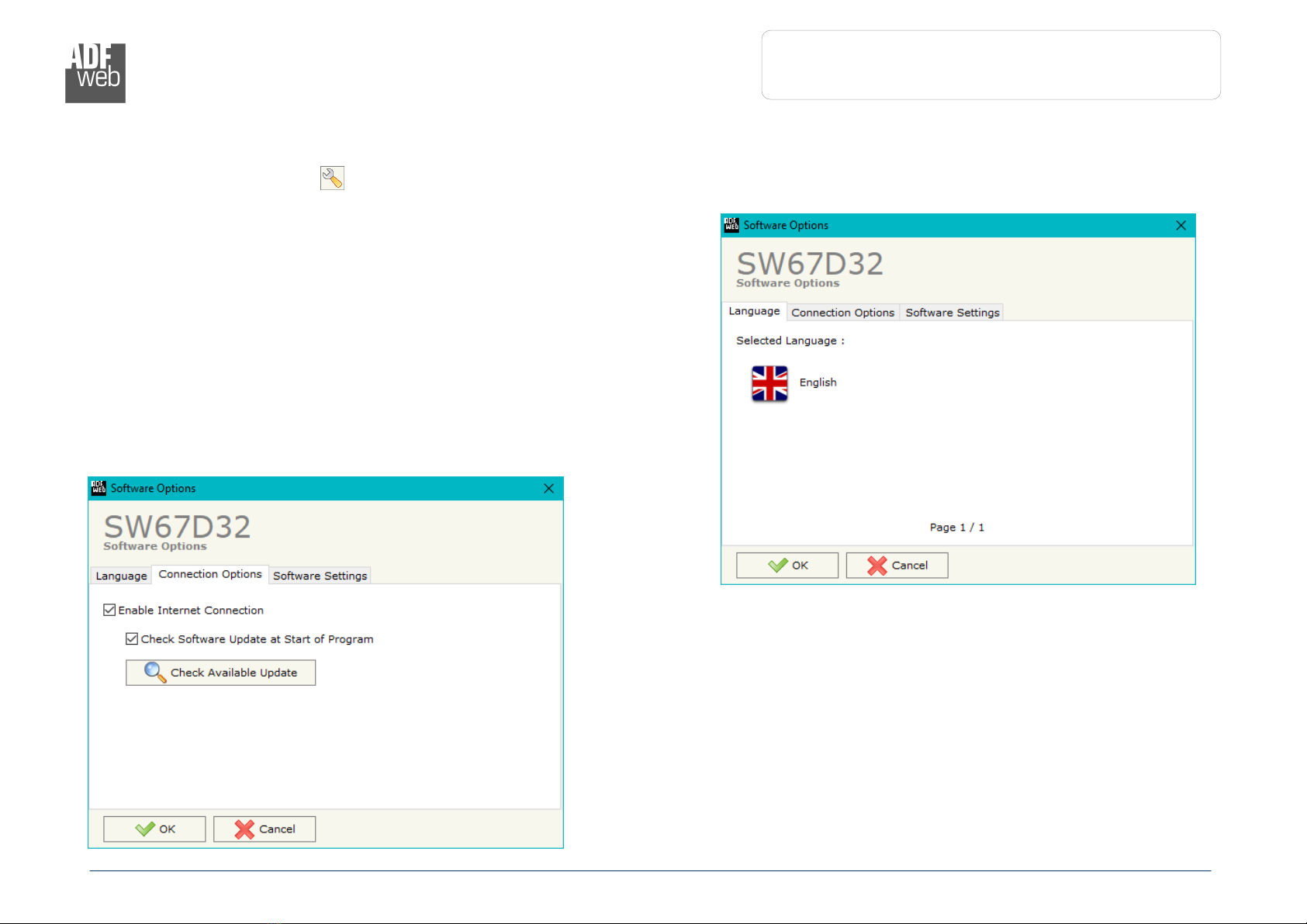

SOFTWARE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of Program”, the
SW67D32 check automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFINET
M
aster
Document code: MN67D32_ENG Revision 1. Page 15 of 28
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFINET
M
aster
Document code: MN67D32_ENG Revision 1. Page 16 of 28
SET COMMUNICATION:
By Pressing the “Set Communication” button from the main window for SW67D32
(Fig. 2) the window “Set Communication” appears (Fig. 3).
The means of the fields for “PROFINET Master” are:
In the field “IP Address” the IP address for PROFINET side of the converter is
defined;
In the field “Su Net Mask” the SubNet Mask for PROFINET side of the
converter is defined;
In the field “Gateway” the default gateway of the net is defined. This feature
can be enabled or disabled pressing the Check Box field. This feature is used for
going out of the net;
In the field “Name of Station” the name for PROFINET side of the converter is
defined.
The means of the fields for “LoRaWAN” are:
In the field “RF Band” the wireless band used for LoRaWAN communication is
defined;
In the field “Network Type” the type of LoRaWAN network is defined;
If the field “Adaptive Data Rate” is checked, the converter will enable the
ADR functionalities to select the best data rate to be used in relation to the
environmental conditions;
In the field “Data Rate” the data rate for LoRaWAN communication is defined;
In the field “Transmission Type” the type of LoRaWAN communication is
defined;
In the field “Max Payload Size” the maximum dimension of the LoRaWAN
messages is defined (fixed in relation to the data rate selected);
In the field “JoinEUI” the ID of the application server is defined;
In the field “Activation Method” the method used to join into a LoRaWAN
network is defined;
Figure
3
:
“Set Communication” window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFINET
M
aster
Document code: MN67D32_ENG Revision 1. Page 17 of 28
In the field “Device Address” the device identifier (DevEUI) is defined (only for
ABP method);
In the field “Network Session Key” the key used for the communication with the LoRaWAN gateway (NwkSKey) is defined (only for
ABP method);
In the field “Application Session Key” the key for encryption and decryption of the payload (AppSKey) is defined (only for ABP
method);
If OTAA method is selected, in the field “Application Key” the secret key for the dynamic activation of the converter in the LoRAWAN
network is defined.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFINET
M
aster
Document code: MN67D32_ENG Revision 1. Page 18 of 28
Figure 4: “Definition of PROFINET Devices Present in Network” window
PROFINET ACCESS:
By Pressing the “PROFINET Access” button from the main window for SW67D32 (Fig. 2) the window “Definition of PROFINET Devices
Present in Network” appears (Fig. 4).
This section is used to define the list of the PROFINET slaves to read/write with the PROFINET Master. It is possible to add the PROFINET
slaves from the hardware catalog. If a new device will be connected, it is possible to instal the GSDML file.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFINET
M
aster
Document code: MN67D32_ENG Revision 1. Page 19 of 28
The means of the fields below are:
In the field “Name of Station” is checked, the name of the PROFINET slave is defined;
In the field “IP Address” the IP Address of the PROFINET slave is defined;
If the field “Automatic new session when StationPro lemIndicator is Active” is checked, the converter opens a new
communication session when an error is present in the slave station;
In the field “Update Time [ms]” the delay used for IO communication is defined;
In the field “Answer TimeOut” the allowed number of cycles without response from the slave is defined.
Warning:
The data from/to the slaves are mapped consecutively into the IN/OUT PROFINET arrays, following the order with which they are
defined.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFINET
M
aster
Document code: MN67D32_ENG Revision 1. Page 2 of 28
Figure 5: “
Definition Module and/or Submodules of PROFINET Device
” window
By clicking on “Modules” button, it is possible to import the modules for the selected PROFINET Master device. The window “Definition
Module and/or Submodules of PROFINET Device” appears (Fig. 5). In the main table it is possible to import the Modules of the PROFINET
device in use. In the properties below, it is possible to set the parameters of the Master. These options depends on the Master in use, refer
to the manual of the PROFINET device.
