GoPro HERO 4 SILVER User manual

USER MANUAL
UM_H4Silver_ENG-FR_REVE.indb 1 2/5/15 3:14 PM

twitter.com/GoPro
youtube.com/GoProfacebook.com/GoPro
instagram.com/GoPro
/ Join the GoPro Movement
UM_H4Silver_ENG-FR_REVE.indb 2 2/5/15 3:14 PM

To download this user manual in a different language, visit
gopro.com/support.
Pour télécharger ce manuel de l’utilisateur dans une autre langue,
rendez-vous sur gopro.com/support.
Wenn Sie dieses Benutzerhandbuch in einer anderen Sprache
herunterladen möchten, besuchen Sie gopro.com/support.
Per scaricare questo manuale utente in un’altra lingua, visita
gopro.com/support.
Para descargar este manual de usuario en otro idioma, visite
gopro.com/support.
Para baixar este manual do usuário em outro idioma, acesse
gopro.com/support.
このユーザーマニュアルの他言語版をダウンロードするに
は、 gopro.com/supportにアクセスしてください。
若要下載其他語言版本的使用說明書，請前往：
gopro.com/support。
如需下载本用户手册的其他语言版本，请访问
gopro.com/support。
Чтобы загрузить это руководство пользователя на другом языке,
посетите страницу gopro.com/support.
UM_H4Silver_ENG-FR_REVE.indb 3 2/5/15 3:14 PM

4
The Basics 6
Getting Started 8
Camera Displays 14
Camera Icons 18
Camera Menus 20
Camera Modes 22
Navigating Settings Menus 23
Video Mode 25
Photo Mode 37
Multi-Shot Mode 44
Playback Mode 53
Setup Mode 57
Connecting to the GoPro App 66
Transferring Files to a Computer 67
Protune™ 68
Battery 74
Important Messages 79
Camera Housing 81
/ Table of Contents
UM_H4Silver_ENG-FR_REVE.indb 4 2/5/15 3:14 PM

5
/ Table of Contents
Using the Mounts 86
Troubleshooting 89
Customer Support 91
Trademarks 91
Regulatory Information 91
UM_H4Silver_ENG-FR_REVE.indb 5 2/5/15 3:14 PM

6

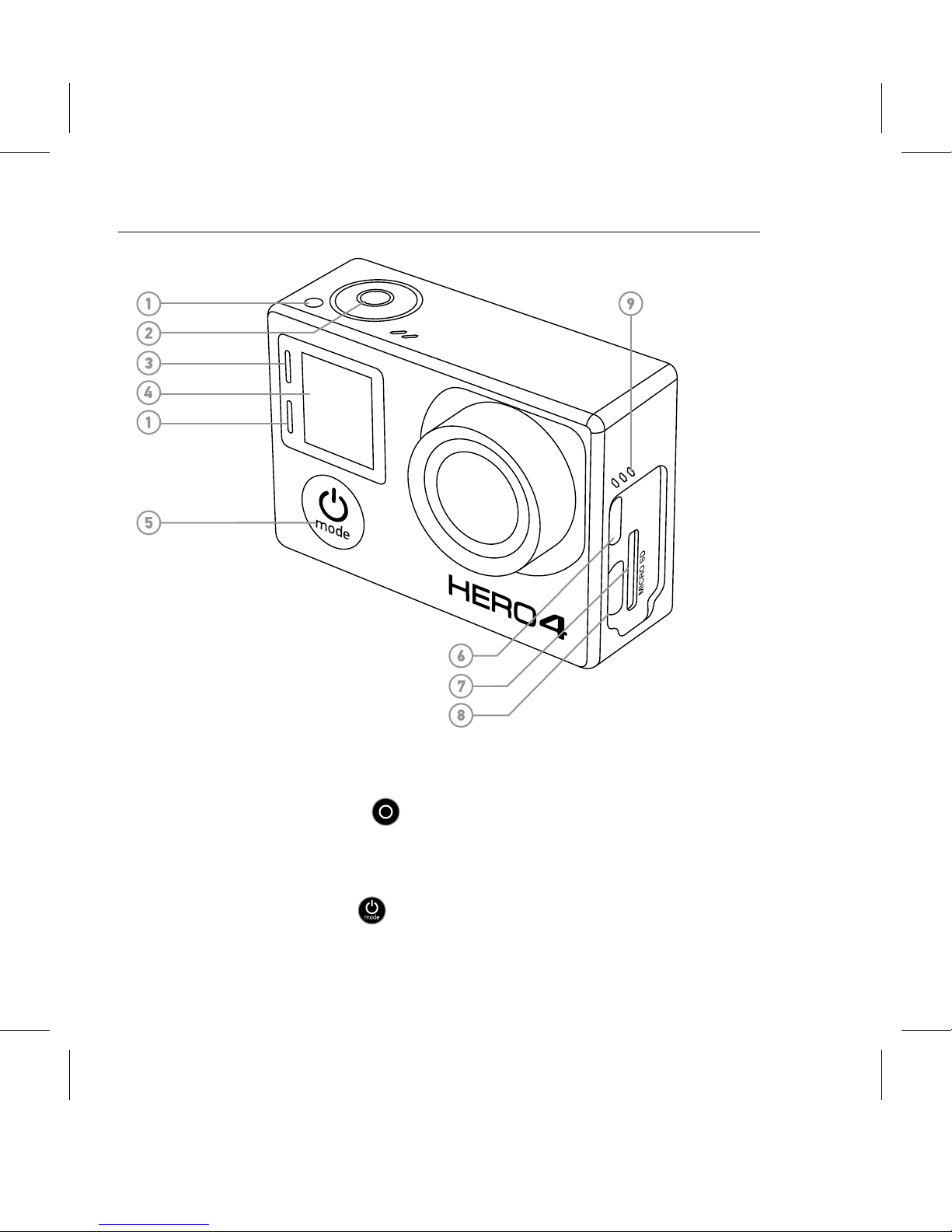

1. Camera Status Light (red)
2. Shutter/Select Button [ ]
3. Wireless Status Light (blue)
4. Camera Status Screen
5. Power/Mode Button [ ]
6. Micro HDMI Port
(cable not included)
7. microSD Card Slot
(microSD card not included)
8. Mini-USB Port
(supports composite A/V
cable/ 3.5mm stereo mic
adapter, not included)
9. Audio Alert
/ The Basics
UM_H4Silver_ENG-FR_REVE.indb 6 2/5/15 3:14 PM

7

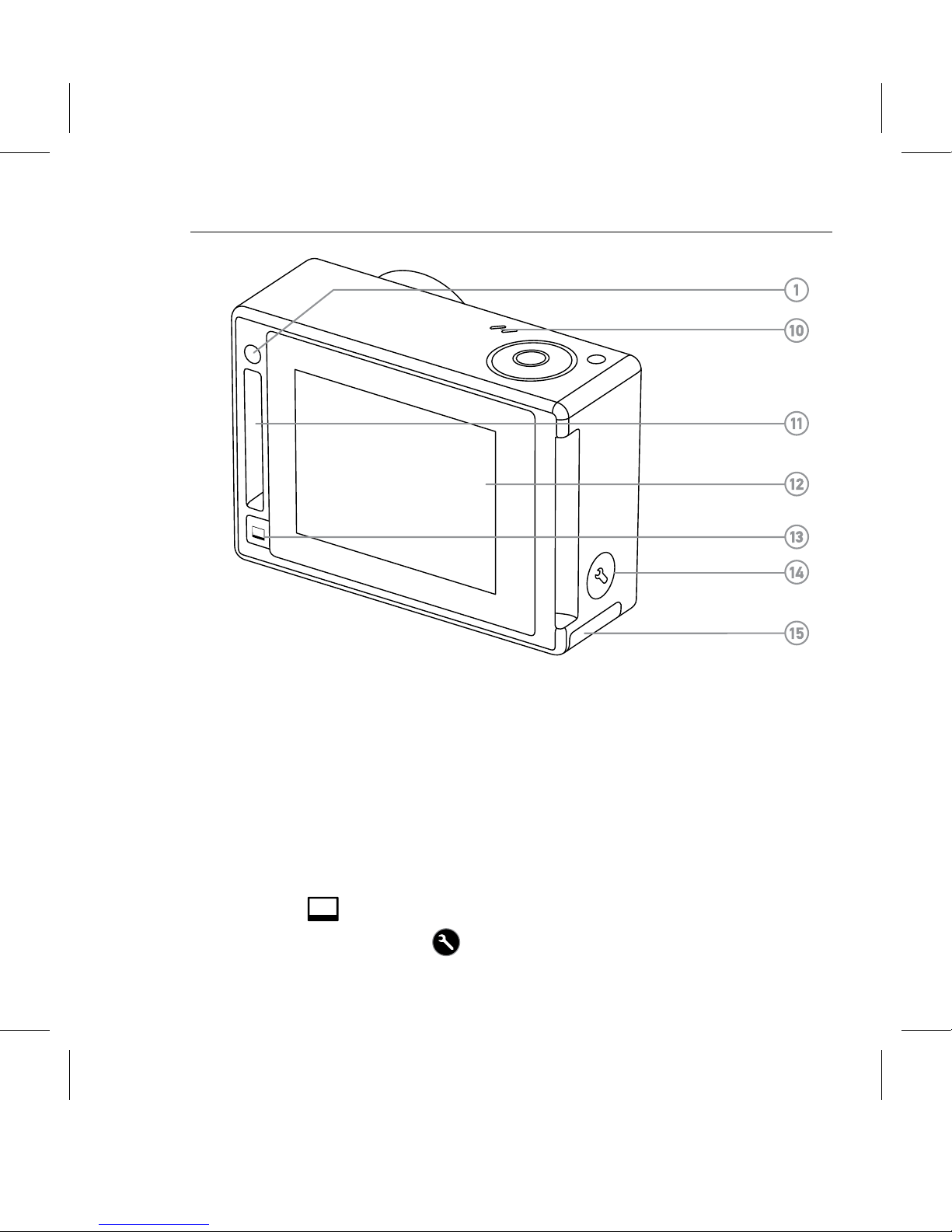

10. Microphone
11. HERO Port
12. Touch Display
13. Touch Display Sleep/Wake
Button [ ]
14. Settings/Tag Button [ ]
15. Battery Door
/ The Basics
UM_H4Silver_ENG-FR_REVE.indb 7 2/5/15 3:14 PM

8
/ Getting Started
CHARGING THE BATTERY
1. Remove the camera from its housing.
2. Remove the camera side door and insert a microSD card (sold
separately). The card must have a Class 10 or UHS-1 rating and
a capacity up to 64GB. Visit gopro.com/support for the list of
recommended SD cards.
3. Open the bottom door, insert the battery and then close the
bottom door.
Slim housing surfboard mount installation
Slim housing remove camera Slim housing insert camera
Slim housing closed Swapping housing doors
Quick Release Buckle + Thumb Screw + Slim housing = Complete Unit
UM_H4Silver_ENG-FR_REVE.indb 8 2/5/15 3:14 PM

9
4. Charge the battery by connecting the camera to a computer or
other USB charging adapter using the included USB cable. The
camera status light turns on during charging and turns off when
charging is complete.
NOTICE: Using a wall charger other than a GoPro Wall Charger can
damage the GoPro battery. Only use chargers marked: output 5V
1A. If you do not know the voltage and current of your charger, use
the included USB cable to charge the camera from your computer.
When charging with a computer, be sure that the computer is
connected to a power source. If the camera status light does not
turn on, use a different USB port.
The included lithium-ion battery comes partially charged. No damage
occurs to the camera or battery if used prior to a full charge.
PRO TIP: With the Dual Battery Charger, you can charge your battery
outside of the camera. For details, visit gopro.com.
For more battery information, see Battery.
WARNING: Use caution when using your GoPro as part of your
active lifestyle. Always be aware of your surroundings to avoid
injury to yourself and others. Abide by all local laws when using
your GoPro and related mounts and accessories.
/ Getting Started
UM_H4Silver_ENG-FR_REVE.indb 9 2/5/15 3:14 PM

10
CAMERA SOFTWARE UPDATES
To get the latest features and best performance from your HERO4
camera, make sure you are using the most current camera soware.
You can update your camera soware via the GoPro App or GoPro
soware. For more information, visit gopro.com/getstarted.
CAMERA DEFAULT SETTINGS
The HERO4 Silver camera powers up with the following default settings:
Video 1080p30 SuperView™
Photo 12MP, Wide Field of View (FOV)
Multi-Shot Burst option (set to 30 photos in 1 second)
QuikCapture Off
Wireless Off
PRO TIP: To open the settings menu for the current mode, swipe up
on the touch display or press the Settings/Tag button [ ].
/ Getting Started
UM_H4Silver_ENG-FR_REVE.indb 10 2/5/15 3:14 PM

11
POWERING ON + OFF
To Power On:
Press the Power/Mode button [ ] once. The camera status lights
(red) flash three times and the sound indicator emits three beeps. When
the camera status screen displays information, your camera is on.
To Power Off:
Press and hold the Power/Mode button [ ] for two seconds. The
camera status lights (red) flash several times and the sound indicator
emits seven beeps.
PRO TIP: When the camera is off and QuikCapture is enabled, you can
turn the camera on and immediately begin capturing video or Time
Lapse photos just by pressing the Shutter/Select button [ ]. Press
once for video, press and hold for Time Lapse photos. Press again to
stop recording and power off the camera. For details, see QuikCapture
in Setup Mode.
/ Getting Started
UM_H4Silver_ENG-FR_REVE.indb 11 2/5/15 3:14 PM

12
INSERTING + REMOVING MICROSD CARDS
The HERO4 Silver camera is compatible with 4GB, 8GB, 16GB, 32GB
and 64GB capacity microSD, microSDHC and microSDXC memory
cards (sold separately). You must use a microSD card with a Class
10 or a UHS-1 rating. (For a list of the recommended SD cards,
visit gopro.com/support.) GoPro recommends using brand name
memory cards for maximum reliability in high-vibration activities.
To Insert the microSD Card:
Slide the memory card into the
card slot with the label facing
the front of the camera.
When fully inserted, the card
clicks into place.
/ Getting Started
UM_H4Silver_ENG-FR_REVE.indb 12 2/5/15 3:14 PM

13
To Remove the microSD Card:
Place your fingernail against
the edge of the memory card
and lightly press it further into
the camera.
The card springs out far enough
to be removed.
NOTICE: Use care when handling memory cards. Avoid liquids, dust
and debris. As a precaution, power off the camera before inserting
or removing the card. Check manufacturer guidelines regarding use
in acceptable temperature ranges.
/ Getting Started
UM_H4Silver_ENG-FR_REVE.indb 13 2/5/15 3:14 PM

14
/ Camera Displays
Your HERO4 Silver features a status screen on the front of the camera
and a larger touch display on the back
.
CAMERA STATUS SCREEN
The camera status screen on the front of the camera displays the
following information about modes and settings:
1. Camera Modes/FOV
(field of view)
2. Camera Settings
3. Resolution/fps
(frames per second)
4. Protune™
5. Number of Files Captured
6. Time/Storage/Files
7. Wireless
8. Battery Life
Note: The icons that appear on the camera status screen vary by mode.
UM_H4Silver_ENG-FR_REVE.indb 14 2/5/15 3:14 PM

15
TOUCH DISPLAY
The integrated touch display on the back of the camera lets you control
your camera and its settings, and preview and play back videos and
photos. You can also use it as a viewfinder so you can see what your
camera sees for easy shot-framing.
Turning the Touch Display On/Off
The touch display automatically turns on/off when you power the
camera on/off.
PRO TIP: To conserve battery power while your camera is on, press
the Touch Display Sleep/Wake button [ ] to dim your screen when
it is not in use.
/ Camera Displays
UM_H4Silver_ENG-FR_REVE.indb 15 2/5/15 3:14 PM

16
/ Camera Displays
Gestures
Use these gestures to navigate the touch display:
Swipe up/down
Swipe up from
bottom edge
Swipe left Swipe right
Press for 3 sec Slide down and hold Swipe down
Swipe Le
Display camera modes.
Swipe up/down
Swipe up from
bottom edge
Swipe left Swipe right
Press for 3 sec Slide down and hold Swipe down
Swipe Up from Bottom Edge
Open the settings menu for the current mode.
Swipe left/right Double tap Tap Press + hold Swipe up/downSwipe from top/bottomSwipe from left edge
Swipe Up/Down
Move through settings lists.
Swipe left/right Double tap Tap Press + hold Swipe up/downSwipe from top/bottomSwipe from left edge
Tap
Select an item, turn a setting on/off.
Swipe up/down
Swipe up from
bottom edge
Swipe left Swipe right
Press for 3 sec Slide down and hold Swipe down
Swipe Down from Top Edge
Close the settings menu.
UM_H4Silver_ENG-FR_REVE.indb 16 2/5/15 3:15 PM

17
Swipe up/down
Swipe up from
bottom edge
Swipe left Swipe right
Press for 3 sec Slide down and hold Swipe down
Swipe Right
Display the last captured video or photo.
Swipe left/right Double tap Tap Press + hold Swipe up/downSwipe from top/bottomSwipe from left edge
Swipe Le/Right
Display gallery images (Playback mode).
Swipe left/right Double tap Tap Press + hold Swipe up/downSwipe from top/bottomSwipe from left edge
Double Tap
Change FOV in preview mode.
Swipe up/down
Swipe up from
bottom edge
Swipe left Swipe right
Press for 3 sec Slide down and hold Swipe down
Press for Two Seconds
Lock the touch display.
/ Camera Displays
UM_H4Silver_ENG-FR_REVE.indb 17 2/5/15 3:15 PM

18
/ Camera Icons
Auto Low Light
Auto Off
Beeps
Burst Photos
Color
Continuous Photos
Date/Time
Default Mode
Delete
Exposure Value
Compensation
Field of View
Frames Per Second
Interval
ISO Limit
LEDs
Looping
Megapixels
Multi-Shot Mode
Night Lapse
Night Photo
On-Screen Display
Orientation
Photo Mode
Playback Mode
Protune
QuikCapture
Rate
Setup Mode
UM_H4Silver_ENG-FR_REVE.indb 18 2/5/15 3:15 PM

19
/ Camera Icons
Sharpness
Shutter
Single Photo
Spot Meter
Time Lapse
Touch Display
Video
Video + Photo
Video Format
Video Mode
Video Resolution
White Balance
Wireless
UM_H4Silver_ENG-FR_REVE.indb 19 2/5/15 3:15 PM

20

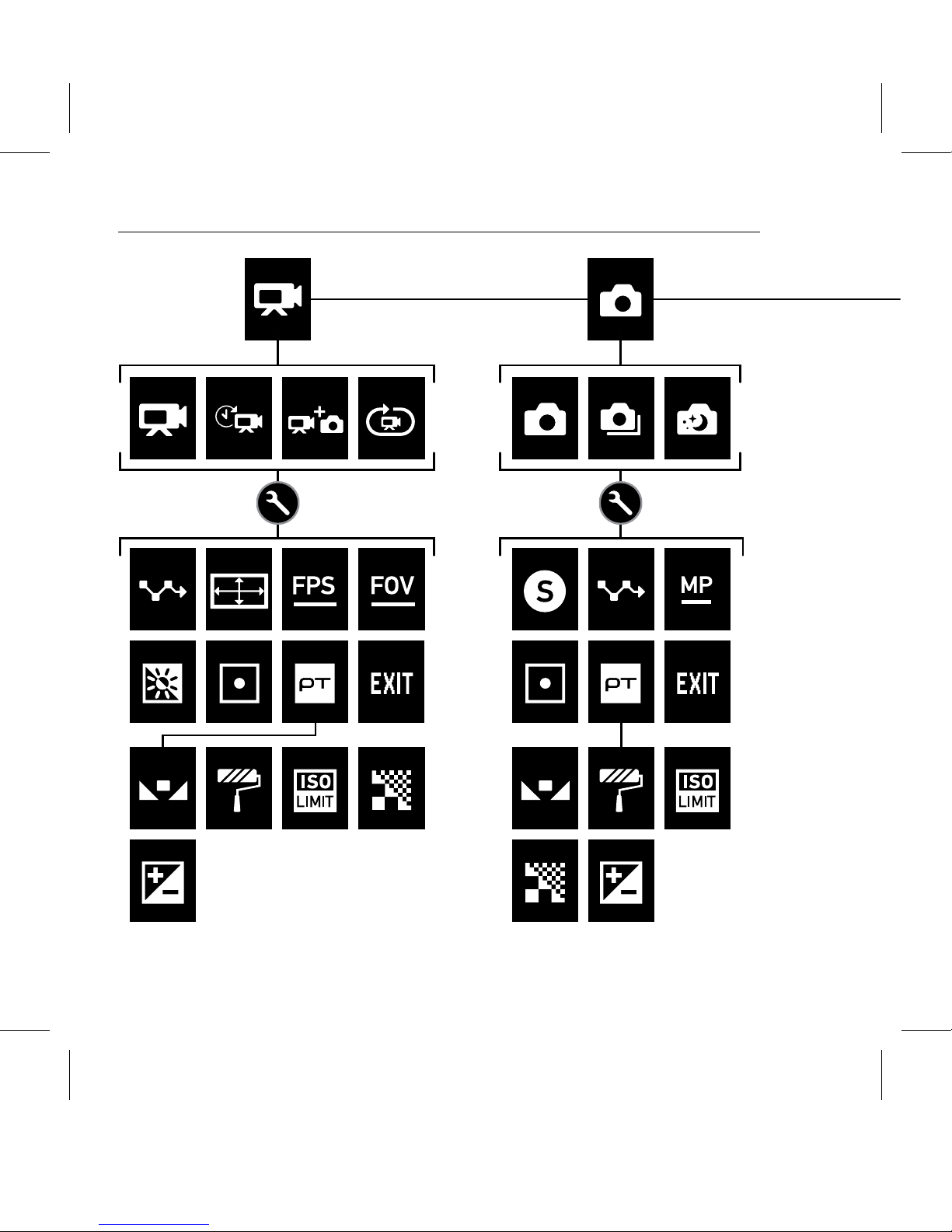

/ Camera Menus
Camera
Reset
