Gorenje ONRK192R Technical manual

EN
DETAILED
INSTRUCTIONS FOR
USE OF UPRIGHT
REFRIGERATOR AND
FREEZER
www.gorenje.comwww.gorenje.com

2
578819
We thank you for the
confidence you have shown by
purchasing our appliance.
We wish you find a lot of pleasure in its
use.
The appliance is intended solely for
household use.
Refrigerator freezer (hereinafter: the
appliance) consists of two parts: the
upper part is the refrigerator and the
lower part is the freezer.
The refrigerator is intended for storing
fresh food at temperatures above 0°C.
The freezer is intended for freezing fresh
food and for long-term storage of frozen
food (up to one year, depending on the
type of food).

3
TABLE OF CONTENTS
578819
INTRODUCTION
APPLIANCE
DESCRIPTION
DEFROSTING
AND CLEANING
THE APPLIANCE
OTHER
STORING AND
FREEZING FOOD
4 IMPORTANT NOTES AND PRECAUTIONS
10 ADVICE FOR SAVING POWER WITH REFRIGERATION
APPLIANCES
12 APPLIANCE DESCRIPTION
13 INSTALLATION AND CONNECTION
15 CHANGING THE DIRECTION OF DOOR OPENING
17 OPERATING THE APPLIANCE
22 APPLIANCE INTERIOR EQUIPMENT
26 RECOMMENDED DISTRIBUTION OF FOOD IN THE APPLIANCE
27 STORING FOOD IN THE REFRIGERATOR
29 STORING FOOD IN THE ZEROZONE DRAWER
31 FREEZING AND STORING FROZEN FOOD
31 Freezing process
32 Important warnings on freezing fresh food
32 Storage of industrially frozen food
33 Frozen food storage time
33 Defrosting frozen food
34 DEFROSTING THE APPLIANCE
35 CLEANING THE APPLIANCE
36 TROUBLESHOOTING
38 INFORMATION ABOUT APPLIANCE NOISE

4
578819
Remove the packaging
intended for protecting the
appliance or particular parts
during transport.

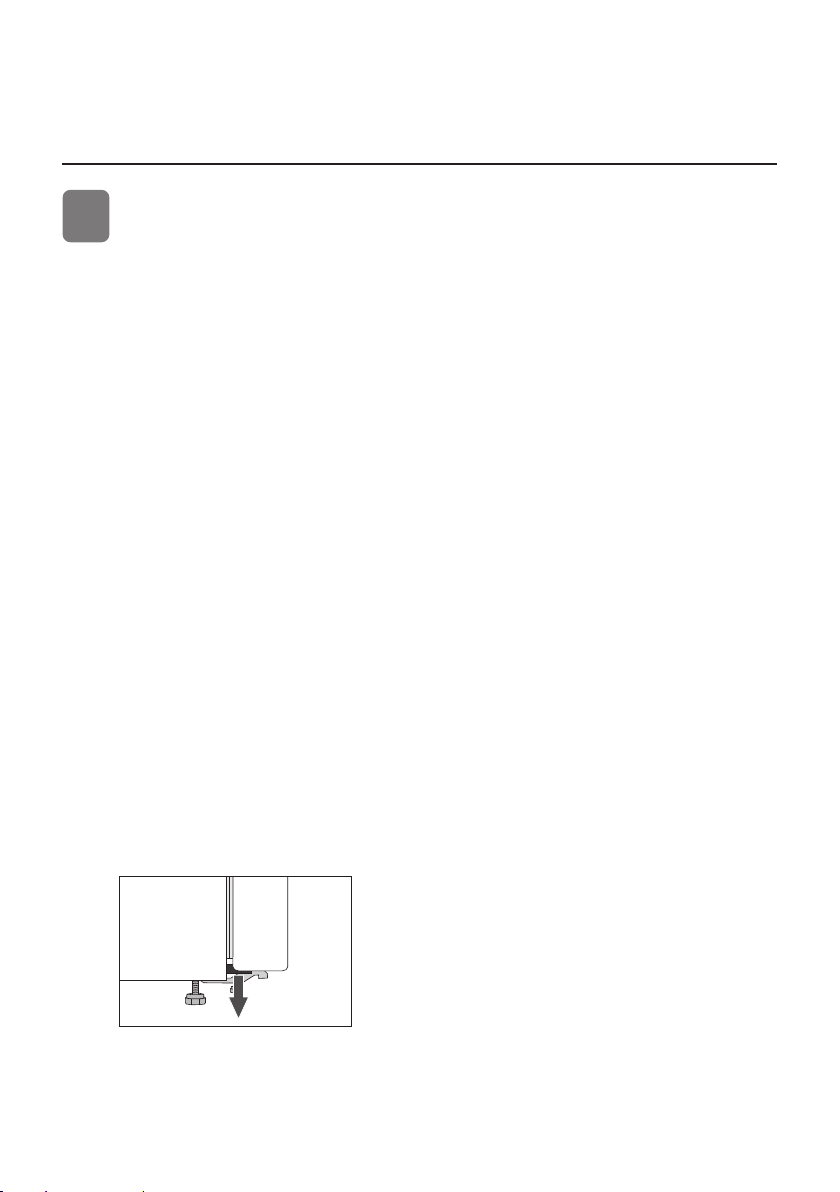

Spacers are fitted on the
corners of the doors.
Remove them and insert the
supplied plugs into their slots
(only in some models).
IMPORTANT NOTES AND
PRECAUTIONS
Before connecting the appliance to the power mains, please
read carefully the instructions for use which describe the
appliance and its correct and safe use. The instructions
apply to several appliance types/models; thus, settings or
equipment may be described herein which is not available
in your appliance. We recommend saving this instruction
manual for future reference and attach it to the appliance if
it is sold in the future.
The instruction manual includes the NO FROST version/
model of the freezer which is fitted with a fan and in which the
defrosting process is automatic (only with some models).
Check for any damage or irregularities on your appliance. If
you find your appliance is damaged, notify the retailer from
which you have purchased the appliance.
Before connecting the appliance to the power mains, let
the appliance rest in a vertical position for a minimum of 2
hours. This will reduce the possibility of operation faults due
to the effect of transport on the cooling system.
BEFORE USING THE APPLIANCE FOR
THE FIRST TIME
i

5
578819
The appliance must be connected to the power mains and
grounded in compliance with the effective standards and
regulations.
WARNING! Do not locate multiple portable socket-outlets
or portable power supplies at the rear of the appliance.
Before cleaning the appliance, unplug it from the power
mains (unplug the power cord from the wall outlet).
WARNING! If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
WARNING! When positioning the appliance, ensure the
supply cord is not trapped or damaged.
If LED lighting does not work, call a service technician. Do
not attempt a repair of the LED lighting yourself, as there is
danger of contact with high voltage!
IMPORTANT SAFETY INSTRUCTIONS
!
WARNING! Do not use electrical appliances inside the
food storage compartments of the appliance, unless
they are of the type recommended by the manufacturer.
WARNING! Do not use mechanical devices or other
means to accelerate the defrosting process, other than
those recommended by the manufacturer.
WARNING! To avoid any hazard resulting from poor
stability of the appliance, make sure it is installed as
instructed.
!
!
!
WARNING! Risk of fire/flammable materials.

6
578819
Danger of frostbite
Never put frozen food in your mouth and avoid touching
frozen food as this may cause frostnip or frostbite.
Safety of children and vulnerable persons
The appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Remove the packaging intended to protect the appliance
or particular parts during transport and keep it outside the
reach of children.
It presents danger of injury or suffocation.
When removing a used appliance, disconnect the
power cord, remove the door, and leave the shelves in
the appliance. This will prevent children from locking
themselves in the appliance.
For European markets only
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.
Children shall not play with the appliance.

7
578819
Cleaning and user maintenance shall not be made by
children without supervision.
Children aged from 3 to 8 years are allowed to load and
unload refrigerating appliances.
Warning regarding the refrigerant
The appliance contains a small amount of an
environmentally friendly yet flammable gas R600a. Make
sure that no parts of the cooling system are damaged. A
gas leak is not hazardous to the environment, but it could
cause eye injury or fire.
In case of a gas leak, ventilate the room thoroughly,
disconnect the appliance from the power mains, and call a
service technician.

8
578819
The appliance may not be used outdoors and it may not be
exposed to rain.
Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
If the appliance will be out of use for an extended period of
time, switch it off using the relevant button, and unplug it
from the power mains. Empty the appliance, defrost it, clean
it, and leave the door ajar.
In case of an error or power supply failure, do not open the
freezer compartment unless the freezer has not operated
for over 16 hours. After this period, use the frozen food or
provide sufficient cooling (e.g. a replacement appliance).
IMPORTANT INFORMATION ON THE USE
OF APPLIANCE
WARNING! Keep ventilation openings, in the
appliance enclosure or in the built-in structure, clear of
obstruction.
WARNING! This appliance is intended to be used in
household and similar applications such as:
– staff kitchen areas in shops, offices and other working
environments;
- farm houses and by clients in hotels, motels and other
residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
i

9
578819
The symbol on the product or its packaging indicates that the product should not
be treated as normal household waste. The product should be taken to an
authorized collection centre for waste electric and electronic equipment
processing. Correct disposal of the product will help prevent any negative effects
on the environment and health of people which could occur in case of incorrect product
removal. For detailed information on removal and processing of the product, please
contact the relevant municipal body in charge of waste management, your waste
disposal service, or the store where you bought the product.
Packaging is made of environmentally friendly materials
that can be recycled, disposed of, or destroyed without any
hazard to the environment.
!Removing an obsolete appliance
To protect the environment, take the obsolete appliance to
an authorized home appliance collection centre.
Before doing so, do the following:
• disconnect the appliance from the power mains;
• do not allow children to play with the appliance.
ENVIRONMENT PROTECTION
WARNING! Do not damage the refrigerant circuit.
This will also prevent pollution.
Technical information on the appliance
Rating plate can be found in the appliance interior. It
indicates data on voltage, gross and net volume, type
and amount of refrigerant, and information on the climate
classes.
If the language on the rating plate is not the language of
your choice or the language of your country, replace it with
the one supplied.
i

10
ADVICE FOR SAVING POWER
WITH REFRIGERATION
APPLIANCES
578819
• Install the appliance as specified in the instruction manual.
• Do not open the door more often than necessary.
• Occasionally make sure air circulation underneath the appliance is unobstructed.
• Condenser unit on the rear wall should be kept clean (see chapter Cleaning the
appliance).
• If the gasket is damaged or does not provide a perfect seal for other reasons, have it
replaced as soon as possible.
• Store the food in tightly sealed containers or appropriate packaging.
• Before placing the food in the appliance, cool it to room temperature.
• Defrost frozen food in the refrigerator compartment.
• Remove some of the drawers from the freezer compartment as described in the
instruction manual, in order to make use of the entire interior.
• Defrost your conventional freezer when an approximately 3-5 milimeter layer of of frost
or ice has built up on the refrigerated surfaces.
• Make sure the layout of shelves in the compartment is uniform and that the food
is placed so that the air can freely circulate in the appliance interior (observe the
recommended placement of food as described in the instructions).
• In appliances with a fan, do not block the fan slots.
• If you do not need the fan or the ionizer, switch them o to reduce power consumption.

11
578819
R600a WARNINGS
This model uses 0.035Kg of R600a flammable refrigerant in its sealed system.
The following must be observed for your safety:
R600A Refrigerant Warning
• This appliance contains a small quantity of R600A refrigerant which is environmentally
friendly, but flammable. It does not damage the ozone layer, nor does it increase the
greenhouse eect.
• During transportation and installation, ensure that the tubing of the refrigerant circuit is
not damaged.
• Leaking refrigerant can ignite and may damage the eyes.
• In the event any damage does occur, avoid exposure to open fires and any device which
creates a spark. Disconnect the appliance from the mains power.
• Thoroughly ventilate the room in which the appliance is located for several minutes.
• Notify Customer Service for necessary action and advice.
• The room for installing the appliance must be at least 1 cubic metre per 8 grams of
refrigerant. The refrigerant quantity contained in this appliance is listed above in grams;
it is also noted on the Rating Plate of the appliance.
It is hazardous for anyone other than an Authorised Service Person to carry out
servicing or repairs to this appliance. In Queensland the authorized person must hold a
Gas Work Authorisation for hydrocarbon refrigerants, before carrying out servicing or
repairs which involve the removal of covers.
The environment and personal safety must be considered when disposing of this
appliance. Please ensure the appliance is taken to a recycle center for safe recycling. DO
NOT dispose of the appliance in land fill as the insulation and refrigerant gas contained
in these appliances are flammable.

12
APPLIANCE DESCRIPTION
578819
• The drawers are protected against pulling out. To remove a drawer from the appliance,
pull it out as far as it will go, then lift at the front and pull out completely.
A
B
1
2
3
4
5
6
78
A Refrigerator
1Control unit
2LED lighting of refrigerator
interior
3Pull-out glass shelf (height-
adjustable)
4Crisper (fruit and vegetables
drawer)
5Height-adjustable door bin
6Bottle shelf
B Freezer
7Freezer drawers
8Glass shelves

13

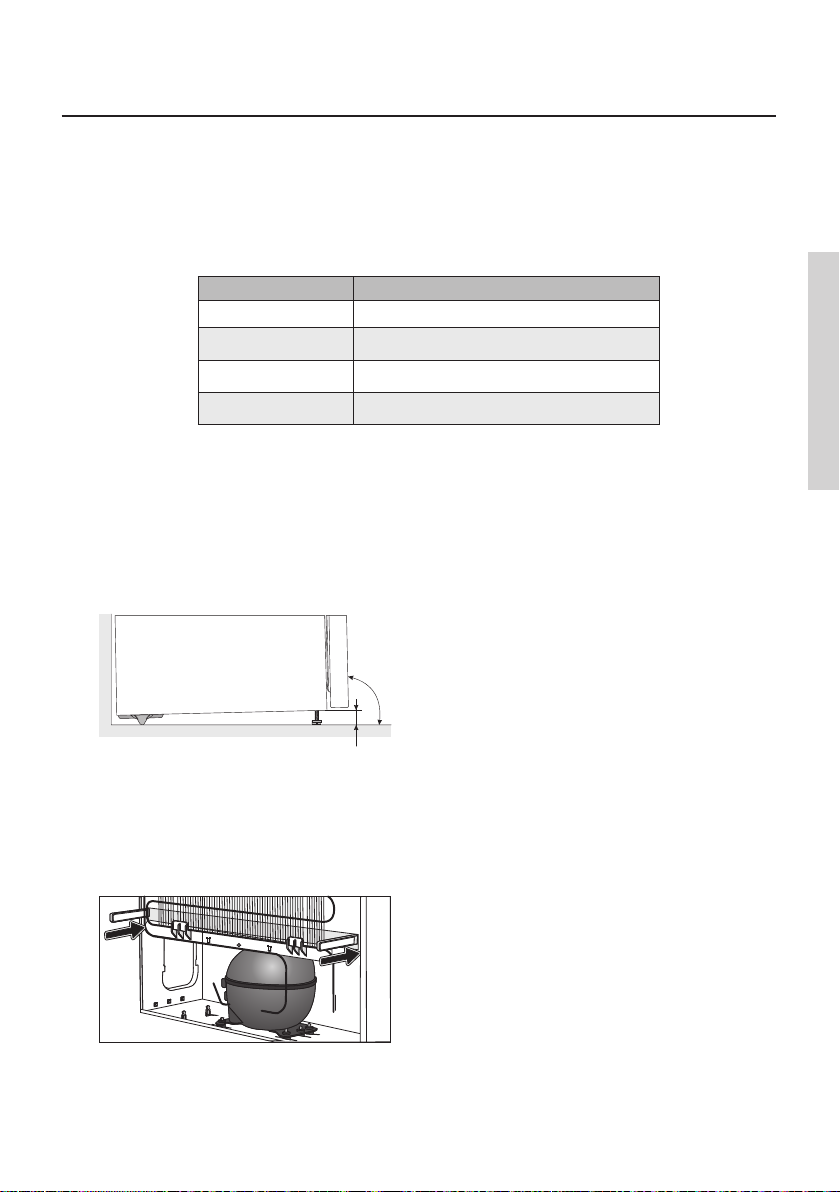

INSTALLATION AND CONNECTION
578819
SELECTING THE ROOM
• Install the appliance in a dry and well ventilated room. The appliance will operate correctly
if the environment temperature is in the interval specified in the table. The appliance class is
indicated on the rating plate / label with the basic information on the appliance.
Class Temperature
SN (subnormal) from +10°C to +32°C
N (normal) from +16°C to +32°C
ST (subtropical) from +16°C to +38°C
T (tropical) from +16°C to +43°C
Warning: Make sure the room where the appliance is installed is large enough. There
should be at least 1 m3of space per 8 grams of refrigerant. Amount of refrigerant is stated
on the rating plate in the appliance interior.
INSTALLING THE APPLIANCE
Appliance installation should be carried
out by at least two persons to avoid any
physical injury or damage to the appliance.
• The appliance must stand level or tilted
slightly to the back, stable on a solid
base. At the front, the appliance is fitted
with two adjustable legs that can be used
to level the appliance. At the rear side,
casters allow for easier installation of the
appliance (only with some models).
• There should be a clearance of at least 5 cm
between the appliance and any cupboard
installed above it, in order to allow adequate
cooling of the condenser unit.
• The appliance is supplied with two
spacers which should be installed on
the lower part of the housing to prevent
from pushing the appliance too close to
the wall. Appliance may also be installed
without the spacers; however, this may
increase power consumption.
max
30 mm
> 90°

14
578819
CONNECTING THE APPLIANCE
• Connect the appliance to the power mains using a connection cable. The wall outlet
should be fitted with a ground contact (safety socket). Nominal voltage and frequency
are indicated on the rating plate/label with basic information on the appliance.
• The appliance must be connected to the power mains and grounded in compliance
with the eective standards and regulations. The appliance will withstand short-term
deviations from the nominal voltage, but not more than +/- 6%.
• Do not expose the appliance to direct sunlight and do not place it near any source of
heat. If this cannot be avoided, install an insulation panel.
• The appliance may stand alone or it may be placed ext to a cupboard or a wall. Consider
the clearance required to fully open the door in order to allow pulling out the drawers
and shelves (see installation diagram).
Note: When placing the appliances side by side, the anti-dew (anti-condensation) set has
to be purchased and installed!
Code for ordering the set:
– appliances with a height of 1850 mm: 576604.
– appliances with a height of 2000 mm: 576606.

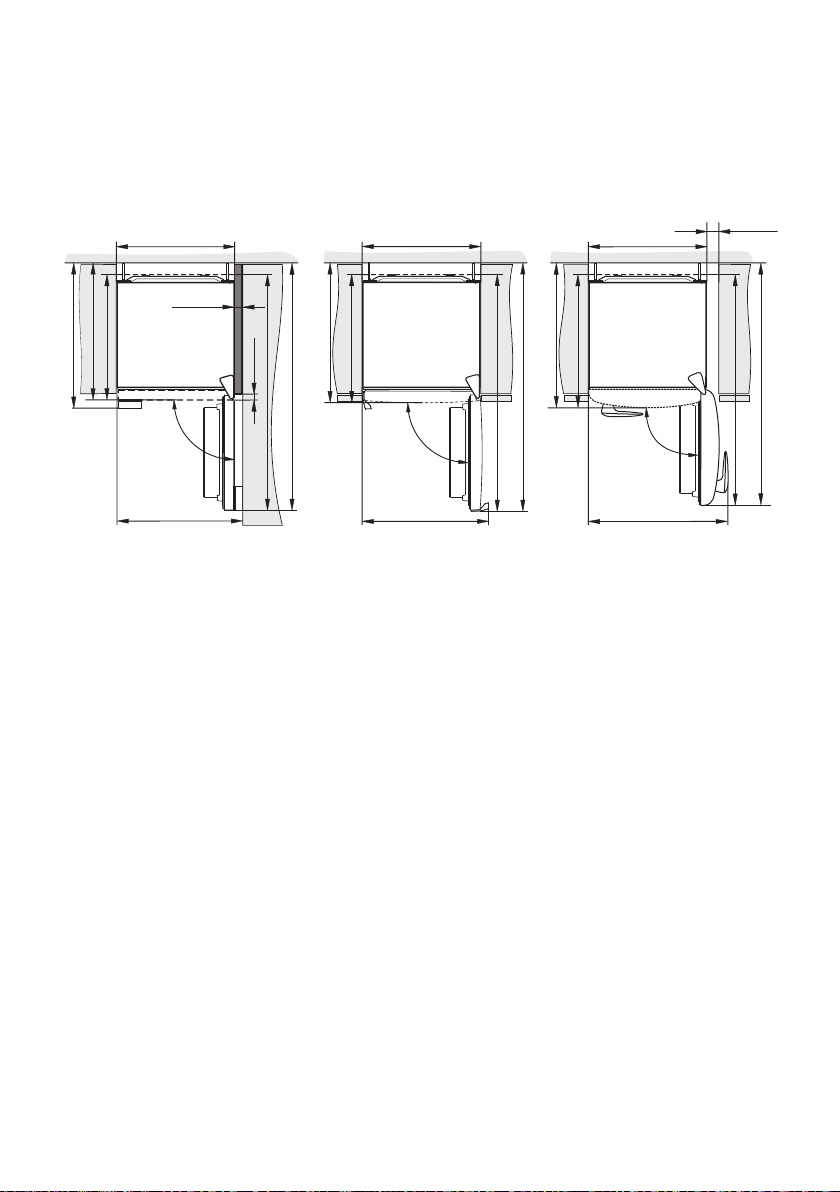

1224 mm
717 mm
669 mm
600 mm
710 mm
max 90°
1176 mm
OLD TIMER
min 50 mm
680 mm
632 mm
600 mm
1249 mm
688 mm
640 mm
600 mm
644 mm
max 90°
1201 mm
1194 mm
1242 mm
max 720 mm
640 mm
max 90°
min 30 mm
ORA ITO
min 42 mm

15
CHANGING THE DIRECTION OF
DOOR OPENING
578819
Tools required: socket wrench No. 8, Phillips screwdriver, torx 25, flat screwdriver
The procedure to change the direction of door opening should be carried out by at least
two persons.

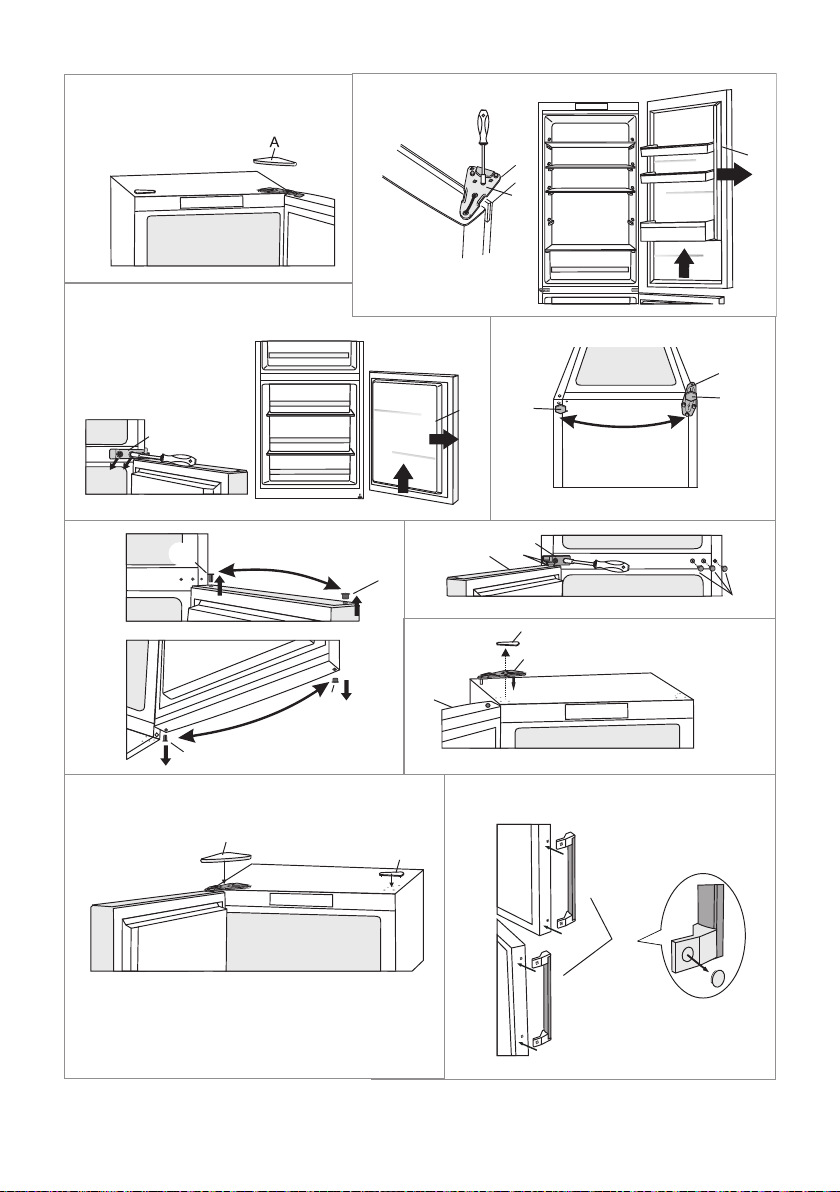

1. Remove the upper hinge cover (A).
2. Unscrew the upper hinge (B) and remove the upper door (C).
3. Then remove the covering plugs (D), unscrew the mid hinge (E) and remove the lower
door (F) from the lower hinge (G).
4. Tilt the appliance backwards (make sure you do not press against the condenser unit
on the rear wall of the appliance as this may damage the cooling system), unscrew the
lower hinge (G) and the foot (H) and move them to the opposite side. Make sure the
washer is installed like it was before disassembly.
5. Move the door hinges (I) to the opposite side.
6. Place the Mid hinge (E) on the lower door (F) and place the lower door on the lower
hinge (G). Fasten the mid hinge (the door should be open while you do this). Do not
forget to place the washers (J) and covering plugs (M) as they were placed before the
disassembly.
7. Place the upper door (C) over the middle hinge (E), remove the covering cap (K) and
fasten the upper hinge (B).
8. Install the upper hinge cover (A) and the covering cap (K).
9. Changing the side of the handle (L): remove the covering plugs/caps, undo the screws
and fasten the handle on the opposite side. Place the covering plugs/caps on the
opposite side.
At ORA-ITO and OLD TIMER appliances alteration of door
opening direction is not possible.

16
578819
12
E
F
3
G
H
H
4
5
E
FJ
M
6
8
7
9
C
K
B
A
K
B
C
D
I
I
D
L

17
OPERATING THE APPLIANCE
578819
A Appliance on key and refrigerator compartment o key
B Acoustic alarm o key
C Super cool on/o key
D Refrigerator compartment temperature keys
E Refrigerator temperature display
F Freezer compartment on key and appliance o key
G ECO function on/o key
H Super freeze on/o key
I Freezer compartment temperature keys
J Freezer compartment temperature display
A B C E
DJ IH G F

18
578819
SWITCHING THE APPLIANCE ON/OFF
Switching the appliance on: Switch on the
appliance by briefly pressing the key A.
With this model, it is possible to only switch
on the freezer compartment while the
refrigerator compartment is switched off.
This setting can be made in two ways:
- briefly press the Fkey to switch on the
freezer compartment only; or
- first briefly press the Akey to switch on
the entire appliance. Then, press and hold
(for three seconds) the Akey to switch
off the refrigerator compartment.
When the Akey is pressed again, the
refrigerator compartment will be switched
back on.
Switching off the appliance: To switch off
the appliance, press and hold (for three
seconds) the key F(caution: appliance
will remain powered, i.e. there will still be
electric current in the appliance).
ADJUSTING THE TEMPERATURE
• To set the temperature in the refrigerator compartment use the keys D:
lower temperature ; higher temperature.
• Temperature in the refrigerator compartment can be set from +1°C to +9°C.
• After one of the Dkeys is pressed, the most recent temperature setting will flash on
the display E. Use the Dkeys to set the desired temperature. Three seconds after the
last key was pressed, the most recent temperature setting is stored for the refrigerator
compartment.
• Recommended setting is 4°C.

19
578819
• To set the temperature in the freezer
compartment use the keys I:
lower temperature ;
higher temperature.
• Temperature in the freezer compartment
can be set from -24°C to -16°C.
• After one of the Ikeys is pressed, the most
recent temperature setting will flash on the
display J. Use the Ikeys to set the desired
temperature. Three seconds after the last key
was pressed, the most recent temperature
setting is stored for the freezer compartment.
• Recommended setting is -18°C.
FREEZER BOOST FUNCTION (SUPER FREEZE)
• Use this setting after switching on
the appliance for the first time, before
cleaning, or 24 hours before inserting a
large amount of food.
Switching on the freezer boost (super
freeze) function: Press the Hkey. FF will
appear on the display J.
If the freezer boost is not deactivated
manually, it will be automatically switched
off after approximately 2 days. Then the
temperature of the freezer compartment
returns to the most recently set value.
EXTREME FREEZING (UPPER DRAWER OF THE FREEZER
COMPARTMENT)
• In order to quickly freeze fresh food, use the
XtremeFreeze function that is only active in
the upper drawer of the freezer compartment.
It involves intensive blowing of cool air in
that part of the appliance. Faster freezing will
retain more vitamins, minerals, and nutrients
in the food for a longer period of time.
Switching on the freezer boost
(XtremeFreeze) function: Press the Hkey
an hold it for at least 3 seconds. EF will
appear on the display J.

20
578819
• With this setting, the compressor will operate continuously and the temperature in the
freezer compartment will drop considerably.
• If the setting is not deactivated manually (by pressing the »H« key), it will be deactivated
automatically after approximately one day. Freezer compartment temperature will return
to the most recent setting.
• Use this setting for freezing smaller amounts of food (up to 2 kilograms) in the upper
drawer. When freezing a large amount of food, the setting should be activated 12 hours
before the food is placed in the freezer.
• Use this setting after switching on the appliance for the first time, before cleaning, or
before inserting a large amount of food.
Switching on the refrigerator boost (super cool) function: Press the Ckey.
If the function is not deactivated manually, it will be deactivated automatically after
approximately six hours. Refrigerator compartment temperature will return to the most
recent setting.
REFRIGERATOR BOOST (SUPER COOLING)
(REFRIGERATOR COMPARTMENT)
HIGH TEMPERATURE ALARM
If the temperature inside the appliance is
too high, acoustic alarm will be activated
(intermittent tone) and the Bkey will flash.
• Acknowledge and turn o the acoustic
alarm by pressing the Bkey.
• The acoustic alarm will be activated
every 24 hours if the temperature in the
appliance is not low enough and there is
danger of food spoilage. The alarm will be
switched o automatically as soon as the
temperature in the freezer drops to a level
that no longer presents spoilage hazard.
• When the appliance is switched on for the first time, there is a 24-hour delay in
temperature alarm operation since the appliance will not have reached the adequate
temperature. Thus, unnecessary activation of alarm is prevented.
Open refrigerator door alarm: if the refrigerator or freezer compartment door is open for
more than 2 minutes, acoustic alarm will be activated and the Bkey will flash. When the door is
closed, the alarm will be deactivated. It can also be switched off by pressing the Bkey.
