Gorenje RBIU6091AW-SA Technical manual

EN
www.gorenje.comwww.gorenje.com
DETAILED
INSTRUCTIONS
FOR USE OF
REFRIGERATOR-
FREEZER
RBIU6091AW-SA
Made in Serbia

2
671546
We thank you for the confidence you have shown by purchasing our appliance.
We wish you find a lot of pleasure in its use.
The appliance is intended solely for household use.
The lower part is the refrigerator compartment intended for storing fresh food at
temperatures above 0°C.
The upper part is the freezer compartment intended for freezing fresh food and long-term
storage of frozen food (up to one year, depending on the type of food). This compartment
is labeled with four stars / asterisks.
Link to the EU EPREL database
The QR code on the energy label supplied with the appliance provides a web link to
the registration of this appliance in the EU EPREL database. Keep the energy label for
reference together with the user manual and all other documents provided with this
appliance.
It is possible to find information related to the performance of the product in the EU
EPREL database using the link https://eprel.ec.europa.eu and the model name and
product number that you can find on the rating plate of the appliance.
For more detailed information about the energy label, visit www.theenergylabel.eu.

3
TABLE OF CONTENTS
671546
INTRODUCTION
APPLIANCE
DESCRIPTION
DEFROSTING
AND CLEANING
THE APPLIANCE
OTHER
STORING AND
FREEZING FOOD
4 IMPORTANT NOTES AND PRECAUTIONS
10 ADVICE FOR SAVING POWER WITH REFRIGERATION
APPLIANCES
11 APPLIANCE DESCRIPTION
12 INSTALLATION AND CONNECTION
13 OPERATING THE APPLIANCE
15 APPLIANCE INTERIOR EQUIPMENT
17 STORING FOOD IN THE REFRIGERATOR
19 FREEZING AND STORING FROZEN FOOD
19 Freezing process
19 Important warnings on freezing fresh food
20 Storage of industrially frozen food
20 Frozen food storage time
20 Defrosting frozen food
21 DEFROSTING THE APPLIANCE
22 CLEANING THE APPLIANCE
23 TROUBLESHOOTING
26 INFORMATION ABOUT APPLIANCE NOISE

4
671546
IMPORTANT NOTES AND
PRECAUTIONS
Before connecting the appliance to the power mains,
please read carefully the instructions for use which
describe the appliance and its correct and safe use.
The instructions apply to several appliance types/
models; thus, settings or equipment may be described
herein which is not available in your appliance. We
recommend saving this instruction manual for future
reference and attach it to the appliance if it is sold in
the future.
Check for any damage or irregularities on your
appliance. If you find your appliance is damaged,
notify the retailer from which you have purchased the
appliance.
Before connecting the appliance to the power mains,
let the appliance rest in a vertical position for a
minimum of 2 hours. This will reduce the possibility of
operation faults due to the effect of transport on the
cooling system.
BEFORE USING THE APPLIANCE FOR
THE FIRST TIME
i

5
671546
The appliance must be connected to the power
mains and grounded in compliance with the effective
standards and regulations.
WARNING! Do not locate multiple portable socket-
outlets or portable power supplies at the rear of the
appliance.
Before cleaning the appliance, unplug it from the power
mains (unplug the power cord from the wall outlet).
WARNING! If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
WARNING! When positioning the appliance, ensure the
supply cord is not trapped or damaged.
If LED lighting does not work, call a service technician.
Do not attempt a repair of the LED lighting yourself, as
there is danger of contact with high voltage!
IMPORTANT SAFETY INSTRUCTIONS
!
WARNING! Do not use any electric devices inside
the appliance, except for those allowed by the
manufacturer
of this refrigeration appliance.
WARNING! Do not use mechanical devices or other
means to accelerate the defrosting process, other
than those recommended by the manufacturer.
WARNING! To avoid any hazard resulting from poor
stability of the appliance, make sure it is installed as
instructed.
!
!
!
WARNING! Risk of fire/flammable materials.

6
671546
Danger of frostbite
Never put frozen food in your mouth and avoid
touching frozen food as this may cause frostnip or
frostbite.
Safety of children and vulnerable persons
The appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do
not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Cleaning and user maintenance shall not be made by
children without supervision.
Remove the packaging intended to protect the
appliance or particular parts during transport and keep
it outside the reach of children.
It presents danger of injury or suffocation.
For European markets only
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.

7
671546
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Children aged from 3 to 8 years are allowed to load
and unload refrigerating appliances.
Warning regarding the refrigerant
The appliance contains a small amount of an
environmentally friendly yet flammable gas R600a.
Make sure that no parts of the cooling system
are damaged. A gas leak is not hazardous to the
environment, but it could cause eye injury or fire.
In case of a gas leak, ventilate the room thoroughly,
disconnect the appliance from the power mains, and
call a service technician.

8
671546
The appliance may not be used outdoors and it may
not be exposed to rain.
Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
If the appliance will be out of use for an extended
period of time, switch it off using the relevant button,
and unplug it from the power mains. Empty the
appliance, defrost it, clean it, and leave the door ajar.
In case of an error or power supply failure, do not
open the freezer compartment unless the freezer has
not operated for over 16 hours. After this period, use
the frozen food or provide sufficient cooling (e.g. a
replacement appliance).
IMPORTANT INFORMATION ON THE USE
OF APPLIANCE
WARNING! Keep ventilation openings, in the
appliance enclosure or in the built-in structure, clear
of obstruction.
WARNING! This appliance is intended to be used in
household and similar applications such as:
- staff kitchen areas in shops, offices and other working
environments;
- farm houses and by clients in hotels, motels and other
residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
i

9
671546
The symbol on the product or its packaging indicates that the product should not
be treated as normal household waste. The product should be taken to an
authorized collection centre for waste electric and electronic equipment
processing. Correct disposal of the product will help prevent any negative effects
on the environment and health of people which could occur in case of incorrect product
removal. For detailed information on removal and processing of the product, please
contact the relevant municipal body in charge of waste management, your waste
disposal service, or the store where you bought the product.
Packaging is made of environmentally friendly materials
that can be recycled, disposed of, or destroyed without
any hazard to the environment.
!Removing an obsolete appliance
To protect the environment, take the obsolete
appliance to an authorized home appliance collection
centre.
Before doing so, do the following:
• disconnect the appliance from the power mains;
• do not allow children to play with the appliance.
ENVIRONMENT PROTECTION
WARNING! Do not damage the refrigerant circuit.
This will also prevent pollution.
Technical information on the appliance
Rating plate can be found in the appliance interior. It
indicates data on voltage, gross and net volume, type
and amount of refrigerant, and information on the
climate classes.
If the language on the rating plate is not the language
of your choice or the language of your country, replace
it with the one supplied.
i

10
ADVICE FOR SAVING POWER
WITH REFRIGERATION
APPLIANCES
671546
• Install the appliance as specified in the instruction manual.
• Do not open the door more often than necessary.
• Occasionally make sure air circulation underneath the appliance is unobstructed.
• Condenser unit on the rear wall should be kept clean (see chapter Cleaning the
appliance).
• If the gasket is damaged or does not provide a perfect seal for other reasons, have it
replaced as soon as possible.
• Store the food in tightly sealed containers or appropriate packaging.
• Before placing the food in the appliance, cool it to room temperature.
• Defrost frozen food in the refrigerator compartment.
• Remove some of the drawers from the freezer compartment as described in the
instruction manual, in order to make use of the entire interior.
• Defrost your conventional freezer when an approximately 3-5 milimeter layer of of frost
or ice has built up on the refrigerated surfaces.
• Make sure the layout of shelves in the compartment is uniform and that the food
is placed so that the air can freely circulate in the appliance interior (observe the
recommended placement of food as described in the instructions).
• In appliances with a fan, do not block the fan slots.
• If you do not need the fan or the ionizer, switch them o to reduce power consumption.

11
APPLIANCE DESCRIPTION
671546
• Appliance interior equipment may change according to the appliance model.
B
A
1
2
3
4
7
8
9
6
5
A Refrigerator
B Freezer
1 Control unit
2 Refrigerator interior lighting
3 Glass shelf (height
adjustable)
4 Drain port
5 Serving tray
6 Fruit and vegetable bin
7 Height-adjustable door bin
8 Bottle bin
9 Condensate tank

12
INSTALLATION AND CONNECTION
671546
SELECTING THE ROOM
• Install the appliance in a dry and well ventilated room. The appliance will operate correctly
if the environment temperature is in the interval specified in the table. The appliance class is
indicated on the rating plate / label with the basic information on the appliance.
Description Class Ambient temperature range
°C
Relative humidity
Extended temperate SN +10 to +32
75%
Temperate N +16 to +32
Subtropical ST +16 to +38
Tropical T +16 to +43
Warning: Make sure the room where the appliance is installed is large enough. There
should be at least 1 m3of space per 8 grams of refrigerant. Amount of refrigerant is stated
on the rating plate in the appliance interior.
APPLIANCE PLACEMENT
• The appliance has four height-adjustable feet that allow setting the appliance height
between 82 cm and 90 cm.
Set the appliance height before installing it in the opening in the kitchen cabinetry.
Appliance height should be set so that the upper edge of the appliance is just under the
worktop (see Installation Instructions)
• Do not expose the appliance to direct sunlight and do not place it near sources of heat.
If this cannot be avoided, install an insulation panel.
CONNECTING THE APPLIANCE
• Connect the appliance to the power mains using a connection cable. The wall outlet
should be fitted with a ground contact (safety socket). Nominal voltage and frequency
are indicated on the rating plate/label with basic information on the appliance.
• The appliance must be connected to the power mains and grounded in compliance
with the eective standards and regulations. The appliance will withstand short-term
deviations from the nominal voltage, but not more than +/- 6%.

13
OPERATING THE APPLIANCE
671546

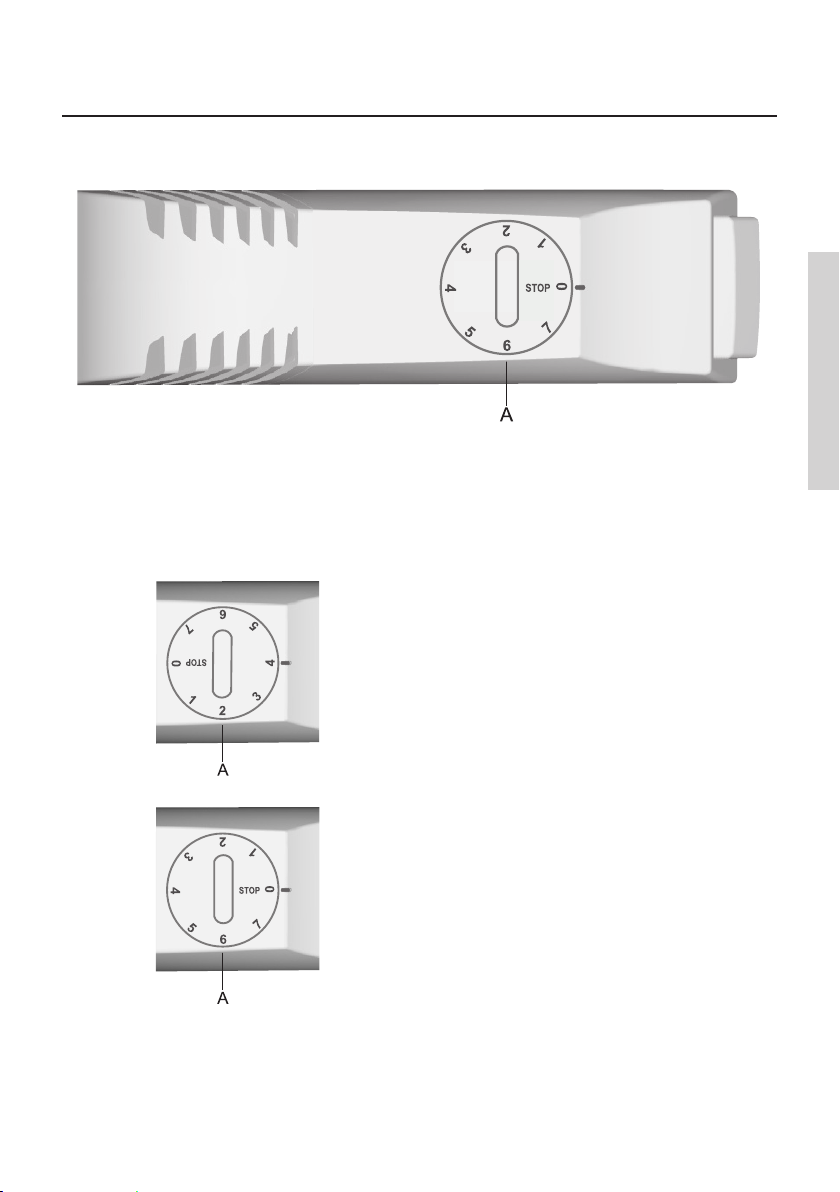

TURNING THE APPLIANCE ON/OFF
A Temperature setting and on/off knob
Turn on: rotate the thermostat knob
clockwise towards position 7.
Turn off: rotate the knob back to position
STOP (0).

14
671546

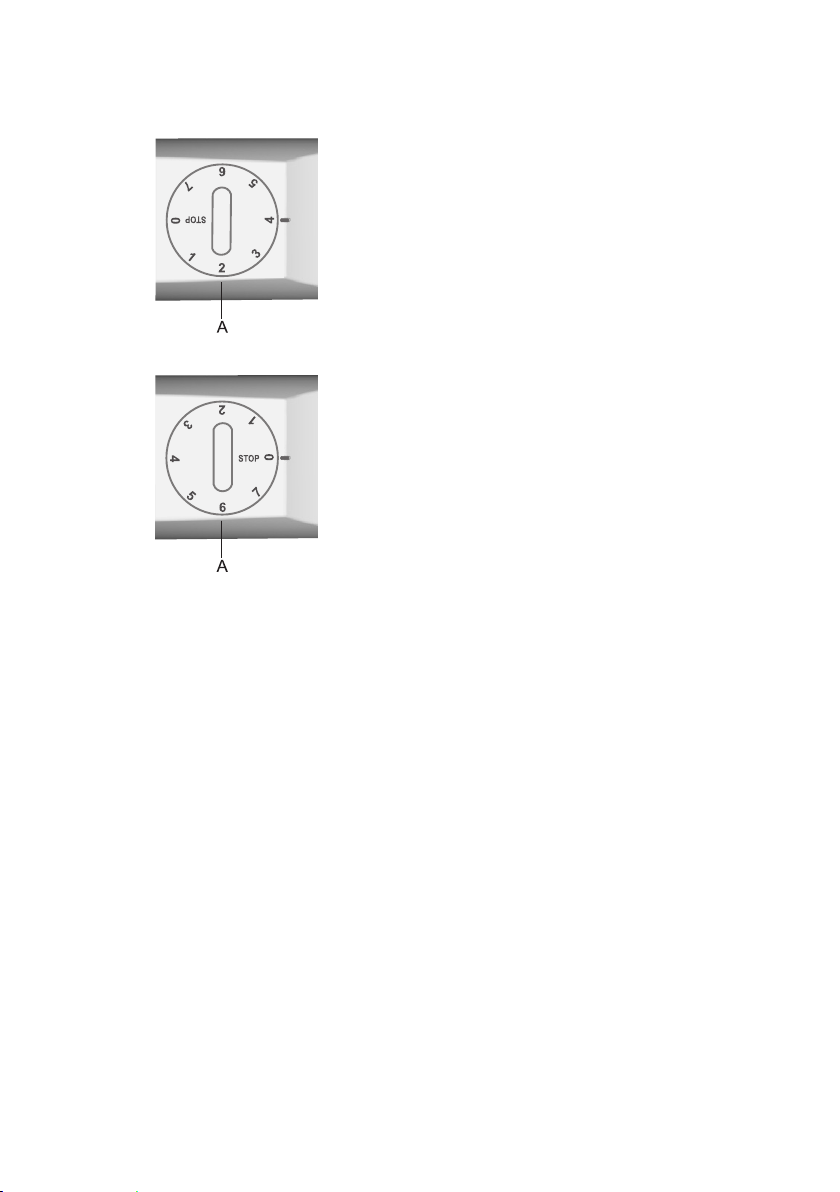

SETTING THE TEMPERATURE
Higher settings (towards 7) selected with
the knob correspond to lower (cooler)
temperatures. The temperature in the
refrigerator interior may drop below 0°C.
Only use higher settings when a lower
temperature is desired and recommended
or when environment temperature is
lower than 16°C. When the environment
temperature is normal, a medium setting is
recommended.
• A change in the environment temperature
aects the temperature in the appliance.
Hence, the thermostat setting should be
adjusted accordingly.
• When the thermostat knob is set to
position STOP (0), the appliance will not
operate (cooling system is o); however,
the appliance is still powered (a light
will illuminate the interior when the
refrigerator door is opened).

15
APPLIANCE INTERIOR EQUIPMENT
671546
SHELF
(* Equipment depends on the model)
The shelf may be adjusted to your liking using the guides in the refrigerator interior. The
shelf is protected against being completely pulled out.
To change the shelf position:
- Lift the shelf with your hand and pull it towards you as far as the clearance in the
guides.
- In the clearance in the guides, set the shelf height to your liking.
- When the shelf is at the desired height, push it back to the end of the guides.
To remove the shelf from the appliance:
- Lift the shelf with your hand and pull it towards you as far as the clearance in the guides.
- When it reaches the clearance in the guides, lift the left-hand side of the shelf upwards
and pull the shelf from the appliance at an angle.
- To replace the shelf, observe the reverse order.
FRUIT AND VEGETABLE BIN
• The bin is located on the bottom of
the refrigerator compartment, below
the serving tray. This ensures adequate
humidity that has a beneficial eect on
the stored fruit and vegetables (slower
drying out).

16
671546
The height of door bin can be adjusted to
your preferences without having to remove
it from the appliance.
Squeeze the tabs on both sides and move
the bin/shelf up or down.
To remove a bin from the appliance, lift it as
far as it will go and pull it out.
ADJUSTABLE DOOR BIN
STORAGE BIN (MULTIBOX)*
• MultiBox bin offers a convenient way for
storing food with a strong or pungent
smell, e.g. ripened or blue-vein cheese,
sausages, onions, butter etc.
• The silicone lid provides an air-tight seal
that prevents the food from drying out
and the odour to spread throughout the
refrigerator compartment.
• The silicon lid can also be used as an egg
or ice tray.
• If the flexible lid is used as an egg tray, place it directly on the bottom of the door bin
and use the open lower part of the Multibox bin to store food in smaller packages – pâté,
jams, smaller tubes etc.
INTERIOR SIDE OF THE REFRIGERATOR DOOR
The bins mounted on the interior side of the refrigerator door are intended for storing
cheese, butter, eggs, yoghurt and other smaller packages, tubes, cans, etc. There is a
bottle shelf at the lower end of the door.
SERVING TRAY
• The serving tray is located above the fruit
and vegetables bin. It can be used as a
refrigerator compartment shelf and as a
serving tray.

17
STORING FOOD IN THE
REFRIGERATOR
671546
IMPORTANT WARNINGS REGARDING FOOD STORAGE
Correct use of the appliance, appropriate packaging, maintaining
the right temperature, and observing the food hygiene standards
has a decisive impact on the quality of food storage.
Observe the expiry dates for the food, specified on the
packaging.
Food stored in the refrigerator should be kept in closed
containers or appropriate packaging to prevent them from
emitting or receiving odours.
Do not store inflammable, volatile, and explosive substances in
the refrigerator.
Bottles with high alcohol content should be tightly sealed and
stored in an upright position.
Some organic solutions, essential oils in lemon and orange peel,
butter acid, etc. may damage the plastic surfaces in case of a
prolonged contact, causing damage and premature ageing of
these materials.
Unpleasant odour warns of lacking cleanliness of the appliance or
perished contents (see Cleaning the Appliance).
If you are leaving home for a longer period of time, remove
perishables from the refrigerator.
AVOID CONTAMINATION OF FOOD
To avoid contamination of food, please respect the following instructions:
• Opening the door for long periods can cause a significant increase of the temperature in
the compartments of the appliance.
• Regularly clean surfaces that can come in contact with food and accessible drainage
systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in
contact with or drip onto other food.
• If the refrigerating appliance is left empty for long periods, switch o, defrost, clean, dry,
and leave the door open to prevent mould developing within the appliance.

18
671546
FOOD STORAGE TIMES
Recommended storage time in the refrigerator
Type of food Time
eggs, marinades, smoked meat up to 10 days
cheese up to 10 days
root vegetables up to 8 days
butter up to 7 days
deserts, fruit, ready-to-eat food, chunks of raw
meat up to 2 days
fish, raw minced meat, seafood up to 1 day

19
FREEZING AND STORING
FROZEN FOOD
671546
Maximum amount of fresh food that may be inserted at once is
specified on the appliance rating plate. If the amount of food to
be frozen exceeds the indicated amount, the quality of freezing
will be inferior; in addition, the quality of the food already frozen
will deteriorate.
• 24 hours before freezing, rotate the thermostat knob to position 5-7. After 24 hours
of super freeze operation, insert the fresh food onto the freezer compartment shelf.
Approximately 24 hours after inserting the fresh food into the appliance, rotate
the thermostat knob to normal operating temperature (see section Selecting the
temperature).
Make sure the fresh food is not in contact with the food that is already frozen.
• To freeze smaller amounts of food (up to 1 kg), adjusting the thermostat knob setting is
not necessary (observe the instructions in the section Choosing the Temperature).
FREEZING PROCESS
Only freeze the food that is suitable for freezing in the freezer.
Make sure the food you freeze is of high quality and fresh.
Choose appropriate packaging and use the packaging correctly.
Packaging should not be permeable to humidity; it should be
airtight to prevent the food from drying out and loss of vitamins.
Label the food; indicate the type of food, amount, and date of
freezing.
It is important that the food is frozen as quickly as possible.
Therefore, keep the packages small. Refrigerate the food before
freezing.
IMPORTANT WARNINGS ON FREEZING
FRESH FOOD

20
671546
STORAGE OF INDUSTRIALLY FROZEN
FOOD
• When storing and using frozen food, observe the manufacturer's instructions.
Temperature and expiry date are indicated on the packaging.
• Only choose food with undamaged packaging, stored in freezers at temperatures of
-18°C or lower.
• Do not purchase food covered in frost as this indicates they have been partly defrosted
several times and that they are of inferior quality.
• Protect the food from thawing during transport. In case of an increase in temperature,
storage time will be shorter and quality will deteriorate.
FROZEN FOOD STORAGE TIME
Recommended storage time in the freezer
Type of food Time
fruit, beef from 10 to 12 months
vegetables, veal, poultry from 8 to 10 months
Venison from 6 to 8 months
Pork from 4 to 6 months
minced meat 4 months
bread, pastry, ready-to-eat meals, lean 3 months
entrails 2 months
smoked sausage, fatty fish 1 month
DEFROSTING FROZEN FOOD
Freezing the food does not kill the microorganisms. After the food is defrosted or thawed,
bacteria is re-activated and the food spoils quickly. Use the partially or completely
defrosted food as soon as possible.
Partial thawing decreases the nutritive value of the food, particularly fruit, vegetables, and
ready-to-eat food.
