Gozney Dome S1 User manual

AU/NZ DOC-0482-05
S1
Technical Manual

Live-Fire cooking made easy.

4
Introduction
DANGER
If you smell gas:
Shut gas off to the appliance.
Extinguish any open flame.
If odour continues, keep away from the
appliance and immediately call your fire
department.
WARNING
Do not store or use gasoline or other
flammable liquids or vapors in the vicinity
of this or any other appliance.
An LPG cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.

5
This instruction manual contains important information
necessary for the proper assembly and safe use of the
appliance.
Read and follow all warnings and instructions before
assembling and using the appliance. Follow all warnings and
instructions when using the appliance. Keep this manual
for future reference.
Never operate this appliance in enclosed
areas. Failure to follow these instructions
could result in asphyxiation, fire or
explosion which could cause property
damage, personal injury or death.
Never operate this appliance unattended.
Never operate this appliance within 1.5m
of any structure, combustible material or
other gas cylinder.
Never operate this appliance within 7.5m
of any flammable liquid.
Do not fill the cooking vessel beyond the
opening of the oven mouth.
Heated liquids remain at scalding
temperatures long after cooking
process.
Never touch cooking appliance until
liquids have cooled to 45C or less.
If a fire should occur, keep away from the
appliance and immediately call your fire
department. Do not attempt to extinguish
an oil or a grease fire with water.

6
GENERAL ADVICE 
PARTIAL ENCLOSURES 
PRODUCT OVERVIEW 
DATA PLATE 
 OPERATION & INSTALLATION 
SAFETY CONSIDERATIONS 
FIRE 
CARBON MONOXIDE 
 SETUP & ACCESSORIES 
ADJUSTING THE STONES 
MOVING THE OVEN 
OVEN PLACEMENT 
FLUE ASSEMBLY 
LPG BOTTLE SETUP 
DIGITAL TEMPERATURE DISPLAY 
SET UP 
DIGITAL TEMPERATURE DISPLAY 
TROUBLESHOOTING 
E ERROR CODE 
E ERROR CODE 
OPTIONAL ACCESSORIES 
ROPE SEALED DOOR 
FLUE EXTENSION 
DOME S MANTLE 
NEAPOLITAN ARCH 
 FIRING UP GAS 
OVERVIEW OF FIRING GAS 
CONNECTING TO GAS 
GAS SAFETY 
INSTALLING THE
IGNITER BATTERY 
CONNECTING THE GAS HOSE 
ANTICLOCKWISE REGULATOR 
TESTING FOR LEAKS 
IGNITION 
FIRST FIRING 
Contents

7
TROUBLESHOOTING GAS BURNER 
DISCONNECTING GAS 
ANTICLOCKWISE REGULATOR 
 GENERAL MAINTENANCE 
MAINTENANCE 
CLEANING THE VENTURI 
CLEANING THE OVEN 
INTERNAL 
EXTERNAL 
REPLACING THE PROBE 
 PRODUCT WARRANTY 
WARRANTY 

8
Dome S1 gets extremely hot and should
not be used by children. Do not allow
children near the device during or after
operation. Dome S1 can stay hot for a
few hours after use.
Do not use under any apartment or
balcony or deck.
This appliance is for cooking purposes
only. It must not be used for other
purposes, for example heating a room.
Dome S1 has not been designed or
intended to be used on a marinecraft or
within a recreational vehicle or any other
form of confined area.
Assembly and operation of the oven
should be carried out by a competent
person.
The use of alcohol, prescription or
non-prescription drugs may impair the
consumers ability to assemble or operate
the device safely.
Do not use any plastic or glass utensils
within Dome S1.
Use heat-resistant gloves when operating
the oven.
Do not insert items into Dome S1 that
are bigger than the dimensions of the
oven mouth.
Do not over fill Dome S1 or cover the
burner.
Do not use an unlined masonry chimney
as the flue for this appliance.
Do not operate Dome S1 in strong winds.
Winds can extinguish the flame and also
cause irregular air pressure resulting in
the flame and heat coming out the back
of Dome S1. Use a wind break in open
areas but keeping over 45cm away from
the device.
Do not pour water on to the cooking
stone as this will likely crack it and could
be dangerous because of oil and grease.
Do not modify this appliance.
Do not spray aerosols in the vicinity of
this appliance while it is in operation.
Do not place articles on or against this
appliance.
Do not use the appliance indoors. It is
only suitable for use outdoors.
For replacement parts go to Gozney.
com.
GENERAL ADVICE

9
This appliance shall only be used in an
above ground open-air situation with
natural ventilation, without stagnant
areas where gas leakage and products
of combustions are rapidly dispersed
by wind and natural convection. Any
enclosure in which the appliance is used
shall comply with one of the following:
Warning: Do not use the Dome S1 in
enclosed or on small balconies.
Within a partial enclosure that includes
an overhead cover and no more than two
walls. A common example is an outdoor
gazebo.
Within a partial enclosure that includes
an overhead cover and more than two
walls, the following shall apply:
(i) at least 25% of the total wall area is
completely open; and (ii) at least 30%
of the remaining wall area is open and
unrestricted.
An enclosure with walls on all sides,
but at least one permanent opening at
ground level and no overhead cover.
In the case of balconies, at least 20%
of the total of the side, back and front
wall areas shall be an remain open and
unrestricted.
PARTIAL ENCLOSURES

10
Flue Pipe
Flue Cap
Flue Top
Gas Control Dial
Spanner &
Screwdriver
Eye Bolts & Chain
(use with the stand only)
Gas Hose & Regulator

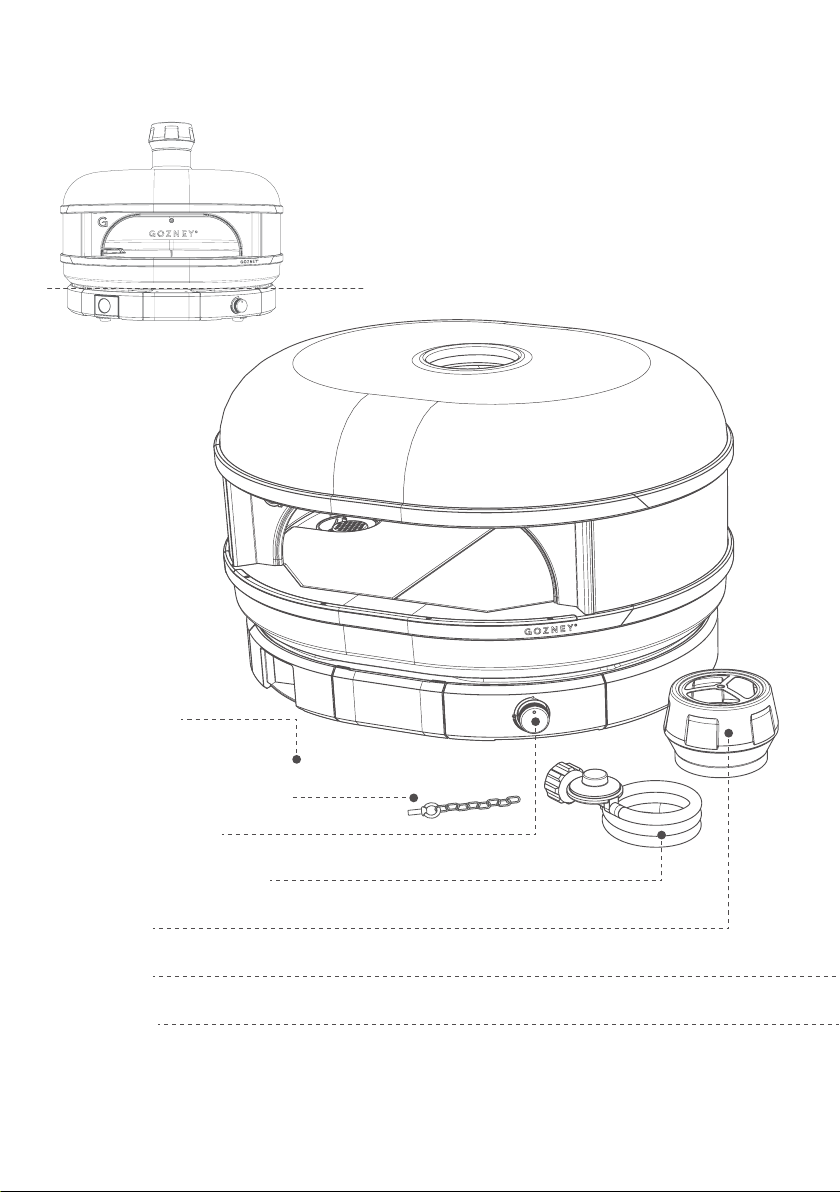

Product Overview - What's in the Box
Oven
Dock

11
Gas Inlet
Burner Guard
Stone Adjustment
Tool
Thermometer
Flue Outlet
Ø127mm

12
Data Plate
Gozney Limited, Units 18 & 19, Radar Way, Christchurch, Dorset, BH23 4FL UK.
Appliance name: Gozney Dome S1
Model/type No.: 4555-S1-03
Trade name: Gozney Dome S1
Gas pressure: 2.75 kPa
Gas rate: 30 MJ/h
Gas type: LPG
Jet orifice: 1.52mm

13

1
This section details the correct operation and install of a
Gozney Dome S1.

Operation & Installation

16
SAFETY CONSIDERATIONS
This appliance must be installed on a
secure level base prior to use.
WARNING: This appliance will become
very hot, do not move it during
operation.
WARNING: Keep away from children
and pets.
The Dome S1 unit and the burner must
always be well ventilated.
Do not move or leave Dome S1
unattended whilst in use.
The oven can become very hot. Do not
use the accessory hatch when the oven
is in operation.
Do not operate Dome S1 in strong
winds. Wind can extinguish flame.
Do not wear flammable loose garments
or sleeves.
Do not cover oven mouth when there
is an active flame, this will cause
damage to the oven.
Product may contain sharp edges!
Please use caution.
Do not burn wood in this oven.
Do not use or store flammable materials
in or near this appliance.
WARNING: Contact your local
municipality for any building codes
applicable to the use, installation
and operation of outdoor cooking
appliances.
Outdoor installations must conform to
local codes or, in the absence of local
codes, with the following standards:
AS/NZS 5601

17
CARBON MONOXIDE
Carbon Monoxide is a highly
poisonous gas which can be produced
when the device isn’t receiving
enough ventilation.
We therefore recommend using gas
fuels in a well ventilated area away
from direct wind and to never cover
the oven mouth when there is an open
flame present.
It is difficult to know if your device is
producing Carbon Monoxide as it is an
odourless and colourless gas.
It can, however cause these symptoms
when you are exposed to it:
• Tightness across the forehead
• Headache
• Weakness
• Dizziness
• Nausea
• Vomiting
• Coma, intermittent convulsions
• Depressed heart action, slowed
respiration
If the exposure has been severe it may
cause death.
Please follow local regulations and
install a CO alarm if necessary.
FIRE
Most fires are caused by a build up of
grease, or (if using gas) an improper gas
connection. In the event of a fire ensure
all people and pets are kept as far away
as possible.
Use a fire extinguisher if possible, but if
water is the only fire retardant available,
thoroughly soak the area around the
appliance. When spraying water on
Dome S1 itself, do not use a strong jet
of water, as this may cause splashing
of burning grease, resulting in a further
spreading of the fire.

2
This section details the set up of the oven and the
accessories included with your Dome S1.

Setup & Accessories

20
Adjusting The Stones
Before using Dome S1 it is important that
the four blue stone retention wedges
and other packaging inside of the oven
are removed.
The removable stone design of the
Dome S1 means that they are not fixed
inside the oven and as such can shift
backwards during transport. If there is
a large visible gap at the front of the
stones, you can use the included stone
adjustment tool to hook the back of the
stone and pull it forward.
