Gozney BNDL0001 User manual

US DOC-0027-02
Technical Manual

Wood-fired cooking made easy.

4
Introduction
WARNING: If the information in these instructions is not followed
exactly, a fire or explosion may result causing property damage,
personal injury or death.
- Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance. An L.P.
cylinder not connected for use must not be stored in the
vicinity of this or any other appliance.
- Post these instructions in a prominent location:
What to do if you smell gas:
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
- Installation and service must be performed by a qualified
installer, service agency or gas supplier.
WARNING: Improper installation, adjustment, alteration, service
or maintenance can cause property damage, injury or death.
Read the installation, operating and maintenance instructions
thoroughly before installing or servicing this equipment.

5
This instruction manual contains important information
necessary for the proper assembly and safe use of the
appliance.
Read and follow all warnings and instructions before
assembling and using the appliance. Follow all warnings and
instructions when using the appliance. Keep this manual
for future reference.
DANGER
If you smell gas:
Shut gas off to the appliance.
Extinguish any open flame.
If odor continues, keep away from the
appliance and immediately call your gas
supplier or fire department.

6
Dome gets extremely hot and should
not be used by children. Do not allow
children near the device during or after
operation. Dome can stay hot for a few
hours after use.
Do not use under any apartment or
condominium balcony or deck.
Dome is not intended for and should
never be used as a heater.
Dome has not been designed or
intended to be used on a boat or within
a recreational vehicle or any other form
of confined area.
Assembly and operation of the oven
should be carried out by a competent
person.
The use of alcohol, prescription or
non-prescription drugs may impair the
consumers ability to assemble or operate
the device safely.
Do not use any plastic or glass utensils
within the oven.
Use heat-resistant gloves when operating
the oven.
Do not insert items into Dome that are
bigger than the dimensions of the oven
mouth.
Do not over fill Dome or cover the burner.
Do not move Dome whilst in operation.
Do not operate Dome in strong winds.
Winds can extinguish the flame and also
cause irregular air pressure resulting in
the flame and heat coming out the back
of Dome. Use a wind break in open areas
but keeping over 45cm away from the
device.
Do not pour water on to the cooking
stone as this will likely crack it and could
be dangerous because of oil and grease.
Do not wear loose flammable clothing or
sleeves near Dome.
Parts sealed by the manufacturer or the
agent shall not be manipulated by the
user.
Never use gas and wood simultaneously.
If the appliance is installed in a room
ensure there is adequate ventilation
to prevent high carbon monoxide
concentrations.
Never operate this appliance unattended.
Never operate this appliance within 25ft
of any flammable liquid.
GENERAL ADVICE

7
Do not fill the cooking vessel beyond the
limitation of the door dimensions.
Heated liquids remain at scalding
temperatures long after cooking process.
For indoor installations please speak to
your local ventilation company for advice
and follow the separate ventilation and
extraction guidance available from
Gozney.
Ensure the oven is placed on a flat
surface.
Do not block perforations provide for
ventilation and heat dissipation.
For replacement parts go to Gozney.
com.

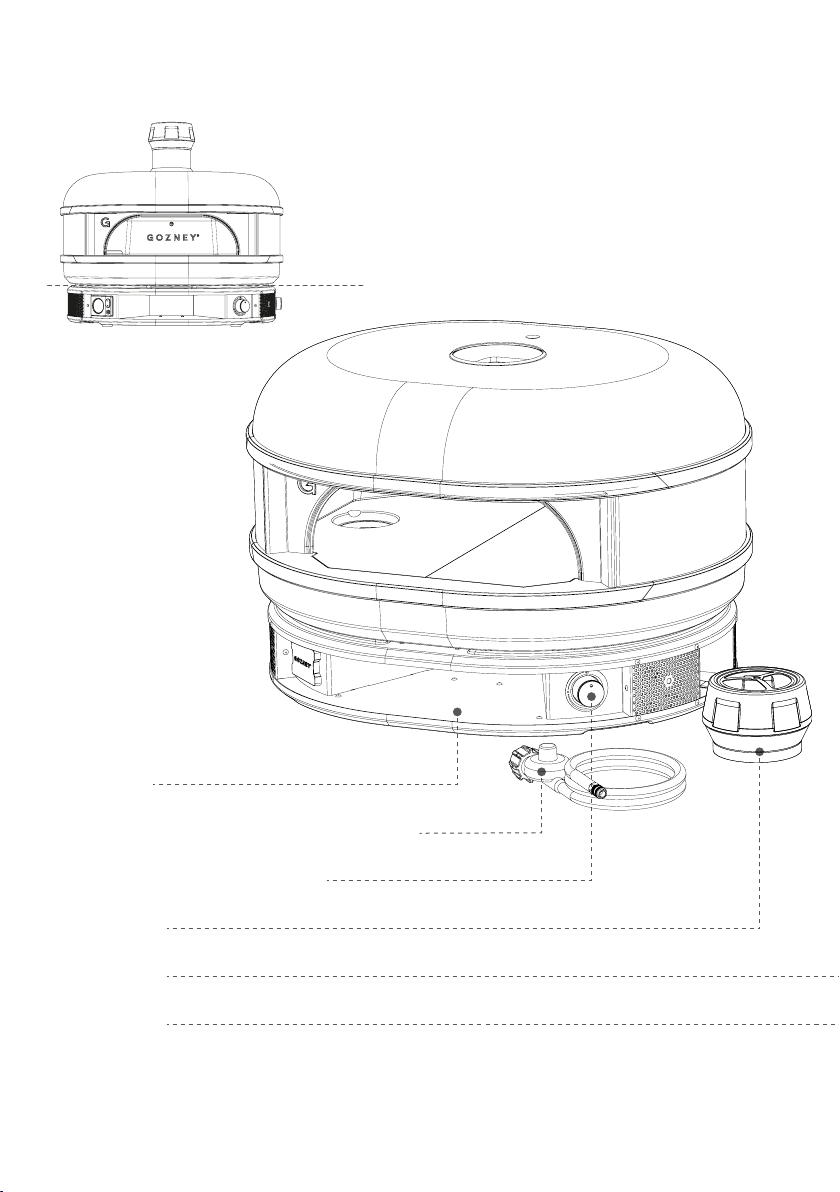

8
Flue Pipe
Flue Cap
Flue Top
Gas Hose & Regulator (Dual Fuel Only)
Gas Control Dial (Dual Fuel Only)
Storage
Product Overview - What's in the Box
Oven
Dock

9
Gas Inlet (Dual Fuel Only)
Air Inlet Puck
Thermometer
Steam Plug
Ash Tray
Burner Guard (Dual Fuel Only)
Stone Puck (Dual Fuel Only)
Flue Outlet
Steamer Input

10
Gozney Limited, Units 18 & 19, Radar Way, Christchurch, Dorset, BH23 4FL UK.
Appliance Name: Gozney Dome
Model/Type No.: 4555-V1-02
Trade name: Gozney Dome
Total nominal heat output for the gas burner 28000 BTU/HR
Injector Size 1.52mm
Gas Type LPG
Gas Pressure 11 “W.C.
For use outdoors only.
LPG Configuration
Read the instructions before using the appliance.
WARNING: accessible parts may be very hot. Keep young children away.
WARNING! Do not use spirit or petrol for lighting or re-lighting! (for wood burner)

11
Total nominal heat output for the gas burner 28000 BTU/HR
Injector Size 2.15mm
Gas Type Natural
Gas Pressure 7 “W.C.
Natural Gas Configuration

1
This section details the correct operation and install of a
Gozney Dome.

Operation & Installation

14
SAFETY CONSIDERATIONS
WARNING: This appliance will become
very hot, do not move it during operation.
Dome unit and the burner must always
be well ventilated.
Do not spill or pour water onto the
cooking floor. This is dangerous and can
crack the stone
Do not cover oven mouth when there is
an active flame, this will cause damage
to the oven.
Product may contain sharp edges!
Please use caution.
WARNING: Contact your local municipality
for any building codes applicable to the
use, installation and operation of outdoor
cooking appliances.
Outdoor installations must conform to
local codes or, in the absence of local
codes, with the following standards:
Ensure all gas fittings are tightened
as per instructions. Do not modify
the appliance. Parts sealed by the
manufacturer or the company shall not
be manipulated.

15
CARBON MONOXIDE
Carbon Monoxide is a highly poison-
ous gas which can be produced when
the device isn’t receiving enough
ventilation.
We therefore recommend using wood
or gas fuels in a well ventilated area
away from direct wind and to never
cover the oven mouth when there is an
open flame present.
It is difficult to know if your device is
producing Carbon Monoxide as it is an
odorless and colorless gas.
It can, however cause these symptoms
when you are exposed to it:
• Tightness across the forehead
• Headache
• Weakness
• Dizziness
• Nausea
• Vomiting
• Coma, intermittent convulsions
• Depressed heart action, slowed
respiration
If the exposure has been severe it may
cause death.
Please follow local regulations and
install a CO alarm if necessary.
FIRE
Most fires are caused by a build up of
grease, or (if using gas) an improper gas
connection. In the event of a fire ensure
all people and pets are kept as far away
as possible.
Use a fire extinguisher if possible, but if
water is the only fire retardant available,
thoroughly soak the area around the
appliance. Do not spraying water on or in
Dome itself, as this may cause splashing
of burning grease, resulting in a further
spreading of the fire.

2
This section details the set up of the oven and the
accessories included with your Dome.

Set Up & Accessories

18
Moving the Oven
The lifting straps located on
the bottom of the oven are
only suitable for single use.
Please remove them once
the oven is located to its final
location and use hand holds
below.
Do not move Dome whilst in
operation or when it is still
hot.

19

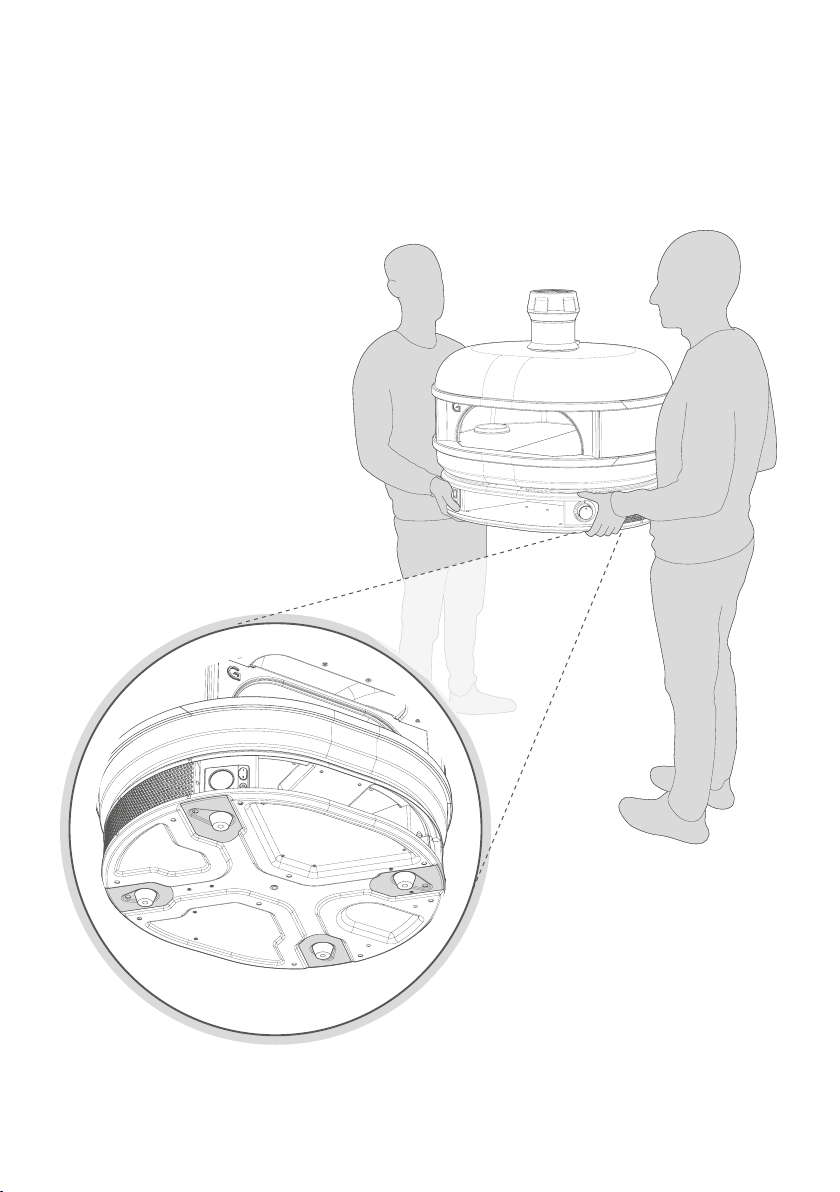

Never attempt to move the oven on
your own. Two people should pick up
the oven lifting from under the rounded
ends of the oven, do not use the mouth
of the oven as a lifting point.
Remove anything loose on the oven
before moving.
Always plan the route you are going to
take, remove any obstacles on your path
and ensure the oven will fit through the
intended route.
Ensure the area you are moving the
oven to fits with the guidelines on the
following page.

20

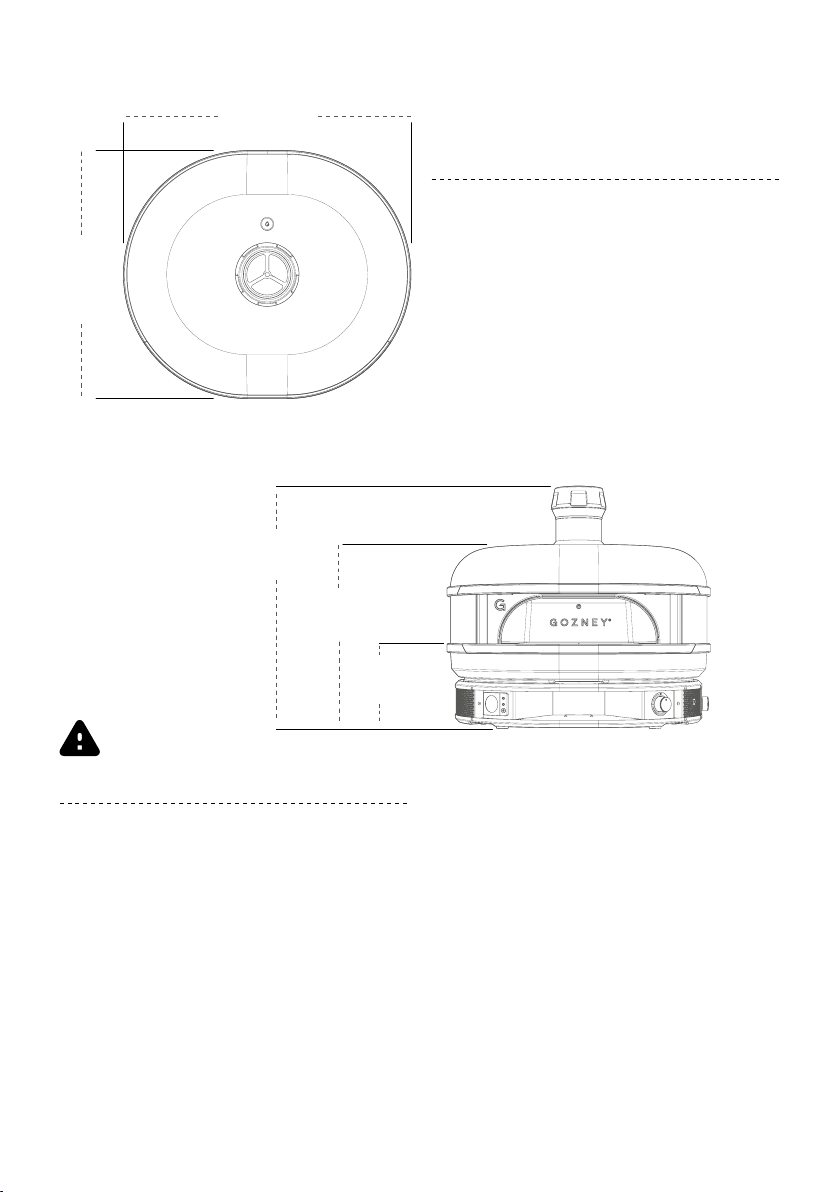

OVEN PLACEMENT
When deciding where to place Dome
ensure the area is large enough to
accommodate the oven with 2” (50mm)
around the base of the dock for air
intake. It is important nothing is blocking
the meshed panels as this will affect the
performance of Dome.
28.8”
24.8"
26"
19.2"
8.9"
WARNING
When placing your oven it is important
to maintain proper clearances from
combustible construction. Ensure
Dome has 1ft clearance (back and sides)
and 3ft 4” clearance (front) from any
combustible construction.
Under no circumstances is the oven
to be placed under or on top of any
combustible structure.
Always keep the area around the oven
clear of any combustible materials,
gasoline and other flammable vapors
and liquids.
