Gozney Dome User manual

Technical Manual

Wood-fired cooking made easy.

4
Introduction

5
This instruction manual contains important information
necessary for the proper assembly and safe use of the
appliance.
Read and follow all warnings and instructions before
assembling and using the appliance. Follow all warnings and
instructions when using the appliance. Keep this manual
for future reference.
Never operate this appliance in enclosed
areas. Failure to follow these instructions
could result in fire or explosion which
could cause property damage, personal
injury or death.
Never operate this appliance unat-
tended.
Never operate this appliance within 5ft
(1.5m) of any structure or combustible
material.
Never operate this appliance within 25ft
(7.5m) of any flammable liquid or gas.
Do not fill the cooking vessel beyond the
limitation of the door dimensions.
Heated liquids remain at scalding tempe-
ratures long after cooking process.
Never touch cooking appliance until
liquids have cooled to 115F (45C) or
less.
If a fire should occur, keep away from
the appliance and immediately call your
fire department. Do not attempt to extin-
guish an oil or a grease fire with water.

6
Dome gets extremely hot and should
not be used by children. Do not allow
children near the device during or after
operation. Dome can stay hot for a few
hours after use.
Do not use under any apartment or
condominium balcony or deck.
Dome is not intended for and should
never be used as a heater.
Dome has not been designed or
intended to be used on a boat or within
a recreational vehicle or any other form
of confined area.
Assembly and operation of the oven
should be carried out by a competent
person.
The use of alcohol, prescription or
non-prescription drugs may impair the
consumers ability to assemble or operate
the device safely.
Do not use any plastic or glass utensils
within Dome.
Use heat-resistant gloves when operat-
ing the oven.
Do not insert items into Dome that are
bigger than the dimensions of the oven
mouth.
Do not over fill Dome or cover the burner.
Do not move Dome whilst in operation.
Do not operate Dome in strong winds.
Winds can extinguish the flame and also
cause irregular air pressure resulting in
the flame and heat coming out the back
of Dome. Use a wind break in open areas
but keeping over 45cm away from the
device.
Do not pour water on to the cooking
stone as this will likely crack it and could
be dangerous because of oil and grease.
Do not wear loose flammable clothing or
sleeves near Dome.
Parts sealed by the manufacturer or the
agent shall not be manipulated by the
user.
Never use gas and wood simultaneously.
If the appliance is installed in a room
ensure there is adequate ventilation to
GENERAL ADVICE

7
END OF LIFE
At products end of life, please dispose
responsibly.
prevent high carbon monoxide concen-
trations.
Never operate this appliance within 25ft
of any flammable liquid.
Do not fill the cooking vessel beyond the
limitation of the door dimensions.
Never operate this appliance unattended.
For indoor installations please speak to
your local ventilation company for advice
and follow the separate ventilation and
extraction guidance available from Gozney.
Ensure the oven is placed on a flat surface.
For replacement parts go to Gozney.com.

8
Flue Pipe
Flue Cap
Flue Top
Storage
Product Overview - What's in the Box
Oven
Dock

9
Air Inlet Puck
Thermometer
Stone Puck
Steam Plug
Ash Tray
Flue Outlet
Steamer Input

1
This section details the correct operation and install of a
Gozney Dome.

Operation & Installation

12
SAFETY CONSIDERATIONS
This appliance must be installed on a
secure level base prior to use.
WARNING: This appliance will become
very hot, do not move it during operation.
WARNING: Keep away from children and
pets.
Dome unit and the burner must always
be well ventilated.
Do not use plastic or glass utensils inside
Dome.
Do not move or leave Dome unattended
whilst in use.
Do not operate Dome in strong winds.
Wind can extinguish flame.
Do not spill or pour water onto the
cooking floor. This is dangerous and can
crack the stone.
Do not wear flammable loose garments
or sleeves.
Do not cover oven mouth when there is
an active flame, this will cause damage
to the oven.
This oven is not intended to be installed
in or on recreational vehicles.
Product may contain sharp edges!
Please use caution.
WARNING: Contact your local municipality
for any building codes applicable to the
use, installation and operation of outdoor
barbecue appliances.

13
CARBON MONOXIDE
Carbon Monoxide is a highly poison-
ous gas which can be produced when
the device isn’t receiving enough
ventilation.
We therefore recommend using wood
fuel in a well ventilated area away from
direct wind and to never cover the
oven mouth when there is an open
flame present.
It is difficult to know if your device is
producing Carbon Monoxide as it is an
odourless and colourless gas.
It can, however cause these symptoms
when you are exposed to it:
• Tightness across the forehead
• Headache
• Weakness
• Dizziness
• Nausea
• Vomiting
• Coma, intermittent convulsions
• Depressed heart action, slowed
respiration
If the exposure has been severe it may
cause death.
Please follow local regulations and
install a CO alarm if necessary.
FIRE
Most fires are caused by a build up of
grease. In the event of a fire ensure all
people and pets are kept as far away as
possible.
Use a fire extinguisher if possible, but
if water is the only fire retardant avail-
able, thoroughly soak the area around
the appliance. When spraying water on
Dome itself, do not use a strong jet of
water, as this may cause splashing of
burning grease, resulting in a further
spreading of the fire.

2
This section details the set up of the oven and the acces-
sories included with your Dome.

Set Up & Accessories

16
Moving the Oven
The lifting straps located on
the bottom of the oven are
only suitable for single use.
Please remove them once
the oven is located to it's final
location and use hand holds
below.
Do not move Dome whilst in
operation or when it is still
hot.

17

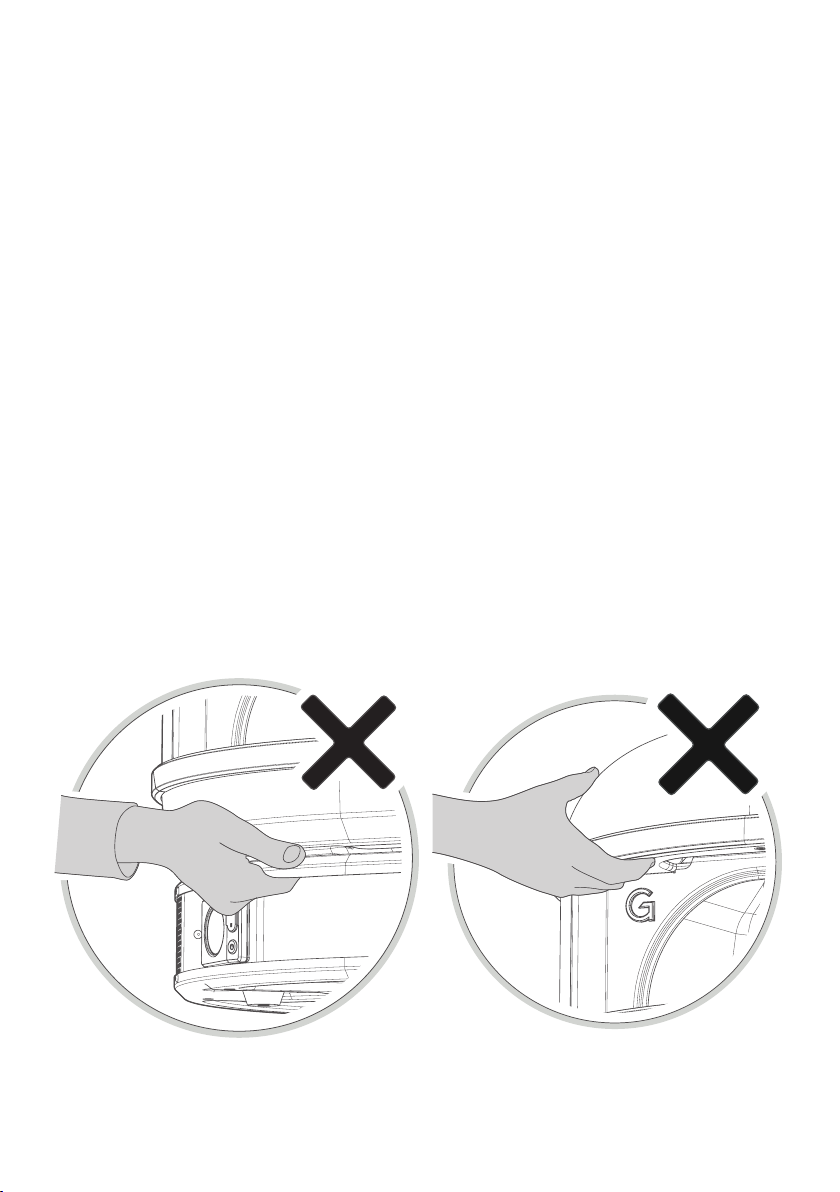

Never attempt to move the oven on your
own. Two people should pick up the
oven lifting from under the rounded ends
of the oven, do not use the mouth of the
oven as a lifting point.
Remove anything loose on the oven
before moving.
Always plan the route you are going to
take, remove any obstacles on your path
and ensure the oven will fit through the
intended route.
Ensure the area you are moving the
oven to fits with the guidelines on the
following page.

18
732mm
28.8”
630mm
24.8”
660mm
26”
488mm
19.2”
226mm
8.9”
OVEN PLACEMENT
When deciding where to place Dome
ensure the area is large enough to
accommodate the oven with 2” (50mm)
around the base of the dock for air intake
and at least 14" (350mm) clearance
above the oven. It is important nothing
is blocking the meshed panels as this will
affect the performance of Dome.
WARNING
When placing your oven it is important
to maintain proper clearances from
combustible construction. Ensure
Dome has 1ft clearance (back and sides)
and 3ft 4” clearance (front) from any
combustible construction.
Under no circumstances is the oven
to be placed under or on top of any
combustible structure.
Always keep the area around the oven
clear of any combustible materials,
gasoline and other flammable vapors
and liquids.

19
Floor
Height
WARNING
Never operate the oven in high winds
or if the wind is blowing into the oven
mouth.
Wind should be taken into consideration
when choosing a location. The oven
should be orientated so that the mouth
is facing away from the wind. Avoid
using the oven in windy conditions, it is
important to have wind breaks situated
around the oven to stop the wind from
blowing the flame down into the dock. If
you see fire coming from the dock. Turn
the oven off from either the gas bottle
or control knob. Never operate the oven
in high winds.
We recommend the height of the floor
to be around the level of the bottom of
the users elbow (usually around 3ft 11”
from the ground)
Ensure the surface the oven is being
placed on is completely level, stable and
capable of easily holding the weight of
the oven - 130lb.

20

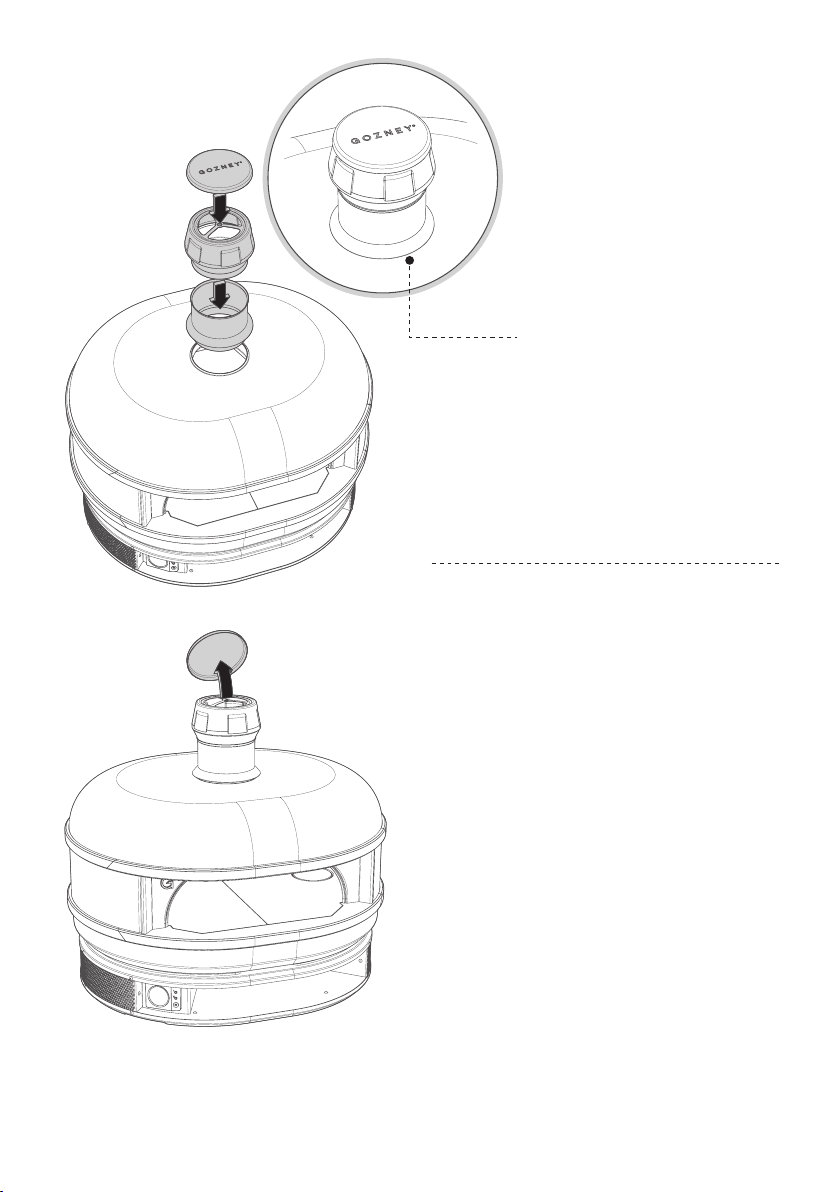

FLUE ASSEMBLY
The rain cap prevents moisture from
getting into the oven and should only
be used when the oven is cooled and
not in use.
The flue is designed
to have a rain guard
which has a 1/4"
(5mm) gap from the
Dome.
