Grain Comfort Plus User manual

Grain Comfort Plus Stove
Version: 2010
Certified to Burn - Corn Wheat and Rye
Certified to Burn – Hard Wood Pellets
Grain Stoves Inc.
R.R. #3 BLYT , ONTARIO, CANADA
Phone: [phone] Fax: [phone]
www.grainstovesinc.com
Patent
1991-2009
U.S. 5,105,797 – CDN. 2,051,804
1

Dear Customer:
Congratulations!
You have just purchased the Grain Comfort Plus Stove. Each part of your unit is of the hi hest
quality of material and workmanship. We believe that once you be in usin your heatin unit,
you will know that you have made a very wise decision in choosin the Grain Comfort Plus
Stove.
The purpose of this manual is to help you et maximum enjoyment and heatin efficiency from
your unit. By followin these instructions and su estions, you can be assured years of safe and
economical heatin for yourself and your family.
Thank you for buyin your Grain Comfort Plus Stove.
Grain Stoves Inc.
*** SAFTEY NOTICE ***
If this stove is not properly installed, there is a risk of fire. For your safety, follow the directions iven in
this manual. Contact your local buildin or fire officials about restrictions and installation requirements
specific to your area. The manufacturer assumes no responsibility for equipment installed in violation of
either this manual or local codes or ordinances.
2

INDEX
UN ACKING ..................................................................................... 5
FIRE LACE INSTALLATION .............................................................. 11
OWNER REGISTRATION CAR ................................................. 27
This must be completed and returned to the manufacturer for
Warranty purposes .................................................................. 27
SCHEMATIC 30
INTRODUCTION
Your Grain Comfort Plus heatin system is desi ned, en ineered and built to provide you with a
safe, efficient heatin unit.
The Grain Comfort Plus Stove is desi ned and en ineered to burn Shelled Corn, Wheat and Rye
and Hardwood Pellets.
The Grain Comfort Plus heatin system has successfully under one various safety and
performance tests and is certified to the standards of UL, ULC, in Canada and United States.
To realize all of the reliable service advanta es that have been en ineered into your Grain Stove
Plus and avoid voidin your warranty, you must follow all of the instructions contained in this
manual.
Before attemptin to install or operate your Stove, you should familiarize yourself with the
components and operatin controls of the unit. (PAGE 13)
READ ALL INSTRUCTIONS BEFORE INSTALLING OR USING T E
APPLIANCE.
3

Throu hout this handbook, you will see international caution si ns beside a number of
areas. They relate to safety, or some other important aspect you need to know. Please
make special note of these areas. Read these instructions completely and carefully before
installin your Grain Comfort Plus unit and keep them for future reference.
HEATING SAFETY and SOLID FUEL
Certain safety hazards are inherent in any solid fuel unit installation. You should be aware of
these, so that a safe and proper installation can be made.
1- Prior to buildin your first fire, the manufacturer recommends that your Grain Comfort
Plus installation be inspected by the local overnin authority havin the jurisdiction to
assure that all code requirements have been complied with.
2- If such inspections are not possible, the owner should acquaint themselves with the
followin : National Fire Protection Association, Standard 211 1985 or the latest edition.
Address of the NFPA is: Battery March Park, Quincy, MA 02269 or the National
Buildin Code. 1986 edition of the Uniform Mechanical Code, Section 915. ULC
5627/CSA-B366-2M/APF 1 (on Au . 2003)
3- Faulty Chimney: An older masonry chimney should be thorou hly checked to be sure
there are no holes or weak spots which could allow sparks or hot ases to escape.
HEATING SAFETY and SOLID FUEL con’t
4- Heat Conduction: Placin combustible materials too close to the unit or chimney can be a
fire hazard.
5- Chimney Installation: Use a spark arrester and a rain shield on your exhaust pipe.
6- Your shelled corn, rye and/or wheat should be clean and screened.
7- Use smoke detectors around the unit as well as in sleepin areas, halls etc.
8- Always keep a fire extin uisher rated for class ‘A’ fires near the unit.
9- Check with your insurance company to be sure that your policy covers the use of a solid
fuel stove such as a “Corn Stove “.
10- Thou h your Grain Comfort Plus burns exceptionally clean, formation of some creosol
may occur when burnin wood pellets over time.
11- The chimney connector, rain cap, spark arrester and chimney should be inspected at least
twice monthly durin the heatin season to determine and remove if a creosol buildup has
occurred.
12- Locate furniture and any other combustibles at least 36” away from unit.
13- Store fuel at a safe distance from the unit, in a dry, well-ventilated location.
14- Ash removed from the stove should be placed in a non-combustible metal container with
a ti ht fittin lid.
15- If buryin ashes, be sure they are thorou hly cooled first.
4

If this stove/appliance is not properly installed in a house, there is a risk of fire. For your
safety, follow the installation directions. Contact local buildin or fire officials about
restrictions and installation inspection requirements specific to your area.
UNPACKING
* Installations should use two people, as the unit is heavy.
1- Remove the protective plastic wrappin from the unit.
2- Inspect the unit for any obvious physical dama e.
3- Remove the 2 Screws holdin down the unit to the pallet (if mounted to a pallet)
4- Or remove the Steel Tabs bolted to the bottom of the stove. (If mounted to a pallet)
5- Open Hopper, release the Hold Down Latch, and remove the Hopper Lid.
6- Remove and inspect the contents of the hopper (use checklist below).
7- Attach the Cast Iron Le s usin the bolts provided.

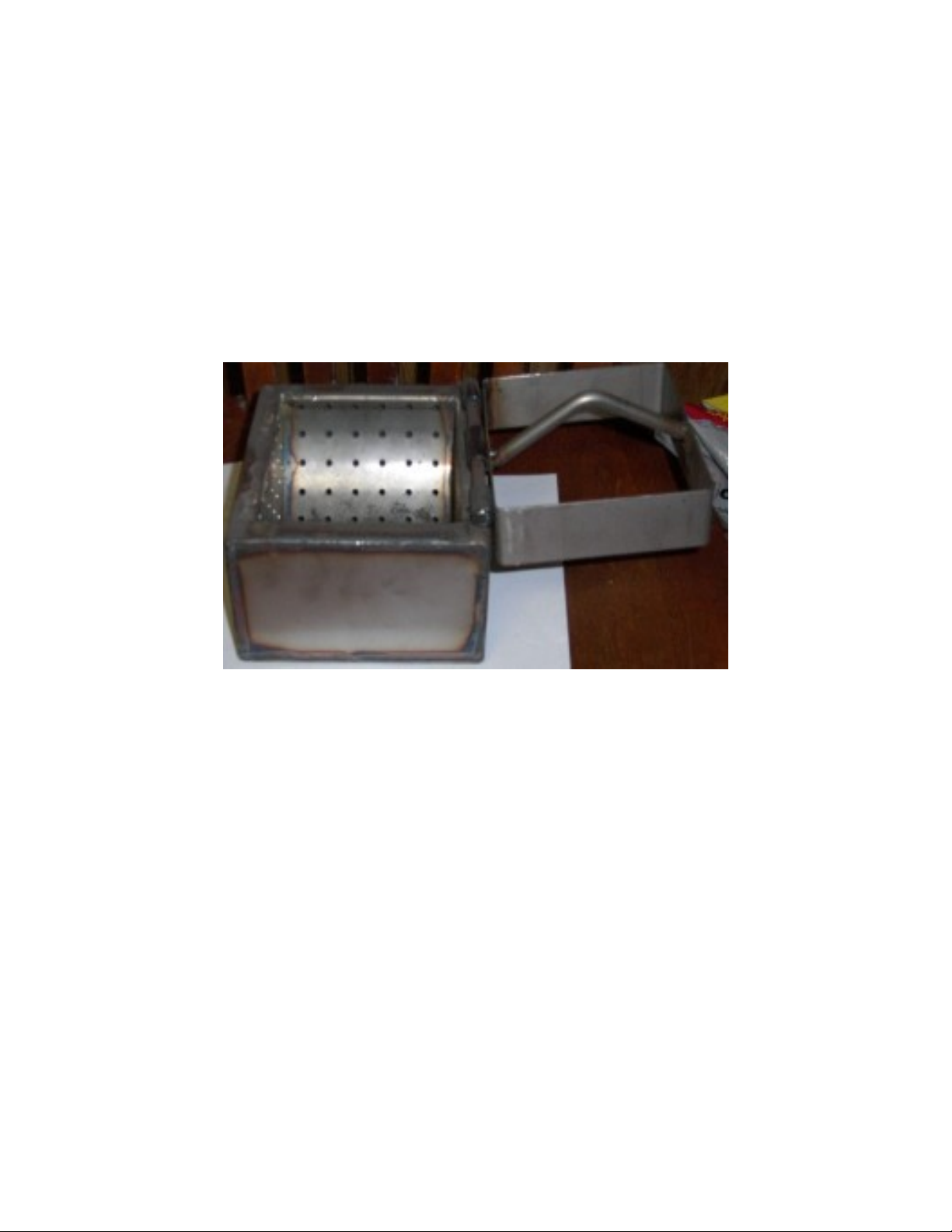

8- Open the stove door and ensure that the Firebox is present and is centered on the
Removable Washer.
9- Close and lock the stove door makin sure the latch is ti ht and locks with a reasonable
amount of force.
CHECKLIST
IN T E OPPER: VENTING KIT:
Qty 1 - set of 4 Cast Iron Le s Qty 1 - Stainless Steel Vent / Wall Flan e
Qty 1 – Stainless Steel Poker Qty 1 - Len th of 36” Exhaust Pipe
Qty 1 – Copy of Grain Stove Manual Qty 1 - 5” to 6” Galvanized Adapter
Qty 1 – Wood Pellet Scraper Attachment
*Should there be any items missing, first check with your Dealer that you purchased the
unit from. Or call us at Grain Stoves Inc.
VENT KIT
5

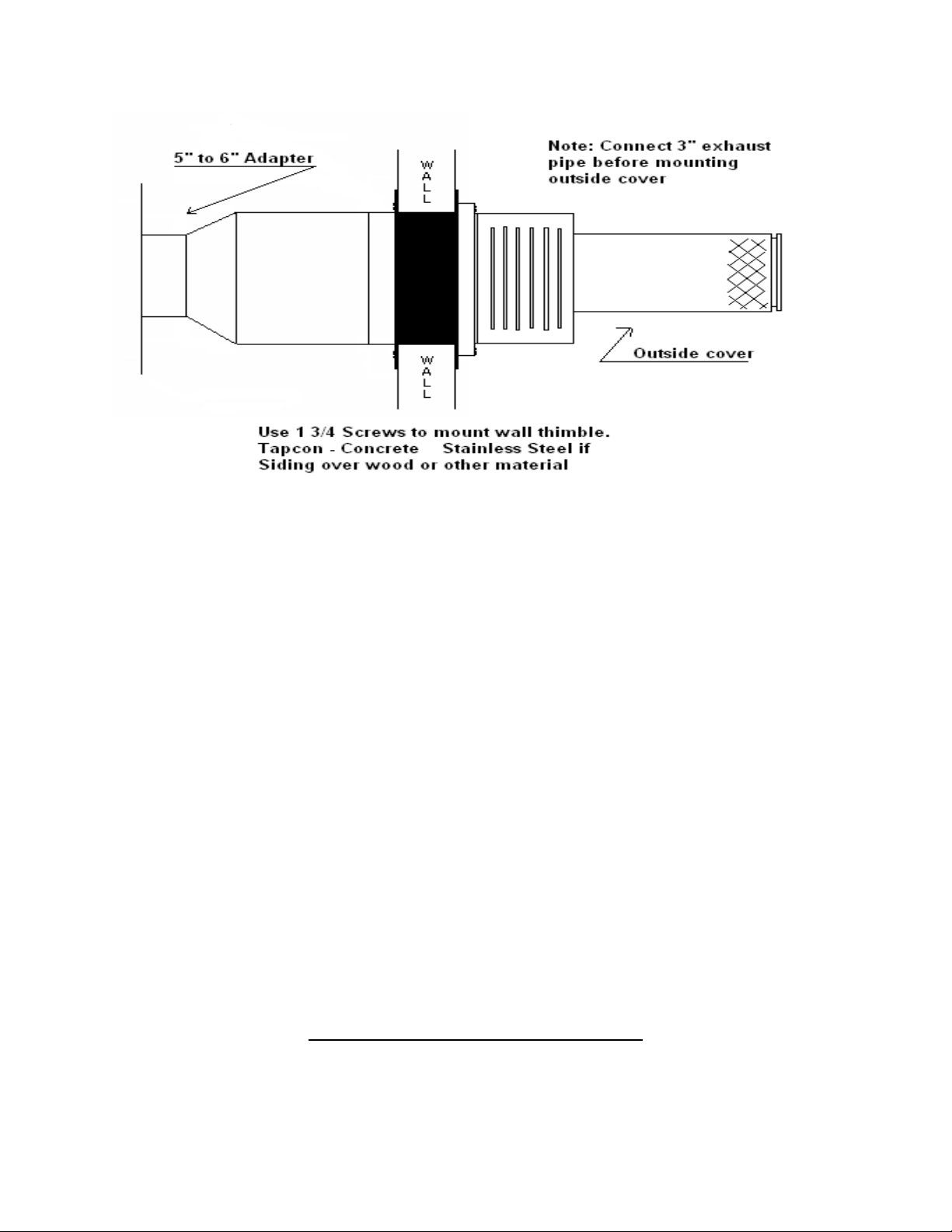

VENTING KIT: SUPPLIED WIT T E UNIT
Stainless Steel 6” throu h the Wall Flan e
5” to 6” Galvanized Adapter
Len th of Exhaust Pipe
FLOOR PROTECTOR
It is recommended the unit be placed on a non-combustible pad if the floor of the house is of
combustible material. The pad should meet the followin minimum specifications:
A listed floor protector or a floor protector made of a non-combustible inor anic material equal
or 3/8” thick millboard havin a thermal conductivity of K = 0.21 BTU/ft. de ree F such as
Ceraform 126
INSTALLATION OVERVIEW
6

Venting and Exhaust Installation can be done either through the wall with a supplied vent kit
from Grain Stoves Inc. (See fi ure 2 and/or 3) or into an existing factory built UL 103 or
masonry chimney.
This Grain Stove Plus must be installed in accordance with this manual and local code. In the
absence of any local codes, follow the current edition of the NFPA-211 (in the USA) and the
CSA-B365 (in Canada). Special methods are required when passin throu h a wall or ceilin .
See instruction and buildin codes.
•Installations should have two people, as the unit is heavy.
BEFORE MAKING ANY ALTERATIONS - Observe the location of electrical
outlets so that you do not cut into any live wires. DO NOT CUT throu h a wall stud. If
it is determined that wires or a wall stud is in the way, re-measure and reposition the unit.
If this stove/appliance is not properly installed in a house, there is a risk of fire. For your
safety, follow the installation directions. Contact local buildin or fire officials about
restrictions and installation inspection requirements specific to your area.
INSTALLATION CLEARANCES
Your new Grain Comfort Plus should be installed in a location that takes full advanta e of its
heatin capabilities. A location that will ive the best airflow from the front of the unit to the
remainder of the house is ideal.
Minimum Clearances: Fi ure 1
7

Side (A) – 1.0” Back (B) – 3.0” Vent – 0” Corner (E) – 3” Floor – 0”
FREE STANDING INSTALLATIONS
Your Grain Comfort Plus is desi ned for connection to the 3” diameter exhaust pipe, Stainless
Steel inlet box and Stainless Steel Wall Flan e which is intended to exit strai ht out the back of
the unit and throu h an outside wall. Variations to a “Strai ht Out” installation can be made. A
Corner installation can be accomplished by incorporatin 45 de ree 6” pipe and a 45 de ree 3”
exhaust bend. Variations on the installations are list here in this manual.
THROUGH WALL VENT INSTALLATION
EX AUST and VENT MEASUREMENTS
MEASURE: (lookin at the front of the stove)
13.5” from floor to hole (with le s on)
16.5” from the ri ht hand side to the center of the hole
1- Cut a sli htly oversized hole for the 6” Stainless Steel Wall Flan e.
2- Test Fit the Flan e Unit notin that it will slide apart to accommodate different wall
thicknesses. Check to make sure the assembly fits snu ly.
3- Attach the 5” to 6” Galvanized Adapter to the 5” pipe protrudin from the back of the
stove.
4- Visualize or test the placement of the stove. If acceptable, apply a bead of Hi h
Temperature Silicone to the inside face of the Wall Flan e and secure with wood screws.
8

5- Push the 3” Exhaust Pipe throu h the Wall Flan e from the outside.
6- Apply a bead of Hi h Temperature Silicone to the inside face of the 3” Exhaust Pipe and
securely fit to the 3” pipe of the stove.
7- Move the Grain Comfort into position connectin the adapter to the Wall Flan e.
This completes the inside installation
8- From the outside, apply a bead of silicone to the inner face of the Wall Flan e and screw
the Flan e to the outside wall usin appropriate fasteners as indicated in the drawin .
9- You may wish to caulk around the pipe, inside and outside the home, with RTV Silicone.
10- Ti hten exhaust clamp located inside the outside Flan e housin usin screwdriver.
This completes the outside installation
CORNER INSTALLATION
9

Follow the THROUGH WALL INSTALATION procedure for directions on how to
install the “wall flan e “as described above.
1- Install the 5” to 6” alvanized adapter onto the Stoves 5” pipe that exits the stove.
2- Install either a 3 “ - 45 de ree or 90 de ree (whatever allows for the best confi uration)
3” exhaust pipe.
3- Slide adjustable elbow pipe over the exhaust pipe and onto the 6” end of the alvanized
adapter.
4- Move stove to final position. In the final position, the stoves 5 inch pipe connector should
be slipped under Wall Thimble’s 6 inch pipe at least 1 inch.
BASEMENT INSTALLATION
Note: Extra pipin will be needed for installin . Make sure 3” Diameter exhaust pipe is used
for exhaustin . For brin in in Fresh air stove pipe (“A” type ventin ) may be used.
1- Follow the THROUGH WALL INSTALATION procedure for directions on how to
install the wall flan e.
2- Take into account the hei ht of the stove with the le s attached when calculatin the
overall len th of the pipin assembly.
3- It is su ested to dry fit all items before cuttin out the exit hole.

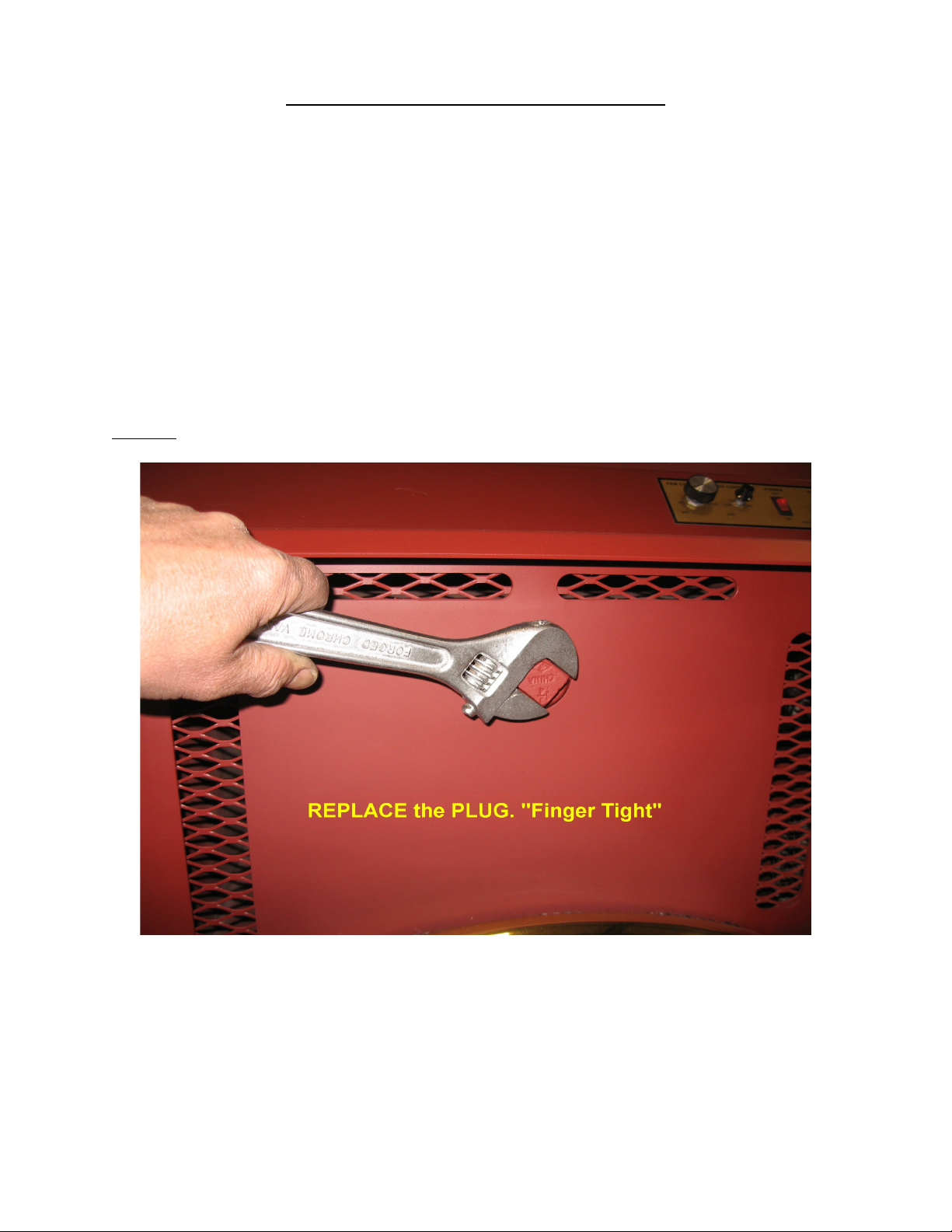

4- A 90 de ree 3” exhaust pipe with a cleanout plu is required to facilitate the cleanin of
the fines and ash that build up (see cleanin procedure). This is attached to the exhaust
port comin out of the stove.
5- Slip on a 6” tee 90 de ree over the 3” exhaust pipe, allowin for access to the cleanout
plu on the 90 de ree 3” exhaust pipe.
6- Alternately assemble the 6” vent pipe and the 3” exhaust pipe to a level where the next 90
de ree is to be made.
7- After the Flan e assembly has been installed, slip a len th of exhaust throu h the Flan e
and mount the Muffler.
8- Slip a 90 de ree 6” pipe over the 90 de ree exhaust pipe and connect to the Flan e
Assembly.
9- After makin all adjustments, secure the outside exhaust pipe by screwin ti ht the clamp
in the Outer flan e piece.
CHIMNEY VENT INSTALATION
If an existin chimney is used, these conditions must be met:
1- It must be inspected prior to use by your local buildin inspector.
10

2- A 3” (inch) diameter ri id exhaust pipe must be installed to the top of the chimney or to a
minimum of 10’ (feet).
3- A 6” ri id or flexible pipe must be installed from stove to chimney openin to allow for
fresh air intake.
4- The chimney must have a vent cap.
5- All connections should be sealed to prevent leaka e.
6- This unit can not be connected into a chimney flue or pipe servin another appliance.
FIREPLACE INSTALLATION
If this method is used the unit must be sealed air ti ht a ainst the fireplace openin to
prevent combustion air from bein drawn from within the house.
*Before installing the Grain Comfort Plus, measure to be sure the stove will cover
the openin of the fireplace. If the stove does not cover the openin , installation cannot be done.
*If the Grain Comfort Plus is used as fireplace insert, it must be installed in a fireplace, which
satisfies the requirements of the National Fireplace Protection Association (NFPA 211) in the
United States or the CSA B365 in Canada.
Followin are su ested methods of installin the Grain Comfort Plus into a masonry fireplace.
The method you use depends on what type of fireplace hearth is in your home.
1- If the fireplace hearth is equipped with an ash dump, the door over the ash dump hole
should be removed and the plate or cover on the outside removed. Thorou hly clean the
dump of all ashes and debris. Fabricate a screen of 3/8”, or less, expanded metal or screen
and cover outside hole to prevent rodents, birds, etc. from enterin . Back inside the
home—measure the location of the ash dump openin in relation to the stove bottom.
2- If it is determined that the stove will block the trap door, then the unit must be raised
approximately 1/2 inch to allow fresh combustion air to enter the fireplace area and to be
drawn into the unit. Any suitable non-combustible shim such as 1/2" an le iron may be
used to raise the unit. If the ash dump openin is far enou h to the rear of the hearth so
that it will not be covered by the stove bottom, then it is not necessary to raise the unit off
the hearth.
3- Before insertin the unit, attach a 3-inch diameter elbow to the unit’s 3-inch exhaust
pipe. Increase the pipes diameter to 6 inches by usin a 3 to 6 inch pipe increaser.
Measure and cut a section of 6-inch smooth or steel stovepipe lon enou h to carry the
exhaust above the smoke shelf (damper area) of the chimney. The pipes connections
should be secured with screws to prevent it from comin loose durin installation. Guide
the pipe up the chimney and slide the stove into the fireplace.
4- The method of insertin a unit into a fireplace without an ash dump is simpler but may
require inspection and maintenance on a more frequent basis. Follow the instructions
11

iven for method #1, with the difference bein that there is no ash dump door allowin
outside air into the unit. Instead, the unit will pull combustion air from within the
fireplace cavity and may possibly pick up debris and fly ash, therefore requirin more
frequent cleanin and maintenance of the air flow system. Seal the unit accordin ly.
FIREPLACE INSPECTION
1- Examine the masonry fireplace and chimney to determine that it is free from cracks,
loose mortar, creosote deposits or other blocka es and other si ns of deterioration.
Correct any situations that warrant repair before proceedin with the installation.
2- Verify that there is a hearth extension, extendin at least 18 inches in front of the
fireplace openin , and at least 8 inches to the sides of the fireplace openin . A fireplace
that has more that 6 sq ft. should have a hearth that extends 20 inches in front of the
openin and at least 12 inches to either sides of the openin .
3- If your fireplace has wooden trim above it, or a wooden mantle, it must be located so
there are at least 12 inches between the top of the Grain Comfort and any part of the trim
of the mantle, includin supports.
FIREPLACE PREPARATION
1- Locate furniture and other materials a minimum of 36 inches from the front of the
fireplace to allow access and cover the hearth and adjacent areas with a drop cloth to
protect from soilin or marrin the surface.
2- Thorou hly clean the fireplace and chimney of ashes and soot.
3- Remove the existin fireplace damper plate.
MINIM M FIREPLACE CLEARANCES
Required Fireplace Dimensions: The minimum dimensions required are:
Hei ht 24 inches
Width 26-38 inches
Depth 18 inches
SEALING THE GRAIN COMFORT STOVE
1- Place a fire resistant flexible insulation strip (1” wide 1/2" thick, backed with adhesive)
on the back of the panel, across the top and down both sides. Insulation is required to
ive a positive seal.
2- Center the Grain Comfort relative to the fireplace openin
12

3- Slide the unit into position in the fireplace makin sure the insulation is depressed a ainst
the masonry and sealin all ed es of the Stove.
4- This step is important not only to prevent loss of warm room air but also to restrict Back
Draft.
ALTERNATIVE INSTALLATIONS
1- There are variations to most of the referenced installations mentioned in this manual.
2- Should you have any questions your installer or dealer will most likely know the best
approach for your situation.
3- Also feel free to call Grain Stoves Inc. if you are unsure about the procedures listed.
COMPONENT REFERENCE
CONTROL PANEL Located on top ri ht hand side of the Grain Comfort
FEED CONTROL: This Control is like the Thermostat in your home. The Hi her the
Settin , the more Grain is fed into the Firepot and the more heat is enerated. Over a period of
time, you will learn the best and most efficient settin s for your particular installation.
POWER SWITCH: This red switch controls the power to the unit. As lon as the Unit is ON,
the Combustion Fan will run. The Switch is illuminated to show its condition.
HI / LOW FAN CONTROL: Controls the amount of warm air enterin the room. This
control re ulates the airflow into the room. This does not affect combustion efficiency. Time has
shown that most users leave this control on hi h.
F SE HOLDER: Contains a standard 5 amp fuse.
13

POWER FAIL RE: If a power failure should occur, your Grain Comfort will immediately
shut down and the fire will o out. When the power returns you may need to reli ht your Grain
Comfort to restore it to normal operation.
BATTERY BACK- P: Battery Backup units are available from Grain Stoves Inc. and are
used to supply power to the stove for operation durin short power outa es. Please consult your
Dealer or Grain Stoves Inc., for details on Battery Back-up Systems.
FIREBOX:
PICTURE OF FIREBOX (LID OPEN)
NOTE: Your Grain Comfort is painted with a specially formulated hi h temperature paint that
cures durin the first few hours of operation. You may notice smokin or an odor durin the first
few hours of operation. This is normal and is no cause for alarm (thou h these fumes can activate
a smoke alarm). Openin a window near the unit will allow fumes to escape.
14

gcsp1 Grain Comfort Starting
Proceedure p-1

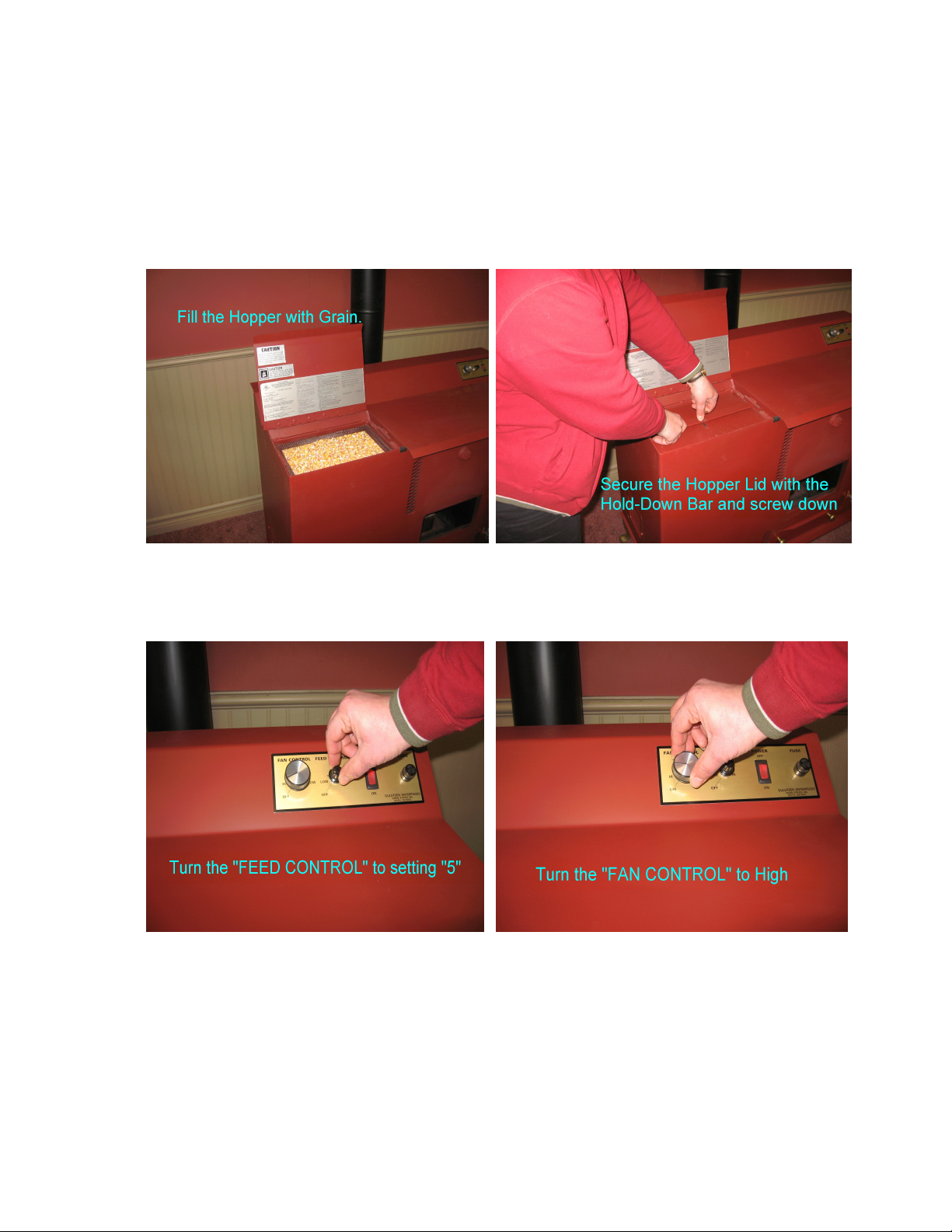

STARTING PROCEDURE page 1
1 2
4
3
gcsp2 Grain Comfort Starting
Proceedure p-2
STARTING PROCEDURE page 2
5 6
78
15

gcsp2 Grain Comfort Starting
Proceedure p-2
STARTING PROCEDURE page 2
5 6
78
16

SPECIAL NOTE
NOTE: Your STOVE WILL NOT FEED FUEL UNTIL the Internal Temperature reaches 120
degrees. This normally takes 10– 15 minutes.
After the Thermal Switch reaches 120 de rees, the Au er will start to feed Fuel at the Rate you
have set the Feed Control. The Circulation Fan will also start (assumin the Fan Control Switch
is turned on) and blow at the speed you have set the Fan Control.
NOTE: If au er is not full of Fuel, it may be necessary to hand feed the fire with a small amount
of fuel until the au er be ins to deliver fuel to the burner. Care should be taken when hand
feedin . Open the door slowly and add a small amount of fuel to the burner and continue the
process of hand feedin until you see the fuel drop into burner. This may be necessary on the
first li htin because the Au er is not “primed”. This action will be necessary if the Hopper runs
dry.
IT IS ADVISABLE TO T RN OFF THE POWER SWITCH WHEN YO
INTEND TO OPEN THE FRONT DOOR. This turns off the Circulation fan
and minimizes ash and smoke escaping. ALWAYS BE
CAREF L WHEN THE FRONT DOOR IS OPEN
17

2
1
LIFT THE HINGED
EXTENSION TO
ONE SIDE
OPENINGTHE
FIREBOX
18

DAILY MAINTENANCE – GRAIN – cont
TIP: A quantity of Clinkers can “pile up “in the Firebox area and be cleaned out on a
weekly basis. For best results, we recommend removin the clinker every 12-18 hours. This can
be accomplished while a fire is burnin , but needs to be done quickly (approximately 30
seconds) to restore fuel and air to firebox. Clinkers are a function of burnin Grains.
34
56
19

BI- WEEKLY MAINTENANCE
In some cases the fuel you burn may contain a lot of red-do , in the case of Corn, or fines which
will settle on top of the heat exchan ers and hinder the performance of the stove. This is more
likely when burnin Wood Pellets.
With the stove OFF and completely cooled down and with the aid of the Poker, tap the Heat
Exchan ers to shake loose any buildup. Insert the Poker between the Heat Exchan er Tubes to
loosen any fines that may have collected.
Keepin the Heat Exchan er area clean will assure that the efficiency of the stove will be
maintained.
STEP 1
REMOVE THE PLUG ON THE FRONT OF THE STOVE
20
