5530

Page 4 of 12 pages
For UK - The Clean air aCT 1993 and SmoKe ConTrol areaS
Under the Clean Air Act local authorities may declare the whole or part of the district of the authority to be a smoke control area. It is an offence
to emit smoke from a chimney of a building, from a furnace or from any fixed boiler if located in a designated smoke control area. It is also an
offence to acquire an ”unauthorised fuel” for use within a smoke control area unless it is used in an ”exempt” appliance (”exempted” from the
controls which generally apply in the smoke control area).
In England appliances are exempted by publication on a list by the Secretary of State in accordance with changes made to sections 20 and 21 of the
Clean Air Act 1993 by section 15 of the Deregulation Act 2015. Similarly in Scotland appliances are exempted by publication on a list by Scottish
Ministers under section 50 of the Regulatory Reform (Scotland) Act 2014. In Northern Ireland appliances are exempted by publication on a list by
the Department of Agriculture, Environment and Rural Affairs under Section 16 of the Environmental Better Regulation Act (Northern Ireland)
2016. In Wales these are authorised by regulations made by Welsh Ministers.
Further information on the requirements of the Clean AirAct can be found here:https://www.gov.uk/smoke-control-area-rules.Your local authority
is responsible for implementing the Clean Air Act 1993 including designation and supervision of smoke control areas and you can contact them
for details of Clean Air Act requirements.
The HWAM 5530 stoves detailed below have been recommended as suitable for use in smoke control areas when burning wood logs.
Appliances recommended as suitable for use in Smoke Control Areas :
• HWAM 5530c with SmartControl (IHS)
• HWAM 5530m with SmartControl (IHS)
Refuelling on to a low fire bed
If there is insufficient burning material in the firebed to light a new fuel charge, excessive smoke emission can occur. Refuelling must be carried
out onto a sufficient quantity of glowing embers and ash that the new fuel charge will ignite in a reasonable period. If there are too few embers
in the fire bed, add suitable kindling to prevent excessive smoke.
Fuel overloading
The maximum amount of fuel specified in this manual should not be exceeded, overloading can cause excess smoke.
Operation with door left open
Operation with the door open can cause excess smoke.The appliance must not be operated with the appliance door left open except as directed
in the instructions.

Page 5 of 12 pages
hWam®SmarTConTrolTm
Congratulations on your new wood-burning stove complete with HWAM®SmartControlTM
HWAM®SmartControlTM is a digital control of the combustion in your new wood-burning stove.The purpose of HWAM®SmartControlTM is to
control the combustion in an environmentally optimal and economically efficient way, with a view to generating greater user comfort.
HWAM
®
SmartControl
TM
is a patented technology,which electronically adjusts the air supply to the combustion chamber. Your new wood-burning
stove continually measures the temperature and the oxygen levels of the combustion. Moreover, it is programmed to supply oxygen to the fire
through three important air inlets in the right amount, and at the right time and place in the combustion chamber. By downloading a free app for
your smartphone or tablet, you can use the app among other things:to set the thermostat to the desired room temperature level, choose time for
night-time reduction and keep your stove updated.The app also gives you current information on burning in the stove.See details in separate manual.
Your new wood-burning stove and HWAM®SmartControlTM will ensure the cleanest possible combustion as well as a good fuel economy, regardless
of external conditions such as the type of firewood used, the chimney, the user’s experience, and other external circumstances.
HWAM®SmartControlTM consists of the following components:
• Air box: the Air box contains a printed circuit board/software, as well as three motors that control primary, secondary, and tertiary combus-
tion air.The fresh-air system can be mounted on the Air box with fresh-air supply from the front or from the bottom. For installation of the
fresh-air system, see separate instructions.The dimensioned sketches can be found in the separate installation instructions for this stove.
• Two sensors: a temperature sensor and an oxygen sensor transmit information from the wood-burning stove to the Air box.
• Room temperature sensor:The room temperature sensor with batteries communicates with the IHS system via a wireless connection. It should
be placed so it does not have direct radiant heat from the stove. Note that the maximum distance between stove and room temperature
indicator is about 10 metres.The range is reduced if there are walls or other obstructions between the stove and the room temperature
indicator.
• Electricity supply: from the Air box to the nearest wall socket.
• App “IHS Smart ControlTM:The app can be downloaded free from the App Store or Google Play Store. See details in separate manual.

Page 6 of 12 pages
Firing manUal – Wood
Your first heating session
When you light up for the first time, you must do it carefully as all materials must be introduced to the heat gradually.The lacquer will be fully
hardened after the stove has been light up for the first time.The door must be opened carefully; otherwise there is a risk that the seals will stick
to the lacquer. In addition the lacquer may initially give off an unpleasant odour, so make sure that the room is well ventilated.
Approved fuel types
The stove is EU approved for firing with wood exclusively. It is recommended to use dried chopped wood with a water content of 12-18%. Stoking
a fire with wet wood results in soot, environmental problems, and a less efficient fuel economy.
Recommended wood types
All types of wood, for instance birch, beech, oak, elm, ash, conifers, and fruit trees can be used as fuel in your stove.The great difference is not in the
fuel value, but in the weight of the wood types per cubic metre. Beech weighs more per m3of wood than common spruce, for instance.This is why
more common spruce is required,in terms of volume, to obtain an amount of heat similar to that of beech. Heavy types of wood such as ash, beech, oak
and elm are generally not that easy to light up. In addition, they burn more slowly and give off more embers. Light types of wood such as birch, maple,
spruce and pine are more easy to light up.They burn faster and give off fewer ambers.You may therefore take advantage of the light types of wood for
lighting and use the heavier types of wood to ensure a longer burning time.
Banned fuel types
It is not allowed to stoke a fire with the following:
• Printed matter
• Plywood, plastic
• Rubber
• Fluid fuels
• Rubbish such as milk cartons, lacquered wood or impregnated wood.
• Fossil fuels
The reason that you should not apply any of the above is that during combustion they develop substances that are health hazardous and harmful
to the environment.These substances could also damage your stove and chimney, rendering the product warranty void.
Storage of wood
A moisture content of 12-18% is achieved by storing recently felled wood outdoors under a lean-to for at least one year, preferably 2 years.
Wood stored indoors has a tendency to become too dry and combust too quickly. However, it might be advantageous to store fuel for lighting
a fire indoors for a few days prior to use.
We recommend that you buy a moisture meter to continuously check that the wood has the correct moisture content before it is used for firing.
Split the wood and measure the moisture content of the split surfaces.
Recommended dimensions
The dimensions of the fuel are important to good combustion.The dimensions should be as follows:
Fuel type Length in cm Diameter in cm
Wood for kindling a fire (finely chopped) 20-40 3-5
Chopped wood 20-40 7-9
Lighting up
A successful combustion process requires that the wood is lit in the right way. A cold stove and a cold chimney challenge the combustion process.
Be careful to make a good lighting with suitably dry wood, using kindling and lighting the fire in the top layers of kindling.When the door of the
stove is opened HWAM®SmartControlTM is activated. If lighting up does not occur within 15 minutes, the system will automatically go back to
standby and the dampers will be closed.
Put split kindling, corresponding to two to three pieces of wood (about 2-2.5 kg), into the combustion chamber.The firewood cannot be stacked
higher than as indicated on the rear insulation plate (see illustration). Place 2-4 fire-lighters in between the top layers of kindling. Light up the
fire-lighters and close the stove door. Select the desired room temperature level.
If the flue gases do not reach a high enough temperature for kindling or firing, IHS Smart ControlTM and the wireless room temperature sensor
emit a stoking alarm, even if there is still unburned wood and flames in the combustion chamber.The stoking alarm is emitted to make you aware
that the fire needs more energy. Restoking with small pieces of kindling wood can often provide a more rapid and sufficient temperature rise.

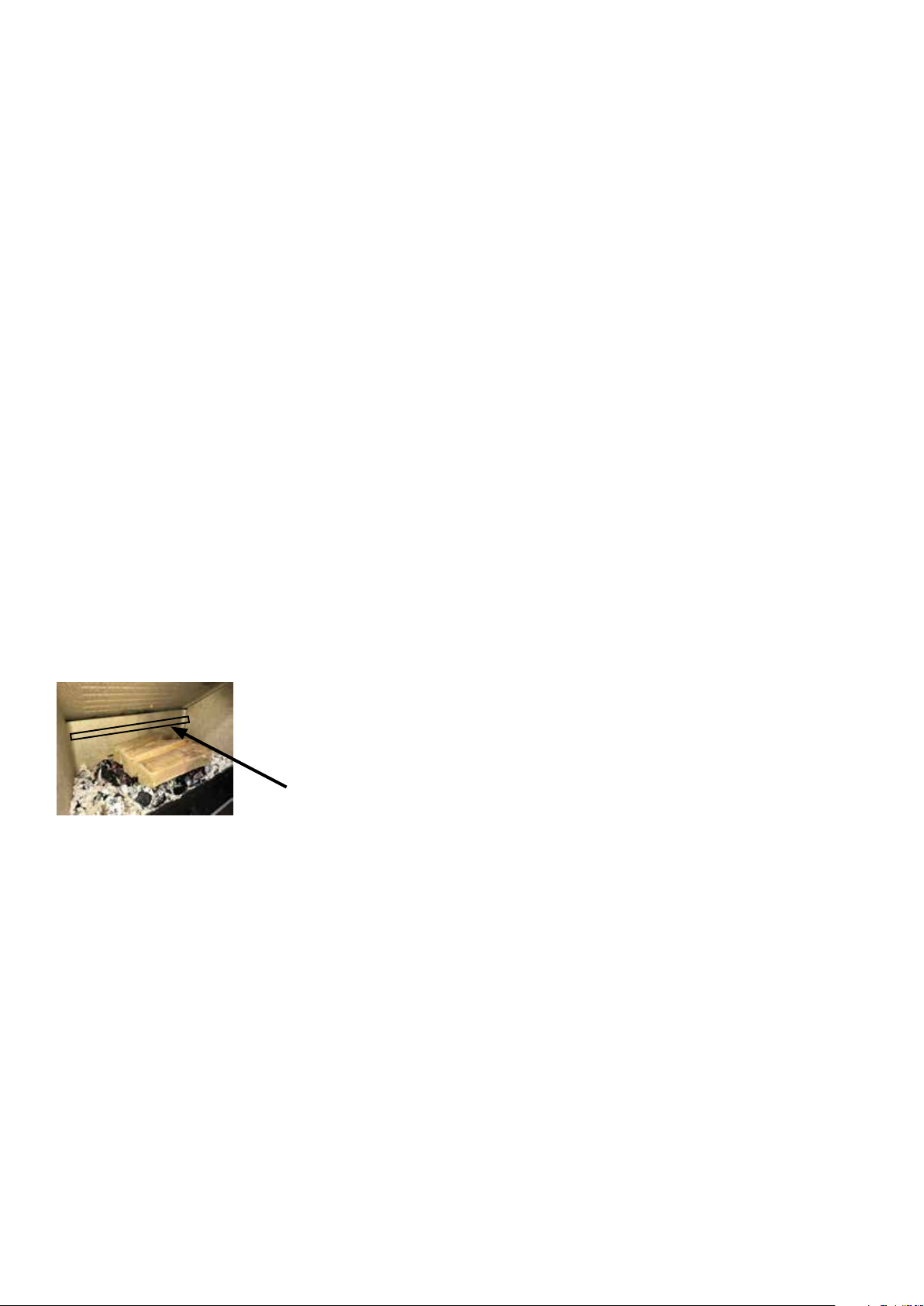

Indication for max height of stacking wood

Page 7 of 12 pages
HWAM®SmartControlTM closes all three air dampers when the stove is in standby mode. This prevents hot air from the room to enter the
chimney (heat loss).This might on the other hand result in a very cold chimney when the stove is lit. In certain cases it is necessary to assist
the draught in the chimney by burning a couple of newspaper pages on top of the wood ready to be lit. Read more on www.hwam.com
about the function of the chimney.
Important!
The appliance must not be operated with the door left open except as directed in the instructions.The door must not stay open while lighting
up. It must always be closed when the stove is in use. Otherwise the stove’s intelligent control system does not function.The door should only be
opened when lighting up, when restoking, and when cleaning the stove. Never leave a stove before there are lasting flames in the wood after firing!
The Thermostat Function
HWAM®SmartControlTM will in general have an environmentally friendly combustion and adapt to the desired room temperature.The thermo-
stat function is designed as a radiator valve.The user enters a desired heat level, which suits the room in which the stove is installed.When the
thermostat is set at a heat level, the control function will adapt to this temperature.
• If the room temperature is lower than the desired heat level, the control function increases the flue gas temperature in order to increase the
heat radiation from the stove.
• If the room temperature is higher than the desired heat level, the control function decreases the flue gas temperature, thereby giving the layer
of embers as long a life as possible before re-stoking.This will reduce the heat radiation from the stove and facilitate re-stoking without having
to light up the fire anew. If the room temperature drops below the desired level,the ember phase will be shortened, and the system will activate
a re-stoking alarm.The system will signal that a re-stoking is due at the flue gas temperature of 180° C, and at 100° C the system will enter
standby mode and all dampers will close.
• Should the room temperature be much lower than the desired heat level, the control function increases the flue gas temperature. If a satisfactory
increase in temperature does not occur, the control will activate a re-stoking alarm, since it expects that more wood is needed to increase the heat
level in the room.
• If the room temperature after a new re-stoking still does not reach the desired level, the water content in the firewood may be too high or the
draught in the chimney too weak. HWAM®SmartControlTM always strives for a sufficiently high flue gas temperature to ensure an environmen-
tally friendly combustion.
Stoking
When alarm for re-stoking sounds the stove is ready for re-stoking.The alarm for re-stoking will come via the room temperature sensor.The
app IHS Smart ControlTM will also come with a notification that it is time for re-stoking if the app is opened. For more information on the app,
see separate manual.
The amount of woo that is used for re-stoking should be adjusted based on the current heat demand. In terms of combustion technique, you
should always stoke the stove with at least two pieces of wood at a time even if you only use a small amount of wood.The firewood cannot be
stacked higher than as indicated on the rear insulation plate (see illustration).
You can also choose not to restoke. After a while the stove will then automatically go into hibernation.
Important!
Never leave a stove before there are lasting flames in the wood after re-stoking!
During combustion, the outer surfaces of the stove will become hot, and due care must therefore be shown.
Firing with coal and pet coke
HWAM 5530 is not suitable for firing with coal or pet coke.

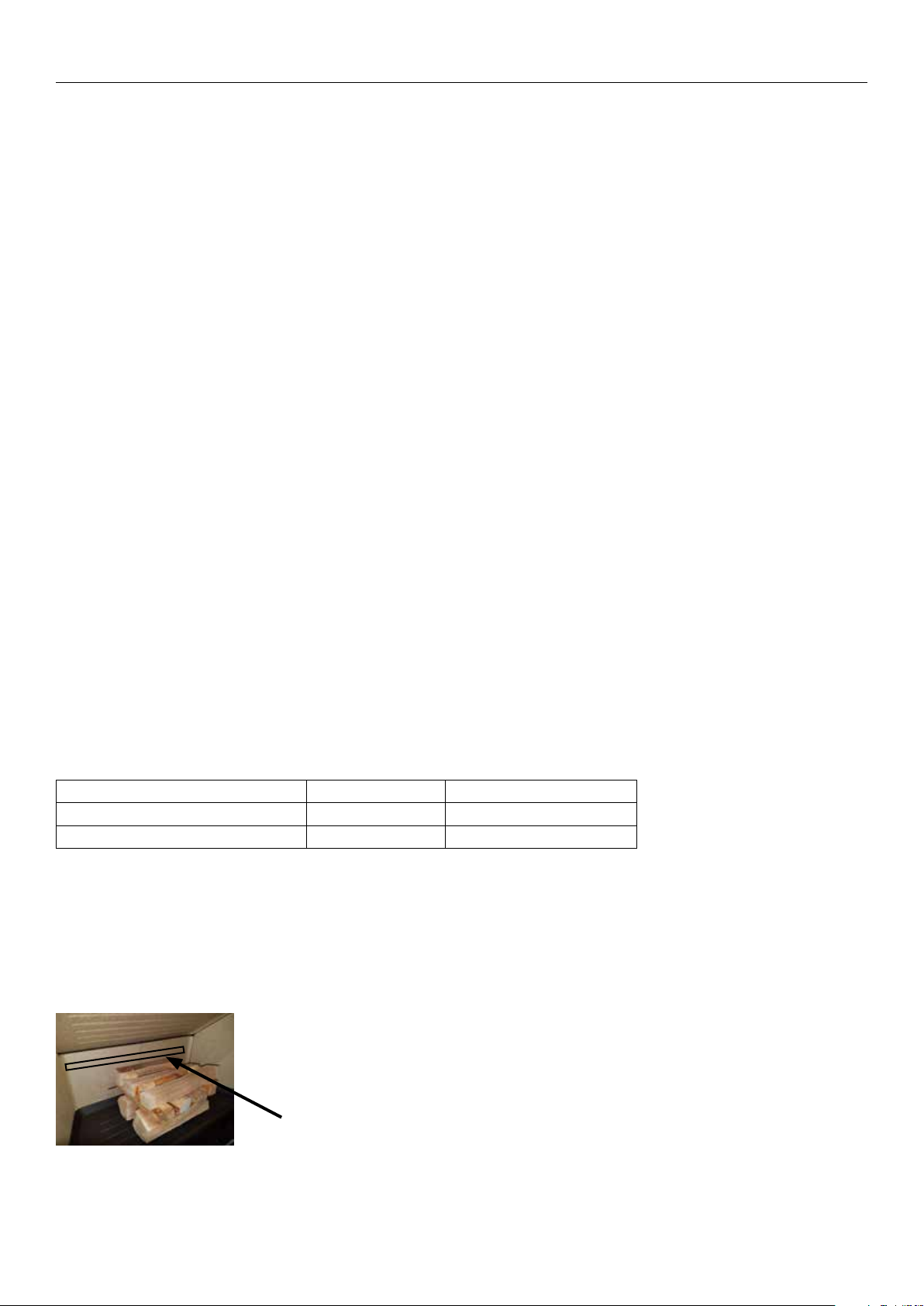

Indication for max height of stacking wood

Page 8 of 12 pages
ingeneral aboUT Firing
Chimney
The chimney is the “motor” of the stove and it is crucial for the functioning of the stove.The chimney draft provides a partial vacuum in the stove.
This vacuum removes the smoke from the stove, sucks air through the dampers for the so-called glass pane rinse which keeps the glass free of
soot, and sucks air into the combustion via the HWAM®SmartControlTM.
The chimney draft is created by the differences in temperature inside and outside the chimney.The higher the temperature within the chimney,
the better the draft (a brick chimney takes longer to warm through than a steel chimney).
On days where the weather and wind conditions create insufficient draught inside the chimney, it is even more important to warm up the chimney
as quickly as possible.The trick is to quickly get some flames going. Split the wood into extra fine pieces, use an extra firelighter, etc.
If the stove has not been used for a longer period, it is important to check that the chimney pipe is not blocked.
It is possible to connect several devices to the same chimney. However, it is important to first check the applicable rules. Contact your local
chimney sweeper for the approval of your chimney.
Chimney sweeping
To prevent the risk of chimney fires, the chimney must be cleaned every year.The flue duct and the smoke chamber above the baffle plate must
be cleaned together with the chimney. If the chimney is too tall to be cleaned from above, it must be equipped with a soot door.
In case of a chimney fire and overheating, the HWAM®SmartControlTM will enter a security mode and automatically adjust all dampers, effectively
quenching the fire. Do not open the stove door, since that might cause the fire to rekindle. Contact the fire brigade. After a fire, the stove should
be checked by a chimney sweep before use.
Quick or strong heat
Quick or strong heat is obtained by burning many small pieces of wood.
Maximum firing amount
Fuel Maximum amount per hour
Wood 2.5 kg
Warning: Should these limits be exceeded, the stove will no longer be covered by the factory guarantee, and it may be damaged due to excessive
heat.The stove has been approved for intermittent use.
Normal re-firing interval for nominal firing
Fuel Kg Normal firing interval
Wood Ca. 1.8 65 min
Prolonged burning time
You achieve the slowest combustion by setting the desired room temperature at level 0. At this level the combustion takes place with the lowest
possible flue gas temperature and the ember phase will be drawn out as long as possible.
How to achieve the best combustion
HWAM®SmartControlTM is purposely designed to generate the cleanest and the most economical combustion. A good combustion is achieved
when the fire gets the right amount of oxygen supply at the right time and place in the combustion chamber. HWAM®SmartControlTM allows for
variations in external circumstances. Nevertheless, it is important to use clean and dry wood (humidity approx. 12-18%). Read more on www.
hwam.com.
Types of fuel
We recommend using birch or beechwood, which has been split and stored for at least one year outdoors under cover.Wood stored indoors
tends to become too dry and burn too quickly. It is recommended that kindling wood is stored indoors for a couple of days prior to use.
The stove may be damaged by very high temperatures and the glass may turn white, for example.This can be avoided by taking great care
with types of fuel that develop excessive heat, such as briquettes. If the flue gas temperature exceeds 580oC, the HWAM®SmartControlTM
will revert to safety adjustments and automatically turn down the air valves to avoid overheating. When the temperature is reduced to
450oC, the normal functions apply again.

Page 9 of 12 pages
Cleaning
Cleaning the wood-burning stove
The stove must be cold before you start cleaning it. Use a dry, soft lint-free cloth to dust off the painted surfaces. Do not use water, spirits or any
type of detergent, as this will damage the paint.
We recommend that the inside of the window should be cleaned with damp kitchen roll dipped in ash. Then wipe off with clean kitchen roll.
Use a conventional detergent for glass surfaces to clean the outside of the window.Apply the detergent to a clean, dry cloth and then polish the
outside of the window. Avoid spraying detergent directly on the window, as it may drip down and damage the painted surfaces of the stove.We
recommend that you only wipe off a cold stove.
Ash
Ash should be removed regularly to ensure that it does not block the air vents in the rear insulation plate of the combustion chamber.
We recommend removing ash from the combustion chamber with an ash suction device.
Ash can be disposed of through daily refuse collection. Be aware that embers in the ash can remain hot up to 24 hours after the fire in the stove
has gone out!
mainTenanCe
Maintenance
Regularly check to make sure that seals in the door are complete and soft. If not, they should be replaced. Use only original spare parts.
The stove should be thoroughly cleaned once a year.Ash and soot must be removed from the combustion chamber. Use copper grease to lubricate
hinges and locking fastenings.
Service inspection
At least once every other year,the stove should receive a thorough,preventative service inspection.Among other things, the service inspection covers:
• A thorough cleaning of the stove.
• Checking gaskets. Replace gaskets if they are not intact or are no longer soft.
• Inspection/possible replacement of heat insulation material.
• Lubricating the hinges and locking fastenings with copper grease.
The inspection must be performed by a qualified professional. Use only original spare parts.

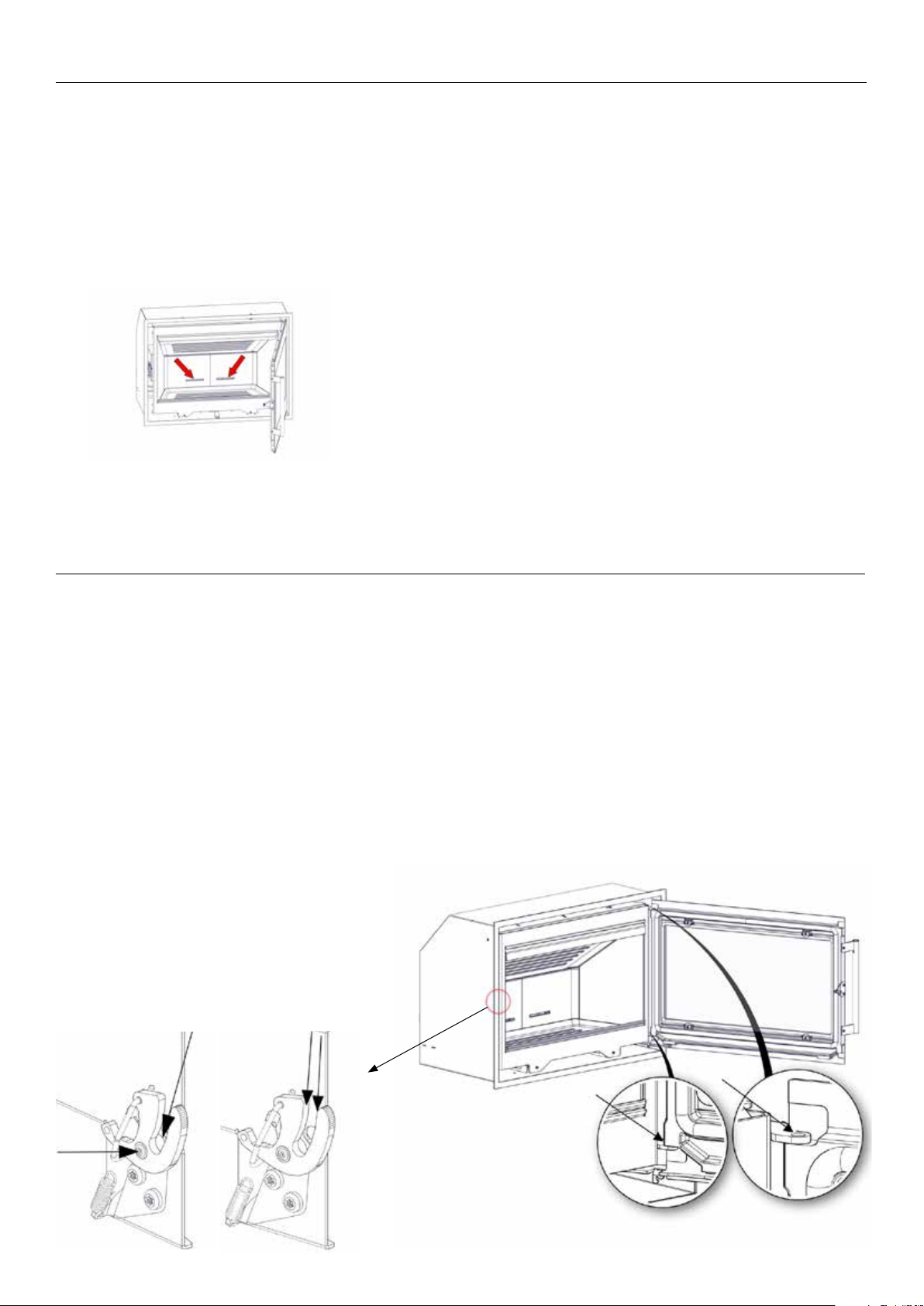

Lubricating the hinges and locking fastenings
with copper grease:

Page 10 of 12 pages
Cleaning
Remove the smoke shelf. Push the plate forward and lift it up a bit to the side.Tilt one side downward. The plate is now free and can be removed
from the combustion chamber. Unless the safety fittings for transportation (2 split pins) have not already been removed, start by removing the
split pins. Lift the steel smoke deflector plate off of the hooks so that it can be removed.
Insulation
The efficient, but porous insulation of the combustion chamber may, in time, be worn and damaged. Cracks in the insulation are irrelevant to
the efficiency of the stove. However, it should be replaced when, due to wear and tear, it has been reduced to less than half its original thickness.
Surface
Usually, it is not necessary to give a finishing treatment to the painted surfaces of the wood-burning stove.Any damage to the paint may, however,
be remedied with spray paint, which can be bought from your stove dealer.
Guarantee
The guarantee does not cover damage due to insufficient maintenance!
operaTional problemS
Blackened glass
• The wood is too damp. Only use wood stored for at least 12 months under cover and with a moisture level of approximately 12-18%.
• The doors seals may be not be tight.
• Intermittent firing.Allow the stove to heat through properly.
Smoke in the room when opening door
• The damper in the chimney may be closed. Open the damper.
• Insufficient chimney draft. See section on chimney or contact chimney sweep.
• Soot door leaking or dislodged. Replace or refit.
• Never open door when there are still flames in the wood.
Uncontrollable combustion
• A seal in the door is not completely tight. Replace the seal.
Safety alarms
In case the safety alarms go off, you must not use the stove. Contact your dealer as soon as possible.
If problems occur that you cannot fix yourself, please consult your wood-burning stove dealer.
deClaraTion oF perFormanCe
The DoP can be downloaded from our website via the following link:
HWAM 5530 www.hwam.com/dop/5530ihs

Page 11 of 12 pages
