GrandTec GRAND Wi-Fi VIDEO SERVER PRO User manual

User’s Manual
ISSUE：Mar 16, 2010
GRAND Wi-Fi VIDEO SERVER PRO
Video & Audio Transmission/ iPhone Web Browser Support
INDEX
1. Package Contents……………………………..………….. 1
2. Introduction………………………………….……………... 1
3. System Requirements...………..………….……………… 1
4. Product Features…….……….……………….…………... 2
5. Hardware & Software Installation……..…..……..……… 3
5.1 Hardware Installation……….....….………………..…. 3
5.2 Software Installation.............…….…………………… 4
5.3 Internet Browser Settings….…….…………………… 6
6. Network Installation…….………..………………….….… 7
6.1 Wired Network Installation..………………………..…. 7
6.2 Wireless Network Installation...…....………………… 10
7. Using the Built-In Web for Configuration………....…….. 14
7.1 Language Select…………..………………………..…. 14
7.2 Display……..……………....…………………………… 15
7.3 Video Settings….….……..…….……………………… 16
7.4 Audio Settings…………………….……………………. 19

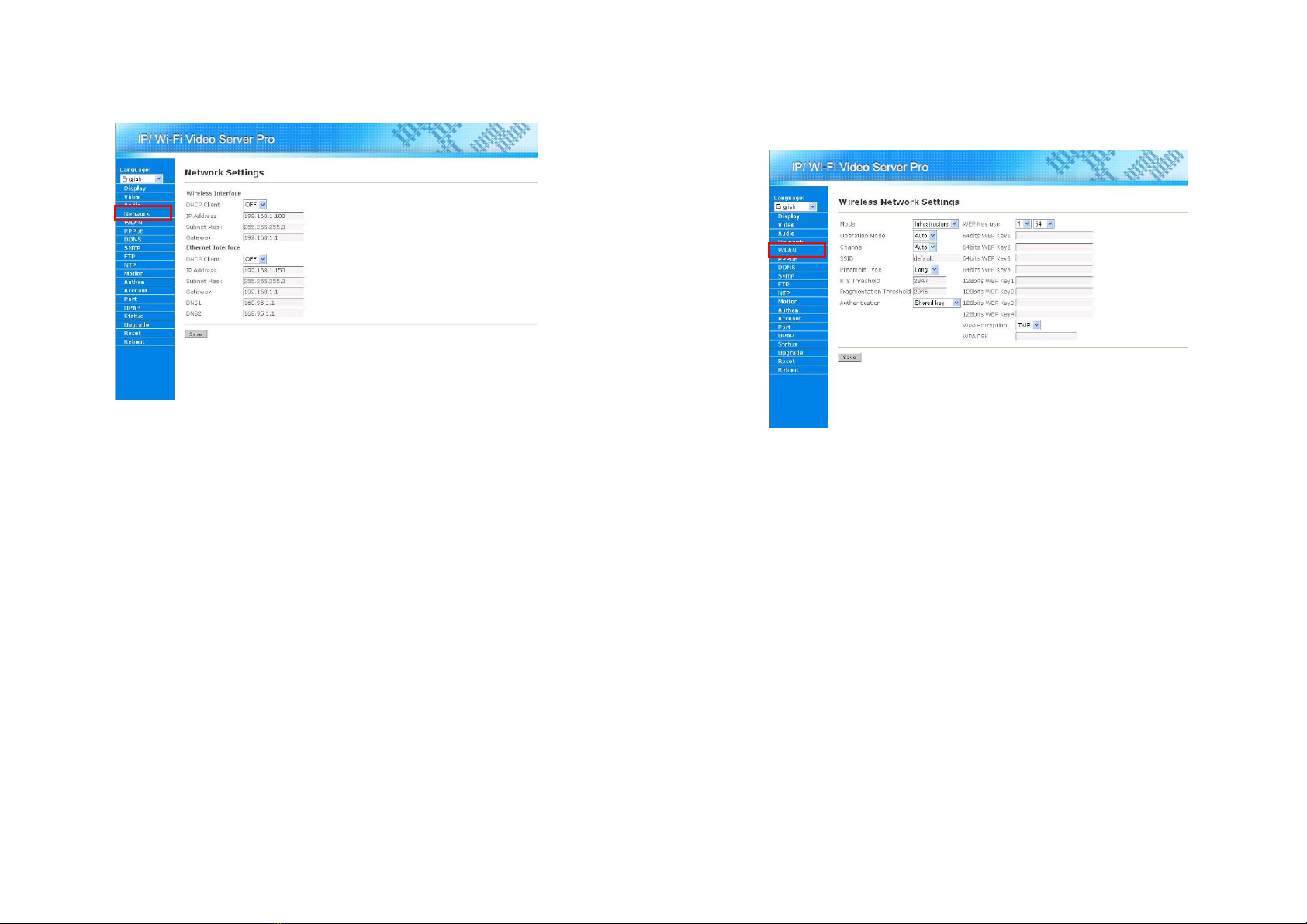

7.5 Network Settings…...………………………………… 20
7.6 Wireless Network Settings…………………………… 21
7.7 PPPoE Configuration……..………………………..…. 22
7.8 Dynamic DNS..…………....…………………………… 23
7.9 SMTP Settings…….……..…….……………………… 24
7.10 FTP Settings…………………….……………………. 25

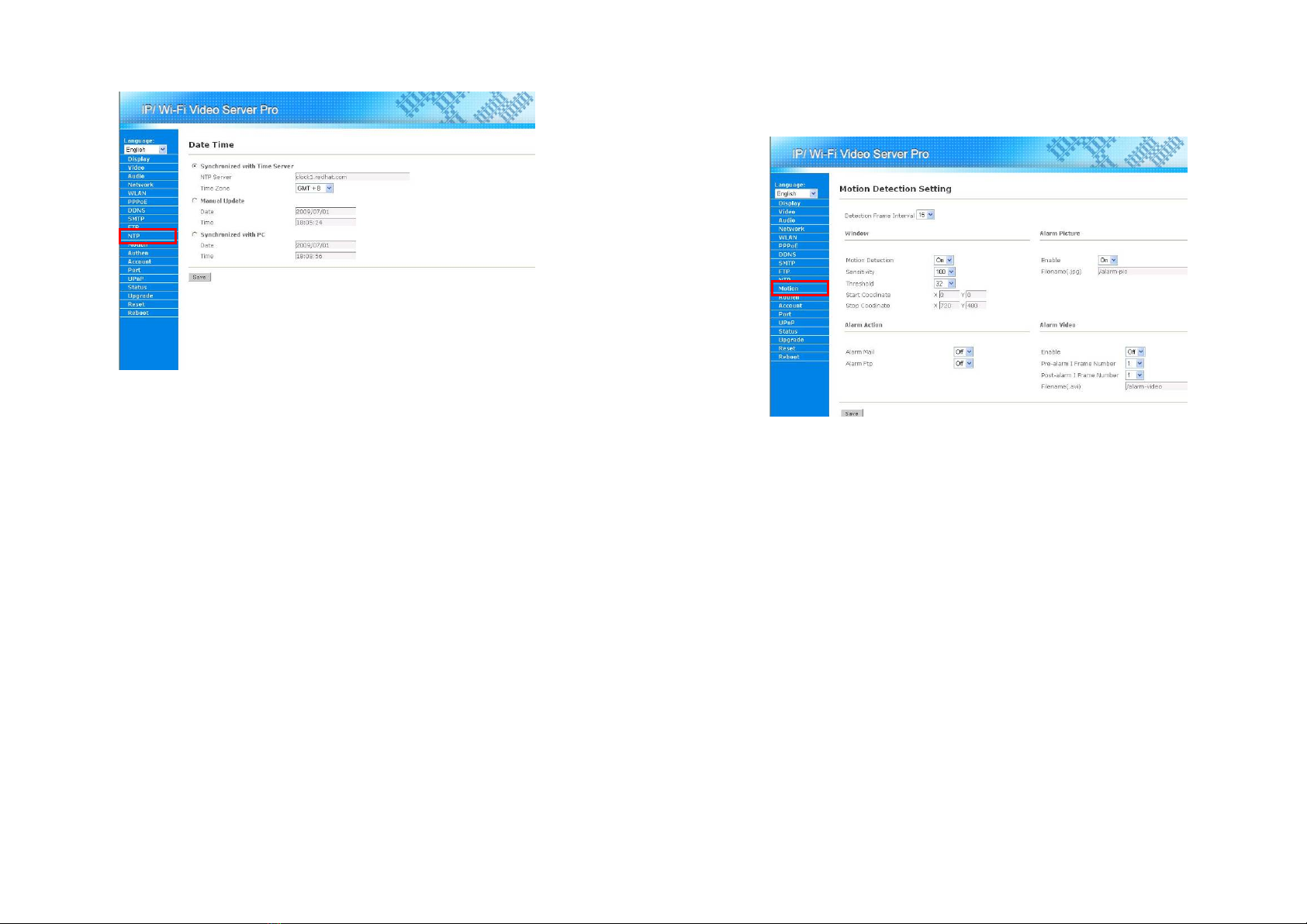

7.11 Date and Time Settings……………………………… 26
7.12 Motion Detection Settings…………………………… 27
7.13 Authentication Settings…….…...…………………… 28
7.14 Account Management….…….……………………… 29
7.15 Port Settings………….…..………………………..…. 30

7.16 UPnP Services..………....…………………………… 31
7.17 Video Connection Status….….……………………… 32
7.18 Firmware Update……………….……………………. 33

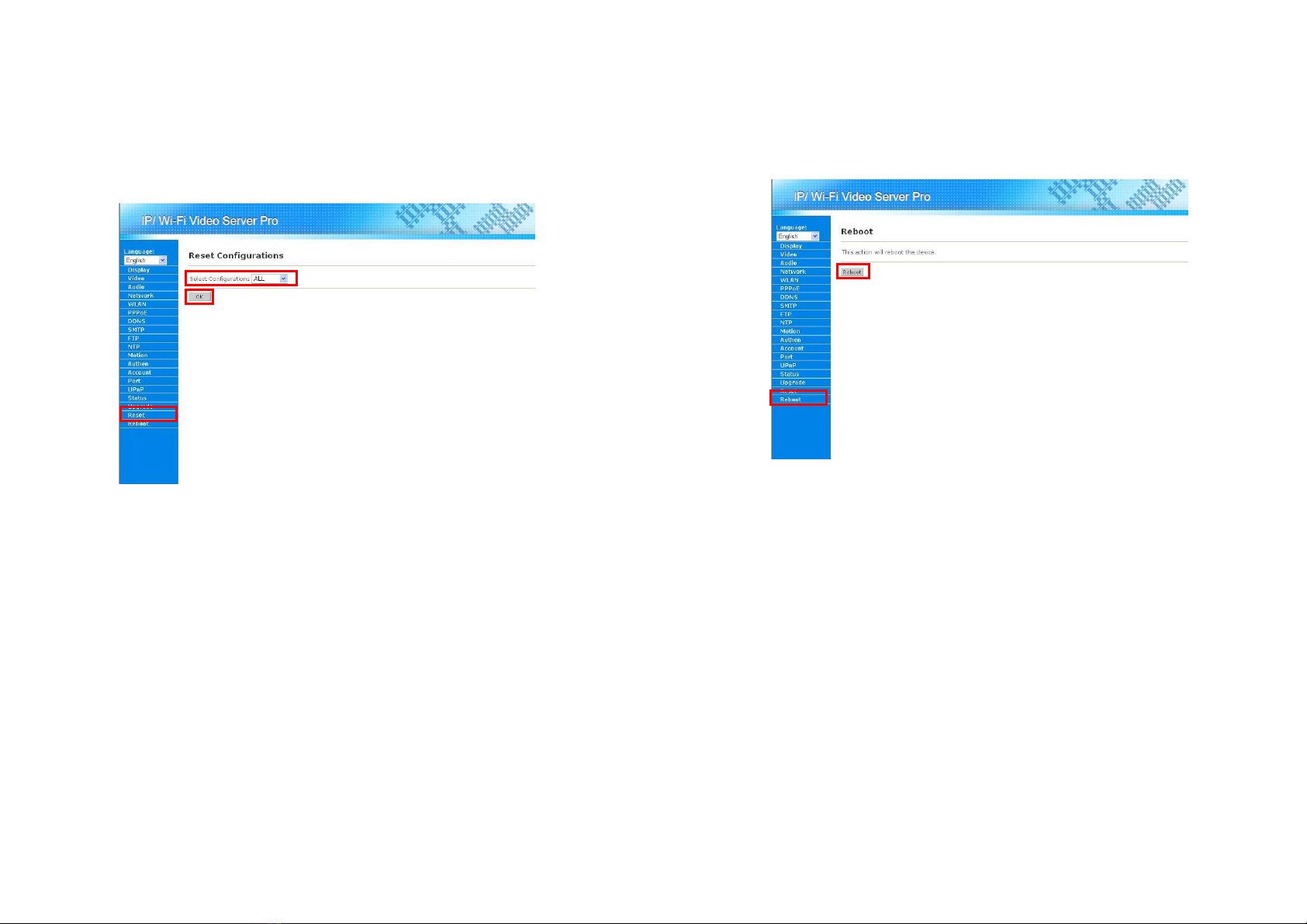

7.19 Reset Configuration…..……………………………… 34
7.20 Reboot the Camera………..………………………… 35

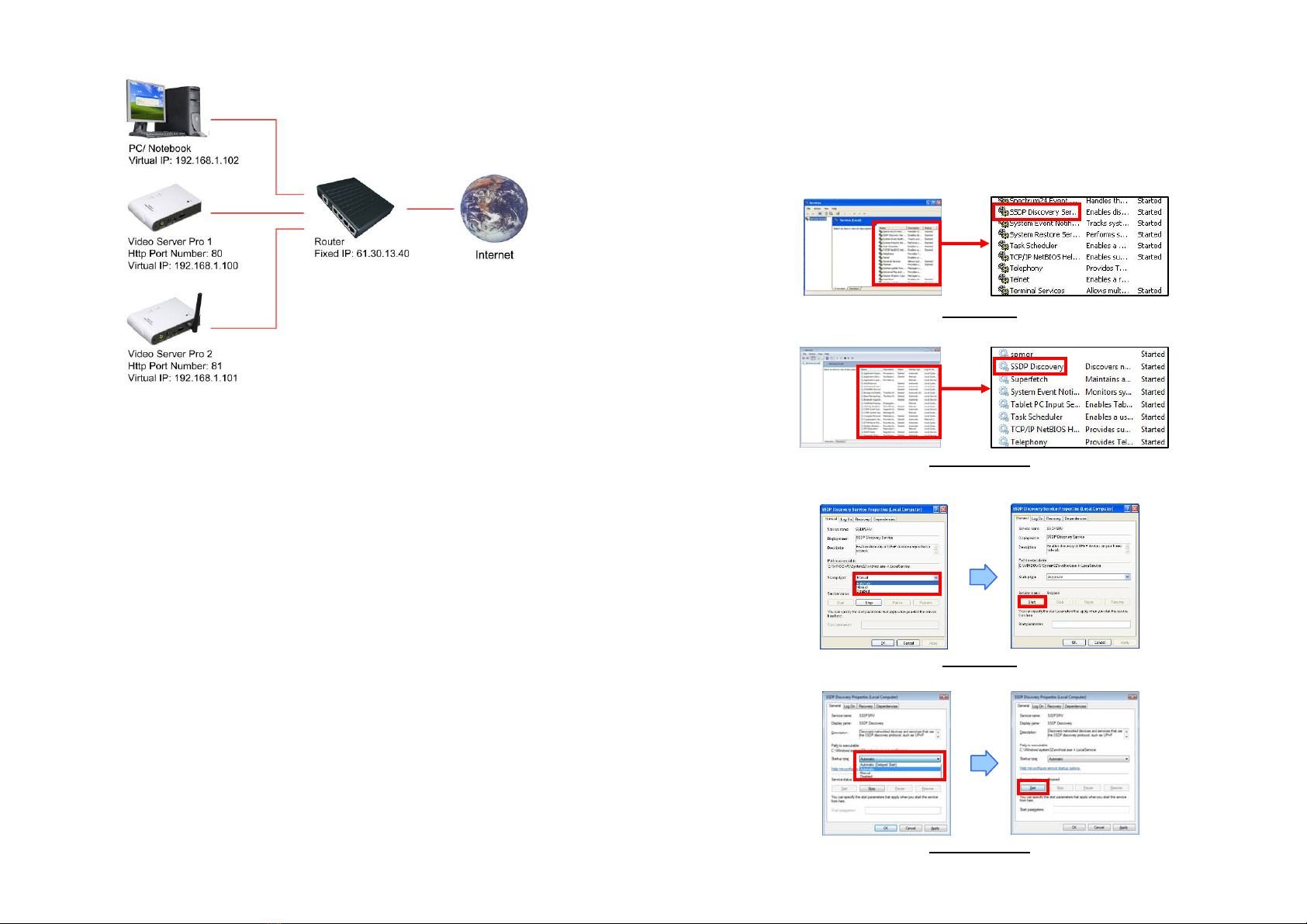

8. Connecting Multiple Video Servers to a Router……….... 36
9. Using UPnP to Connect the Video Server……..………... 37
10. Surveillance Software…….……..………………………. 39
10.1 Starting the Mega Pixel IP Camera Viewer...……… 39
10.2 Motion Detect Setting…..…………………………… 44
10.3 Play the Recorded Files...…………………………… 45
11. Troubleshooting………..………..………………………. 46
1
1. Package Contents
Grand Wi-Fi Video Server Pro
Quick Guide
RJ-45 Cable
Power Adapter (DC 5V, 2A)
Video Cable
CD Driver with user manual/ software (IP Detect)/ Surveillance software
2. Introduction
Grand Wi-Fi Video Server Pro allows you to remotely view the video and listen in the audio over the
network (supports iPhone Web Browser).
The surveillance software allows you to record the video in AVI format onto remote PC for future
viewing and motion detection function for sending detected images to present email address.
With the Grand Wi-Fi Video Server Pro,you can share your DVD program or TV Program in your
Internet web site or connect to a Video Camera to monitor your home or baby room in internet from
anywhere
3. System Requirements
Router ( with DDNS or PPPoE function ) is required
100Base-T Ethernet or 1000Base TX Fast Ethernet
Processor:
IE Remote View: Intel Pentium4 2.4GHz or higher
Surveillance Software:
1 channel: Intel Pentium4 2.4GHz or higher
2~7 channel: Intel Pentium Core 2 Duo 2.4 GHz or higher
8~16 channel: Intel Pentium Core 2 Quad 2.83 GHz or higher
RAM: 1GB or higher
Web browser: Microsoft Internet Explorer V6.0 or higher

2
4. Product Features
Support one video and audio Input.
Supports one video and audio output.
High Resolution Image Processor
-Support NTSC Video Resolution (176x120/352x240/720x480)
-Support PAL Video Resolution (176x144/352x288/720x576)
High Performance Image Compression.
The provided IP Detect tool allows you to quickly search for and set up the Video Server Pro
located in the local area network (supports Windows 7/ Vista/ XP 32bit).

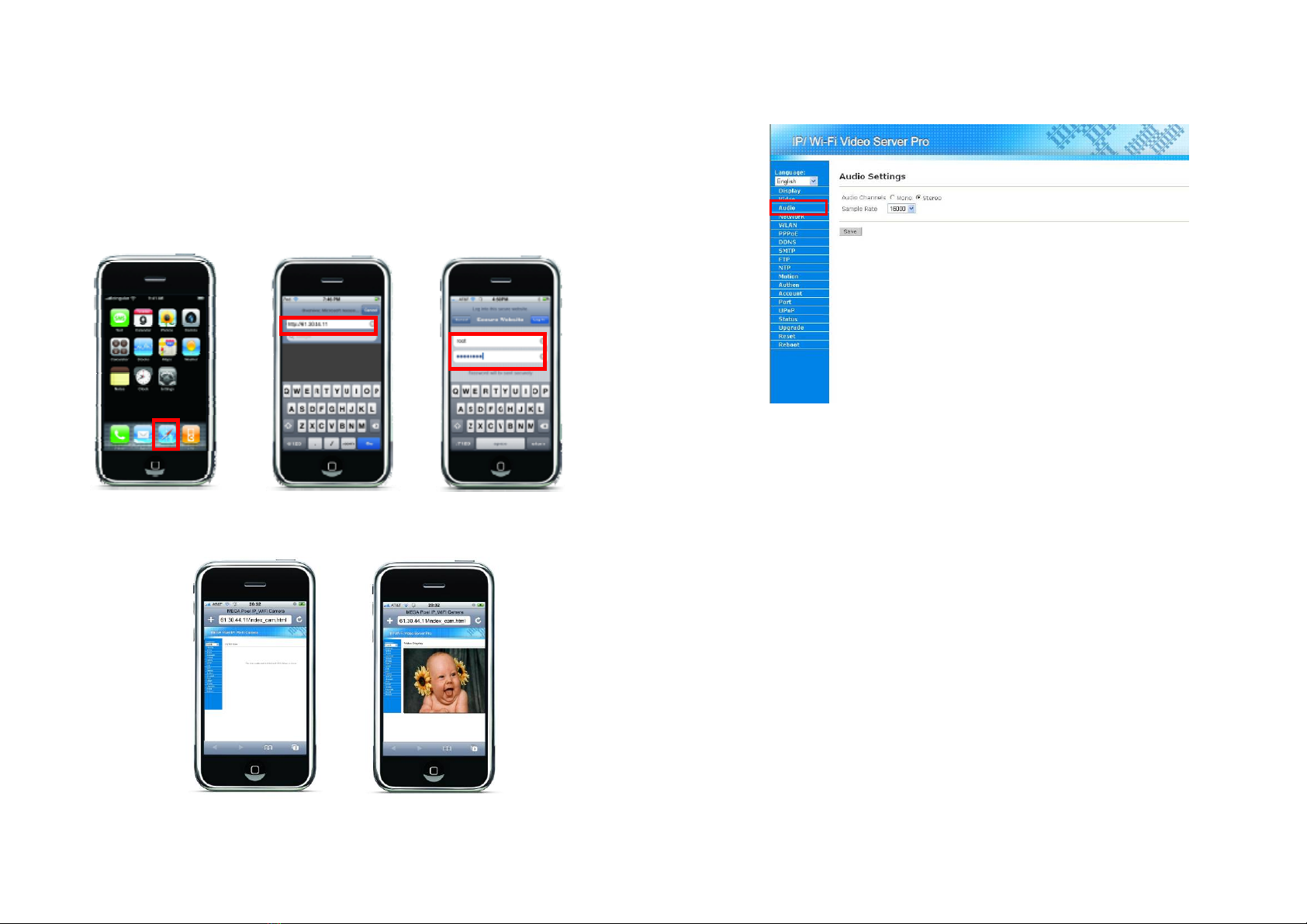

Supports iPhone Web Browser (in MJPEG format).
Supports Internet Explorer and Firefox browser for remote viewing on PC.
Compatible with Windows 7/ Vista/ XP and Linux OS (32bit).
Supports Motion detected Mail Function
Supports digital zoom in function.
12-LED infrared for night vision.
Network
-LAN connector: RJ45 port to connect to 10/100 Mbps Ethernet
-Wireless: Built-in 802.11g Wi-Fi Module (Grand Wi-Fi Video Server Pro)
Supports TCP/IP / HTTP / FTP / SMTP / DHCP / PPPoE / DDNS / UPnP / NTP service
Multi-Languages OSD: English / French / Portuguese / German / Italian / Netherland / Spanish/
Russian / Japanese / Traditional Chinese
Bundle Surveillance Software (supports Windows 7/ Vista/ XP (32bit):
-Video File Management: Video file database and playback control.
-Storage Recyclable: When running out of disk space, files with the earliest date will be
overwrite automatically.
-Motion Detection: Detect any movement in the mask area and invoke the alarm as soon as
movement is detected.
-Supports up to 16 cameras remote view and record simultaneously.
NOTE: When remote view and record 16 cameras simultaneously, a system with higher
CPU performance is recommend
-Multi-Languages OSD: English/ French/ German/ Italian/ Dutch/ Spanish/ Russian/
Japanese/ Traditional Chinese.
-Supports scheduled recording function.
3
5. Hardware & Software Installation

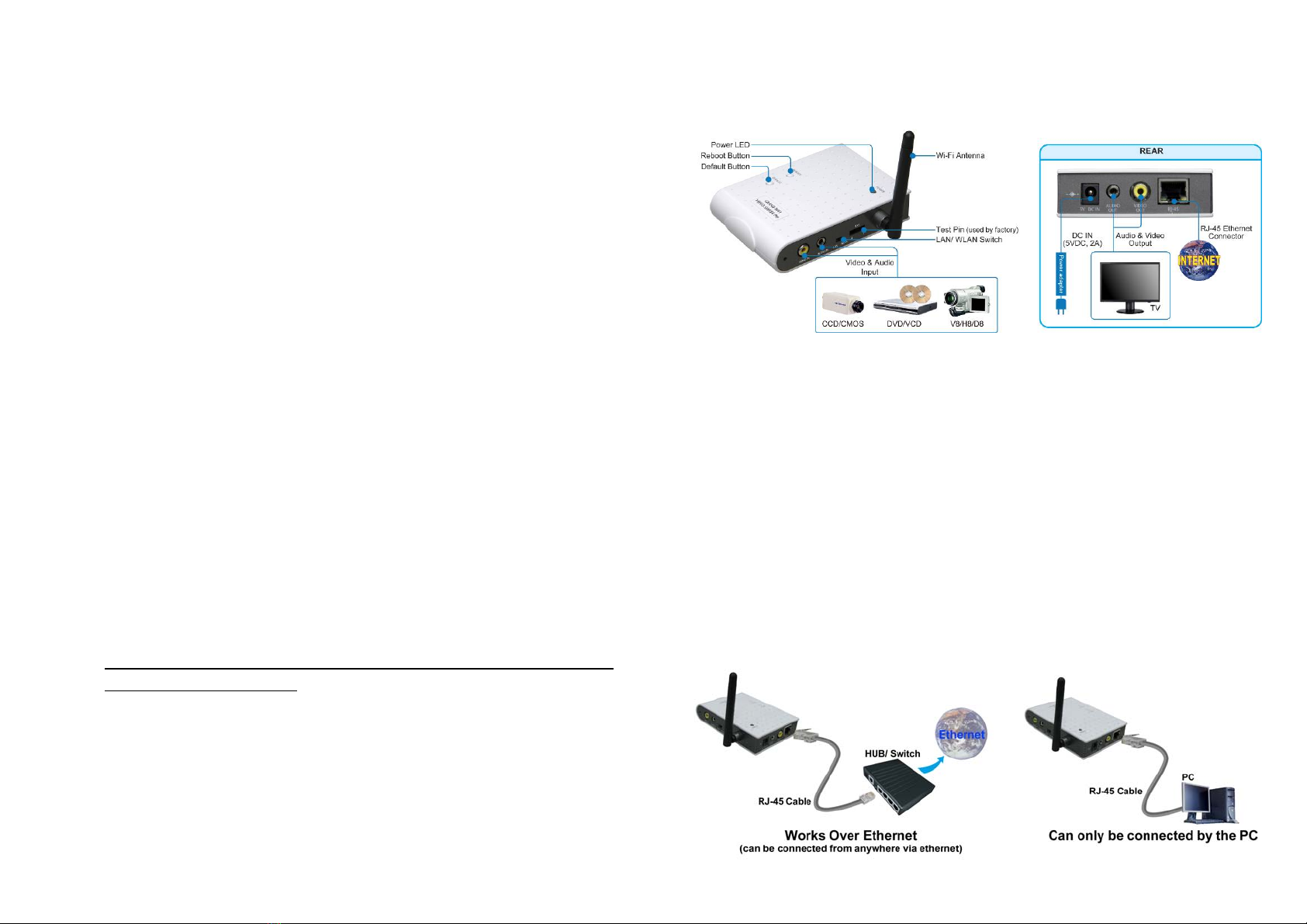

5.1 Hardware Installation
5.1.1 Hardware Connection
Default Button: Reset all settings to the original (factory) setting.
(Default IP Address: 192.168.1.100, Default User Name: root, Default Password: admin)
Reboot Button: Press the button to restart the video server.
Video & Audio Input: Connect to video source (DVD player or CCD camera).
LAN/ WLAN Switch: Select your network connection Wireless/ RJ-45.
DC Input: Connects to the power adapter. (5VDC, 2A)
RJ-45 Ethernet Connector: For connects to 10Base-T Ethernet cabling or 100Base-TX Fast
Ethernet cabling.
Video & Audio Output: Connect to display device (monitor or TV)
5.1.2 Connecting to a Network
Connect the Mega Pixel Wi-Fi Camera to an Ethernet hub or switch by using a standard cable. You
can also connect directly to a computer by using the cross-over wire provided.

4
5.2 Software Installation
Insert the driver CD into your CD-ROM drive, then the autorun function will start up the shell program. If
the autorun window does not display, please execute the Autorun.exe program to bring out the autorun
screen.
Follow the below steps to install the software program:
Step1: Press the Install Audio and Video Codec to install the audio and video codec.
click Next to continue select the installation folder
and click Next to continue
select the DirectX patch and
click Next to continue
click Next to continue click Install to start
the installation
click Finish to complete
the installation
5
Step2: Press the Install Mega Pixel IP Camera Viewer to install the surveillance software.
Step3: Press the Install IPCam Setup to install the IPCam Setup program.
Step4: The shortcut icons ( Mega Pixel IP Camera Viewer and IPCamSetup) will be shown on
your desktop after installing.
click Next to continue select the installation folder
and click Next to continue
select the start menu folder
and click Next to continue
click Install to start
the installation
Installing click Finish to complete
the installation
click Next to continue select the installation folder
and click Next to continue
Create a desktop icon and
click Next to continue
click Install to start the
installation
Installing click Finish to complete
the installation

6
5.3 Internet Browser Settings
NOTE: Your browser must be enabled the ActiveX for connect to the Video Server Pro first time.
Step 1: Start the internet browser.
Step 2: Click the “Tools” at the top of the screen, and select “Internet Options…”.
Step 3: Select the “Security” tab, and click the “Custom Level”. Set to “Enable” or “Prompt” on the
“Download unsigned ActiveX controls” and “Initialize and script ActiveX controls not marked as
safe” items.
7
6. Network Installation
6.1 Wired Network Installation

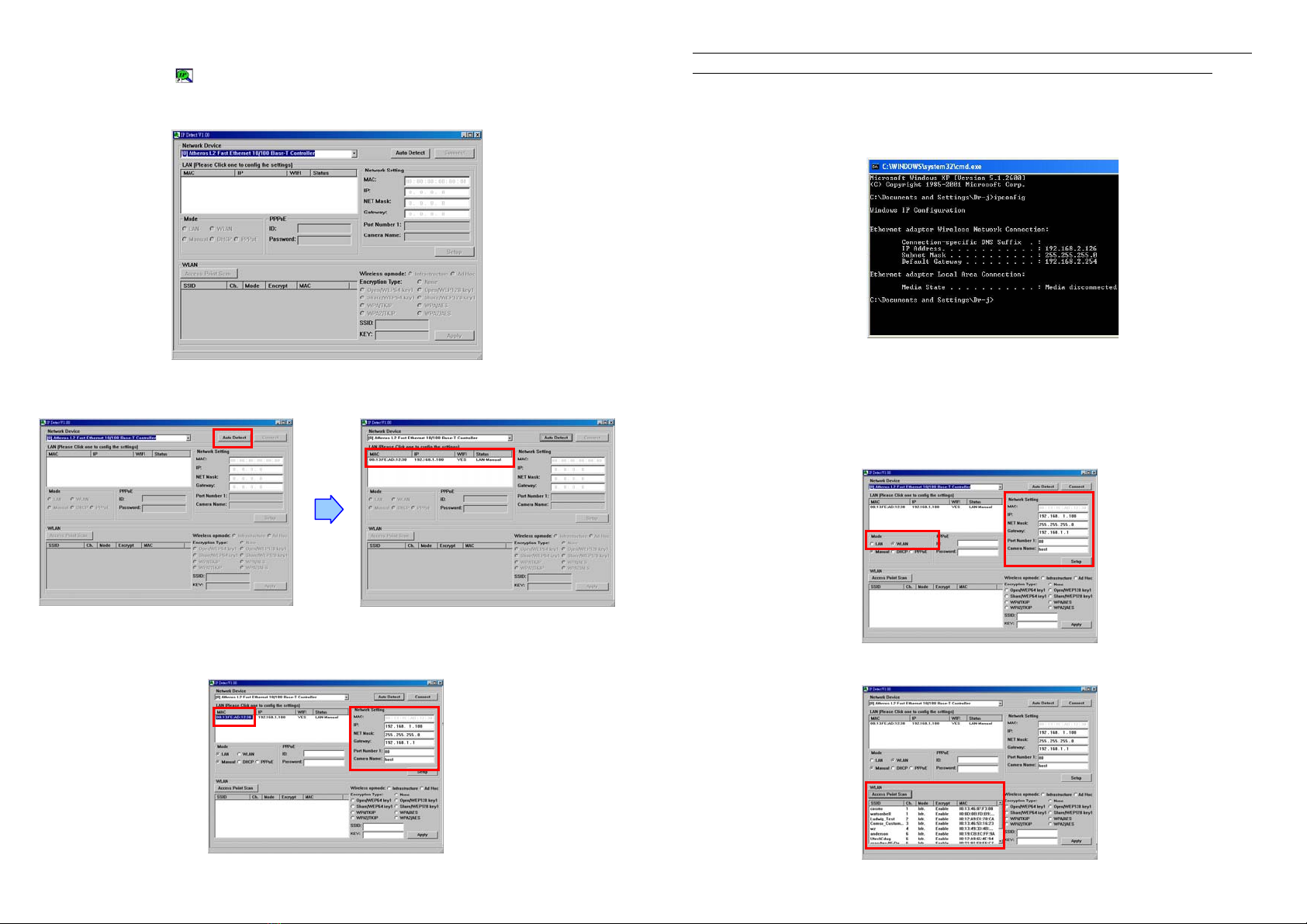

Step 1: Double click on ( ) IPCam Setup’s execution file on the desktop, and the following screen will
appear.
Step 2: Click the “Auto Detect” button, and your video server’s MAC and default IP Address will be listed.

8

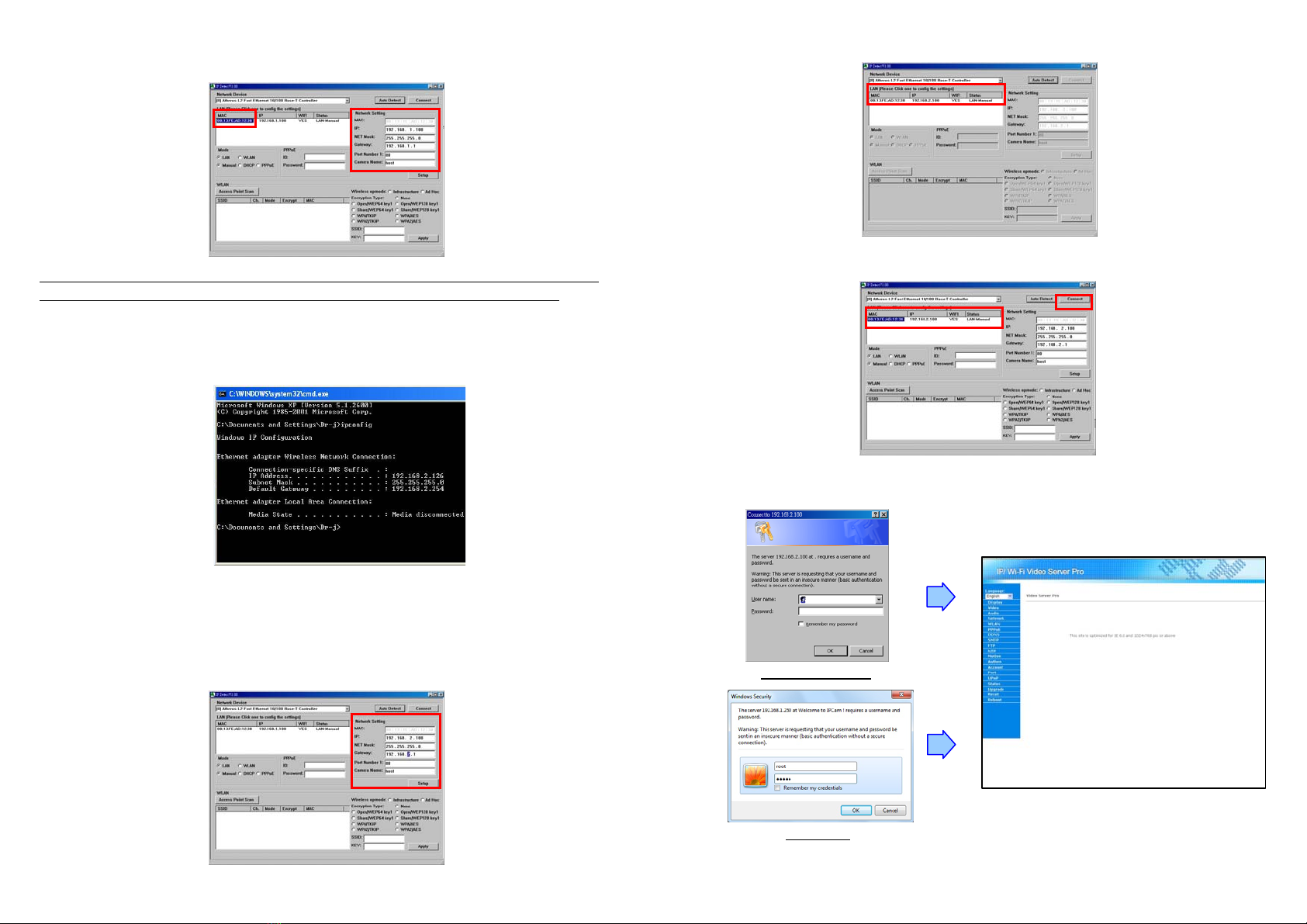

Step 3: Click on the “MAC”, and the “IP”, “Net Mask”, “Gateway”, “Port Number 1” and “Camera Name”
will be displayed in the “Network Setting” area.
NOTE: The IP Address, Net Mask and Gateway must be corresponding with your network settings for
you to access the video server. You can follow the steps below to get your network information.
-Open the Microsoft DOS Command Prompt shell window.
Windows XP/ Vista: <Start> →<Programs> →<Accessories> →<Command Prompt>
Windows 7: <Start> →<All Programs> →<Accessories> →<Command Prompt>
-Type “ipconfig” and then press “Enter” to get your network information.
-Assign IP Address, Netmask (Subnet Mask) and Gateway (Default Gateway) for the Wi-Fi
Video Server Pro. (You must use the same Net Mask (ex. 255.255.255.0) and Gateway
(192.168.2.254). You can use any IP address between 192.168.2.1-254, but make sure that the
IP Address has never been used or is used by another IP addressable device.)
Step 4: Directly modify the “IP”, “Net Mask” and “Gateway”, and click “Setup” to save.
9
Step 5: Click the “Auto Detect” button again, and the new network information will be shown.
Step 6: Select the “MAC” and click the “Connect” button to connect the Wi-Fi Video Server Pro.
Step 7: When the login screen appears, enter the user name and password (default user name: root,
default password: admin), and click the “OK” button to login your video server.
Windows XP/ Vista
Windows 7

10
6.2 Wireless Network Installation
Step 1: Double click on ( ) IPCam Setup’s execution file on the desktop, and the following screen will
appear.
Step 2: Connect the Wi-Fi Video Server Pro to the PC with the crossover cable. Click the “Auto Detect”
button specified as below, and your video server’s MAC and default IP Address will be listed.
Step 3: Click on the “MAC”, and the “IP”, “Net Mask”, “Gateway”, “Port Number 1” and “Camera Name”
will be displayed in the “Network Setting” area.
11
NOTE: The IP Address, Net Mask and Gateway must be corresponding with your network settings for
you to access the video server. You can follow the steps below to get your network information.
-Open the Microsoft DOS Command Prompt shell window.
Windows XP/ Vista: <Start> →<Programs> →<Accessories> →<Command Prompt>
Windows 7: <Start> →<All Programs> →<Accessories> →<Command Prompt>
-Type “ipconfig” and then press “Enter” to get your network information.
-Assign IP Address, Netmask (Subnet Mask) and Gateway (Default Gateway) for the Wi-Fi
Video Server Pro. (You must use the same Net Mask (ex. 255.255.255.0) and Gateway
(192.168.2.254). You can use any IP address between 192.168.2.1-254, but make sure that the
IP Address has never been used or is used by another IP addressable device.)
Step 4: Select “WLAN” in the “Mode” selection. Directly modify the “IP”, “Net Mask” and “Gateway”, and
click “Setup” to save.
Step 5: Click on the “Access Point Search” button and all available access points will be listed.

12

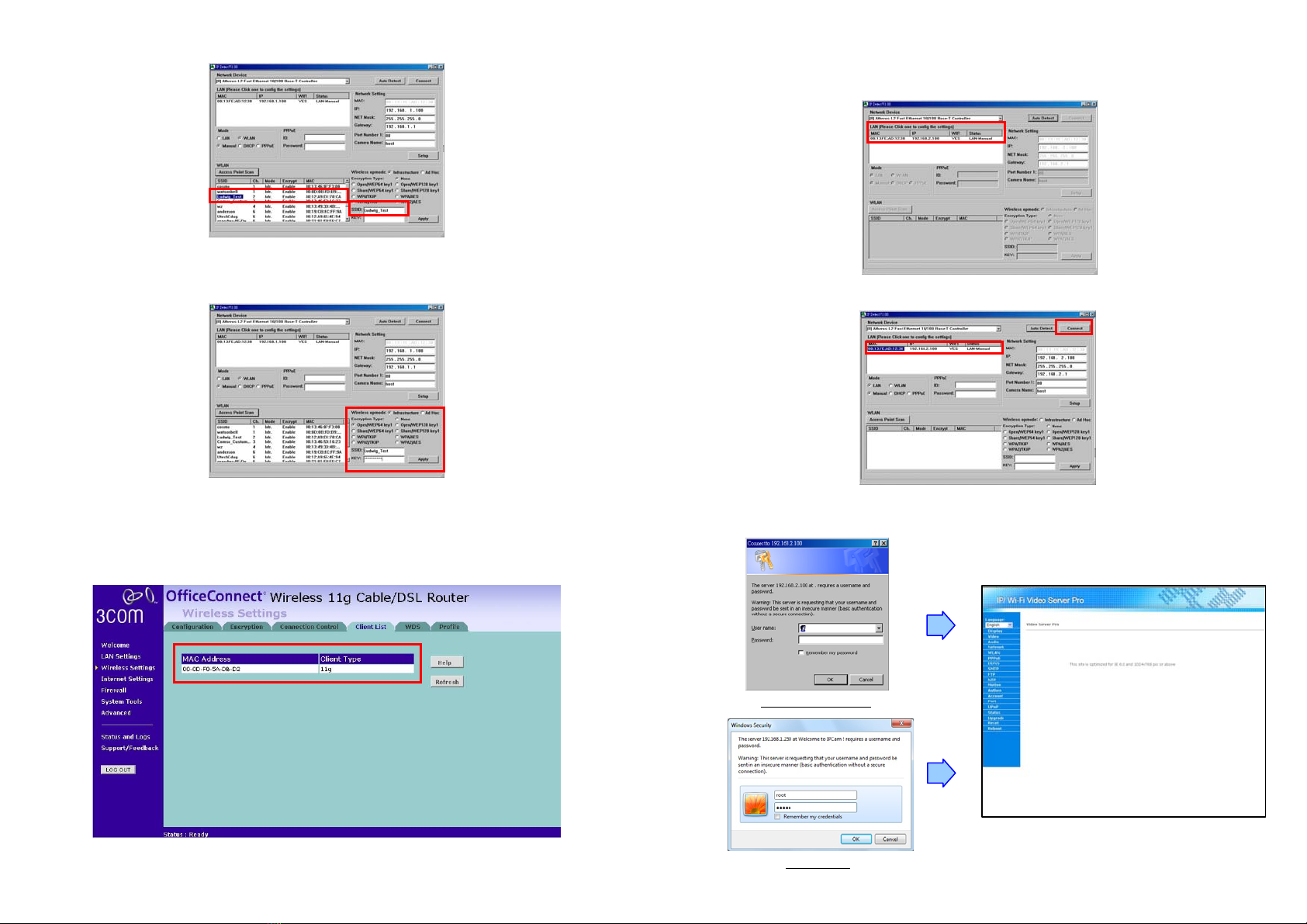

Step 6: Select the access point you want to use and the corresponding SSID will show in the “SSID”.
Step 7: Then input your wireless configuration, include “Wireless op mode”, “Encryption Type” and
corresponding “Key”. Click on “Apply” button for saving the configuration.
Step 8: Turn off the Wi-Fi Video Server Pro, unplug the crossover cable, set the “WLAN/LAN” switch to
“WLAN”, and then restart the Wi-Fi Video Server Pro.
Step 9: Check your access point to see if the configuration works.
13
Step 10: Click the “Auto Detect” button again, and the new network information will be shown. (For some
environment factors, the time consumed by the searching might be very. In a normal situation, it might
take about 30~60 seconds for searching your Wi-Fi Video Server Pro).
Step 11: Select the “MAC” and click the “Connect” button to connect the Wi-Fi Video Server Pro.
Step 12: When the login screen appears, enter the user name and password (default user name: root,
default password: admin), and click the “OK” button to login your video server.
Windows XP/ Vista
Windows 7

14
7. Using the Build-In Web for Configuration
Wi-Fi Video Server Pro provides a way for users to administrate the video server, a build-in web for
accessing the video, setting up the video parameter, configuring the network address etc. After login the
video server, the page as below will appear. There are two areas in the page: the Menu List and the Main
Display area.
You might access the video stream or select what you want to configure through the Menu List. The video
or the details of corresponding configuration will show up in the Main Display area.
7.1 Language Select
You might choose the language used in the build-in web from the draw down list in the top of the Menu
List. Wi-Fi Video Server Pro supports multi-languages: English, Chinese (Tri), Italian, Russian, French,
Japanese, Spanish, Portuguese, Netherlands and German.
15
7.2 Display
User can view the video by clicking on the “Display” in the Menu List. The live stream will show up in the
Display area.
NOTE: If the video display shows a black screen, you need to disable the Internet Explorer’s Protect
Mode.
Clicks Tools, then select Internet Options. Click the Security tab, and uncheck the box for protected
mode, and click Apply. Restart Internet Explorer.
Digital Zoom In/ Out Function: Click left/ right mouse buttons to change the zoom.
- Zoom In: Move your mouse cursor to the video display area, and click left mouse button to
zoom in (The screen can be zoomed in 5 steps).
- Zoom Out: Move your mouse cursor to the video display area, and click right mouse button to
zoom out.

16
7.3 Video Settings
User can adjust the parameters of the video stream by clicking on “Video” in the Menu List. The details of
video setting should appear in the Main Display area.
7.3.1 IE User
Fixed Quality: User might decide the video quality by selecting the degree of the video quality.
Mega Pixel Wi-Fi Camera supports up to 11 degrees of video quality.
QMax/QMin: The quality range supported by video server is from 0 to 51.
Resolution: Select the video resolution.
-NTSC: 176x120/ 352x240/ 720x480
-PAL: 176x144/ 352x288/ 720x576
Framerate: Select the frame rate of the video. The range of frame rate supported by video server
is from 1 to 30 fps.
IPInterval: Select the interval between two I-Frames in the video stream. The higher this value,
the easier the video is vague.
Audio Input: Enable/Disable the audio input of video server.
Brightness: Set the video brightness (0~15).
Contrast: Set the video contrast (0~50).
Sharpness: Set the video sharpness (0~15).
Save button: Save the configuration. All configurations should be available after the
configurations are successfully saved.
17
7.3.2 iPhone User
Wi-Fi Video Server Pro supports iPhone’s browser, Safari. If user uses an iPhone to access to the Wi-Fi
Video Server Pro, the Video Setting page should appear as below.
Quality: Select the video quality. The degrees of the video quality supported by Mega Pixel IP
Camera are from 1 to 100.
Resolution: Select the video resolution.
-NTSC: 176x120/ 352x240/ 720x480
-PAL: 176x144/ 352x288/ 720x576
Framerate: Select the frame rate of the video.
Audio Input: Enable/Disable the audio input of video server.
Brightness: Set the video brightness (0~15).
Contrast: Set the video contrast (0~50).
Sharpness: Set the video sharpness (0~15).
Save button: Save the configuration. All configurations should be available after the
configurations are successfully saved.

18
View the Camera from iPhone
Step 1: Assign your video server an IP address and make your video server accessible through
the Internet.
Step 2: Connect your iPhone to the network via 3G or Wi-Fi (refer to your user’s manual of iPhone
for detail about network setting).
Step 3: Open the Web browser (Safari) and enter the URL that you assign to your Wi-Fi Video
Server Pro (we use IP in this case). Then the video server will ask you user name (default user
name: root) and password (default password: admin) for authentication.
Video Server’s Web page
open the Web browser enter the IP adress enter the user name
and password
19
7.4 Audio Settings
User can adjust the parameters of the audio stream by clicking on “Audio” in the Menu List. The details of
audio setting should appear in the Main Display area.
Audio Channels: Select the audio channel. Wi-Fi Video Server Pro supports mono and stereo
audio.
Sample Rate: Adjust the audio quality by selecting the sample rate of the audio. The sample rates
supported by the Wi-Fi Video Server Pro are: 16000, 32000 and 48000.
Save button: Save the configuration. All configurations should be available after the
configurations are successfully saved.

20
7.5 Network Settings
User can configure the network setting by clicking the “Network” in the Menu List. The details of network
setting should appear in the Main Display area.
Wireless Interface:
-DHCP Client: Enable/Disable the DHCP Client function. If the user wants to use dynamic IP
address for Wi-Fi Video Server Pro, please select “On” here.
-IP Address, Subnet Mask and Gateway: If the user wants to use a static IP address for Wi-Fi
Video Server Pro, please enter the IP Address, Subnet Mask and Gateway
Ethernet Interface:
-DHCP Client: Enable/Disable the DHCP Client function. If the user wants to use dynamic IP
address for Wi-Fi Video Server Pro, please select “On” here.
-IP Address, Subnet Mask and Gateway: If the user wants to use a static IP address for Wi-Fi
Video Server Pro, please enter the IP Address, Subnet Mask and Gateway
-DNS Settings: Enter the DNS servers to Wi-Fi Video Server Pro for name resolution.
Save button: Save the configuration. All configurations should be available after the
configurations are successfully saved.
21
7.6 Wireless Network Settings
Wi-Fi Video Server Pro supports 802.11b/g wireless network. User might configure the wireless setting by
clicking on “WLAN” in the Menu List. The details of network setting should appear in the Main Display
area. Please note, if the user wants to user the wireless network, he should turn the WLAN/LAN switch to
the WLAN side.
Mode: Select the wireless connection mode, whether Infrastructure or Ad-Hoc.
-AD-Hoc: If the user wants to use a wireless peer-to-peer connection, please select “Ad-Hoc”.
-Infrastructure: If the user wants to connect Wi-Fi Video Server Pro with a wireless access point,
please choose “Infrastructure”.
Operation Mode: Select the protocol that Wi-Fi Video Server Pro uses in the wireless network.
Wi-Fi Video Server Pro supports 802.11b/g protocol.
Channel: Select the RF channel used in the wireless network.
SSID: Enter the SSID of the wireless network.
Preamble Type: Select the type of preamble. The default value is long.
RTS Threshold: Set the RTS threshold. The default value is 2347.
Fragmentation Threshold: Set the Fragmentation Threshold. The default value is 2346.
Authentication: Select the authentication method used in the wireless network. Wi-Fi Video
Server Pro supports Open System, Share Key, WPA-PSK and WPA2-PSK authentication
methods.
WEP Key Setting: Wi-Fi Video Server Pro supports 64bit and 128bit WEP encryption. Please
configure the WEP parameters according to the user’s wireless network.
WPA Encryption: Wi-Fi Video Server Pro supports TKIP and AES encryption for WPA enabled
wireless network. Please configure this value according to the wireless network.
WPA PSK: If the WPA-PSK, WPA2-PSK is enabled, please enter the key according to the wireless
network.
Save button: Save the configuration. All configurations should be available after the
configurations are successfully saved.

22
7.7 PPPoE Configuration
Wi-Fi Video Server Pro supports PPPoE dial-up function that let it directly connect to the Internet through
a DSL modem. Please click on the “PPPoE” in the Menu List for further setup.
PPPoE User/Password: User might enter the PPPoE user name and password here.
Auto start after reboot: If this function is selected, the PPPoE function will auto start after the
Wi-Fi Video Server Pro Camera reboot.
Apply button: Apply the configuration. All configurations should be available after the
configurations are successfully saved.
23
7.8 Dynamic DNS
Dynamic DNS is a network service that provides the domain name resolution for dynamic IP address.
After creating an alias on the service provider’s web site, user might use this alias to access video server
on the Internet. For further configure this function, please click on the “DDNS” in the Menu List.
Dynamic DNS: Enable/Disable the DDNS function.
DDNS Service: Select the DDNS service provider the user wanted to use.
Interface: Select the network interface for registering. If video server connects to the Internet via a
PPPoE connect, please use the ppp0 interface.
Host Name: In put the host name (alias) that the user creates on the service provider’s web site.
User Name/Password: Enter the account information for login the DDNS service.
OK button: Press “OK” button for apply the configurations.

24
7.9 SMTP Settings
Wi-Fi Video Server Pro supports a build-in SMTP client for sending alarm e-mail. When the motion
detection function (see 7.12, Motion Detection Settings) is enabled, user might choose to receive alarm
e-mail when motion is detected. Please click on “SMTP” in the Menu List for further configuration.
SMTP Server: Enter the mail server’s address that the user wants to use for sending e-mails.
Recipient: Enter the e-mail address for receiving the alarm e-mail.
Username/Password: Enter the account information for logging in the mail server.
Authentication Method: Select the authentication method for the delivering e-mail account.
Save button: Save the configuration. All configurations should be available after the
configurations are successfully saved.
25
7.10 FTP Settings
Wi-Fi Video Server Pro supports a build-in FTP client for uploading image or video. When the motion
detection function (see 7.12, Motion Detection Settings) is enabled, user might choose to upload video or
image when motion is detected. Please click on “FTP” in the Menu List for further configuration.
FTP Server: Enter the FTP server’s address that the user wants to use for uploading files.
FTP Port: Enter the FTP port number. The default port used in FTP is 21.
User Name/Password: Enter the account information for logging in the FTP server.
Remote Folder: Enter the remote folder on the FTP server for uploading files.
Passive Mode: If the FTP server supports passive mode, user might enable this function for
utilizing this mode.
Save button: Save the configuration. All configurations should be available after the
configurations are successfully saved.

26
7.11 Date and Time Settings
User could click on the “NTP” in the Menu List for configuring the time of video server.
Synchronized with Time Server: Use a NTP server to configure the time of video server.
-NTP Server: Enter the NTP server the user wants to use.
-Time Zone: Enter the Time Zone in which Wi-Fi Video Server Pro is located.
Manual Update: Configure the time of Wi-Fi Video Server Pro manually.
-Date: Specify the date here.
-Time: Specify the time here.
Synchronized with PC: When this function been selected, Wi-Fi Video Server Pro will
synchronize its time with the PC that is browsing it.
Save button: Save and apply the configuration.
27
7.12 Motion Detection Settings
Wi-Fi Video Server Pro supports the motion detection function. When this function is enabled, Wi-Fi
Video Server Pro will monitor the video captured by it. And Wi-Fi Video Server Pro will send alarm e-mail
with image/video or upload the image/video to a FTP server when some object moves in the video.
Detect Frame Interval: Define the detection frame interval here.
Window: Define the detection area which needs to be monitored in the video. User could draw this
area by using the x and y coordinates.
-Motion Detection On/Off: Enable/Disable this detection area. The lower this value, the easier
the motion detection is triggered.
-Sensitivity: Defines a value of the changes. It compares the last image and the current image
and counts changes. A small value means more sensitivity.
-Threshold: Set the threshold of the motion detection function.
-Start/Stop Coordinate: Using the X, Y coordinate to draw the scope of the detection area.
Alarm Picture: Configuring the alarm picture here. The pictures will be sent with the alarm e-mail
or upload to the FTP server when motion is detected.
-Enable: Enable/Disable the alarm picture function.
-Filename: Set the name of the pictures sent along with the e-mail or uploaded to the FTP server.
Alarm Video: Configuring the alarm video here. The video clips will be sent with the alarm e-mail
or upload to the FTP server when motion is detected.
-Enable: Enable/Disable the alarm video function.
-Pre-Alarm I Frame Number: Set the I frame number the user wants to capture before the motion
happened.
-Post-Alarm I Frame Number: Set the I frame number the user wants to capture after the motion
happened.
-Filename: Set the name of the video clips sent along with the e-mail or uploaded to the FTP
server.

28
Alarm Action: Enable/Disable the Mail/FTP upload function.
-Alarm Mail: Enable/Disable the alarm e-mail function. Before enabling this function, please
configure the SMTP configuration first. (refer to section 7.9)
-Alarm Ftp: Enable/Disable the FTP upload function. Before enabling this function, please
configure the FTP configuration first. (refer to section 7.10)
Save button: Save and apply the configuration.
7.13 Authentication Settings
Wi-Fi Video Server Pro provides video stream authentication. If this function is enabled, users need to be
authenticated for accessing the video stream. For further configure this function, please click on the
“Authen” in the Menu List.
Authentication On/Off: Enable/Disable video authentication.
Number of Connections: User might specify the maxima of connections here. Wi-Fi Video Server
Pro could support up to 20 connections simultaneously.
Save button: Save and apply the configuration.
29
7.14 Account Management
User could change the password of the root account through the Account Management. Click on
“Account” in the Menu List and follow the steps below for changing the password:
Step 1: Enter the user name and current password twice. Then press the “OK” button for getting into the
“Change Password” page.
Step 2: Enter the new password twice. And then press “SET PASSWORD” button for changing the
password.

30
7.15 Port Settings
User could change the port number that used by the video stream. The video stream utilizes the
RTP/RTSP protocol for delivering through the network. Click on “Port” in the Menu List for further settings.
RTSP Port: Specify the port number the user wants to use for RTSP. The default port is 554.
Control Port: Specify the control port the user wants to use for sending controlling message to
Wi-Fi Video Server Pro. The default port number is 21.
RTP Range Low/High: User might specify the range of the random port that used by RTP protocol.
The default range is from 50000 to 60000.
HTTP Port: User might change the default port used by HTTP protocol here. The default port
number is 80.
RTSP Over: Select the transferring protocol from AUTO, UDP or TCP.
Save button: Save and apply the configuration.
31
7.16 UPnP Services
Wi-Fi Video Server Pro supports UPnP function. Using this function, user could find Wi-Fi Video Server
Pro by just one click on “My Network Place” (Windows XP and later version). For further setting the UpnP
function, please click on the “UPnP” on the Menu List.
ON: Enable the UPnP function.
Discovery Enable: If this function is checked, a Windows user could find Wi-Fi Video Server Pro
in the My Network Place. About how to enable the UPnP function in the Windows, please refer to
“Section 9 Using UPnP to Connect to the Video Server”
UPNP HOSTNAME: Specify the host name for the UPnP function here.
NAT Traversal Enable: Enable/Disable NAT Traversal function. If Wi-Fi Video Server Pro is
located behind a router (uses a NAT network technology), and the router supports NAT Traversal
function, user might enable Wi-Fi Video Server Pro to negotiate with the router about the port
configuration via this function.
Off: Disable the UPnP function.

32
7.17 Video Connection Status
User could view the video connection status of Wi-Fi Video Server Pro by clicking on the “Status” in the
Menu List.
33
7.18 Firmware Update
User could update the firmware of Wi-Fi Video Server Pro when upgrade is needed. Please follow the
steps below for updating your firmware.
Step 1: Get the new firmware and save it in the hard disk.
Step 2: Log in the Wi-Fi Video Server Pro. Click on the “Upgrade” in the Menu List.
Step 3: Click on the “Browser” button in the Main Display area and a dialogue box will pop up for the user
to choose the new firmware file (the file saved in Step 1).
Step 4: Click on “Upgrade” button for starting the upgrade process.
NOTE: The upgrading process should not be interrupted, that is user should not turn off the power of or
reset the Wi-Fi Video Server Pro when upgrading, for that will cause a hardware damage of Wi-Fi Video
server Pro.

34
7.19 Reset Configuration
User could reset the configuration of Wi-Fi Video Server Pro. Please follow the step for resetting the
video server.
Step 1: Log in Wi-Fi Video Server Pro and click on the “Reset” button in the Menu List.
Step 2: Select which kind of configuration or “ALL” for all configurations to reset.
Step 3: Click on “OK” button for resetting the configuration.
35
7.20 Reboot the Camera
User could reboot Wi-Fi Video Server Pro via the browser. Please follow the steps below for rebooting the
video server.
Step 1: Log in Wi-Fi Video Server Pro and click on the “Reboot” in the Menu List.
Step 2: Click on the “Reboot” button in the Main Display area for rebooting the video server.

36
8. Connecting Multiple Video Servers to a Router
Step 1: Assign a local IP Address and Http Ports for your video servers (confirm the cameras settings
corresponding to your network settings; you must use the same gateway and Subnet Mask).
Step 2: Set up the router to open the ports of video servers for remote access the video servers via
internet (refer to your router’s user manual for how to open up ports).
Step 3: Accessing your video servers.
- Access on local network
Enter “http:// 192.168.1.100” to access the Video Server Pro 1;
Enter “http:// 192.168.1.101” to access the Video Server Pro 2.
- Access from the internet
Enter “http:// 61.30.13.40:80” to access the Video Server Pro 1;
Enter “http:// 61.30.13.40:81” to access the Video Server Pro 2.
37
9. Using UPnP to Connect to the Video Server
Confirm the UPnP function of the video sever has been enabled (refer to section 7.16).
Follow the steps below to enable SSDP and UPnP in Windows XP/ Vista/ 7.
Step1: Open the Services window.
Windows XP/ Vista: “Start” →“Setting” →“Control Panel” →“Administrative Tools” →“Services”.
Windows 7: “Start” →“Control Panel” →“Administrative Tools” →“Services”.
Step2: In the Services window, double-click the service SSDP Discovery.
Windows XP
Windows Vista/ 7
Step3: Select Automatic in the Startup type item, and click Start to enable the service.
Windows XP
Windows Vista/ 7
