GRASS VALLEY LDK 8000 Elite User manual

3922 496 31341 December 2009 v1.01
LDK 8000 Elite/4000 Elite
User’s Guide
System camera

Declaration of Conformity
We, Grass Valley Nederland B.V., Kapittelweg 10, 4827 HG Breda, The
Netherlands, declare under our sole responsibility that this product is in
compliance with the following standards:
- EN60065 : Safety
- EN55103-1: EMC (Emission)
- EN55103-2: EMC (Immunity)
following the provisions of:
a. the Low Voltage directive 2006/95/EC
b. the EMC directive 2004/108/EC
FCC Class A Statement
This product generates, uses, and can radiate radio frequency energy and if
not installed and used in accordance with the instructions, may cause
interference to radio communications.
It has been tested and found to comply with the limits for a class A digital
device pursuant to part 15 of the FCC rules, which are designed to provide
reasonable protection against such interference when operated in a
commercial environment.
Operation of this product in a residential area is likely to cause interference in
which case the user at his own expense will be required to take whatever
measures may be required to correct the interference.
Copyright
Copyright Grass Valley Nederland B.V. 2009. Copying of this document and
giving it to others, and the use or communication of the contents thereof, are
forbidden without express authority. Offenders are liable to the payment of
damages. All rights are reserved in the event of the grant of a patent or the
registration of a utility model or design. Liable to technical alterations in the
course of further development.
Trademarks
Grass Valley and Infinity are trademarks of Grass Valley, Inc. All other
tradenames referenced are service marks, trademarks, or registered
trademarks of their respective companies.
Website
Visit the Grass Valley public website to download the latest user’s guide
updates and additional information about your broadcast product:
www.grassvalley.com

LDK 8000 Elite/4000 Elite System camera User’s Guide (v1.01) 3
Table of contents
Chapter 1 – Introduction
1.1 Welcome. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
1.1.1 About this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
1.1.2 Related documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
1.2 Technology. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
1.2.1 HD imagers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
1.2.2 Digital processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
1.2.3 Focus assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
1.3 Camera versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
1.3.1 LDK 8000 Elite Enterprise version (LDK 8000/70) . . . . . . . . . . . . . . . . . . . . . . . 17
1.3.2 LDK 8000 Elite Worldcam version (LDK 8000/71) . . . . . . . . . . . . . . . . . . . . . . . 17
1.3.3 LDK 4000 Elite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
1.4 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
1.5 List of accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Chapter 2 – Installation
2.1 Mounting a lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2.2 LDK 5302/60 2-inch viewfinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
2.2.1 Mounting viewfinder and microphone holder . . . . . . . . . . . . . . . . . . . . . . . . . . 22
2.2.2 Positioning the viewfinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2.3 2-inch viewfinder accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
2.3.1 LDK 5390/00 Wide angle eyepiece . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
2.3.2 LDK 5390/10 Left eye adaptor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
2.4 AJ-MC700 Microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
2.5 LDK 5301/10 Tripod adaptor plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
2.6 Adjusting the shoulder pad. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
2.7 Exchanging the camera adaptor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
2.8 LDK 5020/05 Universal transport case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
2.9 Packing for return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Chapter 3 – Configurations
3.1 HD Fiber configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
3.2 TriaxHD configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
3.3 Stand-alone configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
3.4 HD Wireless configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
3.5 Multiple camera configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Chapter 4 – Operating instructions
4.1 Using the camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
4.1.1 Switching on the power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
4.1.2 Controlling the camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
4.2 Location of controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
4.2.1 Camera head controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

4 LDK 8000 Elite/4000 Elite System camera User’s Guide (v1.01)
4.3 User buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
4.4 Viewfinder preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
4.4.1 Tally on/off switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
4.4.2 Zebra (exposure indication) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
4.4.3 VF Option switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
4.4.4 Viewfinder picture quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
4.4.5 Dioptre adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
4.4.6 Viewfinder markers and indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
4.4.7 Focussing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
4.5 Lens operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
4.5.1 Auto iris . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
4.5.2 Extended auto iris . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
4.5.3 Precision focus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
4.5.4 Lens indicators in the viewfinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
4.6 Controls on the TriaxHD and HD Fiber adaptor . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
4.6.1 Powering the camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
4.6.2 Selecting monitoring signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
4.6.3 Using audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
4.6.4 Intercom. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
4.7 Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
4.8 Managing files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
4.8.1 Scene files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
4.8.2 Operator files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
4.8.3 Standard files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
4.8.4 Customer standard files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
4.9 Access and security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
4.9.1 User level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
4.9.2 Selecting the user level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
4.9.3 Disable camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
4.9.4 Camera cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
4.9.5 Access control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
4.9.6 Camera card slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Chapter 5 – Video setup
5.1 Video settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
5.1.1 Standard settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
5.1.2 Non-standard indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
5.2 Video modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
5.2.1 Camera with LDK 5880 HD Fiber adaptor . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
5.2.2 Camera with LDK 5861 TriaxHD adaptor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
5.3 Test signals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
5.4 Gain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
5.4.1 Gain selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
5.4.2 Variable gain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
5.4.3 Digital noise reducer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
5.5 Optical filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
5.6 Color temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
5.6.1 Selecting the color temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
5.6.2 Variable color temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
5.6.3 Auto-white balance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
5.7 Color correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
5.7.1 Setup using the system menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
5.7.2 Setup using the Operational Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

LDK 8000 Elite/4000 Elite System camera User’s Guide (v1.01) 5
5.8 Exposure time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
5.8.1 Selecting the exposure time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
5.8.2 Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
5.8.3 Vertical shift (V-shift) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
5.8.4 Clean scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
5.9 Reverse scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
5.10 Freeze frame. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
5.11 Black stretch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
5.12 Auto skin detail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
Chapter 6 – System menu
6.1 Using the system menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
6.1.1 Entering the system menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
6.1.2 Finding your way . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
6.1.3 Leaving the system menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
6.1.4 Making changes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
6.1.5 Undoing changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
6.2 Menu structure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
6.2.1 Top menu structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
6.2.2 Viewfinder menu structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
6.2.3 Lens menu structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
6.2.4 Video menu structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
6.2.5 Video menu structure (continued) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
6.2.6 Install menu structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
6.2.7 Files menu structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
6.2.8 Security menu structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
6.2.9 Diagnostics menu structure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
6.2.10 Service menu structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
6.3 Menu contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
6.3.1 Viewfinder menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
6.3.2 Lens menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
6.3.3 Video menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
6.3.4 Install menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
6.3.5 Files menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
6.3.6 Security menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
6.3.7 Diagnostics menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
6.3.8 Service menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Chapter 7 – Connectors
7.1 Camera head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
7.1.1 Connectors on the LDK 8000 Elite/4000 Elite camera head . . . . . . . . . . . . . . 103
7.2 Camera adaptors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106
7.2.1 Connectors on the LDK 5861 TriaxHD and LDK 5880 HD Fiber adaptor. . . . . 106
7.2.2 Connectors on the LDK 5490 HD-SDI adaptor . . . . . . . . . . . . . . . . . . . . . . . . 111
Chapter 8 – Specifications
8.1 Specifications for LDK 8000 Elite/4000 Elite camera head . . . . . . . . . . . . . . . . . . . 115
8.1.1 Technical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
8.1.2 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
8.2 Specifications for LDK 5880 HD Fiber adaptor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
8.2.1 Technical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
8.2.2 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

6 LDK 8000 Elite/4000 Elite System camera User’s Guide (v1.01)
8.3 Specifications for LDK 5861 TriaxHD adaptor . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119
8.3.1 Technical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119
8.3.2 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120
8.4 Specifications for LDK 5490 HD-SDI adaptor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .121
8.4.1 Technical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .121
8.4.2 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .121

LDK 8000 Elite/4000 Elite System camera User’s Guide (v1.01) 7
End-of-life product recycling
Grass Valley’s innovation and excellence in product design also extends to the programs we’ve
established to manage the recycling of our products. Grass Valley has developed a
comprehensive end-of-life product take back program for recycle or disposal of end-of-life
products. Our program meets the requirements of the European Union’s WEEE Directive and
in the United States from the Environmental Protection Agency, individual state or local
agencies.
Grass Valley’s end-of-life product take back program assures proper disposal by use of Best
Available Technology. This program accepts any Grass Valley branded equipment. Upon
request, a Certificate of Recycling or a Certificate of Destruction, depending on the ultimate
disposition of the product, can be sent to the requester.
Grass Valley will be responsible for all costs associated with recycling and disposal, including
freight, however you are responsible for the removal of the equipment from your facility and
packing the equipment ready for pickup.
For further information on the Grass Valley product take back system please contact Grass
Valley at + 800 80 80 20 20 or [phone] from most other countries. In the US and
Canada please call 800-547-8949 or 530-478-4148. Ask to be connected to the EH&S
Department. In addition, information concerning the program can be found at:
www.grassvalley.com/environment

8 LDK 8000 Elite/4000 Elite System camera User’s Guide (v1.01)
Important information
Read these instructions carefully and retain them for future reference. Regularly check the
Grass Valley website (www.grassvalley.com) for new updates of this and other user’s guides.
During installation and operation of this equipment, local building safety and fire protection
standards must be observed.
Whenever it is likely that safe operation is impaired, the apparatus must be made inoperative
and secured against any unintended operation. The appropriate servicing authority must then
be informed. For example, safety is likely to be impaired if the apparatus fails to perform the
intended function or shows visible damage.
Any changes or modifications not expressly approved in this manual could void your authority
to operate this equipment.
Cautions and Warnings
Read and comply with the warning and caution notices that appear in the manual.
Warnings indicate danger that requires correct procedures or practices to prevent death or
injury to personnel.
Cautions indicate procedures or practices that should be followed to prevent damage or
destruction to equipment or property.

LDK 8000 Elite/4000 Elite System camera User’s Guide (v1.01) 9

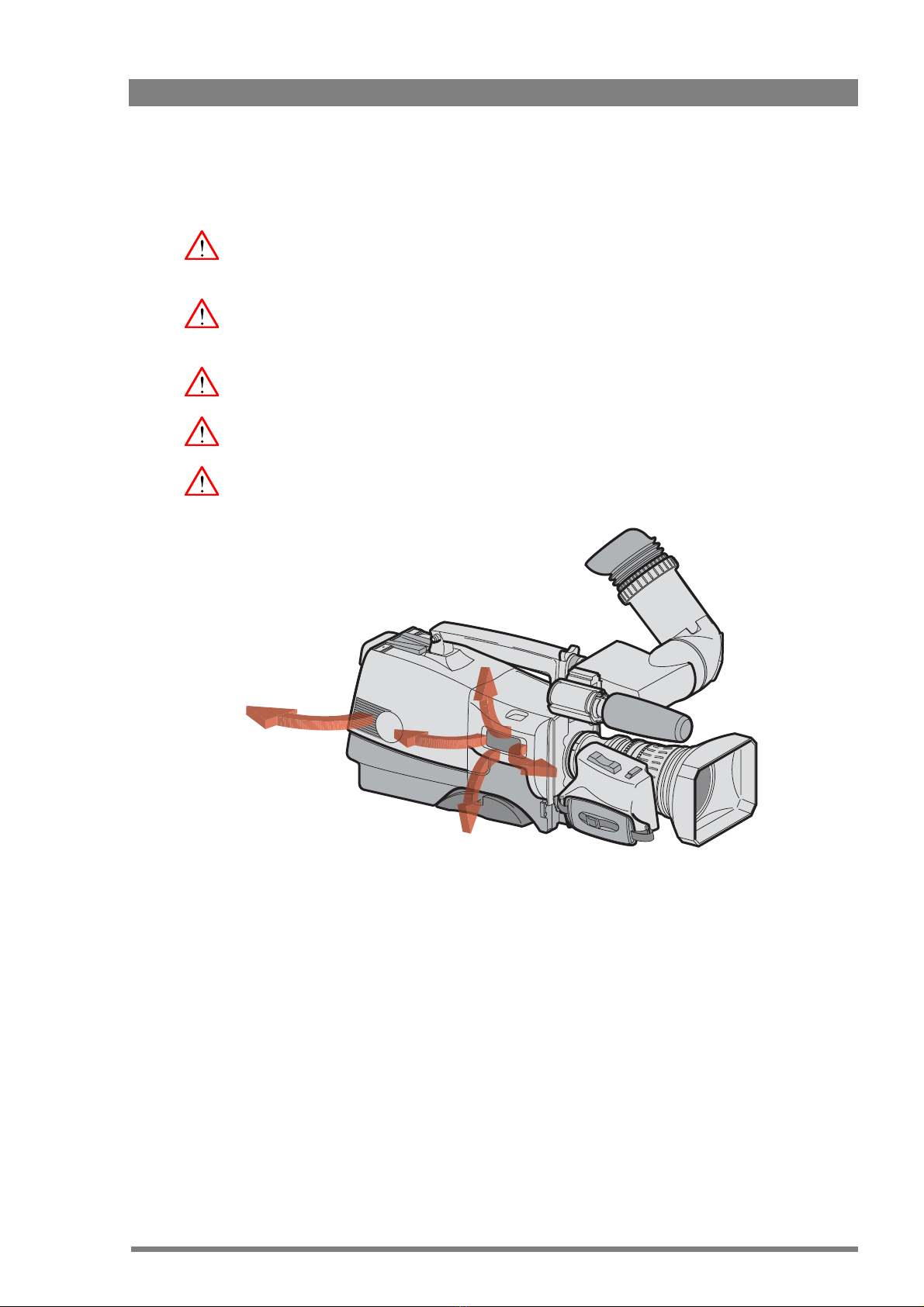

Warnings
To prevent fire or shock hazard, do not expose the unit to rain or moisture. If the unit is in a wet
or damp environment, a rain cover must be used to protect it for personal safety reasons.
To avoid electrical shock, do not remove covers or panels. Refer servicing to qualified
personnel only.
In case of an emergency ensure that the power is disconnected.
Connect the product only to a power source with the specified voltage rating.
To prevent risk of overheating, ventilate the camera correctly. Do not block the hot airflow
coming from the outlets on the right side of the camera head and camera adaptor.

10 LDK 8000 Elite/4000 Elite System camera User’s Guide (v1.01)
Precautions
To ensure continual high performance from the camera take the following precautions into
consideration:
• Avoid damp places. If the environment is wet or damp a rain cover must be used to
protect the unit.
• Do not subject the unit to severe shocks or vibration.
• Do not expose the camera to extremes of temperature.
• Do not leave the unit in direct sunlight or close to heating appliances for extended periods.
• Do not allow sunlight to shine into the viewfinder.
• Do not allow laser beams to shine into the lens as this could damage the imagers.
• Avoid extreme highlights as these can cause various kinds of optical reflections.
• Be careful when connecting and disconnecting Triax or Fiber cables.
– Do not mix units from different types of camera systems (HD with SD, Triax with
digital Triax)
– Do connect Grass Valley camera systems with other manufacturer’s camera system
parts.
• Make connections swiftly and firmly to avoid false error messages.

LDK 8000 Elite/4000 Elite System camera User’s Guide (v1.01) 11
Triax cable systems
• Only connect a Triax cable from the same LDK camera family to the unit.
• Do not allow system earth currents to exceed 1.5 A in the outer shield of the Triax cable or
0.2 A in other cable shields.
• To avoid excessive earth currents in a Triax system, galvanically separate the power earth
connection of equipment connected to the camera from the camera earth.
• It is strictly prohibited to short circuit the inner and outer shields of a Triax cable used to
connect a camera to a base station.
Galvanic separation
Because of the nature of Triax systems, with long distances between camera and Base
Station, the risk of earth currents flowing is greater. These earth currents can result in damage
to the equipment.
For example, a monitor connected directly to the CVBS output of the camera is powered
locally. The earthing point of the monitor’s power supply can be at a different potential with
respect to the earthing point of the Base Station. If the power earth of the monitor is also the
video earth, then this earth potential is transferred to the camera via the shield of the BNC
connector. The difference in earth potential between the camera and the Base Station results
in an earth current in the Triax system.
To prevent earth currents from flowing in the Triax system, we recommend galvanic separation
of earthed equipment connected to the camera. This separation can be achieved by using an
isolation transformer between the local power outlet and the equipment connected to the
camera. Alternatively, use equipment that has a double insulation and therefore does not
require an earth connection.

12 LDK 8000 Elite/4000 Elite System camera User’s Guide (v1.01)
Fiber-optic transmission units
Laser safety statement (Europe)
Fiber-optic transmission units are classified as a “CLASS 1 Laser Product” according to EN
60825-1, Safety of Laser products. Class 1 laser products are considered safe and do not result
in biological hazard if used according to the instructions.
Laser safety statement (US)
Fiber-optic transmission units are classified as a “CLASS 1 Laser Product” according to 21CFR
1040.10 of the US Food and Drug Administration (FDA) Center for Devices and Radiological
Health.
WARNING
Use of controls, adjustments or performance of procedures other than those specified herein
may result in hazardous radiation exposure.
To ensure proper use of this product, please read this instruction manual carefully and retain
for future reference. Should the unit ever require maintenance, contact an authorized service
location.
Fiber-optic cable precautions
Fiber-optic cables and connectors are easily damaged; take the following precautions into
account:
– Do not bend the cable beyond the minimum permissible bend range specified for the
cable.
– Avoid kinks in the cable.
– Avoid subjecting the cable to a high tension force (even momentarily).
– Do not twist the cable when connecting it to equipment.
– Insert connectors straight and fully into their corresponding sockets.
– In fiber-optic cable systems always put the dust caps on cable and panel connectors
immediately after disconnecting a cable. Keep the dust caps clean.
CLASS 1
LASER PRODUCT
LASER KLASSE 1
PRODUKT

LDK 8000 Elite/4000 Elite System camera User’s Guide (v1.01) 13
Cleaning fiber-optic connectors
WARNING
Always switch off power before cleaning the connectors.
WARNING
Never clean an optical connector attached to a fiber that is carrying light.
Particles of foreign matter on the tip of a ferrule can have a disabling effect on fiber-optic
transmission. Fiber-optic connectors need to be cleaned every time they are mated and
unmated; it is essential that fiber-optic users develop the necessary discipline to always clean
the connectors before they are mated.
Use a commercially available cleaning kit specifically designed for fiber-optic connectors and
follow the manufacturer's instructions carefully.
• The connector sections to be cleaned include the tips and sides of ferrules, the interior
walls of alignment sleeves, and the interior and exterior of connector shells.
• For plugs, the interior surfaces of alignment sleeves and the tips of ferrules are to be
cleaned with a cleaning stick treated with the appropriate fluid. (Cleaning sticks with a
slender design are available that allow alignment sleeves to be cleaned without having to
detach them.)
• For jacks, it is important to clean both the tips and sides of the completely protruding
ferrules.
• Both the male and female connector shells tend to attract dust and metal particles, so it is
important to clean both the insides and outsides.
• The fiber end face and ferrule must be absolutely clean before it is inserted into a
transmitter or receiver.
• Mate the connector immediately! Don't let the connector lie around and collect dust
before mating.
• Air can be used to remove lint or loose dust from the port of a transmitter or receiver to be
mated with the connector. Never insert any liquid into the ports.

14 LDK 8000 Elite/4000 Elite System camera User’s Guide (v1.01)

LDK 8000 Elite/4000 Elite System camera User’s Guide (v1.01) 15
Chapter 1 - Introduction
Chapter 1
Introduction
1.1 Welcome
The LDK 8000 Elite/4000 Elite is a high definition multi-format (LDK 8000 Elite) or single-
format (LDK 4000 Elite) camera head using three 2/3-inch HD-DPM+™ imagers. The
small, lightweight, camera head contains the optical pickup devices and digital image
processing electronics, while the transmission system (HD Fiber, TriaxHD, HD-SDI or HD
Wireless) can be selected by using interchangeable dockable adaptors. The dockable
principle allows a choice of transmission and thus the greatest flexibility and cost-effective
solutions in multiple applications.
1.1.1 About this manual
The purpose of this manual is to present a detailed description of how to operate the LDK
8000 Elite/4000 Elite camera equipped with a dockable transmission adaptor. It provides the
information necessary to use the camera in different configurations and with various
attachments. This manual describes all operating features of the camera so it can be used to its
full potential.
This guide is so designed that it can be used as an introduction to those who are new to the
camera, as a simple procedural guide to those who wish to set-up and start shooting
immediately, and as a reference work to be consulted as required during the long life of the
camera.
1.1.2 Related documents
Before proceeding, check the Grass valley website at www.grassvalley.com for the latest
version of this user’s guide and additional information:
• Online versions of documentation; updated versions of user’s guides, data sheets,
brochures, application notes in pdf-format are available for download.
• Software downloads; camera software updates, release notes and installation instructions
are available for download.

16 LDK 8000 Elite/4000 Elite System camera User’s Guide (v1.01)
Chapter 1 - Introduction
1.2 Technology
1.2.1 HD imagers
The camera head uses HD-DPM+™ CCD imagers which offer superior performance and
ultimate flexibility. Native high-definition video formats 1080p (LDK 8000 Elite Worldcam
only), 1080i and 720p are produced at the touch of a button.
Progressive frame sampling is the native imaging mode, providing complete frame
samples. The entire imager surface is used for image sampling—there are no interline
transfer channels which introduce aliasing artifacts.
The camera’s native multi-format capability is realized with innovative 9.2 million pixel
Frame Transfer 2/3-inch CCD imagers. These allow vertically grouping of different numbers
of pixels on the imagers themselves—there is no need for internal format conversion.
These imagers have a high dynamic range and high linear sensitivity across all camera
lens apertures. Unique imager shuttering completely eliminates vertical smear.
1.2.2 Digital processing
The advanced digital processing of the camera is based on 14-bit A/D converters and 34-
bit accurate internal processing. All major camera functions are processed in the digital
domain, including knee, gamma, detail, matrix and color correction.
The intelligent continuous automatics function provides automatic control of black levels
and black shading. Each imager provides black reference signals that are used to monitor
temperature changes. This means that continuous automatic correction is applied without
operator intervention.
The digital detail processing uses full amplitude video RGB signals via an extended
dynamic range detail circuit. Colorimetry is selected by means of a variable 6-point digital
matrix or via preset matrices. Digital gamma circuits provide a wide range of standardized
gamma curves and enable soft contrast in black scenes to be enhanced, together with
hard contrast and saturated color in bright scenes. The matrix and gamma sequence is
software programmable for precise color matching.
1.2.3 Focus assist
With HD, focusing is even more critical than before. The LDK 8000 Elite/4000 Elite has
special patented focusing aids. A unique viewfinder zoom function enlarges the
viewfinder image instantly with a simple press-button action, thus providing improved
means for focusing.
Additionally, a patented crawler circuitry adds motion in the viewfinder to objects in sharp
focus.

LDK 8000 Elite/4000 Elite System camera User’s Guide (v1.01) 17
Chapter 1 - Introduction
1.3 Camera versions
1.3.1 LDK 8000 Elite Enterprise version (LDK 8000/70)
The LDK 8000 Elite Enterprise version supports both 720p and 1080iHD acquisition
formats in 50 and 59.94 Hz and simultaneously provides high-quality SD outputs in either
50 Hz or 59.94 Hz (optional feature).
The following acquisition formats are available for the Enterprise version:
– 720p at 59.94 Hz and 50 Hz
– 1080i at 59.94 Hz and 50 Hz
1.3.2 LDK 8000 Elite Worldcam version (LDK 8000/71)
The Worldcam version provides, in addition to the Enterprise version formats, 1080p50/
59.94 format. This future-proof acquisition format is very suitable for high-quality drama
and cinematography productions.
Additionally, digital cinematography formats in 1080p and 720p are available, which give an
impression of motion comparable to film cameras running at identical speeds.
The Worldcam also provides convenient built-in frame-rate conversions for easy
connection to existing HD peripherals, offering possibilities for cost-effective monitoring
and recording combined with the motion portrayal of film cameras. The 1080p format at
23.98 Hz, for example, can be converted using 3:2 pull-down to 1080i at 59.94 Hz right
inside the camera.
The following acquisition formats are available for the Worldcam version:
– 720p at 59.94 Hz and 50 Hz
– 720p at 23.98 Hz, 25 Hz and 29.97 Hz
– 1080i at 59.94 Hz and 50 Hz
– 1080p at 50 Hz and 59.94 Hz
– 1080p at 23.98 Hz, 24 Hz, 25 Hz and 29.97 Hz
1.3.3 LDK 4000 Elite
The LDK 4000 Elite camera head is available in two versions. The LDK 4000/70 supports 720p
formats while the LDK 4000/71 supports 1080i formats, both in 50 Hz and 59.94 Hz. You
decide when ordering which version you require.

18 LDK 8000 Elite/4000 Elite System camera User’s Guide (v1.01)
Chapter 1 - Introduction
1.4 Features
• Ultimate flexibility with HD-DPM+ ™ CCD imagers with native switchability (LDK 8000
Elite only) between interlaced 1080i, true progressive 720p and 1080p (LDK 8000 Elite
Worldcam only) high definition digital cinematography formats.
• The CCD imagers have 9.2 million pixels each, with 1920 (H) x 4320 (V) effective picture
elements.
• Frame Transfer technology ensures no smear.
• 14-bit A-to-D and 34-bit digital signal processing.
• Superior all digital highlight handling with a wide dynamic range.
• Unique circuitry for pivoting knee and True Color Knee.
• Variable gain control and variable color temperature.
• Secondary color corrector with six sets for color hue, saturation and luminance
adjustment.
• Wide range of presets and variable 6-point digital matrix assure accurate color matching.
• Fluorescent light matrix.
• User definable noise reduction.
• Digital gamma with unique standard preset values and highest accuracy.
• Digital detail with an extensive range of parameters.
• Advanced detail correction includes two automatic skin settings.
• Intelligent Continuous Automatics black levels, black shading and video levels - no set-up
time required.
• Digital contrast with standard black stretch and black press.
• International standard 2/3-inch broadcast lens interface.
• Optical servo-controlled four-position neutral density filter wheel.
• Optical servo-controlled effect filter wheel with soft focus, four-point star and six-point star
filters.
• Electronic color filter can be used for creating a special look (warm/cold) of a scene, or for
a smooth color temperature control around the white balance setting.
• Smart card for personal settings and security.
• Owner card for setting user levels, and for copying and storing control settings.
• Protected, easy-to-operate controls and switches with read-out of all settings.
• Viewfinder status read-out of primary camera functions.
• Clean scan and V-shift features allow capture of monitor and projection screen pictures.

LDK 8000 Elite/4000 Elite System camera User’s Guide (v1.01) 19
Chapter 1 - Introduction
1.5 List of accessories
LDK 4489 Xpander
LDK 4488 SuperXpander
LDK 6517 7-inch viewfinder support
LDK 4800 HD/HS Triax Repeater
LDK 5302/60 2-inch HD viewfinder
LDK 5305 5-inch HD viewfinder
LDK 5308 8.4-inch EFP HD viewfinder
LDK 4021 7-inch HD viewfinder for use with SuperXpander
LDK 4025 8-inch LCD HD viewfinder for use with SuperXpander
LDK 5390/00 Wide angle adaptor for LDK 5302/60 2-inch viewfinder
LDK 5390/10 Left eye adaptor for LDK 5302/60 2-inch viewfinder
LDK 6992/02 Sunhood for LDK 5305 5-inch viewfinder
LDK 5021/05 Raincover for camera with LDK 5305 5-inch viewfinder
LDK 5031/10 Tripod plate
LDK 8111/37 Headset dynamic XLR-5 (double muff)
LDK 8111/51 Headset dynamic XLR-5 (single muff)
LDK 6985/21 Scriptboard with light
LDK 5020/05 Universal transport case
LDK 5020/01 Carrying bag
LDK 5901/00 AC power supply 100 W

20 LDK 8000 Elite/4000 Elite System camera User’s Guide (v1.01)
Chapter 1 - Introduction
