Rear Engine Rider
Parts Manual
Models
927060 - RM1028
927062 - RM1232
927064 - RM1440
02782800C 6/04
Supercedes 02782800B, A
Printed in USA

2
THE MANUAL
Before you operate your unit, carefully and completely
read manuals supplied with the unit. The contents will
provide you with an understanding of safety instructions
and controls during normal operation and maintenance.
For your safety and the safety of others always read,
understand, and follow all DANGER, WARNING, and
CAUTION messages found in manuals and on safety
decals.
Hardware descriptions are given in decimals.
SERVICE AND REPLACEMENT PARTS
When ordering replacement parts or making service
inquiries, know the Model and Serial numbers of your
unit and engine.
Numbers are located on the product registration card in
the unit literature package. They are printed on a serial
number label, located on the frame of your unit.
• Record Unit Model and Serial numbers here:
• Record Engine Model and Serial numbers here:
UNAUTHORIZED REPLACEMENT PARTS
Use only Gravely replacement parts. The replacement of
any part on this vehicle with anything other than an
Gravely authorized replacement part may adversely
affect the performance, durability, or safety of this unit
and may void the warranty. Gravely disclaims liability for
any claims or damages, whether warranty, property
damage, personal injury or death arising out of the use of
unauthorized replacement parts.
Decimals to Fractions
.063 1/16 .563 9/16
.125 1/8 .625 5/8
.188 3/16 .688 11/16
.250 1/4 .750 3/4
.313 5/16 .813 13/16
.375 3/8 .875 7/8
.438 7/16 .938 15/16
.500 1/2 1.00 1
PRODUCT REGISTRATION
The Gravely dealer must register the product at the time
of purchase. Registering the product will help the
company process warranty claims or contact you with the
latest service information. All claims meeting
requirements during the limited warranty period will be
honored, whether or not the product registration card is
returned. Keep a proof of purchase if you do not register
your unit.
Customer Note: If Dealer does not register your product,
please fill out, sign and return the product registration
card to Gravely or go to www.gravely.com.
YOUR SATISFACTION ISIMPORTANT
Questions? Please follow these helpful steps:
1. Refer to the manuals supplied with your unit.
They will guide you through safe and proper
operation and maintenance.
They contain specifications on your unit.
If your questions are not answered in these manuals,
go to step number two.
2. Contact Your Dealer.
Our dealers will be happy to supply any service or
advice required to keep your unit operating at peak
efficiency.
A factory trained staff is available to support your
equipment needs. They stock genuine Gravely parts
and lubricants manufactured with the same precision
and skill as the original.
If your questions are not resolved by the support
staff, ask for the manager or owner.
When contacting your Dealer supply your model and
serial numbers.
TO SPEED PARTS ORDERING:
1. Know the model and serial numbers of your unit.
2. Know the part number required.
3. Know the quantity required.
4. Know the part description.

3
MODELS
927060 (1028)
10 H.P. 28” Hydro
Serial No. 010000 and up
927062 (1232)
12 H.P. 32” Hydro
Serial No. 010000 and up
927064 (1440)
14 H.P. 40” Hydro
Serial No. 010000 and up
TABLE OFCONTENTS
DECALS
Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
FRAME, ENGINE, CONTROLS AND FUEL
Frame, Hood and Seat. . . . . . . . . . . . . . . . . . . . . . . . 6
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Brake System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Steering and Front Wheels . . . . . . . . . . . . . . . . . . . 10
Rear Wheels and Hydro Drive . . . . . . . . . . . . . . . . . 12
Gas Tanks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Deck Lift. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
ELECTRICAL SYSTEMS
Electrical System . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Continuity Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . 18
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
DECKS
28” and 32” Decks, Belts, and Blades . . . . . . . . . . . 20
40” Deck, Belts, Blades and Idlers. . . . . . . . . . . . . . 22
© Copyright 2004 Ariens Company

4
DECALS-SAFETY & OPERATIONAL
Model 927060, 062, 064
Item Part No. Qty. Description
1 05306000 1 Decal, Trailer Hitch
2 05304800 1 Decal, Throttle
3 01607000 1 Decal, 5 Position Cut Height
4 05301600 1 Decal, Rear Engine Rider Warning
5 07742300 1 Decal, Warning
6 07731400 2 Decal, Mower Pan Danger
7 07757500 1 Decal, Parking Brake Lever
8 07719800 1 Decal, Ignition
9 05305700 1 Decal, Transmission Disconnect
10 07754100 1 Decal, Hot Surface
D A N G E R / P E L I G R O
07731400D
077541
W A RN I N G / A V E R T I SS E M E N T / A D V E R T E N C I A
D o no t op e r a t e m o w e r
un l e ss gu a r d s a r e i n
op
e r a t i ng po s i t i on o r
b a gg e r i s a tt a c h e d .
N e j a m a i s u t ili s e r
l a t ond e u s e s a n s
p r o t e c t e u r s u r l e
c a n a l d ' e j e c t i on ou
s a n s l e b a c m on t e .
N o op e r a r s e g a do r a a
m e no s qu e l a s d e f e n s a s
e s t e n e n po s i c i on d e
op e r a c i on o e l
r e c og e do r e s t e f ij o .
07742300B
05304800A
07719800
B
05305700A
1
2
3
4
5
01607000
PA0410
6
5
4
7
10
8
2
19
3

5
DECALS-STYLE
Model 927060, 062, 064
Item Part No. Qty. Description
1 05304300 2 Decal, Gravely ZT
2 05303600 2 Decal, Rear Engine Rider Gravely 1232 (062)
05303200 2 Decal, Rear Engine Rider Gravely 1028 (060)
05304000 2 Decal, Rear Engine Rider Gravely 1440 (064)
3 05223900 1 Decal, Gravely
4 05305100 1 Decal, American Flag
PA0291
2
3
1
2
4
1

6
FRAME, HOOD AND SEAT
Model 927060, 062, 064
PA0402
2
1
3
4
5
6
7
29
23
9
9
10
10
11
8
12
13
14 15
16 17
18
17
21
3433
36
21
20
19
10
22
24
25 19
35
26
28
27
19
31
30 32
37
39
38
7
12

7
FRAME, HOOD AND SEAT
Model 927060, 062, 064
Item Part No. Qty. Description
1 02780151 1 Frame
2 01599200 1 Seat, TS2500 Michigan with Arms
3 01611151 1 Weldment, Seat Plate
4 02764451 1 Reforcement, Seat Support
5 02766151 1 Panel, Solenoid Mounting
6 01610953 1 Seat Support
7 02765553 1 Weldment, Footrest (060)
02760253 1 Weldment, Footrest (062, 064)
8 07049400 4 Bolt-Serrated Hex Flange Washer Head .25-20 x .75
9 06226700 3 Bolt, Round Head Square Neck .31-18 x .75 Grade 5
10 06544500 15 Nut, Locking Top Flange .38-16
11 02768500 1 Cupholder
12 02763000 1 Grip, Footrest Left Hand (060)
02771700 1 Grip, Footrest Left Hand (062, 064)
02763001 1 Grip, Footrest Right Hand (060)
02771800 1 Grip, Footrest Right Hand (062, 064)
13 02771453 1 Engine-Hood (064)
14 02771651 1 Weldment Tube (064)
15 02771551 1 Bracket, Hood Support (064)
16 07534800 2 Knob, Clamping .31-18 Nyloc (064)
17 06221800 4 Bolt-Round Head Square Neck .31-18 x 1.00 (064)
18 040380 2 Nut-Push .312 (064)
19 06544400 6 Nut-Locking-Top-Flange .31-18
20 06530400 1 Nut-Spin Lock-Flange .312-18
21 06227000 6 Bolt-Round Head Square Neck .38-16 x .75 Grade 5
22 036518 1 J-Clamp
23 06226600 4 Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5
24 06711900 1 Pin-Hair-External .12 x .31 x 2.37
25 032369 4 Nut-Retainer .25-20 x .56
26 02701251 1 Tube (060, 062)
27 05952400 4 Bolt, Hex .31-18 x 1.50 Grade 5 (060, 062)
28 02722700 2 Brace (060, 062)
29 00591400 4 Bolt-Serrated Hex Flange Washer Head .31-18 x 1
30 02774900 1 Bracket, Transmission - Right Hand
02775000 1 Bracket, Transmission - Left Hand
31 06227000 8 Bolt, Round Head Square Neck .38-16 x .75 Grade 5
32 06544500 8 Nut, Locking Top Flange .38-16
33 06435900 2 Washer-Flat-Steel .438 x 1.00 x .083 (Optional)
34 05958500 2 Bolt-Hex .38-16 x 1.75 Grade 5 (Optional)
35 06544500 4 Nut-Locking-Top-Flange .38-16 (Optional)
36 01595251 1 Weight (Optional)
37 07003300 1 Pin, Detent with Ring .25 x 1.00
38 01612700 4 Spacer
39 06514900 4 Nut, Push .312

8

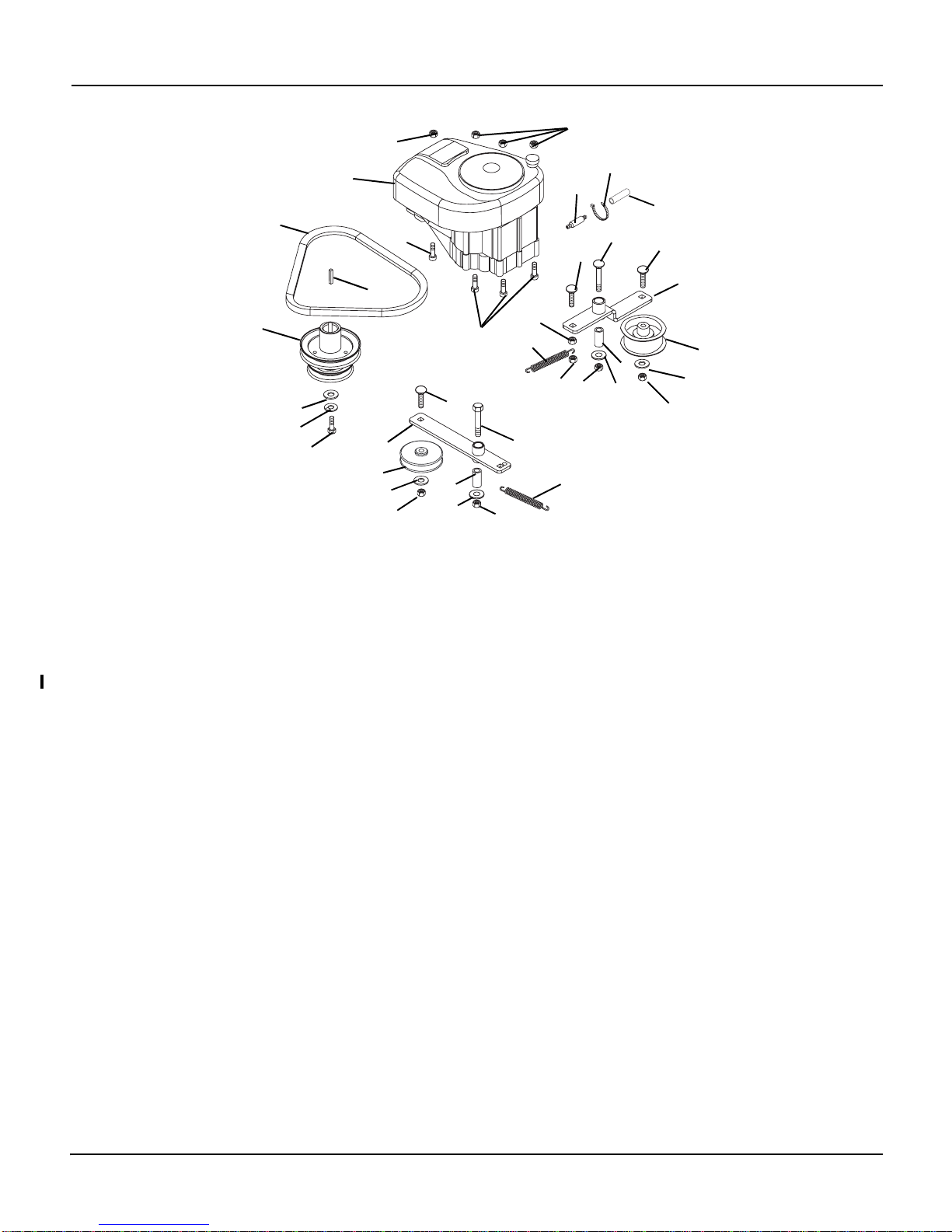

ENGINE
Model 927060, 062, 064
Item Part No. Qty. Description
1 52710400 1 Group, Engine 12HP Intek (062)
52710300 1 Group, Engine 10HP Intek (060)
52710500 1 Group, Engine 14HP Intek (064)
2 036233 1 V-Belt 4L-Section 30.219 x .547
3 06601800 1 Key, Straight .25 x 1.75 x .25
4 02775700 1 Stack, Sheave (060, 062)
02778900 1 Stack, Sheave (064)
5 06443600 1 Washer, Flat Steel
6 06309300 1 Washer, Locking .44 x .109 Regular
7 05967500 1 Bolt, Hex .44-20 x 1.75 Grade 5
8 06224100 1 Bolt-Round Head Square Neck .38-16 x 1.25 Grade 5
9 06534900 1 Nut-Flange .375-16
10 06544500 2 Nut, Locking Top Flange .38-16
11 05961000 2 Bolt, Hex .50-13 x 2.25 Grade 5
12 06535100 2 Nut, Locking Nylock Thin .50-13
13 06224300 1 Bolt-Round Head Square Neck .38-16 x 2.00 Grade 5
14 011263 1 Spring, Tension .095 x .50 x 5.50
15 02775400 1 Idler, Drive
16 07309200 1 Idler, V 3 x .38
17 048870 1 Sheave 3.25 x 1.25
18 02776400 1 Idler, 32” Deck PTO (060, 062)
02779100 1 Idler, 40" Deck PTO (064)
19 047314 1 Spring, Extension.093 x .75 x 4.00
20 05516400 2 Bushing-Sleeve .50 x .75 x 1.56
21 05972700 4 Screw, Socket Head Button Head .31-18 x 1.50 Grade 8
22 06544400 4 Nut-Locking-Top-Flange .31-18
23 06435700 2 Washer-Flat-Steel .38 x .875 x .083
24 07067800 1 Valve, Oil Drain
25 036313 1 Cable Tie
26 01590900 1 Tube, Oil Drain
27 06442000 2 Washer-Flat-Steel .563 x 1.38 x .109
PA0320
1
2
4
3
5
67
9
10
11 13
12
8
14
15
17
18
19
20
20
11
12
10
21
21
16
810
23
23
22
22
24 25
26
25
25

9

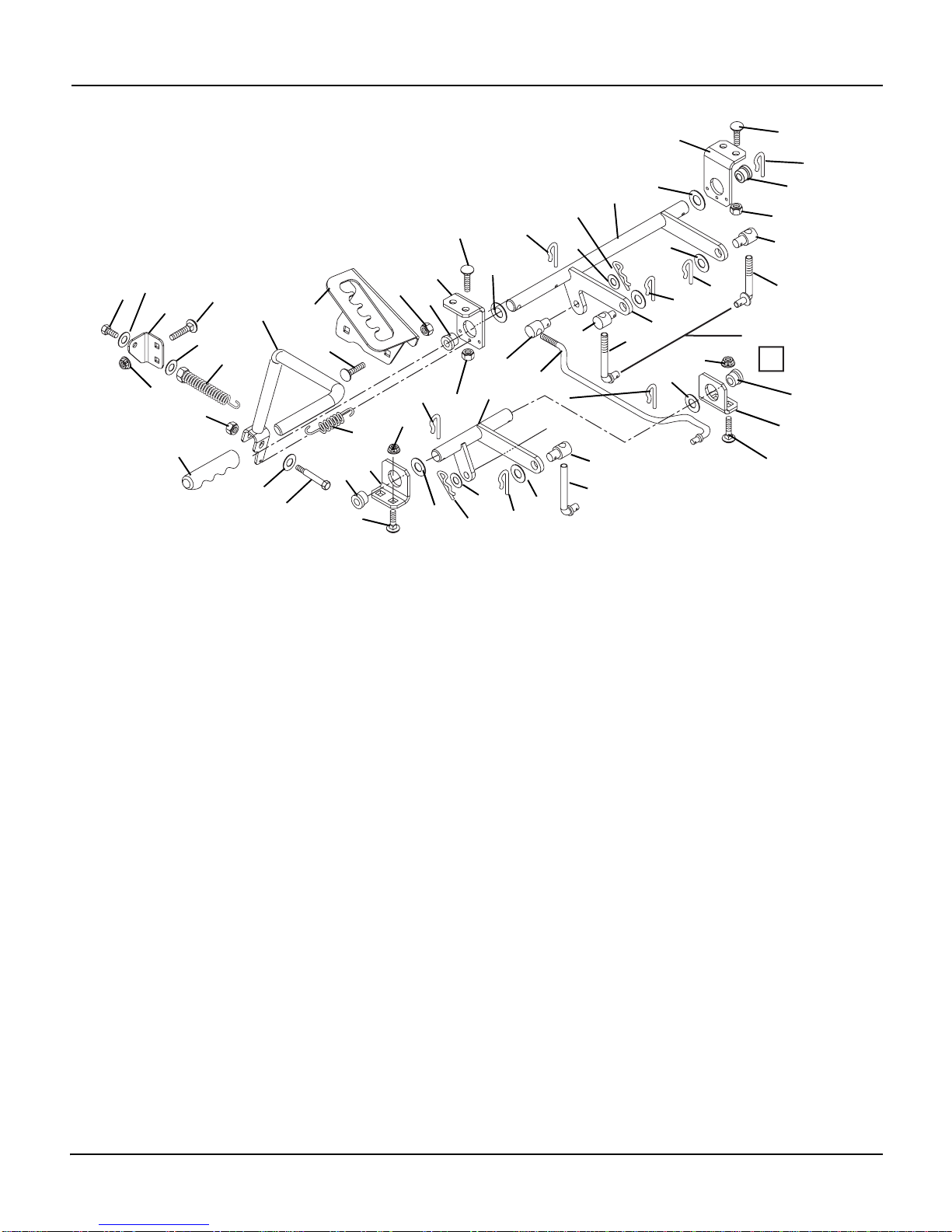

BRAKE SYSTEM
Model 927060, 062, 064
Item Part No. Qty. Description
1 08327100 1 Spring, Compression .080 x .52 x 2.90
2 06447800 1 Washer, Flat Steel .33 x 2.125 x .098
3 02776500 1 Rod, Brake
4 07527500 1 Grip
5 06435700 1 Washer, Flat Steel .38 x .875 x .083
6 06544500 1 Nut, Locking Top Flange .38-16
7 08330300 1 Spring, Tension .048 x .44 x 2.12
8 02777300 1 Weldment, Parking Brake
9 024815 1 Bushing, Flange .406 x .88 x .27 x .140 Grade 2
10 06707000 2 Pin, Cotter .12 x 1.00 Extended Prong Square Cut
11 034738 2 Bushing, Flange .515 x .75 x .745 x 1.00 Nylon
12 034633 1 Yoke, .312-24 x 2.25
13 06439200 2 Washer, Flat Steel .505 x 1.00 x .062
14 02761800 1 Weldment, Brake Pedal
15 06714800 1 Pin, Hair
16 02762100 1 Brake Rod Arm and Hub
17 06439100 1 Washer, Flat Steel .38 x .87 x .179
18 06811800 1 Pin, Clevis .312 x .822
19 06944800 2 Clip, Spring
20 02773900 1 Grip, Pedal
21 06514900 1 Nut-Push .312
22 02781051 1 Bracket, Switch Mount
23 06116900 2 Screw, Machine 10-24 x .75 Hex Washer Head
24 06536000 2 Nut, Locking Nylon 10-24 with Insert
25 03657100 1 Switch, Single Pole (N.O.)
26 06226600 2 Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
27 06535800 2 Nut, Locking Nylon .38-16
28 02781100 1 Jumper, Harness
29 06436200 2 Washer, Flat Steel .406 x .812 x .065
PA0340
1
23
4
5
6
7
8
9
10
14
19
19
13 11
12
15
16
17
18
20
11
13
21
22
23 24
25
27
26
28
29

10
STEERING AND FRONT WHEELS
Model 927060, 062, 064
PA0242
1
2
3
4
5
6
7
8
9
10
11
12
13
14
17
17
18
19
20
21
22
23
24
25
26
42
28
29
30
31
32
33
34
35
36
37
21
22
33
20
32
32
32
25
24
26
22
22
23
43
38
38
38
27
39
15
29
13
40
16 40 41
41
4

11
STEERING AND FRONT WHEELS
Model 927060, 062, 064
Item Part No. Qty. Description
1 02753700 1 Steering Wheel 13 Inch
2 05803700 1 Pin, Roll .25 x 1.75
3 02749100 1 Steering Shaft
4 07503700 2 Plug
5 02753800 1 Tube
6 05804600 2 Pin, Roll .188 x .75
7 05505300 1 Bushing, Flange .625 x 1.156 x .375
8 06418100 1 Washer, Hardened Steel .515 x .97 x .062
9 01310000 1 Retaining Plate1
10 02705400 1 Pinion
11 07126400 2 Tire/Wheel Assembly
07108000 2 Tire 4.10/3.50 - 4
05505800 4 Bushing, Flange .75 x 1.38 x .75 x 1.557
12 02768400 1 Spacer, Steering Gear
13 06544500 2 Nut, Locking Top Flange .38-16
14 06226600 1 Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
15 05958500 1 Bolt-Hex .38-16 x 1.75 Grade 5
16 06442400 1 Washer, Flat Steel .406 x 1.375 x .135
17 02917100 2 Ball Joint
18 02761300 1 Steering Gear
19 02775553 1 Box, Steering
20 02765700 2 Steering Link
21 02765800 2 Spring, Suspension
22 01591100 4 Bushing 1.00 x .75 x 1.00
23 06427600 4 Washer-Flat-Steel .70 x 1.47 x .134
24 06308600 2 Washer, Locking .31 x .078 Regular
25 05947000 2 Bolt, Hex .31-18 x .75 Grade 5
26 06442400 2 Washer, Flat Steel .406 x 1.375 x .135
27 06227000 4 Bolt, Round Head Square Neck .38-16 x .75 Grade 5
28 06544400 4 Nut, Locking Top Flange .38-16
29 044753 2 Rod End, .38 Right Hand
30 02765900 1 Weldment, Spindle Right Hand
31 02766000 1 Weldment, Spindle Left Hand
32 06534700 4 Nut, Jam .375-24
33 06538800 2 Nut, Locking Nylon .375-24 With Insert
34 02761451 1 Steering Gear Support
35 02771200 1 Bracket, Steering Column
36 036046 1 Bushing, Flange
37 02760600 1 Support, Steering Column
38 07413400 4 Screw, Tapping .312-18 x .50 Hex Washer Head
39 02769900 1 Cover, Light
40 06714500 4 Pin, Spring Clip
41 06441500 4 Washer, Flat Steel .755 x 1.375 x .062
42 06226700 4 Bolt-Round Head Square Neck .31-18 x .75 Grade 5
43 06530200 4 Nut-Locking-Nylon .312-18

12
REAR WHEEL AND HYDRO DRIVE
Model 927060, 062, 064
PA0391
11
12
14
17
16
18
19
22
23
25 13
35
10
8
7
621
20
5
4
21
1
13
2
15
9
27 28
31
36 32
30
29
34
29
3
6
24

13
REAR WHEEL AND HYDRO DRIVE
Model 927060, 062, 064
Item Part No. Qty. Description
1 02775100 1 Support, Transmission
2 06514400 4 Nut, Flange .50-13
3 07414400 1 Screw-Tapping .31-18 x .75 Hex Washer Head
4 02761600 1 Weldment, Forward and Reverse Pedal
5 06544500 2 Nut, Locking Top Flange .38-16
6 034738 2 Bushing, Flange .515 x .75 x .745 x 1.00
7 06439200 2 Washer, Flat Steel .505 x 1.00 x .062
8 06944800 2 Clip, Spring
9 06439100 1 Washer, Flat Steel .38 x .87 x .179
10 06811800 1 Pin, Clevis .31 x .822
11 02776800 1 Transmission Peerless Hydro
12 02775300 1 Rod, Transmission Disconnect
13 06714800 2 Pin, Hair
14 08321100 1 Spring, Tension .043 x .44 x 3.31
15 036282 2 Key, Square .188 x 2.0 x .188
16 06444200 2 Washer, Flat Steel .755 x 1.25 x .125
17 02765400 2 Spacer, Wheel .75 x 1.00 x 1.25
18 02765300 2 Assembly, Tire and Wheel 16 x 6.5 x 8 (060, 062)
07159000 2 Assembly, Tire and Wheel480 x 8 (064)
039653 2 Tire 16 x 6.50-8 2 Pulley
19 036278 2 Ring, Retaining External .75 x .05
20 02761700 1 Weldment, Shift Rod and Hub
21 06707000 2 Pin, Center .12 x 1.00 Extended Prong Square Cut
22 06439200 3 Washer, Flat, Steel .50 x 1.00 x .062
23 02776600 1 Rod, Rear Engine Rider Shift
24 01582300 1 Trunnion
25 034633 4 Yoke .31-24 x 2.250
26 06444300 1 Washer, Flat Steel .390 x .750 x .125
27 02917100 1 Ball Joint
28 06538800 2 Nut-Locking-Nylon .375-24 With Insert
29 02773900 2 Grip, Pedal
30 02781600 1 Tab, Transmission Disconnect
31 05952300 1 Bolt-Hex .25-28 x .75 Grade 5
32 06308400 1 Washer, Locking .25 x .062 Regular
33 06437500 1 Washer, Flat Steel .328 x 1.00 x .094
34 06219400 8 Bolt, Round Head Square Neck .31-18 x 2.50 Grade 5
35 06227000 2 Bolt, Round Head Square Neck .38-16 x .75 Grade 5
36 06435700 1 Washer, Flat Steel .38 x .875 x .083

14
GAS TANK
Model 927060, 062, 064
Item Part No. Qty. Description
1 06939100 2 Clamp, Hose Wire .490/.510 x .116
2 021134 1 Gas Line, Bulk 1/4" I.D.
3 03606500 1 Fitting, Tank
4 01538400 1 Fuel Cap
5 07049400 4 Bolt, Serrated Hex Flange Washer Head .25-20 x .75
6 02771351 1 Bracket, Battery
7 02765100 1 Tank, Fuel
8 01588600 1 Cable, Throttle
9 06116700 2 Screw, Machine 10-24 x .50 Hex Washer Head
10 06536000 2 Nut, Locking Nylon 10-24 with Insertg
11 06308600 4 Washer-Locking .31 x .078 Regular
12 03645700 5 Pad, Foam
13 00932300 AR VHB Tape
PA0350
1
2
3
4
5
56
7
8
9
10
12
12
11
11
12
13

15
DECK LIFT
Model 927060, 062, 064
Item Part No. Qty. Description
1 06544400 1 Nut, Locking Top Flange .31-18
2 05980300 1 Bolt, 1.25 Socket Shoulder Plain
3 01606851 1 Weldment, Lift Handle
4 07527500 1 Grip
5 01607351 1 Detent Plate
6 06436400 7 Washer, Flat Steel .511 x 1.44 x .125
7 02776300 1 Rod, Deck Lift
8 06544500 8 Nut, Locking Top Flange .38-16
9 06227000 4 Bolt, Round Head Square Neck .38-16 x .75 Grade 5
10 02762800 2 Bracket, Lift
11 05503900 4 Bushing, Flange .75 x 1.00 x .625 x 1.25
12 06714500 4 Pin, Spring Clip
13 06443900 4 Washer, Flat Steel .563 x 1.38 x .109
14 06714900 2 Pin, Hair #16
15 02762700 2 Bracket, Deck Pivot
16 06226600 4 Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
17 02778100 3 Rod, Link (060, 062)
02778100 2 Rod, Link (064)
18 01590400 3 Trunnion (030)
01590400 2 Trunnion (064)
19 02762500 1 Weldment, Front Lift (060, 062)
02779800 1 Weldment, Front Lift (064)
20 02762600 1 Weldment, Lift
21 08333900 1 Spring, Extension
22 06443800 3 Washer, Flat Steel .43 x 1.00 x .16 (060)
06443800 2 Washer, Flat Steel .43 x 1.00 x .16 (062)
06443800 1 Washer, Flat Steel .43 x 1.00 x .16 (064)
23 02779500 1 Pivot, Rod
24 06443800 1 Washer, Flat Steel .43 x 1.00 x .160
25 06944800 2 Clip, Spring
26 01606551 1 Bracket, Spring Anchor
27 08354300 1 Spring, Tension .195 x 1.15 x 5.50
28 05957900 1 Bolt-Hex .38-16 x 1.50 Grade 5
29 06227000 2 Bolt, Round Head Square Neck .38-16 x .75 Grade 5
30 06442000 1 Washer, Flat Steel .563 x 1.38 x .109
“Se
e
Deck
s”
A
PA0382
1
2
3
4
5
7
8
8
9
9
10
10
11
11
11
11
16
16
12
12
12
13
13
8
8
13
13
15
15
6
6
30
17
17
17
18
18
18
19
20
14
21
9
8
23
14
25
25
6
24
25
6
12
26
27
28 29
22
22
8
Note:The quantity of item number 22 used with item
numbers 26 and 27 are as follows (See Illustration
and descriptions below).
Model 927060 = 3
Model 927062 = 2
Model 927064 = 1

16
ELECTRICAL SYSTEM
Model 927060, 062, 064
ToStarter
PA0281
1
2
34
18
13
17
5
8
9
22
9
7
12
11
11
14
15
19
20
21
16
24
23
23
28
28 28
12
28
28
6
25
22
27
26
29
30

17
ELECTRICAL SYSTEM
Model 927060, 062, 064
Item Part No. Qty. Description
1 02460700 1 Key with Cap
2 045490 1 Cap, Ignition Switch
3 045489 1 Nut, Panel .625-32
4 01563700 1 Key Switch
5 03679000 1 Solenoid
6 039619 1 Insulator
7 Battery, Sealed Maintenace Free U1-330 (See Local Battery Supplier)
8 05946800 2 Bolt, Hex .25-20 x .75 Grade 5
9 06437300 2 Washer, Flat Steel .281 x .62 x .065
10 06308400 2 Washer, Locking .25 x .062 Regular
11 06533200 2 Nut, Hex .25-20
12 07533200 3 Boot, Eyelet Terminal
13 02727200 1 Cable, Positive Battery
14 02727900 1 Starter Cable 13"
15 08840400 1 Starter Cable 16"
16 06530400 1 Nut, Spin Lock Flange .312-18
17 01545600 1 Switch, Clutch With Retainer
18 02776200 1 Harness, Wire
19 07412100 2 Screw, Tapping 10-24 x .375 Hex Washer Head
20 036313 1 Cable Tie
21 02754100 1 Switch- Snap Mounting (N.O.)
22 09293500 2 Diode, Connector Shell
23 09351100 1 Fuse, 25 AMP
24 040216 1 Relay
25 02777200 1 Switch, Parking Brake
26 05980000 2 Screw, Machine 2-56 x .75
27 06545000 2 Nut, Nylock 2-56
28 72702700 1 Light Kit (Optional)
29 03657100 1 Switch- Single Pole (N.O.)
30 02781100 1 Jumper, Harness

18

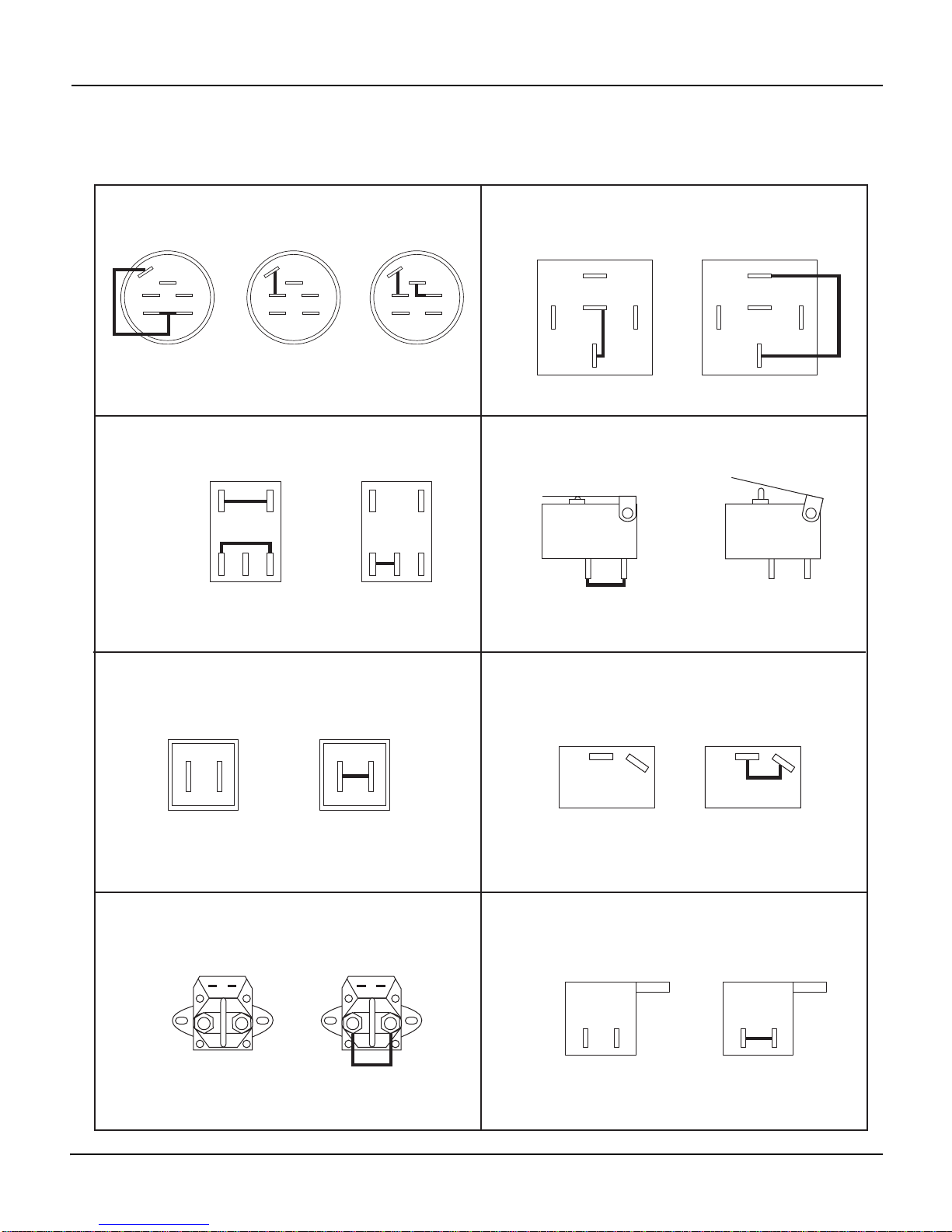

CONTINUITY DIAGRAM
Model 927060, 062, 064
S ol e noid
NOTENERGIZED ENERGIZED
The diagrams below show the various states of connection for electrical components.
The solid lines on switches show continuity.
NOTE:All switches are viewed from the rear.
PTO S wi t c h
S ea t S wi t c h
R e l ay
39
471
DISENGAGED
(down position)
39
471
ENGAGED
(up position)
1
OPERATOR
OFF SEAT
21
OPERATOR
ON SEAT
2
87
87A
86 85
30
NOTENERGIZED
87
87A
86 85
30
ENERGIZED
OFF
MG
S2
BS1
A
RUN
MG
S2
BS1
A
START
MG
S2
BS1
A
K ey S wi t c h
(01563700)
OFF ON
L igh t S wi t c h
(03656800)
P a r k ing B r ake S wi t c h
(02777200)
1
2
(03042800)
(01545600)
(02754100)
(03679000)
1
2
ON
OFF
B r ake N e u t r a l S wi t c h
12
BUTTON DOWN
12
BUTTON UP
(03657100)
PA0261

19

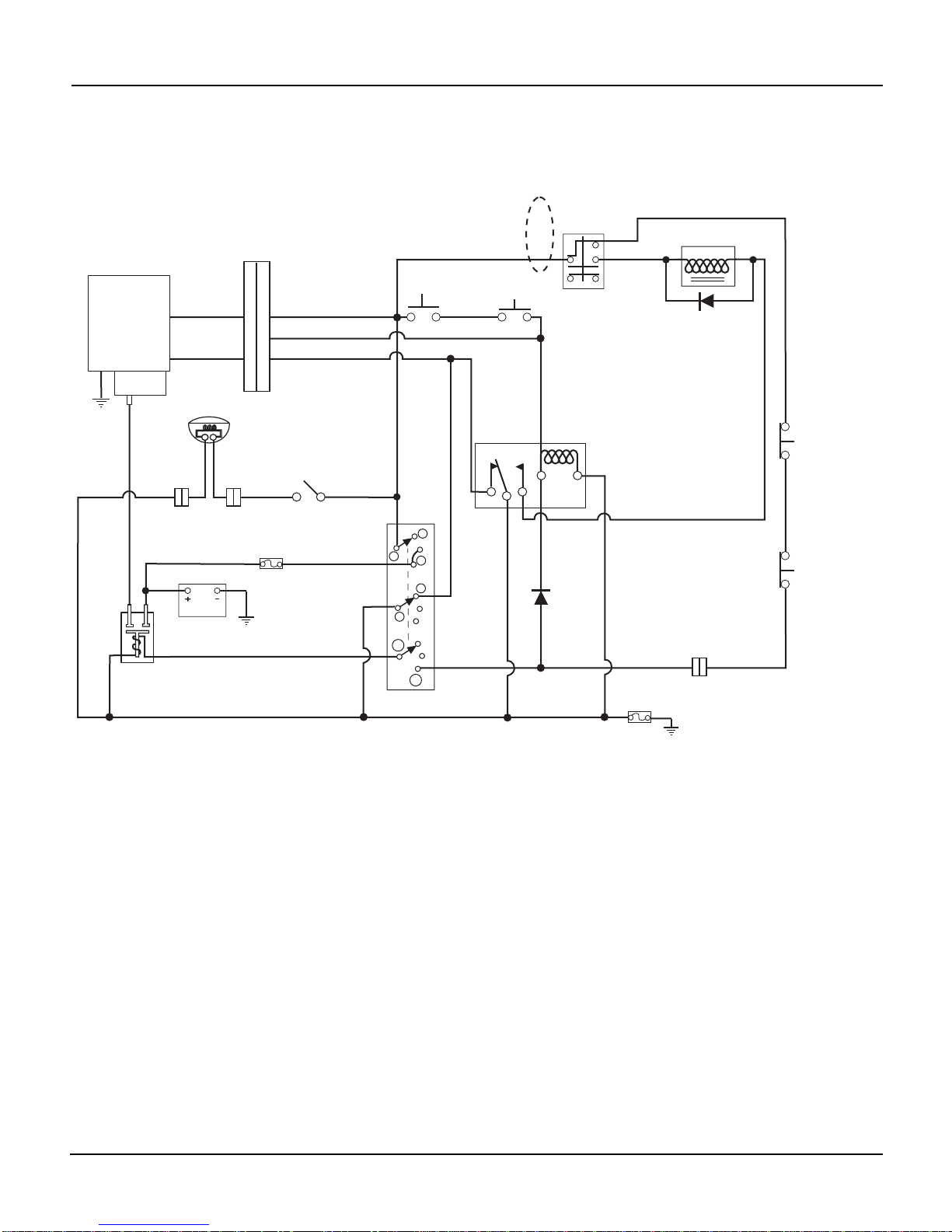

WIRING DIAGRAM
Model 927060, 062, 064
W H ITE / B L ACK
E N GI N E
BR OW N
BR
OW
N
/YELLO
W
R E
D
/ VIOLET
P
UR PLE
M A G N ETO K ILL
R E D
P UR PLE/
W
H ITE
T RAN S M ISSIO N
N
E U T RA L
SWIT
CH
F U SE
25A
PTO
C L U T CH
AB
PTO
SWIT
CH
1
39
4
7
ST AR T
R EL A Y
R EG U L A TO R
B
A
B
L ACK
ST AR TE R
R
E
D
/ VIOLET
R
E
D
B L ACK
BA TTE R Y
R E D
C OIL 2C OIL 1
K EY
SWIT
CH
M
G
S
2
B
S 1
A
G
F U SE
25A
BA
B L ACK
ST AR TE R
SOLE N OI D
B
L ACK
YELLOW /
R
E
D
B L ACK /W H ITE
33
22
44
11
66
55
SE A T
SWIT
CH
1 2
H E AD LIG H T
LT. B L U E
P ARK I N G
BRAK E
SWIT
CH
1 2
1
2
PTO
D IO D E
G
R O UND
P A T H F U SE
B L ACK
H E AD LIG H T
SWIT
CH
POSITIVE
P
A T H F U SE
YELLOW /
R
E
D
R
E
D
/
YELLOW
30 86 85
87
87a
ST AR T
D IO D E
B L ACK
B
L
U
E
B
L
ACK
21
21
R E AR P AR K I N G
BRAK ESWIT CH
1
2
BR
OW
N
/YELLO
W
R E
D
/ VIOLET
PA0271

20
28" AND 32" DECK, IDLERS AND BLADES
Model 927060, 062
Item Part No. Qty. Description
1 05974500 1 Bolt, Hex .38-16 x 1.00 Grade 8 with Epoxy Patch
2 01608551 1 Discharge Chute
3 00597000 1 Washer, Cupped Serrated .375
4 06611100 1 Key, Square .25 x .38 x .25
5 01610400 1 Pulley, 28" Deck Input (060)
01610300 1 Pulley, 32" Deck Input (062)
6 01572700 2 Bearing, Slinger
7 032050 2 Bearing, Ball 1.00 x 2.00 x .56
8 06817400 4 Pin, Clevis .494 x 1.00
9 02780651 1 Bracket, Rear Hanger 28” (060)
02780351 1 Bracket, Rear Hanger 32” (062)
10 02770351 1 Bracket, Deck Link Right Hand (060)
02763751 1 Bracket, Deck Link Right Hand (062)
“See
Deck Lift”
A
“See
Deck Lift”
A
PA0382
1
3
5
4
6
7
24
8
12
13 13
9
8
17
25
25
46
24 15
16
14
11
10
18
24
24
6
19
20
7
29 21
22
27
30
32
31
23
33
34
35
36
38
39
40
42
43
44
45
41
47
49
48
37
35
28
24
50 51
52
52
2
8
13
26 53
53
927062
927060 12
12
927060 927062
54
927062
927060
55
57
56
