GRAVITY X rocket User manual

1
USER MANUAL
GRAVITY Xrocket
EN REV.V01 - 2020
X rocket_EN high B paraglider
MANUAL
EN REV.V01 – 2020
Copyright by:
GRAVITY airsports & more GmbH
Hütte 45
6345 Kössen / Austria
tel. [phone]
mail. [e-mail]
web. www.gravityparagliders.eu
photos copyright and photo & visual credits
GRAVITY airsports & more GmbH

2
USER MANUAL
GRAVITY Xrocket
EN REV.V01 - 2020
1 PRODUCT_................................................................................................................................... 7
1.1 GRAVITY Xrocket _ high performance........................................................................... 7
1.2 Pilot Profile .............................................................................................................................. 8
1.3 Nature and environmentally friendly behaviour .......................................................... 8
1.4 Usage.........................................................................................................................................9
1.5 Sampling Inspection ........................................................................................................... 10
1.6 Signboard............................................................................................................................... 10
2 POSSIBLE USE_..........................................................................................................................11
2.1 Motorised Paragliding ..........................................................................................................11
2.2 E-climbing assistance/ E-ascent aid................................................................................11
2.3 Towing winches......................................................................................................................11
3 THE DEFAULT SETTINGS_ ....................................................................................................12
4 SECURITY PRECAUTIONS_ ...................................................................................................13
5 EQUIPMENT DESCRIPTION_ ................................................................................................ 14
5.1 Short description ................................................................................................................. 14
5.2 Technical data Xrocket_.....................................................................................................15
5.3 Innovations on our Product_ ............................................................................................16
5.4 Colours and Design_............................................................................................................17
5.5 Riser belt .................................................................................................................................18
5.6 Speed/ acceleration system..............................................................................................19
5.7 TRANSPORTATION and STORAGE_..............................................................................19
6 THE FLIGHT_ ............................................................................................................................ 20
6.1 Flying experience ............................................................................................................... 20
6.2 Take-off.................................................................................................................................. 20
6.3 Turning .....................................................................................................................................21
6.4 Active flying ...........................................................................................................................21
6.5 Landing ....................................................................................................................................21
7 RAPID DECENT.........................................................................................................................22
7.1.1 „Big Ears“ ...............................................................................................................................22
7.1.2 B-Stall..................................................................................................................................22
7.2 Advanced Handlings...........................................................................................................23
7.3 Spiral Dive ..............................................................................................................................23
7.4 Wingover................................................................................................................................23
7.5 Front Collapse ......................................................................................................................24

3
USER MANUAL
GRAVITY Xrocket
EN REV.V01 - 2020
7.6 Collapses ................................................................................................................................24
7.7 Deep stall................................................................................................................................24
7.8 Full stall...................................................................................................................................24
7.9 Negative turn/ spin .............................................................................................................25
7.10 Emergency piloting/ control............................................................................................25
8 REPAIRS_ ...................................................................................................................................25
9 MAINTENANCE and CLEANING_........................................................................................26
9.1 Packing....................................................................................................................................26
9.2 Recycle....................................................................................................................................27
10 FLYING ACCESSORIES_....................................................................................................27
10.1 Xgear_ COMFORT IN ITS HIGHEST QUALITY ............................................................27
10.2 Xfusion _ guard, performance and quality - in a petite pack............................28
11 PRESUMTION OF RISK_.........................................................................................................29
12 LIABILITY DISCLAIMER_ ...................................................................................................... 30
13 SAFETY ADVICE and LIABILITY_.................................................................................. 30
14 LIABILITY EXEMPTION and WAIVER_ ..........................................................................31
15 MAINTENANCE MANUAL_ ...............................................................................................32
15.1 Subject to inspection and inspection intervals ..........................................................32
15.2 Who is authorized to check? ...........................................................................................32
15.3 Rescue inspection equipment..........................................................................................32
15.4 Holes and cracks ..................................................................................................................32
15.5 Abrasion and expansions ..................................................................................................33
15.6 Tear resistance control ......................................................................................................33
15.7 Canopy porosity measurements .....................................................................................33
15.8 Connecting parts ................................................................................................................ 34
15.9 Lines........................................................................................................................................ 34
15.10 Tensile strength values and tear resistance........................................................... 34
15.11 Checking line lengths and fixings...............................................................................35
15.12 Line length measurements: ..........................................................................................35
15.13 Stitch/ Sewing control of trimming and settings..................................................36
15.14 Miscellaneous....................................................................................................................36
16 IMPORTANT -> carried out inspections .......................................................................36

4
USER MANUAL
GRAVITY Xrocket
EN REV.V01 - 2020
SERVUS
There are those very special and rare scenes and encounters in time, when we indulge in the
present, feeling the now and simply pure joy. The GRAVITY team has devoted its efforts, work
and vision entirely to and around the pleasures and enjoyment to the art of flying. Not only
do we all live the spirit and mind-set of safety and freedom every day, we also want to share
it with as many people and like-minded airheads as possible! GRAVITY develops innovative
products for paragliding and offers a full-service range with the great desire to make our
products accessible to as many enthusiasts and sportsmen out there.
WE PROCLAIM
-> Secured and lasting enjoyment!
GRAVITY strives for the highest level of passive safety, with inspiring, performing and
convincing products that make you truly happy. Our products deliver reliably, supporting
and aiding the pilot even in more challenging conditions.
It’s simple that the fun factor increases significantly by reducing risk. Designing and
manufacturing products, applying high, latest technological standards, originality with long-
lasting quality.
AMBITIOUS DESTINATION
-> Exceeding what is already great!
“Innovation is a trusted, strong driver and successful progress the best vessel!” With this we
are aiming to improve, grow and develop personally and our devices every day. Evolving
and advancing on certain thoughts and ideas about the current state of a product, how to
improve safety and protection, including sustainability with fresh, out of the box angles and
approaches. We are proud of our work, savour uncompromising quality and love our sport.
The products are crafted and tested with utmost care, in order to create and maintain long
lasting quality.
THE HEART OF TRADE
-> man-kind
Managing the team responsibly and with care, treating our surroundings and nature with
respect comes just as natural to us as how we communicate with each individual customer
and pilot. The GRAVITY team and family keeps an authentic and plain management style.
Evident, direct structures enable active, empowered interactions and makes us dynamic and
flexible. We wish you many countless, lasting, impressive explorations and moments with your
GRAVITY product.
Stefan Berger
owner & sales

5
USER MANUAL
GRAVITY Xrocket
EN REV.V01 - 2020

6
USER MANUAL
GRAVITY Xrocket
EN REV.V01 - 2020
PAY ATTENTION_
This operating manual is an important part of the aircraft. Please study and revise it well and
in detail, due to the fact that there is a legal OBLIGATION to deal with the air sports device
and its special features prior commissioning it. The manual is intended to make the use
of the
GRAVITY X rocket
as safe and easy as possible.

7
USER MANUAL
GRAVITY Xrocket
EN REV.V01 - 2020
1 PRODUCT_
1.1 GRAVITY Xrocket _ high performance
Xrocket reaches top-notch of B-class and is our superlative degree, high-performance
intermediate wing. This superb glider offers a new level of performance-driven fun factor.
With an unmet glide performance of 11.6 the Xrocket enables truly epic cross-country
adventures with definite feelings of success and fulfilment. Rise and follow your vision as far
and as long as your curiosity leads and guides you – for as long as this rocket rides.
The combination of high speeds and sporty handling with well-tempered reactions in extreme
flight situations. The Xrocket is a masterpiece in design and construction and a very well
executed glider – efficient, powerful and enduring.

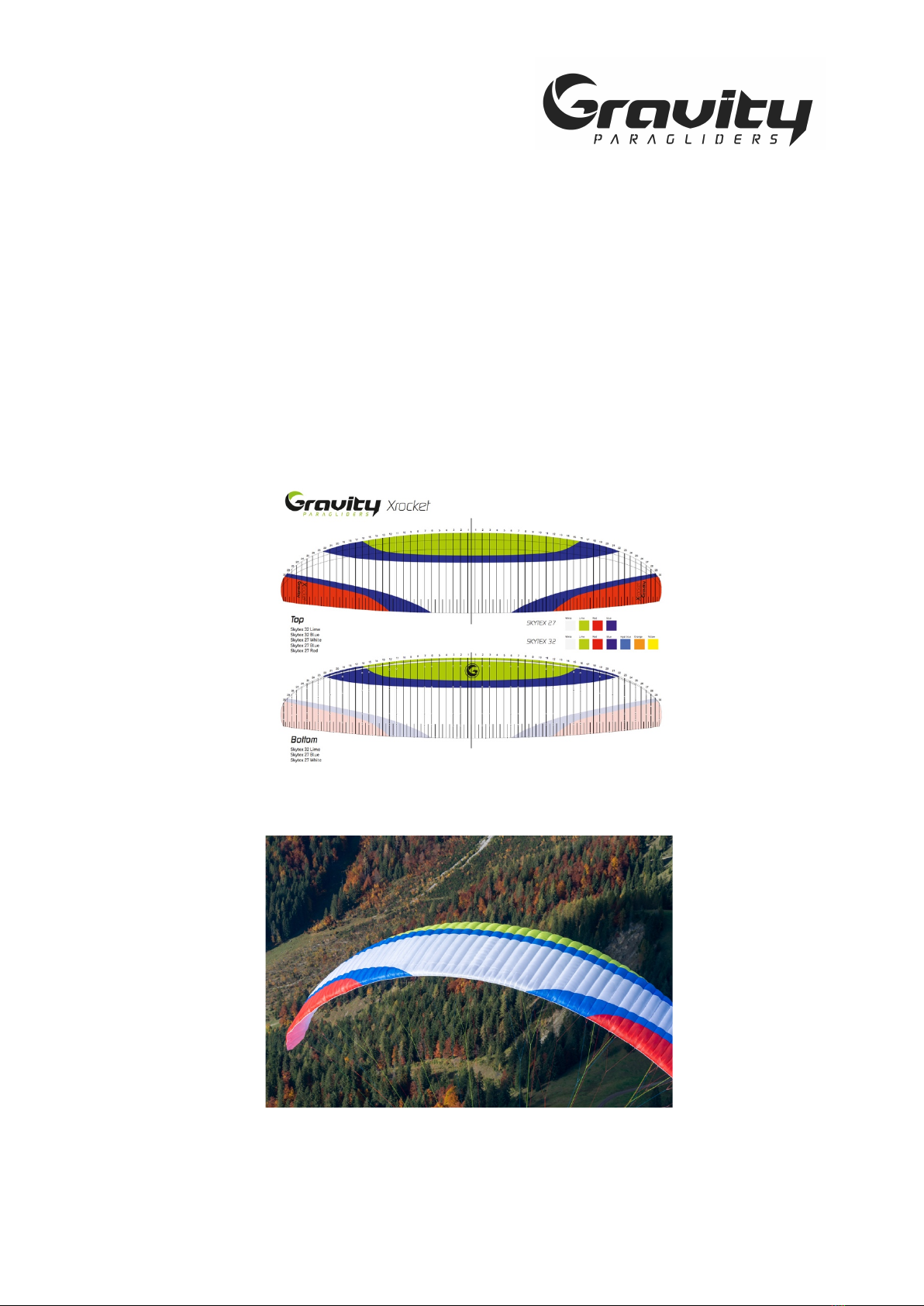

Illustration 01_ GRAVITY Xrocket

8
USER MANUAL
GRAVITY Xrocket
EN REV.V01 - 2020
1.2 Pilot Profile
The Xrocket delights all C-enthusiasts. Built for big goals, the high-performance intermediate
wing finds a broad area of application. for performance-oriented C-pilots who want to enjoy
the good feeling of the B-class, as well as for C-pilots who want to transfer the familiar C-
performance to the B-class. The small weight makes it the perfect travel companion for hike
& fly adventures and cross-country trips as well as when traveling to far away countries and
flying spots. Nevertheless, we would like you to always conduct the flying sport with the
needed caution and respect. That includes profound preparations for the flight as well as
getting acquainted with the given meteorological conditions and correct assessment of the
weather. act defensive because the fun factor rises when the risk factor sinks.
Illustration 02_ GRAVITY Xrocket
1.3 Nature and environmentally friendly behaviour
We ask you to perform our sport in a manner, that impacts nature and environment with
minimum intensity or as little as possible. Please do not walk off-track paths, don`t leave any
waste, don’t make noise uselessly and respect the sensitive biological habitat in the mountains
or any nature surroundings. Especially at take-off areas maximum care for nature is necessary.

9
USER MANUAL
GRAVITY Xrocket
EN REV.V01 - 2020
1.4 Usage
For performance-oriented C-pilots who want to enjoy the good feeling of the B-class, as well
as for C-pilots who want to transfer the familiar C-performance to the B-class. The Xrocket
was built exclusively for one-seated usage and is a light aircraft with a mass of less than 120
kgs in the class of paragliders. The Xrocket is sample inspected and certified after LTF/EN B.
Illustration 03_ GRAVITY Xrocket

10
USER MANUAL
GRAVITY Xrocket
EN REV.V01 - 2020
1.5 Sampling Inspection
The approval of the product was carried out and conducted according to current legal
requirements and specifications:
• Test guideline: LTF 91/09 & EN 926-1:2006, 926-2:2013
• Test Centre: AIR TURQUOISE SA | route du Pre!-au-Comte 8 | 1844 Villeneuve |
Switzerland
•
1.6 Signboard
The essential and relevant product data is positioned on each product by default and in
accordance to the admission office. In the case of the entire GRAVITY paraglider range these
are visibly placed are the centre of the canopy.
Illustration 04_ Xrocket Signboard
WARNING! Read and understand the owner’s manual
of this paraglider before operation.
LTF 91/09 & EN 926-1:2006, 926-2:2013
AIR TURQUOISE SA, 1844 Villeneuve, Switzerland
Paraglider:
Gleitschirm:
Conformity:
Geprüft von:
Te s t S ta n d ar d :
Prüfrichtlinie:
Te s t C en t e r:
Prüfstelle:
Serial No.:
Werk Nr.:
Date:
Datum:
Prod. Dat.
Prod. Dat.
Xrocket M
LTF / EN - B
1
93 - 110 KG
22,973 m2
3+2
YES / JA
16 0 M M
–
15 0 H 2 4 M ON. / 150STD 24MON.
Yes / JA
NO / NEIN Weight:
Gewicht: 4,6KG
Test-flown by / Eingeflogen von :
Periodic inspection / Nachprüfung:
Repairs / Reparaturen: Date / Datum:
Gravity-Paragliders GmbH Hütte 45 | A 6345 KÖSSEN [e-mail]
CONTACT
Te s t R e f e r e n c e - N o :
Musterprüf-Nr.:
Te s t R e f e r e n c e - N o :
Musterprüf-Nr.:
Class:
Klasse:
Number of seats:
Anzahl Sitze:
   
Startgewicht:
      
Startgewicht Motor:
Projected Area:
Projizierte Fläche:
Number of risers:
Anzahl Traggurte:



     
max.way of accelaration:
Beschleunigerweg:
Suitable for schooling:
Schulungstauglichkeit:
Periodic inspection after:
Regelmässig Nachprüfung nach:
Towing:
Windenschlepp:
gravity-paragliders.eu
Paragliding and Paramotoring is a hazardous activity that can and sometimes does result in severe injury or death. The designer, manufacturer,
distributor, wholesaler, instructor and retailer cannot and will not guarantee your safety when using this equipment nor accept responsibility


understand the correct and safe use of this equipment, to use it only for the purpose for which it is designed, and to practice all proper safety
procedures before and during use. Paragliding and Paramotoring require careful and constant care. Over time, solar radiation, dirt, dust,
grease, water, wind, stress, and other wear will degrade the materials, performance, and safety of the equipment, there by increasing the


11
USER MANUAL
GRAVITY Xrocket
EN REV.V01 - 2020
2 POSSIBLE USE_
2.1 Motorised Paragliding
The Xrocket is ideally equipped for the motorised flight due to its outstanding rise features,
its uncomplicated handling and the high trimmed speed. Please note that no acro-
manoeuvres are allowed in motorised flight. Due to the higher wing and surface loading in the
extended engine weight range, the according reactions are responding more dynamically.
Opening the trimmer reduces the angle of attack and also causes a higher speed and thus
more dynamic behaviour. It is recommended to keep the trimmers closed when flying through
turbulent air. In order to keep the take-off distance and take-off speed low, the trimmers
remain closed during take-off, especially when there is little wind.
The extremely high area loading through the additional weight of the motor brings even the
GRAVITY Xrocket to its load limits. Pay attention to the extended engine weight range which
changes/ alters the take-off and landing speed considerably. Currently GRAVITY Xrocket is
certified for motorised usage, the allowed weight ranges must not be exceeded!
2.2 E-climbing assistance/ E-ascent aid
Due to its unproblematic handling and high trim speed, the GRAVITY Xrocket is ideally suited
for the e-ascent aid.
2.3 To wi n g w i n c h e s
The GRAVITY Xrocket offers excellent starting characteristics with its high trim speed, best
conditions for towing winches. The following must be observed when towing winches/
aerotow:
– The GRAVITY Xrocket must not be towed over 100 kp
– Unless towing on your “house winch”, it is absolutely necessary to familiarize yourself
with the local conditions in advance. Every “guest” in a foreign/ new flight area must
be instructed by the local pilots.
– Never tow the GRAVITY Xrocket with a load exceeding the approved weight limits
– All persons and facilities involved in winch operation must have the required
qualifications or approvals for towing paragliders on the winch. This applies to the
pilot, winch operator, towing device, towing pawl and all other devices for which a
certificate of competence is required

12
USER MANUAL
GRAVITY Xrocket
EN REV.V01 - 2020
3 THE DEFAULT SETTINGS_
The delivered brake line and default setting corresponds to the setting 0-leeway plus 5 cm.
It is recommended to adjust the brake handle to your personal needs after the first flight.
Remember that the brakes should not be set too short, otherwise the glider would fly
continuously braked. These situations would be extremely dangerous for take-off, flight and
landing!
The default setting is in extreme flight situations and when landing
sufficient braking distance available. At the same time, it enables a comfortable arm position
for the trim flight. Under no circumstances should the basic setting of the A, B and C lines be
changed.
PAY ATTENTION_
Please note that the relative braking distance changes with the height/ length of the harness.
When fixing the setting, make sure that both sides are symmetrical and that a permanent knot
is used. The double fisherman’s knot/ spar or pile stitch has proven particularly effective in
that since it weakens the lines the least with excellent slip resistance.
Illustration 05_ bowline/ double fisherman’s knot

13
USER MANUAL
GRAVITY Xrocket
EN REV.V01 - 2020
4 SECURITY PRECAUTIONS_
1. 1. Before the first flight, the cap, lines, all connections and sewing, the shackles, brake
lines and brake line knots as well as any twisted lines must be checked by appropriately
trained personnel and confirmed on the type plate
2. Make your first flight in a known flight area/ territory and in calm conditions
3. Test your GRAVITY Xrocket only over water
4. During a "dynamic flight" the gravitation does not only affect you, but also on the
glider. Do not underestimate this state and the forces!
5. Always fly your GRAVITY Xrocket with at least one rescue device!
6. Compliance with the air traffic act and regulations are applicable in the respective
country must be observed and revised carefully
7. Successful, certified completion of the appropriate training and license as well as the
current existence of the appropriate level of knowledge / the current flight experience
are prerequisites for using the GRAVITY Xrocket
8. The use of suitable, tested and approved accessories (helmet, harness, rescue device)
is a prerequisite for using the GRAVITY Xrocket
9. Carry out a thorough material check of your equipment (top sail, bottom sail, ribs,
especially the lines, carabiners, belt buckles, cloth, speed system, etc.) before every
start
10. A flight with a crack or hole in the wing or line can be life-threatening
11. Always make sure that the aircraft is in a proper flying condition and that the required
inspections have been carried out regularly
12. Be aware that as a pilot you must be physically and mentally able to carry out the
flight unimpeded. You have to concentrate fully on flying in order to possibly avoid
unpleasant flight conditions
13. Most accidents are due to pilot errors
14. Never fly near high-voltage lines, airports or highways, over people or during a
thunderstorm! Otherwise you could endanger the life and physical integrity of third
parties and / or your own and act grossly negligent at the same time!
15. The minimum distance must never be less than 50 m. At airports, this is a radius of 5
km
16. Find out about the prevailing weather conditions in the weather report and on site in
advance
17. Only use the GRAVITY Xrocket at wind speeds where you are able to control the glider
100%
18. Never use the screen during approaching thunderstorms or storms or when there is a
high probability of thunderstorms or storms
19. Land immediately when thunderstorms or bad weathers approach!
20. Aerobatic flying is generally prohibited and life-threatening. Unpredictable flight
situations can occur that may get out of control. There is a risk of physical and thermal
overload on the material and/ or the pilot
PAY ATTENTION_
Failure to disregard one or more safety precautions or violation can
turn flight fun into a life-threatening event.

14
USER MANUAL
GRAVITY Xrocket
EN REV.V01 - 2020
5 EQUIPMENT DESCRIPTION_
5.1 Short description
– A – Top Sail
– B – Risers
– C – Stabilo
– D - Riserbelt
Illustration 06_ device description
__ A = TOPSAIL
RISERS = B __
__ A = TOPSAIL
__ C = STABILO

15
USER MANUAL
GRAVITY Xrocket
EN REV.V01 - 2020
5.2 Te c h n i c a l data Xrocket_
Illustration 05_ technical table

16
USER MANUAL
GRAVITY Xrocket
EN REV.V01 - 2020
5.3 Innovations on our Product_
The constant search for innovative technical and throughout high-performance solutions,
always serves a higher safety standard in paragliding. Here is an overview of our most
important innovations.
3D shape – providing specific tension control of the wing and therefore
optimized ballooning and wrinkle free outline
brake gathering system – this system allows the trailing edge on a calculated
shorter situation for positive influences the brake characteristic
high definition profile – plastic rods are working in the upper-side of profile and
covering 45 to 80% on the cord
high pressure crossport design – provides an ideal cross aeration of the
crossports and helps you to balance the pressure differences on the inside of
the wing on extreme flight situations/ conditions
multiple speed system – additional flap on the riser for variable hook position
and longer distance for speed-bar
pilot assistant – color coding as icons for an fast overview and better
orientation
precision profile nose – plastic sticks on the profile nose for stronger profile
parts

17
USER MANUAL
GRAVITY Xrocket
EN REV.V01 - 2020
5.4 Colours and Design_
“Never change a winning horse!”
One of the unique selling points of the GRAVITY product range is that each glider product is
only available in a single lead design and comes without colour variations or special designs.
That way we can maintain supply capability within the agreed lead times and can guarantee
the price stability. We are aiming at keeping basic calculations stable for sales and as well as
within the production processes with forecasted quantities. We have made a big effort at
creating each product of the glider product range holistically and to give each product unique
features and moreover high recognition values.
Illustration 08_ colour catalogue rendering
Illustration 09_ colour X rocket

18
USER MANUAL
GRAVITY Xrocket
EN REV.V01 - 2020

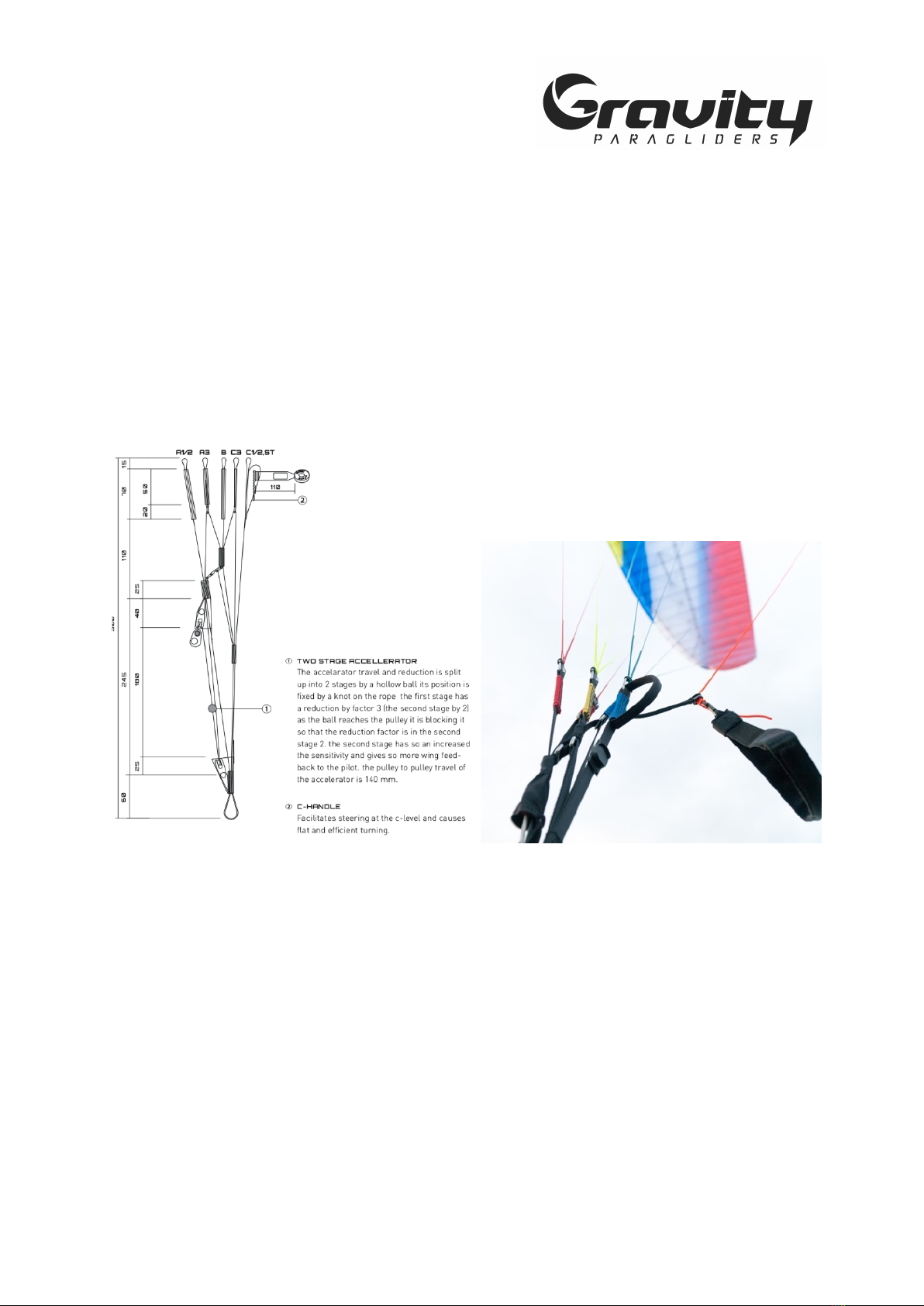

5.5 Riser belt
The A- and B-risers have different colours to ensure positive identification at take-off and
during a B-stall decent. Other adjustable, removable or variable mechanisms are non-existent.
Number of risers: 3+1.
The risers of the GRAVITY Xrocket are made out of 10mm dyneme tube webbing
Illustration 10_ hybrid risers sketch

19
USER MANUAL
GRAVITY Xrocket
EN REV.V01 - 2020
5.6 Speed/ acceleration system
The GRAVITY Xrocket is equipped with a very effective foot extended acceleration speed
system. It increases the speed when applied up to approx. 15 km/h depending on the wing
size and pilot weight resp. surface loading. Through the level steered speed system, the profile
form is maintained there- fore the outstanding flight features are kept even in high speed.
all extreme flight attitudes (e.g. collapses) happen at accelerated speed more dynamically.
The speed system needs to be adjusted before the first flight. Therefore, the connection lines
of the foot extensor are being connected through the Brummel hooks with the speed system
on the riser. To be able to undertake the right adjustment the harness should be hung up so
you can sit in flying position. The attached risers are best held up by someone else. It should
be adjusted in a way so that the pulleys are on top of each other and you have your legs
stretched out. and you are also responsible to watch out that the speed system is adjusted
symmetrically and not too short so the glider is not pre-accelerated in the flight.
The two-stage speed system also enables an exact fine adjusting at your harness (foot
accelerator). By moving the knot that fixes the ball the accelerator distance and pressure can
be individually adjusted.
1. If the knot is moved down towards the harness suspension, the second stage is
reached sooner thereby the accelerator way is shortened.
2. If the knot is moved up towards the line shackles, the second stage is reached later
and the accelerator way is getting longer.
NOTE_
Take care that the accelerator is not adjusted too short so the glider is not pre-
accelerated before the flight
5.7 TRANSPORTATION and STORAGE_
When transporting the paraglider, make sure that it is not exposed to any kind of liquid. It
must be packed dry. When storing the Xrocket, it should be ensured that it is not exposed to
UV rays. In addition, it must not be stored together with acids or the like or anywhere near
them. Dry storage is extremely important.
PAY ATTENTION_
After a long storage period, the glider must be checked thoroughly.

20
USER MANUAL
GRAVITY Xrocket
EN REV.V01 - 2020
6 THE FLIGHT_
6.1 Flying experience
These operating instructions only deal with the relevant points regarding flight technology
that are important for the GRAVITY Xrocket. It cannot and should not replace sound flight
training in a recognized, authorised flight school! Without flight training and experience, flying
with paragliders is extremely dangerous!
6.2 Ta k e -off
After the paraglider has been unpacked and laid out in a semicircle, the following points must
be followed and checked:
1.) the paraglider should be flattened out in a way that the lines in the middle of the paraglider
are evenly under tension and slightly earlier than those at the wing ends when they are
pulled up with the A-risers. This ensures an easy and directionally stable start
2.) When laying/ flattening out, please pay attention to the wind direction so that when
pulling up against the wind both halves of the paraglider can rise symmetrically
3.) If the risers are not twisted, the brake lines run freely through the guides to the rear edge
of the glider
4.) No lines are to run directly underneath the canopy cap. Make sure they are properly
organized underneath the gilder canopy. Otherwise it can have disastrous consequences
5.) The 5-point check should never be forgotten of course
The 5-point check should include the following:
a) buckled up/ strapped (helmet, harness and carabiners closed)
b) suspended (the risers are not twisted when hung in the carabiner, the accelerator is
correctly hooked in, the carabiner is locked)
c) lines (A-lines above, all lines sorted, brake line runs freely to the brake roll(er))
d) canopy (cap is arched with an opened leading edge at the start)
e) wind and airspace (wind suitable for take-off, free airspace)
The center of the screen of the GRAVITY Xrocket is identified by the GRAVITY logo on the
leading edge.
It is sufficient to only take the A main risers (into your hands). Since the GRAVITY Xrocket
only shows very little tendency to shoot forward/ exceeding the pilot, it only needs to be
slowed down a little in the starting phase. Any directional corrections with the brakes should
only be undertaken when the canopy is already over the pilot, otherwise the glider can fall
back due to excessive braking. The remaining risers should not be touched in the starting
phase.
The cap is filled with a steady, even pull and only a slight start impulse overall. Unlike
conventional gliders, it is not necessary to fill the GRAVITY Xrocket with strong wind-up
movements or even a few quick steps. This also applies to little wind and even zero wind,
Dosed winding is the easiest and safest way to start the GRAVITY Xrocket. Once the pilot has
made sure that the cap is fully open above him, the final decision to take off is made. After a
few dynamic steps, the pilot takes off.
