GRE DECK1 User manual

HIMDECK1.22EN
DECK1
Before starting assembly, read carefully the instruction
manuals of every components of the kit.
Keep this instructions for future reference.
Non-contractual photos and pictures.
ASSEMBLY INSTRUCTIONS EN
MADE IN FRANCE Manufacturas Gre, S.A. Aritz bidea nº 57 Belako industrialdea, apartado 69 48100 Munguia (Vizcaya) España nº reg. Ind. 48-06762

Safety
precautions.
Preparation
of the site.
Components. Installation.
Guarantee.
Save this page for future claims
and / or returns.
#1 03 - 07 #2 08 - 09
#3 10 #4 11 - 20
21 - 23

#1
Safety
precautions.
OK
0º
EN
safety precautions
Safety
precautions.
Carefully read, understand, and follow all
information in this user manual before installing
and using the swimming pool.
These warnings, instructions, and safety
guidelines address some common risks of water
recreation, but they cannot cover all risks and
dangers in all cases.
Always use caution, common sense, and good
judgment when enjoying any water activity.
Retain this information for future use.
Non Swimmers safety:
Continuous, active, and vigilant supervision
of weak swimmers and non-swimmers by
a competent adult is required at all times
(remembering that children under five are at
the highest risk of drowning).
→ Designate a competent adult to supervise the
pool each time it is being used.
→ Weak swimmers or non-swimmers should
wear personal protection equipment when
using the pool.
→ When the pool is not in use, or unsupervised,
remove all toys from the swimming pool and
its surrounding to avoid attracting children to
the pool.
Safety devices
→ It is recommended to install a barrier
(and secure all doors and windows, where
applicable) to prevent unauthorized access to
the swimming pool.
→ Barriers, pool covers, pool alarms, or similar
safety devices are helpful aids, but they are
not substitutes for continuous and competent
adult supervision.
Safety equipment
→ It is recommended to keep rescue equipment
(e.g. a ring buoy) by the pool.
→ Keep a working phone and a list of emergency
phone numbers near the pool
Safe use of the pool
→ Encourage all users especially children to learn
how to swim.
→ Learn Basic Life Support (Cardiopulmonary
Resuscitation - CPR) and refresh this
knowledge regularly.
3

assembly instructions
This can make a life-saving difference in the
event of an emergency.
→ Instruct all pool users, including children, what
to do in case of an emergency.
→ Never dive into any shallow body of water. This
can lead to serious injury or death.
→ Do not use the swimming pool when using
alcohol or medication that may impair your
ability to safely use the pool.
→ When pool covers are used, remove them
completely from the water surface before
entering the pool.
→ Protect pool occupants from water related
illnesses by keeping the pool water treated
and practicing good hygiene. Consult the
water treatment guidelines in the user’s
manual.
WARNING
Every electrical appliance fed in
220V, has to be located at least at
3,50 m from the edge of the pool.
The equipment should be
connected to a voltage, with
earth connection, protected by
a residual current device (RCD)
having a rated residual operating
current not exceeding 30mA.
Read the instructions carefully
and keep for future reference.
IF YOU HAVE ANY PROBLEM,
CONTACT US!
www.grepool.com/en/after-sales
→ Store chemicals (e.g. water treatment,
cleaning or disinfection products) out of the
reach of children.
→ Signage is to be displayed in a prominent
position within 2 m of the pool.
→ Removable ladders shall be placed on a
horizontal surface.
4

EN
safety precautions
STORAGE
INSTRUCTIONS.
This pallet should be stored on a level floor,
preferably concrete.
If the pool is going to be immediately assembled:
• Revise the content.
• Assemble it as soon as possible to avoid
deformation of the parts after having released the
pallet straps.
If the pool is not going to be immediately
assembled:
• Do not remove the straps form the wooden pallet.
• In the case of having to undo the pallet and the
pool is not going to be immediately assembled,
the pallet should be rebuilt assuring good fixing to
avoid deformation of the parts (using ropes, straps,
etc).
NOTE:
In both cases, put weight on top to
assure the parts remain flat. Store
the pallet in an adequately ventilated
place.
5

IMPORTANT
In the case of breakages and/or deformations
of the wood, make a complete inventory of the
state of the pieces before requesting them from
after-sales. This way, the pieces will all arrive in
the same delivery.
After a few months since assembling the pool
we recommend using a water-based dye to
hydrate the wood. Remember wood is a live
being. This reduce the appearance of fissures.
This dye is advisable on copping because
being most exposed to sunlight and chemical
1.1
Autoclave 4
2 días
products. If you decide to paint your pool, make
sure the product you use is adequate for wood
treated with Autoclave 4.
Once you open the pallet of the wood, the pool
must be assembled within a maximum period
of two days. In addition, we suggest doing this
on days without any rain to avoid that the wood
is humidified, complicating the final assembly.
assembly instructions
IMPORTANT:
Without these numbers you can
not claim the warranty.
Compulsory
FICHE DE GARANTIE FABRICANT
PISCINE CANELLE
Piscine Bois RL 551 x 351 H119 All - 8 pans
Référence Designation QTE Unité
BOV551119 LOT Bois Pin V4 1 UN
KITBCANELLE Bois Pin V4
786266 Sabot renfort 2 UN
622564 Sac de Sable 1 UN
→ It is mandatory to keep it in order to use the
warranty
6

Cracks Resin
Diferencias de
tonalidad
Nerves and long
knots
Retention of sterilization
products
Surface mould Round knots
WOOD: A LIVING MATERIAL
Wood is a natural product, the fissures visible on
the edges of the wood are completely normal and
do not modify the resistance characteristics of
the same.
Wood is always a malleable material (from 3% to
4% of dimensional variations) with humidity and
temperature oscillations. Therefore, small cracks
can appear and in order to limit later deformations,
the technical criteria have been respected regarding
the design, the choice of sections, and of packaging
and the fixing methods.
Knots are natural elements of wood: their aspect
and their size vary from one product to another.
Mould can appear on the surface of wood, although
not penetrating into it and not degrading it. After
being treated with UV radiation, wood turns greyish
with time without this affecting its durability.
Varnish can be applied to wood treated in autoclave.
In addition to protection, varnish contributes to the
beauty and long-life of wood. In this case¡, wait for
the wood to completely dry before applying the
varnish.
The secretion of resin is a natural phenomenon of
resinous wood. Just as no tree is like another tree,
the following photographed elements cannot be
considered as defects:
1.2
EN
guarantee
IMPORTANT:
SYLVESTER PINE TREATED IN AUTOCLAVE
The wood we use is select pine and dried to 2.5% before treatment in class
IV utoclave. It has a 10-year guarantee against insect attack and against
rot for the parts in the ground.
7

1667
1358
924
1056
1000
600391
900
1795
#2
assembly instructions
Preparation
of the site.
8

EN

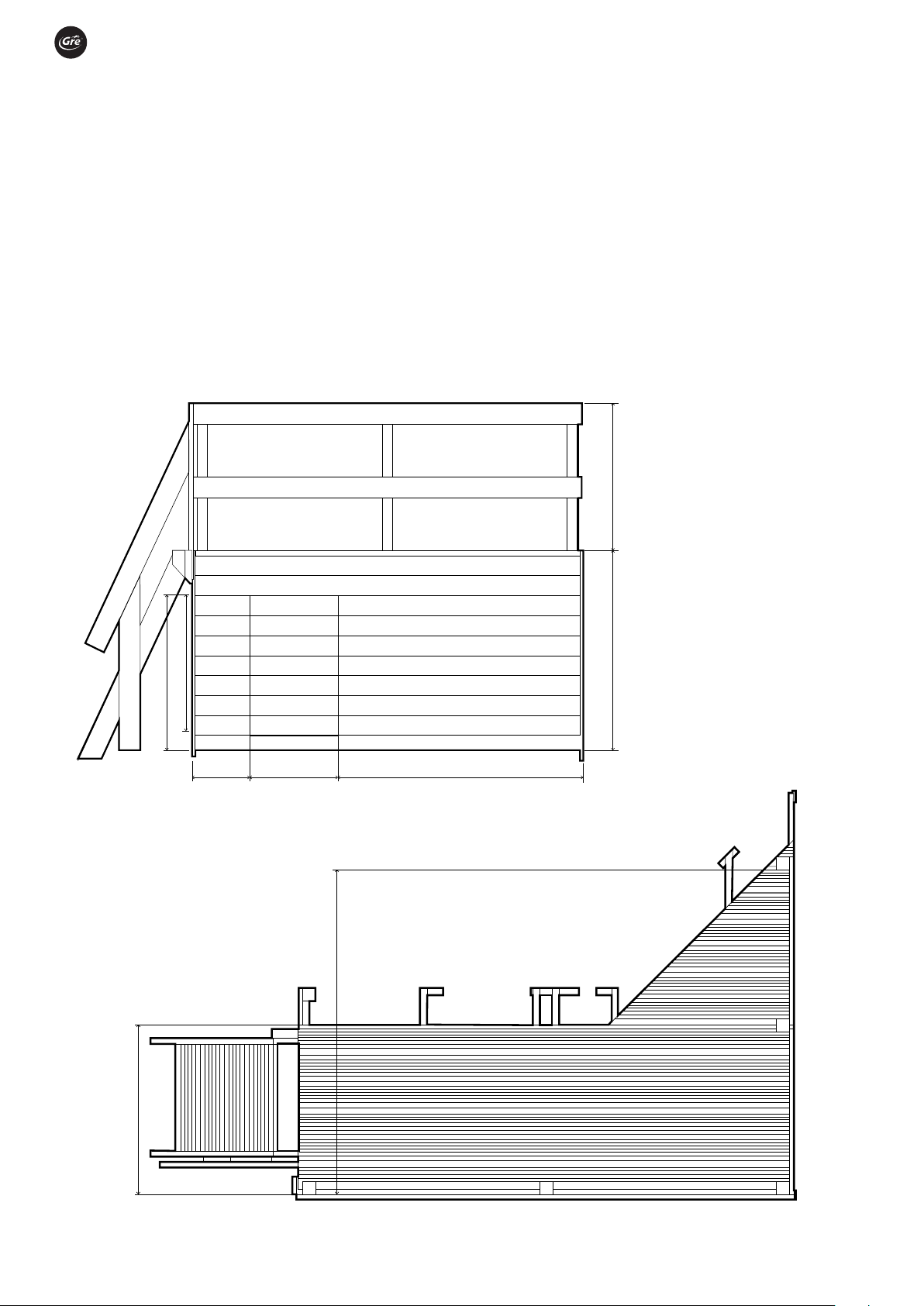

preparation of the site
1
2
3568mm
6318mm
50cm
90º
25
cm
50
cm
6520+1887=8407mm
4568mm
1887mm
3854mm
3568mm
25cm
25
cm
50
cm
4068+1887=5955mm
4354mm
1887mm
Ref. 790302 VASTO + DECK
L: 5,95 x A: 4,35 x AL: 0.10 m = 2.58 m3of concrete.
AREA REQUIRED
Ref. 7900892 SAFRAN 2 + DECK
L: 8,47 x A: 4,57 x AL: 0.17 m = 6.58 m3of concrete.
9

#3
Components.
ref no. description qty
32 CACHE L 22X56X1400 3
33 CORBELET 46X145X225 2
1 LAME 22X133X379 7
2 LAME 22X133X1095 1
34 LAME 22x133x1095 1
3 LAME 22x133x1655 7
4 LAME 22X133X2135 9
35 LAME 22X133X2135 1
5 LAME 22X133X2634 2
36 LAME 22X1332634 1
19 LIM F ECH 28/145/1.612 1
20 LIM G ECH 28/145/1.612 1
13 MARCHE ECH 28X145X586 4
9 MARG STD 28X145X115 1
10 MARG STD 28X145X260 1
11 MARG STD 28X145X405 1
12 MARG STD 28X145X550 1
14 MARG STD 28X145X695 1
15 MARG STD 28X145X840 1
16 MARG STD 28X145X985 1
17 MARG STD 28X145X1000 1
18 MARG STD 28X145X1200 2
21 MARG STD 28X145X1795 2
22 MARG STD 28X145X1800 1
23 MARG STD 28X145X2634 9
6 PORTE 44X594X924 1
30 POTEAU 68/68/1330 1
31 POTEAU 68/68/2358 5
38 SOLIVE 36/120/369 1
25 SOLIVE 36/120/795 2
37 SOLIVE 36/120/841 1
26 SOLIVE 36/120/955 1
27 SOLIVE 36/120/1055 4
28 SOLIVE 36/120/1190 4
29 SOLIVE 36/120/1800 1
24 SUPPORT 36/120/250 4
8 TASSEAU 22/68/1124 2

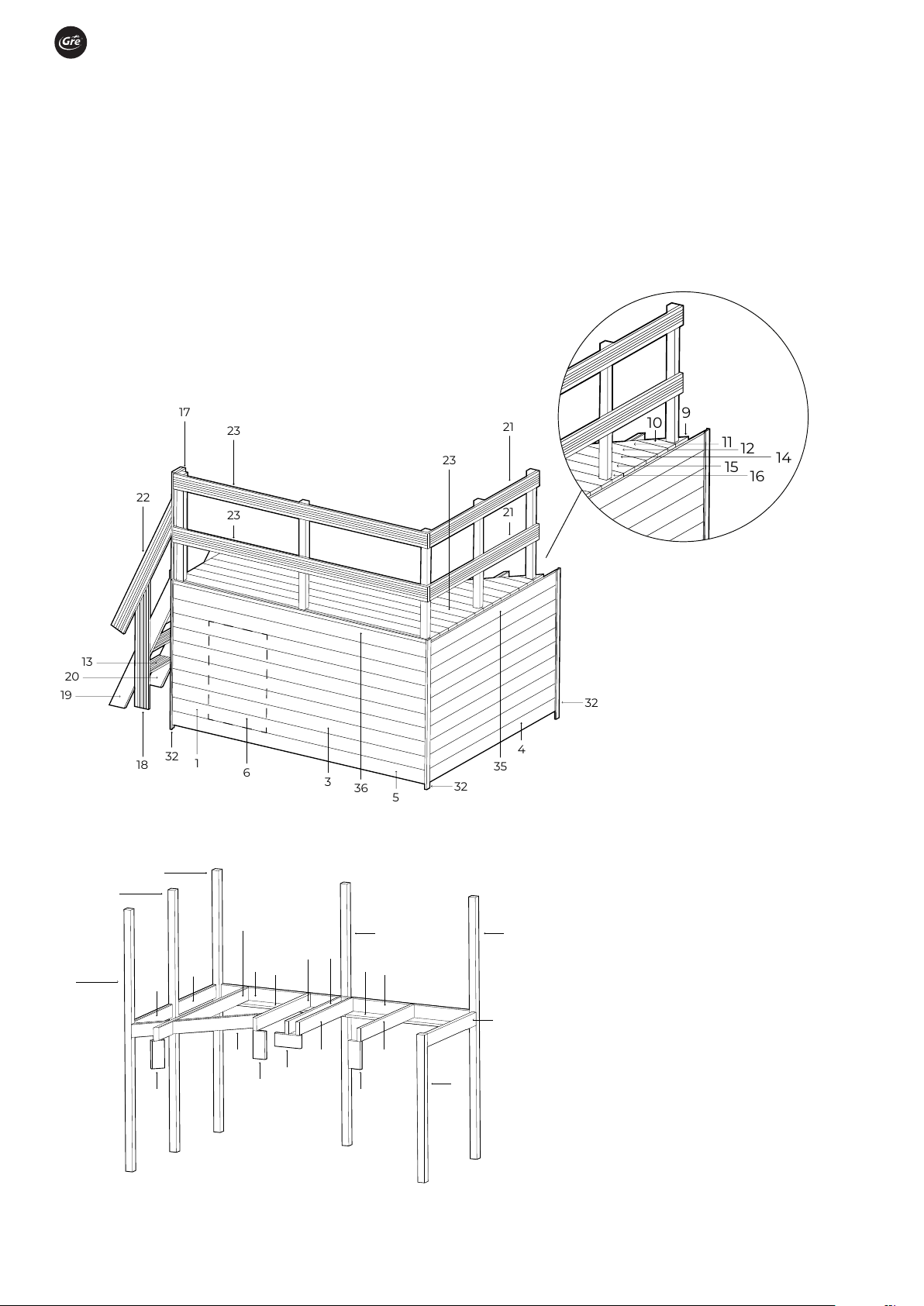

assembly instructions
23
17
22
18 32 16336
35
5
4
13
19
20
23
32
32
21
21
23
16
15 14
12
11
10 9
24 24
24
24
37 27 27
31
31
31
31
30
26
31
29
28
25
25
28
27 27
28 28
10

EN
instalation
WARNING:
Unscrew the shaded parts
of your pool.
NB:
The pool must be
assembled and filled with
water before assembling
the deck.
Fig. 1
#4
Installation.
11

10 6x90
10 6x90
796
796
10 6x90
10 6x90
10 6x90
10 6x90
10 6x90
assembly instructions
ref no. description qty
2 LAME 22x133x1095 9
4 LAME 22x133x2135 9
30 POTEAU 68/68/1330 1
31 POTEAU 68/68/2358 4
34 LAME 22x133x1095 1
35 LAME 22x133x2135 1
Wall 1
31
31
35
4
30
2
1
2
34
Fig. 2
10 6x90
10 6x90

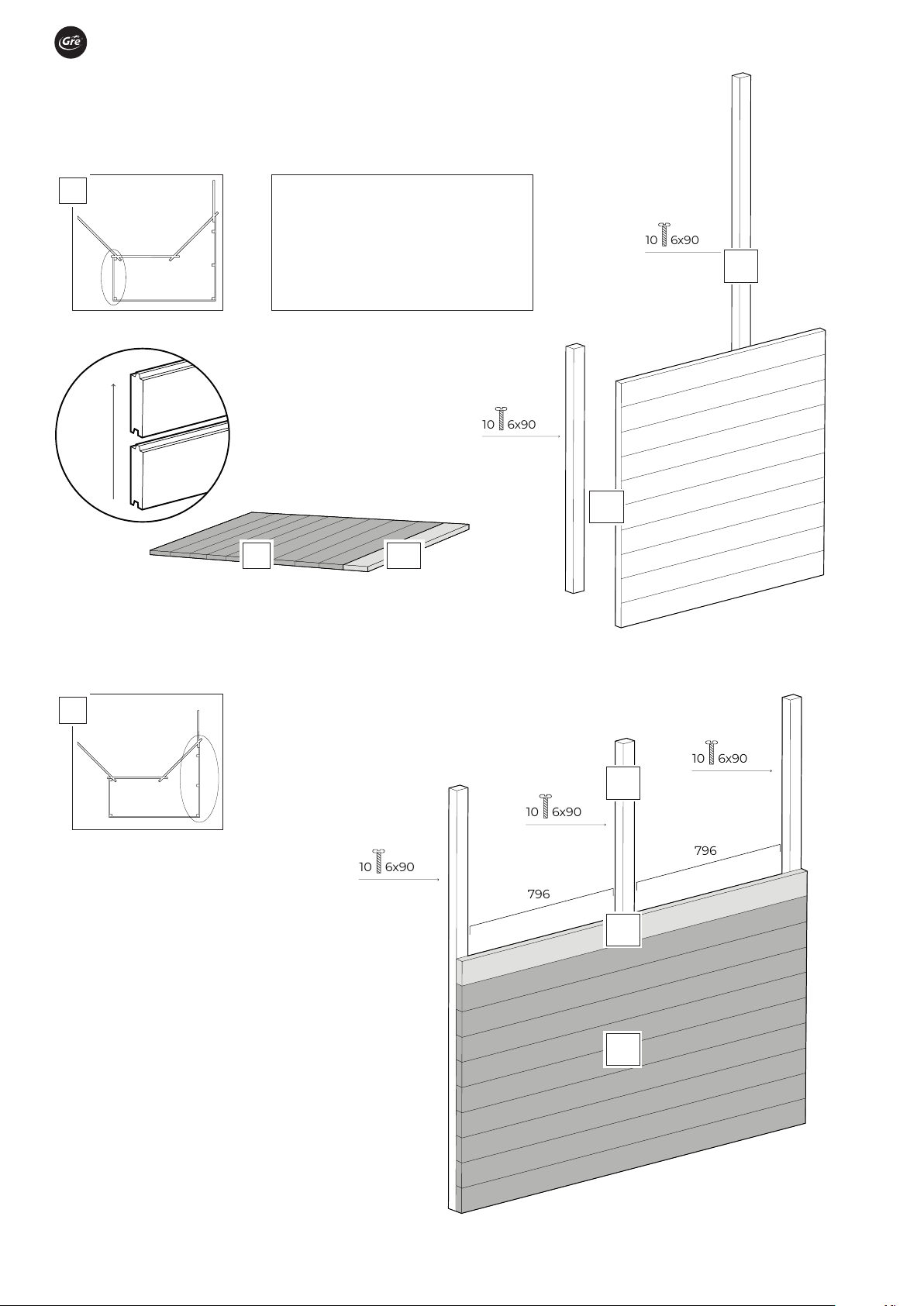

WALL ASSEMBLY
Wall 2
Fig. 3
12

EN
instalation
WARNING:

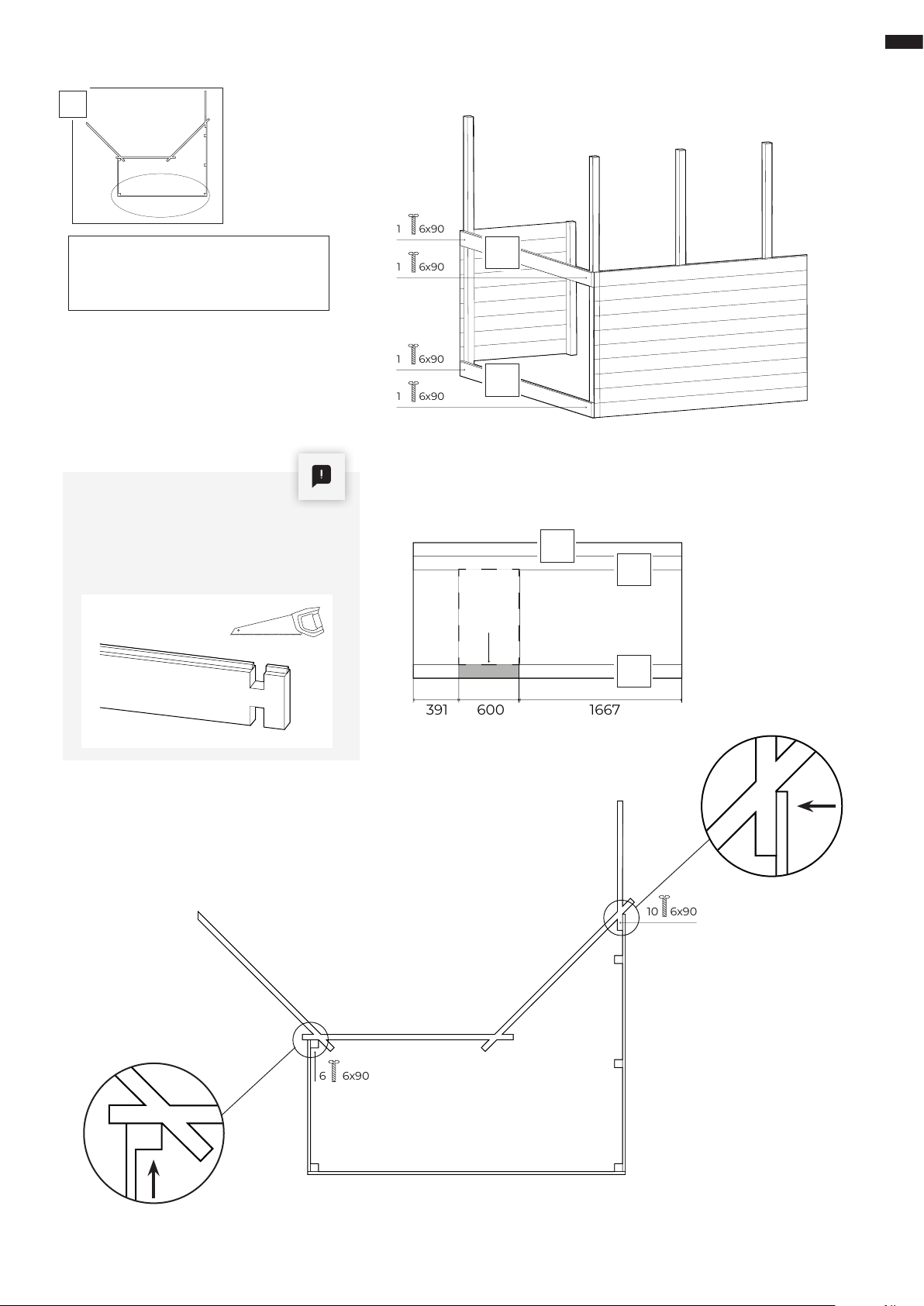

Cut a tab (male) in the bottom slat (5) as shown
in the illustration (minimum 600 mm) to be
able to position the door of the deck at the end
of the assembly process.
ref no. description qty
5 LAME 22x133x2634 1
36 LAME 22x133x2634 1
3
391 600 1667
1 6x90
1 6x90
1 6x90
1 6x90
391 600 1667
1 6x90
1 6x90
1 6x90
1 6x90
6 6x90
10 6x90
Fig. 4
5
5
36
Wall 2
Fig. 6
Join the two walls with 2 slats (36 and 5).
36
5
Fig. 5
Wall 1
Wall 3
Wall 2
Pool
Screw the structure to your pool.
Wall 1
Wall 3
Wall 3
DOOR
13

assembly instructions
10 6x90
10 6x90
10 6x90
10 6x90
1193 1193
94x40
10 6x90
1193 1193
94x40
10 6x90
1193 1193
94x40
10 6x90
Fig. 9
ref nº description qty
5 LAME 22x133x2634 1
1 LAME 22x133x379 7
3 LAME 22x133x1655 7
8 TASSEAU 22x133x1124 2
31 POTEAU 68/68/2358 1
36 LAME 22x133x2634 1
1
5 3
31
88
Finish assembling wall 3.
31
88
Fig. 7 Fig. 8
Fig. 10
Fig. 11
14

EN
instalation
WARNING:
Some 27 slats may coincide with a pool element. That is
not a problem. The measurements in fig. X are indicative.
A. ASSEMBLING THE L-SHAPED BRACKET
As shown in fig. 9, position and screw in 2 x 28 slats to form the
L-shaped bracket which will support parts 27 and 29.
120
120
36
nº28 nº28
55x70
54x60
589 564 280 267570
2 6x90
120
120
36
nº28 nº28
55x70
54x60
Fig. 9
589 564 280 267570
2 6x90
ref no. description qty
28 SOLIVE 36/120/1190 4 28
27
120
120
36
nº28 nº28
55x70
54x60
28
B. FASTENING THE L-SHAPED BRACKET TO
WALL 3
Screw in the two sets (28) from the inside of the
pool.
Fig. 12
120
120
36
nº28 nº28
55x70
54x60
28
28
ref no. description qty
27 SOLIVE 36/120/1055 4
29 SOLIVE 36/120/1800 1
Fig. 13
Fig. 14
Fig. 15
C. FASTENING STRUTS TO BRACKETS
POSITIONING PLATFORM FIXINGS
15

assembly instructions
20 4x60
20 4x60
24x60
ref nº description qty
25 SOLIVE 36/120/795 2
37 SOLIVE 36/120/841 1
26 SOLIVE 36/120/955 1
37
26
25
ref nº description qty
24 SUPPORT 36/120/250 4
D. POSITIONING THE REST OF THE STRUTS
Screw in parts 25, 26 and 37.
Part 37 should be cut before it is screwed in.
E. FASTENING TO THE POOL
Screw part 24 to your pool; see fig. 18.
Fig. 16 Fig. 17
Fig. 18
16

EN
instalation
These are the steps to follow for correct assembly of the
platform:
- Position the surrounds (fig.19)
(They were removed in step 1)
- Position the floor following the sequence order (fig.20)
- Cut the marked planks to adapt them properly (fig.20
and fig.21)
NB:
The cut shown in fig. 21 is a recommendation. You are free
to do otherwise under your own responsibility.
- Screw in all the parts with 4x60 screws (fig.22)
13
12
10
9
8
7
1
2
3
4
5
6
11
13
12
10
9
8
7
1
2
3
4
5
6
11
13
12
10
9
8
7
1
2
3
4
5
6
11
Fig. 19
Fig. 22
Fig. 21
ref nº description qty
9 MARG STD 28x145x115 1
10 MARG STD 28x145x260 1
11 MARG STD 28x145x405 1
12 MARG STD 28x145x550 1
14 MARG STD 28x145x695 1
15 MARG STD 28x145x840 1
16 MARG STD 28x145x985 1
23 MARG STD 28x145x2634 6
23
17
22
18 32 16336
35
5
4
13
19
20
23
32
32
21
21
23
16
15 14
12
11
10 9
23
13
12
10
9
8
7
1
2
3
4
5
6
11
Fig. 20
ASSEMBLING THE PLATFORM
17

a
a
assembly instructions
24x60
6 6x90
Fig. 24 Fig. 25
WOODEN STEPLADDER
The wooden stepladder is included for access to
the pool. Do not use for anything else.
Assemble the wooden stepladder and use it
as a template to define the separation of the
wooden blocks that support it. In the case
that the pool ahs an elongated shape, the
stepladder will be positioned on a small side.
Centre the external stepladder in relation to the
side.
Drill with a Ø 10 mm bit for wood the 2 support
and the 2 wooden blocks.
Do not use the stepladder for other needs
different to those indicated in this manual.
Admitted maximum weight = 150 kgs..
Its is COMPULSORY to remove the stepladder
after using the pool.
According to the height of the pool, the
stepladder may need adjusting.
• Cut the supports of the ladder checking the
dimensions as shown in figure 24 at the bottom
part of the stepladder support and saw off the
part you do not need..
• Assemble the stepladder and position it as
shown in figure 25.
ref nº description qty
17 MARG STD 28x145x1000 1
21 MARG STD 28x145x1795 2
23 MARG STD 28x145x2634 9
17
21
21
23
23
ref nº description qty
33 CORBELET 46x145x225 2
19 LIM D ECH 28/145/1.612 1
20 LIM G ECH 28/145/1.612 1
13 MARCHE ECH 28x145x586 4
33
33
19
20
13
Fig. 23
ASSEMBLING HANDRAILS AND STEPLADDER
18

EN
instalation
In the case that the pool is partially in-ground
the stepladder should be cut to adapt it to the
pool. For safety reasons, if the space between
the floor and the first step is between 80 and
230 mm (dimension A) close this space using
the step of the ladder you have removed so that
dimension B is less than 89 mm. To do that,
follow these steps:
1- Reduce the length of the step by 12 mm.
2- If dimension A is less than 140 mm, reduce
the width of the step so that when the step
is installed the space below its is completely
closed.
3- Assemble the modified step in the stepladder
as shown in the upper diagram, trying to pre-
cut the stepladder support.
12
AB
88
235
2 6x90
4
2 LADOS
4x40
12
AB
88
235
12
AB
88
235
A C
B
For safety reasons, you should respect these
dimensions whatever the configuration of the
pool assembly.
IMPORTANT:
Admitted maximum weight = 150 kgs.
Its is COMPULSORY to remove the
stepladder after using the pool.
Butterfly screw 2 screws TRCC 120 mm
Screw 5x70 mm
12
AB
88
235
2 6x90
4
2 LADOS
4x40
Fig. 26
19

assembly instructions
x2
2 6x90
24x40
34x60
4
2 LADOS
4x40
x2
2 6x90
24x40
34x60
4
2 LADOS
4x40
Door details:
Exterior details/Interior structure.
ref no. description qty
17 MARG STD 28x145x1000 1
18 MARG STD 28x145x1200 2
22 MARG STD 28x145x1800 1
32 CACHE L 22x56x1400 3
6 PORTE 44x594x924 1
32
32
32
17
22
18
6
Fig. 27
ASSEMBLING LADDER RAILS AND DOOR
20
