Great Lighting GLM002-200 User manual

-1-
USER MANUAL
ITEM No.：GLM002-200 (5R 200W) and
GLM003 7R230W

-2-
Please read over this Manual before Operating the Light Fixture
First, thank you for purchasing our professional lighting equipments.
This manual includes important information about how to install and use the fixture safely. Please
install and operate it correctly as required, and keep the manual properly in case of need.
This moving head light is the perfect combination of humanity and industrial design with
beautiful modeling. The body of the light is made of aluminum alloy and high temperature
resistant engineering plastic materials with wonderful cooling effect. And the transmission
mechanism adopts electronic positioning technology. This product fully meets the CE standard
which employs the international standard signal control DMX512, and is widely used in TV station,
disco, dance hall, night club and other indoor or outdoor shows.
This product is in good condition and packed well before shipping. Please follow strictly the stated
warning and instructions when operating. It is not guaranteed by our company for any damage or
breakdown of the product caused by misuse the product before reading the operation manual.
Warnings:
Please check if there is any transportation damage before using. And if there is any damage,
please stop using it, and contact the distributor or manufacturer as soon as possible. Please keep it
away from Combustible materials, and unlock the X-, Y-axis before using. The fixture should be installed in
places with good ventilation, keep it away from the wall at least 10cm above, and then check if the fans are in
good conditions.
Please don’t project the light beam on the combustible directly, and keep the fixture at least 12m away from
the projection objects.
Please don’t look directly into the light source lest any damage to your eyes. And please make sure the
using power voltage is in accordance with the stated voltages before using.
Attention: Please power off before installing, repairing or cleaning the fixture.
1. Product introduction
1.1 Parameter
7R 230W
Power Consumption: 350W
Color Temperature: 8000K
Luminous flux:7950LM; Lifetime: 3000hrs
Channel: 16CH or 20CH
Focus: electronic automatic focus.
1 Color wheel and 1 gobo wheel.

-3-
Color Wheel:14 colors + white with water flowing effect.
Gobo Wheel: 17 gobos + white with high speed shaking effect.
Prism: 8 facets or 3 facets prism(selectable).
Dimming: 0-100% linear dimming; Strobe: super speed strobe.
Display: LCD-TFT Touch Screen Display.
Pan: 270° Tilt: 540°
5R 200W
Voltage: AC110-240V/50-60Hz
Lamp: 5R 200W Philip lamp
Power Consumption: 300W
Output Power:189W ; Color Temperature: 8000K
Luminous flux:7950LM; Lifetime: 2000hrs
Channel: 16CH or 20CH
Focus: electronic automatic focus.
1 Color wheel and 1 gobo wheel.
Color Wheel:14 colors + white with water flowing effect.
Gobo Wheel: 17 gobos + white with high speed shaking effect.
Prism: 8 facets or 3 facets prism(selectable).
Dimming: 0-100% linear dimming; Strobe: super speed strobe.
Display: LCD Touch Screen Display.
Pan: 270° Tilt: 540°
N.W: 19kg
Size:48*42*56cm with one carton package
1.2 What’s include
●One beam light
●One power plug
●One set signal cable
●One pair brackets
●One pair clamps
●One safety cable
●User Manual
2. Operation Modes:
2.1 Function explanation:
Touch Screen
Turning Wheel
Function
“Up”button
Turn left
Select、Edit
“Down”button
Turn right
Select、Edit
“Ok”button
Press the wheel
Confirming

-4-
2.2 To explain well the operation of Touch screen, here we take example of “ how to change
DMX address? “
1. Please press “Set up” in the main interface to enter “Set up” interface.
2. There are 4 touch keys on the right side, naming “Up” “Ok” “Down” and “Back”.
3. Please press “Up” or “Down” keys to select “DMX address”.
4. Please press “Ok” to edit.
5. Please press “Up” or “Down” keys to change DMX address （the new DMX address would be saved
automatically）
6. Please press “Ok” to exit editing.
7. Please press “Back” to exit from main menu.
2.3 If operate by turning wheel：
1. Under the main interface, turn the wheel to select “Set up” button
2. Please press the wheel to enter “Set up” interface.
3. Please turn the wheel to select “DMX address” under “Set up” interface.
4. Please press the wheel to edit.
5. Please turn the wheel to change the DMX address.
6. Please press the wheel to exit editing after the modification.
7. Please turn the wheel to select “Back”, and then press the wheel to return to the main interface.
3. Interface Instructions:
3.1. Main Interface
“Back”button
Press the wheel when
selecting “Back”
Return

-5-
The 3 buttons on the up right corner are for language switch and screen rotation.
The 4 buttons on the bottom are for sub-interfaces.
In this manual, we mainly introduce the operation of interface by Touch screen, for the operation of turning
wheel, please take reference as below form:
Touch screen
Turning wheel
“Up” button
Turn left.
“Down” button
Turn right
“Confirm” button
Press the wheel
3.2. “Set Up” Interface
Options
Instructions
Run Mode
DMX
Slave status：accept DMX signals from controller or Master machine.
Auto
Master-Slave ：running automatically, and send DMX signals to slave
machines.
Attention：If need to check the light effects, please power on the lamp first
and enter to auto running status. The lamp couldn’t be light up
automatically
DMX Address
1-512
Press “Confirm” button to edit. First is for “hundred's digit”, and press
“Up” and “Down” to change the address codes. Press “Confirm” button
the second time to edit “ten's digit”, and press again the “Confirm”
button to edit “unit's digit”. Please press it again to exit editing.
Channel Mode
16
17-20 CH Invalid
20
17-20CH to control speed（please refer to Channel chart）
Invert Pan
off
on
Invert Tilt
off
on
Swap Pan-Tilt
off

-6-
on
Exchanging XY channels（Pan/Tilt fine included）
Encoder Pan-Tilt
on
Use Encoder (optocoupler) to judge if the light is out of step or not, and
rectify the position automatically.
off
Don’t use Encorder (optocoupler) to rectify the position
No DMX signal
stay
Stay the previous status and keep running
reset
Motor return and stop running
Display Power Save
on
Screen light is off automatically after 30secs
off
Screen light keep on
Burn On Startup
off
Reset directly when power on，lamp stay off（operate the menu or console
to light up the lamp)
on
Lamp on when power on，and reset after the lamp is fully lighted up.
Load Default Back
Press “Confirm” button to see the confirming dialog, and press “Confirm”
button again to recover default setting.
Back
Return
3.3. “Information” Interface
Options
Illustrate
Software version
The current software version
Total Fixture Hours
Total time of using the light (accurate to the minute)
Partial Fixture Hours
Current time used (accurate to the minute)
Total Lamp Hours
Total time of lamp using (accurate to the minute)
Partial Lamp Hours
Current time of lamp used (accurate to the minute)
DMX Monitor
Click here to go to the sub-interface, the channel value is shown by value and
percentage
System Errors
If the red ERR indicator is on, indicates the lamp is running with error, Click here to go
to the sub-interface and check the error details. Error records can be delete by
pressing "OK" key.
Note: Sometimes the error may be not by Hall or optocoupler, but the motor cable is
connected invercely.
Back
Return
3.4. “Manual” Interface
This interface is used to control the current light, neither belong to slave status (do not receive DMX signal), nor
belong to the host state (do not send DMX signal)
Options
Instructions
Reset
Press the OK button and you will see a confirmation dialog , click "OK" key to enter
the reset interface, all motor reset again.
Color Wheel
0-255
Press “Confirm” button to edit. First is for “hundred's digit”, and press “Up” and
“Down” to change the address codes. Press “Confirm” button the second time to edit
“ten's digit”, and press again the “Confirm” button to edit “unit's digit”. Please
press it again to exit editing.
。。。。。。
0-255
Gobo Time
0-255
Lamp
Control
On
Off

-7-
3.5. “Advanced” Interface
The password is “up down up down” for touch operation，and password is “ left right left right” for turning
wheel operation
Process for touch operation：Press “Up” to see the first “*”，and press “Down” key to see the second “*”，and
press “Up” to see the third “*”，and press “Down” key to see the fourth “*”，and last press “Confirm” key to enter
password confirmation.
Turning wheel Operation modes：Turn one bit left to see first “*”, and Turn one bit right to see the second “*”，
and turn one bit left to see the third “*”, and Turn one bit right to see the fourth “*”，and last press the wheel to
enter password confirmation.
Options
Instructions
Touch Screen Calibration
Please touch the place according to the prompt of the cross cursor in the
Calibration interface. If the 4 values received the right data, then save the data. If
failed, it will keep repeating. Please press “Confirm” button to stop Calibration
any time.
Reset Calibration
When enter sub-menu, the reset location of X.Y axis motors is adjustable. It is not
able to edit “unit’s digit”, “ten's digit” or “hundred's digit” or long-time press
for Reset Calibration which needs to be calibrated step by step, which is different
from address code and channel values.
Attention：Please don’t conduct Reset Calibration, when the motors are working.
And please reset the fixture before Reset Calibration when necessary.
Lamp Life Hours
The lifetime of lamp
Lamp Hours Clear
Clear the record
Back
Return
4. Channels
4.1. Channel table
CHANNEL
CHANNEL MODE
16
20
1
COLOUR WHEEL
COLOUR WHEEL
2
LIGHT CUTTING/STROBE
LIGHT CUTTING/STROBE
3
DIMMER
DIMMER
4
GOBO WHEEL
GOBO WHEEL
5
EIGHT PRISM
EIGHT PRISM
6
PRISM ROTATION
PRISM ROTATION
7
INVALID
INVALID
8
FROST
FROST

-8-
9
FOCUS
FOCUS
10
PAN
PAN
11
PAN FINE
PAN FINE
12
TILT
TILT
13
TILT FINE
TILT FINE
14
INVALID
INVALID
15
RESET
RESET
16
LAMP CONTROL
LAMP CONTROL
17
PAN-TILT SPEED
18
COLOUR WHEEL SPEED
19
DIMMER-PRISM-FROST SPEED
20
GOBO WHEEL SPEED
4.2. Details for each channel
COLOER WHEEL-channel 1
VALUE
FUNCTION
REMARK
255
FAST ROTATION
......
……
150
SLOW ROTATION
145
DARK BLUE+WHITE
In order to facilitate memory,
color value is always a multiple
of five. Color ratio can be
adjusted, for example: when
the value is five, so it should be
50% white, dark red 50%, if
the value is 4, so it should be
60% white, dark red 40%: If
the value is six, so it should
white 40% dark, red 60%.
140
DARK BLUE
135
COOL COLOR+ DARK BLUE
130
COOL COLOR
125
BROWNISH YELLOW+ COOL COLOR
120
BROWNISH YELLOW
115
LIGHT BLUE-PURPLE+ BROWNISH YELLOW
110
LIGHT BLUE-PURPLE
105
ROSE+ LIGHT BLUE-PURPLE
100
ROSE
95
YELLOW GREEN+ROSE
90
YELLOWISH GREEN
85
LIGHT YELLOW+ YELLOWISH GREEN
80
LIGHT YELLOW
75
BLUISH GREEN+ LIGHT YELLOW
70
BLUISH GREEN
65
PURPLISH RED+ BLUISH GREEN
60
PURPLISH RED
55
FLUORESCENCE+ PURPLISH RED
50
FLUORESCENCE
45
BROWN+ FLUORESCENCE
40
BROWN
35
GREEN+BROWN
30
GREEN
25
BLUE+ GREEN
20
BLUE
15
DARK YELLOW+BLUE
10
DARK YELLOW
5
WHITE+DARK YELLOW
0
WHITE

-9-
SWITCH/STROBE-channel 2
VALUE
FUNCTION
REMARK
252-255
OPEN
Controlled by dimmer channel
239-251
STROBE FREELY IN FAST SPEED
226-238
STROBE FREELY IN MEDIUM
SPEED
213-225
STROBE FREELY IN SLOW SPEED
208-212
OPEN
Controlled by dimmer channel
207
PULSED STROBE FASTEST
……
……
108
PULSED STROBE SLOWEST
104-107
OPEN
Controlled by dimmer channel
103
STROBE FASTEST
……
……
4
STROBE SLOWEST
0-3
CLOSED
DIMMER-channel 3
VALUE
FUNCTION
REMARK
255
100% lightness
……
……
0
0% lightness
GOBO WHEEL-channel 4
VALUE
FUNCTION
REMARK
255
GOBO 17 SHAKE IN FAST SPEED
Every five values is correspond to a gobo.
……
……
251
GOBO 17 SHAKE IN SLOW SPEED
250
GOBO 16 SHAKE IN FAST SPEED

-10 -
……
……
246
GOBO 16 SHAKE IN SLOW SPEED
……
……
180
GOBO 2 SHAKE IN FAST SPEED
……
……
176
GOBO 2 SHAKE IN SLOW SPEED
175
GOBO 1 SHAKE IN FAST SPEED
……
……
171
GOBO 1 SHAKE IN SLOW SPEED
170
FAST ROTATION(POSITIVE)
……
……
135
SLOW ROTATION(POSITIVE)
130-134
STOP(WHITE)
129
SLOW ROTATION
……
……
90
FAST ROTATION(REVERSE)
85
GOBO 17
Value is always multiples of 5
80
GOBO 16
75
GOBO 15
70
GOBO 14
65
GOBO 13
60
GOBO 12
55
GOBO 11
50
GOBO 10
45
GOBO 9
40
GOBO 8
35
GOBO 7
30
GOBO 6
25
GOBO 5
20
GOBO 4
15
GOBO 3
10
GOBO 2
5
GOBO 1
0
WHITE
PRISM -channel 5
VALUE
FUNCTION
REMARK
128-255
PRISM EFFECT
0-127
NO PRISM EFFECT
PRISM ROTATION-channel 6
VALUE
FUNCTION
REMARK
255
FAST ROTATION(POSITIVE)
……
……
193
SLOW ROTATION(POSITIVE)
191-192
STOP
190
SLOW ROTATION(REVERSE)
……
……
128
FAST ROTATION(REVERSE)
0-127
PRISM ANGLE ADJUST
Channel 7- INVALID
FROST-channel 8
VALUE
FUNCTION
REMARK

-11 -
128-255
FROST
0-127
WITHOUT FROST
FOCUS-channel 9
VALUE
FUNCTION
REMARKS
255
100% FOCUS
……
……
0
0% FOCUS
PAN-channel 10
(………)
PAN FINE-channel 11
(………)
TILI-channel 12
(………)
TILT FINE-channel 13
(………)
MICRO FUNCTION-channel 14 INVALID
RESET-channel 15
VALUE
FUNCTION
REMARK
128-255
ALL MOTORS RESET
Reset is activated after 5 seconds.
77-127
PAN/TILT MOTOR RESET
26-76
OTHER MOTORS RESET
0-25
INVALID
LAMP CONTROL-channel 16
VALUE
FUNCTION
REMARK
128-255
LAMP ON
LAMP ON/OFF after 5 seconds.
10-100
LAMP OFF
0-9
INVALID
SPEED CHANNELS
Channel
Function
Remark
17
Pan/Tilt speed control
255 SLOW SPEED
….. ……
18
Color wheel speed control
19
Dimmer-Prism-Frost speed control

-12 -
0 FAST SPEED
20
Gobo wheel speed control
5. Control signal connection
XLR-XLR control cable from the DMX output of the controller connected to each projector DMX input port,
and from the first fixture in the DMX output port connected to the second fixture in the DMX input port, and so
on, until the All lighting connection is completed, and then plug the supplied loop connected to the signal output
of the last fixture to complete the connection, as shown:
Note: Keep in mind that in the last fixture's output circuit connected to a plug, this circuit is connected to a 120
ohm resistor inserted between the CANON (XLR) plug 2 feet and 3 feet, this loopinterpolation can effectively
avoid the reflection signal generated by DMX512 signal in transfer input process.
The moving head light utilization the 3-pin XLR socket (head),if you are using the controller uses a 5-pin XLR
socket (head), you must use a 5-pin to 3-pin converter cable, as shown below:

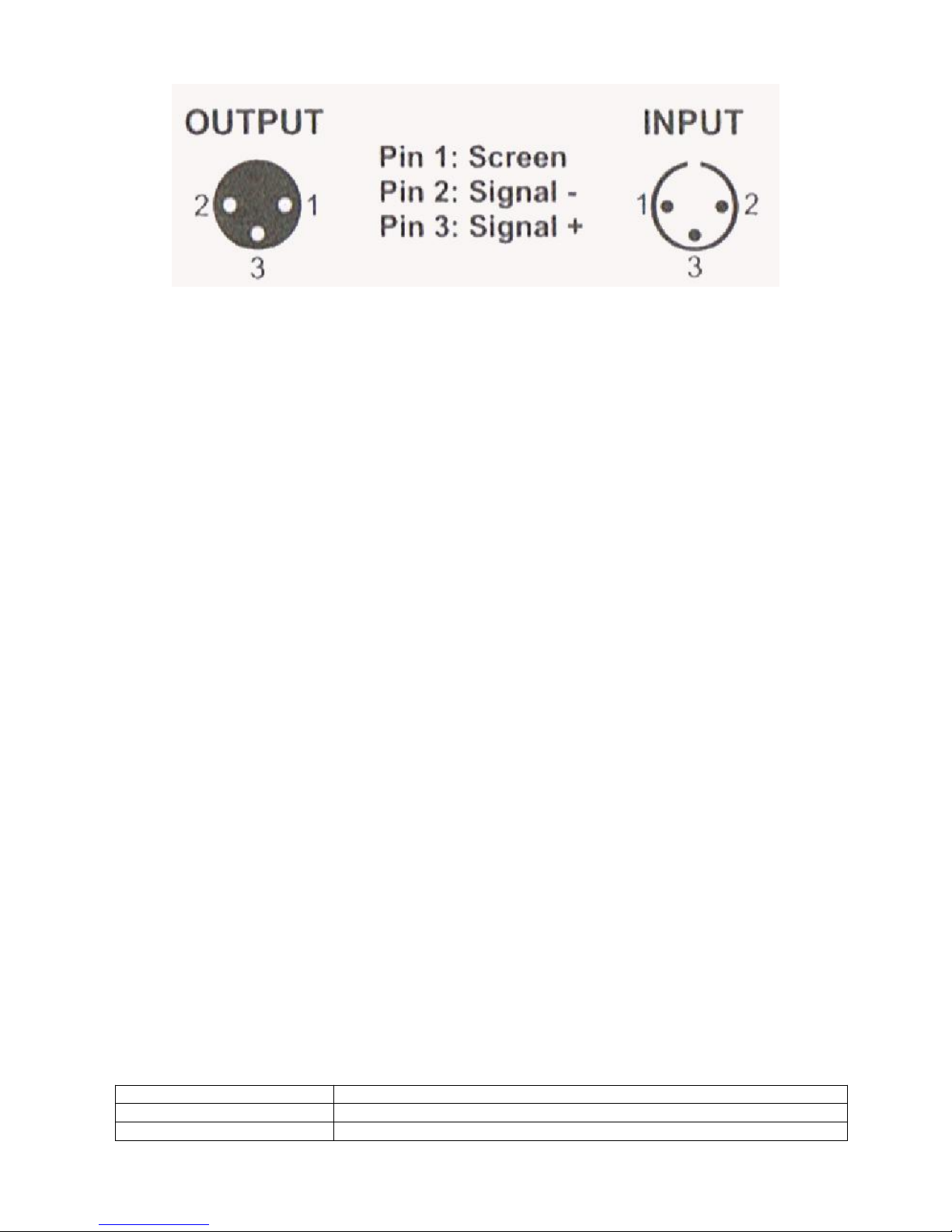

3-pin and 5-pin control cable plug (male and female) connector.
Three pin（Canon）DMX512 connector

-13 -
6. Protection and Maintenance:
6.1. Daily maintenance:
You should exchange the lens timely, if you find the led has damaged. You should instant replacement the
bulb when you find the deformation damage. The aging bulb has a danger of blowout. Please check the power
fuse of light when the light unable to start. Install the corresponding specification fuse 6.35X32 T15A/250V when
burning. Light has overheating protection device, Protection device will automatically cut off power supply when
overheating. Please check the fan’s operation, dirt jam between fan and fan nets when the situation happened. Find
the reason and repair then restarting light. Attention only qualified technical personnel can repair it.
6.2. Light cleaning:
It is necessary to keep the light cleaning to ensure its reliable use. The fan should clean every 15 days. It
needed to clean periodically of the internal and external optical lens, mirror and coating color filter in order to
optimize the efficacy output. Do not use any chemical solvents containing to clean color filter. The frequency of
cleaning is according to the operation of light and the environment of operation.
With soft cloth and general glass clean products clean the light. Suggest clean outside optical system every 20
days. Clean internal optical system at least every/60 days.
Don’t use alcohol and organic solvent wipe to clean the shell of light lest cause damage.
6.3 Problem solve method
Problem
Solve method
No supply power
Check the voltage of the power supply
Energized produce light, moving
Check digit address code install, the control signal line connection

-14 -
head light does not accept
control instructions.
Projected images has light halo
Check the electronic focus channel value whether suitable for projection
distance
The beam head very dim
Lamp may to arrived life, you should replace a new bulb, and check the optical
components whether is clean
Note: qualified professionals could repair the lighting.
6.4.1 Warranty：
1. In one year, starting from delivery day(except bulb and lens)
2..If the lights are non-working caused by quality, spare parts will be sent at first time and technical support will
be provided by us, photos or videos will be required.
3. If the products need to be returned to us for repairing, the shipping costs will be covered by customers.
6.4.2 Non-warranty:
1. Damaged in carelessness use by buyer.
2. Broken or burnt caused by repairing the products by self without the instructions from seller
About non-warranty, customers can buy any spare parts about this product from us within 1year. If there is any
upgrade for this item (materials, design etc), we don’t take responsibility to inform buyer in time.
Tips: Please raise a complain to your local DHL company if there is any damage for the packages during shipping
within 7days,and get a record number from the shipping company then contact us，refuse to sign in the receipt or
sign in but talk to the carrier face to face, asking them to take a note when packages arrived.
