Greatneck 80155 User manual

80155
Reciprocating Saw
Instruction Manual
GreatNeck Tools, LLC Mineola, NY 11501
Rev 7/10
PRODUCT SPECIFICATIONS
Rating:
120 V, 60 Hz, AC
Amperes:
6.5 A
Speed:
0–2500 SPM (no load)
Stroke Length:
1 1/8 “(28.6 mm)
Maximum cutting depth in wood:
4” (101.6 mm)
Maximum cutting depth in steel:
1/2” (12.7 mm)
Maximum cutting depth in copper
or plastic pipe:
1-1/4” (31.7 mm)
Weight:
7 lb 8 oz (3.41 kg)

2
Product specifications ………….…………………………………………………….
1
Table of contents ……………………………………………………………………...
2
General safety warnings ……………………………………………………………..
3–4
Eye, ear & lung protection …………………………………………………
3–4
Electrical safety …………………………………………………………….
4
Power tool safety ……………………………………………………………………...
5–6
General safety rules ………………………………………………………..
5
Work area …………………………………………………………………...
5
Electrical safety …………………………………………………………….
5
Personal safety …………………………………………………………….
5–6
Tool use and care ………………………………………………………….
6
Service ………………………………………………………………………
6
Specific safety rules …………………………………………………………………..
7
Extension cord safety ………………………………………………………………...
8
Symbols ………………………………………………………………………………..
9
Know your reciprocating saw ………………………………………………………..
10
Accessories ……………………………………………………………………………
10
Carton contents ……………………………………………………………………….
10–11
Assembly and operation ……………………………………………………………..
11–17
Installing blade ……………………………………………………………..
11
Removing blade …………………………………………………………….
12
Adjusting pivoting shoe ……………………………………………………
12
Trigger switch & lock-off button …………………………………………..
13
Variable speed control wheel ……………………………………………..
13
Materials you can cut ………………………………………………………
14
General cutting ……………………………………………………………..
15
Plunge cutting ………………………………………………………………
16
Metal cutting ………………………………………………………………..
17
Maintenance …………………………………………………………………………..
18
Parts diagram ………………………………………………………………………….
19
Parts list ………………………………………………………………………………..
20–21
Warranty ……………………………………………………………………….………
21
TABLE OF CONTENTS

3
EYE, EAR & LUNG PROTECTION
This instruction manual includes the following:
General Safety Rules
Specific Safety Rules and Symbols
Functional Description
Assembly
Operation
Maintenance
Accessories
!
ALWAYS WEAR EYE PROTECTION THAT CONFORMS WITH CSA
REQUIREMENTS or ANSI SAFETY STANDARD Z87.1
F LY ING DE B R IS can caus e permanent eye damage. P res cription
eyeglas ses AR E NOT a replacement for proper eye protection.
WARNING: Non-compliant eyewear can cause serious injury if
broken during operation of a power tool.
SAVE THESE INSTRUCTIONS FOR REFERENCE
WARNING: Use hearing protection, particularly during extended
periods of operation of the tool or if the operation is noisy.
!
GENERAL SAFETY WARNINGS
C AU T ION: B efore us ing this tool or any of its access ories, read this
manual and follow all Safety Rules and Operating Instructions.
!

4
ELECTRICAL SAFETY
WARNING: To avoid electrical hazards, fire hazards or damage to the
tool, use proper circuit protection.
This tool is wired at the factory for 120 V operation. It must be connected to
a 120 V 15 A time delayed fuse or circuit breaker. To avoid shock or fire,
replace power cord immediately if it is worn, cut or damaged in any way.
ALWAYS WEAR A DUST MASK DESIGNED FOR USE WHEN
OPERATING A POWER TOOL IN A DUSTY ENVIRONMENT.
WARNING: Some dust created by power sanding, sawing, grinding,
drilling and other construction activities contains chemicals known to cause
cancer, birth defects or other reproductive harm. Some examples of these
chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks, cement and other masonry products
• Arsenic and chromium from chemically-treated lumber
Your level of risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals, work in a
well-ventilated area and work with approved safety equipment such as dust
masks that are specially designed to filter out microscopic particles.
GENERAL SAFETY WARNINGS

5
GENERAL SAFETY RULES
WARNING: Read and understand
all instructions. Failure to follow all
instructions listed below may result in
electric shock, fire and/or serious personal
injury.
WORK AREA
Keep your work area clean and well lit.
Cluttered benches and dark areas invite
accidents.
Do not operate power tools in potentially
explosive environments, such as in the
presence of flammable liquids, gas or dust.
Power tools create sparks which may
ignite the dust or fumes.
Keep bystanders, children and visitors
away while operating the tool. Distractions
can cause you to lose control.
ELECTRICAL SAFETY
Double insulated tools are equipped with a
polarized plug (one blade is wider than the
other). This plug will fit in a polarized plug
only one way.
If the plug does not fit fully into the outlet,
reverse the plug. If it still does not fit,
contact a qualified electrician to install a
polarized outlet. Do not alter the plug in
any way. Double insulation eliminates the
need for the three-prong grounded power
cord and grounded power supply system.
Avoid body contact with grounded surfaces
such as pipes, radiators, ranges and
refrigerators. There is increased risk of
electric shock if your body is grounded.
Do not expose power tools to rain or wet
conditions. Water entering the power tool
will increase the risk of electric shock.
Do not abuse the cord. Never use the cord
to carry the tool or pull the plug from an
outlet. Keep cord away from heat, oil,
sharp edges or moving parts. Replace
damaged cords immediately. Damaged
cords increase the risk of electric shock.
When operating a power tool outdoors,
use an outdoor extension cord marked “W-
A” or “W”. These cords are rated for
outdoor use and reduce the risk of electric
shock.
PERSONAL SAFETY
Stay alert, watch what you are doing and
use common sense when operating a
power tool. Do not use the tool while tired
or under the influence of drugs, alcohol or
medication. A moment of inattention while
operating power tools may result in serious
personal injury.
Dress properly. Do not wear loose clothing
or jewelry.
Contain long hair. Keep your hair, clothing
and gloves away from moving parts. Loose
clothing, jewelry or long hair can be caught
in moving parts.
!
POWER TOOL SAFETY

6
PERSONAL SAFETY – cont’d
Avoid accidental starting. Be sure the
switch is OFF before plugging in. Carrying
tools with your finger on the switch or
plugging in tools that have the switch ON
invites accidents.
Remove adjusting keys or wrenches
before turning the tool ON. A wrench or
key that is left attached to a rotating part of
the tool may result in personal injury.
Do not overreach. Keep proper footing and
balance at all times. Proper footing and
balance enables better control of the tool
in unexpected situations.
Use safety equipment. Always wear eye
protection.
Dust mask, non-skid safety shoes, hard
hat or hearing protection must be used for
appropriate conditions.
TOOL USE AND CARE
Use clamps or another practical way to
secure and support the workpiece to a
stable platform. Holding the work by hand
or against your body is unstable and may
lead to loss of control.
Do not force the tool. Use the correct tool
for your application. The correct tool will do
the job better and safer at the rate for
which it was designed.
Do not use the tool if the power switch
does not turn it ON or OFF. Any tool that
cannot be controlled with the switch is
dangerous and must be repaired.
Disconnect the plug from the power source
before making any adjustments, changing
accessories or storing the tool. Such
preventive safety measures reduce the risk
of starting the tool accidentally.
Store idle tools out of reach of children and
other untrained persons. Tools are
dangerous in the hands of untrained users.
Maintain tools with care. Keep cutting tools
sharp and clean. Properly maintained
cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
Check for misalignment or binding of
moving parts, breakage of parts and any
other condition that may affect the tool’s
operation. If damaged, have the tool
serviced before using. Many accidents are
caused by poorly maintained tools.
Use only accessories that are
recommended by the manufacturer for
your model. Accessories that may be
suitable for one tool may become
hazardous when used on another tool.
SERVICE
Tool service must be performed only by
qualified personnel. Service or
maintenance performed by unqualified
personnel could result in risk of injury.
When servicing a tool, use only identical
replacement parts. Follow instructions in
the Maintenance section of this manual.
Use of unauthorized parts or failure to
follow Maintenance instructions may
create a risk of electric shock or injury.
POWER TOOL SAFETY

7
WARNING: For your safety, do not
plug in your reciprocating saw until you
have read and understood this Owner’s
Manual.
Always wear eye protection that conforms
with CSA requirements or ANSI safety
standard Z87.1
Always wear hearing protection and dust
mask. Use only in well ventilated areas.
Use of personal protective equipment and
working in a safe environment will reduce
the risk of injury.
Turn off all electrical power in the vicinity of
work. Contact with ”live” wires could shock
the operator or cause a fire.
Check to make sure the reciprocating saw
power cord and any extension cord are
clear of the area to be cut. Contact with
”live” wires could shock the operator or
cause a fire.
Do not wear gloves, neckties or loose
clothing.
Hold tool by insulated gripping surfaces
when performing an operation where the
saw blade may contact hidden wiring or its
own cord. Contact with a “live” wire will
make exposed metal parts of the tool “live”
and shock the operator.
Always hold the tool with two hands.
Attempting to control the tool with only one
hand is dangerous. It could result in loss of
control and serious injury.
Never hold the workpiece in one hand and
the tool in the other hand when sawing.
Never place the hands near or below the
cutting surface. Clamp the workpiece and
guide the tool with both hands.
Always make sure the work surface is free
from nails and other foreign objects.
Cutting into a nail can cause the blade and
the tool to jump and damage the blade.
Never lay the workpiece on hard surfaces
like concrete, stone, etc. The protruding
blade may cause tool to jump.
DANGER: Always remove the
plug from the power source when
changing blade.
After changing a blade or making
adjustments, make sure the blade clamp
screw is securely tightened. Loose blades
and adjustment devices could be violently
thrown from the tool.
Never use dull or damaged blades. Sharp
blades must be handled with care.
Damaged blades can snap during use.
Dull blades require more force to cut the
workpiece, possibly causing the blade to
break.
Never touch the blade during or
immediately after use. After use the blade
is too hot to be touched
SPECIFIC SAFETY RULES
!
!

8
WARNING: Keep the extension
cord clear of the working area. Position
the cord so it will not get caught on the
workpiece, tools or any other obstructions
while you are working with the power tool.
Make sure any extension cord used with
this tool is in good condition. When using
an extension cord, be sure to use one of
heavy enough gauge to carry the current
the tool will draw. An undersized cord will
cause a drop in line voltage resulting in
loss of power and overheating.
The table at right shows the correct size to
use according to cord length and
nameplate ampere rating. If in doubt, use
the next heavier gauge. The smaller the
gauge number the heavier the cord.
Be sure your extension cord is properly
wired and in good condition. Always
replace a damaged extension cord or have
it repaired by a qualified electrician before
using it. Protect your extension cord from
sharp objects, excessive heat and damp or
wet areas.
Use a separate electrical circuit for your
power tools. This circuit must not be less
than 14 gauge wire and should be
protected with either a 15 A time delayed
fuse or circuit breaker. Before connecting
the power tool to the power source, make
sure the switch is in the OFF position and
the power source is the same as indicated
on the nameplate. Running at lower
voltage will damage the motor.
MINIMUM GAUGE (AWG) EXTENSION
CORDS
(120 V use only)
Ampere Rating
Total length in feet
More
Than
Not
More
Than
25’
50’
100’
150’
0
6
18
16
16
14
6
10
18
16
14
12
10
12
16
16
14
12
12
16
14
12
Not Applicable
!

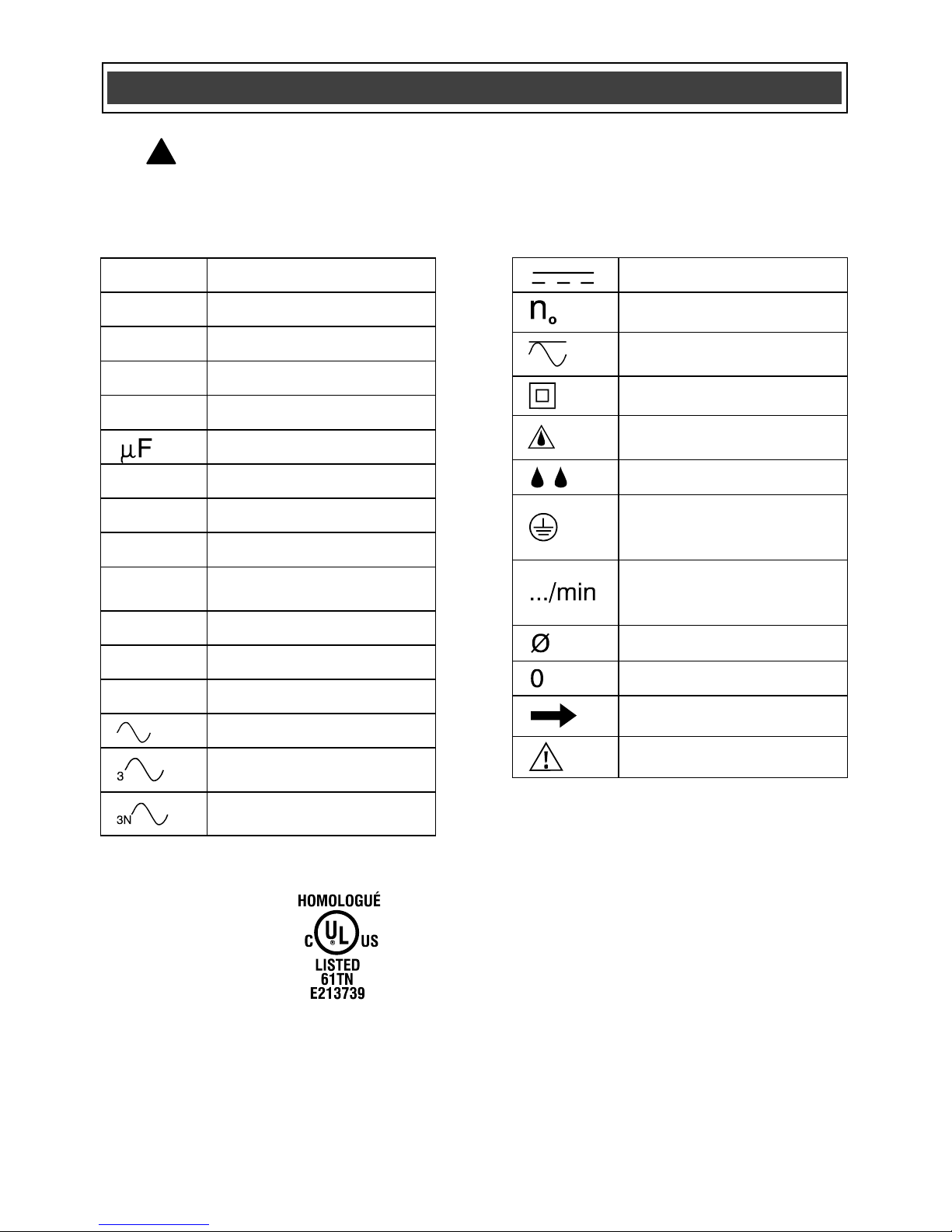

EXTENSION CORD SAFETY

9
V
volts
A
amperes
Hz
hertz
W
watt
kW
kilowatts
microfarads
L
liters
kg
kilograms
H
hours
N/cm2
newtons per square
centimeter
Pa
pascals
Min
minutes
S
seconds
alternating current
three-phase alternating
current
three-phase alternating
current with neutral
direct current
no load speed
alternating or direct
current
class II construction
splash proof
construction
watertight construction
protective earthing at
earthing terminal, Class I
tools
revolutions or
reciprocations per
minute
diameter
off position
arrow
warning symbol
WARNING: Some of the symbols below may be used on your tool.
Please study them and learn their meaning. Proper interpretation of
these symbols will allow you to operate the tool better and safer.
!
SYMBOLS
This symbol designates that
this tool is listed with both
Canadian and U.S.
requirements by Underwriters
Laboratories.
JD3509U

10

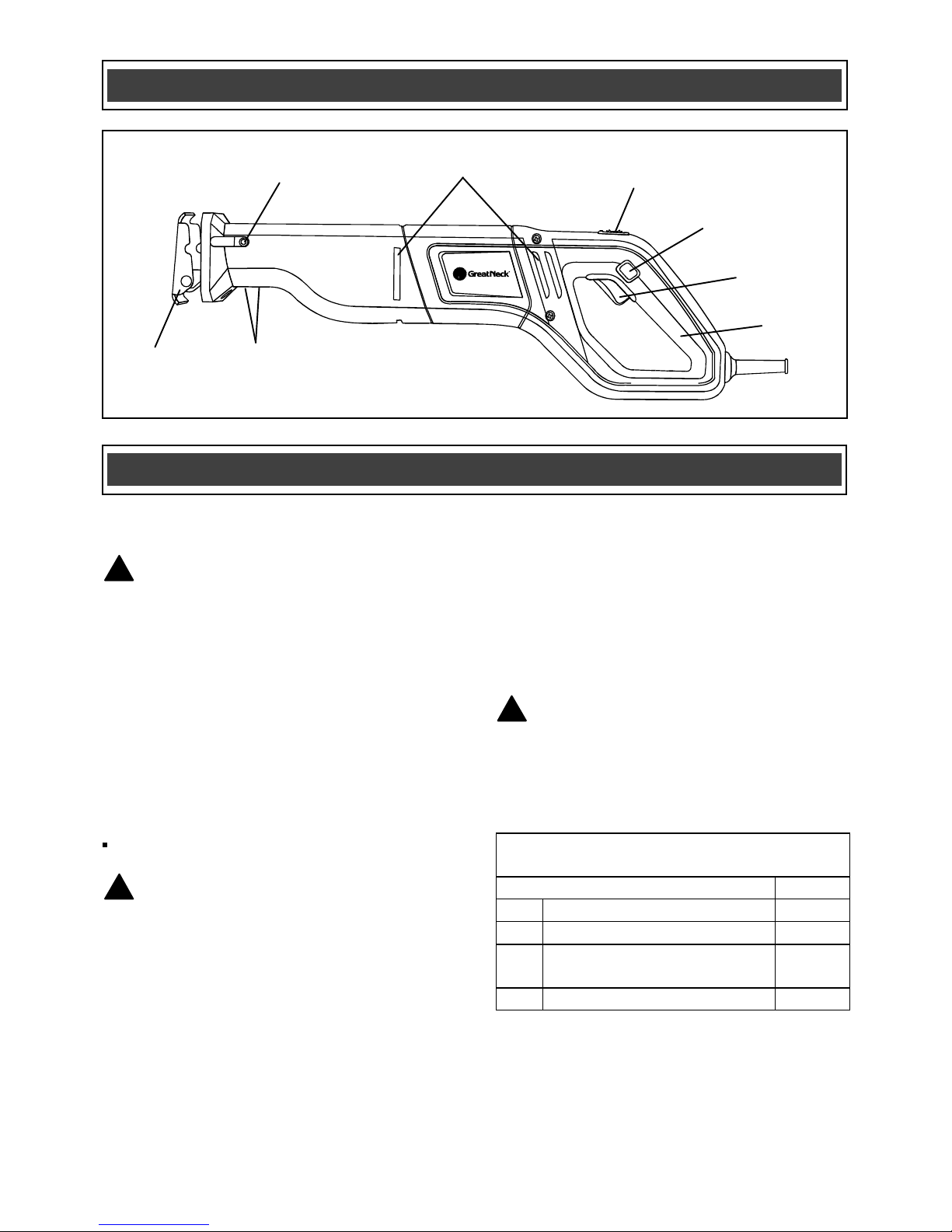

AVAILABLE ACCESSORIES
WARNING: Use only reciprocating
saw blades recommended for this
reciprocating saw. Follow instructions
that accompany the blades. Improper
use of blades may cause injury to the
operator or damage to the reciprocating
saw.
Do not us e any access ory unless you have
completely read the instructions or
Owner’s Manual for that accessory.
R eciprocating saw blades
WARNING: If any part is missing
or damaged, do not plug the
reciprocating saw into the power
source until the missing or damaged
part is replaced.
CARTON CONTENTS
C arefully unpack the reciprocating saw.
C ompare against the “R eciprocating S aw
C omponents ” chart below.
NOTE: S ee illus tration of components on
P age 11.
WARNING: To avoid fire or toxic
reaction, never use gasoline, naphtha,
acetone, lacquer thinner or similar
highly volatile solvents to clean the
tool.
KNOW YOUR RECIPROCATING SAW
!
!
!
RECIPROCATING SAW
COMPONENTS
DESCRIPTION
QTY
A
R eciprocating saw
1
B
4 mm hex key
1
C
1 blade for wood (silver)
1 blade for metal (red)
2
Owner’s manual
1
ACCESSORIES & CARTON CONTENTS
P ivoting shoe
adjusting
screws
T rigger
switch
Lock-off
button
P ivoting
shoe
B lade clamp
set s crew
Main
handle
Variable s peed
control wheel
Air vents

11
INSTALLING BLADE
WARNING: Always remove the
plug from the power supply before
installing or removing blades.
1. Insert the 4 mm hex key (1) into the
blade clamp set screw (2) and turn it
counter-clockwise to loosen the blade
clamp (3) (F ig. 1).
2. F ully insert the appropriate blade (4)
into the s lot (5) in the center of the
blade clamp.
NOTE: Make s ure the blade is fully
inserted into the blade clamp and the
blade teeth are pointing downward.
3. While holding the blade fully into the
blade holder, tighten the blade clamp
set s crew clockwise with the 4 mm
hex key.
NOTE: T ighten the blade clamp s et
screw firmly to lock the blade in the
blade holder
4. P ull outward on blade to ens ure it is
properly locked into the blade clamp.
ASSEMBLY AND OPERATION
!
CARTON CONTENTS
Fig. 1

12
REMOVING BLADE
To remove the blade, simply loosen the
blade clamp set screw and pull the blade
out of the blade clamp.
ADJUSTING PIVOTING SHOE
The pivoting shoe will pivot to follow the
angle of the blade to the workpiece. This
action ensures the flat surface of the shoe
is against the workpiece for better cutting
action and easier control of the saw.
The shoe can be adjusted in or out,
allowing the use of the blade teeth at
different points of the blade. This will
provide longer blade life as one section of
the blade becomes dull.
1. To adjust the pivoting shoe (1), loosen
the two pivoting shoe hex screws (2)
on the lower side of the saw using the
4 mm hex key (3) supplied (see
Fig. 2).
2. Slide the pivoting shoe in or out until it
is in the appropriate position.
3. Lock the pivoting shoe in place by
tightening the pivoting shoe hex
screws.
4. Pull outward on pivoting shoe to
ensure it is firmly locked in place.
ASSEMBLY AND OPERATION
Fig. 2

13
TRIGGER SWITCH & LOCK-OFF
BUTTON
The lock-off button is a safety device
designed to reduce the possibility of a user
accidentally starting the saw. This button
must be depressed before the trigger
switch can be depressed and the saw
started.
To turn the saw ON, press inward on the
lock-off button (1) (Fig. 3). While
continuing to press on the lock-off button,
squeeze the trigger switch (2) until the saw
starts. Once the saw starts, the lock-off
button can be released and the saw will
remain running as long as the trigger
switch is being squeezed.
To turn the saw OFF, release the trigger
switch. The saw cannot be restarted
without pressing on the lock-off button as
noted above.
VARIABLE-SPEED CONTROL WHEEL
The variable-speed control wheel (1)
allows you to control the speed of the saw
(Fig. 4).
To increase the speed at which the saw
will run, rotate the speed control wheel
forward. To reduce the speed at which the
saw will run, rotate the speed control
wheel backward.
NOTE: Set the speed control wheel at “1”
for the slowest speed and at “6” for the
fastest speed.
ASSEMBLY AND OPERATION
Fig. 3
Fig. 4

14
MATERIALS YOU CAN CUT
This reciprocating saw is a versatile tool
that allows you to cut many different types
of materials. Some of the materials
include:
●Wood products such as lumber,
hardwood, plywood, composition
board and panelling
●Drywall
●Masonite and plastic
●Metals such as pipe, steel rods, sheet
steel, aluminum, brass and copper.
NOTE: There are many different types of
blades available. Generally, there are
metal cutting blades (fine teeth) and wood
cutting blades (coarser teeth). Use the
correct blade for your application. The
packaging on the blade will indicate the
type of materials each blade is designed to
cut.
ASSEMBLY AND OPERATION
WARNING: Have you read “GENERAL SAFETY WARNINGS”, “POWER
TOOL SAFETY”, “SPECIFIC SAFETY RULES”, EXTENSION CORD SAFETY” and
“SYMBOLS” on pages 3, 4, 5, 6, 7, 8 & 9 of this Manual? If not, please do it now
before you operate this reciprocating saw. Your safety depends on it!
Every time you use the reciprocating saw you should verify the following:
1. Blade is in good condition
2. Blade is firmly clamped in the blade holder
3. Proper eye, hearing and lung protection are being worn.
Failure to adhere to these safety rules can greatly increase the chances of
injury.
!

15

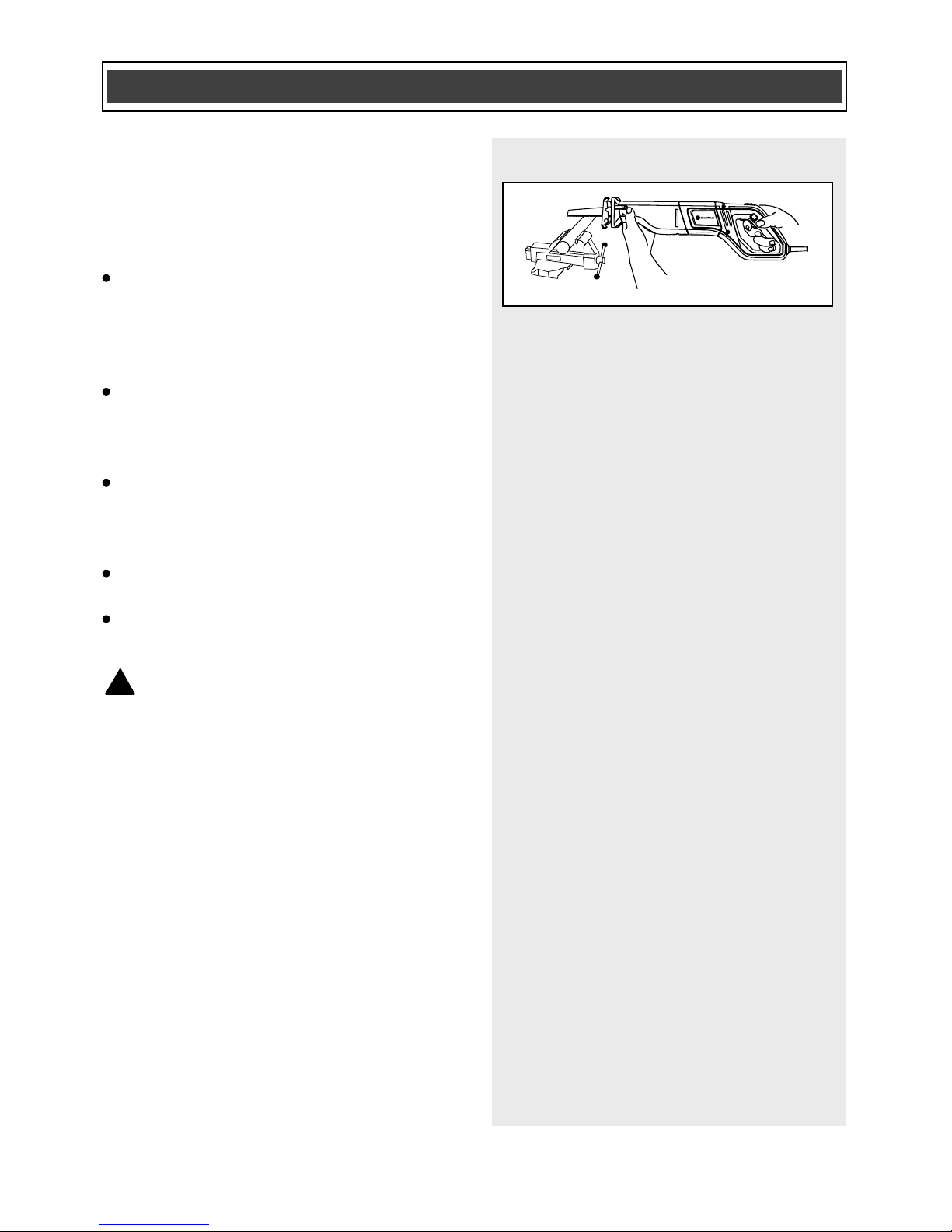

GENERAL CUTTING
1. C learly mark the workpiece to locate
the position of the cut.
2. Hold smaller workpiece with a vice.
C lamp larger workpiece to a work
bench or table.
DANGER: Any workpiece that
is not adequately clamped in place
may come loose and cause serious
injury. Never hold the workpiece
with your hand(s).
3. Make s ure there are no nails, screws,
clamps or foreign materials in the path
of the saw blade.
4. Hold the saw away from your body
and in front of you (F ig. 5).
5. With both hands firmly gripping the
saw, and the blade NOT in contact
with the surface to be cut, s tart the
saw by depres sing the lock-off button
and squeezing the trigger s witch.
6. Once the saw has reached the
desired s peed, place the adjustable
pivoting s hoe agains t the workpiece
and gradually bring the moving blade
into contact with the workpiece at the
appropriate location.
CAUTION: Do not force the saw.
Use only enough force to keep the
blade cutting. Excessive pressure on
the blade will cause it to bend and twist,
which may result in breaking the blade.
!
!
ASSEMBLY AND OPERATION
Fig. 5

16
PLUNGE CUTTING
1. C learly mark the workpiece to locate
the position of the cut.
2. C lamp the workpiece to a work bench
or table (F ig. 6).
NOTE: Make s ure the area to be cut
is clear under the workpiece so that
the blade will not come into contact
with anything other than the
workpiece.
3. S elect a convenient starting point in
the area to be cut out. P lace the tip of
the blade over that point
.
4. R est the lower edge of the adjustable
pivoting s hoe on the workpiece and
hold it firmly in that pos ition.
5. Depress the lock-off button and
squeeze the trigger s witch to s tart the
saw.
WARNING: Make sure the
blade does not touch the workpiece
until the saw reaches full speed.
Loss of control and possible injury
could result.
6. With the s aw running at full speed,
slowly tilt the saw until the tip of the
blade contacts the workpiece and
begins to cut. After the blade cuts
through the workpiece, tilt the saw
upward until the blade is
perpendicular to the workpiece.
ASSEMBLY AND OPERATION
!
Fig. 6

17
METAL CUTTING
Metals s uch as pipe, steel rods , sheet
steel, aluminum, bras s and copper can be
cut with your saw (F ig. 7).
T o cut thin s heet material, “sandwich”
the material between hardboard or
plywood and clamp the layers to limit
vibration and material tearing.
Always us e a fine tooth metal cutting
blade and run the s aw at medium
speeds when cutting metal.
Us e cutting oil to keep blade cool,
increas e cutting action and prolong
blade life.
Do not twist or bend s aw blade.
Do not force the s aw blade. Let it cut
at its own speed.
DANGER:
a) Always clamp workpiece in a vise
or to a workbench or table. Do not
hold workpiece in your hand.
b) Never use gasoline as a lubricant
or as a cleaning agent. A spark
from the motor may cause an
explosion. Gasoline will also
damage the plastic components of
the saw.
!
ASSEMBLY AND OPERATION
Fig. 7

18
WARNING: When s ervicing, us e only
identical replacement parts . Use of any
other part may create a hazard or caus e
product damage.
DO NOT abus e power tools . Abusive
practices can damage the tool as well as
the workpiece.
WARNING: DO NOT attempt to
modify tools or create accessories. Any
such alteration or modification is
misuse and could result in a hazardous
condition leading to possible serious
injury. It will also void the warranty.
CLEANING
DO NOT us e solvents when cleaning
plastic parts . Most plas tics are susceptible
to damage from various types of
commercial s olvents and may be damaged
by their use. Us e a clean cloth to remove
dirt, dust, oil, greas e, etc.
WARNING: Do not at any time
allow brake fluids, gasoline, petroleum-
based products, penetrating oils, etc. to
come in contact with plastic parts. They
contain chemicals that can damage,
weaken or destroy plastic.
WARNING: Always wear safety
goggles or safety glasses with side
shields during all cutting operations. It
is critical that you also wear safety
goggles or safety glasses with side
shields and a dust mask while blowing
dust out of the saw with an air jet.
Failure to take these safety precautions
could result in permanent eye or lung
damage.
LUBRICATION
All of the bearings in this reciprocating saw
are lubricated with a sufficient amount of
high-grade lubricant for the life of the unit
under normal conditions . T herefore, no
further lubrication is required.
!
!
!
!
MAINTENANCE

19

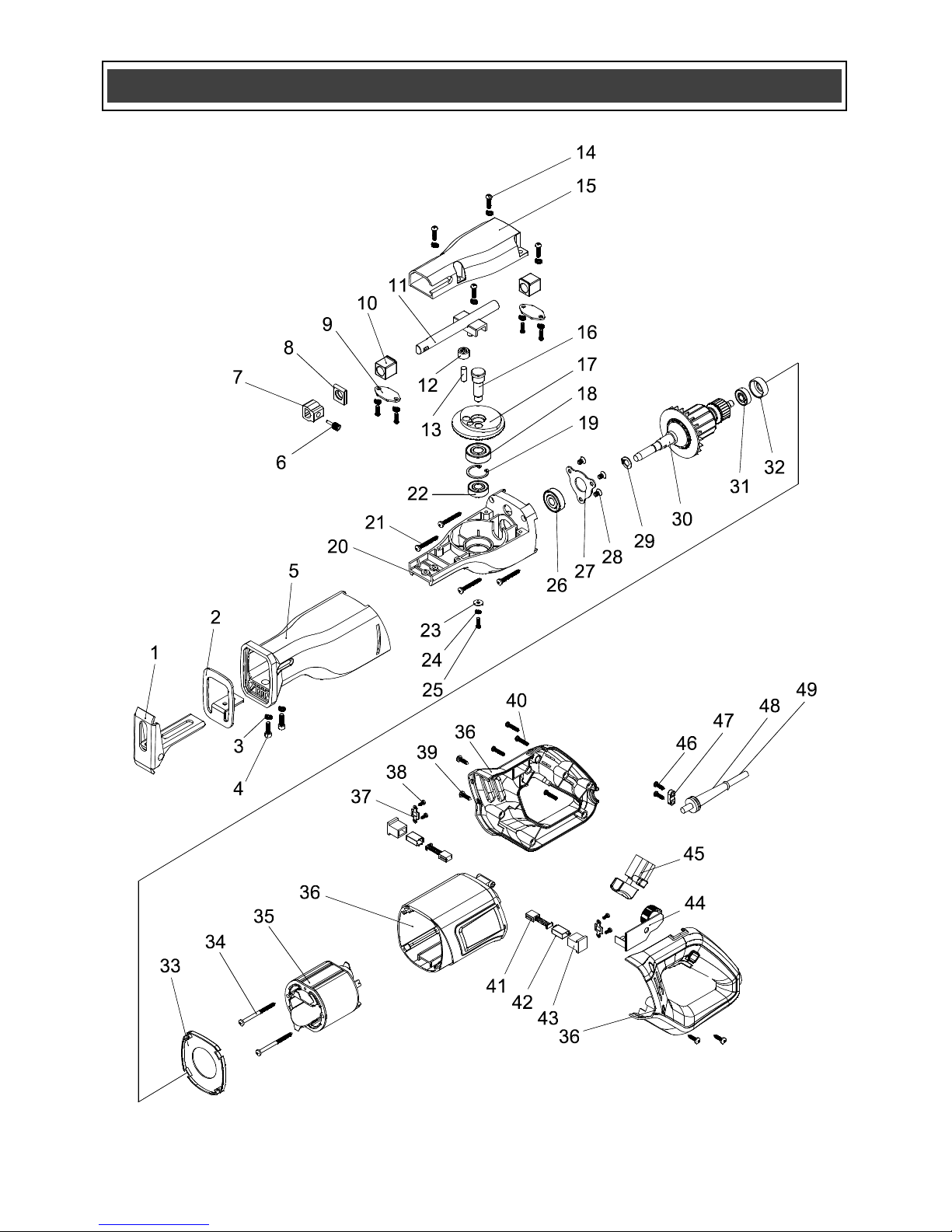

PARTS DIAGRAM – MODEL 80155

20
WARNING: When servicing, use only GreatNeck®replacement parts. Use of any
other parts may create a safety hazard or cause damage to the tool.
Any attempt to repair or replace electrical parts on this power tool may create a safety
hazard unless repair is performed by a qualified technician.
Always order by PART NUMBER.
Part #
Part Name
Quantity
1
80155-1
Foot plate
1
2
80155-2
Clamp plate
1
3
80155-3
Spring washer
10
4
80155-4
Hex screw
2
5
80155-5
Front jacket
1
6
80155-6
Screw
1
7
80155-7
Blade clamp
1
8
80155-8
Dust preventer
1
9
80155-9
Bearing hold down
2
10
80155-10
Oil-retaining bearing
2
11
80155-11
Reciprocating lever
1
12
80155-12
Roller
1
13
80155-13
Roller axle
1
14
80155-14
Screw M5x12
8
15
80155-15
Gear box cover
1
16
80155-16
Spindle
1
17
80155-17
Big gear
1
18
80155-18
Bearing 6201
1
19
80155-19
Retaining ring
1
20
80155-20
Gear box
1
21
80155-21
Tapping screw ST4.2x36
4
22
80155-22
Bearing 6000
1
23
80155-23
Washer
1
24
80155-24
Spring washer
1
25
80155-25
Screw M4x10
1
26
80155-26
Bearing 6200
1
27
80155-27
Bearing hold down
1
28
80155-28
Screw M5x8
3
29
80155-29
Retaining ring
1
30
80155-30
Rotor
1
31
80155-31
Bearing 608
1
32
80155-32
Bearing sleeve
1
33
80155-33
Air-guiding ring
1
34
80155-34
Tapping screw ST3.9x60
2
35
80155-35
Stator
1
!
PARTS LIST – MODEL 80155
