Gree GPC08AI-A3NNC6A User manual

Change for Life
Portable Air Conditioner
Owner's Manual
Residential Air Conditioners
Thank you for choosing Residential Air Conditioners,please read this owner’s
manual carefully before operation and retain it for future reference.
Models:
GPC08AI-A3NNC6A
GPC09AI-A3NNC6A
GPC10AI-A3NNC6A

CONTENTS
PRECAUTIONS....................................................................................................................1
............................................................................................................................3
STRUCTURE........................................................................................................................5
INSTALLATION OF THE POWER CORD HOOK ................................................................6
CONTROL PANEL DISPLAY & OPERATING INSTRUCTIONS........................................15
OPERATION OF WIRELESS REMOTE CONTROL
HOW TO USE THE REMOTE CONTROL .........................................................................16
..........................................................17
MALFUNCTION ANALYSIS
..................................................................................................................20
SAFE NOTE AND NOTICE
AFTER SALES SERVICE
...............................................................................................21
................................................................................................22
...................................................................................................23
INCLUDE
LOCATION
..............................................................................................................................4
INSTALLATION OF DRAINAGE HOSE ...............................................................................7
DRAINAGE METHOD
...........................................................................................................8
..................................................................................................9INSTALL WINDOW PANEL
INSTALLATION AND REMOVAL OF THE EXHAUST HOSE............................................13
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
MAINTENANCE

PRECAUTIONS
WARNINGS FOR USE
ŖInstall the air conditioner in accordance with the installation instructions in the latter section of this
manual.
ŖDo not modify any part of this product.
ŖDo not insert anything into any part of the unit.
ŖEnsure the power supply used has an appropriate voltage rating.
Only use a three-pin grounded electrical AC socket rated 125V, 60Hz, and 15 amps
or more as shown on the right.
Use of a power supply with an improper voltage rating can result in damage to the
unit and possibly fire.
ŖAlways use a fuse with the proper amp rating.
Do not, under any circumstances, use wire, pins or other objects in place of a proper fuse.
ŖIn the event of any abnormality with the air conditioner (ex. a burning smell), turn it off immediately
and disconnect the power supply.
WARNING FOR POWER SUPPLY CORD
ŖThis air conditioner uses a plug with a built-in fuse.
Read the precautions on the plug before using the air conditioner.
Ŗ$OZD\VFRQGXFWD³3RZHU3OXJ&KHFN´EHIRUHXVHWRFRQ¿UPWKHSRZHUSOXJIXQFWLRQVQRUPDOO\
ŖThis power plug must only be plugged into an appropriate wall socket. Do not use in conjunction
with any extension cords.
ŖPush the power plug securely into the socket and make sure it is not loose.
ŖDo not pull, deform, or modify the power supply cord, or immerse it in water.
Pulling or misuse of the power supply cord can result in damage to the unit and cause electrical shock.
ŖA damaged power supply cord must be replaced with a new power supply cord obtained from the
product manufacturer and not repaired. Replacement must be performed by manufacture's service
agent in order to avoid a hazard.
-1-
NOTE
Radio or TV Interference
If this room air conditioner should cause interference to radio or television reception, try to correct the interfer-
ence by one or more of the following measures:
ŖReorient or relocate the receiving antenna.
ŖIncrease the separation between the room air conditioner and radio/TV receiver.
ŖConnect the room air conditioner into an outlet on a circuit different from that to which the radio/TV receiver is
connected.
ŖConsult the dealer or an experienced radio/TV technician for help.

-2-
PRECAUTIONS
USAGE CAUTIONS
ŖBe sure to turn the unit off and disconnect the power supply cord before performing any
mainte-nance or cleaning.
ŖDo not splash or pour water directly onto the unit.
Water can cause electrical shock or equipment damage.
ŖDrainage should be performed whenever moving the air conditioner.
If any water remains in the tank, it may spill out while being moved.
ŖRemove the window panel in the event of particularly adverse weather.
Extremely adverse weather may cause water to leak in through the openings.
ŖTo ensure proper drainage, the drainage hose must have no kinks or be on a different level
The drained water may spill out into the room.
ŖThe temperature around the drainage hose must not be below freezing point when used.
'UDLQHGZDWHUPD\IUHH]HLQVLGHWKHKRVHFDXVLQJZDWHULQVLGHWKHXQLWWRRYHUÀRZLQWRWKHURRP
ŖDo not block the exhaust air outlet with obstacles.
Cooling performance may be reduced or stop completely..
NOTES ON OPERATION
ŖAllow 3 minutes for the compressor to restart cooling.
If you turn the air conditioner off and immediately restart it, allow three minutes for the compressor to restart
cooling. There is an electronic device in the unit that keeps the compressor turned off for three minutes for
safety.
ŖIn the event of a power failure during use, allow 3 minutes before restarting the unit.
After power is reinstated, restart the air conditioner. If the power was off for less than three minutes, be sure
to wait at least three minutes before restarting the unit. If you restart the air conditioner within three minutes,
a protective device in the unit may cause the compressor to shut off. This protective device will prevent cool-ing
for about 5 minutes. Any previous settings will be canceled and the unit will return to its initial settings.
ŖLow temperature operation: Is your unit freezing up?
Freezing may occur when the unit is set close to 64°F in low ambient temperature conditions, especially at night.
In these conditions, a further temperature drop may cause the unit to freeze.
Setting the unit to a higher temperature will prevent it from freezing.
ŖDry mode increases room temperature.
The unit generates heat during dry mode and the room temperature will rise. Warm air will be blown out from the
Ŗ
This air conditioner blows the warm air generated by the unit outside the room via the exhaust
hose while in cool mode.
Accordingly, the same amount of air as that blown out will enter the room from outside through any openings
into the room.
ŖWhen cooling operation is performed at high humidity conditions, water tank inside the unit
may fre-quently become full.
When water tank inside the unit is full, the unit stops operating, Buzzer will sound 8 times, LED window show
ŖVentilate the room periodically during use, especially if using gas appliances.
ŖIntended for indoor use only.
ŖDo not use in conjunction with any extension exhaust hose
Avoid using heating appliance near the air conditioner.
.
error code "H8".In this case, perform drainage to drain out water within the unit.
Exhaust air outlet, but this is normal and does not indicate a problem with the unit.

S
-3-
OPERATING CONDITIONS
The air conditioner must be operated with in the temperature range indicated below.
MODE Room temperature
Cool 64°F ~ 95°F
A built-in safety device may cut off operation if the temperature exceeds these limits.
ENERGY EFFICIENCY TIPS
Avoid direct sunlight.
Close blinds, drapes or shades to keep out direct sunlight while in cooling mode.
 .HHSWKH¿OWHUFOHDQ
Keeping the ¿lter clean greatly aids ef¿cient operation.
$GLUW\¿OWHUEORFNVWKHÀRZRIDLUPDNLQJ\RXUDLUFRQGLWLRQHUZRUNKDUGHUDQGOHVVHI¿
ciently.
Turn off unnecessary lights.
Your air conditioner must remove the heat produced by your lights or other heat-produc-
ing appliances. Turn off any lights or appliances that are not in use.
Turn off the air conditioner when no one is home.
Use only when necessary. The less time the air conditioner is used, the lower the run-
ning costs.
LOCATION
The air conditioner should be placed on a¿rm foundation to minimize noise and vibration.
For safe and secure positioning, place the unit on a smooth, level Àoor strong enough to
support the unit.
The unit has casters to aid placement, but it should only be rolled on smooth, Àat sur-
faces. Use caution when rolling on carpet surfaces. Do not attempt to roll the unit over
objects.
The unit must be placed within reach of a properly rated grounded socket.
Never place any obstacles around the air inlet or outlet of the unit.

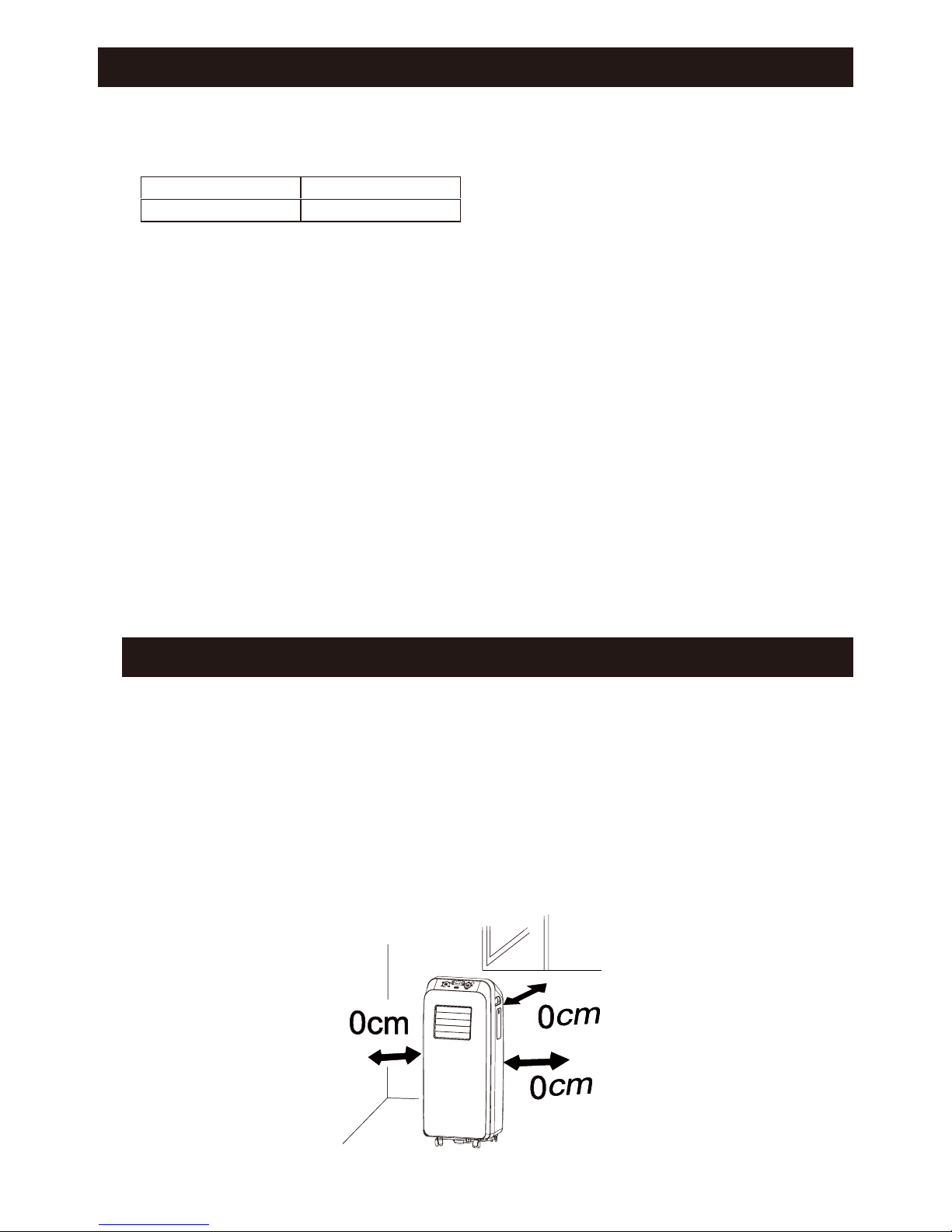

Allow at least 12" (30cm) of space from the wall for ef¿cient air-conditioning.
PRECAUTIONS
33
3

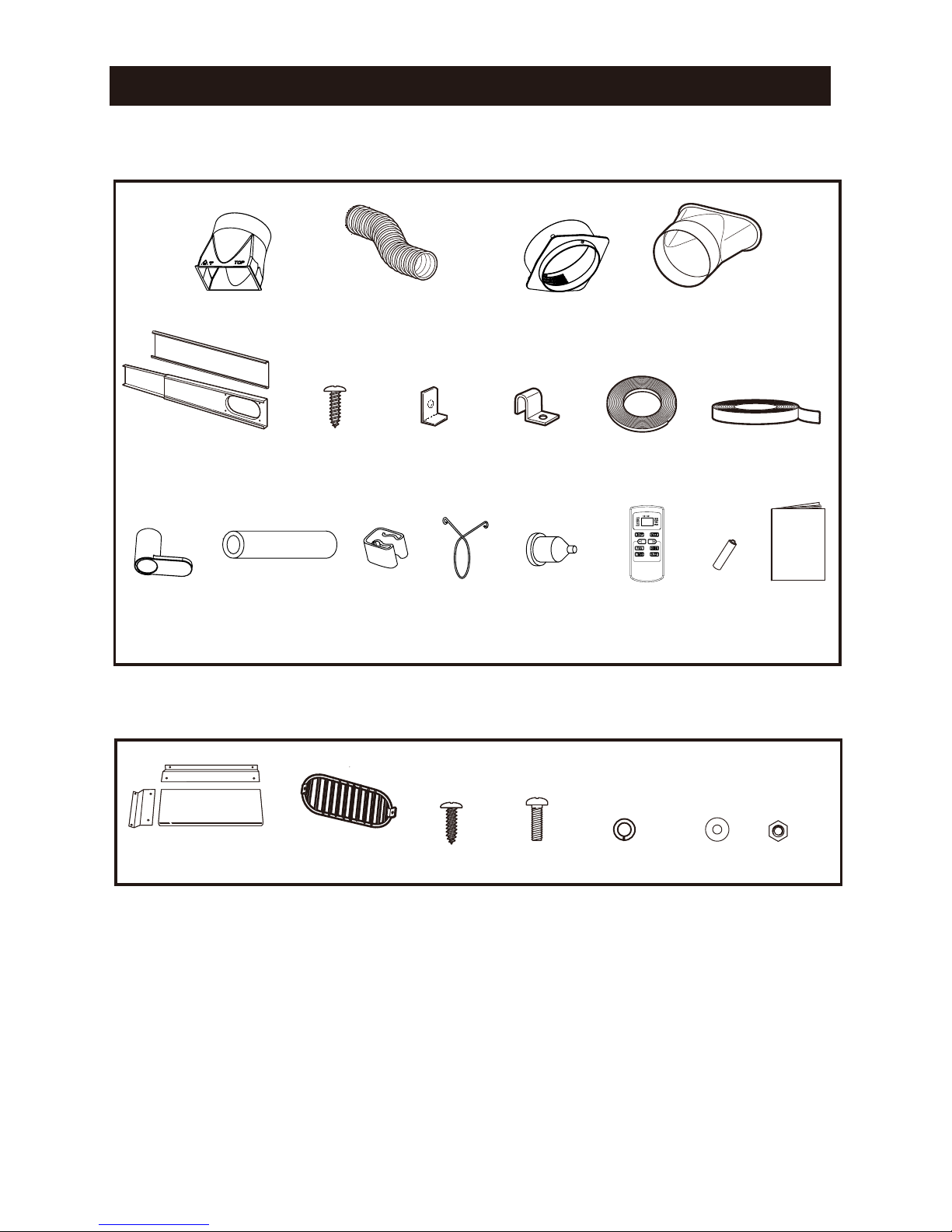

PARTS INCLUDED
Window Exhaust Adapter A
Window Locking Bracket
Screw (8)
Exhaust Hose
Foam Seal B (2)
Foam Seal A
Window Exhaust Adapter C
Window Slider Bracket (4)
Rain Deflector Assembly Protective Screen
Adjustable Window Slider (3)
Bolt ( )
4Washer ( )
4Nut ( )
4
Split-Ring Washer (4)
Drain hose Hose Clamp Hose clip (2) Rubber plug Battery (2)
(AAA.1.5V)
-4-
INCLUDE
Window ExhaustAdapter B
Screw ( 2 )
Optional
SUGGESTED TOOLS FOR WINDOW PANEL INSTALLATION
1. Screw driver (medium size Phillips) 2. Tape measure or ruler 3. Knife or scissors
4. Saw (In the event that the window panel needs to be cut down in size because the window is too narrow for
direct installation.)
ManualRemove control
hoo k (2)
Power cord

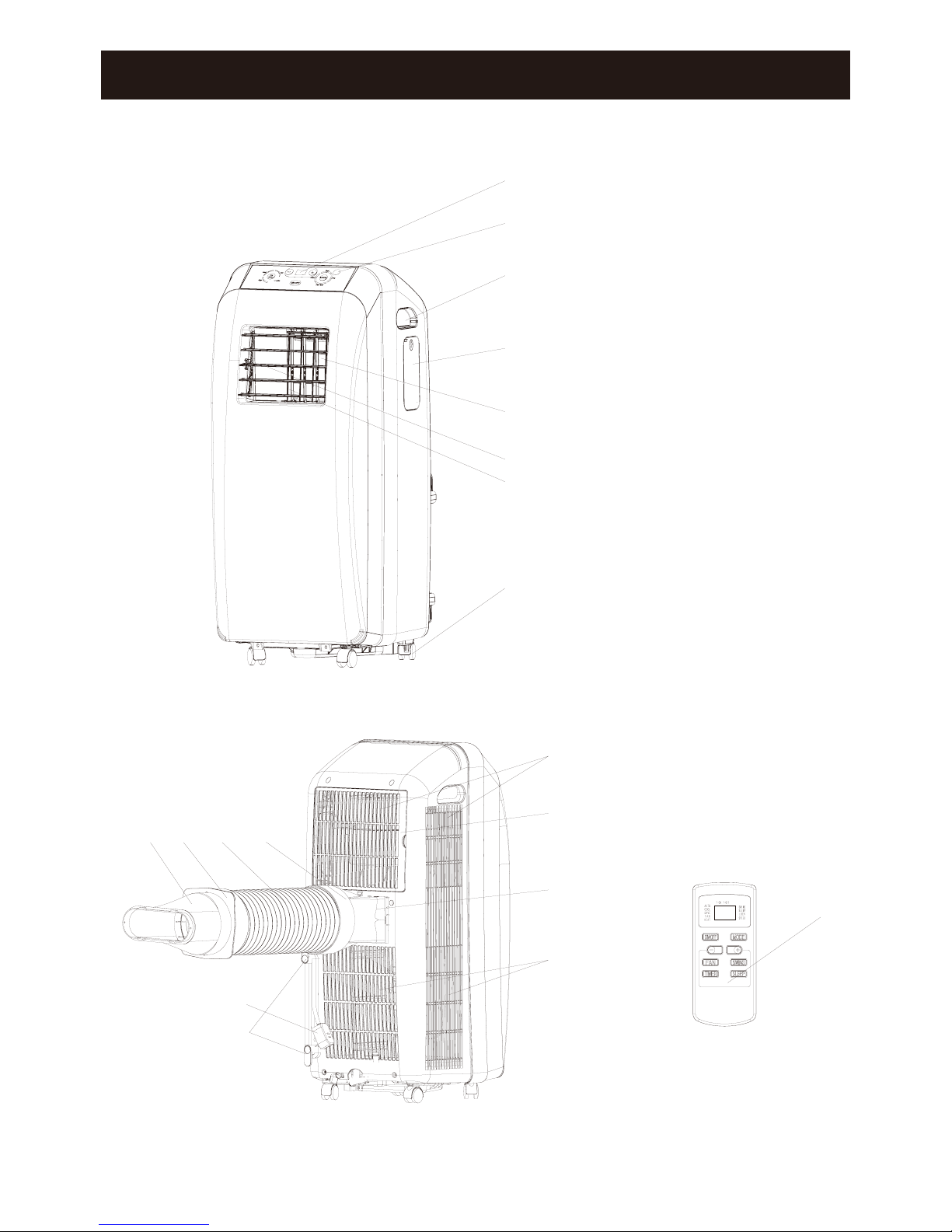

1, Control panel and display lamp
2, Remove control signal receiver window
3, Handel
4, Remote controller box
5, Air outlet
6, Vertical louvers
7, Horizontal louvers
8, Wheel
9, Air inlet
10, Grille
11, Air outlet
12,Air inlet
13,Power cord hook
14, Power cord
15, Window exhaust adapter A
16, Exhaust hose
17, Window exhaust adapter
18, Window exhaust adapter
19, Remove control
-5-
STRUCTURE
Front
Rear
19
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
B
C

-6-
INSTALLATION OF THE POWER CORD HOOK

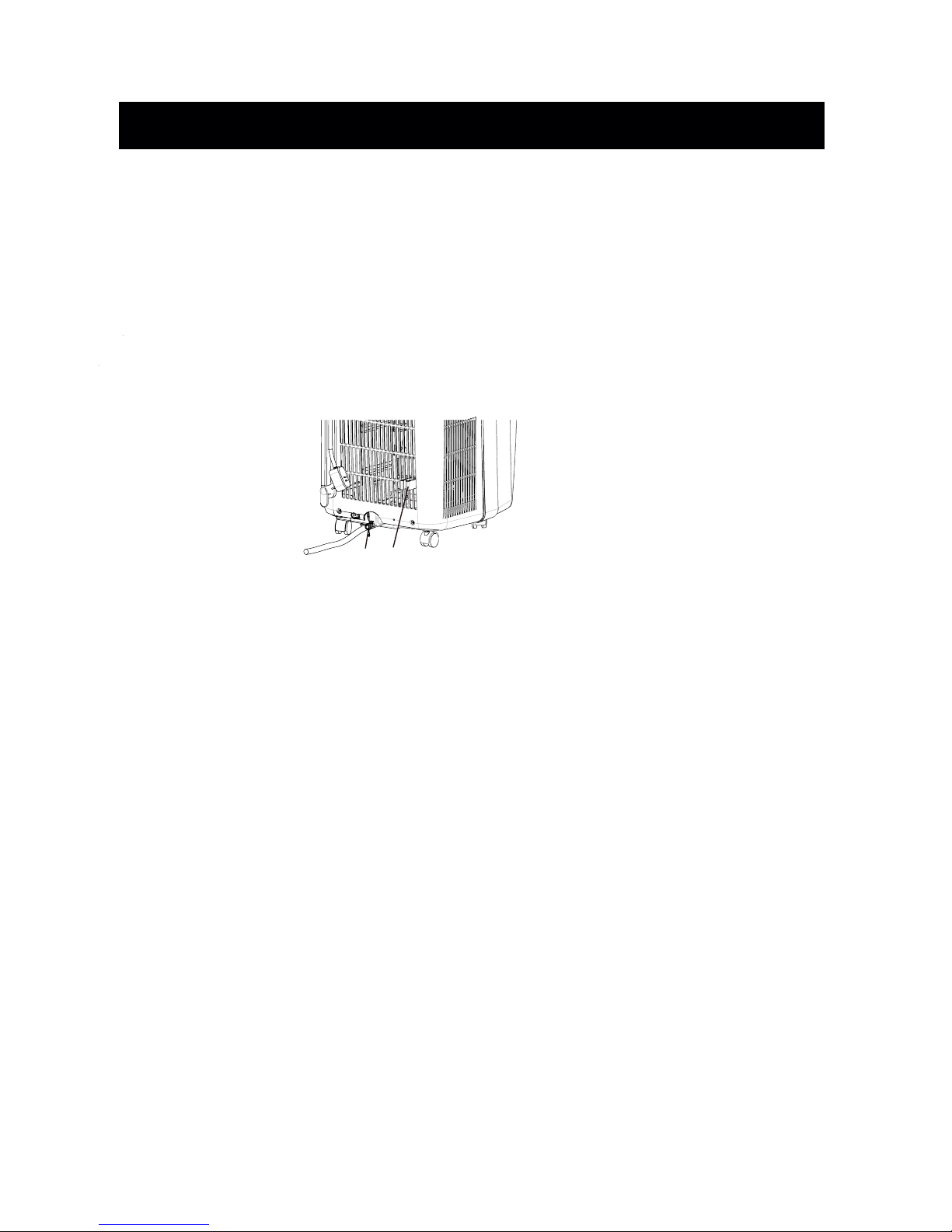

Attach the hooks to the back of air conditioner with the screws.
hoook
screw
Wind the power cord round the power cord hooks.

Installof drainage hose(as shown in following figure):
Note:Drainage hose must be installed before using other wise block of drain may occur and affects
normal run of unit.
1. Remove drain cap from drain port.
A.
B.
A
B
-7-
INSTALLATION OF DRAINAGE HOSE
A .Rubber plug
B. Drain port
C. Drain hose
D.
E.
Drain hose clamp
Drain hose clips
3. Attach one end of the drain hose to the drain port with the clip.
4. Insert the rubber plug into the other end of the drain hose and secure with clip.
2. Attach the drain hose clamp to the back panel of the air conditioner near the
drain port with the screw.
Drain port
Drain cap
A
B
C
E
D
A. Drain port
B.Drain hose clamp
A
B

A. Drain port
B. Drain hose clamp
DRAINAGE METHOD
-8-
A
B
When COOL or DRY is running, condensate will drain to water tank. When water tank
is filled, Buzzer will sound 8 times, LED window show error code "H8".
In this case, plug out drain hose from fixing clamp,unsecure the clip, pull
out the rubber plug from the drain hose, then drain out water in tank.
Then reinstall the drainage hose as step 4 to step 5 in page 7.
The unit will resu-merunning when water filled protect released and compressor
stops for 3 minutes.

1Cut the foam seal B to the proper length
and attach it to the window stool .
2Attach the window exhaust adapter C to
the window panel inside opening .
3Attach the protective screen to the
outside of the window exhaust adapter.
Use 2 screws to attach the protective
screen onto the outside of the window
exhaust adapter.
(Optional)
4Install the rain deÀector to the outside
of the window panel.(Optional)
Line up the holes on the rain deÀector
and the window panel. Use 4 bolts, 4
washers, 4 split-ring washers and 4 nuts
to attach the rain deÀector onto the win-
dow panel.
5Attach the window panel to the window
stool .
If the inner width of the window is less than
28" (718mm) wide.
(1) Remove the adjustment panel from
the window panel, and cut the window
panel to the same width as the window.
(2) Open the window sash and place the
window panel on the window stool
(3) Secure the window panel to the window
stool with 2 screws and 2 window
slider brackets.
Window panel
-9-
Foam seal B
Installation in a double-hung sash window
Cut
Window stool
Window panel
Window exhaust adapter C
Window panel
Inside
Window slider bracket
~28"
INSTALL WINDOW PANEL

If the inner width of the window is between
28" (718mm) and 36.5" (927mm) inclusive.
(1) Open the window sash and place the
window panel on the window stool.
(2) Slide the adjustment panel to fit the
window frame width.
(3) Secure the window panel tothe stool
with 3 screws and 3 window slider brackets.
If the inner width of the window is between
36.5" (927mm) and 64" (1625mm) inclu-
sive.
(1) Open the window sash and place the
second window panel onthe window
stool.
(2) Slide the adjustment panel to fit the
window frame width.
(3) Secure the window panel to the window
stool with 4 large wood screws and 4
window slider brackets.
6
Cut the foam seal B tothe proper length
and attach it to the window panel.
8
Close the window sash securely against
the window panel.
9
Attach the bracket with a screw.
Adjustment panel
-10-
28"~36.5"
36.5"~64"
Foam seal B
Bracket
Window slider bracket
Window slider bracket
INSTALL WINDOW PANEL
7
Foam seal A
Cut the foam seal A toanappropriate
length and seal the opening between the
top ofthe inner window sash and the
outer window sash.

1Cut the foam seal B to the proper length
and attach it to the window frame.
2Attach the window exhaust adapter C to
the window panel inside opening.
3Attach the protectiv escreen to the
outside of the window exhaust adapter.
Use 2 screws to attach the protective
screen onto the outside of the window
exhaust adapter.
(Optional)
4edniarehtllatsnI Àector to the outside
of the window panel.
Line up the holes on the rain deÀec-
tor and the window panel. Use 4 bolts,
4 washers, 4 split-ring washers and 4
nuts to attach the rain deflector onto the
window panel.
5Install the window panel into the window
frame.
If the inner height ofthe window isless
than 28" (718mm) high.
(1) Remove the adjustment panel from the
window panel, and cut the window pan-
el to the same height as the window.
(2) Open the window sash and place the
window panel on the window frame.
(3) Secure the window panel to the window
frame with 2 large wood screws and 2
window slider bracktes.
INSTALL WINDOW PANEL
Installation in a sliding sash window
-11-
Window panel
Foam seal B
Window panel
Window exhaust adapter C
Inside
Cut
Window panel
Window slider
bracket
~28"
INSTALL WINDOW PANEL
(Optional)

If the inner height of the window is
between 28" (718mm) and 36.5" (927mm)
inclusive.
(1) Open the window sash and place the
window panel on the window frame.
(2) Slide the adjustment panel to fit the
window frame height.
(3) Secure the window panel to the window
frame with 3 screws and 3
window slider brackets.
If the inner height of the window is be-
tween 36.5" (927mm) and 64" (1625mm)
inclusive.
(1) Open the window sash and place the
window panel on the window frame.
(2) Slide the adjustment panel to fit the
window frame height.
(3) Secure the window panel to the window
frame with 4 screws and 4 window slider
6
Cut the foam seal B to the proper length
and attach it to the window panel.
7
Close the window sash securely against
the window panel.
9
Attach the bracket with alarge wood
screw .
-12-
Adjustment panel
28"~36.5"
36.5"~64"
Foam seal B
Bracket
Window slider
bracket
Window slider
bracket
INSTALL WINDOW PANEL
Cut the foam seal A to an appropriate
length and seal the opening between the
top of the inner window sash and the
outer window sash.
8
Foam seal A
brackets.

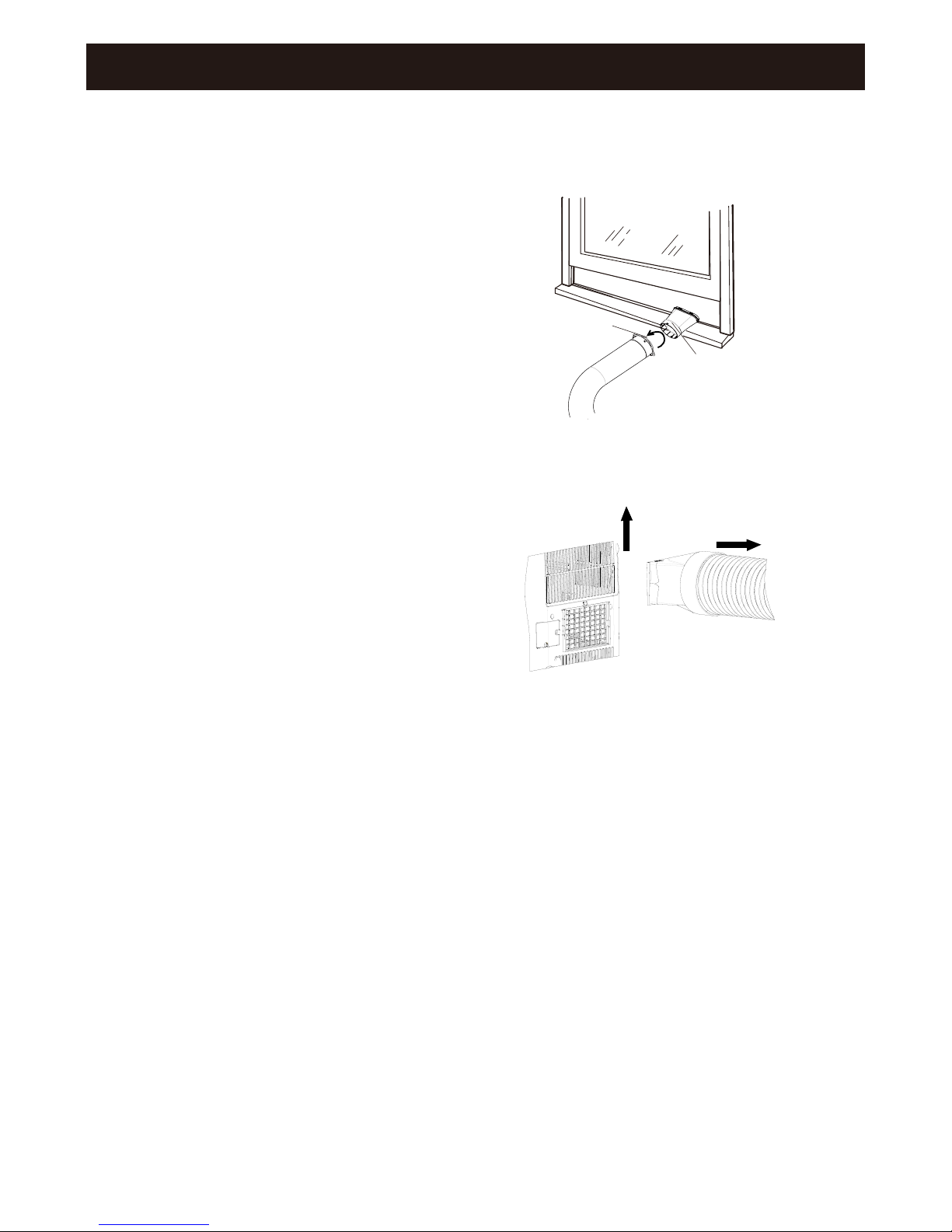

Installation of the exhaust hose
1
Attach the window exhaust adapter B
and C to the exhaust hose.
Extend both ends of the exhaust hose
and insert them into the window exhaust
adapter A and B respectively, and turn
them until they stop. Make sure they are
securely attached.
2Attach the window exhaust adapter A to
the unit.
Insert the two projections on the window
exhaust adapter A into the two holes on
the unit, and firmly attach them to each
other.
3Attach the exhaust hose.
Insert the window exhaust adapter B to the
window exhaust adapter C in the window
panel and turn it to lock it in place.
-13-
7KHH[KDXVWKRVHVKRXOGEHDVVKRUWDVSRVVLEOHIRURSHUDWLRQDOHI¿FLHQF\KRZHYHU
it must not be twisted or bent.
Unacceptable Acceptable Acceptable
INSTALLATION AND REMOVAL OF THE EXHAUST HOSE
Exhaust hose
Window exhaust adapter B
Window exhaust adapter A
window exhaust adapterB Window exhaust
adapter
1
2
C

Removal of the exhaust hose
1Remove the window exhaust adapter B
Remove the window exhaust adapter A
2from the unit.
Lift up and remove the window exhaust
adapter A from the unit by pushing down
on the two projections.
-14-
window exhaust adapter B
Window exhaust
adapter C
12
INSTALLATION AND REMOVAL OF THE EXHAUST HOSE
Remove the window exhaust adapter B
from the window exhaust adapter C.

-15-

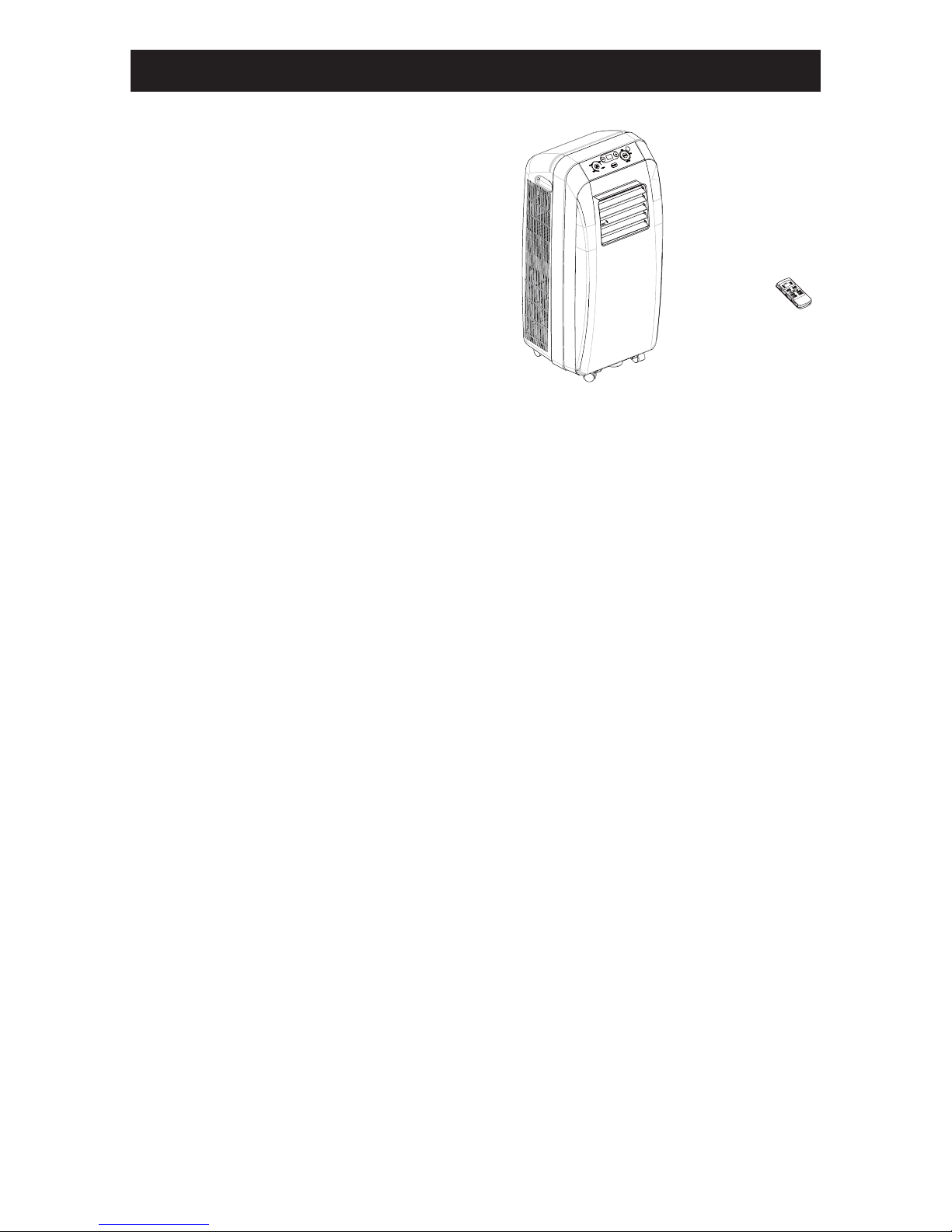

CONTROL PANEL &DISPLAY
When pressing key is valid, buzzer makes a sound, indicate dlamp indicates relevant state, system will last for
2 seconds.
OPERATING INSTRUCTIONS
l.
3.MODE Button
4. Fan speed
When the unit is running in Cool or Fan mode,press the Fan speed Button to select the fan speed in High,
Middle, Low , Auto.
In cool mode, it can decrease the temperature of the room, and make people very
comfortable.
ON/OFF Button
2. "+" , "-" Button
In COOL mode, press "-" once, the set temperature will decrease 1 , press "+" once, the set temperature will
C
(F)
Receiver window
LED window
DRY mode lamp
Temperature selection button COOL mode lamp
MODE buttonFAN mode lampFAN Speed lamp ON/OFF button
Fan speed button
Button
CONTROL PANEL DISPLAY & OPERATING INSTRUCTIONS
6. Louver Direction
This unit has 4-Way directional louvers.
Use the louver guides to direct air where
cooling or fanning is needed most.Hold the
louver and adjust the air flow direction,
as show in the right diagram.
5.Water Full
When COOL or DRY is running, condensate will drain to water tank. When water tank is filled. buzzer will sound 8
times, LED screen show error code ‘H8’.
In this case, reference page 8 to drain out water intank.
Press the button once to manually turn the unit on. Press once more to turn the unit off.
Press MODE Button repeatedly to cycle between the modes: Cooling, Dry, and Fan only mode.
Each press of
the MODE
button will light up a different lamp on the control panel. The exhause hose and window kit must
be installed when the
unit is in Co olor Dry mode.When using the unit as a fan, it is unnecessary to keep the
exhaus
t hose and window kit connected to the unit.
Hold this hand grip to adjust the
direction of Horizontal Louvers
Hold this hand grip to adjust the
direction of Vertical Louvers
incresae 1C ( F).The set temperature rang from 16 C to 30 C(61 F to 86 F)

Ŗ
HOW TO USE THE REMOTE CONTROL
-16-
For good receive, the distance between
operator and the unit no more than 5
meters.
Point the remote control towards
the units signal receiver window
and press the desired button. A
beep will sound when the unit re-
ceives the signal.
ŖMake sure nothing, such as curtains,
blocks the signal receiver window.
CAUTION
ŖDo not expose the signal receiver window to direct sunlight. This may adversely affect
its operation. If necessary, close the curtains to block out the sunlight.
ŖUse of a fluorescent lamp in the same room may interfere with transmission of the signal.
ŖThe unit may be affected by signals emitted from other remote controllers for tel-evisions,
VCRs or other equipment used in the same room.
ŖDo not leave the remote control exposed to direct sunlight or near a heater. Pro-tect the
remote control from moisture and shock which can discolor or damage it.

Names and functions of wireless remote control
Ɣ
ON/OFF button
ON/OFF
Remote control
Note: Heat mode is not
available on this unit
Signal transmitter
ŸŸŸŸ
Ÿ
AUTO
COOL
DRY
FAN
HEAT
Fan 2Fan 1
Fan 3 Fan 4
Note: Be sure that there are noobstructions between receiver and remote controller; Don't drop or throw
Remark: Any operate and explain for heating in this manual is
ƔPress this button, Auto, Cool,Dry, Fan,
Heat mode can be selected circularly.
MODE button
MODE
Auto mode is default while power on.
Under Automode,the temperature will not
be displayed; Under Heatmode, the
Ɣ
Press this button, Sleep On and Sleep
Off is defaulted. After the unit is turned off,
the Sleep function is canceled. After Sleep
Under Fan and Auto modes, this function is
not available.
Off can be selected. After powered on,Sleep
SLEEP button
Note:Swing mode is not available on this unit
SLEEP
Ɣ
By pressing this key,you may select AUTO,
FAN 1, FAN 2, FAN 3 or FAN 4, and may also
cycle between them. FAN 4 only in cool mode.
After being energized, AUTO is defaulted. Only
FAN button
FAN
initial value is 28
C (o
o
F); Under other
82
modes,the initial value is 25 C(o
oF).
77
Press this button, the unit will be turned on,
press it once more, the unit will be turned
off. When turning on or turning off the unit,
the Timer, Sleep function will be canceled,
but the presetting time is still remained.
(Note:When select Fan 4, the fan speed is
same as fan3 on this unit)
Ɣ
SWING button
SWING
Press this key to activate or deactivate
Note:Not available on this unit
the swing.
AUTO COOL DRY
FAN
HEAT
-17-
Notice: This is a general use remote controller, it could be used for the air conditioners with multifunction;
For some function,
OPERATION OF WIRELESS REMOTE CONTROL
(O nly for cooling and heating unit.
As for cooling only unit, it won’t have
anyaction when it receives the signal
of heating operation.)
which the model doesn't have, if press the corresponding button on the remote controller
the remote control; Don't let any liquid in the remote control and put the remote control directly under the
only for cooling and heating unit, but this is a cooling only unit, so it is not available on this unit.
AUTO
that the unit will keep the original running status.
sunlight or any place where is very hot.
function set up, the signal of Sleep will display.
In this mode,the time of timer can be adjusted.
this key can not adjust the fan sreed, but can send
LOW fan can be set under DRY mode, pressing
message.

Remote control
Ɣ
+ button
+
Ɣ
Presetting temperature can be decreased.
Press this button, the temperature can be
- button
-
set up, continuously press this button
and hold
contents can
(F)
signal
The
ailable
can
be sent by if pressing this button.
For presetting temperature increasing.
Press this button,can set up the temperature,
when unit is on . Continuously press and
hold this button for more than 2 seconds,
the corresponding contents will be
changed
rapidly, until unpress the button
laying all along. In Auto mode, the temp-
erature can not be set up, but operate this
button can send the signal. Centigrade
setting range :16-30; Fahrenheit scale
setting range 61-86.
then send the information, is disp-
Ɣ
By pressing this key under switch-off state, you
setting is 0.5 ~ 24 hours. The characters "T-ON"
and "H" will flash for 5 seconds. Within 5 seconds,
you may make one press of this key to complete
the sttingand send the message.If the setting is
valid, the set time will be displayed for 2 seconds
before display of the temperature message. During
and press "-" key to decrease the value. The time will
increase or decrease by 0.5 hours with each press
of this key.If pressing "+" or "-" key continuously,
timer setting, and there is no display of "T-ON" or
cancel the auto switch-on.When the temperature
"T-On" and "H" will display constantly for 2 seconds.
TIMER button
TIMER
0.25 seconds. After being energized, the fault is no
"H". Press ON/OFF key to switch on the unit and
By pressing this key under switch-on state,
set the
The method of setting as the same as for
auto switch-on.
Ɣ
-18-
C ( F )
OPERATION OF WIRELESS REMOTE CONTROL
this button
for two seconds, the relative
quickly change, until unhold
and send the order that the C
will be displayed all the time.
temperature adjustment is unav-
under the Auto mode, but the order
time for auto switch-off.
After 2 seconds,the preset temperature will be displayed.
cancel the auto switch-on and send the message. you may.
within these 2 seconds,you may press this key again to
troller can increase the set time by 0.5 hours every
display becomes constant, you maypress this key
may set the time for auto switch-on. The range of
flash,you may press "+" key to increase the value
the time value will change rapidly.The remote con
again to display the remaining set time. The time value,
