Green Lighting Corp GLC-SL32-3565 User manual

1
High Power LED Street Light
User Manual
www.mygreenlightingcorp.com

2
Product Information
1. With our unique and innovative modular design, our street lights can be easily configured
for different power and brightness. Every module is an independent light source and can
be interchanged. In the unlikely event of a partial failure it will not affect the normal
operation of the whole lamp. This allows for easy maintenance resulting in substantial cost
savings.
2.High quality secondary optics, eliminate visual fatigue caused by adverse glare of most
normal high-power LED Street light, thereby improving driving safety and minimising traffic
accidents.
3.The use of Direct current (DC) eliminates visual fatigue caused by stroboscopic effects of
traditional street light.
4.Good impact resistance with a strong housing, built to withstand adverse weather
conditions.
5.High CRI, No UV and IR radiation.
6.Significant energy savings.
7.High brightness utilizing a high-power LED light source with a high efficiency power supply
8.Unique lens design using high quality PMMA: 80% PC refractive index 1.594, 20% PMMA
refractive index 1.4932 providing good light coverage.
9.Green and eco-friendly. Our LED Street light are environmentally safe and do not contain
any toxic elements such as lead or mercury.
10.Long Life Span with stable luminous output and excellent heat dissipation.

3
11.Designed to IP67 to ensure the Street Light is Waterproof and Dustproof.
12.Reliable driver circuit design with constant current (power efficiency of >80%).
13.Automatic control: Brightness can be adjusted according to time and external
environment, thereby contributing to energy savings.
Product Specifications:
GLC-SL32-3565 GLC-SL52-7065
GLC-SL62-14565 GLC-SL82-20065

4
Datasheet:
T
y
p
e
Number Model GLC-SL32-3565 GLC-SL52-7065 GLC-SL62-14565 GLC-SL82-20065
1 Input voltage AC 90～264V
2 Frequency range 47～63Hz
3 Power Factor 0.95
4
Power Efficiency
(testingat rated
voltage, load and
room temprature)
88% 89% 90% 90%
5 Cert. CE
6 Circuit Protection
short-circuit protection, overcurrent protection, undervoltage protection<76V, overvoltage
protection (280-300V) self-recovery, anti surge, lightning protection and over-temperature
protection
7 Current Range operating current range<±5% at the rated input voltage
8 LED heat sink 63℃（Ta=25℃）
9 Single LED module
input current 340mA -360mA
10 LED power 28W±10％56W±10％112W±10％168W±10％
11 Total power 35W±10％70W±10％145W±10％200W±10％
Electrical characteristic
12 Dimming function brightness automatically adjust to 70% after 6-hour lighting
1 Lens PC+PMMA hybrid materials
2 LED light angle 120°
3 Color Temperature 4500K-5000K / 2900K-3100K
4 Lumens 82 lm/w
5 CRI ＞70
6 Average illumination
(H=5m)≥22 lux
(H=6m)≥15 lux
(H=6m)≥30 lux
(H=8m)≥15 lux
(H=8m)≥30lux
(H=10m)≥20 lux (H=12m)≥20 lux
7 Effective illuminated
area
(H=5m：16×6m
(H=6m：20×8m
（H=6m）：20×8m
(H=8m)：26×10m
(H=8m):26×10m
(H=10m):33×13m (H=12m)：40×16m
8 Light source LED chip 50mil
9 Light distribution curve
/ spot asymmetric(bat wing shape)/rectangular light spot
10 Maximum Light
Intensity Angle 120°: horizontal axis 110°, vertical axis 45°
Optics
11 Beam angle 120°: horizontal axis 120°, vertical axis 60°
1 Lamp body Aluminum alloy A360 and ADC12, surface treatment: spray gray or blue powder

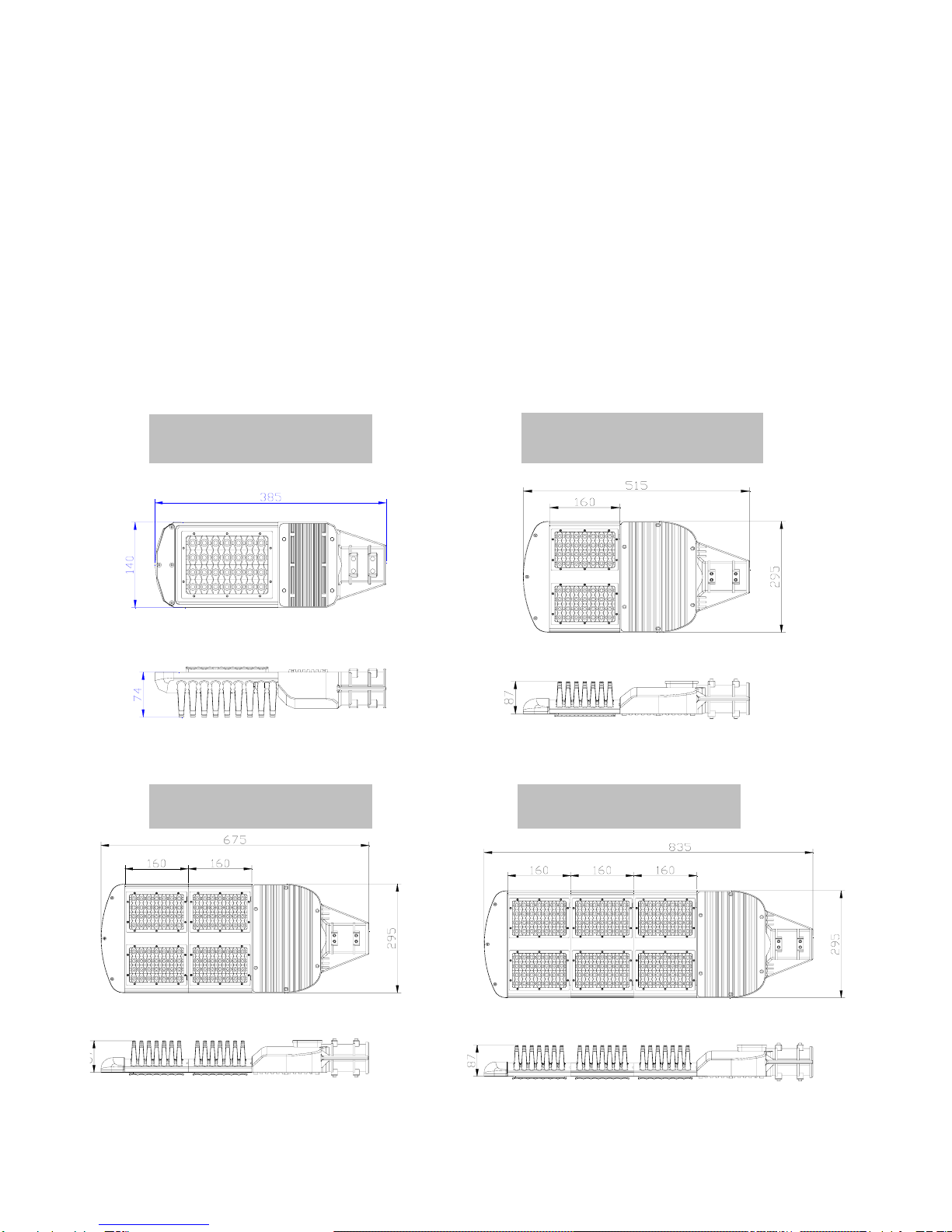

2 Dimension 328×223×172mm 515×295×87mm
675×295×87mm 835×295×87mm
3 N.W 3.0Kg 7.15Kg 10.4Kg 14.4Kg
4 Degree of protection IP67
5 Operating
Temperature -30℃～40℃
6 Storage Temperature -40℃～85℃
Structure
7 Operating Humidity 10%～95%R.H.

5
Warnings:
·Please strictly follow the installation instructions . Improper installation may cause electric
shock or Death.
·Warranty will be void in case of damage due improper installation.
·Power should not exceed stated range (rated voltage 90-264V, frequency 47-63Hz),
(Power AC220V must be switched off when wiring, make sure wires are connected
properly. To avoid damage, please do not install lamps right above objects such as stoves,
gas and exhaust channels or any hot objects.
·Ensure only qualified personnel install ,operate and maintain the Streetlamp.
Maintenance
1.change the power supply module, if the whole lamp does not work.
2.change the light source module(needs to be done by a qualified person), if a single LED
does not work.
3.Do not clean the lamps with volatile chemicals such as thinners (acetone) or gasoline,
doing so will damage the lamps and affect the lifespan.
Possible failures and solutions:
Failure Reasons Solutions
Power input terminals are
not connected properly
Re-connect to the power
input terminals
Power fuse failed Change fuse
All the LEDs do not light up
Power output socket is
not connected properly Re-connect to the output socket
LED flicker Power supply failed Change power supply
a set of LED is dim Power supply failed Change power supply or
LED module
Few LED do not light LED damaged Change LED Module

6
Installation Instruction:
Notice: Please ensure the power is switched off prior to installation.

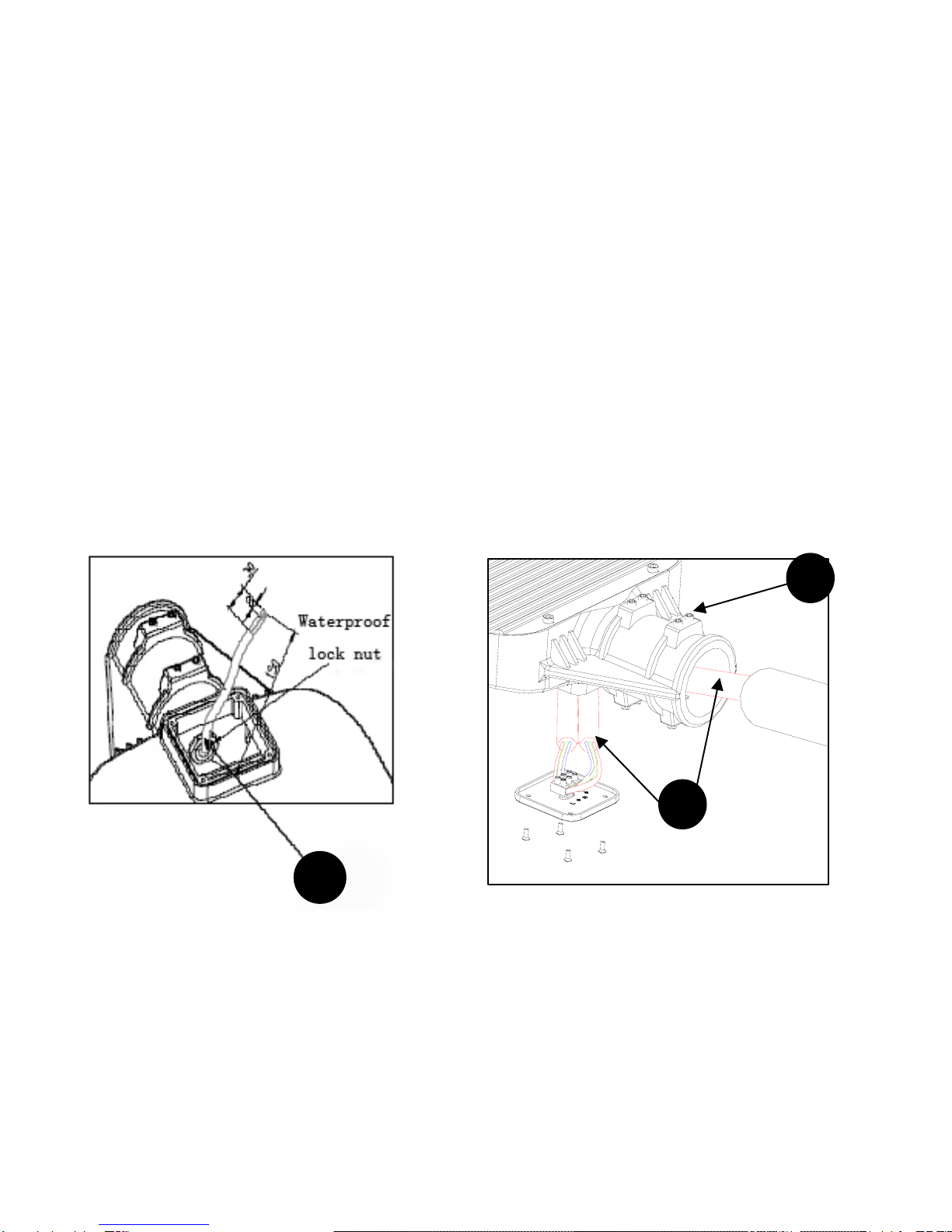

1. Open the wiring cover , fix the waterproof Socket strip cable to the correct length as⑤①
shown(Diagram 1&2&3).
2. Fix cable to the lamp body: insert cable into the lamp body and fix the cable to the body by③
the waterprooof lock nut.

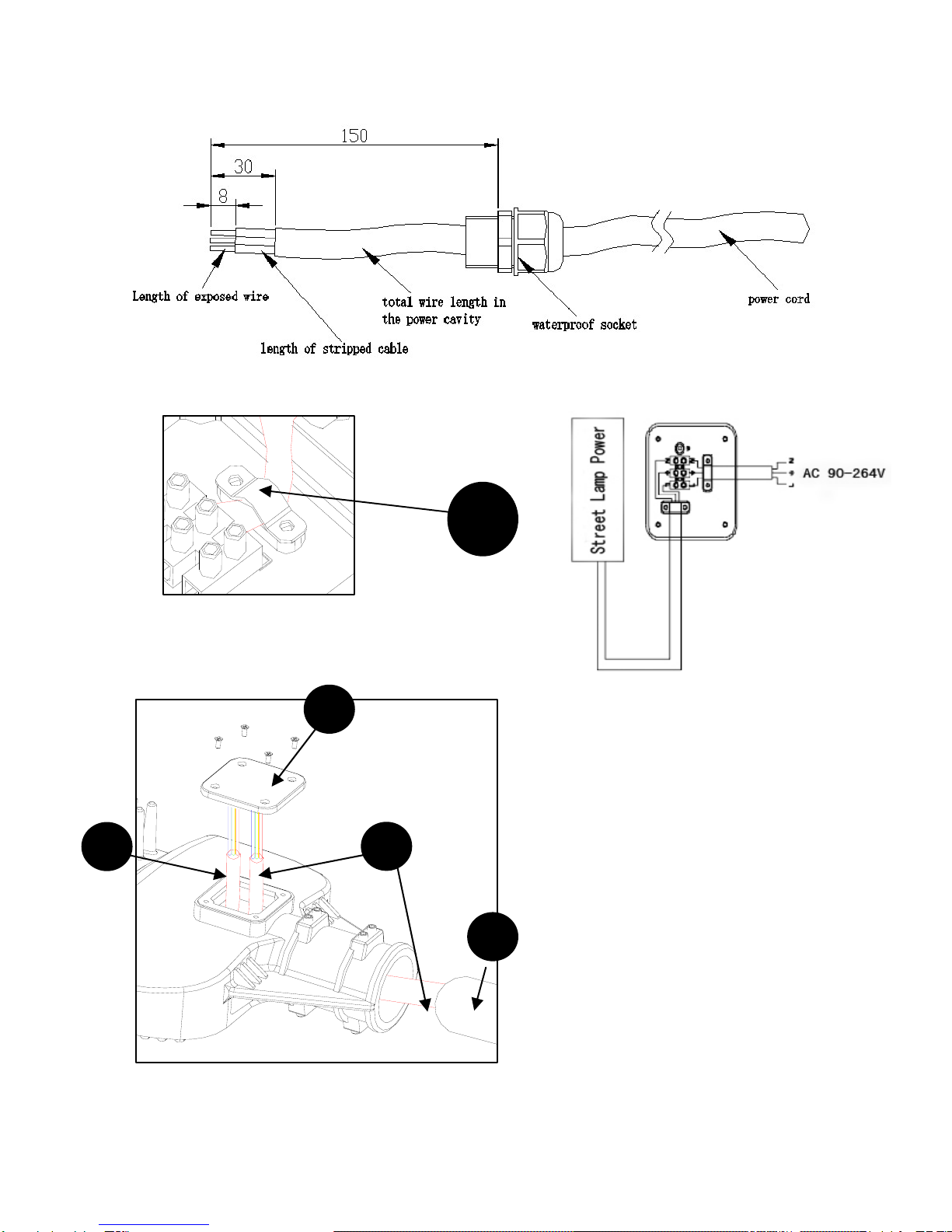

3. Wire connection: connect the power cable as per diagram 6 and connection diagram.
4. Screw the wiring cover in position(Diagram 5).
5. Connect the street lamp with the pole , with 8X M8 screws (Diagram2)⑦②，diameter range of
the light poles: ø40- ø60mm.
1
Diagram 1
3
2
Diagram 2

7
4
Diagram 3
Diagram 4
5
7
3
6
Diagram 5
Diagram 6
L:RED WIRE
N:BLUE WIRE

8
①waterproof Socket M8 screws②cable③（input）
④Cable holder cable(lamp)⑥pole⑦

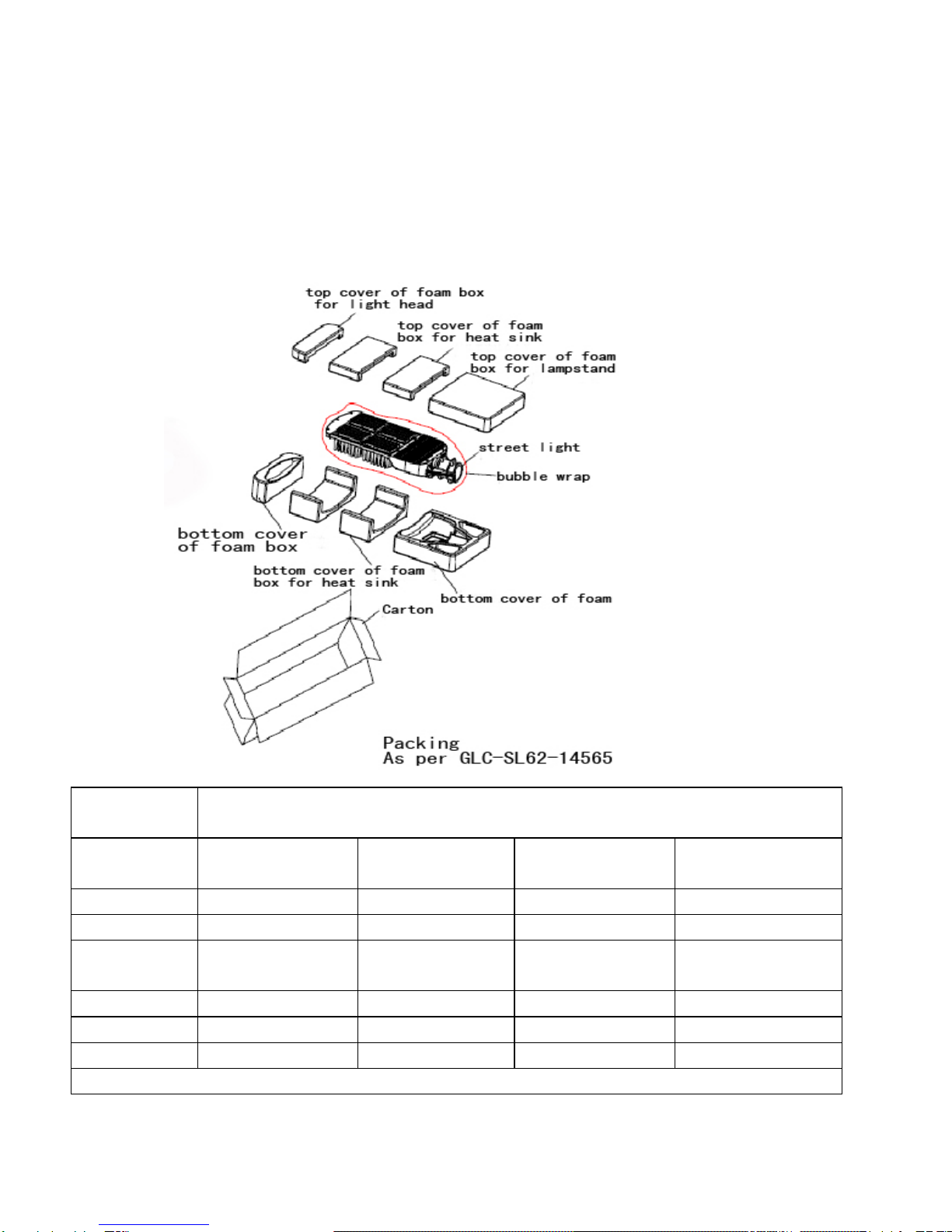

Packing:
As per GLC-SL62-14565
Packing
material Packing specifications
Finished
street light GLC-SL32-3565 GLC-SL52-7065 GLC-SL62-14565 GLC-SL82-20065
Carton 462*220*142mm 586*375*157mm 746*375*157mm 906*375*157mm
Foam box(top) 445*204*63mm 570*359*46mm 730*359*46mm 890*359*46mm
Foam
box(bottom) 445*204*63mm 570*359*95mm 730*359*95mm 890*359*95mm
Bubble bag 420*300mm 580*500mm 740*500mm 900*500mm
N.W. 3.0Kg 7.15Kg 10.4Kg 14.4Kg
G.W. 3.5Kg 8.4Kg 11.9Kg 15.9Kg
Accessory: 8pcs X M8 stainless steel screw
