Green Mountain GMHB125 Guide

WARNING: If the information in this manual
is not followed exactly, a re or explosion
may result causing property damage, personal
injury or loss of life.
-Do not store or use gasoline or other
ammable vapors and liquids in the vicinity
of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch;
do not use any phone in your building.
• Immediately call your gas supplier
from a neighbor's phone. Follow the
gas supplier's instructions.
• If you cannot reach your gas supplier,
call the re department.
- Installation and service must be performed
by a qualied installer, service agency or the
gas supplier.
USER'S
INFORMATION
MANUAL
Information and specications outlined in this manual in eect at the
time of printing of this manual. Manufacturer reserves the right to
discontinue, change specications or system design at any time without
notice and without incurring any obligation, whatsoever.
Models
GMHB125
GMHB160
GMHB227
GMHB380
GMCB150
GMCB200
Manufactured by:
ECR International Inc.
2201 Dwyer Avenue, Utica, NY 13501
Tel. [phone]
www.ecrinternational.com
PN 240012364 REV. A [08/31/2018]

2
1.1 GENERAL
This boiler has few USER serviceable parts. Maintenance
and Service shall be completed by qualied agency.
NOTICE
Used to address practices not related to personal
injury.
CAUTION
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
!
WARNING
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
!
DANGER
Indicates a hazardous situation which, if not avoided,
WILL result in death or serious injury
!
This is the safety alert symbol. Symbol alerts you to
potential personal injury hazards. Obey all safety messages
following this symbol to avoid possible injury or death.
1.2 BECOME FAMILIAR WITH SYMBOLS
IDENTIFYING POTENTIAL HAZARDS.
WARNING
Fire, explosion, asphyxiation and electrical shock
hazard. Improper maintenance and service could
result in death or serious injury. Read this manual
and understand all requirements, including use of
qualied service agent where directed.
!
WARNING
Following service procedures shall be performed
by qualied service agent. Boiler owner shall not
attempt these steps. Failure to do so could result in
death or serious injury.
!
WARNING
Combustion chamber insulation in this product
contains ceramic ber material. Ceramic bers
can be converted to cristobalite in very high
temperature applications. The International Agency
for Research on Cancer (IARC) has concluded,
Crystalline silica inhaled in the form of quartz
or cristobalite from occupational sources is
carcinogenic to humans (Group1). Avoid breathing
dust and contact with skin and eyes. Use NIOSH
certied dust respirator (N95). This type of
respirator is based on the OSHA requirements
for cristobalite at the time this document was
written. Other types of respirators may be needed
depending on the job site conditions. Current
NIOSH recommendations can be found on the
NIOSH website at http://www.cdc.gov/niosh/
homepage.html. NIOSH approved respirators,
manufacturers, and phone numbers are also listed
on this website. Wear long-sleeved, loose tting
clothing, gloves, and eye protection. Apply enough
water to the combustion chamber lining to prevent
dust. Wash potentially contaminated clothes
separately from other clothing. Rinse clothes
washer thoroughly.
NIOSH stated First Aid. Eye: Irrigate immediately.
Breathing: Fresh air.
!
1 - GENERAL
Use of CO monitor is manufacturer recommended and may
be requirement of local jurisdiction.
CAUTION
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call
the re department.
!
PN 240012364 Rev. A [08/31/18]

3
1.3 WHAT TO DO SHOULD OVERHEATING OCCUR
Do not turn o or disconnect electrical supply to pumps.
Shut o gas supply at location external to appliance.
1.4 WHAT TO DO IF BOILER OR ANY PART HAS
BEEN UNDER WATER
Do not use boiler if any part has been under water.
Immediately call a qualied service technician to inspect
boiler and to replace any part of control system and any
gas control which has been under water.
1 - GENERAL
WARNING
If you do not follow these instructions
exactly, a re or explosion may result
causing property damage, personal injury
or loss of life.
• This appliance is equipped with an ignition device
which automatically lights burner. Do NOT try to
light this burner by hand.
• Before operating smell all around appliance area for
gas. Be sure to smell next to oor because some gas
is heavier than air and will settle to the oor.
• Use only your hand to turn the gas shuto valve.
Never use tools. If valve will not turn by hand, do not
try to repair it, call a qualied service technician. Force
or attempted repair may result in re or explosion.
• Do not use this appliance if any part has been
under water. Immediately call a qualied service
technician to inspect appliance and to replace any part
of control system and any gas control which has been
under water.
• Do not block the ow of combustion or
ventilation air to boiler.
!
FOR YOUR SAFETY READ BEFORE OPERATING

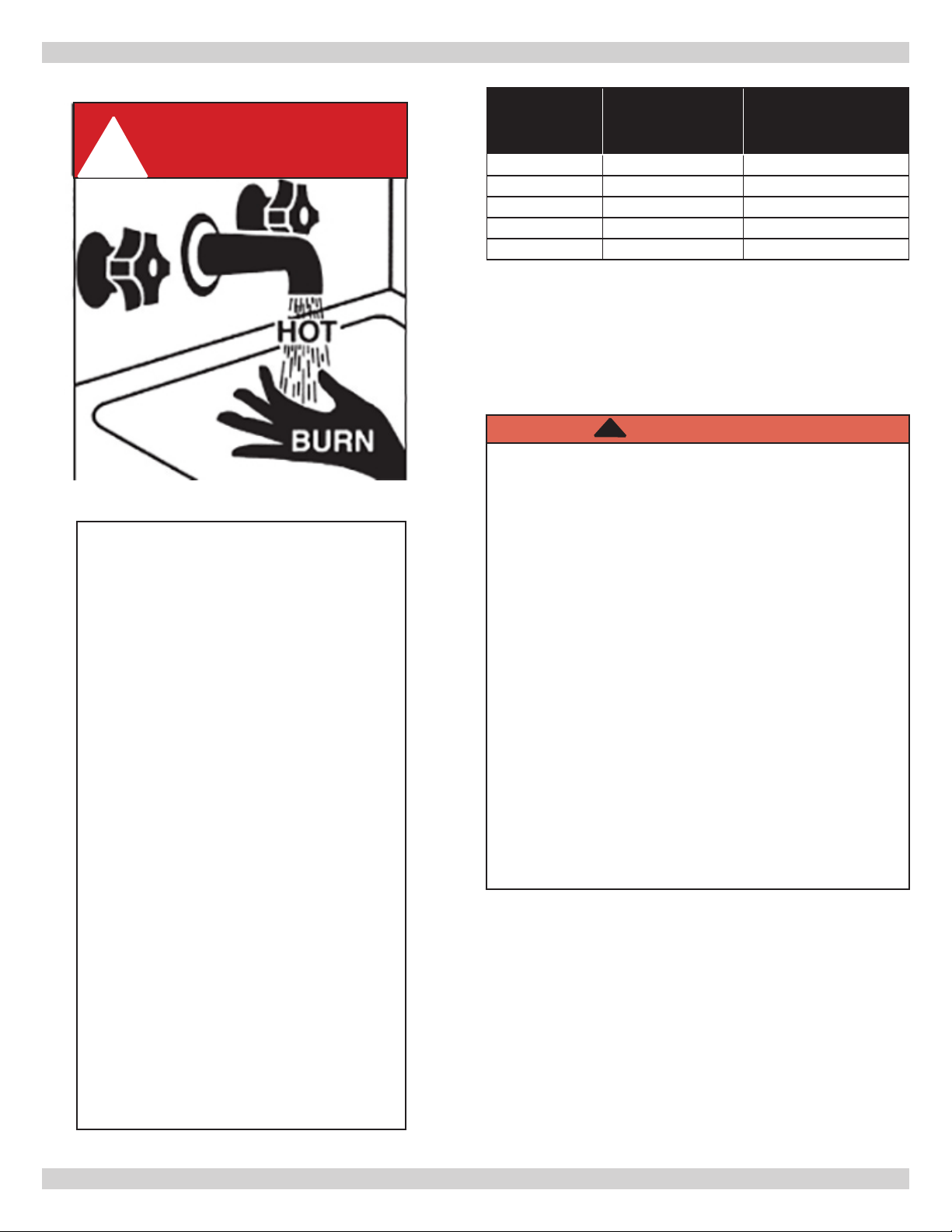

Hot Water Can Scald!
Water heated to temperature for clothes
washing, dish washing and other
sanitizing needs can scald and cause
permanent injury.
Children, elderly, and inrm or physically
handicapped persons are more likely to
be permanently injured by hot water.
Never leave them unattended in bathtub
or shower. Never allow small children to
use a hot water tap or draw their own
bath.
If anyone using hot water in the building
ts the above description, or if state
laws or local codes require certain water
temperatures at hot water taps, you
must take special precautions:
• Use lowest possible temperature setting.
• Install some type of tempering device, such
as an automatic mixing valve, at hot water
tap or water heater. Automatic mixing valve
must be selected and installed according
to manufacturer's recommendations and
instructions.
Water passing out of drain valves may be
extremely hot. To avoid injury:
• Make sure all connections are tight.
• Direct water ow away from any
person.
DANGER
!
Water
Temperature
Seng
1st Degree Burn
Exposure Time For
An Adult
2nd and 3rd Degree
Burn Exposure Time
For An Adult
120° F 1 minute 5 minutes
130° F 5 seconds 30 seconds
140° F 2 seconds 5 seconds
150° F 1 second 1.5 seconds
160° F Instantaneous 0.5 seconds
Note: Warning for Infants, Children, and
the Elderly: Great care must be taken when
exposing the aforementioned groups to warm
or hot water as they can be badly burned in
exposure times less than half of the time for an
adult.
PN 240012364 Rev. A [08/31/18]

4
2 - OPERATING INSTRUCTIONS
2.1 OPERATION
Boiler is wall mounted, fan assisted room-sealed
combination boiler, providing both central heating and
domestic hot water depending on model purchased.
• After initial lighting, boiler will provide central heating
(as required).
• Hot water is available whenever a hot tap is open
(Combi models only).
• Priority is always given to hot water (Combi models
only).
2.2 OPERATING INSTRUCTIONS
Stop! Read ALL Safety information above.
• Set thermostat to lowest setting.
• Turn “OFF” all electrical power to appliance.
• This appliance is equipped with an ignition device which
automatically lights the burner. Do not try to light
burner by hand!
• Turn gas shuto valve to closed position. Handle should
be perpendicular to gas pipe (at a 90° angle to gas
pipe).
• Wait 5 minutes for any gas to clear. Smell for gas,
including near oor. If you smell gas, STOP! Follow
instructions on page 2: “What To Do If You Smell
Gas.” If you do not smell gas, go to next step.
• Turn gas shuto valve to the open position. Handle
should be parallel to gas pipe.
• Replace front jacket panel.
• Turn “ON” electrical power to appliance.
• Set thermostat to desired setting.
• Set correct operating mode. See 2.4 below*
• If the appliance will not operate, follow instructions TO
TURN OFF GAS TO APPLIANCE and call your service
technician or gas supplier.
2.4 OPERATING MODES*
A. Heat Only
SYMBOL
DISPLAYED OPERATING MODE To enable the appliance in Heating only press repeatedly and
choose one Heating Only.
To disable the boiler operating modes and keep the frost protection
function enabled, press for at least 3 seconds. Just the symbol
appears on the display (the display backlighting ashes if the boiler is
blocked).
HEATING ONLY
2.3 TURN OFF GAS TO APPLIANCE
• Set thermostat to lowest setting.
• Turn “OFF” all electric power to appliance if service is
to be performed.
• Turn gas shuto valve handle to closed position.
Handle should be perpendicular (at a 90° angle to gas
pipe).
B.Combi
SYMBOL
DISPLAYED OPERATING MODE To enable the appliance in DHW - Heating or Heating only press
very short push repeatedly and choose one of three available modes.
To disable the boiler operating modes and keep the frost protection
function enabled, press for at least 3 seconds. Just the symbol
appears on the display (the display backlighting ashes if the boiler is
blocked).
DHW
DHW & HEATING
HEATING ONLY
FROST PROTECTION
PN 240012364 Rev. A [08/31/18]

5
O  : H e a t i n g a n d D H W d i s a b l e d
(only boiler frost protection is active) Burner lit
Ignition fault DHW operating mode enabled
Boiler/system water pressure low Heating mode enabled
Call a qualied service technician Programming menu
Manually resettable fault Boiler information menu
Fault in progress Set unit of measurement (SI/US)
SYMBOL Explanation:
DHW temperature adjustment
(CW to increase the temperature and CCW to decrease it)
Heating water temperature adjustment
(CW to increase the temperature and CCW to decrease it)
Boiler operating information
Deaeration (Long Push)
Comfort function (Short Push)
O – Reset – Exit menu/functions
LEFT KNOB
RIGHT KNOB
BUTTON Explanation:
3.1 USER CONTROLS
3 - CONTROL
3.2 CENTRAL HEATING SYSTEM PRESSURE
Regularly check the pressure displayed on the pressure
gauge "B" is between 14.50 and 21.76 psi (1.0 - 1.5 bar),
with the boiler cold.
If the pressure is less than 14.50 psi, or higher than 21.76
psi call an authorized SERVICE technician.
(DHW) (CH)
Check Local Codes For
Maximum Distance To Floor
“B”
Pressure
Gauge
Safety Relief Valve
Do not use plastic
pipe.
PN 240012364 Rev. A [08/31/18]

6
3.3 TEMPERATURE CONTROL
Rotate appropriate control knobs to adjust CH and DHW
ow temperature (if an indirect storage tank is tted).
When burner is lit, display shows the symbol .
HEATING: while boiler is operating in heating mode, the
display shows the ashing symbol and the heating ow
temperature °F / °C.
When connected to an Outdoor Temperature Sensor, Right
Knob indirectly adjusts room temperature (factory setting
68°F / 20°C).
DHW: While boiler is operating in DHW mode, display
shows the ashing symbol and heating ow temperature
°F / °C.
3.4 BOILER INFORMATION MENU (See Below)
Press and hold for at least 1 second, to display the
information indicated in the table. Press to exit.
DESCRIPTION DESCRIPTION
00 Secondary fault internal code 09 Setpoint Central Heating (°F/°C)
01 Heating ow temperature (°F/°C) 10/11 Manufacturing information
02 Outdoor temperature (°F/°C) 12 Flue sensor temperature (°F/°C)
03 Indirect Tank DHW temperature (boiler CH only) 13 Manufacturing information
04 Domestic hot water temperature (boiler with plate
exchanger) 14 Identication Open Therm communication
05 Water pressure in heating system (PSI/bar) 15 Manufacturing information
06 Heating return temperature (°F/°C) 16 Manufacturing information
07 Thermo fuse status (000/001) 17 Fan speed (“i17”x100)
08 Not used 18 Manufacturing information
3.5 SHUTTING OFF THE BOILER
To turn o the boiler, disconnect the electric power supply.
In the “O” operating mode the boiler stays o but the
electrical circuits remain powered and the frost protection
function remains active.
3.6 FROST PROTECTION MODE
The electronic boiler management system includes a
“frost protection” function for the heating system which,
when delivery temperature falls below 41°F (5°C), lights
the burner until a delivery temperature of 86°F (30°C) is
reached.
This function is only operative if the boiler is electrically
powered and there is gas with normal system pressure and
the ue is not blocked.
3 - CONTROL
3.7 COMFORT FUNCTION (Combi only)
When enabled, boiler will cycle ON as required to maintain
DHW heat exchanger at operating temperature. this
reduces the response time for hot water when the faucet is
opened.
PN 240012364 Rev. A [08/31/18]

7
3.6 ERROR MESSAGES AND RESETTING THE BOILER
ERROR DESCRIPTION OPERATION
09 Gas valve connection fault. Call an authorized SERVICE technician
10 Outdoor sensor fault . Call an authorized SERVICE technician
15 Gas valve error. Call authorized SERVICE technician
20 Central Heating NTC sensor fault. Call authorized SERVICE technician
28-29 Flue NTC heat exchanger sensor fault Call authorized SERVICE technician
40 Return NTC sensor fault. Call authorized SERVICE technician
50 Domestic Hot Water NTC sensor fault
(only for heating-only model with storage boiler). Call authorized SERVICE technician
53 Obstruction in ue pipe. Turn boiler o for a few seconds
If this fault persists, call authorized SERVICE technician
55 PCB not programmed. Call authorized SERVICE technician
83-84-
85
86-87
Communication problem between boiler board and
control unit. Probable short circuit on wiring. Call authorized SERVICE technician
98 Internal error. Call authorized SERVICE technician
109 Pre-circulation alarm (temporary fault). Call authorized SERVICE technician
110 Safety thermostat tripped due to over temperature
(probable blocked pump or air in heating circuit).
Press RESET (R) button for at least 2 seconds
If this fault persists, call authorized SERVICE technician
118 Hydraulic pressure too low. Call authorized SERVICE technician
125 No circulation safety trip
(control performed via temperature sensor).
Press RESET (R) button for at least 2 seconds
If this fault persists, call authorized SERVICE technician
128 Loss of ame. Press RESET (R) button for at least 2 seconds
If this fault persists, call authorized SERVICE technician
130 - 131 Flue NTC sensor tripped due to over temperature. Call authorized SERVICE technician
132 Ignition Failure (Under 35 attempts) No action required boiler will continue ignition attempt
133 Ignition failure (35 attempts). Press RESET (R) button for at least 2 seconds
If this fault persists, call authorized SERVICE technician
134 Gas supply valve blocked. Press RESET (R) button for at least 2 seconds
If this fault persists, call authorized SERVICE technician
135 Internal error. Call authorized SERVICE technician
160 Fan fault. Call authorized SERVICE technician
162 Flue pressure switch (contact open) Call authorized SERVICE technician
317 Incorrect power supply frequency. Incorrect power supply frequency.
321 NTC domestic hot water sensor faulty. Call authorized SERVICE technician
384 Fault ame (parasitic ame). Press RESET (R) button for at least 2 seconds
If this fault persists, call authorized SERVICE technician
385 Input voltage too low. Call authorized SERVICE technician
To RESET boiler: press the button ( ) for at least 2 seconds
3 - CONTROL
PN 240012364 Rev. A [08/31/18]

4 - MAINTENANCE
Perform general housekeeping and maintenance as
specied below.
4.1 Continuous
• Keep boiler area free from combustible materials,
gasoline and other ammable vapors and liquids.
• Keep combustion air and vent terminations (outside
building) free from trash, vegetation and other items
capable of blocking ow.
CHECK LIST
If a fault develops, or is suspected, call your Service
Technician as soon as possible. Go through the following
check list before you contact Service Agency.
• Is electricity supply on?
• Is display ON and symbols displayed?
• Is symbol displayed?
• Is gas supply on?
• Is main water supply turned on?
• Is system pressure correct?
• Are boiler temperature controls set high enough?
• Is room thermostat (if tted) set high enough?
• Are radiator valves open?
4.2 Monthly
• Inspect combustion air, vent, and condensate drain
piping for deterioration, leaks or sagging. Contact
qualied agency, as necessary.
• Inspect system piping for leaks. Contact qualied
agency, as necessary.
• Inspect condensate drain trap for sediment or
blockage. Contact qualied agency if cleaning
required.
• Check air vent(s) for leakage.
• Follow OPERATING INSTRUCTIONS to return to normal
operation.
WARNING
Burn and scald hazard. Verify Safety Relief Valve
discharge piping run to safe discharge location before
conducting maintenance procedure. Contact qualied
agency to correct improper piping.
!
4.3 Check According to Manufacturer’s
Instructions
Safety Relief Valve - Refer to manufacturer’s instructions.
4.4 Annually or Beginning Each Heating Season
• Contact qualied agency to perform maintenance and
cleaning per Installation, Operation and Maintenance
manual. Inspection will include examining all ue
product carrying areas, vent system, burner and heat
exchanger.
• Will also include lling boiler with water if drained as
part of End of Heating Season procedure.
• Condensate trap may require cleaning and relling.
4.5 End of Heating Season, if boiler not used for
domestic hot water
• Follow instructions to TURN OFF GAS TO APPLIANCE.
See section 2.
• Contact qualied agency to drain heating system (if
system does not use antifreeze) and condensate trap
if heating system is exposed to freezing temperatures
while out of service.
WARNING
Asphyxiation hazard. Contact qualied agency if
condensate trap is not lled with water.
!
