Green Panther GP-243-2S-BC User manual

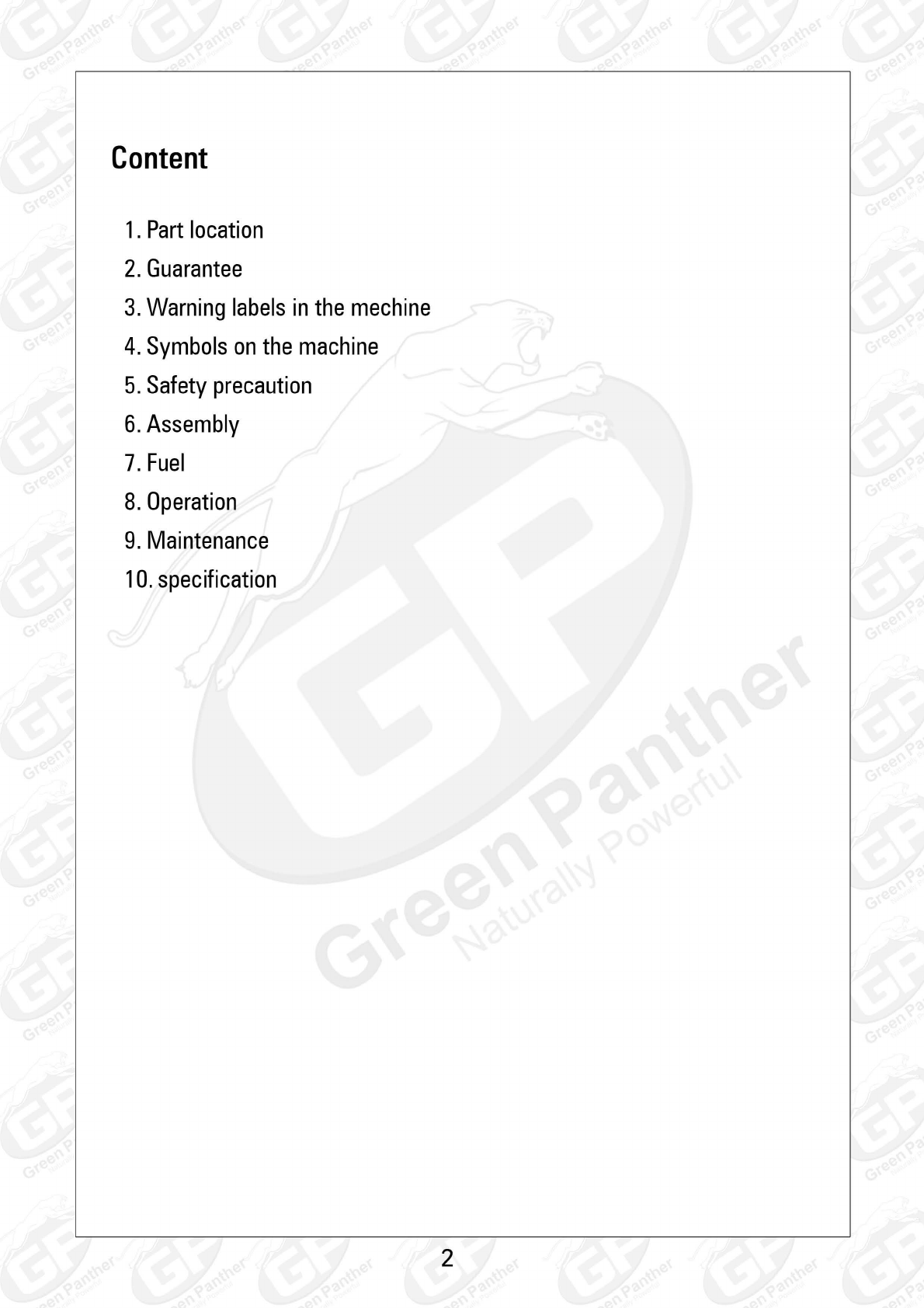

Content
1. Part location
2. Guarantee
3. Warning labels in the mechine
4. Symbols on the machine
5. Safety precaution
6. Assembly
7. Fuel
8. Operation
9. Maintenance
10. specification
2

1. Parts location
1. Petrol tank
2. Starter
3. Air cleaner
4. Engine Stand
5. Transmission box mounting bolts
6. Housing
7. Shoulder strap mountings
8. Control handle
9. Handle bracket
10. Throttle control lever
11 . Throttle cable
12. Outer shaft with inner drive shaft
13. Safety guard
14. Brush cutter/trimmer gear case.
15. Blade
16. Handle
3

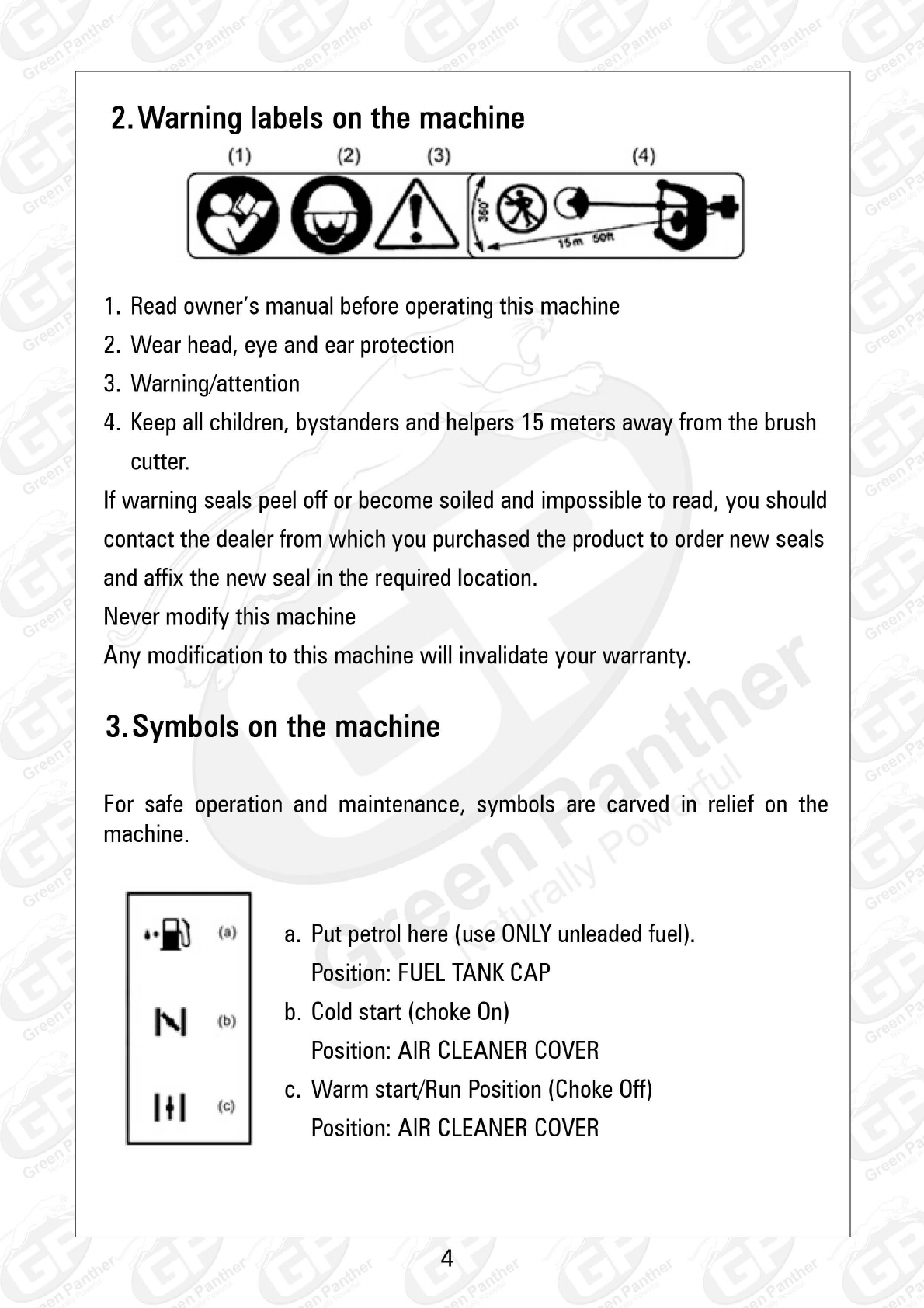

2. Warning labels on the machine
1. Read owner's manual before operating this machine
2. Wear head, eye and ear protection
3. Warning/attention
4. Keep all children, bystanders and helpers 15 meters away from the brush
cutter.
If warning seals peel off or become soiled and impossible to read, you should
contact the dealer from which you purchased the product to order new seals
and affix the new seal in the required location.
Never modify this machine
Any modification to this machine will invalidate your warranty.
3. Symbols on the machine
For safe operation and maintenance, symbols are carved in relief on the
machine.
ii i I "
a. Put petrol here (use ONLY unleaded fuel).
I
Position: FUEL TANK CAP
i'l (0)
b. Cold start (choke On)
Position: AIR CLEANER COVER
[I tI[
( e ~
c. Warm start/Run Position (Choke Off)
Position: AIR CLEANER COVER
4

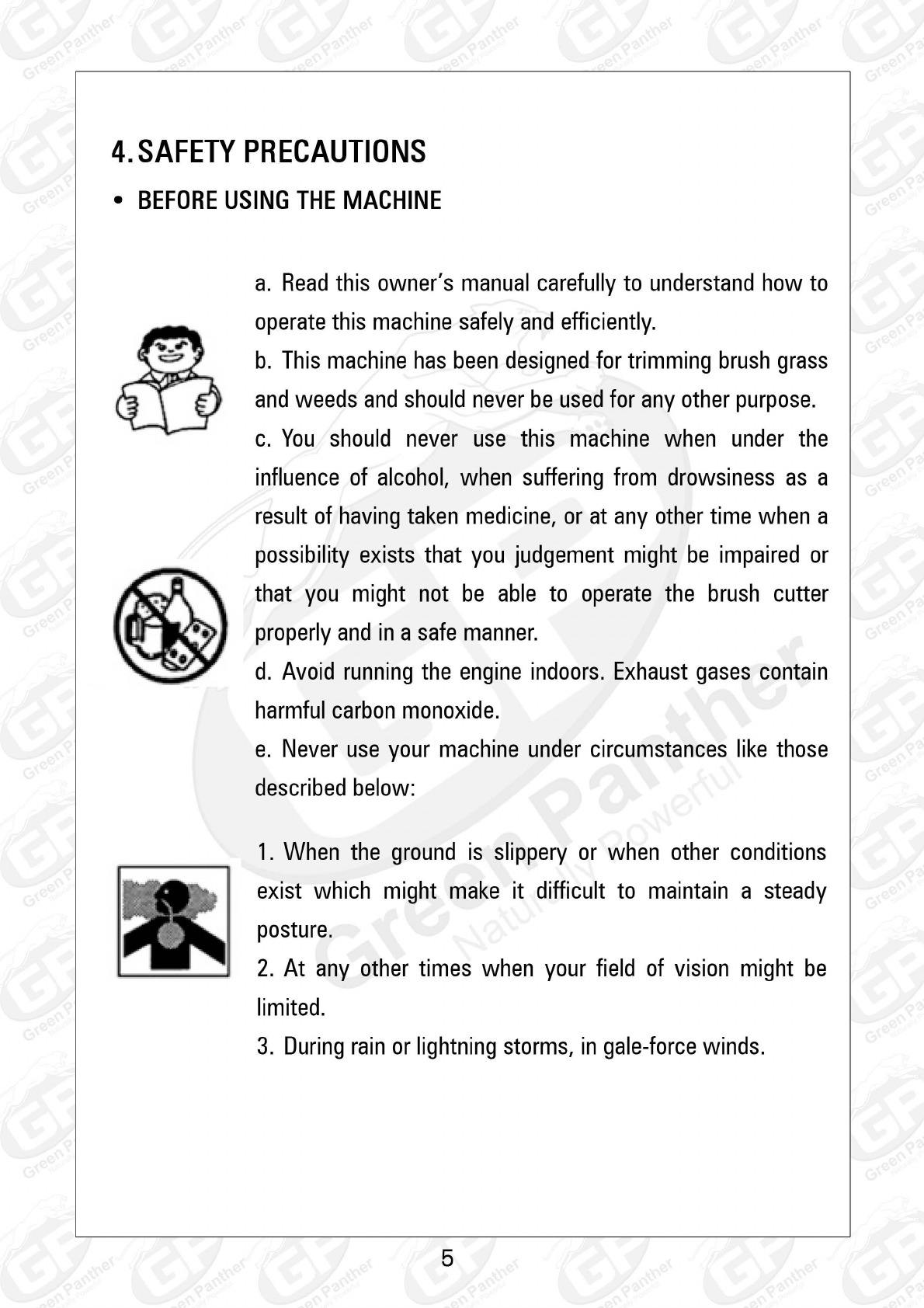

4. SAFETY PRECAUTIONS
• BEFORE USING THE MACHINE
a. Read this owner's manual carefully to understand how to
operate this machine safely and efficiently.
b. This machine has been designed for trimming brush grass
and weeds and should never be used for any other purpose.
c. You should never use this machine when under the
influence of alcohol, when suffering from drowsiness as a
result of having taken medicine, or at any other time when a
possibility exists that you judgement might be impaired or
that you might not be able to operate the brush cutter
properly and in a safe manner.
d. Avoid running the engine indoors. Exhaust gases contain
harmful carbon monoxide.
e. Never use your machine under circumstances like those
described below:
1. When the ground is slippery or when other conditions
exist which might make it difficult to maintain a steady
posture.
2. At any other times when your field of vision might be
limited.
3. During rain or lightning storms, in gale-force winds.
5

f. When uSing this product for the first time, before
beginning whenever possible, take advice from someone
with experience.
g. Lack of sleep, tiredness, or physical exhaustion results in lower attentions
spans, and this in turn leads to accidents and injury. Limit the amount of time
over which the machine is to be used continuously to somewhere around
30-40 minutes per session, and take 10-20 minutes of rest between work
sessions. Also try to keep the total amount of work performed in a single day
under 2 hours or less.
h. Be sure to keep this manual handy so that you may refer to it later
whenever any questions arise.
i. Always be sure to include this manual when selling, lending, or otherwise
transferring the ownership of this product.
j. Never allow children or anyone unable to fully understand the direction given
in this manual to use this machine.
• WORKING GEAR AND CLOTHING
A. When using your brush cutter, you
should wear proper clothing and protective
equipment as follows.
1. Helmet
2. Protection for your eyes
3. Good quality gloves
4. Good quality non-slips shoes
5. Ear protectors
6

B. Never wear loose clothing as this can get tangled in the machine and
cause severe Injury.
C. Take a mobile phone with you, a drink (water), some spare fuel and tools
(provided)
• WARNING WHEN HANDLING FUEL
a. This engine is designed to run on unleaded petrol. Never store cans of fuel
or refill the fuel tank in any place where there is a boiler, stove, wood fire
electrical sparks, welding sparks, or any other source of heat or fire which
might ignite the fuel.
b. Smoking while operating the brush cutter or refilling its fuel tank is
extremely dangerous. Please refrain from smoking.
c. When refilling the tank always turn the engine off first and take a careful
look around to make sure that there are no sparks or open flames anywhere
nearby.
d. If any fuel spillage occurs during refuelling, use a dry rag to wipe up spills
before turning the engine back on again.
e. After refuelling, screw the fuel cap back tightly onto the fuel tank and then
carry the brush cutter to a spot 3m or more away from where it was refuelled
before turning on the engine.
7

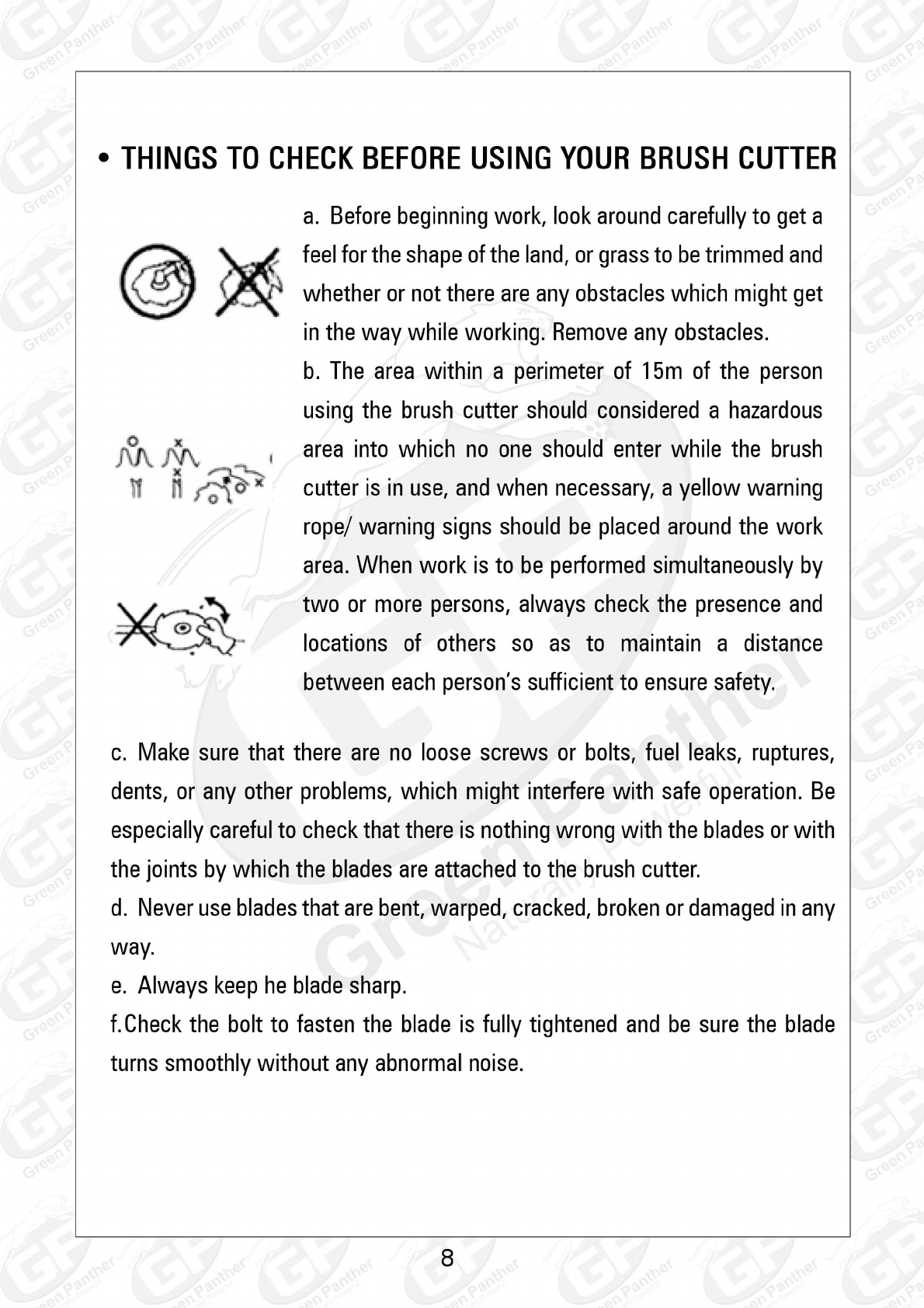

• THINGS TO CHECK BEFORE USING YOUR BRUSH CUTTER
~
.... .,
. .. . ... .. .. ..... .: · .. . ~ t .. ·.
~ . (!) I -.- ..
_ , .'.
- ' iii '.
a. Before beginning work, look around carefully to get a
feel for the shape of the land, or grass to be trimmed and
I whether or not there are any obstacles which might get
in the way while working. Remove any obstacles.
b. The area within a perimeter of 15m of the person
using the brush cutter should considered a hazardous
area into which no one should enter while the brush
cutter is in use, and when necessary, ayellow warning
rope/ warning signs should be placed around the work
area. When work is to be performed simultaneously by
two or more persons, always check the presence and
locations of others so as to maintain a distance
between each person's sufficient to ensure safety.
c. Make sure that there are no loose screws or bolts, fuel leaks, ruptures,
dents, or any other problems, which might interfere with safe operation. Be
especially careful to check that there is nothing wrong with the blades or with
the joints by which the blades are attached to the brush cutter.
d. Never use blades that are bent, warped, cracked, broken or damaged in any
way.
e. Always keep he blade sharp.
f. Check the bolt to fasten the blade is fully tightened and be sure the blade
turns smoothly without any abnormal noise.
8

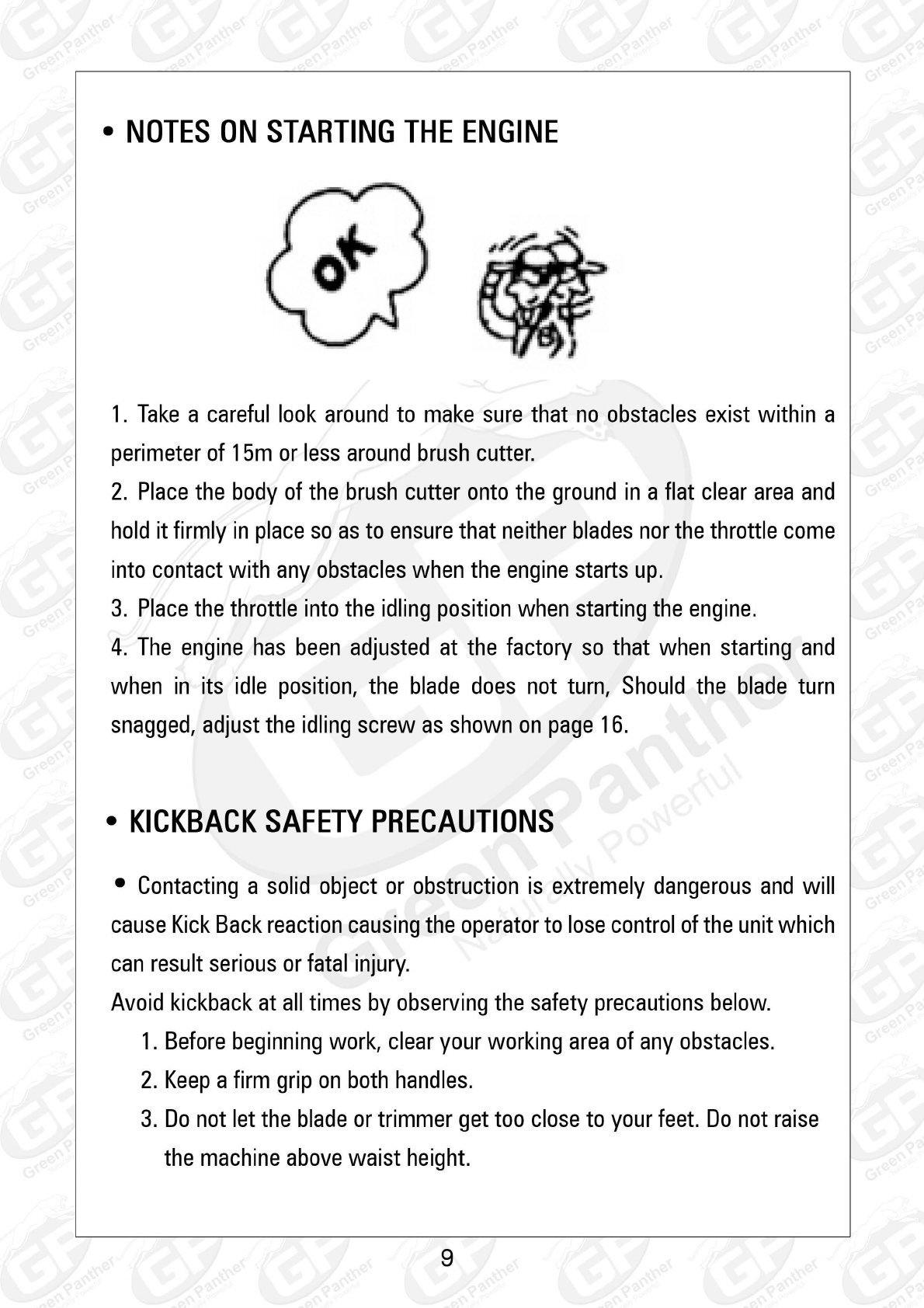

• NOTES ON STARTING THE ENGINE
1. Take a careful look around to make sure that no obstacles exist within a
perimeter of 15m or less around brush cutter.
2. Place the body of the brush cutter onto the ground in aflat clear area and
hold it firmly in place so as to ensure that neither blades nor the throttle come
into contact with any obstacles when the engine starts up.
3. Place the throttle into the idling position when starting the engine.
4. The engine has been adjusted at the factory so that when starting and
when in its idle position, the blade does not turn, Should the blade turn
snagged, adjust the idling screw as shown on page 16.
• KICKBACK SAFETY PRECAUTIONS
• Contacting a solid object or obstruction is extremely dangerous and will
cause Kick Back reaction causing the operator to lose control of the unit which
can result serious or fatal injury.
Avoid kickback at all times by observing the safety precautions below.
1. Before beginning work, clear your working area of any obstacles.
2. Keep a firm grip on both handles.
3. Do not let the blade or trimmer get too close to your feet. Do not raise
the machine above waist height.
9

• NOTES ON TRANSPORTATION
1. Make sure the appropriate blade cover is in place
2. When transporting by car, fix the unit firmly using a rope. Do not transport
by bicycle or motorcycle because it is dangerous.
3. Never transport the brush cutter over rough roads over long distances
without first removing all fuel tank, as doing so might cause fuel to leak from
the tank.
• OPERATION SAFETY PRECAUTIONS
1. Grip the handles of the brush cutter firmly with both hands. When you take
a rest, stop the machine.
2. Always be sure to maintain a steady, even posture while working.
3. Maintain the speed of the engine at the level required to perform cutting
work, and never raise the speed of the engine above the level necessary.
4.lf the grass gets caught in the blade during opera tion or if you need to
check the unit or refuel the tank, always be sure to turn off the engine.
5.lt the blade touches a hard object like a stone, immediately stop the engine
and check if something is wrong with the blade. If so, replace the blade with
new one.
6. If someone calls out while working, always be sure to turn off the engine
before turning around.
7. Never touch the spark plug or plug cord while the engine is in operation as
this may result in being subjected to an electrical shock.
8. Never touch the silencer, spark plug, or other metallic parts of the engine
while the engine is in operation or immediately after shutting down the engine
as this may result in serious burns.
9. When you finish cutting in one location and wish to continue work in another
spot, turn off the engine prior to moving location.
~ ... .. .. .. ~ ... .
~ -
10

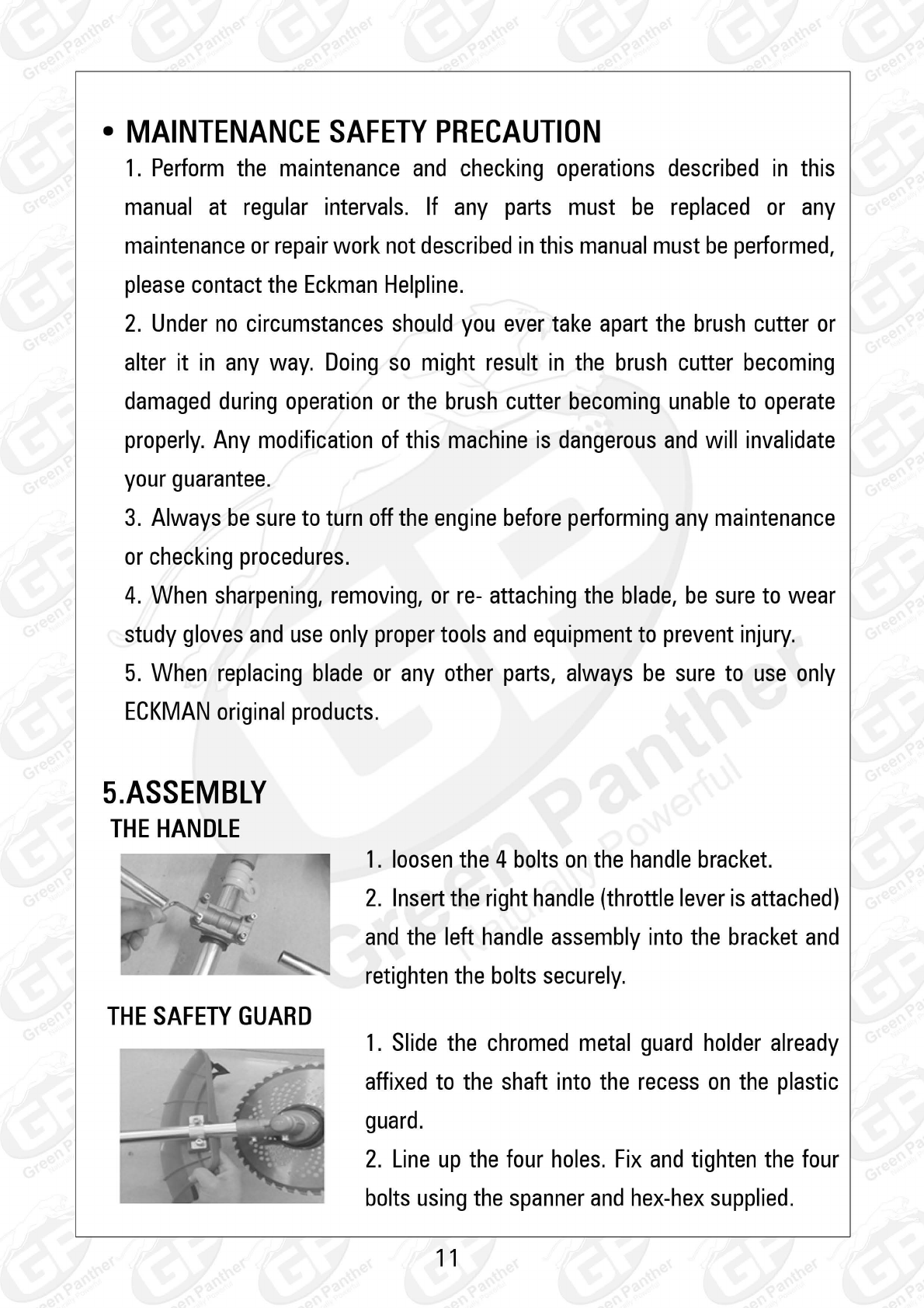

• MAINTENANCE SAFETY PRECAUTION
1. Perform the maintenance and checking operations described in this
manual at regular intervals. If any parts must be replaced or any
maintenance or repair work not described in this manual must be performed,
please contact the Eckman Helpline.
2. Under no circumstances should you ever take apart the brush cutter or
alter it in any way. Doing so might result in the brush cutter becoming
damaged during operation or the brush cutter becoming unable to operate
properly. Any modification of this machine is dangerous and will invalidate
your guarantee.
3. Always be sure to turn off the engine before performing any maintenance
or checking procedures.
4. When sharpening, removing, or re- attaching the blade, be sure to wear
study gloves and use only proper tools and equipment to prevent injury.
5. When replacing blade or any other parts, always be sure to use only
ECKMAN original products.
5.ASSEMBlY
THE HANDLE
THE SAFETY GUARD
1. loosen the 4 bolts on the handle bracket.
2. Insert the right handle (throttle lever is attached)
and the left handle assembly into the bracket and
retighten the bolts securely.
1. Slide the chromed metal guard holder already
affixed to the shaft into the recess on the plastic
guard.
2. Line up the four holes. Fix and tighten the four
bolts using the spanner and hex-hex supplied.
11

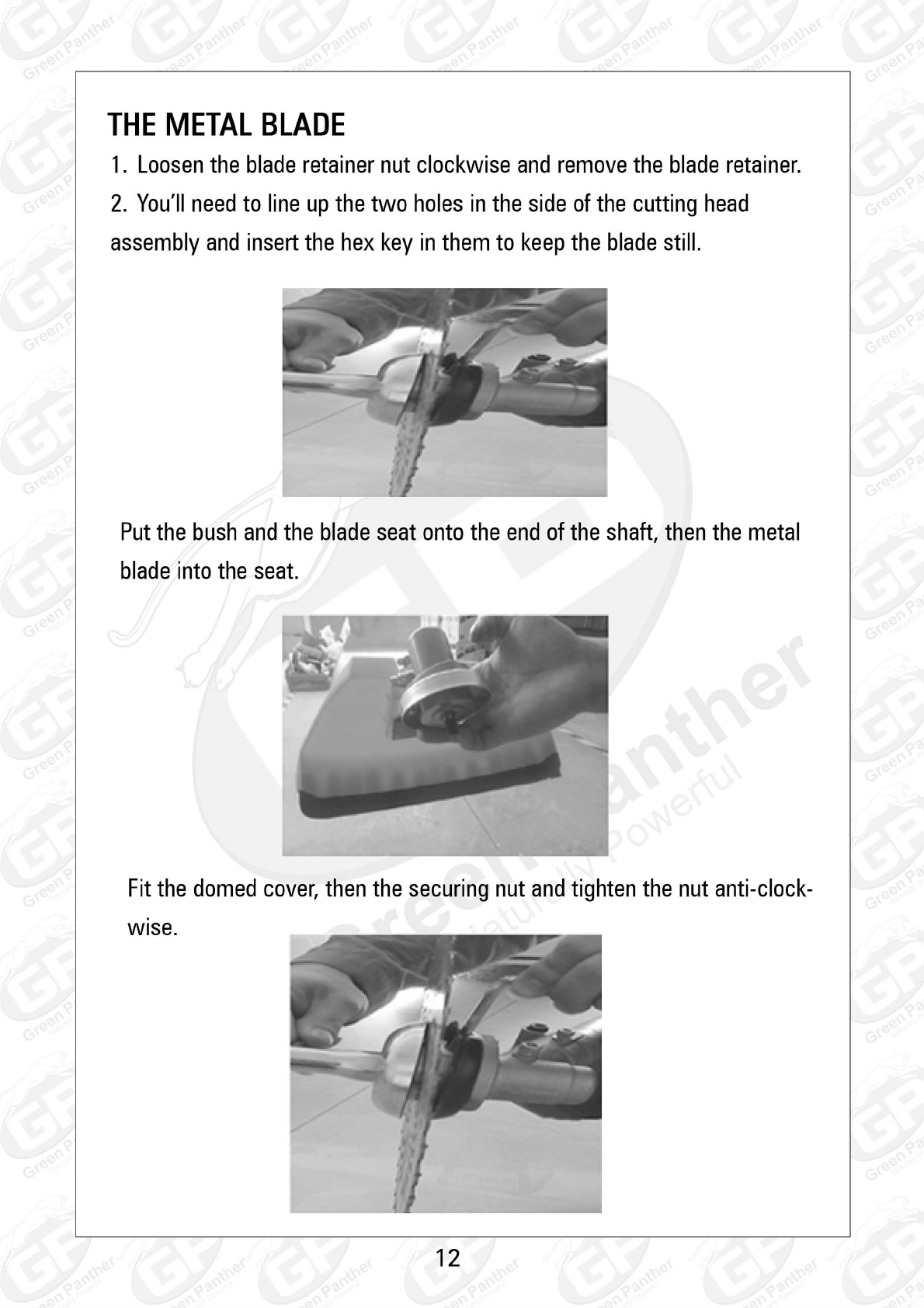

THE METAL BLADE
1. Loosen the blade retainer nut clockwise and remove the blade retainer.
2. You'll need to line up the two holes in the side of the cutting head
assembly and insert the hex key in them to keep the blade still.
Put the bush and the blade seat onto the end of the shaft, then the metal
blade into the seat.
Fit the domed cover, then the securing nut and tighten the nut anti-clock-
wise.
12

THE NYLON CUTTER (OPTION)
If you use the unit as a grass trimmer follow the instructions bellow:
1. Loosen the blade retainer nut clockwise and remove the blade retainer.
2. Fit the line cutting head on to the end of the shaft and tighten the cutting
head.
NOTE: Please store the blade retainer and nut in a safe place.
THE SHOULDER STRAP
1. Clip the belt hook to the hanging rings on shaft tube.
2. Adjust the length of the belt in order to obtain the most comfortable
working position.
6.FUEL
Warning
• Gasoline is very flammable. Avoid smoking or bringing any flame or sparks
near fuel.
• Wipe up all spills before starring the engine.
• Make sure to stop the engine and allow it cool before refueling the unit.
• Keep open flames away from the area where fuel is handled or stored.
13

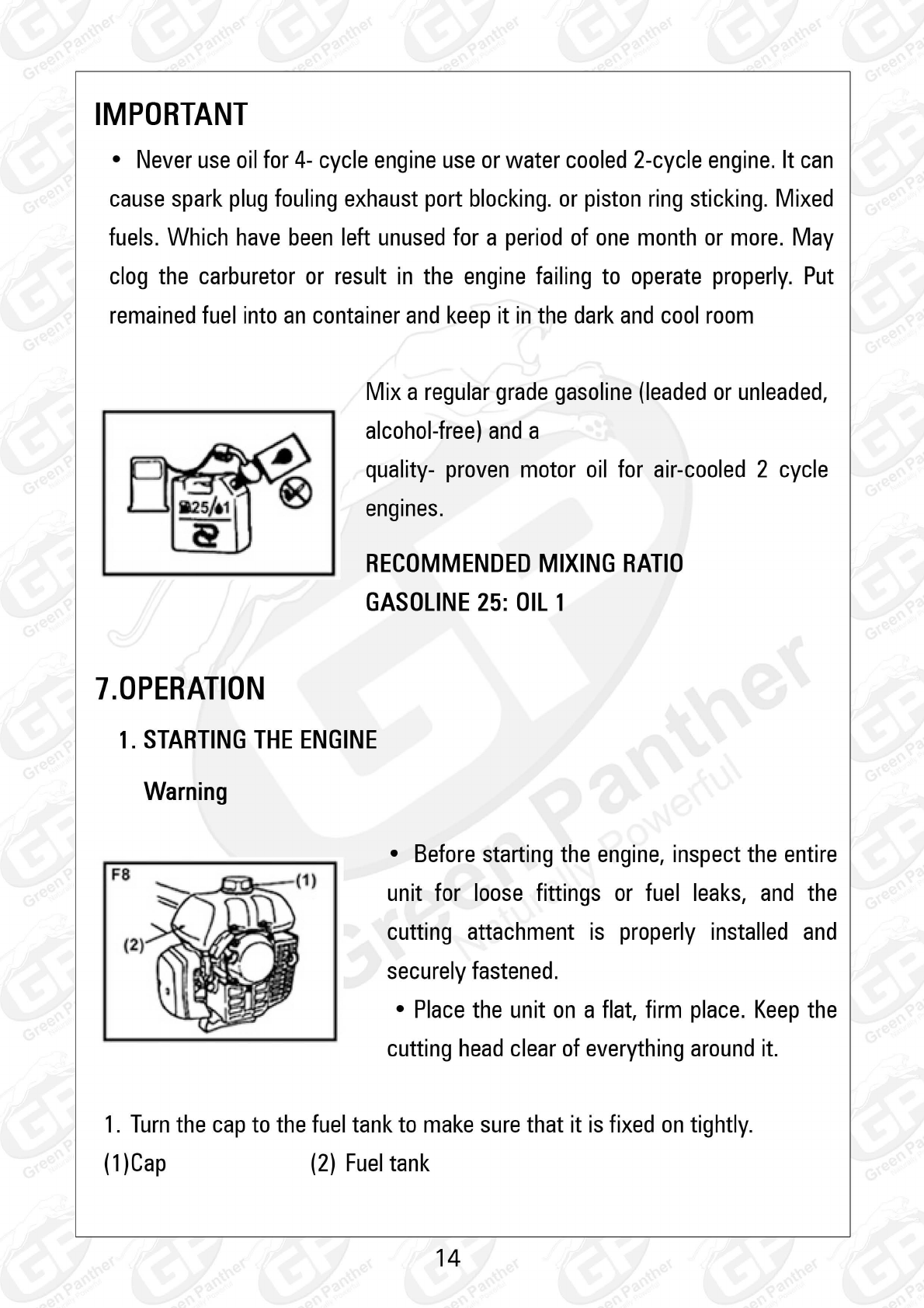

IMPORTANT
• Never use oil for 4- cycle engine use or water cooled 2-cycle engine. It can
cause spark plug fouling exhaust port blocking. or piston ring sticking. Mixed
fuels. Which have been left unused for a period of one month or more. May
clog the carburetor or result in the engine failing to operate properly. Put
remained fuel into an container and keep it in the dark and cool room
7.0PERATION
Mix a regular grade gasoline (leaded or unleaded,
alcohol-free) and a
quality- proven motor oil for air-cooled 2 cycle
engines.
RECOMMENDED MIXING RATIO
GASOLINE 25: OIL 1
1. STARTING THE ENGINE
Warning
• Before starting the engine, inspect the entire
unit for loose fittings or fuel leaks, and the
cutting attachment is properly installed and
securely fastened.
• Place the unit on a flat, firm place. Keep the
cutting head clear of everything around it.
1. Turn the cap to the fuel tank to make sure that it is fixed on tightly.
(1 )Cap (2) Fuel tank
14

IMPORTANT
2. Open the fuel tank cock.(9)
3. Move the choke lever to the closed position.(9)
(1)Choke lever
(2) Fuel cock
(3)Close
(4)Open
(5)Close
(6)Open
NOTE:When restarting immediately after stopping the engine.
F1 101
Move the choke lever to the open position
I
(11) (2)
r-} '
[ . J
4. Set the throttle lever to the starting position.
(F 10)
(1) Idling
(2)Starting (1/3-1/2open)
(3)Full throttle
NOTE: When restarting immediately after stopping the engine.
Move the throttle lever to the idling position.
5. While holding the unit firmly. pull out the
starter rope quickly.(F11)
6. After the engine has started, open the choke
gradually.
7. Allow the engine to run for 2 to 3 minutes to
worm up.
3. STOPPING THE ENGINE
1. Return the throttle lever to the Idling position.
2. Push the engine switch button.
15

4. EQUIPPING THE SHAWL BAND (F12)
I F12
1. Equip the attached shawl band. (F12)
2. Turn on the engine, return the throttle lever to the
lowest speed position, and put the shawl band hock to
the hanging part of the machine.
3. Adjust the length of the shawl band so that the blade
may be parallel to the ground in the working position. In
order to prevent slack during operation, turn up the
extra part of the band from the buckle.
METAL BLADE USAGE
IMPORTANT
• Always cut by guiding the head from your rigto left.
• A metal blade cut best up to the point 1/3 from the
edge. Use that area for cutting shrubs, tough and thick
weeds. For cutting young grass, you can use up to 2/3
from the tip of blade.
• Adjust the engine speed according to the cutting
objects. Cut the young grass at middle speed, and cut
shrubs or tough and thick weeds at high speed.
(1) For branches and trees
(2)For grass and weeds
(3)Direction of cutting
(4) Direction of rotation
Operating at low speed makes it easier for grass weeds, or twigs to become
caught up in the blades, and also it makes the shaft and clutch wear down
more quickly.
16

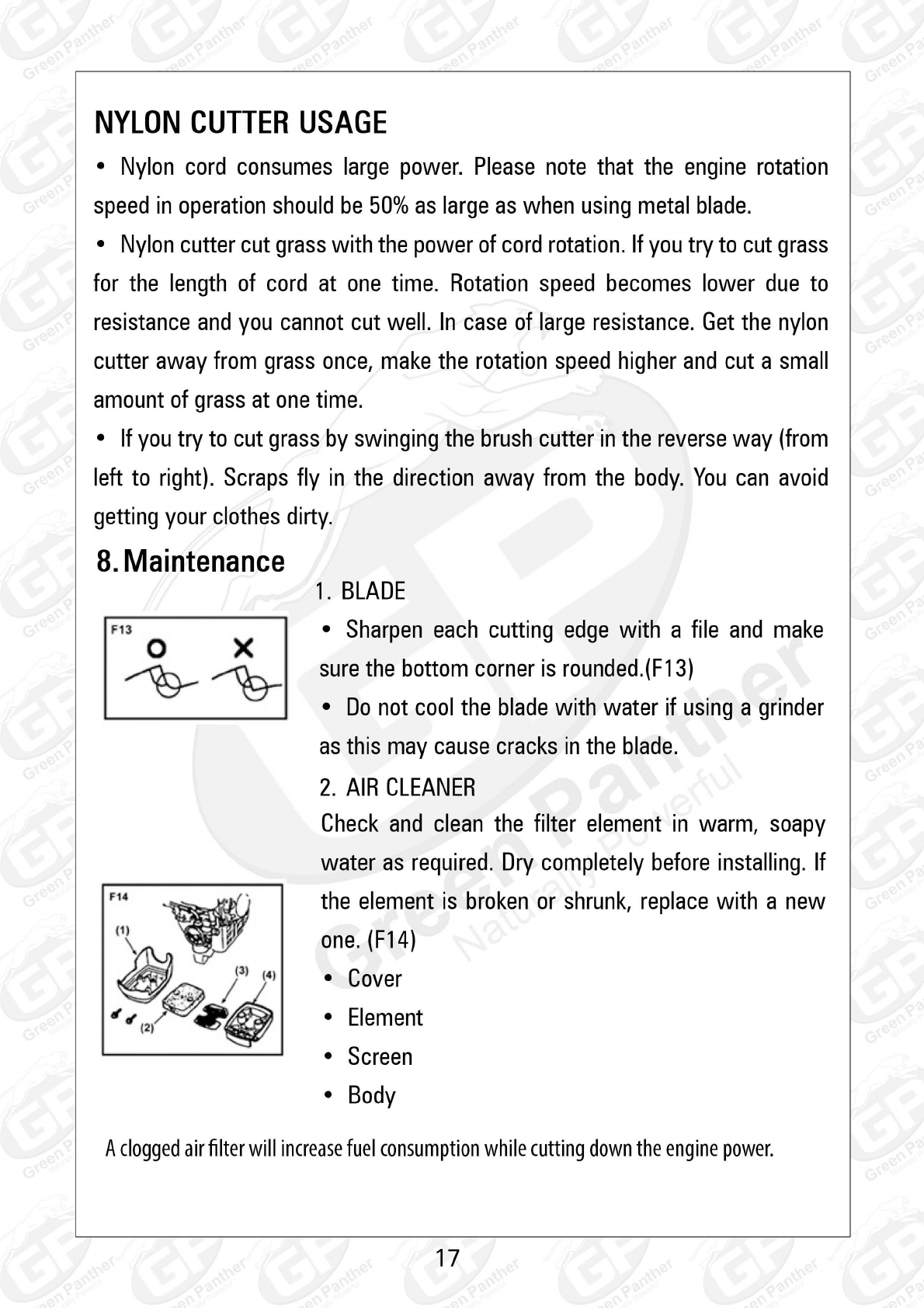

NYLON CUTTER USAGE
• Nylon cord consumes large power. Please note that the engine rotation
speed in operation should be 50% as large as when using metal blade.
• Nylon cutter cut grass with the power of cord rotation. If you try to cut grass
for the length of cord at one time. Rotation speed becomes lower due to
resistance and you cannot cut well. In case of large resistance. Get the nylon
cutter away from grass once, make the rotation speed higher and cut a small
amount of grass at one time.
• If you try to cut grass by swinging the brush cutter in the reverse way (from
left to right). Scraps fly in the direction away from the body. You can avoid
getting your clothes dirty.
8. Maintenance
F13
1. BLADE
• Sharpen each cutting edge with a file and make
sure the bottom corner is rounded.(F13)
• Do not cool the blade with water if using a grinder
as this may cause cracks in the blade.
2. AIR CLEANER
Check and clean the filter element in warm, soapy
water as required. Dry completely before installing. If
the element is broken or shrunk, replace with a new
one. (F14)
• Cover
• Element
• Screen
• Body
A clogged air filter will increase fuel consumption while cutting down the engine power.
17

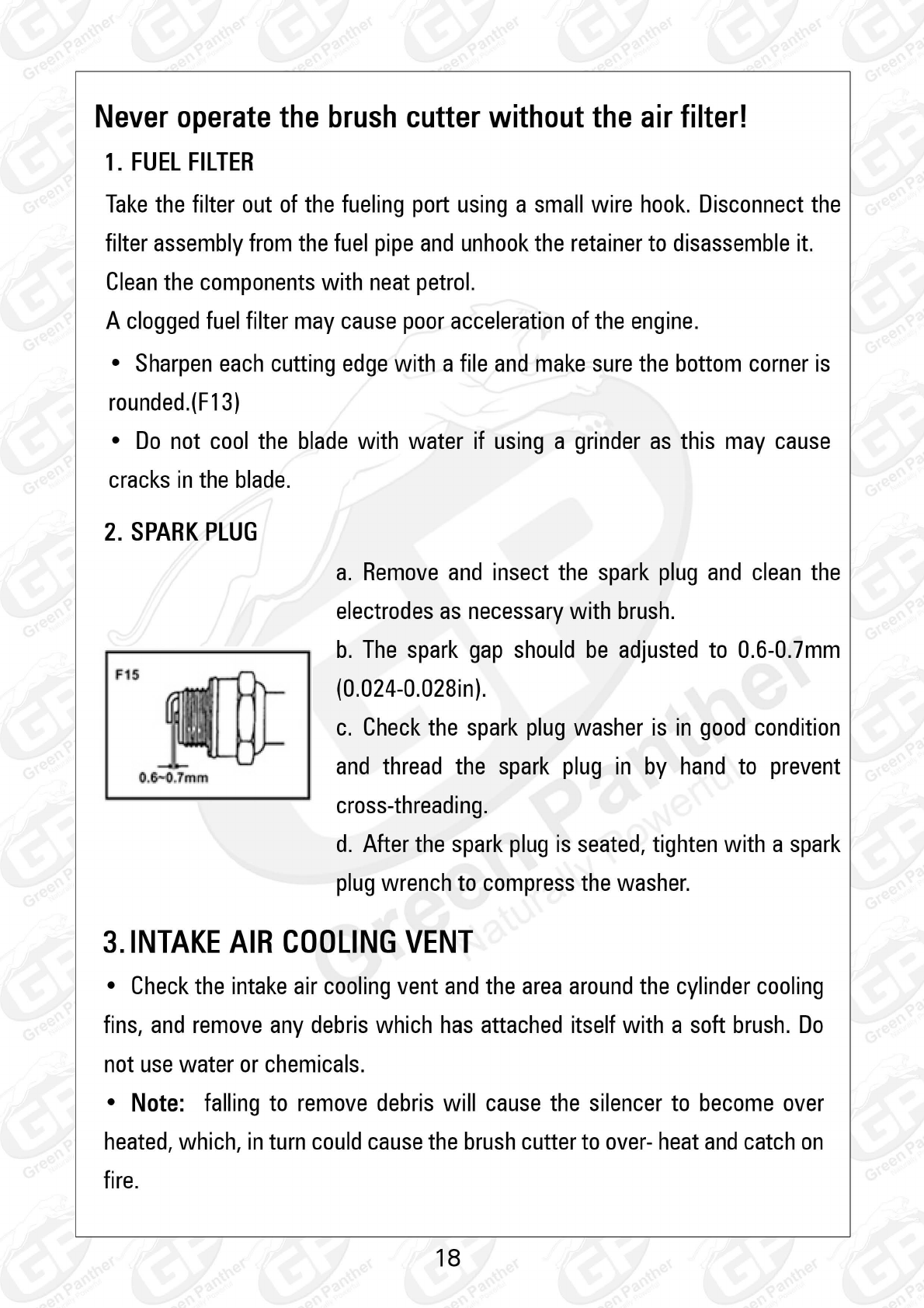

Never operate the brush cutter without the air filter!
1. FUEL FILTER
Take the filter out of the fueling port using a small wire hook. Disconnect the
filter assembly from the fuel pipe and unhook the retainer to disassemble it.
Clean the components with neat petrol.
A clogged fuel filter may cause poor acceleration of the engine.
• Sharpen each cutting edge with a file and make sure the bottom corner is
rounded.(F13)
• Do not cool the blade with water if using a grinder as this may cause
cracks in the blade.
2. SPARK PLUG
a. Remove and insect the spark plug and clean the
electrodes as necessary with brush.
b. The spark gap should be adjusted to O.6-0.7mm
(O.024-0.028in).
c. Check the spark plug washer is in good condition
and thread the spark plug in by hand to prevent
cross-threading.
d. After the spark plug is seated, tighten with a spark
plug wrench to compress the washer.
3. INTAKE AIR COOLING VENT
• Check the intake air cooling vent and the area around the cylinder cooling
fins, and remove any debris which has attached itself with a soft brush. Do
not use water or chemicals.
• Note: falling to remove debris will cause the silencer to become over
heated, which, in turn could cause the brush cutter to over- heat and catch on
fire.
18

GEAR CASE
4. SILENCER
Top up with multi-purpose grease at every 25 hours
of use.
Remove the cutter holders to remove old grease
(F16). Failure to add lubrication will result in much
faster wear and eventual failure!
1. Remove the silencer, insert ascrewdriver into the vent and wipe away any
carbon build up. Wipe away any carbon build up on the silencer exhaust vent
at the same time.
2. Tighten all screws, bolts, and fittings.
3. Check to see if any oil or grease has worked its way in between the clutch
lining and drum, and if it has wipe it away using neat unleaded petrol.
4. Remove the float cabin of the carburetor and clean the inside.
ADJUSTING CARBURETOR
A wrong adjustment may cause damage to your unit. If the engine does not
run well after adjusting the carburetor, please contact the Eckman helpline.
IDLE ADJUSTMENT SCREW (F17)
This is the screw to adjust the engine rotation when the throttle lever is set to
the lowest speed position. If you turn the screw right (clockwise), rotation
increases, and left (counterclockwise) it decreases. In case the blade
continues to rotate or engine stops when you return the throttle lever
completely to the original position, make readjustment.
19

(1) Idle adjustment screw
(2) High
(3) Low
ENGINE COOLING FINS
Inspect the fin visually though the cover. If there are dry grass, leaves and
mud clogged, contact the power equipment dealer for cleaning it.
MAINTENANCE BEFORE STORAGE
1. Brush off any dirt or debris from the machine, check for any damage or
loose parts. Adjust / re-tighten where necessary for the next use.
2. Empty the fuel from the tank, and run the engine until it stops naturally.
3. Remove the spark plug, put afew drops of oil into the cylinder and then pull
the recoil starter 2-3 times in order to distribute the oil evenly. Replace the
spark plug.
4. Apply anti-rust oil to the metal parts such as the throttle wire, put the
cover on the blade, and keep the machine well protected from the elements
to avoid damp and frost.
20
