Green Technik CIP 1000 User manual

Rev. 01/03
1000
60
R
www.green-technik.com
[email protected]
By: GREEN-PRODUZIONE s.r.l.
Via Mons. Vigolungo, 2 - 12040 VEZZA D'ALBA -
R
AZIENDA CON SISTEMA QUALITÀ
CERTIFICATO
==UNI EN ISO 9001/2008
PROFESSIONAL
CHIPPER
OPERATION AND
MAINTENANCE HANDBOOK
CAUTION !
Befor using the machine, carefully read this Handbook!

Dear Sir,
We would thank you very much for giving your preference to the high quality of our
machines Green-technik
Please read carefully and comply with the instructions included in this Use and
Maintenance Handbook in order to insure your CIP1000 machine a long life and
several years of profitable working activity.
Have a good job !
Ver. 01/01
CIP1000 User's Handbook
INTRODUCTION
Green technik is a registered trademarks
C
R

Page 1
LIST OF CONTENTS
FOREWORD
Machine data plate Page 2
How to use and preserve this User's Handbook Page 3
Safety warning Page 3
Intended conditions of use Page 5
Prohibited conditions of use Page 6
Personnel training Page 7
Safety equipment: checking and setting Page 8
Other possible hazards and emergency conditions Page 8

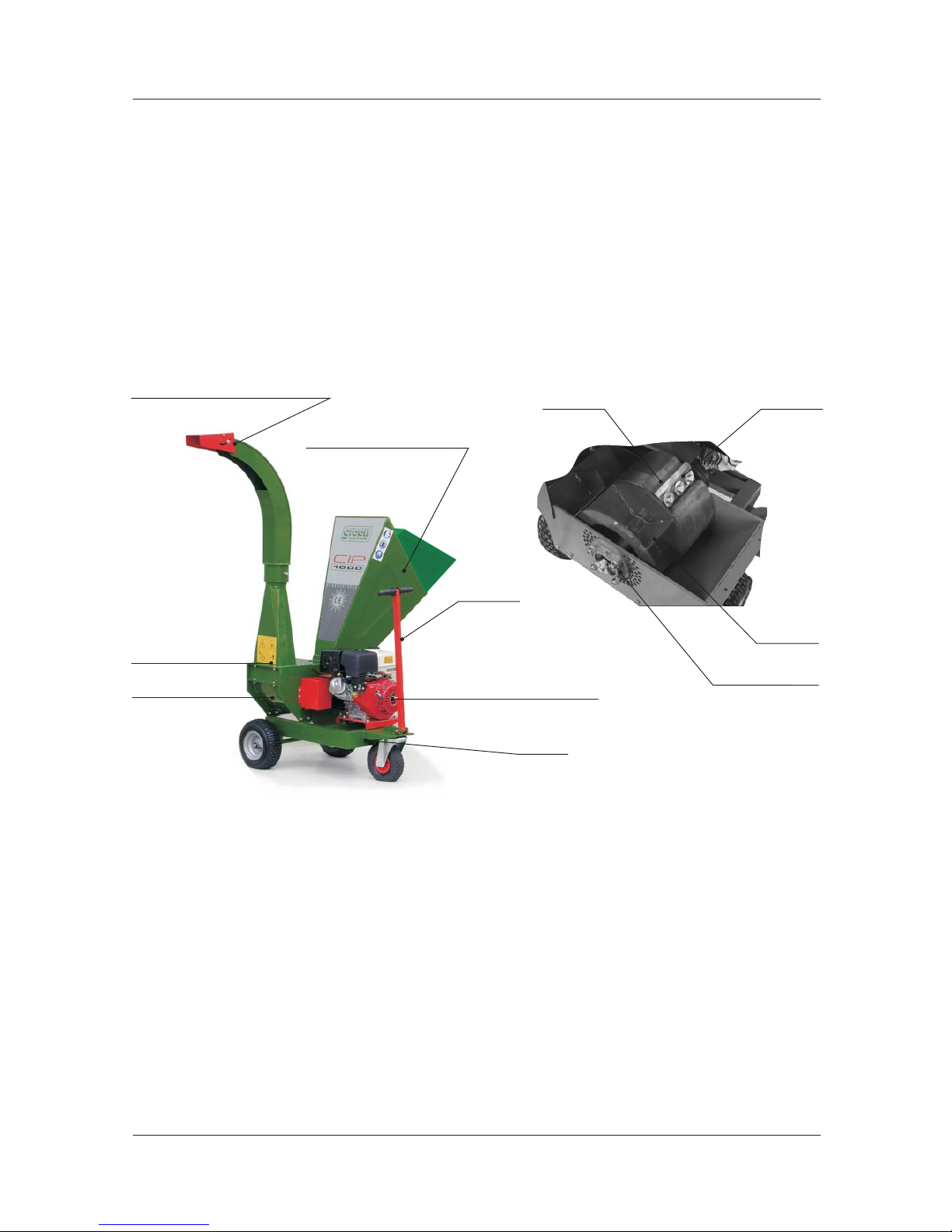

Machine technical description Page 10
Controls and stops Page 11
Instructions for use, calibration and set-up of the machine Page 12
Machine handling Page 14
Page 14
Maintenance instructions Page 15
Instructions for routine repairs Page 16
Spare parts Page 18
MAINTENANCE MEMORANDUM Page 24
GUARANTEE RULES AND CONDITIONS Page 25
SECTION A: GENERAL INFORMATION
SECTION B: INSTRUCTIONS FOR THE MACHINE USE
SECTION C: EXPLOSION ENGINE USER'S HANDBOOK
SECTION D: MAINTENANCE AND REPAIR
FOR USING THE MACHINE IN SAFETY
FINAL DISMANTLING Page 23
CIP1000 User's Handbook

Page 2
CIP1000 User's Handbook
This Handbook, including the instructions for use and maintenance of the
concerned machine, has been drawn up in compliance with the EEC-Directive
2006/42/CE,Attachment I, para. 1.7.4 and following amendments.
The manufacturer reserves the right to apply any changes in the machine, without
prior advice, however taking for granted its main safety features.
A CE Identification Dataplate and a CE Evidence of Conformity are attached to every
machine, by the terms of and in compliance with the EEC-Directive 2006/42/CE and
following amendments.
Sound pressure level at driver's place 98,7 dB(A)
Sound power level 111,4 dB(A)
Sound pressure level at driver's place 93,5 dB(A)
MACHINE DATA PLATE
NOISE EMISSION
Full rated running, on-load:
Full rated running, no-load:
MODEL:
CIP1000-H13 CIP1000-H20
Manufacturer's name and address:
Green-Produzione.via Mons. Vigolungo ,2 - 12040 VEZZAD'ALBA (CN) ITALIA
Tel. [phone] - Fax [phone]
http://www.green-technik.com
E-mail: [email protected]
FOREWORD
MODELLO - MODEL
MASSA - WEIGHT KG.
N SERIE - Nr. SERIES
ANNO-YEAR * MADE IN ITALY *
CIP 1000
GPreen- roduzioneGP
Borbore di VEZZA D'ALBA (CN) ITALY
By:
www.green-technik.com

Page 3
CIP1000 User's Handbook
FOREWORD
HOW TO USEAND PRESERVE THIS USER'S HANDBOOK
SAFETY WARNING
- This User's Handbook intends to be a sound reference and working tool to them
who will use our shredder CIP 1000; it includes some practical guidelines on
how to use the machine according to its design principles and technical features
as well as to move, install, assemble, adjust and use it correctly. Besides this
Handbook includes a few hints on your personnel's training and suggests how to
service your machine, to order spare parts easily and avoid any risk of damages
or injury.
- This Handbook has to be considered an integral part of the machine supply
volume and it should be carefully preserved for any future reference during the
machine operating life time.
- This Handbook should be kept in an easily accessible place, near the machine,
to allow the personnel to promptly find and consult it, and put in a dry place,
sheltered from the sunlight.
- In case of loss, a copy of this Handbook may be ask for to the machine
manufacturer, by specifying the machine model and Series Number.
- This Handbook reflects the technical engineering level reached at the time of
machine delivery and it has to be considered as corresponding to the state of the
art even if some further revisions will be applied later for the sake of adaptation to
the latest know-how.
- Green Technik reserve the right to update their products and Handbooks, without
being obliged to retrofit or revise also their previously delivered products and
Handbooks.
In order to insure highest working reliability, Green Technik carried out a careful
selection of materials and components to be used for the manufacture of their
shredder/chippers, and careful tests and inspection are performed before the
machine delivery to customers. Of course, the good operation of a machine in the
long run depends also on its correct use as well as on a suitable preventive
maintenance, to be carried out in conformity with the directions included in this
Handbook.
All the machine structural components, connecting members and controls has
been designed and manufactured with such a high level of safety to resist
anomalous stresses, even higher than specified in this Handbook. The high-grade
materials used on the machine are the best assurance for no damages, wear or
malfunctions.
However, at least the following guidelines should be complied with:
1) NEVER USE OR INTERVENE ON THE MACHINE WITHOUT FIRST READING
AND WELL UNDERSTANDING THE GUIDELINES IN THIS HANDBOOK.

Page 4
CIP1000 User's Handbook
FOREWORD
2) IN PARTICULAR, THE PRECAUTIONARY MEASURES SHOULD BE TAKEN
AS LISTED UNDER SECTION ”A” - SAFETY REGULATIONS AND
INFORMATION.
3) IT IS STRICTLY PROHIBITED TO USE THE MACHINE UNDER CONDITIONS
OTHER THAN EXPRESSLY INDICATED IN THIS HANDBOOK. GREEN
TECHNIK CANNOT BE DEEMED RESPONSIBLE FOR ANY TROUBLES,
FAILURES OR INJURY ARISING FROM THE NON-COMPLIANCE WITH THE
ABOVE MENTIONED PROHIBITION.
This Handbook consists of four sections:
dealing with SAFETY REGULATIONSAND INFORMATION
dealing with MACHINE FEATURES - INSTRUCTIONS FOR USE - TRANSPORT -
STORAGE.
including some advice for a correct use of the internal combustion engine and its
ordinary maintenance
dealing with the MAINTENANCE OPERATIONS required and including a LIST OF
SPARE PARTS
SECTION A:
SECTION B:
SECTION C:
SECTION D:
CAUTION
Avoid tampering, altering or changing, even partly, the
SHREDDER/CHIPPER components, in particular the guards
provided as a safeguard to the people.

Page 5
INTENDED CONDITIONS OF USE
While thanking you for your trust in our products, our CHIPPER Mod. CIP 1000 in
particular, we would remind you that the use of this machine is representative of a
style of life, where the environment protection is a basic principle and the recycling
practice takes the place of an indiscriminate disposal of waste.
Before starting to chip the trimmings and the wooden matters in general,
separate the materials according to the size in order to favour their inlet into the
chipper mouth.
Avoid triturating unsuitable materials as plastics or printed paper.
The chipper is intended for operating outdoor; of course, in case of bad
weather conditions, avoid using the machine and store it in a suitable and
sheltered place.
CIP1000 User's Handbook
SECTION A: GENERAL INFORMATION
CAUTION
Green Technik undertakes no responsibility in case any safety guards or
loading hoppers installed on the machine are changed or removed, as well
as in case of non-compliance with the obligations and/or prohibitions
expressly specified in this paragraph and, in general, of any of the rules and
provisions set forth in this Handbook.

Page 6
PROHIBITED CONDITIONS OF USE
Working materials other than specified in this Handbook could give rise to serious
damages to the machine, not to say of the risks of injury to the operator. Besides
this, it is expressly prohibited to put other materials into the machine as e.g. ballast
and rock pieces, section irons, glass, plastic materials, parts of wooden boxes with
nails or iron wires left therein, trunks and/or branches having diameter larger than
specified on the transfer affixed near the mouth of every loading hopper.
This machine has been designed and manufactured to work on flat surfaces,
compact and level as much as possible; therefore, avoid to work on steep slopes,
friable or damp grounds or however under any condition which could cause the
machine to tilt during the operation or susceptible to be prejudicial to its stability.
Whenever the machine has to be moved, the engine must be compulsorily switched
off or, in case the machine is power supplied, the main cable must be plugged out,
afterwards waiting until all the machine moving parts stand still.
The same is for when the machine has to be tilted or lifted for cleaning or
adjusting purposes or any rotating element, possibly jammed on the machine, has
to be released.
Furthermore, it is strictly prohibited to open the rubber gate placed at the inlet to
the chipper hopper, to visually check for no material inside, until the machine is quite
still.
To prevent the operator from getting in touch with any moving element of the
machine, some fixed or movable safety guards have been installed, and the upper
and side loading hoppers are such in length as to avoid hands from going up to the
rotating parts.
CIP1000 User's Handbook
SECTION A: GENERAL INFORMATION
CAUTION
Green Technik undertakes no responsibility in case any safety guards or
loading hoppers installed on the machine are changed or removed, as well
as in case of non-compliance with the obligations and/or prohibitions
expressly specified in this paragraph and, in general, of any of the rules and
provisions set forth in this Handbook.

Page 7
Pulsante arresto
fig. 1
CIP1000 User's Handbook
SECTION A: GENERAL INFORMATION
PERSONNELTRAINING
GENERAL REMARKS
This machine has been designed and manufactured to meet the users' hobby or for
semiprofessional use ; however, the machine should not be operated by persons
aged less than 18 years.
Should the user detect any operating trouble, malfunction or however a condition
that might be dangerous for himself or other people, he must immediately stop the
machine by pressing the stop push-button placed on the electric motor or, in case
the machine is equipped with explosion engine, on the right hand of the engine, and
avoid to carry out any intervention he is not familiar with, but promptly inform a
supervisor or call for the Green Technik's service center.
It is up to the operator to do his utmost to keep the machine clean and in
full working order.
To this purpose, the machine should be carefully cleaned after every working run;
cleaning must be carried out with machine still and stable and possibly in co-
operation with an assistant.
When cleaning is carried out using pressurized air or water, the operator must wear
safety goggles and a safety faceplate and no people must stand by around the
machine, to avoid running the risk of being affected by jets of materials or dust. To
prevent the hammer assembly from oxidizing during long times of inactivity, we
recommend to carefully lubricate all its parts with oil or other oxidation inhibitors.
The use of flammable fluids during the cleaning operations is prohibited.

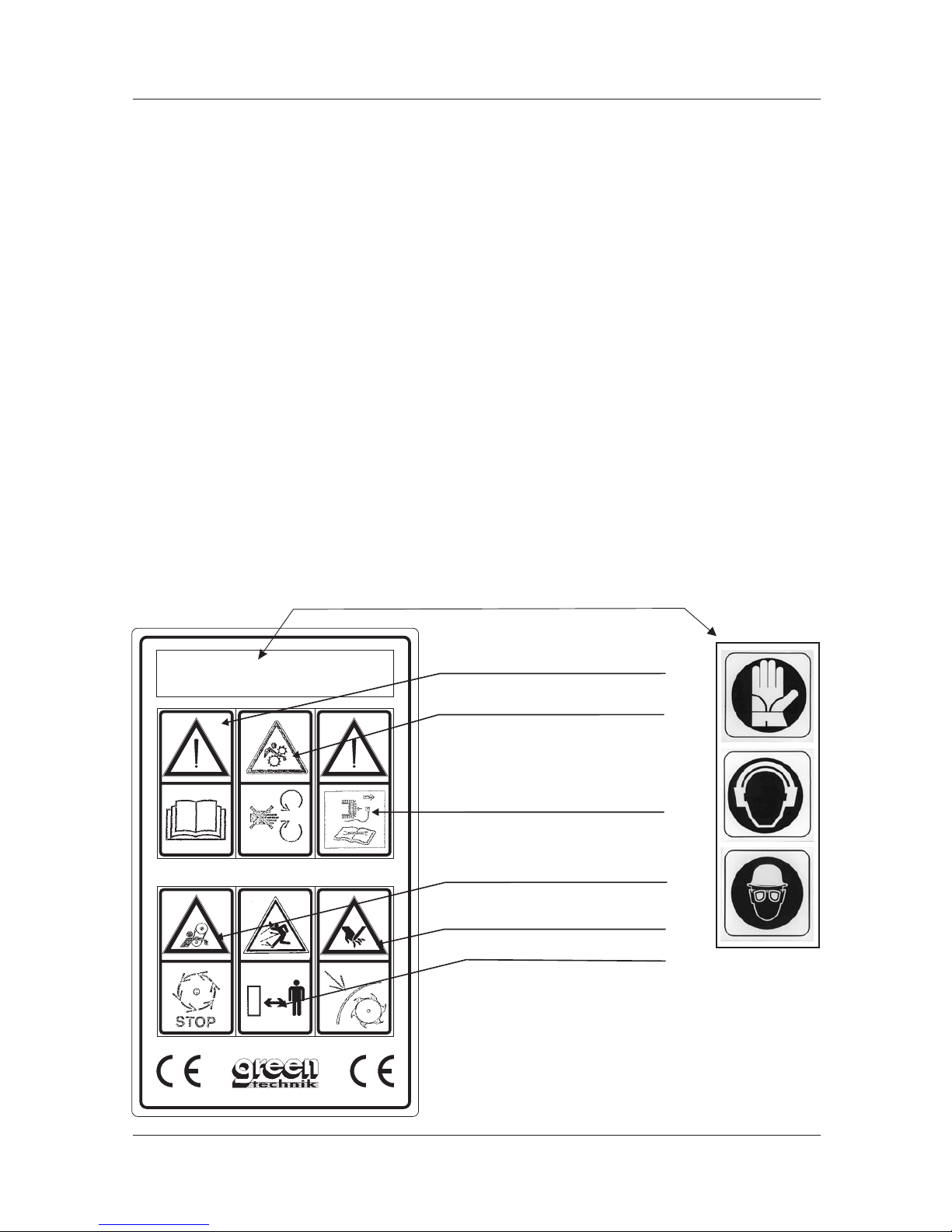

From time to time check the state of labels and warning tags and replace them, when
required.
Once the machine cleaning is complete, check for no worn, damaged or loose parts.
Should this be the case, and if the detected trouble cannot be solved on your own,
promptly call for a service man or inform the Green Technik Service Center.

Page 8
Special attention should be paid to the serviceability of the power connecting cable
as well as of other perishable parts installed on the machine. Besides, check for no
leakage of oil, fuel or other harmful matters.
Should this be the case, the operator must absolutely avoid to start the machine
until the problem is removed.
Furthermore, any loose objects that are not integral to the machine (as tools left
on the ground after servicing, personal objects, gasoline can used to fill up the petrol
tank, etc...) must be removed from the machine or its surrounding area.
The operator, his assistant and the maintenance man shall wear the following:
a) Safety goggles and faceplates to protect from splinters; when working in the
presence of a dense dust, wearing suitable masks is recommended.
b) Safety gloves.
c) Ear protectors (sound-proofing ear-plugs).
Besides, they must wear suitable working cloths, free from flying parts, and
avoid to wear jewels (chains or bracelets) or other things which could be pinched
in the machine moving elements; long haired people must wear suitable hair-
nets to prevent hair from getting caught.
Before starting to work, check the machine is standing stable, loading hoppers
are free from material and the ejecting mouth has been adjusted and so turned that
any people possibly passing before the machine is not hit on.
No safety device or guard must be removed from the machine unless absolutely
required for repairing and/or servicing purposes.
Safeties must be immediately replaced as soon as the reasons for their removal
have ceased to exist and however always before starting up the machine.
Every 10 working hours, check the locking bolts, loading hoppers, enclosures and
guarding plates are tightened; tighten them promptly, if required.
Never leave the machine running without watching over it; any displacement must
be carried out only with machine still and after awaiting that all of the machine
rotating parts are quite still.
SAFETY EQUIPMENT: CHECKING AND SETTING
OTHER POSSIBLE HAZARDS
CIP1000 User's Handbook
SECTION A: GENERAL INFORMATION

Page 9
CIP1000 User's Handbook
SECTION A: GENERAL INFORMATION
In case the machine is driven by an electric motor, connect the cable using
extensions of less than 20 meters in length, provided with plugs having the same
features as the one delivered with the machine.
Absolutely avoid connections with cables lacking in the earth wire or whose
section gauge is lower than 2 mm2 (each wire).
Always avoid to use misrepaired cable extensions as e.g. insulating tape in
connection with joints and/or sockets or plugs.
In case the machine is driven by an explosion engine, always check, before
starting up the machine, the level of oil and fuel, and carry out all the steps listed
in the Use and Maintenance Handbook, as specified under Section C of this
Manual.
When checking the fuel level and during the tank filling up, do not smoke
and avoid to light fires.
The machines driven by explosion engine should not be used in closed rooms,
to prevent the machine operator or other people standing in the room from the risk of
poisoning or lung disease.
The pictograms and figures used on the machine are shown below.
READ THE USER'S HANDBOOK
NEVER REMOVE SAFETY GUARDS
AWAIT ALL ROTATING PARTES ARE
STILL BEFOR CARRYNING OUT ANY
SERVICING OPERATION
CAUTION! ROTATING PARTS
BEFORE STARTING ANY MAITENANCE
OPERATION, DISCONNET THE STARTER
OR, FOR ELECTRIC MOTORS, PLUG OUT
THE POWER CABLE.
EJECTION OF PIECES
WEAR SAFETY GOGGLES, EAR-PLUGS AND GLOVESI

60
Warning:
TECHNICAL DESCRIPTION OF THE MACHINE
Before reading this section, the operator should get familiar with the information
included in the SECTION A, that is integral part of the User's Handbook and whose
knowledge and understanding is essential for using the machine IN SAFETY.
. Furthermore, the
internal combustion engine is housed in the base of the machine.
A rubber gate, normally closed, opens under the load of the material to be
worked, then closes immediately when the material enters down into the hopper;
this avoids the material is ejected out from the loading hopper during the work and
insures the operator can work in safety.
through a swivelling ejection duct.
This machine consists essentially of a steel structural base, which supports the machine
casing where the rotor with cutters and the turbine are incorporated
The shredded material is thrown off by a turbine
SECTION B: INSTRUCTIONS FOR THE MACHINE USE
Page 10
3-blade rotor unit
Base
Swivelling ejection mouth
Chipper hopper
Blades
Turbine
Rotor mount
Rotor
Motor
Handle
Machine casing
Cover
Machine casing
fig. 3
fig. 2
CIP1000 User's Handbook

Page 11
The machine may be easily moved to or from the working area by means of a
sturdy handle and owing to its wheels, which are equipped with large section tires
that allow to displace the machine without damaging the lawn.
The chipper CIP 1000 carries out its mincing function owing to the movement
transmitted by the internal combustion engine; therefore, the operator must be quite
familiar with the steps to be performed to start or to stop the machine.
As to the machine version with internal combustion engine, please refer to the
SECTION C of this Handbook concerning the use of the internal combustion engine.
CONTROLS AND STOPS
After a stop, the machine inside moving elements run on by inertia
for further 30 seconds before getting quite still. For this reason,
carrying out any cleaning, maintenance, adjusting and/or moving
operation is prohibited until the above mentioned time has elapsed.
fig. 4
Stop push-button
CIP1000 User's Handbook
SECTION B: INSTRUCTIONS FOR THE MACHINE USE
CAUTION

SECTION B: INSTRUCTIONS FOR THE MACHINE USE AND SET-UP
Page 12
The chipper Mod. CIP 1000 is a machine intended for professional use; owing to its
simplicity of use and control, it may be operated by anyone, provided he is aware of
the risks he may possibly run during the work; therefore, we strongly recommend to
forbid the use of these machines to either under-age people or them who have not
been properly trained or who have not previously read all the instructions included in
this Handbook.
Before starting the work:
- make sure the ground where the chipper has to be placed is firm, non friable or
steep, but suitable to insure a stable positioning of the machine during the work;
- check for no debris, branches or any other kind of material left in the hopper or in
the chipping device;
- check for enough fuel in the tank;
- by means of a dip stick, check the oil level is as stated in the "Instructions for Use
and Maintenance" of the engine;
- remove all the materials not strictly required for working, oil or fuel cans in
particular, from the working site;-wear personal safety means, as required (ea
- plugs, safety goggles or faceplates, safety gloves and also suitable masks for
protection when the working place is particularly dusty or when you intend to work
with dry earth);-Clutch the handle of the starting cable, pull it out slowly until it
offers a certain resistance, then give it a sudden tug by opposing with the other
hand the machine moving, under the action of the cable pull. The handle has not
to be left suddenly, rather its movement has to be followed in order to let the cable
wind up correctly;
- after starting up, shift the throttle lever to its working position, then await approx.
30 seconds until the chipper has picked up.
For the machine version with internal combustion engine
CIP1000 User's Handbook
CAUTION
Failing to comply with this direction could give rise to jamming
or cause serious damages to your shredder

Page 13
- Start working, in conformity with the directions given in the previous chapters of
this Handbook;
- once working is complete, operate the switch to stop the machine;
- when all the moving parts of the machine are quite still, make sure that no
unworked remainders are left in either upper or side hopper; pull them off by
hand, if required, or start the machine again until the whole material has been
processed and hoppers are empty;
- release the wheels and store the machine after cleaning it carefully;
- periodically remove the protection case and check the tension of the driving belt.
Should the belt result to be slack, follow the instructions included in the following
section ”MAINTENANCEAND REPAIR”;
- with a periodicity corresponding to the frequency of use, check the safety
devices by following the instructions included in section ”A”, page 8, of this
Handbook.
CIP1000 User's Handbook
SECTION B: INSTRUCTIONS FOR THE MACHINE USE AND SET-UP
CAUTION
The non-compliance with these instructions could give rise to
jamming or cause serious damages to your shredder.

Page 14
CIP1000 User's Handbook
SECTION B: INSTRUCTIONS FOR THE MACHINE USE
MACHINE HANDLING
Before starting the machine handling, make sure that no electric connection is made;
as to the powered machines, check that all the filler plugs are screwed tight.
This inspection has to be performed whenever the machine has to be
moved, in particular when moving on steeply sloping grounds, uneven surfaces or
where wheels risk to sink into the mud.
When the machine is moved on sloping grounds, people should always stay over the
machine. This machine has been designed to be handled only by hand, in the
presence of the operator and with all its rotating parts still.
HONDAEXPLOSION ENGINE USER'S HANDBOOK
For any further information, intervention or maintenance of the engine installed on
your shredder BC-250HD, reference has to be made only to the USE AND
MAINTENANCE Handbook delivered with the machine.
SECTION C:

Page 15
CIP1000 User's Handbook
SECTION D: MAINTENANCE AND REPAIR
Warning:
MAINTENANCE INSTRUCTIONS
Before reading this section, the operator must be familiar with all the
instructions included in the SECTION A, which is integral part of this
Handbook and whose understanding is essential for using the
machine IN SAFETY.
Before starting any servicing operation, the maintenance man must
compulsorily put the machine in an idle condition, such as to get the machine
started only against his consent (e.g., by unplugging the machine).
This is the only way to get the absolute certainty that the machine cannot be
inadvertently started up as long as the maintenance personnel is undergoing a
potential condition of risk.
The maintenance man must be informed of the function and movement of
every part of the machine. In case of doubt, please refer to SECTIONS A, B, C of this
Handbook; besides, the operator shall pay attention to all the warning signs and
plates affixed to the machine.
Avoid to carry out any maintenance operation barehanded!
Maintenance operations:
- when cleaning the oil tank or changing the oil, it is prohibited to spill an
remaining fluids or cleaning products on the ground; they must be collected in
suitable containers, then poured into suitable tanks for disposal according to the
regulations in force;
- all the maintenance and lubrication operations must be carried out by strictly
complying with the instructions included in this Handbook.
- Here below is a list of some routine maintenance actions the operator may
perform, provided at least the normal equipment required is available and he has a
minimum knowledge of the servicing technique:
- change motor oil and air filters (for modes and frequency, please refer to the
engine User's Handbook)
- with a frequency corresponding to the entity of use, check the locking bolts
in the two side supports of the hammer rotor are tightened.
- periodically check the fastening screws that secure the hopper and the
drive case are tightened; screws could get loose due to vibrations. Tighten them,
if required.

Page 16
periodically remove the drive case and check the tension of the driving belt. To
stretch belts, when required: loosen the locking bolts in the engine mounting plate
and, by means of a lever inserted between the frame and the pad, move th plate
until the belt is correctly tensioned.
In case the belt has to be changed, use an original part or an equivalent one
having similar quality degree and features.
- The blade assembly may be washed with a bolt of water. To avoid the oxidation of
the blades during long times of inactivity, spray the mechanism with lubricating oil.
- Changing the blades (see the following para. ”Instructions for ordinary repairs”).
- For other interventions not included in this paragraph, call skilled maintenance
people for servicing.
- Clean the machine carefully, both inside and outside. Dirt causes moisture and
moisture rust. When cleaning by means of high pressure washer, avoid to direc
the bolt of water towards engine and bearings.
- Ease off the V-belt and change it, in case of wear.
- With internal combustion engines installed, empty the fuel tank and change oil.
- Store the machine in a sheltered place and position it in a stable way.
-
- For any possible fault of the internal combustion engine, please refer to the
”Troubleshooting” section of the Manual of Instructions for Use and Maintenance
of the engine.
- The loaded material enters with difficulty and cloggage takes place often.
Cause- The loaded material has volume and slump unsuitable to the actual
capacity of the machine.
- Reduce the volume of the loaded material.
Cause- The blades are maybe worn.
- Sharpen or change the blades with original ones, by following the
instructions below.
Winter storage
INSTRUCTIONS FOR ORDINARY REPAIRS:
TROUBLESHOOTING:
Remedy
Remedy
CIP1000 User's Handbook
SECTION D: MAINTENANCE AND REPAIR

Page 17

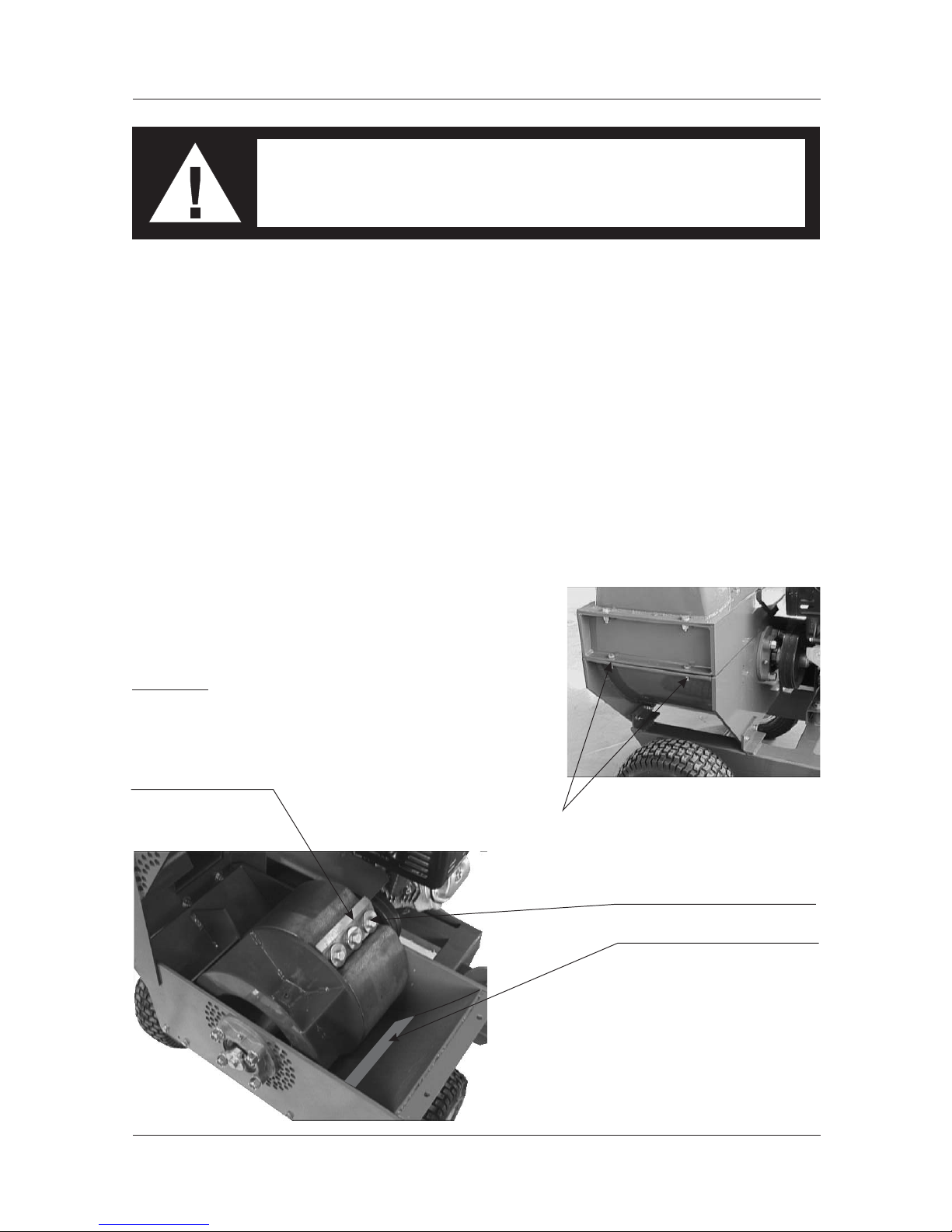

CHANGING / SHARPENING THE BLADES
To change /sharpen the blades, perform the following steps:
a) remove the swivelling ejection duct;
b) loosen and remove the fastening screws shown on fig. 5
c) tilt up the cover of the machine case to the ground level.
d) wear safety gloves and manually turn the rotor until one of the three blades
reaches a position suitable for disassembly (fig. 6)
e) loosen the three blade fastening screws and pull off the blade
f) repeat the same operation also for the other two blades
g) change the blades with new ones; when replacing every blade, check its distance
from its counter-blade is 0.2 / 0.3 mm, and then tighten the locking bolts;
h) manually make the rotor run a few turns; finally close the cover and secure it with
the locking bolts.
The blade sharpening must take place at an
equipped workshop in order insure that every
blade is sharpened according to its original slope
grade and smoothness.
Warning
Failing to comply with the above mentioned
provision could be a reason for serious
malfunctioning.
Case fastening screws
Counter-blade
n° 3 blades
fig. 5
fig. 6
CIP1000 User's Handbook
SECTION D: MAINTENANCE AND REPAIR
CAUTION
Before starting any servicing operation, take care to empty the fuel tank
completely (as to machines equipped with explosion engine) or to
disconnect the power cable (as to machines equipped with electric m.)
motor).
Blade fastening screw

Page 18
STRETCHING / CHANGING THE BELTS
Stretching the belt:
Changing the belt:
a) by means of a suitable wrench, loosen the 4 bolts that secure the engine
mounting plate to the frame.
b) loosen the 2 lock nuts of the bolts placed beside the engine mounting plate.
c) alternately screw a few turns the 2 bolts of the belt stretcher, until the V-belts
are correctly tensioned.
a) remove the belt safety half-covering;
b) loosen the 4 bolts that secure the engine mounting plate to the frame.
c) loosen the 2 lock nuts of the bolts placed aside the engine mounting plate,
then unscrew the bolts completely;
d) let the motor slide towards the rotor to slacken the belts;
e) change the belts and mount other ones having the same size.
f) alternately screw the 2 belt stretching bolts until the V-belts result to be
correctly tensioned;
g) replace the safety guards and tighten the bolts fastening the engine
mounting plate.
CIP1000 User's Handbook
SECTION D: MAINTENANCE AND REPAIR
CAUTION
Before starting any servicing operation, take care to empty the fuel tank
completely (as to machines equipped with explosion engine) or to
disconnect the power cable (as to machines equipped with electric m.)
motor).
