Greenlite Airz User manual

Installation Manual
TM

Greenlite AirzTM is ready to make your home energy efficient
and more comfortable. Follow these easy steps to get started.
Greenlite Products offers installation and product videos
Please visit greenliteusa.com. To contact Greenlite
Technical Support, please call 267.417.3277.
For more information about installation settings, please visit
greenliteusa.com
This manual is a comprehensive guide to installation and wiring.

greenliteusa.com | 3
Table of Contents
1. Start Here ......................................................................................... 2-5
2. Installing with a C-Wire..............................................................6-9
3. Installing with Power Wire (Included) .............................10-13
4. Installing with Power Bridge ................................................ 14-17
5. HVAC System Setup................................................................. 18-21
6. Connecting to the Network................................................ 22-25
7. Appendix ......................................................................................26-31
1. START HERE
INSIDE THE BOX:
Greenlite AirzTM
Power Wire
Mounting Screws
Wall Anchors
Wire Labels
Wall Plate
Screwdriver
1
2
3
4
5
6
7
12
3
4
5
6
7
Required Tools:
-Phillips Screwdriver -Smartphone
Optional Tools:
-Power Drill -Wire Stripper

4 | 267.417.3277
Step 1.1: Download the free Greenlite Thermostat App to your
mobile device and create an account.
Step 1.2: Set your phone aside and turn off the power at
the circuit breaker to both your heating and cooling systems
before performing any wiring.
Step 1.3: Confirm that your heating and cooling
system is powered down by changing the
temperature on your thermostat.
Hint: Your system should not make any noise and
you should not feel any air exiting your vents.
Step 1.4: Remove the front of your old thermostat from its
base. If you see thick black wires, wire nuts,
or any labels that say 120-240VAC or High
Voltage, your system is not compatible
with Greenlite AirzTM. Please call Greenlite
Technical Support at 267.417.3277 before
proceeding with your installation. If you do
not see any high voltage labels or wires,
please continue with your installation.
HIGH
VOLTAGE

greenliteusa.com | 5
1. START HERE
Step 1.5: Use the included wire labels to mark which wire is
connected to each terminal in your old thermostat.
Take a picture of your current wiring layout,
you will need this picture later.
Step 1.6: Confirm that you have a C-Wire. If you do, please turn
to the next page. If you do not, please skip ahead to page 10.
111
NOTE: If you have any wires at
your thermostat that are not coming
from the wall, please leave those wires
in your old thermostat. They are not
needed for installing your Greenlite AirzTM.

6 | 267.417.3277
Installing with a C-wire
Before starting
Turn off the power at the circuit breaker
to both your heating and cooling systems
before performing any wiring.
STOP
Step 2.1: Identify your system configuration (see wiring
diagrams in appendix). Potential configurations include:
• Conventional 1H/1C (Y, G, W, R, C)
• Conventional 2H/1C (Y, G, W, W2, R, C)
• Heat Pump Single-Stage (Y, G, R, O/B, C)
• Heat Pump with auxiliary heat or dual fuel (Y, G, R, O/B, W, C)
If you have only one R wire, please use the RH terminal. If you
have a different configuration other than what is listed above,
please call Greenlite Technical Support for help with your
installation.

greenliteusa.com | 7
INSTALLATION WITH
C-WIRE2.
Step 2.2: Remove each wire from its terminal – make sure
that they don’t fall down back into the wall.
Step 2.3: Remove the mounting screws from the base of the
old thermostat. Remove the base from the wall.
Step 2.4: If you would like to use the trim plate or wall
anchors, you can install them now.
Step 2.5: Separate Greenlite AirzTM from its base, pull the
halves apart from the bottom edge. Pull the wires from your
wall through the center hole of the Greenlite AirzTM base.
Secure the base to the wall using the included mounting
hardware.

8 | 267.417.3277
Option 1 - Conventional (Furnace) Systems:
Step 2.6(f): Following the terminal labels
marked “Conventional” on the thermostat
base, loosen the screw and insert each
labeled wire into the top hole of the
corresponding terminal, tighten the screw.
Step 2.7(f): If you have both an RC and RH wire present,
then remove the red cap located on the left side of the
terminal pins. You can now skip ahead to step 2.8.
Option 2 - Heat Pump Systems:
Step 2.6(hp): Following the terminal labels
marked “Heat Pump” on the thermostat base
and referencing your wiring photo, loosen the
screw and insert each labeled wire into the top
hole of the corresponding terminal, tighten the
screw.
If your old thermostat did not have a W1 wire but did have a
W2 wire, please insert the W2 wire into the W1 terminal.
Step 2.7(hp): If you have both an O wire and a B wire
(i.e. in some systems), please install the B wire to the “C”
terminal.
For more detailed directions, please see the wiring diagrams
in the appendix or call Greenlite Technical Support.
C
C
W1
W1
W2
O/B
1 4 2
C
C
W1
W1
W2
O/B
1 4 2

greenliteusa.com | 9
Installation with C-wire
Step 2.8: Securely fasten Greenlite AirzTM onto its base.
Once it has clicked into place, return power to your heating
and cooling system.
Step 2.9: After your thermostat powers up, you are ready to
configure Greenlite AirzTM for your heating and cooling system
and connect to a wireless network.
Please skip ahead to the “System Setup” section of this
manual on page 18.
INSTALLATION WITH
C-WIRE2.

10 | 267.417.3277
Installing without a C-Wire
Using the Power Wire (included)
Before starting
Turn off the power at the circuit breaker
to both your heating and cooling
systems before performing any wiring.
STOP
1. Install and wire
Greenlite AirzTM
2. Install Power Wire
(at your furnace)
For installation without C-wire,
you will need to access your furnace.
Installation without C-wire
Hint: Helpful videos showing how to wire a thermostat with
the Power Wire are available at:
greenliteusa.com

greenliteusa.com | 11
INSTALLATION WITH
P-WIRE3.
Step 3.1: Starting at your thermostat,
confirm that you have one of the system configurations below:
• Conventional 1H/1C (Y, G, W, R)
• Conventional 2H/1C (Y, G, W1, W2, R)
If you have a different configuration than what is listed
above or if you have an electric furnace, please call Greenlite
Technical Support for help with your installation.
Step 3.2: Remove each wire from its terminal – make sure
that they do not fall down back into the wall.
Step 3.3: Remove the mounting screws from the base of the
old thermostat. Remove the base from the wall.
Step 3.4: If you would like to use the trim plate or wall
anchors, you can install them now.
Step 3.5: Separate Greenlite AirzTM from its base, pull the halves
apart from the bottom edge. Pull the wires from your wall
through the center hole of the Greenlite AirzTM base. Secure the
base to the wall using the
included mounting
hardware .

12 | 237.417.3277
Step 3.6: Following the terminal labels marked “Conventional”
on the thermostat base, loosen the screw and insert each
labeled wire into the top hole of the corresponding terminal.
Connect as follows:
Step 3.7: Securely fasten Greenlite AirzTM onto its base.
Step 3.8: Go to your furnace – remove the door or panel
and locate your control board or transformer. In most cases,
there should be four wires running from the furnace to your
thermostat – Y, G, W, and R. If you have additional wires, leave
them as is.
Y1 Terminal
W1 Terminal
RH Terminal
C Terminal
Y Wire
W Wire
R Wire
G Wire
C
C
W1
W1
W2
O/B
1 4 2
Y1
Y1
RC
RC
RH
RH
G
G
3
Y
GW R
NOTE: The G wire was previously
in the G terminal, it will now go to
the C Terminal on Greenlite AirzTM.

greenliteusa.com | 13
INSTALLATION WITH
P-WIRE3.
Step 3.10: If you had to remove a panel or door to access
your control panel, replace it now.
Step 3.11: Return power to your heating and cooling
system. If your system, including your thermostat, does not
power up please call Greenlite Technical Support.
After Greenlite AirzTM powers up, you are ready to
configure it for your heating and cooling system (page 21)
and connect to a wireless network (Skip to page 22).
Step 3.9:
A) Remove the G
Wire from the Fan
Terminal at your
furnace, insert
the wire into your
Furnace Transformer
Terminal
B) Insert one end of
the Power Wire into
the now empty Fan
Terminal and the
other end into the
Cool Terminal (with
the Y Wire).
G
R
W
FAN
POWER
HEAT
COOL
TRANSFORMER
Y
A
B

14 | 267.417.3277

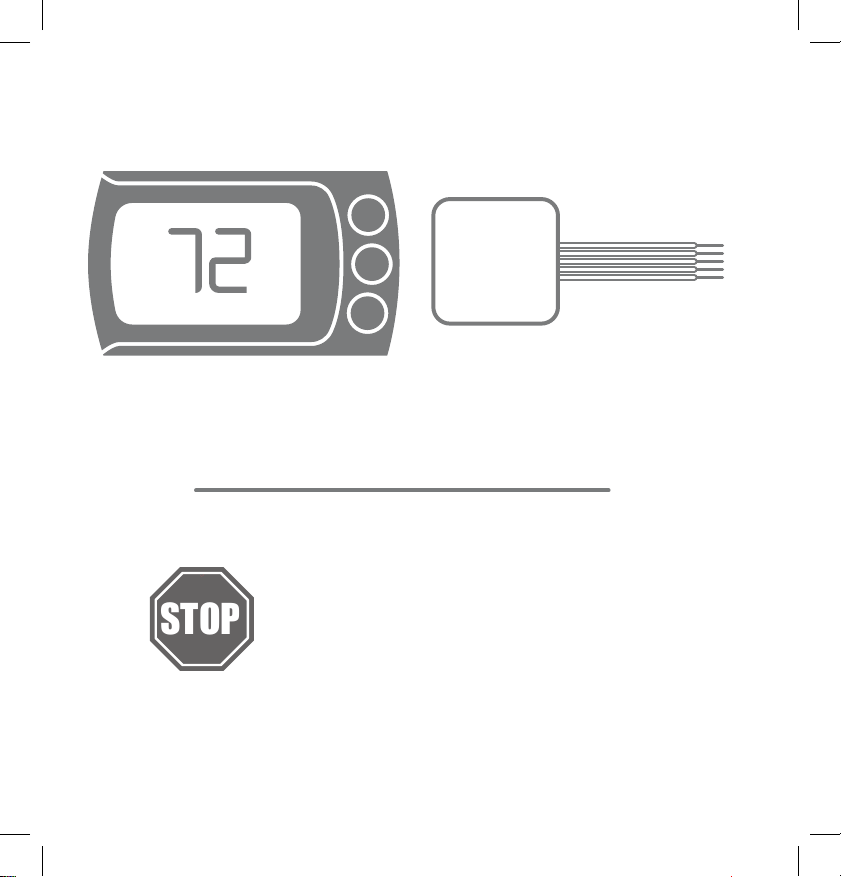

Installing without a C-Wire
Before starting
Turn off the power at the circuit breaker
to both your heating and cooling
systems before performing any wiring.
STOP
1. Install and wire
Greenlite AirzTM
2. Install Power Bridge
(at your furnace)
Power Bridge available at:
greenliteusa.com
For installation without C-wire,
you will need to access your furnace.
Installation without C-wire
Hint: Helpful videos showing how to wire a thermostat with
the Power Bridge are available at: greenliteusa.com
Using the Power Bridge

greenliteusa.com | 15
INSTALLATION WITH
P-BRIDGE4.
Step 4.1: Starting at your thermostat,
confirm that you have one of the system configurations below:
• Conventional 1H/1C (Y, G, W, R)
• Conventional 2H/1C (Y, G, W1, W2, R)
If you have a different configuration other than what is listed
above, please call Greenlite Technical Support for help with
your installation.
Step 4.2: Remove each wire from its terminal – make sure
that they do not fall down back into the wall.
Step 4.3: Remove the mounting screws from the base of the
old thermostat. Remove the base from the wall.
Step 4.4: If you would like to use the trim plate or wall
anchors, you can install them now.
Step 4.5: Separate Greenlite AirzTM from its base, pull the
halves apart from the bottom edge. Pull the wires from your
wall through the center hole of the Greenlite AirzTM base.
Secure the base to the
wall using the
included mounting
hardware .

16 | 267.417.3177
Step 4.6: Following the terminal labels marked “Power Bridge”
on the thermostat base, loosen the screw and insert each
labeled wire into the top hole of the corresponding terminal.
Connect as follows:
Terminal 1
T
erminal 2
Terminal 3
Terminal 4
Y Wire
W Wire
R Wire
G Wire C
C
W1
W1
W2
O/B
1 4 2
Y1
Y1
RC
RC
RH
RH
G
G
3
YGW R
Step 4.7: Securely fasten Greenlite AirzTM onto its base.
Step 4.8: Go to your furnace – remove the door or panel
and locate your control board or transformer. In most cases,
there should be four wires running from the furnace to your
thermostat – Y, G, W, and R. If you have additional wires, leave
them as is.

greenliteusa.com | 17
INSTALLATION WITH
P-BRIDGE4.
Step 4.9: i) Matching the letters, label the wires connected to
your furnace with the included wire labels for the
Power Bridge.
Take a picture of the wiring at your control board.
ii) Disconnect these wires from the control board.
iii)Open the Power Bridge and insert each of your
old wires into the corresponding numbered
terminals in the Power Bridge.
iv)Finally, insert the Power Bridge wires (with the
colored labels) into the corresponding terminals
on your furnace control board.
i) ii) iii) iv)
Y G W R C
1(Y)
Y G W R C
1(Y)
4(G)
2(W)
3(R)
Y G W R C
1(Y)
4(G)
2(W)
3(R)
C
4(G)
Y G W R C
1(Y)
Y G W R C
1(Y)
4(G)
2(W)
3(R)
Y G W R C
1(Y)
4(G)
2(W)
3(R)
C
4(G)
1(Y)
4(G)
1(Y)
4(G)
2(W)
3(R)
C
3(R)
2(W)
Y G W R C
1(Y)
Y G W R C
1(Y)
4(G)
2(W)
3(R)
Y G W R C
1(Y)
4(G)
2(W)
3(R)
C
4(G)
Furnace Furnace Furnace
Step 4.10: Secure the Power Bridge to your furnace. If
you had to remove a panel or door to access your control
panel, replace it now.
Step 4.11: Return power to your heating and cooling
system. If your system, including your thermostat, does not
power up please call Greenlite Technical Support.
After Greenlite AirzTM powers up, you are ready to
configure it for your heating and cooling system and
connect to a wireless network.

18 | 267.417.3277
Setup - Selecting your System Type
Step 5.1: After your thermostat powers up, your Greenlite
AirzTM will auto scan the terminal pins to determine what type
of HVAC system you have. If there is more than one possible
system type, you will need to select your system type
(options described on the next page).
Step 5.2: Use the Up and Down
arrows to cycle through the system
options. With your system type
displayed, press the center button to
continue to Network Setup on Page 22.

greenliteusa.com | 19
HVAC SYSTEM
SETUP5.
System options:
Electric Furnace:
Electric system with fan.
Thermostat calls for fan to
run with heat.
Gas Furnace:
Gas system with fan.
Thermostat calls for fan to
run with heat.
Air Conditioning Only:
Cooling Only. Thermostat
calls for fan to run with cool.
Continued on Page 20.

20 | 267.417.3277
System options (con’t):
Boiler:
Boiler heating system with no
fan connected.
Heat Pump:
Heat pump system,
thermostat calls for fan to run
with heat or cool.
NOTE: If you have a heat pump system, press the center button to select.
Greenlite AirzTM will now ask you to confirm your valve type. Use the up and
down arrows to toggle between O & B Valves, press the center button to
select:
