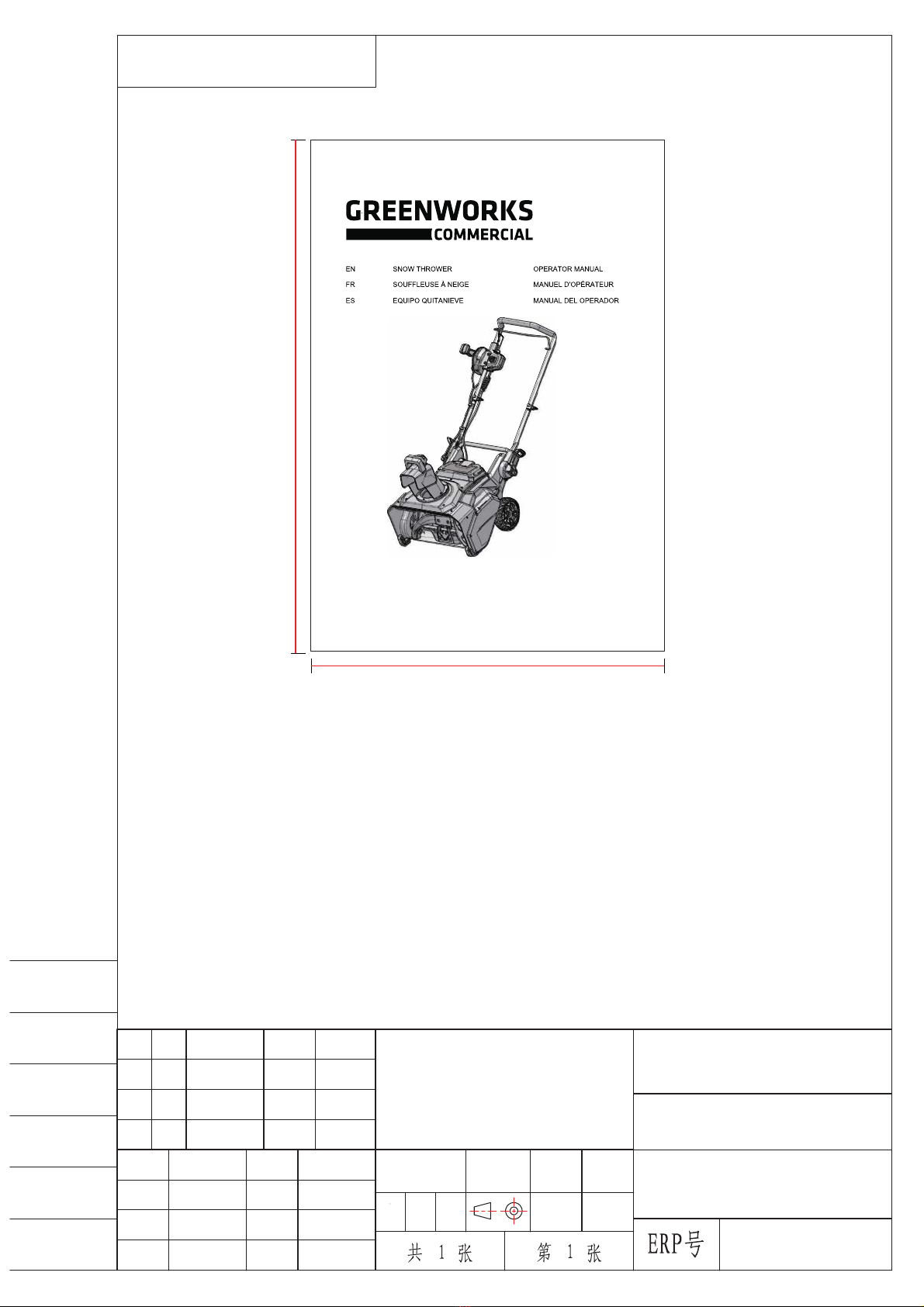

GreenWorks Commercial 82SN22 User manual
P0802535-00
P0802535-00
GWC 82V 扫雪机
2607602
技术要求：
2.40P, 内容见电子档；
3.单色印刷，要求无色差、无污点；色块在最外侧
4.骑马钉，裁切均匀、无连页；
5.以封样为准；
6.料件需符合格力博HSF文件(编号：GLB-CGR-146) 里关于环保和有害物质的具体要求。
1.材质要求：60g双胶纸；
常州格力博集团
说明书
黄潇笑
刘小娟
周艳
王小妮
李海平
20.05
版本号
描 复
日 期
工艺
审核
校对
设计
标记处数 签名 日期
阶段标记 视角标记 重量 比例
批准
审定
标准化
日期
更改文件号
SCALE: A5
210mm
145mm
ABS
B
SNB405
82SN22
www.greenworkscommercial.com
www.shopgreenworksgear.com
SNB405
82SN22
www.greenworkscommercial.com
www.shopgreenworksgear.com
1 DESCRIPTION
1.1 PURPOSE
This machine is used to remove and clear away snow from
pavements, gardens, driveways and other ground-level
surfaces.
1.2 OVERVIEW
1Handle bar
2Bail lever
3Safety switch button
4Chute control rod
5Battery door
6Chute deflector
7Discharge chute
8LED lights
9Scraper
10 Impeller
11 Wheel
12 Quick-release lever
13 Lower handle
14 Upper handle
15 Middle handle
16 Knob
17 Bolt
18 Screw
19 Nut
20 Battery pack
21 Battery release button
22 Trigger
23 Chute-rotation box
24 Switch box
25 Slot
26 Groove
27 Side wear pad
28 Belt
29 Pulley
30 Skid plates
31 Spacer
32 Cam lock
2 GENERAL POWER TOOL
SAFETY WARNINGS
WARNING
Read all safety warnings and all instructions. Failure to
follow the warnings and instructions may result in electric
shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your battery-
operated (cordless) power tool.
2.1 TRAINING
• Do not allow children under the age of 14 to operate this
tool. Children who are 14 years of age or older must read
and understand the operating instructions and safety rules
in this manual and must be trained and supervised by a
parent.
• Read the operating and service instruction manual
carefully. Be thoroughly familiar with the controls and
the proper use of the power tool. Know how to stop the
unit and disengage the controls quickly.
• Never allow children to operate the power tool. Never
allow adults to operate the power tool without proper
instruction.
• Keep the area of operation clear of all persons,
particularly small children, and pets.
• Exercise caution to avoid slipping or falling, especially
when operating in reverse.
• Do not use on graveled surfaces.
• Dress Properly – Do not wear loose clothing or jewelry.
They can be caught in moving parts.
• Wear appropriate boots when operating the snow thrower.
• Operation of the snow thrower in the hand-held position
is unsafe, except in accordance with the special
instructions for such use provided in the operator’s
manual.
2.2 PREPARATION
• Thoroughly inspect the area where the power tool is to be
used and remove all doormats, sleds, boards, wires, and
other foreign objects.
4
English
EN
㸦㸧
㸪

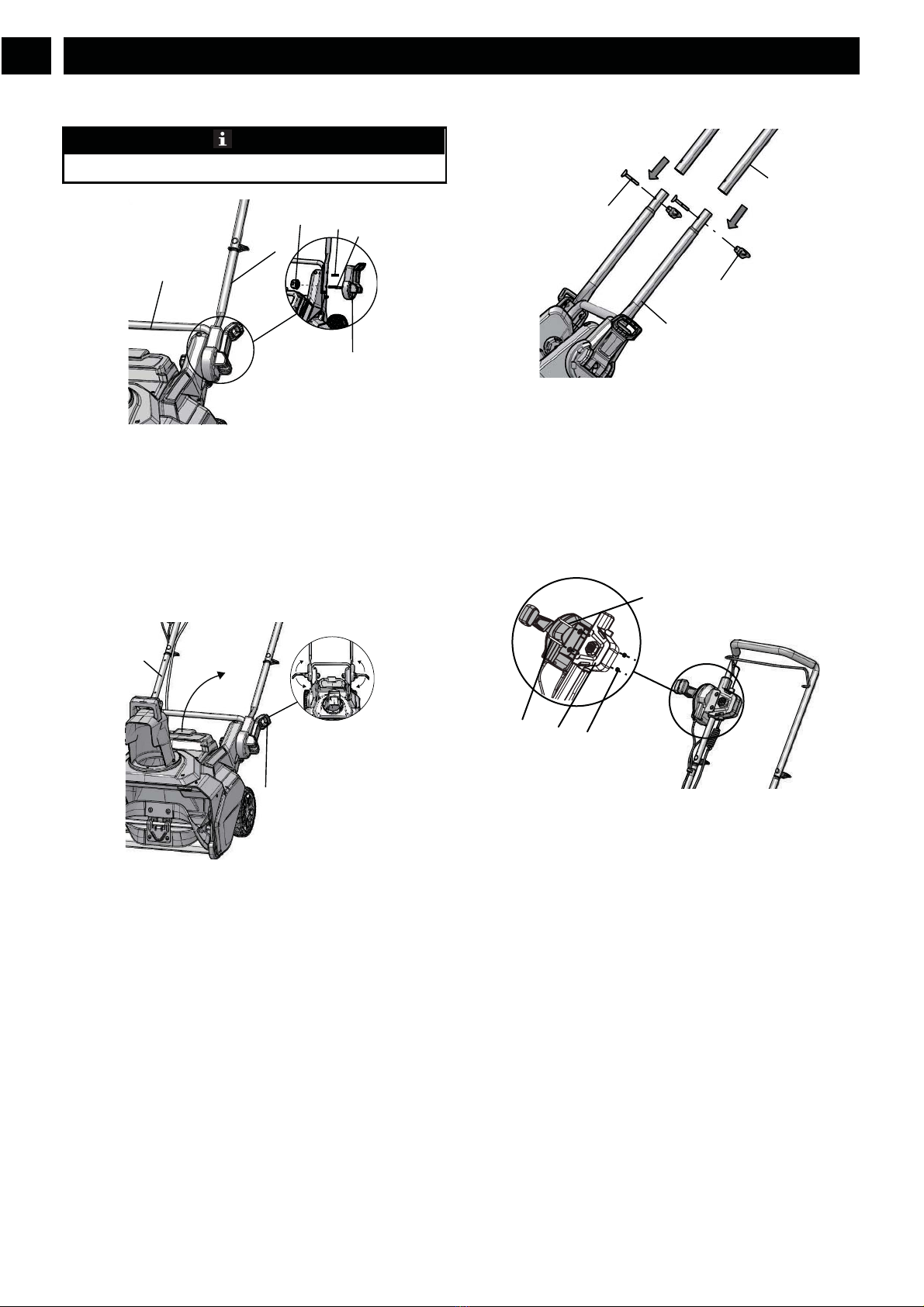

7.2 CAM LOCK ASSEMBLY
NOTE
Do not tighten the knob until the cam lock is in place.
1. Remove the knob (16) and spacer (31) from the cam lock
(32).
2. Insert the bolt (17) through the lower handle housing.
3. Slide the spacer (31) over the bolt (17).
4. Screw on the knob (16).
5. Fold the cam lock (32) to lock the handle into place.
7.3 UNFOLD THE MIDDLE HANDLE
1. Open the quick-release levers (12) on the two sides of the
middle handle (15).
2. Unfold the middle handle (15) until they come to a stop.
3. Close the quick-release levers (12).
4. Tighten the knobs (16) to hold the middle handle (15) in
position.
7.4 INSTALL THE UPPER HANDLE
1. Align the holes in the middle handle (15) and the upper
handle (14).
2. Put the bolts (17) through the holes.
3. Tighten the handle knobs (16) onto the bolts (17).
4. Do the same operation on the other side.
7.5 INSTALL THE CHUTE-ROTATION
BOX
18
23 24 19
1. Align the holes in the panel of the chute-rotation box (23)
and the switch box (24).
2. Put the chute-rotation box screws (18) through the holes.
3. Tighten the chute-rotation box screw nuts (19) with a
wrench (not included).
8
English
EN
32
13
17
3116
15
15
12
17
16
14
15

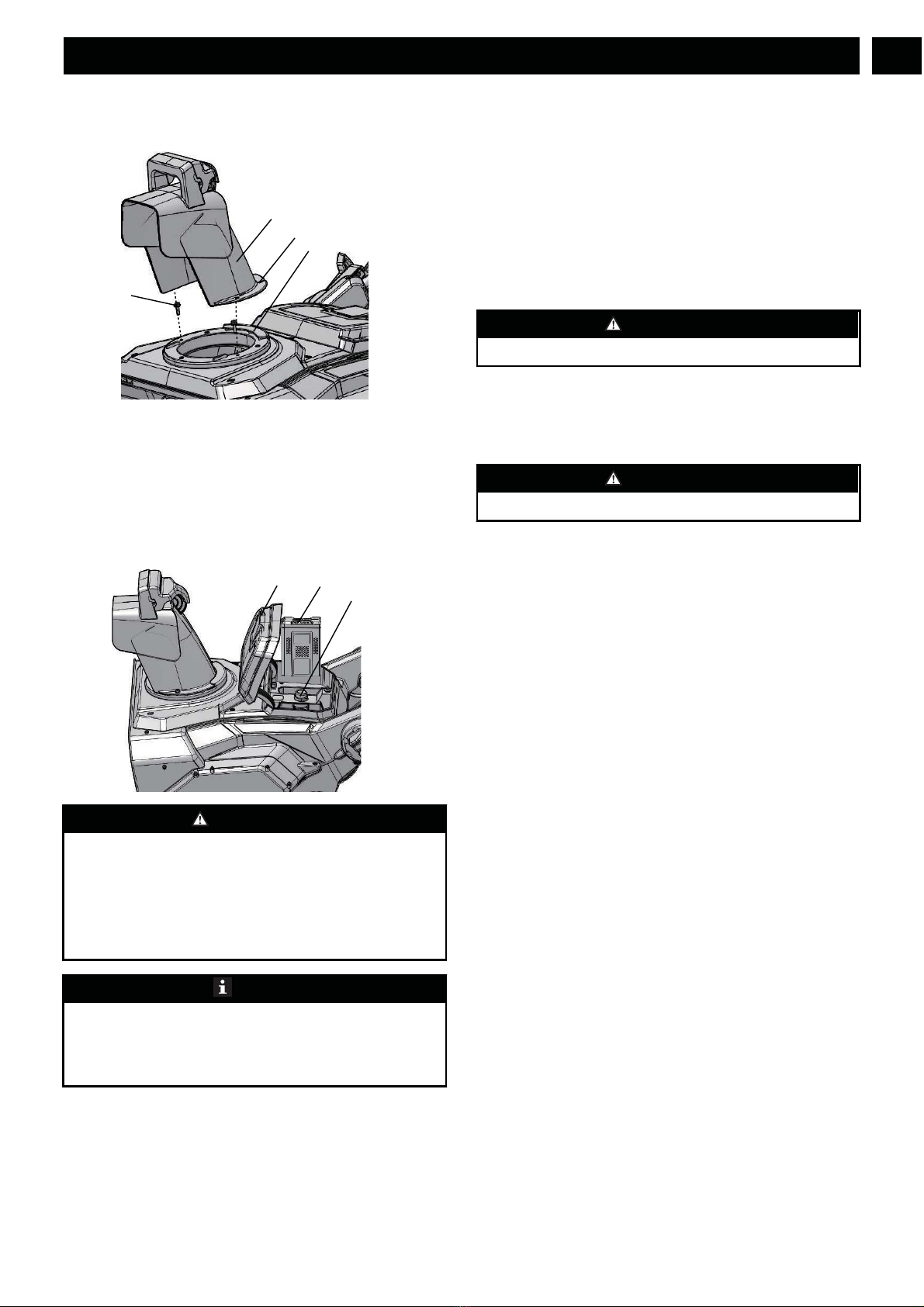

7.6 INSTALL THE CHUTE
DEFLECTOR
1. Align the grooves (26) of the discharge chute with the
slot (25) on the chute housing.
2. Push the discharge chute (7) into position.
3. Tighten the discharge chute screws (18) with a Phillips
head screw driver to lock the discharge chute.
7.7 INSTALL THE BATTERY PACK
WARNING
• If the battery pack or charger is damaged, replace the
battery pack or the charger.
• Stop the machine and wait until the engine stops before
you install or remove the battery pack.
• Read, know, and follow the instructions in the battery
and charger manual.
NOTE
This machine has the dual-pack switch function that lets the
other battery pack continue to operate when the first one is
out of battery after 2-3 seconds. The machine can be
increased the double working time by the function.
1. Open the battery door (5).
2. Align the ribs on the battery pack (20) with the grooves in
the battery compartment.
3. Push the battery pack (20) into the battery compartment
until the battery pack (20) locks into place.
4. When you hear a click, the battery pack (20) is installed.
5. Close the battery door (5).
7.8 REMOVE THE BATTERY PACK
1. Open the battery door (5).
2. Push and hold the battery release button (21).
3. Remove the battery pack (20) from the machine.
8 OPERATION
WARNING
Wear eye protection during operation.
8.1 COLD WEATHER OPERATION
The safe battery operation temperature ranges from 1°F
(-17°C) to 113°F (45°C).
WARNING
Do not store or charge battery outside.
Battery must be charged and stored indoors prior to use of the
machine.
If the machine does not start:
• remove the battery pack from the machine,
• charge the battery pack to 15 minutes in warm area, or
when the charging light turns green.
• Install the battery pack back in the unit.
9
English EN
726 25
18
21
20
5
8.2 START THE MACHINE
1. While holding the safety switch button (3), pull the bail
lever (2) to start the machine.
2. At the same time, the LED lights (8) can be turned on.
WARNING
Keep bystanders a safe distance from the machine.
WARNING
Examine the work area. Remove all stones, sticks, wire,
bones, and other debris that can ricochet because of the
rotating impeller.
8.3 STOP THE MACHINE
1. Release the bail lever (2) to stop the machine.
2. At the same time, the LED lights (8) can be turned off.
WARNING
Wait until the impeller fully stops before you start the
machine again. Do not quickly turn the machine off and on.
8.4 ADJUST THE DISCHARGE CHUTE
You can adjust the discharge chute 180° to change the snow
direction.
1. Push the chute-rotation handle (4) forward to move the
discharge chute (7) to the left.
2. Push the chute-rotation handle (4) rearward to move the
discharge chute (7) to the right.
8.5 ADJUST THE CHUTE DEFLECTOR
You can adjust the chute deflector up and down to change the
throwing distance of the snow.
10
English
EN
4
7
22
6
WARNING
Release the bail switch before you adjust the chute
deflector.
WARNING
Do not push the deflector so far forward that a gap shows
between the deflector and the chute.
1. Push and hold the trigger (22) on the chute deflector (6).
2. Move the chute deflector (6) up to increase the snow
distance.
3. Move the chute deflector (6) down to decrease the snow
distance.
8.6 OPERATION TIPS
• If it is possible, clear the snow with the direction of the
wind.
• In strong winds, lower the chute deflector to direct the
snow to the ground.
• When you complete the work, let the machine operate for
a while to prevent ice formation in the discharge chute.
• If the snow is deeper than 8", decrease the speed and let
the machine work at its own rhythm.
• Do not use the scraper to remove compact snow and ice.
9 MAINTENANCE
CAUTION
Use only approved replacement parts.
CAUTION
Do not use strong solvents or detergents on the plastic
housing or components.
9.1 GENERAL MAINTENANCE
• Before each use, examine the machine for damaged,
missing, or loose parts such as screws, nuts, bolts and
caps.
• Tighten correctly all the fasteners and caps.
• Clean the remaining snow on the machine with a brush.

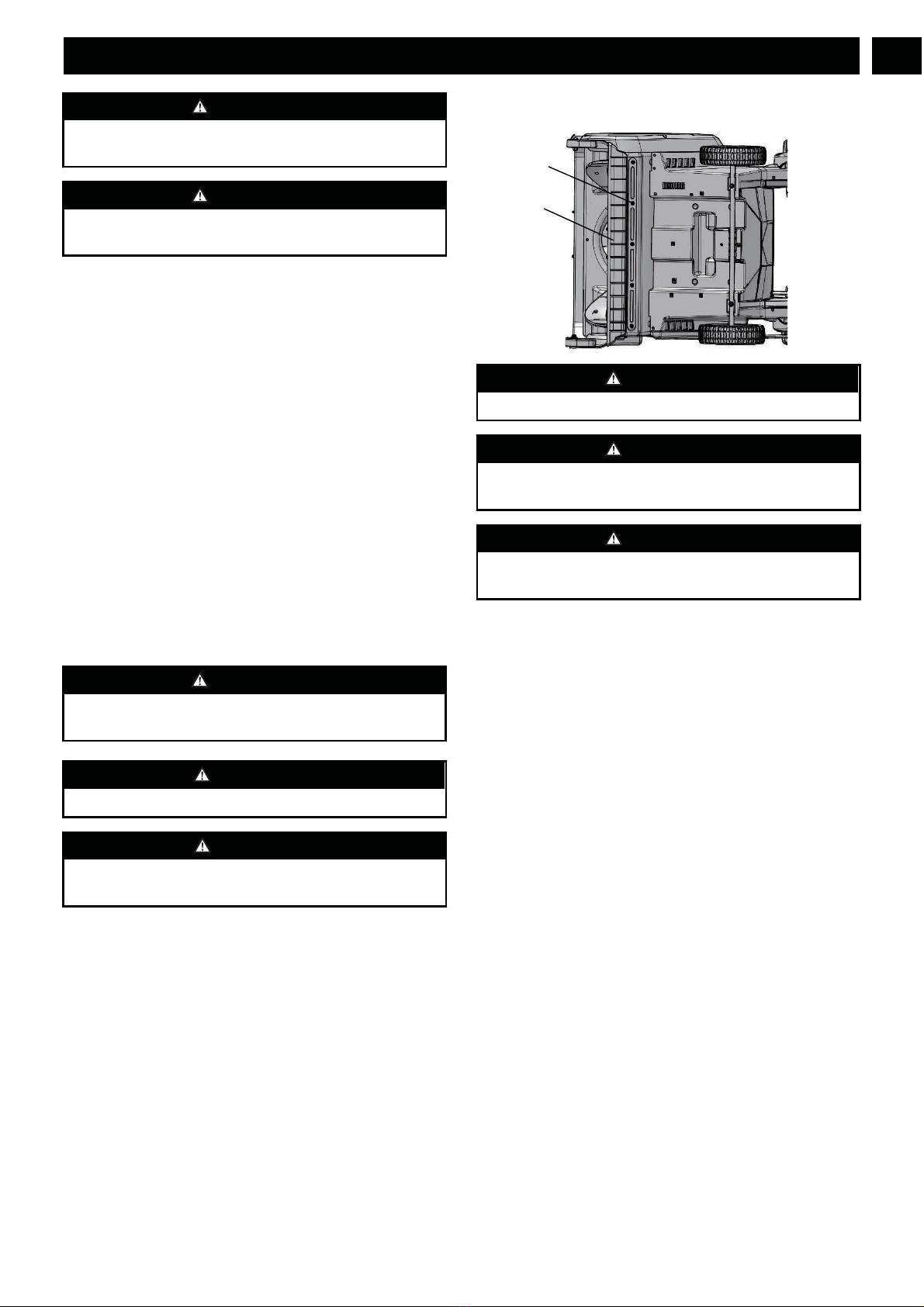

9.2 REPLACE THE SCRAPER
WARNING
Use only approved replacement scrapers.
WARNING
Wear heavy gloves around the blade when you touch the
blade.
WARNING
The scraper is located at the bottom of the impeller housing.
Ensure that the battery is not installed in the tool.
1. Turn the machine to its side.
2. Remove the 5 bolts (17) below the deck that attach the
scraper (9) to the machine.
3. Remove the worn scraper (9) from the machine.
4. Install the new scraper (9).
5. Install and tighten the bolts (17) that you removed.
11
English EN
17
9
WARNING
Remove the battery pack from the machine before
maintenance.
9.3 REPLACE THE BELT
WARNING
Make sure to turn off the bail lever and remove the battery
pack(s) before performing any maintenance task on your
snow thrower.
1. Remove the screws (18) on the side wear pad (27).
2. Turn the large pulley (29) counterclockwise while you
remove the remaining belt (28).
3. Turn the new belt (28) onto the pulleys (29).
4. Install and tighten the screws (18) that you removed.
9.4 REPLACE THE IMPELLER
WARNING
Make sure to turn off the bail lever and remove the battery
pack(s) before performing any maintenance task on your
snow thrower.
1. Remove the 4 sets of nuts and bolts on the middle steel
plate.
2. Remove the 4 sets of nuts and bolts on each side.
3. Remove the impellers (10).
4. Install the new impellers (10).
5. Tigthen the 8 sets of nuts and bolts that you removed.
9.5 REPLACE THE SKID PLATES
NOTE
The range of adjustable height for skid plates is 1.5mm,
when putting the bolts through the U-hole on the skid
plates.
1. Loosen the 2 sets of bolts (17), spacers (31) and nuts (19)
that attach the skid plates (30) to the snow thrower
housing.
2. Remove the skid plates (30).
3. Install the new skid plates (30).
4. Do the same operation on the other side.
9.6 STORE THE MACHINE
• Clean the machine before storage.
• Make sure the motor is not hot when you store the
machine.
• Make sure that the machine does not have loose or
damaged parts. If it is necessary, do these steps/
instructions:
• Replace the damaged parts.
• Tighten the bolts.
• Speak to a person at an approved service center.
• Store the machine in a dry area.
• Make sure that children cannot come near the machine.
12
English
EN
18 27
29 28
10
17 30 31 19
10 TROUBLESHOOTING
Problem Possible cause Solution
The handle is not
in position.
The bolts are not
engaged correctly.
Adjust the height
of the handle and
make sure that the
knobs and bolts
are aligned cor-
rectly.
The machine does
not start.
The battery is not
charged.
Charge the battery
by following the
procedures in the
battery and charg-
er manual.
The switch is de-
fective.
Have the switch
replaced by an au-
thorized service
center.
Battery is too cold. Remove battery
from snow throw-
er. Place battery on
charger and allow
to charge for 10
minutes or until
the changing light
turns green. Re-
move from charger
and install in snow
thrower for use.
Battery may re-
quire service or re-
placement.
Call toll free help-
line, at
1-855-470-4267 or
replace battery.
The engine is on,
but the impeller
does not turn.
The belt is dam-
aged.
Replace the belt.
A thin layer of
snow stays behind.
The scraper is
damaged.
Replace the scra-
per.
* If you cannot find the solution to these problems, call
1-855-470-4267 .
11 TECHNICAL DATA
Voltage 82 V
No load speed 1800 RPM
Clearing width 22 in (55.9 cm)
Clearing depth 13 in (33.0 cm)
Impeller size 18 in (45.7 cm)
Weight (without battery pack) 25.8 kg (56.9 lbs)
Battery GL500 and other GL series
Charger GC400 and other GC series
Double-insulated construc-
tion
12 LIMITED WARRANTY
Greenworks hereby warranties this product, to the original
purchaser with proof of purchase, 2 year commercial power
train warranty, 2 year commercial battery warranty against
defects in materials, parts or workmanship. Greenworks, at its
own discretion will repair or replace any and all parts found
to be defective, through normal use, free of charge to the
customer. This warranty is valid only for units which have
been used for personal or commercial use and that have been
maintained in accordance with the instructions in the owners’
manual supplied with the product from new.
2 YEAR LIMITED POWER TRAIN WARRANTY
COVERAGE:
– Motor
– PCB Boards
– Gear Box
– 2 years from the date of purchase (non transferable)
2 YEAR LIMITED BATTERY WARRANTY
COVERAGE:
– Greenworks Commercial Battery Packs (GL 250, GL 400,
GL 500, GL 900, GLW 300, GLW 600, GL400BT and other
GL/GLW series)
– 2 year from the date of purchase (non transferable)
60 DAY LIMITED WEARABLE PARTS WARRANTY
COVERAGE:
– Bars
– Blades
– Guards
– Chains
– Bump Feed Heads
– Tines
– 60 Days from date of purchase (non transferable)
13
English EN
1 DESCRIPTION
1.1 BUT
Cette machine est utilisée pour enlever et déblayer la neige
des trottoirs, jardins, allées et autres surfaces au niveau du
sol.
1.2 APERÇU
1Guidon
2Levier de verrouillage
3Bouton de sécurité de l’interrupteur
4Tige de commande de la goulotte
5Trappe de la batterie
6Déflecteur de la goulotte
7Goulotte d'éjection
8Lumière DEL
9Grattoir
10 Turbine
11 Roue
12 Levier à dégagement rapide
13 Poignée inférieure
14 Partie supérieure du guidon
15 Poignée du milieu
16 Bouton
17 Boulon
18 Vis
19 Écrou
20 Batterie
21 Bouton d’éjection de la batterie
22 Gâchette
23 Boîte de rotation de la chute
24 Boîtier de commutateur
25 Fente
26 Rainure
27 Usure de plaquette de frein
28 Courroie
29 Poulie
30 Disques de protection
31 Espaceur
32 Verrou à came
2 AVERTISSEMENTS
GÉNÉRAUX DE SÉCURITÉ
DES OUTILS ÉLECTRIQUES
AVERTISSEMENT
Lisez tous les avertissements de sécurité et toutes les
instructions. Le non-respect de ces avertissements et de ces
instructions peut entraîner un choc électrique, un incendie
et/ou des blessures graves.
Conservez tous les avertissements et instructions pour
référence ultérieure.
Le terme « outil électrique » dans les avertissements fait
référence à votre outil électrique (sans fil) fonctionnant sur
batterie.
2.1 FORMATION
• Ne laissez pas un enfant de moins de 14 ans utiliser cet
outil. Les enfants de 14 ans ou plus doivent lire et
comprendre les instructions d'utilisation et les règles de
sécurité contenues dans ce manuel et doivent être formés
et supervisés par un parent.
• Lisez attentivement le mode d’emploi et le manuel
d’utilisation. Familiarisez-vous parfaitement avec les
commandes et l’utilisation correcte de l’outil électrique.
Apprenez comment arrêter l'appareil et désengager
rapidement les commandes.
• Ne laissez jamais les enfants utiliser l’outil électrique.
N’autorisez jamais les adultes à utiliser l’outil électrique
sans instruction appropriée.
• Garder la zone d'opération à l'écart de toute personne, en
particulier les jeunes enfants et les animaux domestiques.
• Faites preuve de prudence pour éviter le glissement ou la
chute, surtout en opération en marche arrière.
• N’utilisez pas sur des surfaces caillouteuses.
• Habillez-vous correctement – Ne portez pas de vêtements
amples ou de bijoux. Ils pourraient se coincer dans les
pièces en mouvement.
• Portez des bottes adéquates lorsque vous utilisez la
déneigeuse.
• L’utilisation de la souffleuse à neige soutenue dans les
mains est dangereuse, sauf lorsqu'utilisée en conformité
avec les instructions spéciales pour cette utilisation
fournies dans le manuel de l’utilisateur.
16
Français
FR
This manual suits for next models
1
Table of contents
Languages:
Other GreenWorks Commercial Snow Blower manuals
