Read all safety rules and instructions carefully before operating this tool.
Owner’s Manual
TOLL-FREE HELPLINE: 1-833-493-5483
www.greenworkselite.com
40V 20'' Cordless Snow Thrower
(SN-200-T)
2605302
@设变前编号388011991，更新封面图和质保年限。
@ 1 新封面图和质保
年限 黄潇笑 2020.08.03

Read all safety rules and instructions carefully before operating this tool.
Owner’s Manual
TOLL-FREE HELPLINE: 1-833-493-5483
www.greenworkselite.com
40V 20'' Cordless Snow Thrower
(SN-200-T)
2605302

2
Contents .............................................................................................................................. 2
.......................................................................................................... 2
Important Safety Instructions............................................................................................... 3
Symbols ............................................................................................................................... 6
Know your snow thrower...................................................................................................... 8
Assembly Instruction ........................................................................................................... 9
Operation Instruction ......................................................................................................... 16
Maintenance ...................................................................................................................... 20
Environmentally Safe Battery Disposal.............................................................................. 24
Troubleshooting ................................................................................................................. 25
Warranty ............................................................................................................................ 26
Exploded View .................................................................................................................. 27
Parts List............................................................................................................................ 28
PRODUCT SPECIFICATIONS
40V 20'' CORDLESS SNOW THROWER
Motor ....................................................................................................40 V brushless motor
Battery type ................................................................................................. 40 V Lithium-ion
No-load speed ..................................................................................................... 1,900 RPM
Clearing width.................................................................................................. 20 " (50.8 cm)
Clearing depth .................................................................................................10 " (25.4 cm)
Impeller size .................................................................................................... 16 " (40.6 cm)
Weight (without battery).............................................................................. 34.2 lbs (15.5 kg)
CONTENTS
Cold Weather Operation: Lithium Ion batteries can be safely used from temperatures ranging
from -17 degrees to 45 degrees Celsius. NOTE: Do not store or charge battery outside. Battery
must be charged and stored indoors prior to use of the snow thrower.
Battery may not properly start if its temperatures is -17˚C or lower. If unit does not start remove
battery from snow thrower. Bring battery and charger in to a warm temperature area. Place
battery on charger and allow to charge for 10 minutes to allow the battery to warm up. Once
Snowthrower for use.

3
IMPORTANT SAFETY INSTRUCTIONS
Save all warnings and instructions for future reference.
The term “power tool” in all of the warnings listed below refers to your mains-operated
(corded) power tool or battery-operated (cordless) power tool.
• Walk. Do not run.
• Verify that the power tool is not in contact with anything before turning it on.
• Stay away from impeller openings at all times. Keep face, hands, and feet away from
concealed, moving, or rotating parts.
• Be attentive when using the power tool, and stay alert for holes in the terrain and other
hidden hazards or trafc.
• Move up and down slopes when clearing snow. Do not go across a slope. Use caution
when changing direction. Do not use this power tool to clear snow from steep slopes.
• Do not operate the power tool if the guards, plates, and other safety protective devices
are not in place.
• Do not operate the power tool near glass enclosures, automobiles, trucks, window
wells, drop-offs, etc. without properly adjusting the angle of the snow discharge. Keep
children and pets away from the work area.
• Do not operate the power tool at high speeds on slippery surfaces. Look behind when
backing up and exercise caution.
• Wear safety glasses or goggles that meet ANSI Z87.1 standards.
• Use the power tool in daylight or in good articial light. If using at night, turn on the LED
lights and be aware of your surroundings.
• To avoid accidental start-ups, remain in the starting position when turning the power
tool on. The operator and the power tool must be in a stable position during start-up. See the
section titled Starting/Stopping Instructions.
• Use this power tool only for the purposes it was designed.
• Hold the power tool with both hands while it is in use. Keep a rm grip on the handles.
• If the impeller does not rotate freely due to ice, thaw the power tool thoroughly before
attempting to use it.
• Keep the impeller clear of debris.
• Do not attempt to clear the impeller while the motor is running.
• After striking a foreign object, turn the power tool off and remove the battery pack, and
then inspect it for damage. Repair any damage before restarting and using the power tool.
• If the power tool starts to vibrate abnormally, stop the power tool immediately and
attempt to determine the cause. Vibration is generally an indication of danger.
• Stop the motor and remove the battery pack whenever the operator is not in the
operating position, before unclogging the impeller, and before making any repairs,
adjustments, or inspections.
WARNING
Read all safety warnings and all instructions. Failure to follow the warnings and instructions
may result in electric shock, re, and/or serious injuries.

4
IMPORTANT SAFETY INSTRUCTIONS
• Do not use on graveled surface unless the power tool is adjusted for such a surface in
accordance with the operator’s manual.
• Keep Children Away– All visitors should be kept a safe distance from work area.
• Dress Properly – Do not wear loose clothing or jewelry. They can be caught in moving parts.
• Wear rubber boots when operating the power tool. Do not operate the equipment when
barefoot or wearing open sandals. Always wear substantial footwear.
• Operation of the power tool in the hand-held position is unsafe, except in accordance
with the special instructions for such use provided in the operator’s manual.
• Keep guards in place and in working order.
• Don’t Force Power tool – It will perform better and safer at the rate for which it was designed.
• Don’t Overreach – Keep proper footing and balance at all times.
• If the power tool strikes a foreign object, follow these steps:
i) Stop the power tool.
ii) Inspect for damage.
iii) Repair any damage before restarting and operating the power tool.
• Store Idle Power tool Indoors – When not in use, power tools should be stored indoors in
dry, locked-up place – out of reach of children.
• Maintain Power tools With Care – Follow instructions for lubricating and changing
accessories.
• Allow the power tool to run for a few minutes after clearing snow in order to prevent
moving parts from freezing.
• Only use identical replacement parts and accessories for this power tool. The use of
nonidentical parts or accessories could lead to serious injury to the user or damage the power
tool, and will void the warranty.
• Do not pick up the power tool while it is running. The power tool is designed to travel
along the ground.
• Never allow children to operate a power tool. Keep the area of operation clear of all
persons, particularly small children, and pets.
• Thoroughly inspect the area where the equipment is to be used and remove all stones,
sticks, wires, bones, and other foreign objects.
• Stop the blade(s) when crossing gravel driveways, walkways, or roads.
• Read the operator’s manual carefully. Be thoroughly familiar with the controls and the
proper use of the equipment.

5
IMPORTANT SAFETY INSTRUCTIONS
GENERAL SAFETY RULES
• Verify that the power tool is secure while transporting.
• Store the power tool in a dry area that will prevent unauthorized use or damage. Keep
out of the reach of children.
• Keep handles dry, clean, and free of debris. Clean the power tool after each use. Refer to
the Maintenance Section in this manual for more information.
• If the labels on the power tool become defaced or start to lift off, contact customer
service at 1-833-493-5483.
• Keep these instructions in a safe place for future reference. Refer to them often, and use
them to instruct other users. Anyone who uses this power tool must read these instructions
carefully.
• Maintain the power tool with care. Follow the instructions for lubricating and changing
accessories.
CAUTION
USE ONLY GREENWORKS ELITE APPROVED REPLACEMENT BATTERIES, OTHER
BATTERIES MAY CAUSE INJURY OR DAMAGE TO THE SNOW THROWER. USE ONLY WITH
GREENWORKS ELITE 40V BATTERY (Model#: L-300,L-600) and GREENWORKS ELITE 40V
CHARGER (Model#: C-220,C-400).
WARNING(PROPOSITION 65)
This product contains a chemical known to the state of California to cause cancer, birth defects
or other reproductive harm.
Some dust created by power sanding, sawing, grinding, drilling and other construction activities
contains chemicals known to cause cancer, birth defects or other reproductive harm. Some
examples of these chemicals are:
• Lead from lead-based paints,
• Crystalline silica from bricks and cement and other masonry products, and
• Arsenic and chromium from chemically-treated lumber.
Your risk of exposure to these chemicals varies depending on how often you do this type of
work. To reduce your exposure to these chemicals, work in a well-ventilated area, and work with
approved safety equipment, such as dust masks that are specially designed to lter out microscopic
particles.
SAVE THESE INSTRUCTIONS

Some of the following symbols may be used on this product. Please study them and learn their
meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.
SYMBOLS
6

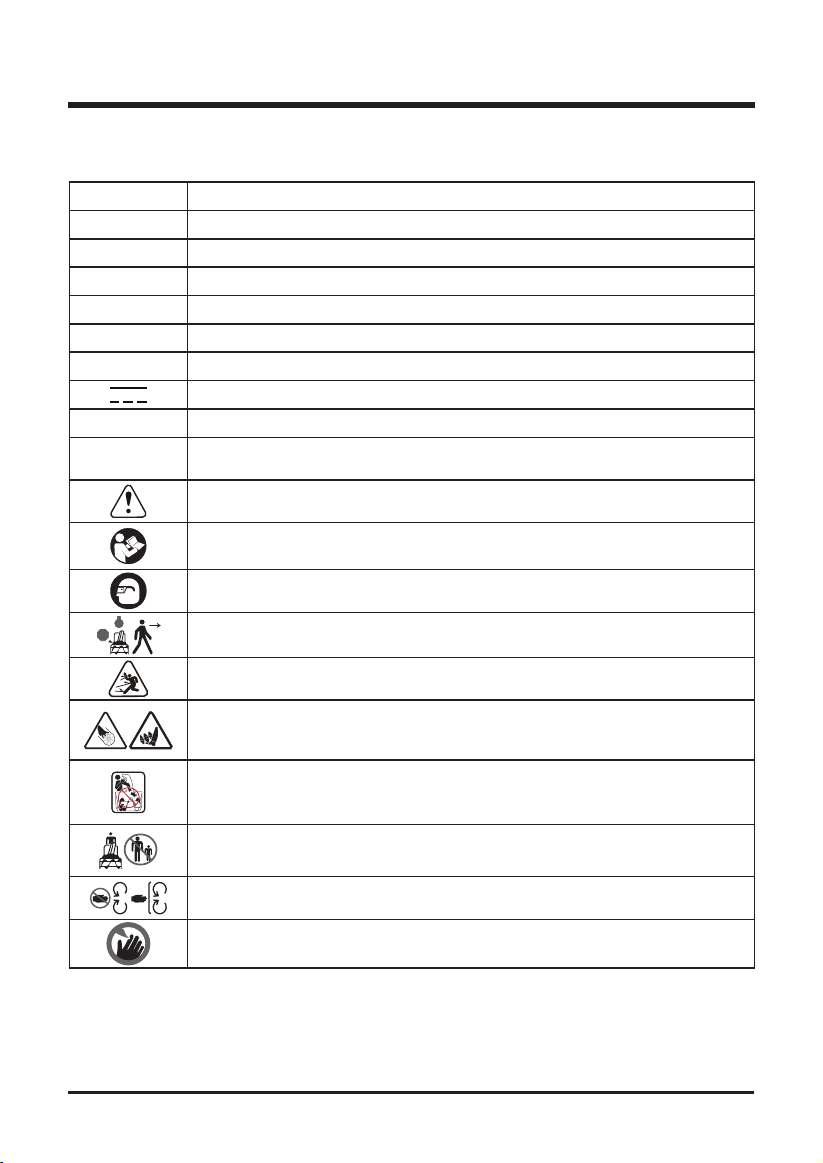

SYMBOL DESIGNATION/EXPLANATION
V Voltage
A Current
Hz Frequency (cycles per second)
Wh Watt Hour - Energy Storage Capacity
Ah Amp Hour - Current Capacity
DC Direct current
Type or a characteristic of current
RPM Revolutions per minute
/min Revolutions, strokes, surface speed, orbits etc., per minute
Indicates a potential personal injury hazard.
To reduce the risk of injury user must read and understand operator’s manual
before using this product.
Always wear safety glasses with side shields that are marked to comply with
ANSI Z87.1.
STOP
STOP
Stop the motor and remove the battery before leaving the machine.
Thrown objects can ricochet and result in personal injury or property damage.
Danger – Keep hands and feet away from openings while the machine is
running. Do not use hands to unclog chute. Stop motor and remove the battery
before removing debris.
Keep hands away from the discharge area.
Keep bystanders a safe distance from the machine.
Stay away from moving parts. Keep all guards and shields in place.
Keep hands and feet away.

7
The following signal words and meanings are intended to explain the levels of risk associated
with this product.
SYMBOLS
SAVE THESE INSTRUCTIONS
SERVICE
Servicing requires extreme care and knowledge and should be performed only by a qualied
service technician. For service we suggest you return the product to your nearest AUTHORIZED
SERVICE CENTER for repair. When servicing, use only identical replacement parts.
WARNING
To avoid serious personal injury, do not attempt to use this product until you have read this
Owner's Manual thoroughly and understand it completely. If you do not understand the warnings
and instructions in this Owner's Manual, do not use this product. Call the Toll-free Helpline
(1-833-493-5483) for assistance.
WARNING
The operation of any power tool can result in foreign objects being thrown into your
eyes, which can result in severe eye damage. Before beginning power tool operation,
always wear safety goggles or safety glasses with side shields and, when needed, a
full face shield. We recommend Wide Vision Safety Mask for use over eyeglasses or
standard safety glasses with side shields. Always use eye protection which is marked
to comply with ANSI Z87.1.
SYMBOL SIGNAL MEANING
DANGER Indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury.
WARNING Indicates a potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
CAUTION Indicates a potentially hazardous situation, which, if not avoided,
may result in minor or moderate injury.
CAUTION (Without Safety Alert Symbol) Indicates a situation that may
result in property damage.

8

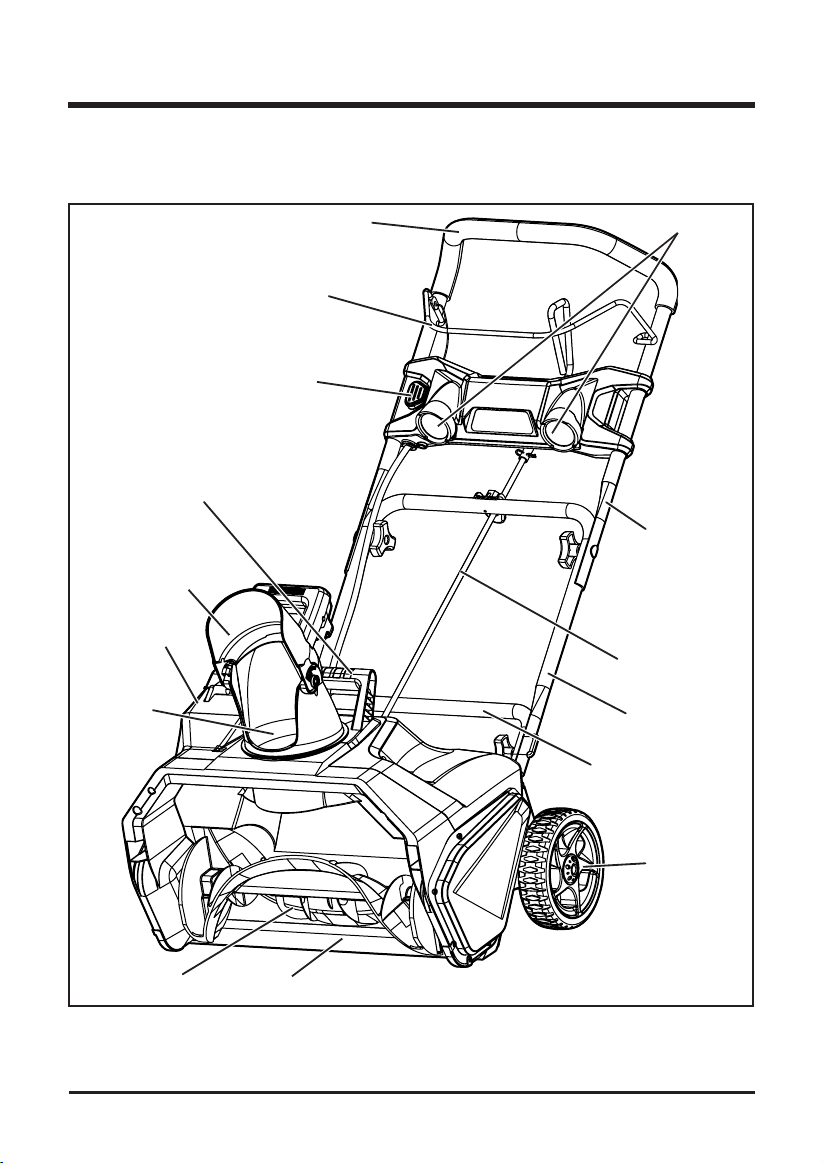

KNOW YOUR SNOW THROWER
Fig. 1
Read this operator's manual and safety rules before operating your snow thrower. Compare the
illustration in Figure 1 to your snow thrower in order to familiarize yourself with the location of
various controls and adjustments. Save this manual for future reference.
Battery
compartment
Upper handle
Middle handle
Carrying or lifting
handle (For
transport only)
Chute
control rod
Lower handle
Wheel
Handle bar
Bail lever
Impeller Scraper
Chute deector
Discharge
chute
Safety switch
button
LED lights

9
ASSEMBLY INSTRUCTIONS
PART NAME FIGURE QTY
Snow thrower 1
Upper chute control rod 1
Lower chute control rod 1
Middle handle 1
Upper handle 1
Chute deector 1
Bolts 2
U Bolts 2
Handle knobs 4
Hitch pin 1
Owner's Manual 1
PACKING LIST

10
UNPACKING
• Carefully remove the product and any accessories from the box. Make sure that all items
listed in the packing list are included.
• Inspect the product carefully to make sure no breakage or damage occurred during shipping.
• Do not discard the packing material until you have carefully inspected and satisfactorily
operated the product.
• If any parts are damaged or missing, please call 1-833-493-5483 for assistance.
WARNING
If any parts are damaged or missing, do not operate this product until the parts are replaced.
Failure to heed this warning could result in serious personal injury.
WARNING
Do not install the battery until assembly is complete. Failure to comply could result in accidental
starting and possible serious personal injury.
WARNING
Do not attempt to modify this product or create accessories not recommended for use with this
product. Any such alteration or modication is misuse, and could result in a hazardous condition
leading to possible serious personal injury.
WARNING
Do not allow familiarity with this product to make you careless. Remember that a careless
fraction of a second is sufcient to inict serious injury.
WARNING
Do not use any attachments or accessories not recommended by the manufacturer of this product.
The use of attachments or accessories not recommended can result in serious personal injury.

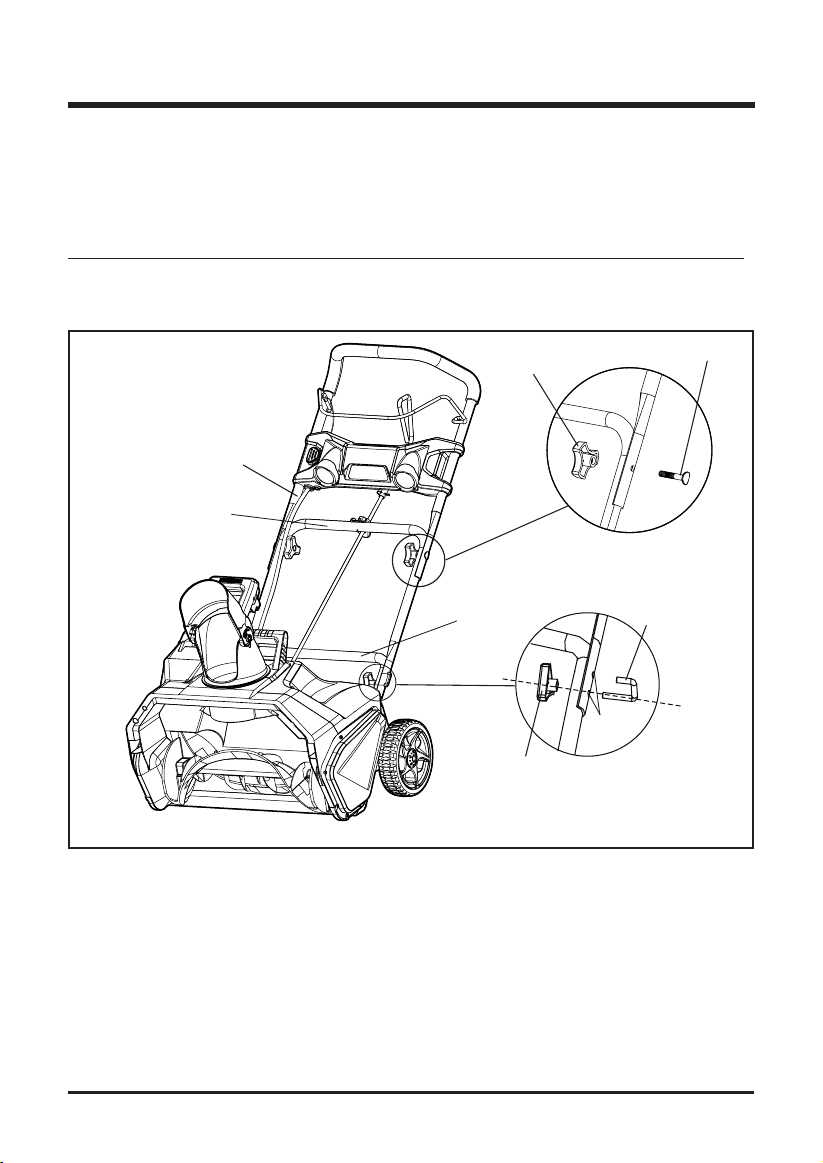

ASSEMBLY INSTRUCTIONS

11
ASSEMBLING THE HANDLE (See Figure 2)
• Align the holes (4) on the middle handle (2) and the lower handle (3). Insert the bolts (5), and
use the handle knobs (6) to tighten them.
• Align the hole on the middle handle (2) and the upper handle (1). Insert the bolts (7) and
tighten them with the handle knobs (8) provided.
NOTE: If the upper handle is loose or separated from the middle handle, tighten the handle knobs by turning
them clockwise. Do not overtighten the handle knobs.
ASSEMBLY INSTRUCTIONS
11
Fig. 2
(1)
(2)
(3)
(6)
(5)
(4)
(8) (7)

12
ASSEMBLING THE DISCHARGE CHUTE (See Figure 3)
Push the chute deector (1) until the latching tabs (2) on both sides click into the slots (3) and the
posts (4) on both sides click into the keyed holes (5).
ASSEMBLY INSTRUCTIONS
Fig. 3
1
2
5
42
5
33

13

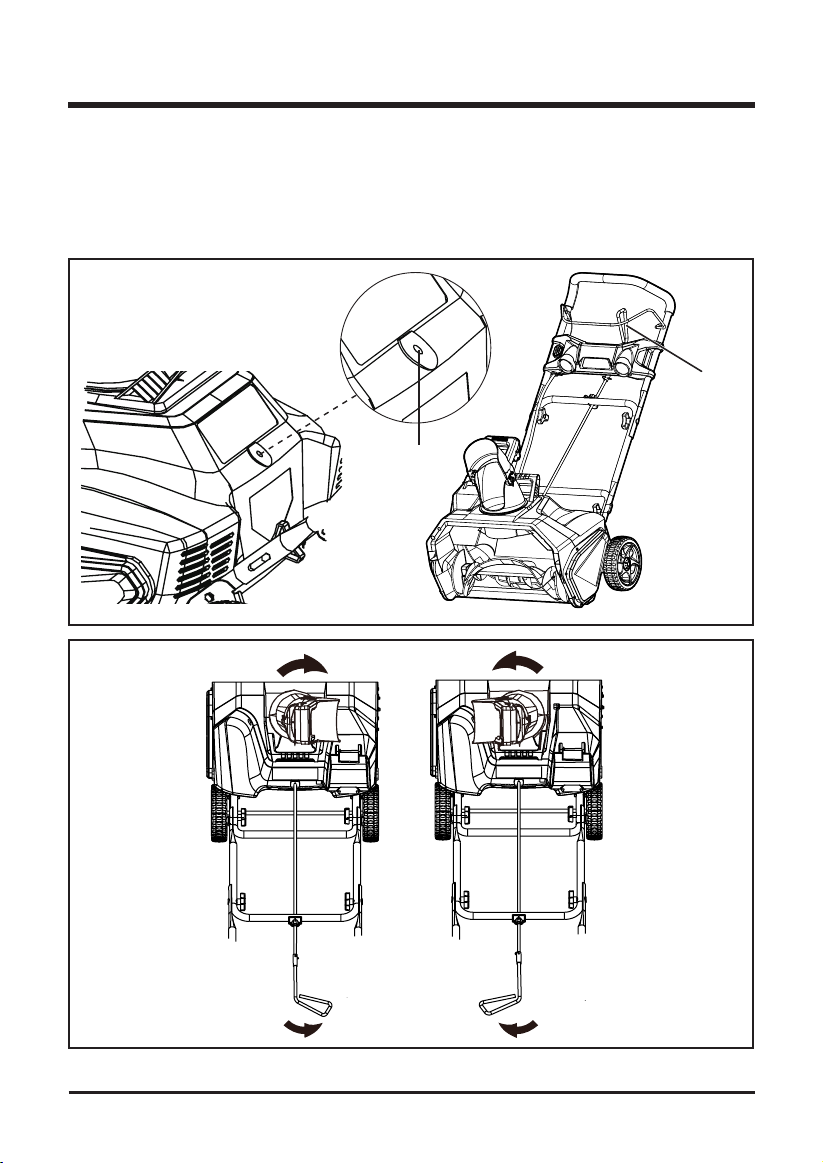

INSTALLING THE CHUTE CONTROL ROD (See Figure 4)
• Position the discharge chute (1) so that it faces forward.
NOTE: Align the arrow (2) on the discharge chute with the arrow on the housing. (Fig. 4.1)
• Align the holes (3) on the upper chute control rod (4) with the holes on the lower chute control
rod (5). Insert the hitch pin (6). Insert the end of the chute control rod (7) through the keyed
hole (8) in the bracket that is attached to the top of the middle handle. (Fig.4.2)
ASSEMBLY INSTRUCTIONS
Fig. 4.1
Fig. 4.2
(1)
(2)
(8)
(4)
(6)
(3)
(7)
(5)

• Ensure that the handle (9) of the chute control rod points upward, and insert the rod into the
keyed hole (10) in the back of the housing. (Fig.4.3)
• Firmly push the rod into the keyed hole in the back of the housing until it snaps into place.
• Rotate the handle on the chute control rod to ensure that it moves in the same direction as the
chute. (Fig.4.4)
14
ASSEMBLY INSTRUCTIONS
Fig. 4.4
Fig. 4.3
(9)
(10)

ASSEMBLY INSTRUCTIONS
15
TO INSTALL BATTERY PACK (See Figure 5)
• Open the battery compartment cover (1).
• Slide the battery (2) down to lock it into position. The battery is fully inserted into the snow
thrower when you hear an audible "click".
• Close the battery compartment cover (1).
Fig. 5
TO REMOVE BATTERY PACK (See Figure 5)
• Ensure that the impeller has come to a complete stop.
• Release your grip on the bail to stop the snow thrower.
• Press and hold the battery latch button (3) at the bottom of the battery pack.
• Remove battery pack from the snow thrower.
(1)
(2)
(3)

OPERATING INSTRUCTIONS
16
POWERING ON AND OFF (See Figure 6)
• To power on, rst press the safety switch button (1).
• While pressing the safety switch button with one hand, use your other hand to simultaneously
pull the bail lever (2) toward you. Once the machine powers on, release the safety switch
button and proceed with operation. The snow thrower can only be started by pressing the
safety switch button rst, followed by squeezing the bail lever; reverse operation will not start
the machine.
• To power off, release your grip on the bail lever.
CAUTION
Do not attempt to override the operation of the safety switch button or bar lever.
WARNING
The operation of any snow thrower can result in foreign objects being thrown into the eyes, which
can cause severe eye damage. Always wear safety glasses while operating the snow thrower
and while performing any adjustments or repairs.
WARNING
Keep bystanders a safe distance from the machine.
INSPECT THE CLEARING AREA. Remove all stones, sticks, wire, bones, and other debris that
might be thrown by the rotating impeller.
Fig. 6
(2)
(1)

OPERATING INSTRUCTIONS
UTILIZING THE LED LIGHTS (See Figure 7)
• To utilize the LED lights (1) for night time snow removal, press the safety switch button (2) and
then pull the bail lever (3) toward you.
• To turn off the LED lights, release the bail lever.
Fig. 7
17
(1)
(2)
(3)

ADJUSTING THE DISCHARGE CHUTE AND CHUTE DEFLECTOR (See Figure 8)
• To adjust the discharge chute, rotate the handle (1) on the chute control rod in the direction
that you wish to direct the snow stream.
• To adjust the chute deector (and therefore the height of the snow stream), squeeze the
trigger (2) and raise or lower the chute deector.
OPERATING INSTRUCTIONS
18
Fig. 8
(1)
(2)
