Grifco eDrive +2.0 User manual

installation and users
manual for eDrive +2.0
commercial door opener
www.grifco.com.au
www.grifco.co.nz
D-M-RDO/006 413062
Chamberlain Australia Pty Ltd
PO Box 1446, Lane Cove
NSW 1595, Australia
Phone toll free 1800 474 326
Chamberlain New Zealand Ltd
PO Box 100-221
North Shore 0745, New Zealand
Phone toll free 0800 653 667

2
THESE ARE IMPORTANT SAFETY INSTRUCTIONS. FOLLOW ALL INSTRUCTIONS AS INCORRECT
INSTALLATION CAN LEAD TO SEVERE INJURY OR DEATH
An electrician must disconnect electric power to the commercial
door opener before making repairs or removing covers.
Keep commercial door balanced. Sticking or binding doors must
be repaired. Commercial doors, door springs, pulleys, brackets
and their hardware are under extreme tension and can cause
serious personal injury. Do not attempt to loosen, move or adjust
them. Call for commercial door service.
Do not wear rings, watches or loose clothing while installing or
servicing a commercial door opener.
To avoid serious personal injury from entanglement, remove all
ropes connected to the commercial door before installing the
door opener.
Installation and wiring must be in compliance with your local
building and electrical codes. Connect the power supply cord only
to properly earthed mains.
Moisture and water can destroy the electronic components.
Make sure under all circumstances that water moisture or storage
moisture cannot penetrate the electronics. The same applies for
openings and cable entries.
Permanently fasten all supplied labels adjacent to the wall control
as a convenient reference and reminder of safe operating proce-
dures.
Disengage all existing commercial door locks to avoid damage to
commercial door. Install the wall control (or any additional push
buttons) in a location where the commercial door is visible dur-
ing operation . Do not allow children to operate push button(s)
or remote control(s). Serious personal injury from a closing com-
mercial door may result from misuse of the opener.
Activate opener only when the door is in full view, free of ob-
structions and opener is properly adjusted. No one should enter
or leave the building while the door is in motion.
After the installation a final test of the full function of the sys-
tem and the full function of the safety devices must be done. Make sure that people who install, maintain or operate the door
follow these instructions. Keep these instructions in a safe place
so that you can refer to them quickly when you need to.
Safety Symbol and Signal Word review
This commercial door opener has been designed and tested to offer safe service provided it is installed, operated, maintained
and tested in strict accordance with the instructions and warnings contained in this manual.
WARNING
WARNING
CAUTION
Mechanical
Electrical
When you see this Signal Word on the following pages, it will alert you
to the possibility of damage to your commercial door and/or the com-
mercial door opener if you do not comply with the cautionary state-
ments that accompany it.
When you see these Safety Symbols and Signal Words on the following
pages, they will alert you to the possibility of serious injury or death if
you do not comply with the warnings that accompany them. The hazard
may come from something mechanical or from electric shock.
When operating a biased-off switch, make sure that other per-
sons are kept away.
The opener cannot be used with a driven part incorporating a
wicket door (unless the opener cannot be operated with the
wicket door open).
The actuating member of a biased-off switch is to be located
within direct sight of the door but away from moving parts.
Unless it is key operated, it is to be installed at a minimum height
of 1500mm and not accessible to the public.
This appliance is not intended for use by persons (including chil-
dren) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised
to ensure that they do not play with the appliance.
If the opener is installed at a height less than 2.5 metres from
floor level or any other level from which the unit can be ac-
cessed (eg mezzanine) the installer is responsible to fit guards to
the opener to prevent access to the chain drive.
Motor may become hot during operation. Appropriate clear-
ance and/or shielding should be supplied by the installer to
ensure any cabling, wiring and/or other items cannot come in
contact with the motor. If temperature rise exceeds 50⁰C all
fixed wiring insulation must be protected, for example, by
insulating sleeving having an appropriate temperature rating.
WARNING: Important safety instructions. It is important for the
safety of persons to follow all instructions. SAVE these instructions.
Use the commercial door opener for its intended purpose.
eDrive +2.0 openers are designed for operating spring balanced
roller shutters, spring balanced roller doors and counterweighted
bi-fold and vertical lift doors.

3
TABLE OF CONTENTS
Safety instructions 2
Introduction 4
Identifying your eDrive +2.0 4
Planning 5
Installation 6-10
 Mounting the unit 6-7
 Installing hand chain 8
 Connecting power 9
 Controller 10
 Installing controller 10
 ACEM 10
Setup and adjustment 11-13
 Checking power 11

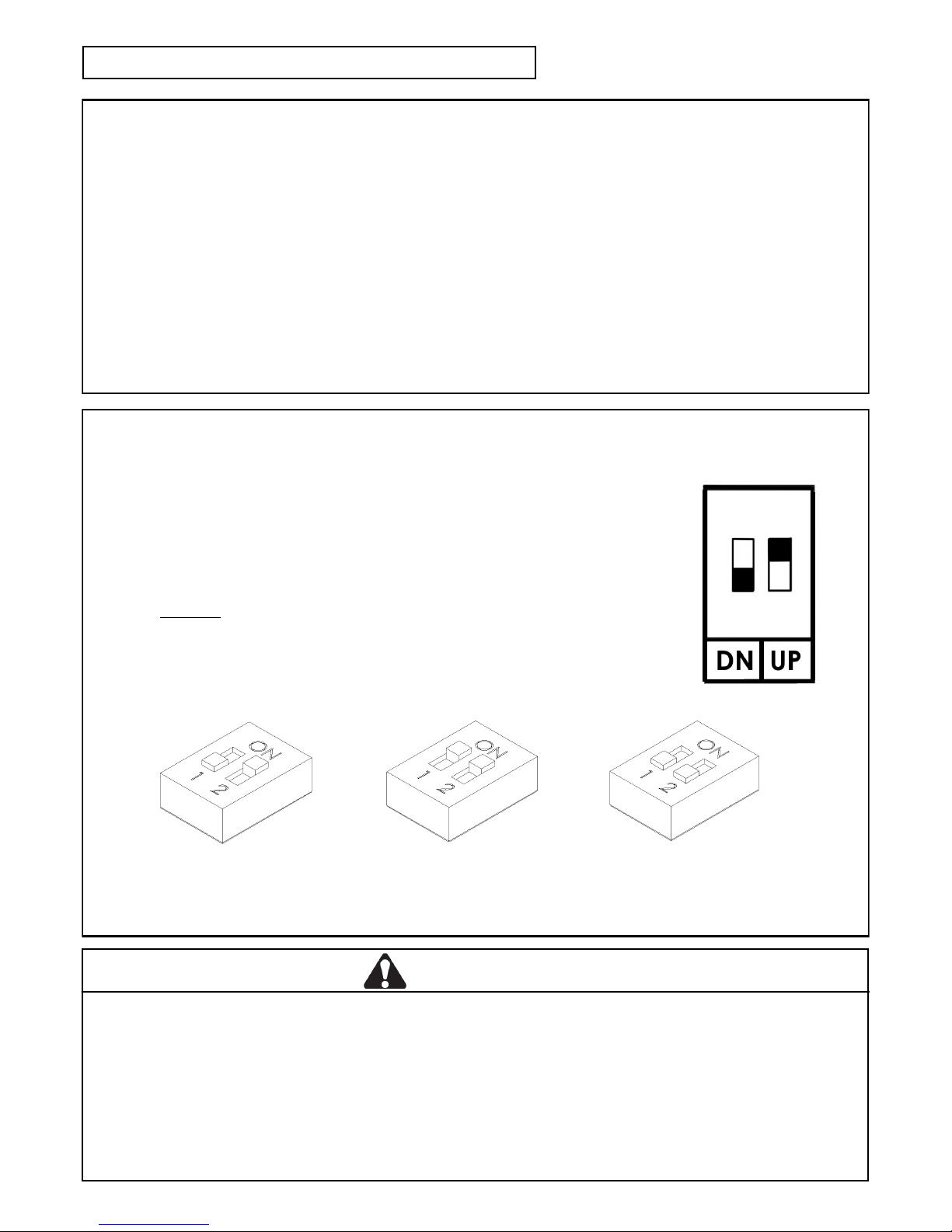

 Door direction 11
 Changing door direction 11
 Setting Limits 12
 Optional third limit 13
Operation 13
Door behaviour and Entrapment Protection inputs 14-15
 Door behaviour modes 14
 Setting door behaviour 14
 Installing Entrapment Protection Devices 15
 Additional switchgear / Accessories 15
 Toggle Input (2 wire) 15
Typical Car Park Application (example) 16
Main Control Board (MCB) layout 17
Accessories 18
 Forklift/Wall Remote 18
 3 Button Key Ring Remote 18
 Wireless Wall Control 18
 Wireless Keypad 18
 Infrared (IR) Reflective Beam 18
 STAR1000EVO Transmitter Management System 18
 Auto Close & Wireless Accessory set up 19-20
 Maintenance 21
 Troubleshooting 22-23
 Warranty 24

4
Congratulations on your purchase of the Grifco® eDrive +2.0 Commercial Door Opener. The eDrive +2.0 is a state-of-the-art
opener using sophisticated digital electronics and robust mechanical gearing that provides a balance of user friendly operation
and high level technology, coupled with exciting new standard features.
New standard features include:
Radio on Board
With Radio on Board as standard, the new eDrive +2.0 no longer requires an additional Receiver Card for wireless accessory con-
nectivity.
Auto Close
A built-in Auto Close feature can now be enabled with up to 10 - 300 seconds delay, adjustable in 10 second increments.
Quick Connect Easy Plug-in Terminal
eDrive +2.0 now features more robust pluggable terminal blocks making installation of Entrapment Protection and other devices
easier.
Toggle Input Grifco® eDrive +2.0 features a two-wire quick connect plug-in toggle input which allows direct connection of an ex-
ternal devices such as a single button open/close control and access control devices (such as card readers, keypads, key switches
and loop detectors etc.).
Wireless Security Keypad Ready
Simply mount the wireless keypad to the wall to provide;
 wireless security access
 wireless hold to close
WARNING
Make sure that people who install, maintain or operate the
door follow these instructions. It is advised that the in-
struction be kept in a safe place so that you can refer to
them quickly when you need to.
INTRODUCTION
CAUTION
Please remove any locks fitted to the door before opera-
tion in order to prevent damage to the door.
 Your standard eDrive +2.0 includes the opener, mounting bolts, and controller (containing controller cable and conduit en-
tries).
 Some optional accessories may also be included such as a mounting plate, sprockets, chain, beams & transmitter.
Appearance may vary with different motor, gearbox and controller types
IDENTIFYING YOUR eDrive +2.0

5

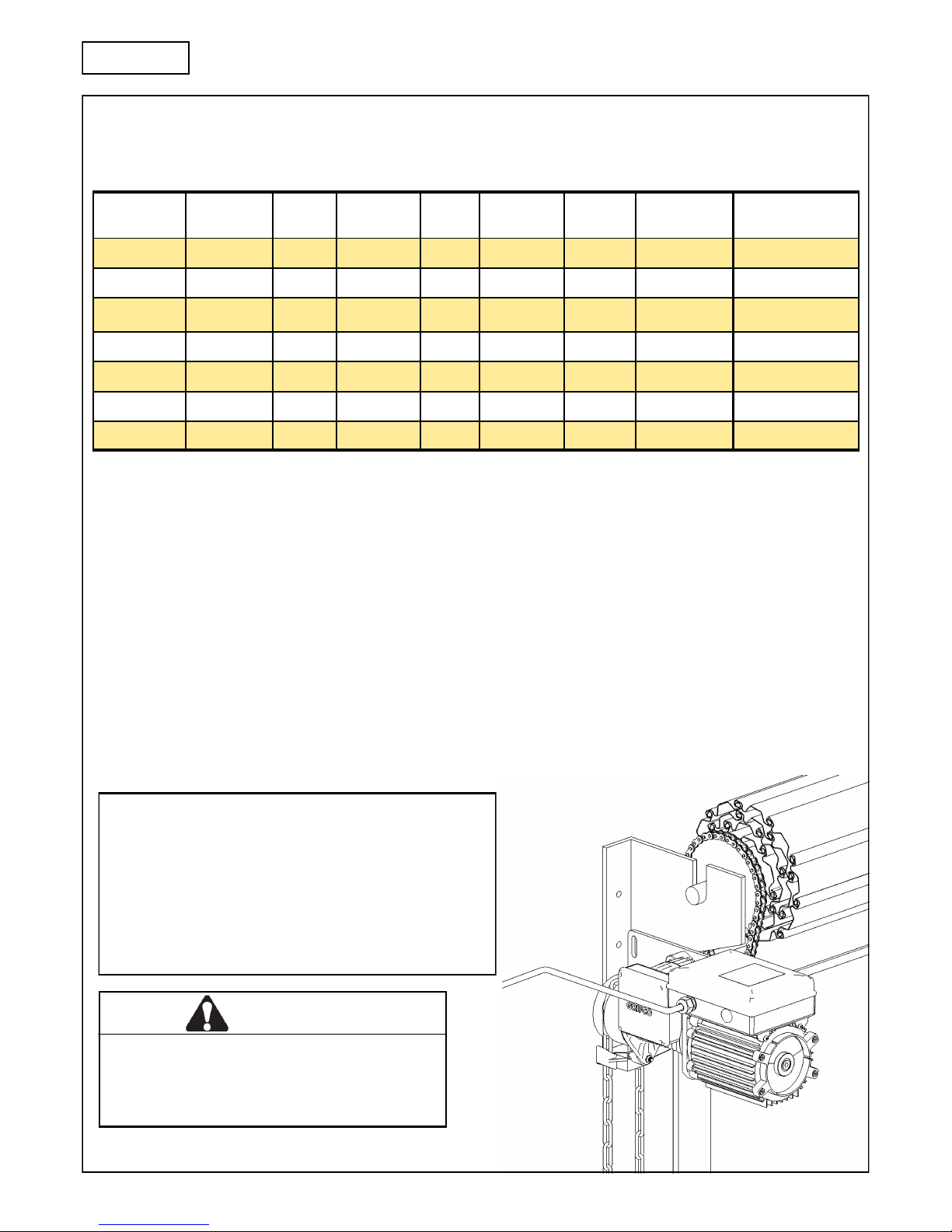

PLANNING
WARNING
The door guides must be fitted with mechanical stops
that prevent the bottom rail from passing through in
the opening direction. The opener should stall if driven
into the mechanical stops.
Identify the type and dimensions of your commercial rolling door. A check of the application is recommended to ensure suitabil-
ity of the opener model to the door.
Installer is to check that the temperature range marked on the drive is suitable for the location.
Note: eDrive +2.0 openers are not recommended for use on residential garage doors.
* Door size is stated as a guide only. Refer to "max door mass" to assess drive suitability.
** Maximum door mass is:
- before spring balancing. Door must be spring balanced.
- based on at least 4:1 sprocket ratio, and curtain load with 200mm drum diameter.
If any conditions above are not met, some consideration should be given to increasing the sprocket ratio, or opener size. The
opener should be installed on the most suitable side of the commercial door. Consider an In-Board Mounting Kit (P/N IBMK) if
there is insufficient side room. Select the side that meets the requirements listed below.
 Must have minimum distance of 15mm between mounting plate and door drum sprocket (refer pg 6 image no. 1)
 Must have minimum distance of 10mm between APE housing and imposing structure (refer pg 7 image no. 4)
 Must have minimum overhead clearance of 150mm from the main control housing (refer pg 7 image no. 5)
Note: Before installing the opener, check that the commercial door is in good mechanical condition, correctly balanced and
opens and closes properly.
Opener Build Rated Load
(Nm)
Hp Duty
Rating (%)
Phase Door size
(m2)*
kW Amp Max Door Mass
(KG)**
ML5053 53 0.5 10 3 18 0.37 1.6 270
ML5103 140 1.0 10 3 36 0.75 2.4 540
MH5103 80 1.0 30 3 30 0.75 2.0 450
ML5153 190 1.5 10 3 50 1.1 2.9 890
ML5051 67 0.5 10 1 18 0.37 3.5 270
ML5102 85 1.0 10 1 36 0.75 6.0 480
MH5102 73 1.0 30 1 30 0.75 4.4 450
Doors of Rigid Construction
When using a Grifco® eDrive +2.0 on commercial doors of ‘rigid’
construction (eg. bi-fold, vertical lift, sectional or continuous
steel roller doors etc.), consider that the limit confirmation
movement requires a 1/4 turn of the output shaft downward at
the closed position (refer to page 12 for more information on
how to reset the re-find movement). Sufficient mechanical free-
dom must be provided at the closed position for this
reason.

6
INSTALLATION SECTION
Alignment of door sprocket to output shaft of
eDrive +2.0 (see left)
Mounting the unit
The eDrive +2.0 is typically flag mounted below the door drum so that the
opener shaft points toward the door opening and lies beneath the sprocket of the
door drum. For mounting you will need to either secure the opener to the roller
shutter head plate with prepared holes or slots, or use a mounting plate that will
need fixing via a wall angle or similar existing structure.
Note: The eDrive +2.0 is not designed to be installed upside down. The chain
guide must not be repositioned.
It is strongly recommended that a suitably rated lifting strap be used to raise the
opener to a necessary height, shown right. A suitable lifting device should be con-
nected to a secure support beam (or similar) above the door axle.
When assessing and selecting an appropriate mounting location, the
following considerations should be made:
Clear accessible space needed below for safe chain operation
Distance between mounting
plate and door sprocket
Min 15mm - Max 100mm
1
Drive chain
Mounting plate slots allow the chain tension to
be adjusted through vertical movement of the
opener (see right)
Mounting plate
2
Mounting plate slots
3
Clear path for manual chain to hang downward (refer pg 8 image no. 7 & 8)
Distance between ACEM and wall 40 mm

7
Mounting the unit (continued)
Side room to imposing structures (see left).
The eDrive +2.0 APE housing is not a serviceable area and can be
located within 10mm of an imposing structure without affecting in-
stallation. Where there is insufficient side room, consider using the
opposite hand opener and mount inboard with a Grifco® Inboard
Mounting Kit, P/N IBMK.
Limited head room (see right).
The eDrive +2.0 main control housing is a serviceable area and will
need to be accessed by service personnel. Refer below for options
on how to overcome problems in which sufficient head room is
not available.
If there is insufficient head room above the eDrive +2.0
opener to allow servicing then a Grifco® Wall Mount Kit
(P/N WMK2) or Grifco® Rotation Bracket (P/N RBK2)
can be used to reposition the main control housing.
Please contact your local dealer or Chamberlain for
more information.
Location of Controller (see left).
Controller has 6 metres of cable with RJ45 ends ready
to connect the eDrive +2.0 opener to the controller.
eDrive +2.0 Controller Extension Kit (P/N ESK01) is
available if needed.
WARNING
When Securing the eDrive +2.0 opener with the 4 x M12 x 40mm long fasteners (based on a 8mm mounting plate) and spring
washers provided, it is critical to ensure that the applied torque is between 80-90Nm. When mounting through thicker sections,
ensure a minimum of 30mm of screw thread is engaged with the female thread. Use of incorrect fasteners or torque may cause
serious product damage, personal injury or death. When fixing through a slotted plate, ensure that the slots are no wider than
13mm as a spring washer may not be adequate in outside diameter to support the hexagon head.
6
5
150mm
Minimum
4
10mm Minimum
4

8
Installing Hand Chain (Use 5mm long link chain only)
Ensure the mounting position allows the hand chain to hang free of obstructions.
Ensure hand chain is not twisted when making the join!
7 8
CAUTION
Motor may become hot during operation. Appropriate
clearance and/or shielding should be supplied by the in-
staller to ensure any cabling, wiring and/or other items
cannot come in contact with the motor. If temperature
rise exceeds 50⁰C all cable wiring must be shrouded.
Fixed wiring insulation must be protected, for example, by
insulating sleeving having an appropriate temperature
rating.

9
Connecting power (if fitted with a plug and lead proceed to next page)
It is recommended that 1.5mm2(max.) wire size is used to avoid unnecessary crowding and difficulty when making connec-
tions. Avoid lengthy cable ends that may cause undue pressure on delicate components. It is recommended to crimp cable
ends with fork or loop connectors to ensure a secure fitting in the terminal block.
Note:
 If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified per-
son in order to avoid a hazard
 A disconnection device incorporated in the fixed wiring must be provided in accordance with the wiring rules of the
country in which it is installed.
Supply connection for three phase builds with neutral
Models: ML5053, ML5103, MH5103 & ML5153
Supply connection for single phase builds 3
wire configuration
Model: ML5051
Supply connection for single phase builds 4
wire configuration
Models: ML5102 & MH5102
ELECTRICAL CONNECTION
The eDrive + 2.0 opener must:
 be connected via an approved electrical isolation device
 be connected via a suitable circuit breaker that disconnects all live conductors
 be connected in accordance with the wiring rules of the country in which it is installed
 not have control enclosures left open for extended periods (excess dust will void warranty)
Supply connection for three phase builds
without neutral
Models: ML5053N, ML5103N, MH5103N &
ML5153N
A. 3 PHASE WITH NEUTRAL
C. SINGLE PHASE 3 WIRE D. SINGLE PHASE 4 WIRE

10

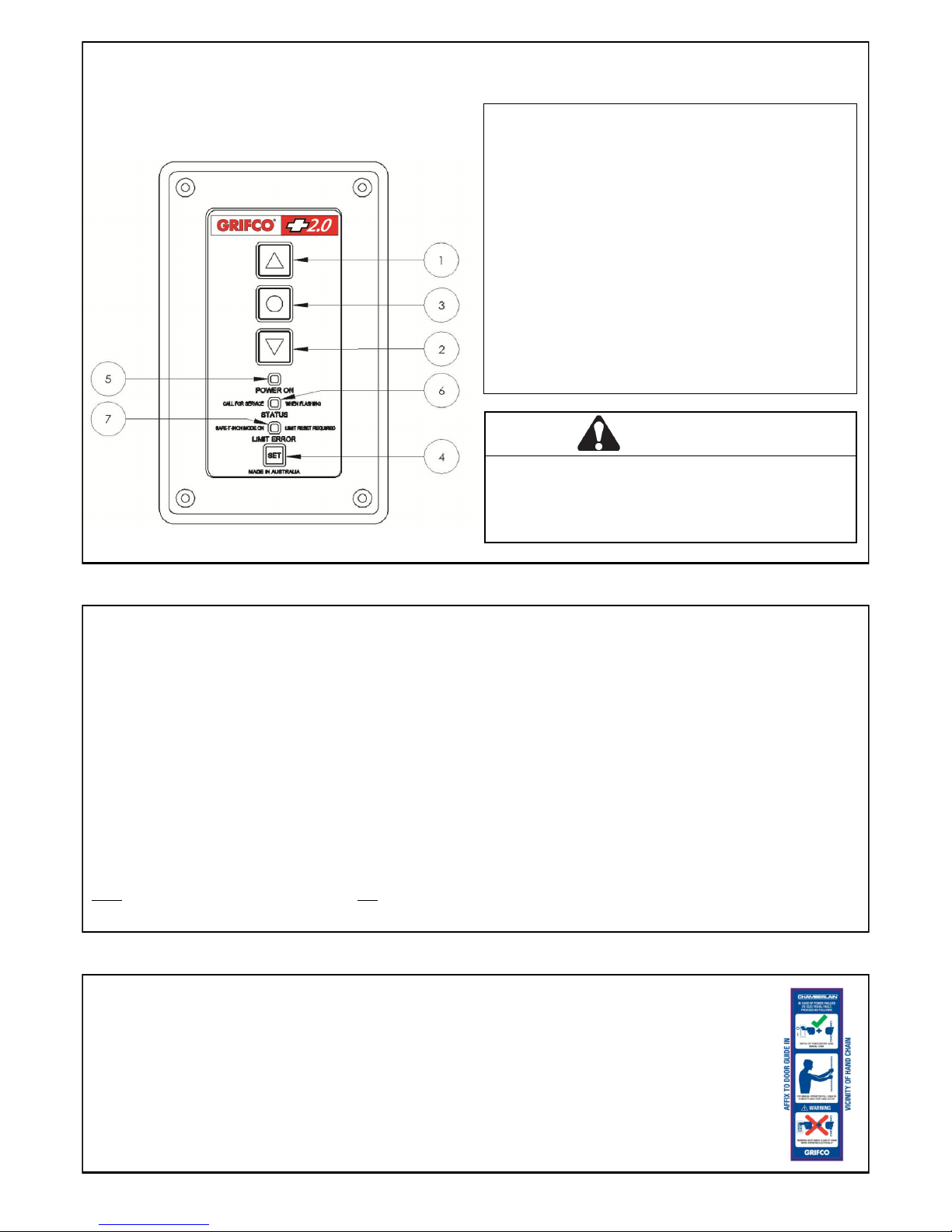

Controller
The eDrive +2.0 controller is the user interface for the opener. It consists of four buttons for control and setup, as well as three
indicators to display the opener status. 1) UP - Moves the door upwards
2) DOWN - Moves the door downwards
3) STOP - Stops the door
4) SET - Used primarily to set limits
5) POWER ON - Shows when the unit is mains powered
6) STATUS - Shows the status of the unit (refer page 22)
7) LIMIT ERROR –When lit indicates limits (or stopping
positions) are not set, the door will only operate in SAFETY
inch mode until limits are set (or reset). Refer page 12
Installing the controller
The controller is connected to the MCB via a low voltage control cable provided within the controller enclosure. Using the con-
duit entries provided (also enclosed) run the cable through conduit. Be sure not to cut or damage the cable and therefore cause
installation issues and void warranty.
CAUTION: Do not force the controller cable! Excess stretching and manipulation can cause cable failure.
Plug ends must not be gripped with pliers.
To connect the controller to the eDrive +2.0 opener, identify the most appropriate entry of the MCB enclosure for your installa-
tion. Open the MCB enclosure and fit the conduit fitting, allowing enough cable to reach the controller (RJ45) socket. Place the
opposing end of the controller cable through the conduit entry of the controller enclosure and pull through any excess cable.
Plug the RJ45 end into the socket located within the controller assembly. Use the space provided within the controller enclosure
to neatly coil any excess cable.
Note: If the supplied 6m controller cable is not long enough for your installation, use a Grifco®Controller Extension Kit, avail-
able from your local dealer or Chamberlain (P/N ESK01).
WARNING
Install the controller in a position where the door is visible.
Failure to do so may result in serious injury or death to
persons trapped beneath the door. Minimum mounting
height is 1.5 metres from floor level.
Automatic Chain Engagement Mechanism (ACEM)
The patented ACEM features allows the use of the hand chain in the event of a power failure. Simply pull on the
hand chain in either direction to operate the door manually.
Warning! Ensure power is isolated when using this feature.
The ACEM label (see right) must be fixed in close proximity to the controller e.g. on the door track.

11
SETUP AND ADJUSTMENT
Once the installation of the opener and controller is complete it is time to test the operation. Make sure the door is away from
the ground or the top door stops (mid open position). This will prevent damage to the door in the event that the door direction is
reversed in relation to the controller (see below changing door direction).
Checking power
Ensure the unit is powered by checking that the POWER ON
indicator on the controller is lit.
You should also notice that the LIMIT ERROR indicator (orange)
is lit which signifies that there are no limits set.
Door direction
Check the direction of the door movement. If the direction of the door is incorrect, refer below to Changing door direction.
Changing door direction
To change the door direction first put the unit into ‘limit setting mode’. To do this:
1. While holding STOP, press the SET button 3 times.
The LIMIT ERROR indicator will start flashing signifying ‘limit setting mode’
2. Press and hold STOP for 10 seconds until the LIMIT ERROR indicator flashes quickly.
The direction of the door movement will now be reversed.
The LIMIT ERROR indicator will remain flashing as the unit is still in limit setting mode. You can now set limits (go to step 2 on
next page)
Or to exit, press STOP.
CAUTION
On new installations, the orange limit light should be lit
after initial power up. If not, DO NOT operate door unless
in limit setting mode or serious damage or injury may oc-
cur.
WARNING
It is important to make sure the door always runs
smoothly. Doors which stick or jam must be repaired im-
mediately. Employ a qualified technician to repair the
door, never attempt to repair it yourself.
WARNING
When removing or replacing jumpers on all circuit boards,
mains power must be disconnected.

12
Setting limits
1. While holding STOP, press the SET button 3 times.
The LIMIT ERROR indicator will start flashing signifying ‘limit setting mode’
2. Use the DOWN button to drive the door to the desired CLOSED position.
The manual hand chain can be used to accurately position the door before pressing SET
3. Press the SET button to save this as the CLOSED position.
The LIMIT ERROR indicator will flash quickly then return flashing slowly
4. Use the UP button to drive the door to the desired OPENED position.
The manual hand chain can be used to accurately position the door before pressing set
5. Press SET again to save this as the OPENED position. The LIMIT ERROR indicator will flash quickly then will go out
The Closed and Open limits have now been set. If at anytime you need to exit ‘limit setting mode’, just press the STOP button.
Once set, operate the door between limits 2 –3 times to check
they are suitable. If not, return to STEP 1.
To verify limit confirmation routine, turn power OFF, then back
ON at the open and closed positions, and test proper operation
accordingly. If required, refer to top of page to reverse the limit
confirmation direction.
WARNING
After the installation a final function test of the system
and where present a full function test of the safety
devices must be done.
READ CAREFULLY BEFORE SETTING LIMITS!
(not applicable to roller shutters)
The eDrive + 2.0 features a limit confirmation routine that occurs after a power outage upon the first push of any operate but-
ton. By default, the routine will “jog” slightly downward in order to confirm door position before proceeding in the intended di-
rection.
For doors of rigid construction (e.g. bi-fold, vertical lift, sectional or continuous steel roller doors etc) this routine should be
changed so that the first “jog” movement is upward. To do so, proceed as follows:
- While holding STOP, press the SET button 3 times and CONTINUE to hold STOP for 20 seconds
(or until the orange light goes solid).
Now proceed to Setting limits, ensuring the upper limit is set NO CLOSER than 50mm from the top stops (or fully open position)
of the door.
Upon completion of the installation, turn power OFF, then back ON at the open and closed positions, and test proper operation
accordingly.
RKML5051 models (1/2hp roller door openers) will confirm limits by jogging UPWARD first by default . To reverse the limit confir-
mation direction, proceed as above.
WARNING
Do not place hands or tools near the opener when power is on or when testing controls or safety devices.
Always disconnect power before servicing or adjusting the opener.

13
OPERATION
To operate the door
Press the UP button on the controller to open the door, press and hold DOWN to close. For optional behavior refer to Setting
door behaviour on the next page.
Manual operation
The hand chain provided allows manual operation of the door at all times when the motor is not in use. Warning! Use of the
hand chain during powered operation of the door may result in damage to equipment or injury to the user. Ensure power is shut
off before using manual chain.
Basic installation of the eDrive +2.0 Commercial Door Opener is now complete
Please refer to the following pages for further installation instructions of optional eDrive +2.0
features and / or accessories
Optional third limit (extended open position)
The third limit is a handy option for high doors that rarely need to be fully opened. The third limit is a door position above the
open limit position which can be accessed when needed. Having this upper stopping position allows a mid height limit to be set
as a first opening point, while a further press of the open button takes the door to a higher set position.
Setting the third limit
Once the Open and Closed limits have been set:
1. Position the door at the open limit position
2. While holding the UP button, press the SET button 3 times.
The LIMIT ERROR indicator will flash
3. Now open the door further until the door is in the desired extended open position
4. Press SET to save this as the extended open position.
The LIMIT ERROR indicator will quickly flash then go out
Accessing the third limit:
1. Open door to first upper limit
2. Press the UP button

14
Door behaviour modes
Latch up / Inch down mode (default):
The door will travel upwards with only a single press and release of the UP button. The door will stop at the set limit. This mode
is latch up.
The door will only travel downwards when the DOWN button is held. The door will stop at the closed limit or when the button is
released. This mode is inch down.
Inch up / Inch down mode:
The door will only travel whilst the UP or DOWN buttons are being held. The door will stop at the limits or when the button is
released. To set this mode refer to Setting door behavior information below.
Latch up and down mode:
Note: This mode is only possible in conjunction with an Entrapment Protection Device such as an Infrared (IR) Beam or a
Safety Bump Edge. Failure to do so may result in damage to property or injury to persons.
Setting door behaviour

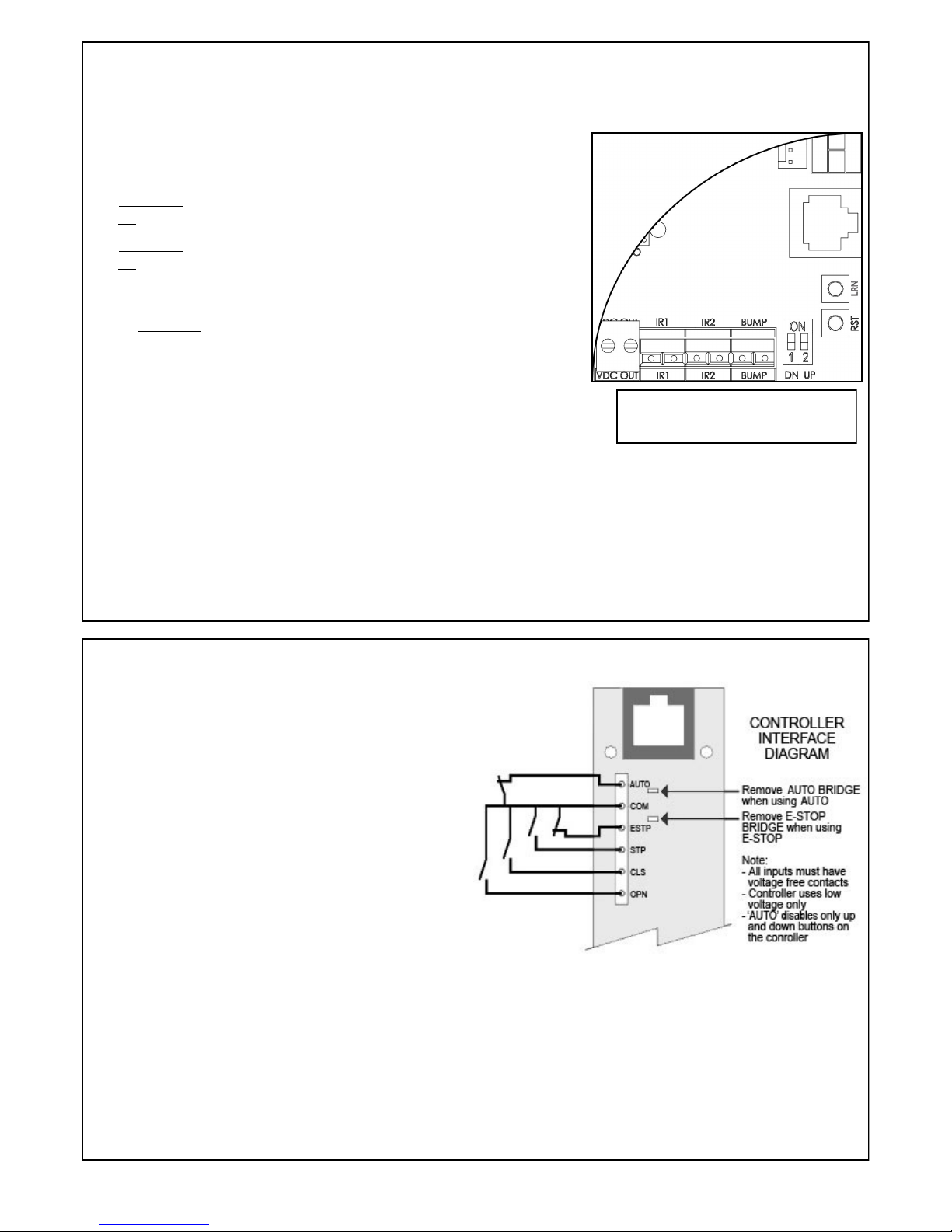

To set the door behaviour modes, adjust the DIP switches in the corner of the MCB shown below.
Dip switch 1is used to latch DOWN and switch 2is used to latch UP.
At default the MCB is set to latch open and inch close, shown right. The door will open with a
single press but only travel downwards while the down button is being held. For details on
the 3 distinct modes refer above.
* The door must only be set to latch DOWN if there is a suitable Entrapment Protection
Device installed. Failure to do so can lead to serious injury or death.
Note: **Both dips must be OFF (inch up/inch down) for Coles & BI-LO electrically operated roller door installations or when
opener height is less than 2.5m from the ground without sufficient guarding of moving parts.
WARNING
Entrapment Protection
The Entrapment Protection System for your installation will be determined by the functional requirements of the door. To ensure
the installation meets these requirements refer to AS/NZS 60335-2-103.
When using the Grifco® Protector System as part of the Entrapment Protection System, ensure it is installed to detect a 100mm
high obstacle, ie; approx 80mm from the floor, and in accordance with installation directions supplied.
Consideration should be given to the detection of vehicles or other similar equipment. To provide adequate Entrapment Protec-
tion an additional Grifco® Protector System may be required to be installed in a higher suitable position, for example, approx
600mm from the ground.
Latch up / inch down *Latch up / latch down **Inch up / inch down
ON
(LATCH)
OFF
(INCH)
DOOR BEHAVIOUR AND ENTRAPMENT PROTECTION INPUTS

15
Installing Entrapment Protection Devices (requires Terminal Blocks P/N TBT2A-5)
Devices such as Infrared (IR) Beams and Safety Bump Edges allow safe automatic or latch closing of the door and can be wired
directly into the MCB via an appropriate cable entry. Grifco® Entrapment Protection Devices such as the Protector System and
Bump Edge are wired into the quick connect inputs located next to the door behaviour dip switches on the MCB.
VDC OUT: Accessory power 24Vdc - unregulated
(max 150mA)
IR1: Monitored Grifco® Protector System, or
NC (normally closed) switching input
IR2: Monitored Grifco® Protector System, or
NC (normally closed) switching input
For more detailed information on installation refer to the Grifco®Protector System manual.
BUMP: Monitored 8K2 Resistor type Bump Edge input.
Erase Entrapment Protection Devices
Press RST button on the MCB for at least 10 seconds until green LED blinks rapidly.
Reactivate Entrapment Protection Devices
Follow the above install instructions.
Note: When installing Entrapment Protection Devices ensure that the door is at the open limit position.
Note: All Entrapment Protection Devices need to be activated once after installation to be learned correctly. Normally closed
Entrapment Protection Devices and monitored Bump Edges require one simulated obstruction to be learned by the opener.
Once learned, latch closing will be allowed when set.
Note: The eDrive +2.0 features “constant pressure to close”. This means that if an Entrapment Protection Device fails, the
opener can still ‘inch down’ (unless an expansion board is used).
Additional switchgear (eg. dedicated open/close and Auto Mode etc)
Caution! Any access control intended for these terminals must
be user operated and in line of sight with the door.
The eDrive +2.0 can be easily interfaced by the reverse side of
the controller push button panel (Refer to adjacent diagram).
To do so you will need terminal blocks (P/N TB210) available
from your local commercial door dealer or Chamberlain®.
Note: A controller must always be plugged in (see page 17 no.
2) for the opener to function. When utilising the AUTO or
ESTP terminals the respective bridge must be removed, refer
right.
Note: Additional 24VDC devices must not draw current from
the MCB in excess of 150mA. Excessive load from connected
devices will cause malfunction of the eDrive +2.0 opener. For
additional loads, use a separately mounted power supply.
Toggle Input (2 wire)
A 2 wire toggle input is provided on the MCB (see page 17) to allow single button (or access control) operation.
The input will operate as “open-stop-close-stop-etc.”
If Auto close is set, the toggle behaviour will become “open only”.
When the toggle input is bridged* and held (eg. a timer or latching switch) the door will remain open (ie Auto Close ignored). If
the bridge is released, Auto Close will resume.
* If an EB is fitted, this feature will not be available on the MCB toggle input. Use EB com open
input instead.
CAUTION: Grifco®Protector System
must not be connected to VDC out.
LOWER RIGHT OF MCB

16
Example of a Typical Car Park Application
The eDrive +2.0 has Car Park Access Control features included as standard.
For typical vehicular access applications, the product can be interfaced with access control devices and features an adjustable
Auto Close function.
For vehicular access applications an Entrapment Protection System will be required —see “Installing Entrapment Protection De-
vices” on page 15.
Typical Car Park Configuration
 The opener must be installed in accordance with the instructions contained within this document.
 The Entrapment Protection Device/s must be installed before the product can be set for Auto Close.
 For Latch Up (open) and Latch Down (close) set the dip switches on the MCB in accordance with the “Setting Door Behaviour”
instructions (see page 14)
 Set Auto Close in accordance with the instructions (see page 19).
Access Control Options
 Grifco® Security +2.0 Transmitter or other Grifco® Security +2.0 Wireless Accessories
 Swipe Card, Magnetic Key or similar access control device
The transmitter once programmed (see page 20) can control entry and exit for the user. Auto Close once set, will close the door
after the programmed delay on both entry and exit.
Access control devices such as swipe card, magnetic key and other similar systems must be a two wire voltage free interface and
be connected to the toggle input on the MCB via the quick connect pluggable terminal block (see diagram on page 17).
Transmitter Management
If transmitter management is required, you will need a Grifco® STAR1000EVO. This accessory will allow up to 1000 identified users
to be individually added and deleted. Contact 1800 GRIFCO® for more information.
Exit Control
The door can be configured to open from either a:
 Grifco® Security+2.0 Transmitter or other Grifco® Security+2.0 Wireless Accessory device, or
 Where a loop detector or similar access controls are required to trigger opening to exit, connect to the toggle input on the
MCB via a quick connect pluggable terminal block as described above (see diagram page 17).
Note –The Toggle Input will accept N/O inputs from multiple access control devices eg, both a separate entry and exit control.
Auto Close Feature
When Auto Close is enabled, the Toggle Input, and Receiver behaviour will become “Open Only” i.e. an activation via the Toggle
Input or a Transmitter during opening, or Auto Close delay, will not close the door. Each activation will add Auto Close delay.
Advanced Logic Functionality
For applications where full logic functionality (eg relay status outputs, advanced door behaviour, building management system
integration) is required please order the Grifco® EB1, Elite Expansion Board or complete Elite Expansion Kit. Contact 1800 GRIFCO®
for more information.
WARNING
Keep additional accessories away from children. Do not allow children to play with pushbuttons or remote controls. Without
safety devices a door can cause serious injuries as it closes. Only trained people are allowed to use the opener.

17
MAIN CONTROL BOARD (MCB)
1 Motor terminals 10 ‘Learn’ and ‘Reset’ buttons
2 Controller connection socket 11 Mechanically interlocked contactors
3 VDC out (24Vdc accessory power) 12 Motor temperature cut-out connector or relays
4 Door behaviour DIP Switches 13 Mains & Motor connection tables
5 Transformer 14 Controller cable entry (typical)
6 Toggle Input 15 HHDT input (diagnostic tool)
7 Expansion Board Input 16 Mains power cable entry (typical)
8 APE limit terminal 17 Radio Lock
9 Power supply terminals 18 Entrapment Protection Device inputs
The MCB is the heart of the eDrive +2.0. The diagram below provides an overview of the major components and access points.

18
ACCESSORIES
- Call 1800 GRIFCO for assistance with any of the above accessories, or other enquiries -

19

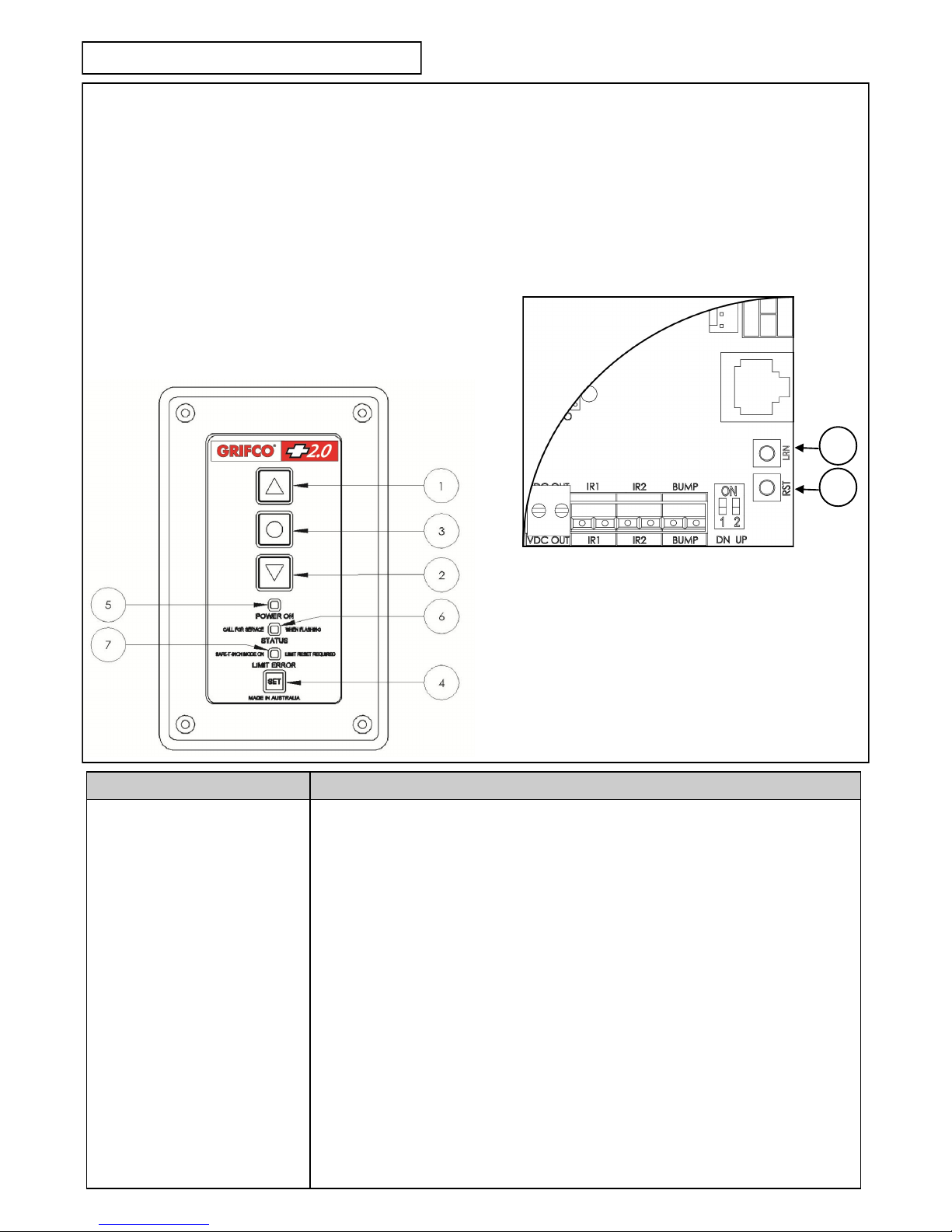

Controller and MCB button reference
1. UP —Moves the door upwards
2. DOWN —Moves the door downwards
3. STOP —Stops the door
4. SET —Used primarily to set limits
5. POWER ON —Shows when the unit is mains powered
6. STATUS —Shows the status of the unit
7. LIMIT ERROR —When lit indicates limits are not set
8. LRN —Enables learning of new remotes
9. RST —Reset board. Hold this button for 10 seconds to
erase and force re-learn of safety Entrapment
Protection Devices.
Controller
Figure 2. Lower Right corner of eDrive +2.0 MCB
AUTO CLOSE & WIRELESS ACCESSORY SET UP
8
9
Action Button Sequence
SET AUTO TIMER TO CLOSE ( no
expansion board fitted) FROM THE
CONTROLLER
 Press and hold the SET button, then whilst holding press the DOWN button 3 times
(green status light ON solid)
 Press the UP button to increase the auto-timer to close setting in 10-second incre-
ments
 Press the DOWN button to decrease the auto-timer to close setting in 10-second
increments
 Note: the green light will flash according to the number of 10-second increments
have been set, then goes back to solid ON. For example, a 5-minute auto-close will
be set by increasing the increments until the green light flashes 30 times
 Press SET to accept setting and exit learn mode
 Note: To cancel the Auto-timer-to close function, enter the learn mode and press
the DOWN button until the number of 10-second increments is ZERO. The green
light will flash repeatedly to indicate the function has been reset, then return to
solid ON
 Press STOP to exit

20
Action Button Sequence
LEARNING A NEW WIRELESS
ACCESSORY FROM THE
CONTROLLER
 Press and hold the SET button, then whilst holding press STOP 5 times
(green status light will light then continue flashing. Indicating learn mode)
 Press the desired WIRELESS ACCESSORY BUTTON to learn
(orange limit light will flash fast after each wireless accessory is successfully learnt)
 Press STOP to exit learn mode
LEARNING A NEW WIRELESS
ACCESSORY FROM THE MCB
 Press the LRN button
(green status light will light then continue flashing, indicating learn mode)
 Press the desired WIRELESS ACCESSORY BUTTON to learn
(orange limit light will flash fast after each wireless accessory is successfully learnt)
 Press LRN button again to exit learn mode
ERASE ALL LEARNED WIRELESS
ACCESSORIES FROM THE
CONTROLLER
 Press and hold the SET button, then whilst holding
 Press the STOP button 4 times, holding on the fourth press for 5 seconds
(green light will flash 5 times, then fast flash to indicate completion)
 Check that previously learned wireless accessories no longer work
LEARN THE E138G WIRELESS WALL
CONTROL FROM THE CONTROLLER
The E138G can be used as a two channel wireless wall control for use on one or two doors,
or as a dedicated up/down wireless wall control. In either application for the door to latch
down an Entrapment Protection Device must be installed. Without Entrapment Protection
in two channel configuration the wall control will function as an open/stop device only and
in dedicated up/down configuration the down button will operate as “hold to close” only.
Two Channel Wireless Wall Control
 Press and hold the SET button, then whilst holding press STOP 5 times
(green status light will light then continue flashing. Indicating learn mode)
 Press the desired WIRELESS ACCESSORY BUTTON to learn door 1
(orange limit light will flash fast after each wireless accessory is successfully learnt)
 Repeat previous step to learn door 2 (if required)
 Press STOP to exit learn mode
Dedicated Up/Down Wireless Wall Control
 Press and hold the SET button, then whilst holding press STOP 5 times
(green status light will light then continue flashing. Indicating learn mode)
 Press the E138G TOP button
(the orange LIMIT ERROR light will flash at each button press)
 Then press the E138G LOWER button
 Press the STOP button on the GRIFCO® controller
(the green light will continue to flash)
 Press the E138G LOWER button again
(the green light will go out indicating exit of learn mode)
LEARN THE E840G WIRELESS
KEYPAD FROM THE CONTROLLER
 Press and hold the SET button on the GRIFCO® controller, then
 While holding the SET button, press the STOP button 5 times
(the green status light will light then continue flashing, indicating learn mode)
 Enter a 4-digit PIN code into the keypad (step 3)
 Press the ENTER button (step 4)
(orange LED flickers on controller)
 To enter additional PIN codes (up to 12) repeat steps 3 & 4
 Press STOP to exit learn mode
 Install the RADIO LOCK button on the MCB to prevent any further wireless accesso-
ries being learnt, or erased without authority
NOTE: The Grifco® Security + 2.0 Wireless Keypad provides :
 Wireless security access
 Wireless hold to close
Keypad
ENTER
button
Top Button
Lower
Button
NOTE: Radio Lock jumper (if fitted) must be removed from the MCB before wireless accessories can be learnt. Ref page 17.
For security reasons the Radio Lock should be refitted after the wireless learn sequence is completed.
AUTO CLOSE & WIRELESS ACCESSORY SET UP
Door 1 Door 2
