GRILLANDIA ROTA User manual

USERMANUAL
MODED’EMPLOI
BEDIENUNGSANLEITUNG
MODELS / MODÈLES / MODELL
I3A020100

EN

USERMANUAL
MODELS
I3A020100

INDEX
SAFETY
INFORMATION
Warnings
Safety Distances
Carbon monoxide
poisoning
1. Your Barbecue ROTA
2. Assembly
3. Grillandia Grills Controls
4. Initial user guide
5. Cooking with BBQ ROTA
6. Errors
08
09
10
14
15
16
17
20
25
OPERATING
SPECIFICATIONSA B
EN

1. Login
2. Connect to BBQ
3. Updates
4. Supported Operating
Systems
1. Maintenance after
each use
2. Maintenance after
3 to 5 uses
3. Maintenance at the
end of season
30
30
31
31
34
35
37
GRILLANDIA
APP
MAINTENANCE
SPECIFICATIONS
SERVICE AND
WARRANTYC D E
42
82
FR
DE

A

CHAPTER
DE
FR
EN
SAFETY
INFORMATION

08
EN
DE
FR
SAFETY INFORMATION
A
!! BEWARE !!
This device was created to work only
with specific pellets to use on barbecues
made out of natural wood.
The device must remain on during the
extinguishment and cooling phase.
Before using, read these user’s manual
to ensure correct usage.
Do not use indoors.
Do not use other fuels.
Do not use it in the rain or near any
water source.
Before using the BBQ, make sure it is
on a leveled and safe platform.
There are accessible parts that may be
hot. Keep the children away.
Do not use this device on closed or
inhabited places, such as houses,
tents, caravans, motor caravans, boats,
etc.. Danger of fatal carbon monoxide
poisoning.
WARNING
Make sure the back ventilation grill
grates are clear.
This device must remain away from
inflammable materials during its use.
The electrical plug must be connected
to a ground plug.
WARNING
Do not store inflammable materials on
the storage area of the device.
Do not use pellets signaled as containing
additives or made for household heating
equipment.
WARNING
Do not leave closed food containers near
the equipment.

09
DE
FR
EN
SAFETY INFORMATION
A
This device must not be used by
children or people with physical or
mental disabilities, or by people with
lack of experience or knowledge of
its use, unless supervised by a person
responsible for their safety or by a
responsible adult.
The children must not play with the
device. The cleaning and maintenance
by the user must not be carried out by
unsupervised children.
!! BEWARE !!
Do not modify the device.
WARNING
Do not use alcohol or gasoline to ignite
the device or to feed the flame.
WARNING
Any modification to the device shall
invalidate the warranty.
WARNING
Let the device cool completely before
moving it.
BEWARE
This device has surfaces that reach high
temperatures. Do not move it during
operation.
BEWARE
Keep away from children and pets.

10
EN
DE
FR
A
SAFETY INFORMATION

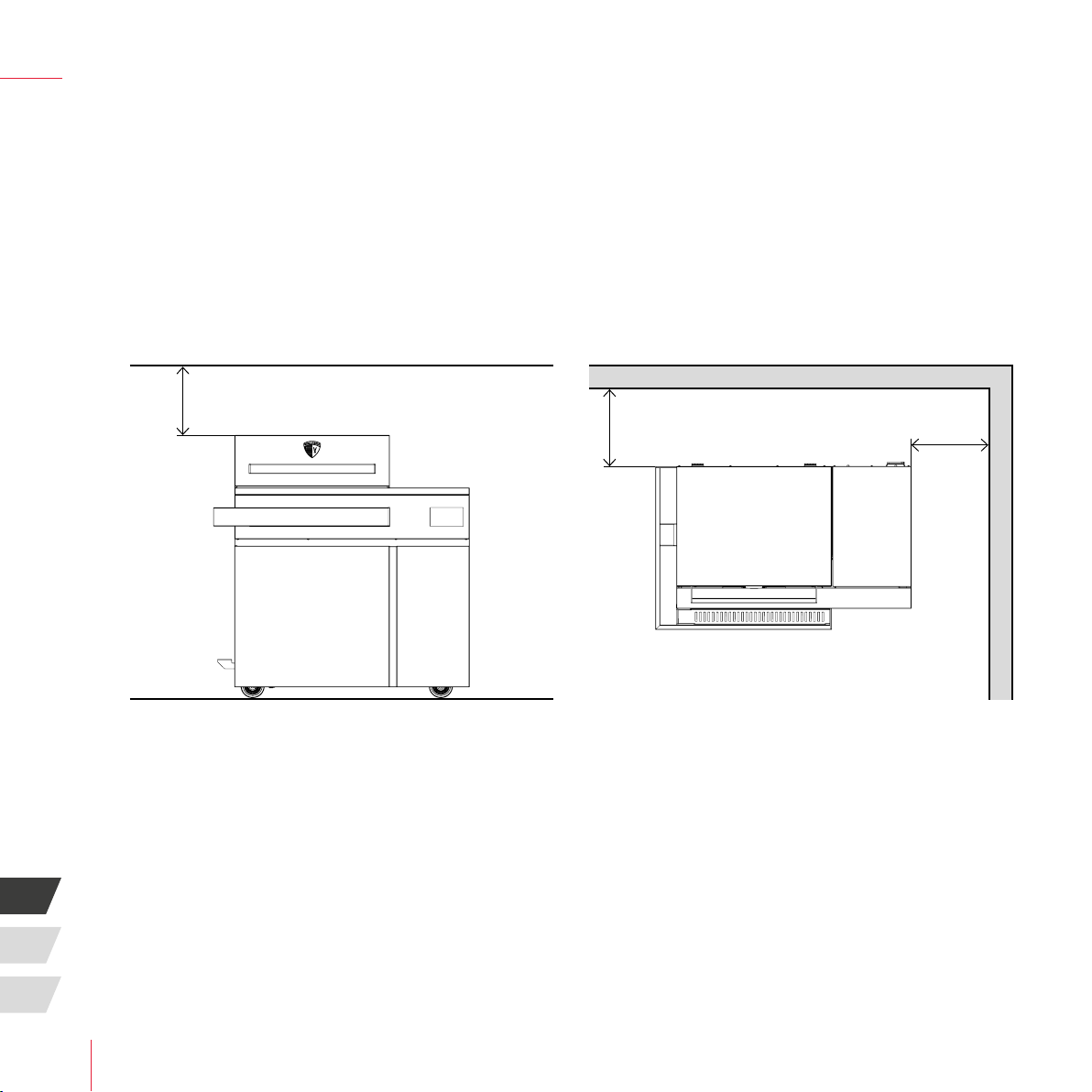

SAFETY DISTANCES
a / Height safety distance. b / Safety distance around the BBQ.
120 cm
80 cm 50 cm

11
DE
FR
EN
CARBON MONOXIDE POISONING
WARNING
Follow these indications to avoid carbon
monoxide poisoning.
Be aware of the carbon monoxide
poisoning symptoms: headache,
disorientation, numbness, weakness,
nausea, vomiting and loss of sense of
direction. The carbon monoxide reduces
the ability of the blood to transport
oxygen, which may result on loss of
conscience and death.
Consult a doctor if you or the people near
the device suffer from symptoms similar
to a cold or flu. The carbon monoxide
poisoning may easily be mistaken for a
cold or flu and is usually detected too
late.
The consumption of alcohol and drugs
worsens the effects of the carbon
monoxide poisoning.
Carbon monoxide is specially toxic for
women during pregnancy, children, the
elderly, smokers and people with blood
circulation problems, such as anemia or
heart diseases.
Carbon monoxide is colorless and
odorless, therefore it is important to
use this device accordingly to the user
manual.
A
SAFETY INFORMATION

B

CHAPTER
DE
FR
EN
OPERATING
SPECIFICATIONS

14
EN
DE
FR
OPERATING SPECIFICATIONS
B
1. YOUR BARBECUE ROTA
BURNER
GREASE PAN
i
b
f
a e
d
h
c
g
g
h
Model I3A020100 / Description of the pieces
GRILL GRATES
a
HEATING RACK
MEAT PROBE
b
f
e
d
c
FRONT SHELF
FLAVOURIZER
FLAME DEFLECTOR
n
j
k
l
m
BBQ LID
PELLET AUGER PROTECTION
i
PELLET TANK LID
CONTROLLER
STORAGE DOOR
AUGER DETAIL
MEAT PROBE CONNECTORS + PLUG 230VAC
POWER CORD
j
k
l
m
n
o
o
p
p

15
DE
FR
EN
OPERATING SPECIFICATIONS
B

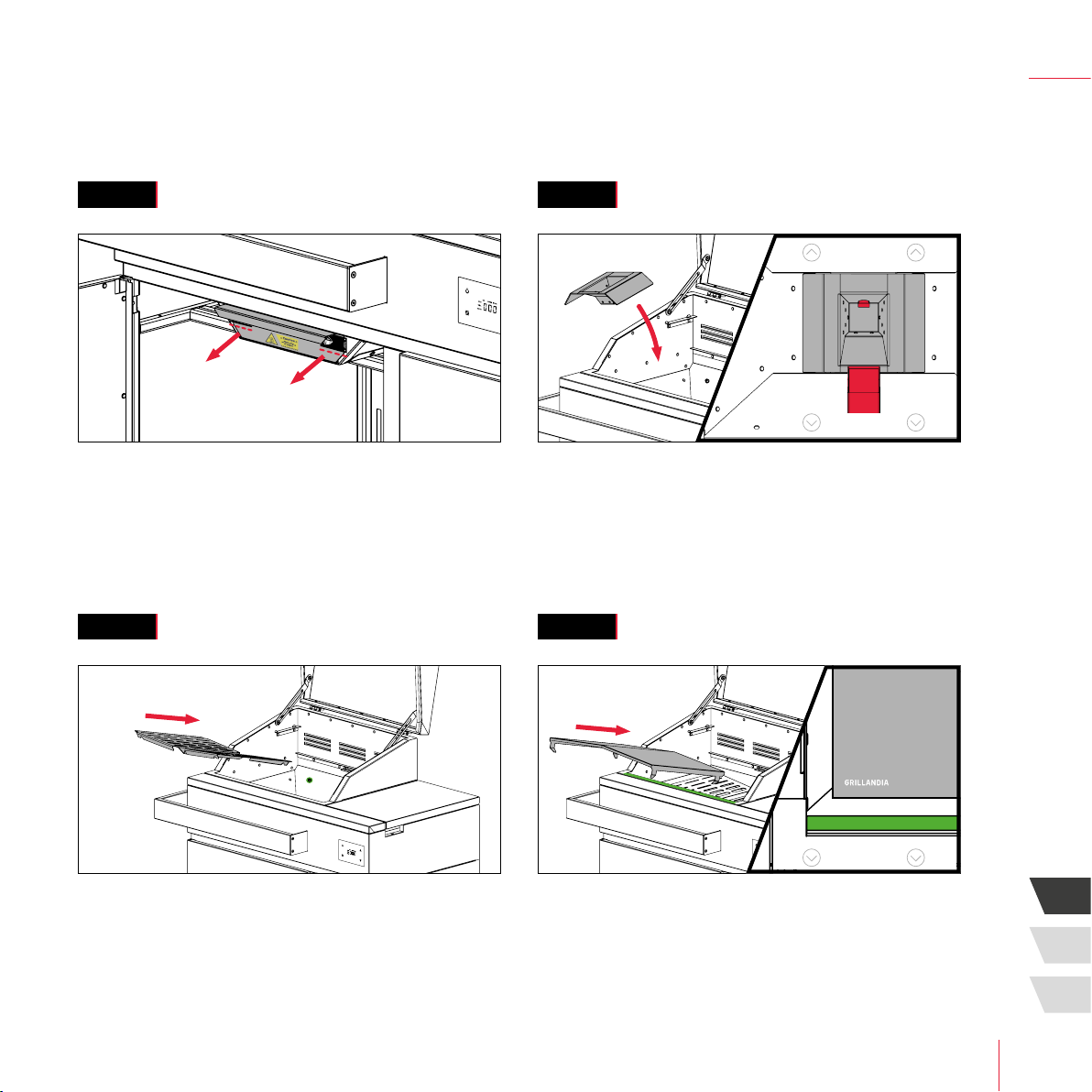

2. ASSEMBLY
Remove Grease Box labels2.1 Assemble the Burner2.2
Assemble the Flame Deflector2.3
Remove Grease Box labels.
Assemble the Flavourizer
2.4
back bbq
front bbq
front bbq
NOTE / Before begining to assemble your BBQ, take out all the boxes from its interior
To position the flame deflector, hold it with the “V”
end facing down, put it on top of the four support
points on the combustion chamber (two on the back
and two on the front).
To install the burner, hold it with its opening towards
you. Insert the burner on the pellet’s output ramp,
centering it and correctly fitting it on the opening in
front of the resistor.
To position the flavourizer on the BBQ, hold it with
the “V” end facing up, check if the word GRILLANDIA
is on your left side so you can read it correctly. Put the
flavourizer on the combustion chamber, making sure
it is placed horizontally.

16
EN
DE
FR
3. GRILLANDIA GRILLS CONTROLS
a
c
b
ON/OFF key
MENU key
UP key
DOWN key
MODE
TEMPERATURE SOURCE
DISPLAY
a
c
b
Assemble Grill Grates2.5 Assemble Heating Rack2.6
Place the grill grates uniformly distributed over the top
of its combustion chamber, supported on the back
and on the front.
Position the heating rack on the support placed on the
back of the grilling area, above the main grill grates. Tilt
the front of the rack down, making sure it fits in and
place it on the support.
B
OPERATING SPECIFICATIONS

17
DE
FR
EN
4. INITIAL USER GUIDE
a / Remove the Grate Grills b / Remove the flavourizer c / Remove the flame deflector

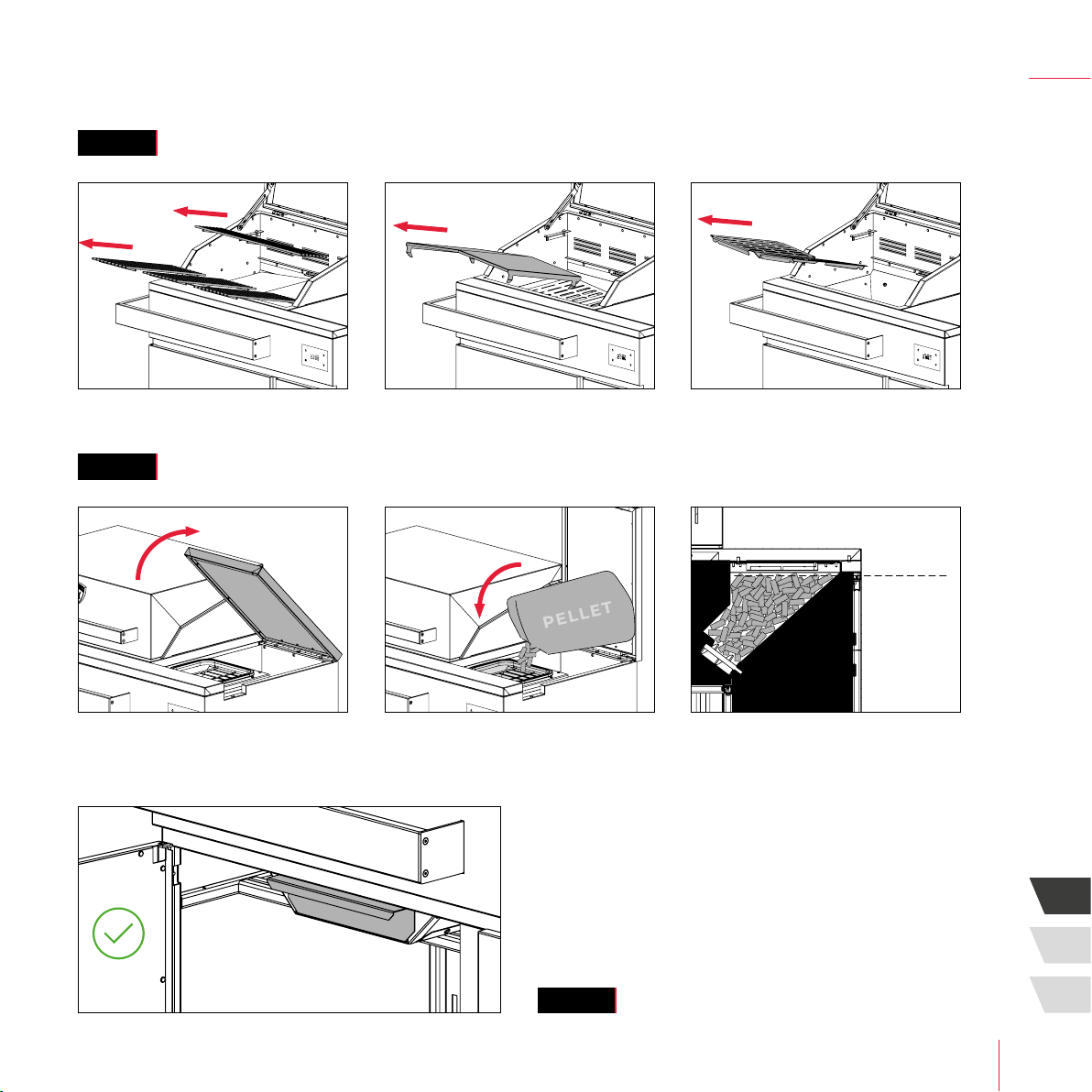

Remove the grill grates, flavourizer and flame deflector4.1
Load pellets tank4.2
NOTE / We advise you to protect the pan with
aluminum foil. We also suggest putting
water at the bottom of the pan.
MAX
OK
a / Open the tank lid b / Place the pellets c / Attention to the maximum level
d / Make sure the grease pan is duly positioned.
Connect the plug 230 VAC.4.3
B
OPERATING SPECIFICATIONS

18
EN
DE
FR
b / Let the cycle end automatically
(approx. 7 min)
a / Press the ON/OFF + MENU keys simultaneously for 3 seconds to
begin the loading. Display shows info “Fed”.
NOTE / Check if the bottom of the burner is completely full. If so, clean the burner.
Make sure the bottom of the burner is full to ensure that
the auger is working perfectly.
Completely clean the burner before igniting the
device.

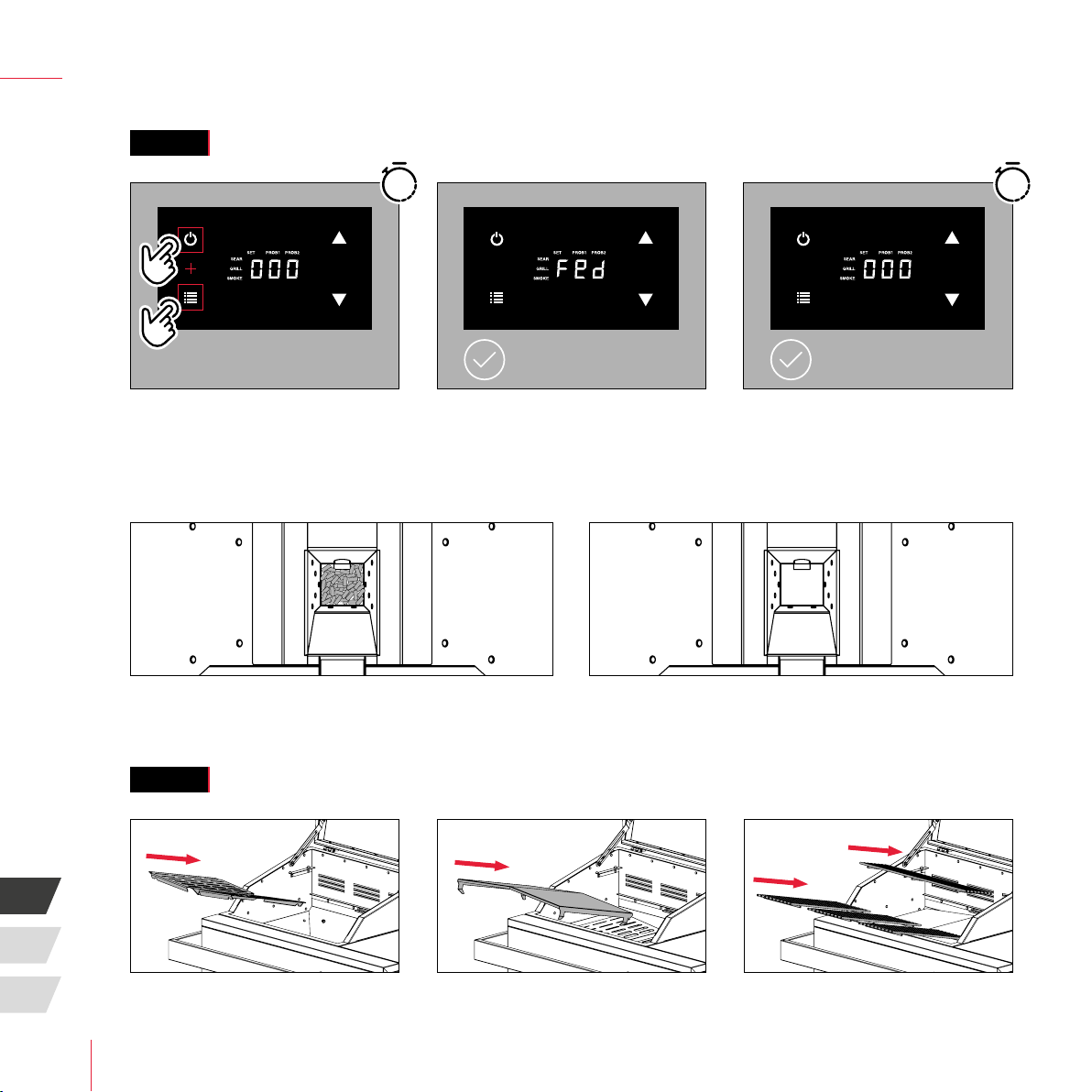

Load the auger system
4.4
OK OK
3s5m
a / Place the flame deflector b / Place the flavourizer c / Place the grill grates
Place the flame deflector, the flavourizer and the grill grates
4.5
B
OPERATING SPECIFICATIONS

19
DE
FR
EN
Turn on the BBQ4.6
a / With the lid open, press the
ON/OFF key for 3 seconds until
the display is on.
b / Approx. 4 minutes later, the
pellets shall begin to burn and
you shall see dense smoke.
c / When the smoke lightens, close
the lid and start the cleaning in
SEAR mode.
3s
NOTE / During the start, do not unplug your BBQ. During this process, you cannot turn it off.
NOTE / During the shutdown – “Sdn” do not unplug
your BBQ.
4m
4.8
a / Press the ON/OFF key for 3 seconds. b / This process shall take approx. 10 minutes.
10m
3s
Turn off the BBQ
B
OPERATING SPECIFICATIONS
30m
Press MENU + UP simultaneously and put on SEAR
mode. Wait 30 minutes for the cycle’s conclusion
SEAR mode cleaning
4.6a

20
EN
DE
FR
5. COOKING WITH BBQ ROTA
Ignition5.1
NOTE / Before each ignition, make sure the auger system has pellets and that the burner is clean
and well-positioned (consult assembly – 2.2).
NOTE / While you wait for the end of the ignition process, you can select the intended mode and temperature,
accordingly to the following instructions on 5.2.
a / Connect to a plug 230VAC.,
d / When the smoke lightens, close the lid.
b / With the lid open, press the ON/OFF key for 3
seconds until the display is on.
c / Approx. 4 minutes later, the pellets shall begin to
burn and you shall see dense smoke.
OK OK
4m
3s
B
OPERATING SPECIFICATIONS
