Grindmaster PIC-1 User manual

Model PIC-1 Single Head
Powdered Specialty Beverage Dispenser
Features:
• Compact, space-saving 7” (18 cm) width
• Large, 6-1/2 lb (3 kg) Clear-View™ hopper for
fast product level visibility
• Large, bold, front-lit graphics draw more
attention and sales
• Patented safety rib on dispense nozzle and
generous cup clearance assures cups don’t catch
• Direct Drive Hoppers - Self-aligning pin and link
hopper drive for durability and easy install
• Visible dispense spout and cup guide on drip tray
clearly indicate cup placement for ease of
self-service
• “Direct Product Control” for easy-to-adjust
powder flow for drink strength
• Sturdy metal door with molded European
style cover
• Whipper chamber consistently produces perfectly
blended drinks with a frothy top
Ideal for dispensing a variety of products including cappuccino, hot chocolate, soup,
chai tea, steamed milk, hot apple cider, flavored cappuccinos and gourmet cocoas.
Item # ________________________________
Project _______________________________
Date _________________________________
Only
7” (18m) wide!
Grindmaster® Coffee Grinders and Brewers • Espressimo® Espresso Machines • Grindmaster® Hot Beverage Dispensers
Crathco® Cold and Frozen Beverage Dispensers • American Metal Ware® Coffee and Tea Systems
Tel (502) 425-4776 • Fax (502) 425-4664 • 1-800-695-4500
P.O. Box 35020 • Louisville, KY 40232 • USA
www.grindmaster.com • email: [email protected]
PIC-1 hopper
Specifications* PIC-1 & PSD-1 (120V/60Hz) PIC-1Q (120/240V, 60Hz) PIC-1E (230/240V, 50/60Hz)
Volts/Watts/Amps 120V/60Hz / 1650W / 14A 120/240V, 60Hz / 2500W / 10.4A 230/240V; 50/60Hz
Water Line 1/4” (6.35mm) flare 1/4” (6.35mm) flare 1/4” (6.35mm) flare
Tank Size 1.5 gallons (5.7L) 1.5 gallons (5.7L) 1.5 gallons (5.7L)
Cup Clearance PIC-1: 7” (18 cm)
PSD-1 & PIC-1-CUL: 6” (15 cm)
7” (18 cm) 6” (15 cm)
Dimensions
(H x W x D)
25-1/4” x 7” x 22-7/8”
64 cm x 18 cm x 59 cm
25-1/4” x 7” x 22-7/8”
64 cm x 18 cm x 59 cm
25-1/4” x 7” x 22-7/8”
64 cm x 18 cm x 59 cm
Ship Dimensions
(H x W x D)
29-1/2” x 12-1/2” x 27”
75 cm x 32 cm x 69 cm
29-1/2” x 12-1/2” x 27”
75 cm x 32 cm x 69 cm
29-1/2” x 12-1/2” x 27”
75 cm x 32 cm x 69 cm
Weight 40 lbs (18.1 kg) 40 lbs (18.1 kg) 40 lbs (18.1 kg)
Ship Weight 48 lbs (21.8 kg) 48 lbs (21.8 kg) 48 lbs (21.8 kg)
Listings PIC-1 & PSD-1: UL, NSF (15A cord)
PIC-1-CUL: CUL, UL, NSF (20A cord)
UL, CUL, NSF CE, NSF
* Specifications per updated 2005 model
Options
Choice of Backlit Merchandiser Choose Cappuccino, Hot Chocolate or Soup (see soup option)
(custom graphics available in quantity - additional charge may apply)
Soup Option (Model PSD-1) Comes with soup graphics, soup flavor strips, soup dispense noz-
zle and large drain tray (for 6” (15 cm) cup clearance)
Portion Control (add “A” to model #) Dispenses preset portion of product at the push of a button
Dual Pinwheel in Hopper 2nd pinwheel provides additional circulation in hopper for dense
products (additional cost applies)
Water Pump
(Part # 60568 -115V /60Hz) (Part # 62980 - 230V/50Hz)
External water pump allows standard machine to operate off of
remote water reservoir.
Soluble Coffee Option Serve fresh, hot coffee fast from your soluble coffee with our
soluble coffee option.
Model PIC-1 - Single Head
Powdered Specialty Beverage Dispensers
Choice of backlit signs:
Side View Front View
Grindmaster® Coffee Grinders and Brewers • Espressimo® Espresso Machines • Grindmaster® Hot Beverage Dispensers
Crathco® Cold and Frozen Beverage Dispensers • American Metal Ware® Coffee and Tea Systems
Tel (502) 425-4776 • Fax (502) 425-4664 • 1-800-695-4500
P.O. Box 35020 • Louisville, KY 40232 • USA
www.grindmaster.com • email: [email protected] 1004 Form # CC-206-02© Grindmaster Corporation, 2002
PRINTED IN USA
22.9” (58.2 cm)
2.1” (5.4 cm)
WATER HOOKUP
3.1” (7.8 cm)
ELECTRIC HOOKUP
3.8” (9.7 cm)
WATER
HOOKUP
25.2”
(64.13 cm)
7.0”
(17.9 cm)
3.2” (8.1 cm)
ELECTRIC HOOKUP

Other manuals for PIC-1

1

Other Grindmaster Beverage Dispenser manuals

Grindmaster Crathco G-Cool Single C-1S User manual

Grindmaster

Grindmaster Crathco G-Cool Single C-1S User manual

Grindmaster Crathco E29 User manual

Grindmaster

Grindmaster Crathco E29 User manual

Grindmaster 3312 User manual

Grindmaster

Grindmaster 3312 User manual

Grindmaster Crathco MG236-2B Guide

Grindmaster

Grindmaster Crathco MG236-2B Guide

Grindmaster PIC-3 Three Flavor User manual

Grindmaster

Grindmaster PIC-3 Three Flavor User manual

Grindmaster PIC-4 Series User manual

Grindmaster

Grindmaster PIC-4 Series User manual

Grindmaster Crathco G-Cool Single C-1S User manual

Grindmaster

Grindmaster Crathco G-Cool Single C-1S User manual

Grindmaster PIC-5 Five Flavor User manual

Grindmaster

Grindmaster PIC-5 Five Flavor User manual

Grindmaster Standard 3311 User manual

Grindmaster

Grindmaster Standard 3311 User manual

Grindmaster Crathco 5512 Guide

Grindmaster

Grindmaster Crathco 5512 Guide

Grindmaster Crathco G23-2B User manual

Grindmaster

Grindmaster Crathco G23-2B User manual

Grindmaster Crathco D35 User manual

Grindmaster

Grindmaster Crathco D35 User manual

Grindmaster Standard 3311 User manual

Grindmaster

Grindmaster Standard 3311 User manual

Grindmaster 3511 User manual

Grindmaster

Grindmaster 3511 User manual

Grindmaster HC-2 User manual

Grindmaster

Grindmaster HC-2 User manual

Grindmaster Standard 3311 User manual

Grindmaster

Grindmaster Standard 3311 User manual

Grindmaster Crathco C-3D User manual

Grindmaster

Grindmaster Crathco C-3D User manual

Grindmaster Crathco PM4-B Guide

Grindmaster

Grindmaster Crathco PM4-B Guide

Grindmaster PIC-5 Five Flavor User manual

Grindmaster

Grindmaster PIC-5 Five Flavor User manual

Grindmaster G-Cool C-2S User manual

Grindmaster

Grindmaster G-Cool C-2S User manual

Grindmaster Standard 3311 User manual

Grindmaster

Grindmaster Standard 3311 User manual

Grindmaster PIC-1K User manual

Grindmaster

Grindmaster PIC-1K User manual

Grindmaster Crathco D35 User manual

Grindmaster

Grindmaster Crathco D35 User manual

Grindmaster PIC-3 Three Flavor User manual

Grindmaster

Grindmaster PIC-3 Three Flavor User manual

Popular Beverage Dispenser manuals by other brands

CPS COLOR COROB D300 user manual

CPS COLOR

CPS COLOR COROB D300 user manual

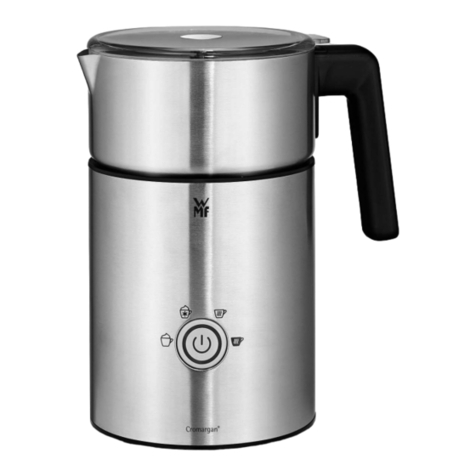

WMF LONO operating manual

WMF

WMF LONO operating manual

Manitowoc MFD-51 Replacement instructions

Manitowoc

Manitowoc MFD-51 Replacement instructions

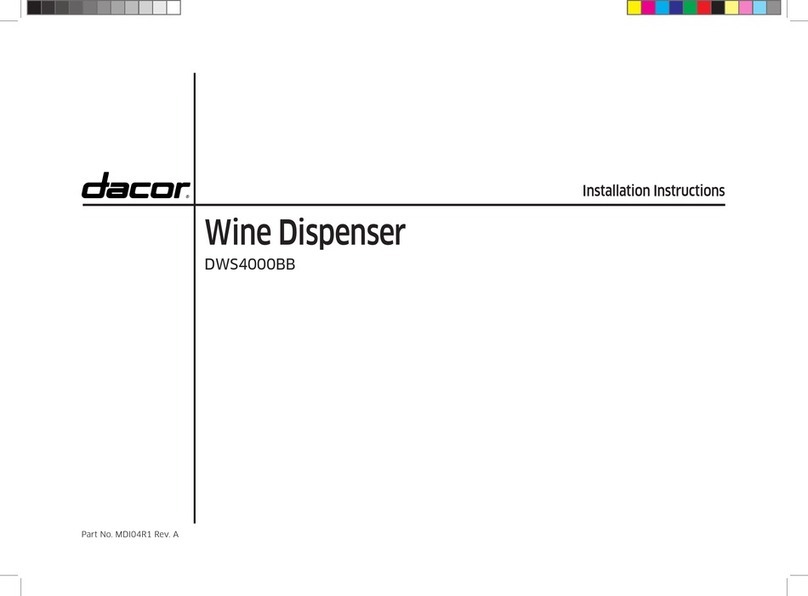

Dacor DWS4000BB installation instructions

Dacor

Dacor DWS4000BB installation instructions

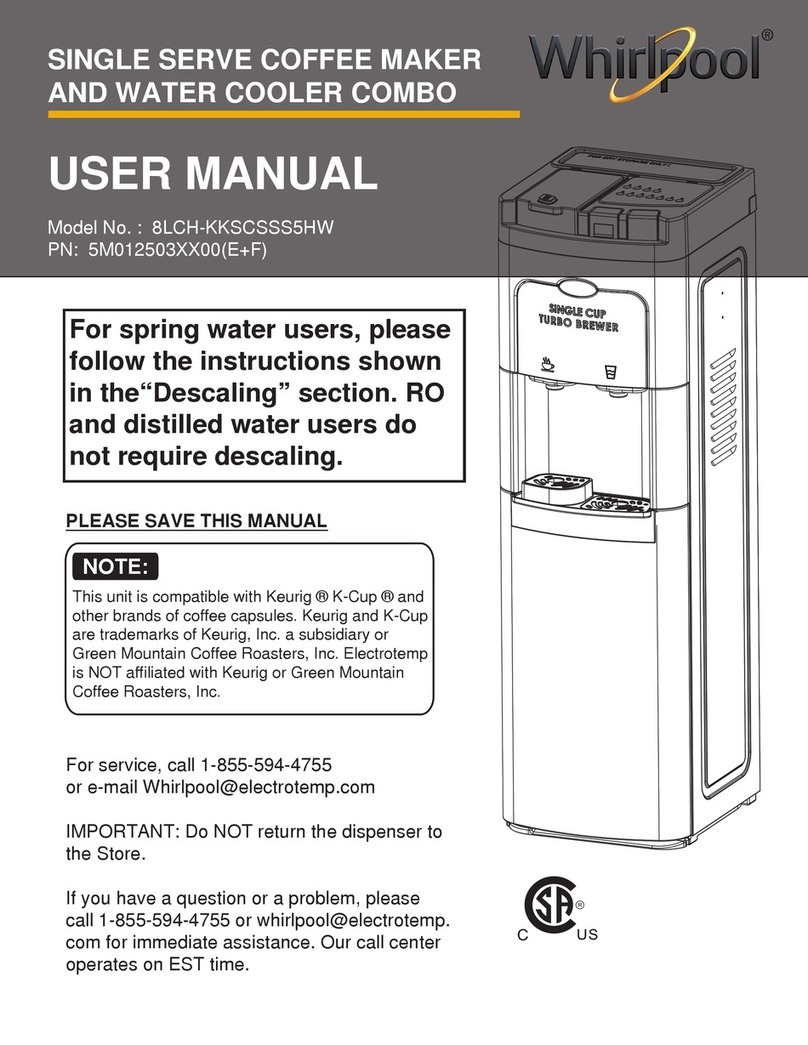

Whirlpool 8LCH-KKSCSSS5HW user manual

Whirlpool

Whirlpool 8LCH-KKSCSSS5HW user manual

Vinotemp VT-WINEDISP4 owner's manual

Vinotemp

Vinotemp VT-WINEDISP4 owner's manual

Panasonic 721210101 Illustrated parts list

Panasonic

Panasonic 721210101 Illustrated parts list

Danby Millenium Chill'n Tap DKC445BL owner's manual

Danby

Danby Millenium Chill'n Tap DKC445BL owner's manual

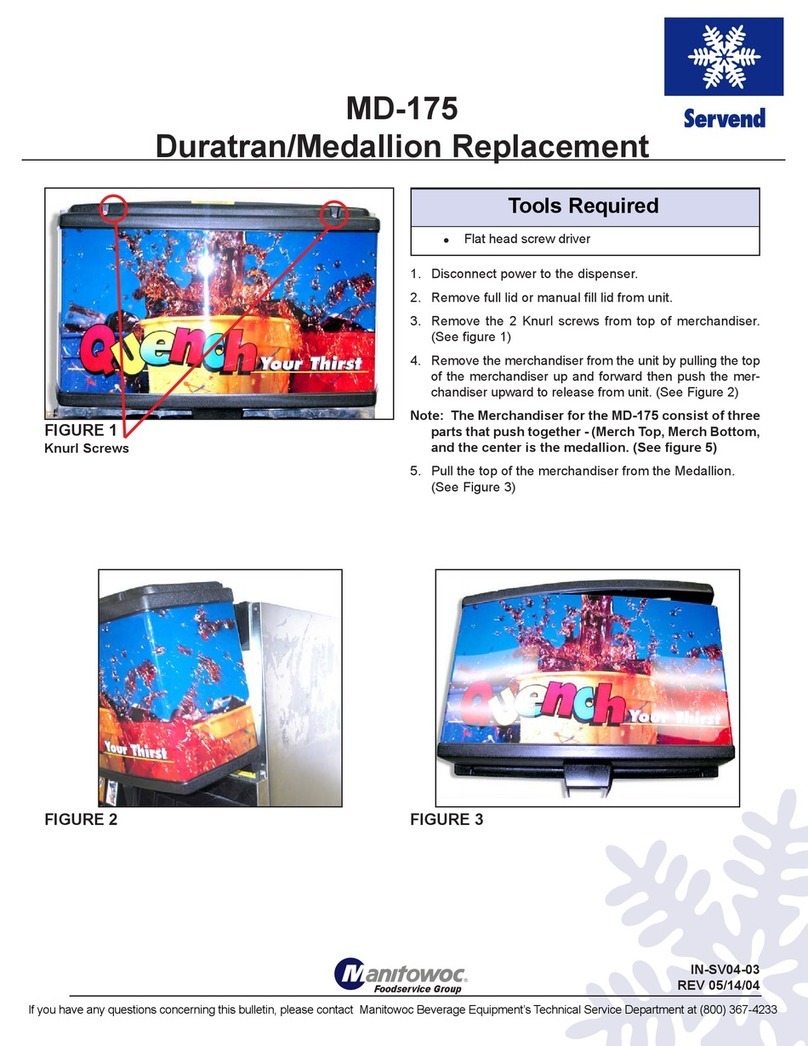

Servend MD 175 quick start guide

Servend

Servend MD 175 quick start guide

Remcor TJ300 Service manual

Remcor

Remcor TJ300 Service manual

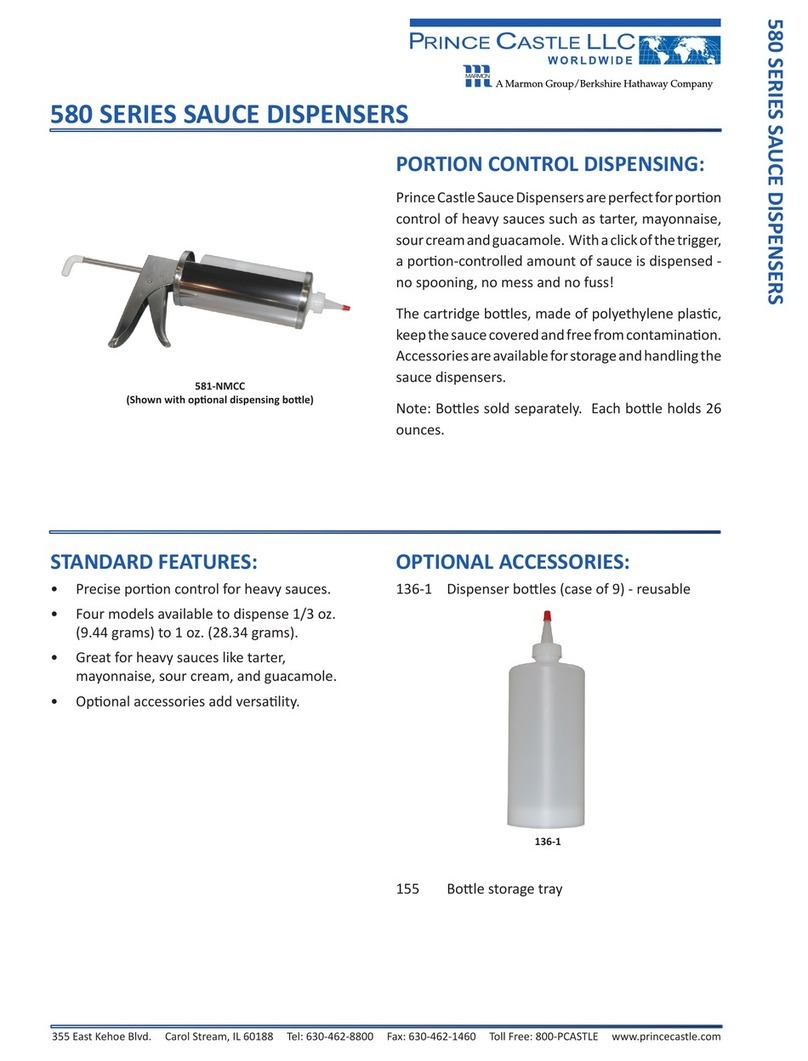

Prince Castle Sauce Dispenser 580 Series Specifications

Prince Castle

Prince Castle Sauce Dispenser 580 Series Specifications

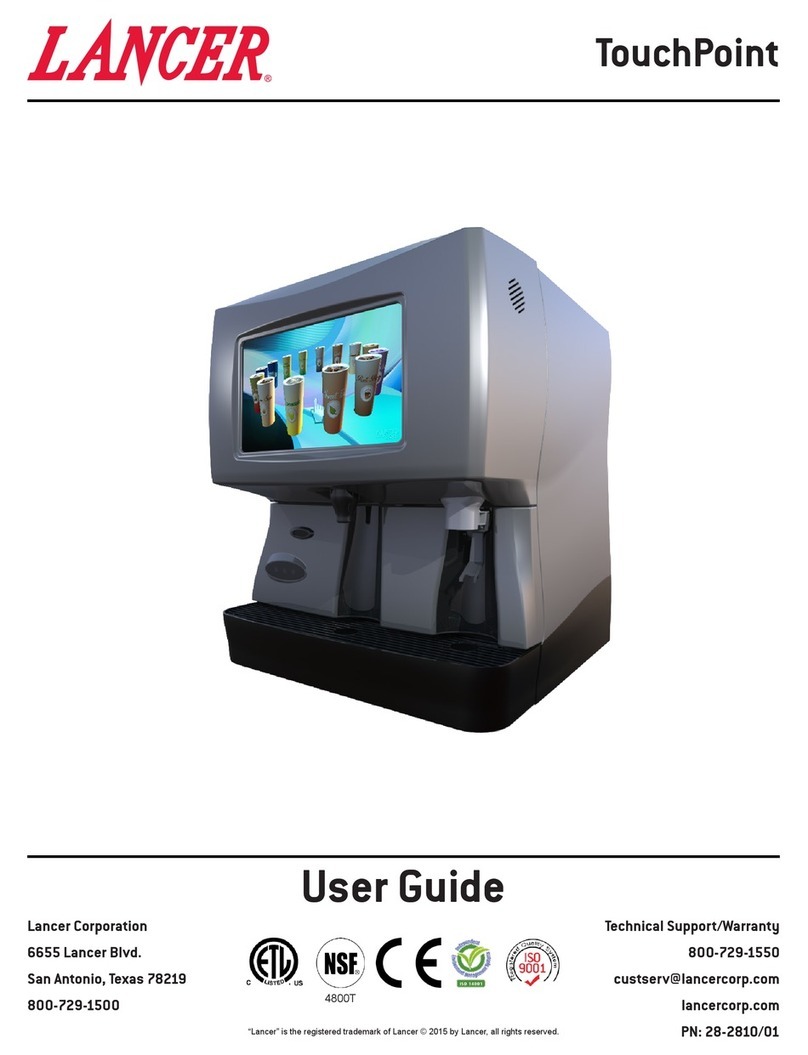

lancer TouchPoint user guide

lancer

lancer TouchPoint user guide

INTERNATIONAL CARBONIC SPACE CADET SCR Installation and service manual

INTERNATIONAL CARBONIC

INTERNATIONAL CARBONIC SPACE CADET SCR Installation and service manual

SureShot AC110-PC-51 Operation manual

SureShot

SureShot AC110-PC-51 Operation manual

Cornelius PRISM owner's manual

Cornelius

Cornelius PRISM owner's manual

Cornelius Impulse Juice Dispenser 851000109 Illustrated parts list

Cornelius

Cornelius Impulse Juice Dispenser 851000109 Illustrated parts list

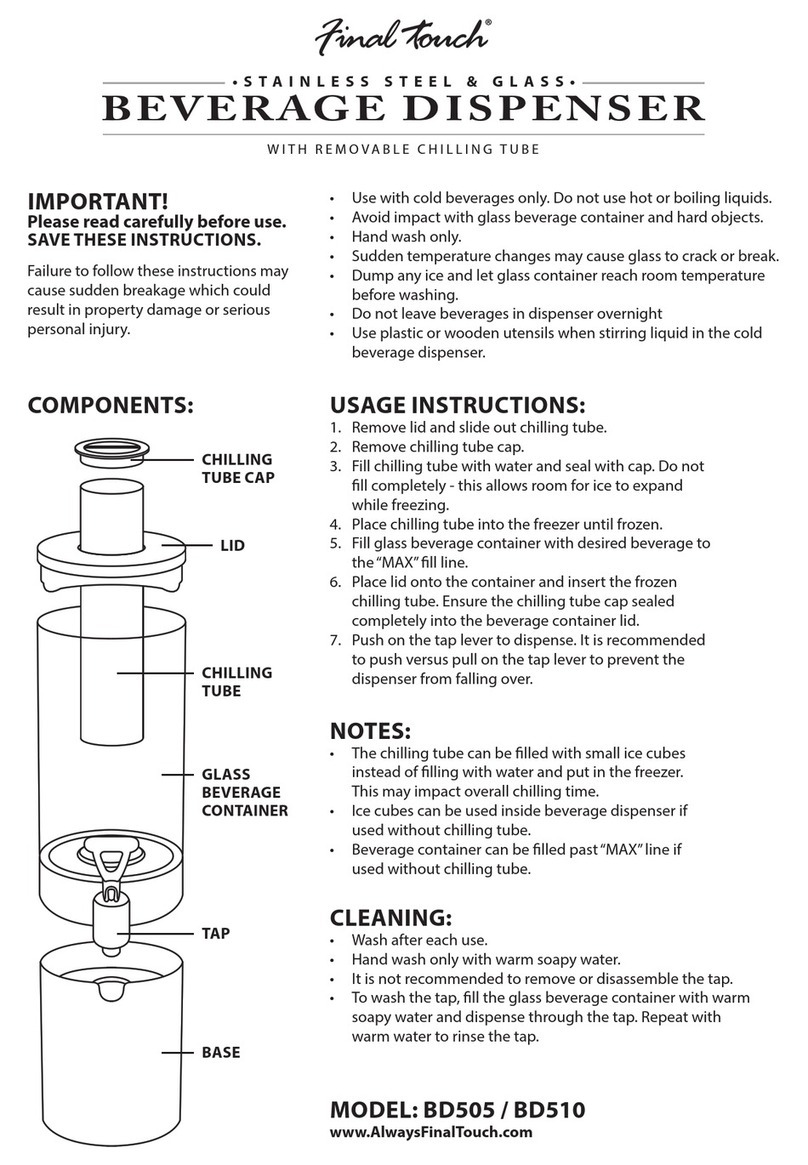

Final Touch BD505 quick start guide
