Grizzly H6440 User manual
MODEL H6440/H6441
HALOGEN LAMP
INSTRUCTIONS
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
1. Only connect this lamp to a properly
grounded 110V power source.
2. Halogen lamps can become very hot.
Securely mount this lamp to a stable
surface that is safely away from com-
bustible materials of any kind. Never
place combustible materials, such as
cloth or paper items, volatile liquids, or
explosive gases, etc., near the lamp at
any time.
3. DO NOT replace the halogen bulb with
a wattage higher than what this lamp is
rated for.
4. To avoid electrical fires or electrocu-
tion, DO NOT allow any liquid to come
in contact with the lamp.
5. To avoid burns or electrocution, turn
the lamp OFF, unplug it from the power
source, and allow it to cool before mak-
ing adjustments or performing mainte-
nance.
6. Children or pets are unaware of the
hazards of a hot halogen lamp. DO NOT
allow children or pets near the lamp.
7. To avoid burns or a fire, never handle
the hot lamp or discard a hot halogen
bulb.
8. For safe operation, never operate this
lamp with missing or broken parts.
&'
(
)*
+

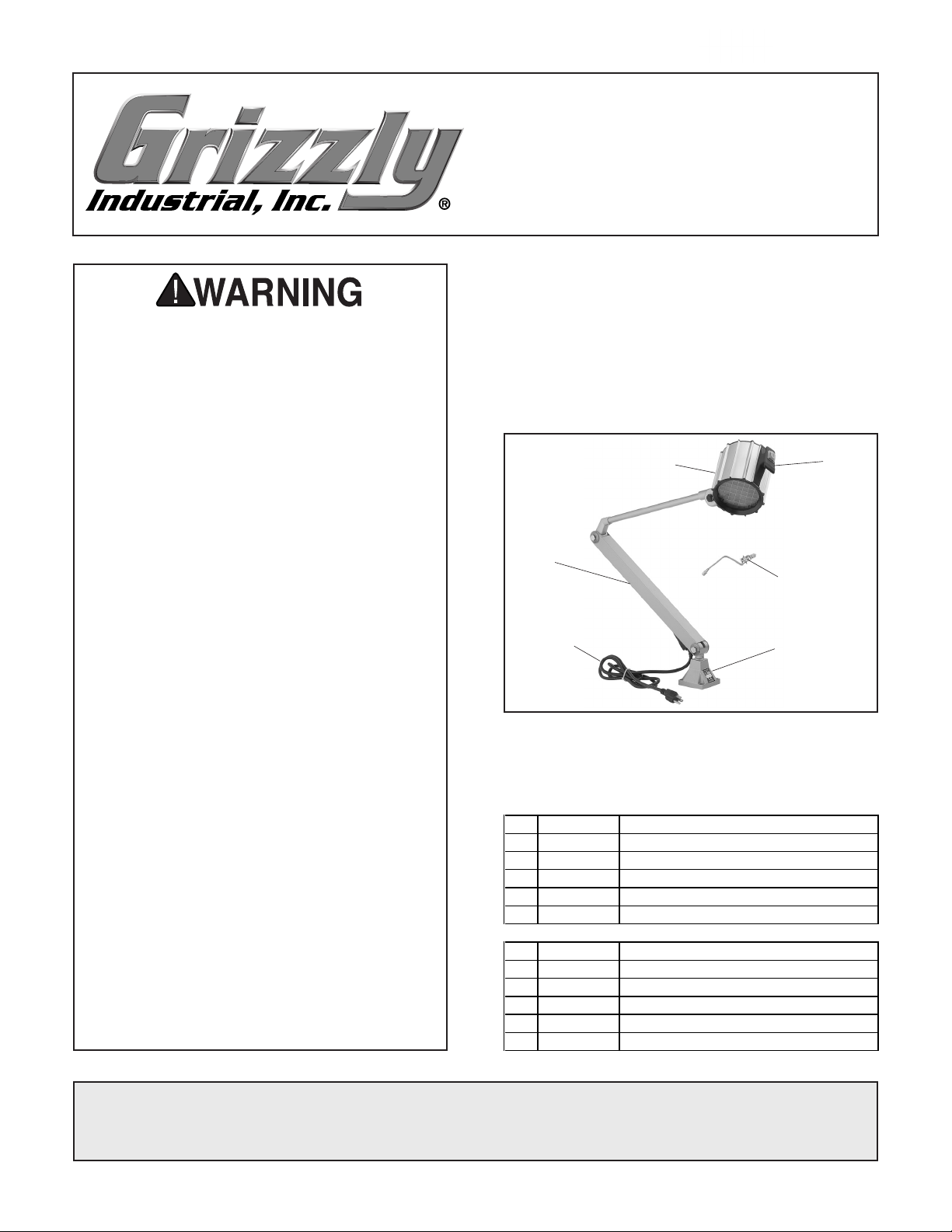

Figure 1.
REF PART # DESCRIPTION
Model H6440:
1 PH6440001 POWER CORD & TRANSFORMER ASSY
2 PH6440002 MOUNTING BASE
3 PH6440003 SUPPORTING ARM ASSEMBLY
4 PH6440004 LAMP HOUSING ASSEMBLY
5 PH6440005 SWITCH ASSEMBLY
6 H3250 HALOGEN BULB ASSY 70 WATT
Model H6441:
1 PH6441001 POWER CORD & TRANSFORMER ASSY
2 PH6441002 MOUNTING BASE
3 PH6441003 SUPPORTING ARM ASSEMBLY
4 PH6441004 LAMP HOUSING ASSEMBLY
5 PH6441005 SWITCH ASSEMBLY
6 H3252 HALOGEN BULB ASSY 50 WATT
Specifications
Inventory
If you need help with your new halogen lamp, call
our Tech Support at: (570) 546-9663.
Replacing Bulb
1. OFF
2.
back
Figure 2
Figure 2.
3.
4.
Figure 3
Figure 3.
5.
Note: Notice how the compression spring is
mounted on the inside flanges of the retaining
cap.
6.
Figure 4
7.
Figure 4.
Like all high intensity lamps there is potential
danger when operating this lamp. Accidents
are frequently caused by lack of familiarity
or failure to pay attention. Use this lamp
with respect and caution to decrease the
risk of operator injury. If normal safety pre-
cautions are overlooked or ignored, serious
personal injury may occur.
