GTS Patriot KVL30 adapter User manual

Global Technology Systems - Revision 1
The Patriot KVL30 Adapter
®
Designed to link the Motorola
KVL 3000/3000+ Radio Key-loader
with the Honeywell Batteries
H8610-Li High Capacity
Lithium Ion rechargeable battery
®

Contents
Introduction 4
Equipment Supplied 5
Safety Guidelines 5
Warning 5
Product Specification 5
Installation 6
Compatible Batteries 8
Compatible Battery Chargers 9
Troubleshooting 9
Cleaning 9
RF Devices 9
Replacement Parts 10
Warranty and Support 10
The Patriot KVL30 Adapter
®

4
Introduction
Figure 1 Figure 2 Figure 3
The Patriot KVL30 Adapter
®
The Patriot KVL30 adapter (Figure 1) is designed to provide extended
operational times by increasing the available battery capacity for the
Motorola KVL 3000/3000+ Radio Key-loader (Figure 2).
The Patriot KVL30 adapter will key and latch onto the Motorola KVL 3000 /
3000+ series Key-loader, and is designed for use with the Honeywell
Batteries H8610-Li High Capacity Lithium Ion rechargeable battery (Figure 3)
which provides power to the device, replacing the NTN 7394B 1200 mAh
Ni/Cd battery pack.
A complete listing of compatible and approved rechargeable batteries as
specified and approved by Honeywell Battery Services are listed in Table 1.
The Patriot KVL30 adapter's compatible batteries can be recharged in the
Honeywell Batteries Patriot Multi-Chemistry, (Li-Ion, Ni/CD or Ni/MH)
Charger line of products or other suppliers as specified and approved by
Honeywell Battery Services are listed in Table 2.
This reference guide provides basic instructions on the set-up and use of
the Patriot KVL30.
Many of the parameters discussed in this document may be updated in the
field as required.
®
®
®
®
®
® ®
®®
®
®
Global Technology Systems Inc. reserves the right to change, update and modify procedures and
specifications without notice.
Motorola is a registered trademark of Motorola, Inc.

5
nEquipment Supplied
Safety Guidelines
Warning
Product Specification
The equipment supplied is:
One Patriot KVL30 adapter
One operation manual
Before using the Patriot HKVL30 adapter, please read all instructions
and cautionary notations on the Honeywell Battery, and on the radio
host device.
NOTE: Never install the Patriot KVL30 adapter onto the Motorola KVL
3000/3000+ Radio Key-loader with the battery already attached. This
can cause damage to the battery or device
To reduce risk of injury, only use authorized battery products with
this device. Other non-approved batteries may cause personal injury
and or damage to the equipment.
To reduce risk of electric shock, never install the Patriot KVL30
adapter onto the Motorola KVL 3000/3000+ Radio Key-loader with
the battery already attached
Dispose of used batteries in accordance with your state or local
hazardous material laws.
Do not disassemble, incinerate, modify or short circuit any battery or
related components.
Dimensions
Length: 6.3” (161.mm)
Width: 2.18" (56mm)
Height KVL interface: 0.182” (4.7mm)
Height handle w/ latch: 0.960" (24.4mm)
Weight: ~1/3 lbs (147 g) (without batteries)
®
n
n
n
®
®
®®
®
®
n
n
n
n
n
n
The Patriot KVL30 Adapter
®

6
Figure 1 Figure 2

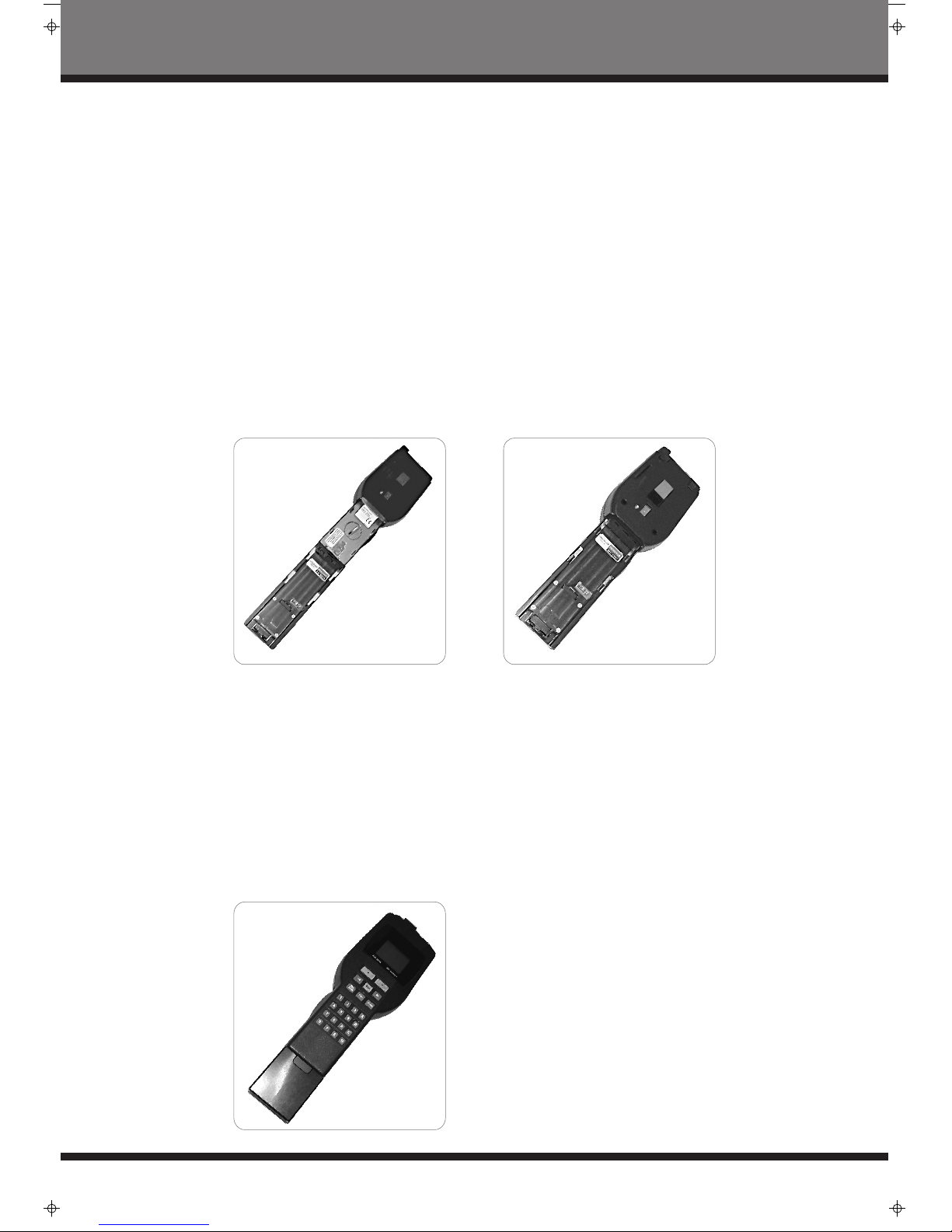

nKVL30 Installation
Installation
NOTE: Never install the Patriot KVL30 adapter onto the Motorola KVL
3000/3000+ Radio Key-loader with the battery already attached. This
can cause damage to the battery or device
1. To install the Patriot KVL30 latches directly to the Motorola KVL
3000/3000+ Radio Key-loader exactly as if installing the NTN 7394B
1200 mAh Ni/Cd battery pack. (See figure1)
2. Align the Patriot KVL30 guide rails over the KVL device
3. Slide the Patriot KVL30 forward until latch is activated (See figure2)
®®
®
®
®
®
1. To remove the Patriot KVL30 from the Motorola KVL 3000/3000+
Radio Key-loader is exactly as if removing the NTN 7394B 1200 mAh
Ni/Cd battery pack.
2. Depress latch (located on rear device support) and pull the Patriot
KVL30 away from the device until guide rails are aligned and remove.
Removal
®®
®
The Patriot KVL30 Adapter
®

7

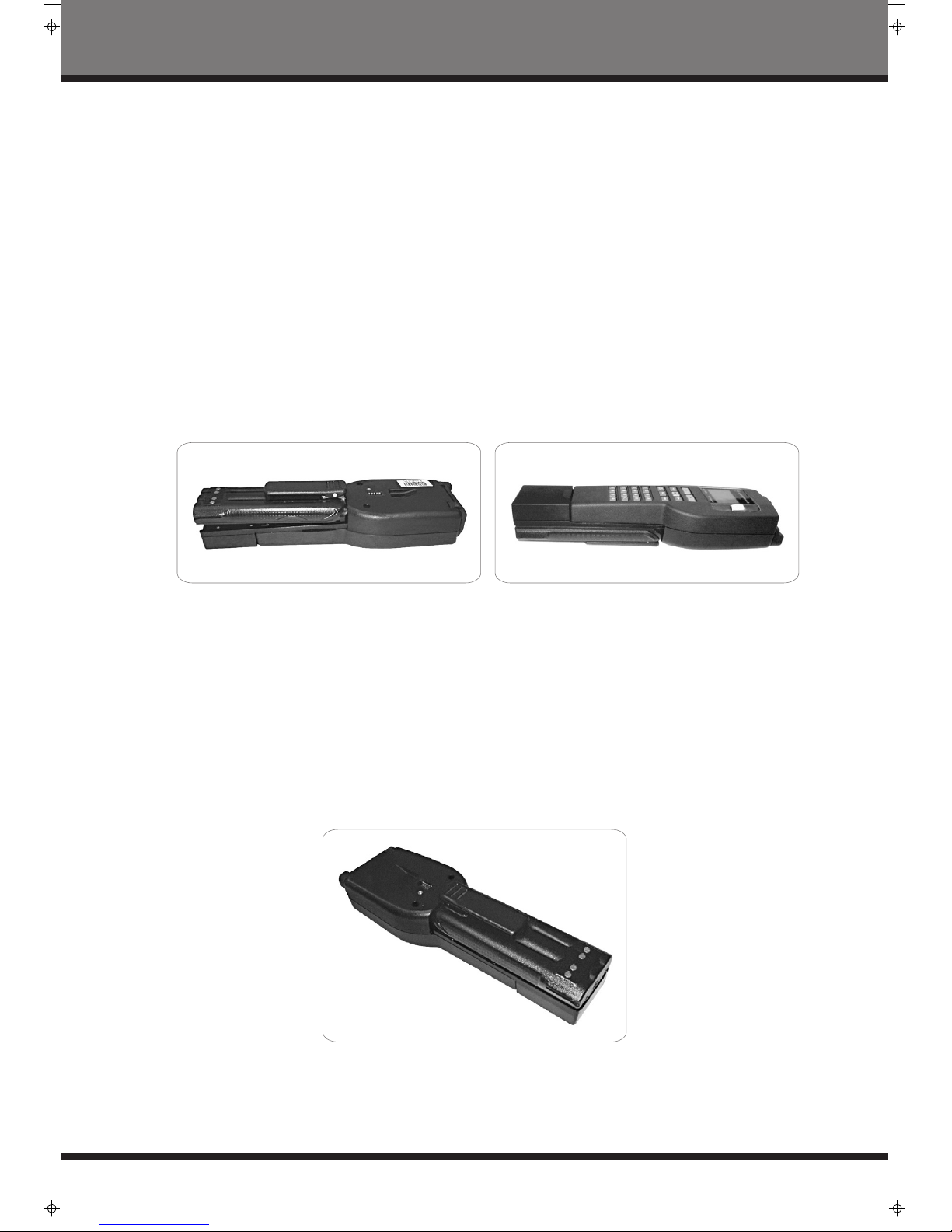

nBattery pack Installation onto the Patriot KVL30
Installation
®
NOTE: Never install the Patriot KVL30 adapter onto the Motorola KVL
3000/3000+ Radio Key-loader with the battery already attached. This
can cause damage to the battery or device.
1. To install the battery on to the Patriot KVL30 is exactly as if installing
the NTN 8610 battery packs to the radio.
2. Align the battery to the upper Patriot KVL30 guide and lower battery
in a pivot motion until batteries locking mechanism activates onto
the Patriot KVL30.
®®
®
®
®
1. To remove the battery from the Patriot KVL30 is exactly as if
removing the NTN 8610 battery pack from the radio.
2. Depress battery latch and lift battery off pivoting towards the top of
the Key-loader.
Removal
®
The Patriot KVL30 Adapter
®

8
Battery Model Capacity Chemistry
Battery Model Capacity Chemistry
H8299-M (21) 2100mAh NIMH
H8299-M (27) 2700mAh NIMH
H8299-M (40) 4000mAh NIMH
H8294-C (17) 1700mAh NiCad
H8294-C 1500mAh NiCad
H8610-Li (38) 3800mAh Li
NTN9862A 2000mAh Li
NTN8610B (IP) 1650mAh Li
NNTN4435B (IP) 2000mAh NiMH
NNTN4436B (IP) 2000mAh NiMH
NNTN4437B (IP) (RG) 2000mAh NiMH
NTN8299BR 1700mAh NiMH
NTN8923AR 1800mAh NiMH
RNN4006B 3500mAh NiMH
RNN4006AR 3500mAh NiMH
RNN4007AR (IS) 3500mAh NiMH
HNN9031B (IP) 1525mAh NiCad
NTN9032B (IP) 1525mAh NiCad
NTN8294BR 1525mAh NiCad
NTN9295AR 1525mAh NiCad
NTN8297AR (RG) 1525mAh NiCad
nTable 1 Compatible Batteries
The following list is supported batteries that are approved for use with the
Patriot KVL30 adapter.
Honeywell Batteries for Motorola XTS3000, XTS3500, XTS5000
®
®®
Honeywell Batteries for the Motorola HT1000, MT1000, JT1000,
MTS2000, MTX8000, MTX9000
Motorola Batteries for Motorola XTS3000, XTS3500, XTS5000
®®
®®
The Patriot KVL30 Adapter
®

9
nTable 1 Compatible Battery Chargers
Troubleshooting
Cleaning
RF Devices
The following list is of recommended chargers for batteries which are
approved for use with the Patriot KVL30 adapter as listed in table 1.
Honeywell Batteries Patriot Multi-chemistry Charging Systems are
compatible with all batteries listed in table 1.
Motorola Impress Charging Systems are compatible with all batteries
listed in table 1
If the Patriot KVL30 does not properly function after you have followed
these operating instructions:
Check to insure that the battery is charged
Check to insure that the Patriot KVL30 is proper installed on to
device
Check to insure that the battery is charged
Check to insure that the battery is proper installed on to device
Periodically wipe the charger with a dry lens tissue or other cleaning
materials suitable for optical applications: such as eyeglasses
Global Technology Systems, Inc. products are designed to be compliant
with the rules and regulations in the localities in which the products are
sold and will be labeled as required. The limits are designed to provide
reasonable protection against harmful interference when electronic
devices are operated in a commercial environment.
®
®
®
®
®
®
n
n
CAUTION
Do not pour, spray or spill any liquid into or onto the KVL30 Adapter.
n
n
n
n
The Patriot KVL30 Adapter
®

10
nReplacement Parts
Warranty and Support
Please contact:
For warranty and service information call 1-508-650-1172. Outside
North America, please contact your local Global Technology Systems
representative.
Global Technology Systems, Inc. products and devices are warranted
against defects in workmanship and materials for a period of one year
from the date of shipment. The product or device must remain
unmodified and must be operated under normal and proper conditions.
The warranty is limited to repair or replacement at Global Technology
Systems, Inc. option, with reasonable promptness after being returned
and received by Global Technology Systems, Inc. These provisions do not
extend the original warranty term for any product or device which was
repaired or replaced.
This warranty applies to the original owner and does
not extend to any product or device which was
subject to misuse, neglect, accidental damage,
unauthorized repair or tampering. Preventive
maintenance activities are not covered by this
warranty.
Global Technology Systems, Inc.,
551 Cochituate Road, Framingham
MA 01701, 800.267.2711
In Europe call: 00800.5390.5390
www.HoneywellBatteries.com
www.HoneywellBatteries.eu
