GTS Patriot KVL30 adapter User manual

Global Technology Systems - Revision 1
®
PATRIOT KVL30 Adapter
®
Designed to link the Motorola
KVL 3000/3000+ Radio Key-loader
with the GTS H8610-Li
High Capacity Lithium Ion
rechargeable battery

Contents
 Introduction 2
 Equipment Supplied 3
 Safety Guidelines 3
 Warning 3
 Product Specification 3
 Installation 4
 Compatible Batteries 6
 Compatible Battery Chargers 7
 Troubleshooting 7
 Cleaning 7
 RF Devices 7
 Replacement Parts 8
 Warranty and Support 8
1

Global Technology Systems Inc. reserves the right to change, update and modify
procedures and specifications without notice.
®
Motorola is a registered trademark of Motorola, Inc.
Introduction
®
The Patriot KVL30 adapter (Figure 1) is designed to provide extended operational times by
®
increasing the available battery capacity for the Motorola KVL 3000/3000+ Radio Key-
loader (Figure 2).
® ®
The Patriot KVL30 adapter will key and latch onto the Motorola KVL 3000 / 3000+ series
Key-loader, and is designed for use with the GTS H8610-Li High Capacity Lithium Ion
rechargeable battery (Figure 3) which provides power to the device, replacing the
NTN 7394B 1200 mAh Ni/Cd battery pack.
A complete listing of compatible and approved rechargeable batteries as specified and
approved by GTS Battery Services are listed in Table 1.
® ®
The Patriot KVL30 adapter's compatible batteries can be recharged in the GTS Patriot
Multi-Chemistry, (Li-Ion, Ni/CD or Ni/MH) Charger line of products or other suppliers as
specified and approved by GTS Battery Service are listed in Table 2.
®
This reference guide provides basic instructions on the set-up and use of the Patriot KVL30.
Many of the parameters discussed in this document may be updated in the field as required.
2

 Equipment Supplied
The equipment supplied is:
®
One Patriot KVL30 adapter
One operation manual
 Safety Guidelines
®
Before using the Patriot HKVL30 adapter, please read all instructions and cautionary
notations on the GTS battery, and on the radio host device.
® ®
NOTE: Never install the Patriot KVL30 adapter onto the Motorola KVL 3000/3000+ Radio
Key-loader with the battery already attached. This can cause damage to the battery or device
 Warning
To reduce risk of injury only use authorized battery products with this device. Other 
non-approved batteries may cause personal injury and or damage to the equipment.
®
To reduce risk of electric shock, never install the Patriot KVL30 adapter onto the 
®
Motorola KVL 3000/3000+ Radio Key-loader with the battery already attached
Dispose of used batteries in accordance with your state or local hazardous material laws. 
Do not disassemble, incinerate, modify or short circuit the charger any battery or 
related components.
 Product Specification
Dimensions
Length: 6.3’’ (161 mm)
Width: 2.18’’ (56 mm)
Height KVL interface: 0.182’’ (4.7 mm)
Height handle w/ latch: 0.960’’ (24.4 mm)
Weight: ~1/3 lbs (147 g) (without batteries)
3

KVL30 Installation
® ®
NOTE: Never install the Patriot KVL30 adapter onto the Motorola KVL 3000/3000+ Radio
Key-loader with the battery already attached. This can cause damage to the battery or
device

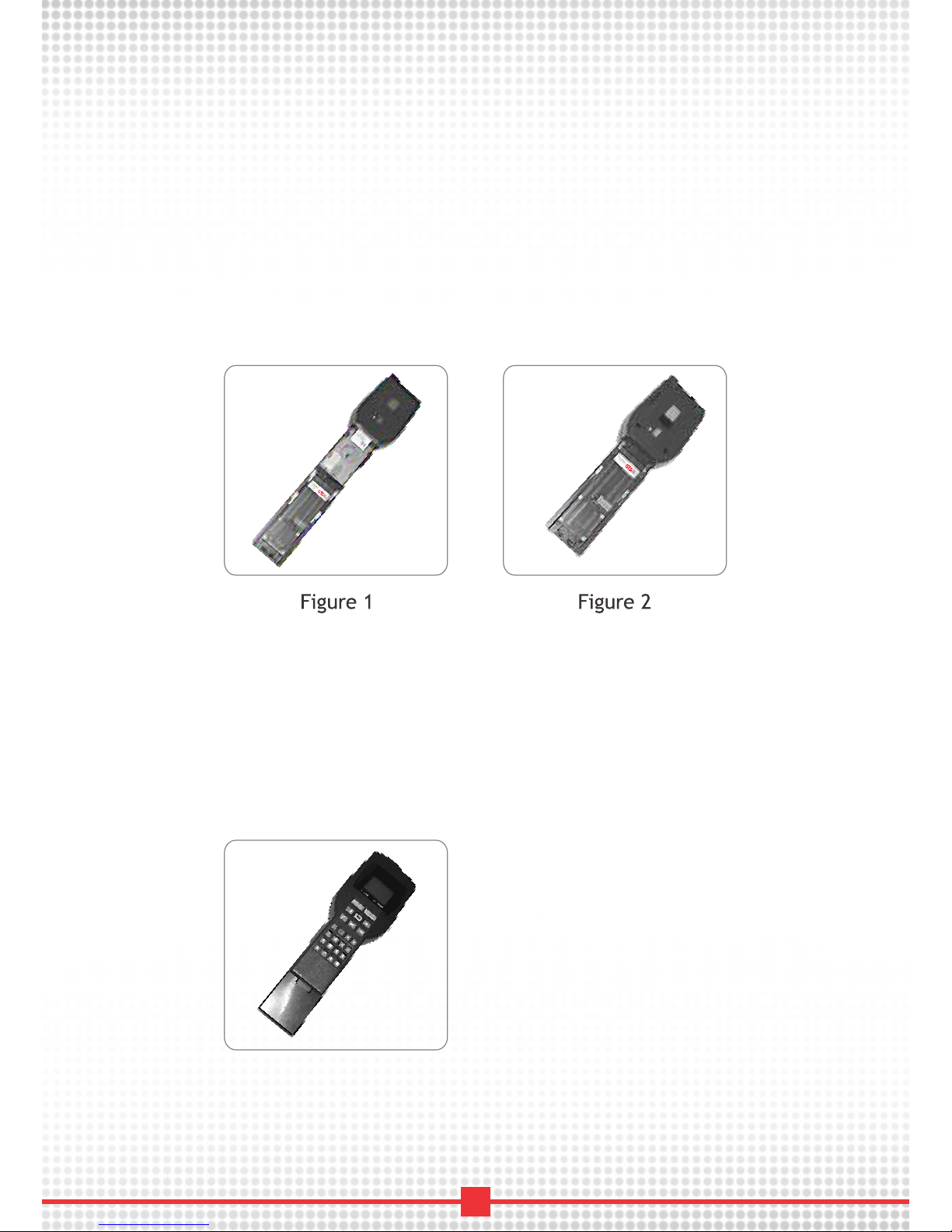

Installation
® ®
1. To install the Patriot KVL30 latches directly to the Motorola KVL 3000/3000+ Radio
Key-loader exactly as if installing the NTN 7394B 1200 mAh Ni/Cd battery pack.
(See figure 1)
®
2. Align the Patriot KVL30 guide rails over the KVL device
®
3. Slide the Patriot KVL30 forward until latch is activated (See figure 2)
4
Removal
® ®
1. To remove the Patriot KVL30 from the Motorola KVL 3000/3000+ Radio Key-loader is
exactly as if removing the NTN 7394B 1200 mAh Ni/Cd battery pack.
®
2. Depress latch (located on rear device support) and pull the Patriot KVL30 away from
the device until guide rails are aligned and remove.

®

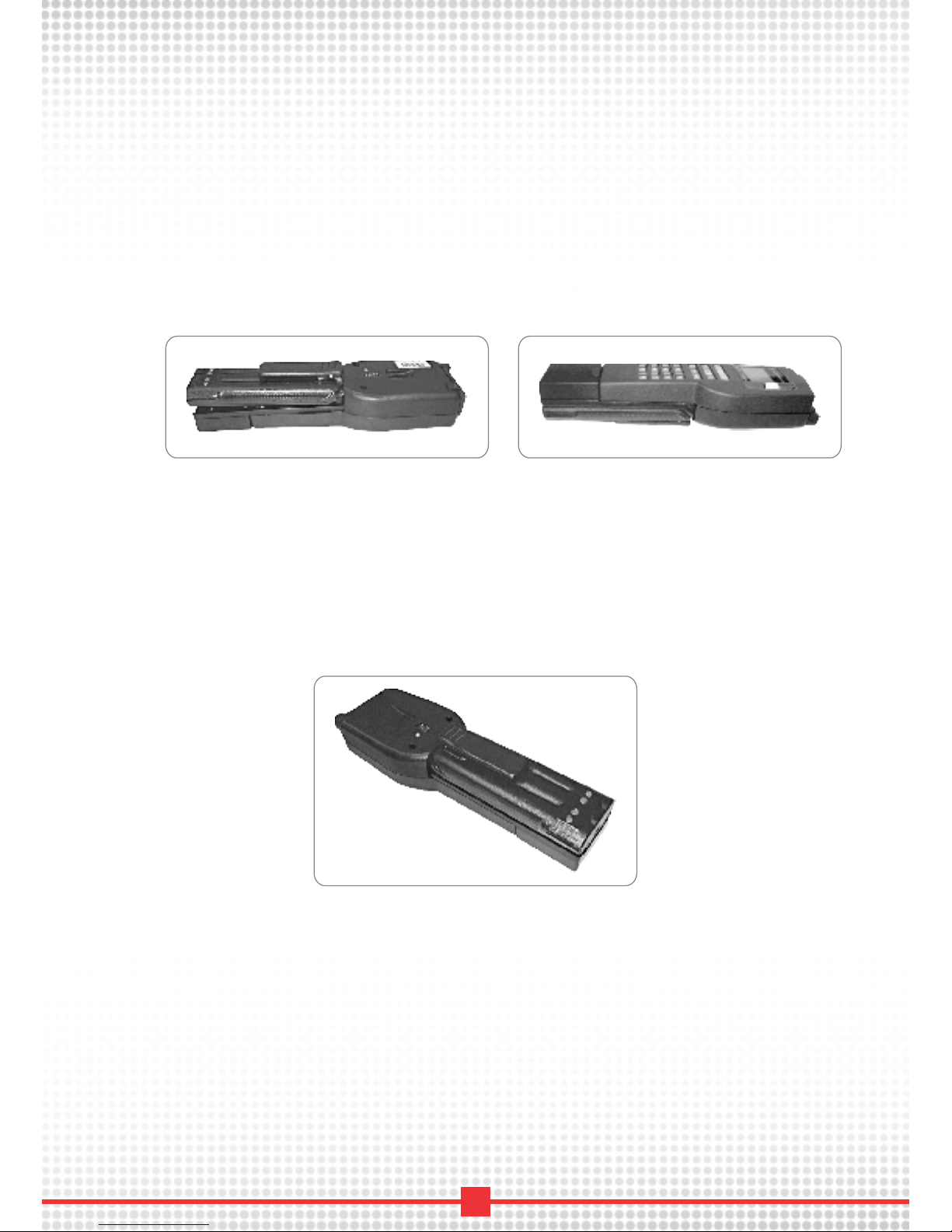

Battery pack Installation onto the Patriot KVL30
® ®
NOTE: Never install the Patriot KVL30 adapter onto the Motorola KVL 3000/3000+ Radio
Key-loader with the battery already attached. This can cause damage to the battery or
device.
Installation
®
1. To install the battery on to the Patriot KVL30 is exactly as if installing the NTN 8610
battery packs to the radio.
®
2. Align the battery to the upper Patriot KVL30 guide and lower battery in a pivot
motion until batteries locking mechanism activates onto the Patriot KVL30.
5
Removal
®
1. To remove the battery from the Patriot KVL30 is exactly as if removing the NTN 8610
battery pack from the radio.
2. Depress battery latch and lift battery off pivoting towards the top of the Key-loader.

6
 Table 1 Compatible Batteries
®
The following list is supported batteries that are approved for use with the Patriot
KVL30 adapter.
GTS batteries for Motorola XTS3000, XTS3500, XTS5000
H8299-M (21) 2100 mAh NiMH
H8299-M (27) 2700 mAh NiMH
H8299-M (40) 4000 mAh NiMH
Battery Model Capacity Chemistry
H8294-C (17) 1700 mAh NiCad
H8294-C 1500 mAH
H8610-Li (38) 3800 mAh Li
NiCad
®
GTS batteries for the Motorola HT1000, MT1000, JT1000, MTS2000, MTX8000, MTX9000
® ®
Motorola batteries for Motorola XTS3000, XTS3500, XTS5000
NTN9862A 2000 mAh Li
NTN8610B (IP) 1650 mAh Li
NNTN4435B (IP) 2000 mAh NiMH
NNTN4436B (IP) 2000 mAh NiMH
NNTN4437B (IP) (RG) 2000 mAh NiMH
NTN8299BR 1700 mAh NiMH
NTN8923AR 1800 mAh NiMH
RNN4006B 3500 mAh NiMH
RNN4006AR 3500 mAh NiMH
RNN4007AR (IS) 3500 mAh NiMH
HNN9031B (IP) 1525 mAh NiCad
NTN9032B (IP) 1525 mAh NiCad
NTN8294BR 1525 mAh NiCad
NTN9295AR 1525 mAh NiCad
NTN8297AR (RG) 1525 mAh NiCad
Battery Model Capacity Chemistry

 Table 1 Compatible Battery Chargers
The following list is of recommended chargers for batteries which are approved for use
®
with the Patriot KVL30 adapter as listed in table 1.
®
GTS Patriot Multi-chemistry Charging Systems are compatible with all batteries
listed in table 1.
®
Motorola Impress Charging Systems are compatible with all batteries listed in table 1
 Troubleshooting
®
If the Patriot KVL30 does not properly function after you have followed these operating
instructions:
Check to insure that the battery is charged
®
 Check to insure that the Patriot KVL30 is proper installed on to device
 Check to insure that the battery is charged
 Check to insure that the battery is proper installed on to device
 Cleaning
Periodically wipe the charger with a dry lens tissue or other cleaning materials suitable
for optical applications: such as eyeglasses
CAUTION
Do not pour, spray or spill any liquid into or onto the KVL30 Adapter.
 RF Devices
Global Technology Systems, Inc. products are designed to be compliant with the rules and
regulations in the localities in which the products are sold and will be labeled as required.
The limits are designed to provide reasonable protection against harmful interference
when electronic devices are operated in a commercial environment.
7

 Replacement Parts
Please contact:
Global Technology Systems, Inc.,
551 Cochituate Road, Framingham,
MA 01701 800.267.2711, 
In Europe call: 00800.5390.5390,
www.GTSpower.com
 Warranty and Support
For warranty and service information call 1-508-650-1172. Outside North America, please
contact your local Global Technology Systems representative.
Global Technology Systems, Inc. products and devices are warranted against defects in
workmanship and materials for a period of one year from the date of shipment. The
product or device must remain unmodified and must be operated under normal and
proper conditions.
The warranty is limited to repair or replacement at Global Technology Systems, Inc.
option, with reasonable promptness after being returned and received by Global
Technology Systems, Inc. These provisions do not extend the original
warranty term for any product or device which was repaired or
replaced.
This warranty applies to the original owner and does not extend to any
product or device which was subject to misuse, neglect, accidental
damage, unauthorized repair or tampering. Preventive maintenance
activities are not covered by this warranty.
8

Copyright 2008 Global Technology Systems, Inc. All rights reserved.
Global Technology Systems, Inc. reserves the right to make changes to any product to
improve function, reliability, or design.
Changes or modifications not expressly approved by Global Technology Systems, Inc may
void the warranty and the user's authority to operate the device.
No license is granted, either expressly or by implication, estoppels, or otherwise under
any patent right or patent, related to or covering any combination, system, apparatus,
machine, materials, methodology or process in which Global Technology Systems, Inc
products might be used. An implied license only exists for equipment, circuits, and
subsystems contained in GTS products.
9
