Guangzhou Taima TS4 User manual





Wireless Barcode Scanner
Quick Reference Guide
Set Defaults
FCC-ID: 2AET8TS4500HA
VER: TS4 5_QG_EN_V1.1.0

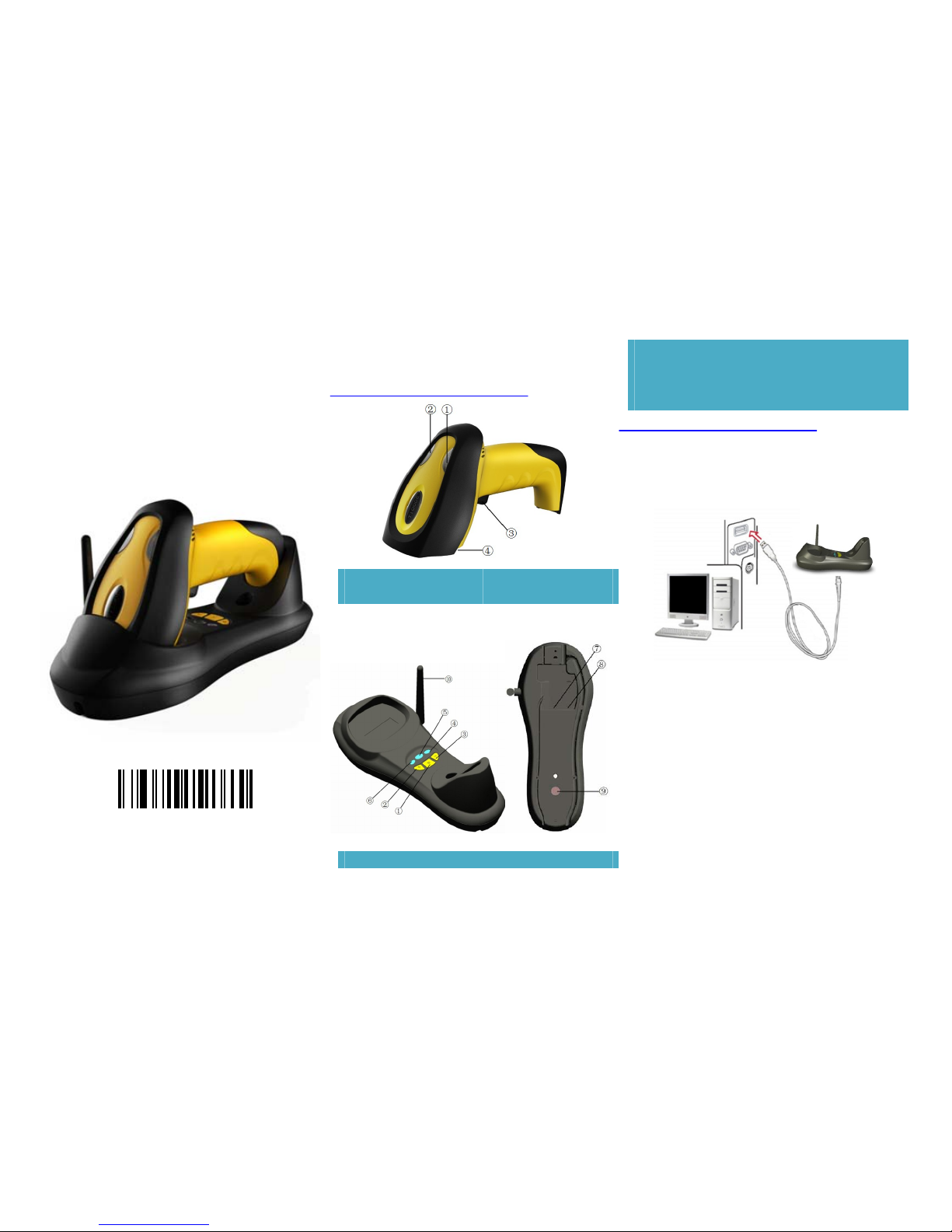

Scanner & Cradle
①Power Indicator
②Data Indicator
③Trigger
④Exit Window
①．Pairing ⑥．Reserve
②．Channel Increase
③．Channel Decrease
④．Power Indicator
⑤．Data Indicator
⑦．Power interface
⑧．Data interface to connect PC
⑨．Adjust button
⑩．Antenna
Installation

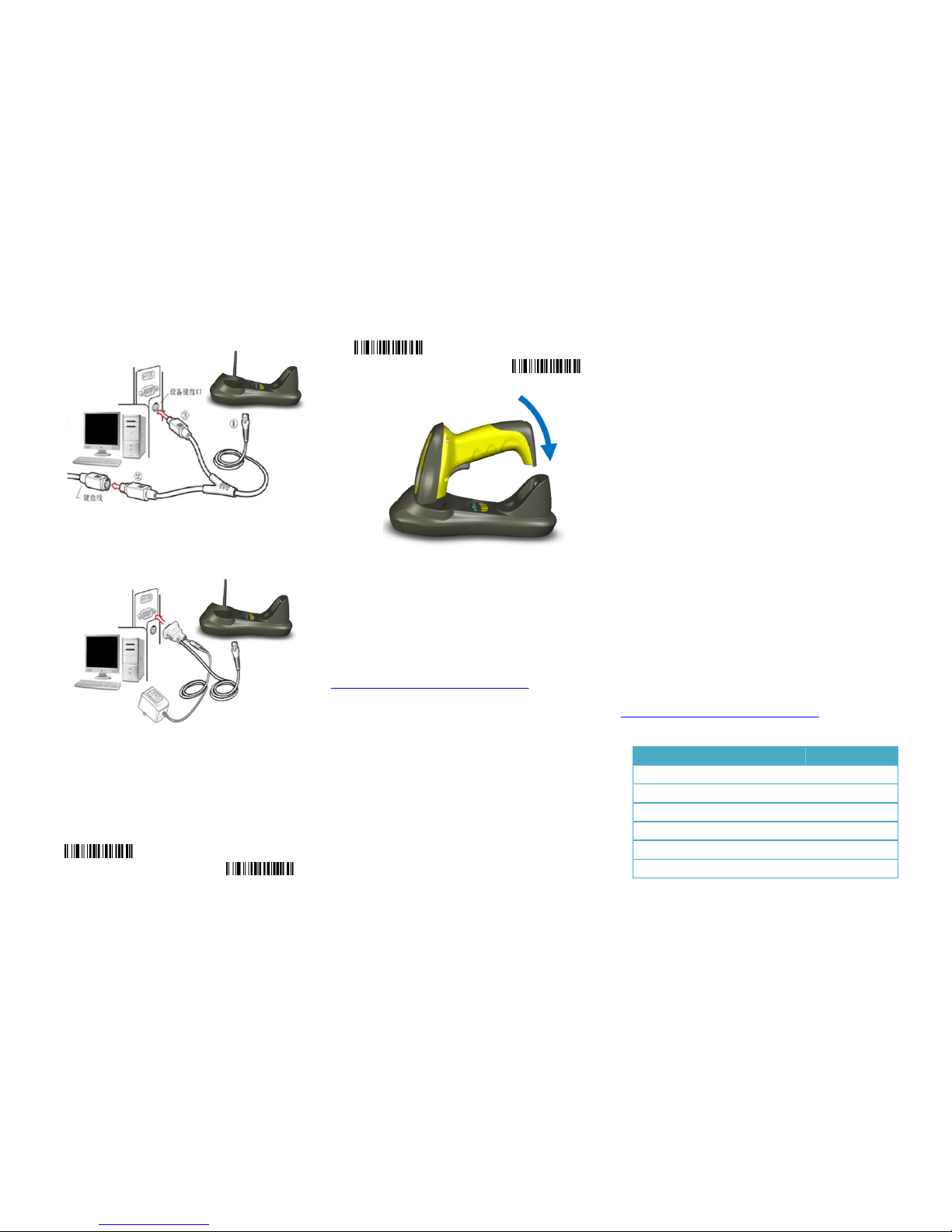

Step 1. Refer to the below pictures, connect the cradle to host (e.g.
PC) with different cables firstly, and then connect the adaptor to the
power socket.
USB: USB cable RJ45 connect cradle ⑧, the other side connect PC.
USB cable
P/S 2: P/S2 cable RJ45 connect cradle ⑧, the other side to connect
PC and P/S2 port keyboard



P/S2 keyboard cable
RS232：RS232 cable RJ45 side to con nect ⑧ ,the other
side to connect PC.
RS232 cable
Typically, cradle is able to identify the data port type automatically.
In extreme cases cradle port may need setting manually if the host
fails to identify it.
Note: Pairing before set interface type.
Automatic Identification (Default)
USB
PS/2
RS232
Step 2. Put the scanner onto the cradle like below picture.
Place the Scanner
Step3. Press cradle middle button①（P）for about 4 seconds, until
the Scanner issued a "beep beep" sound.
Note: A cradle is able to work with as more as 100 scanners at the
same time. After a Scanner pairing with Cradle, the cradle can
receive the data from the scanner.
Usage of Scanner
Power Up/Power Down
Scanner wi ll be power up whe n the trigg er is cl icked. W hen the
scanner is not operated for 30 s, it will enter power down mode
automatically
Charging
Position the scanner onto the cradle.
Note：The scanner power i ndicator beco mes green and keeps
flashing when the scanner is low power.
Built-in Data Memory
When the scan ner is out of communication area of the cradle, the
scanner will save th e bar code da ta i n bui lt-in da ta me mory. The
scanner will send the data to the cradle automatically when the scanner
gets back to the communication area.
The scanner d ata indicator will become red. After finish sending data,
the indicator will to be green.
More Than One Cradle Work In The Same Space
When there are more than one cradles working in the same space, it
is better to set every cradle work in different channel. Channel is set
as follows:
1. Open a notepad or other text editor.
2. Press the cradle Channel increase or decrease button.
3. Pairing the scanner and cradle.
Note： After changing the channel of a cradle pairing is need.
When more than one cradle work in the sa me channel, it will reduce the
bar code data transmission speed, but no any other problems.
Indicator & Button
Scanner Indicator
Status Left Light
Scan Success Bright Red 1sec Bright Red 1sec
Power on Green
Low Power Green flashing
Charging Red flashing
Finish charge Yellow
No data stored in Green



Scanner
Data stored In
Scanner
Red
Data memory full Red Flashing
Cradle Indicator
Light Meaning
Right （Green）Flashing: identifying interface
On: interface if identified
Middle （Red）Flashing: Receiving barcode data
On: Data is sending to PC
Left （Green) Reserve
Cradle Button
Button Position
（mark）
Function
Channel
Decrease
Right
Button (-)
Set channel decrease
Channel
increase
Middle (P) Press for 4second to pair a
scanner with a cradle.
Channel
increase
Left
Button (+)
Set channel increase
Common Settings
Set Defaults
Set Defaults
Information inquire
Fire Ware Version
Scanner Serial No Check
Cradle Serial No
Battery inquire
Channel &scanner ID
Suffix Quick Setup
CR（default）
LF
CR+LF
None
RF Transfer Mode
No-store Mode: The scanner transmits every scanned barcode to
cradle. If transmitted unsuccessfully (e.g. beyond communication
distance or cradle does not connect PC), the barcode data will be
ignored and the issued a “beep beep beep” sound.
Auto-store Mode: The scanner starts storing barcode data when it
loses its connection to a cradle (e.g. a user holding the scanner walks
out of range).Data transmission is triggered by reestablishing the
connection with cradle.(like when a user holding the scanner walks
back into range)
Manual Transmission mode: Data transmission is triggered b y
scanning”Start transfer Bar code data”
Auto-Store Mode (Default)
NO-Store Mode
Manual Transmission Mode
Start transfer Bar Code Data (for Manual Transmission Mode)
Clear the Barcode Data in Scanner
Insert The Scanner ID before Barcode
Insert the scanner ID before barcode in order to identify the barcode
is s can b y which s canner when th ere are m ore th an one s canner
communicate with the same cradle.
Insert ID before Barcode
Do not insert ID bef ore B arcode
（default）
Code name transmission
Transmit
Do Not Transmit
（Default）
Volume of beeper
High（Default）
Middle
Low
Mute
Prefix
Transmit Prefix
Do not Transmit Prefix (Default)
Scan Prefix(0~16 Chars, 2Digits/Char; 00~FF; 00*）



Suffix
Suffix（Default）
Do Not Transmit
Suffix
Scan Suffix (0~22 chars, 2 Digits/Char; 00~FF; 0D*)
Parameter bar code
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
Finish Setting



FCC Statement
Changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and
receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician
for help
This device complies with part 15 of the FCC rules. Operation
is subject to the following two conditions (1)this device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation
