H-L Data Storage HLT-SDBF1 User manual

Confidential
MODEL : HLT-SDBF1
Customer P/N :
Thermal Sensing Board
SPECIFICATIONS
Development Department
APPROVED
2021.09.27

MODEL : HLT-SDBF1
Customer P/N :
TO :
APPLICATION
Traced by Checked by Approved by
APPLICANT
Confidential
IT.KIM
NH.KWAK
SH.BAE
KW.KIM
SS.KIM
JH. OH
BG.Ahn SP. KONG

HLT-SDBF1
Confidential
Revision
No. Date of Rev. Contents of Revision Changed
page
0.1 2021.06.18 Initial Update
0.2 2021.06.24 Modify STANDARD PERFORMANCE 5
0.3 2021.09.24 Modify GENERAL SPECIFICATIONS
Modify RELIABILITY 3 6
0.4 2021.09.27 Modify STANDARD PERFORMANCE (Add
Software)
Modify RELIABILITY
5 ~ 8
9
Revision History

HLT-SDBF1
Confidential
1. SCOPE OF DOCUMENT
2. GENERAL SPECIFICATIONS
3. STANDARD CONDITION OF EVALUATION
4. STANDARD PERFORMANCE
5. RELIABILITY
6. LIFE TEST
7. PACKING SPECIFICATION
8. HANDLING
9. ATTACHMENT
Fig. 1 APPEARANCE DIAGRAM
CONTENTS
-1 -

HLT-SDBF1
Confidential
■This document describes the specification of Thermal Sensing Board
“HLT-SDBF1”.
■The provisions of this document maybe altered upon agreement between
both parties.
■If any disagreement should arise, these two parties shall meet in good
faith to resolve the problem.
■Within the range of these specifications, parts are subject to change
without notice for technical improvement.
■Please be sure to observe the following each time you deliver your
finished and/or semi-finished products containing the device(s).
Otherwise, HLDS may not be able to assume the responsibility for things to
happen.
• Always use the device(s) within conditions given in the specifications.
• Never given additional process to the device(s).
• Before use, be sure to read this instruction manual and use the product
safely and correctly.
• The illustrations in the user manual may differ from the actual product,
and the contents may be partially changed without notice to the user for
performance improvement.
• To use the product in connection with another device, first check that the
device is compatible with the product.
1. SCOPE OF DOCUMENT
-2 -

HLT-SDBF1
Confidential
Items Specifications
Display 29 Inch / 1920 x 540 (Support Touch Display)
CPU RK3288 (4 x A17)
RAM / eMMC 1GB / 8GB
RGB Camera HD (1280x720), SD(640 x480)
Thermal Sensor Heimann 32x32, HTPA32x32dR2L5.0/0.85F7.7eHiC
LED Lighting O
Speaker O
Wi-Fi / BT Wi-Fi 2.4G / BT 4.2(Profile : A2DP, HID)
Ethernet 10M/100M Adaptive Ethernet
USB Type-A 1ea, OTG 1ea / Format : FAT32, NTFS
Other I/O Relay
Power DC 12V / 4A (Power consumption 35W - Typical)
Dimensions 226 x 775 x 42mm (W x H x D)
Mass About 4.0 Kg
Operating temperature
and humidity 5℃to +35℃, below 65%RH (without dew, frost)
(Recommendation 25℃)
Storage temperature
and humidity (Transportation) -20℃to +60℃, below 90%RH (without dew, frost)
Appearance Fig.1
Operating System Android 7.1.2
Detection distance
(Face/Thermal/Mask) 0.3m ~ 0.8m (Recommendation : 0.5m)
Detection time
(Face/Thermal/Mask each.) Under 5sec
Thermal detection range 32 ~ 42℃(±0.3℃)
Thermal detection accuracy ≤±0.3˚C at 0.5m about 25˚C ambient temperature
Thermal detection precision ≤±0.3˚C at 0.5m about 25˚C ambient temperature
Face recognition probability ≥ 90% without mask (tentative)
Mask detection probability ≥ 95% (tentative)
Face registration count About 1.000 people
QR code read O
Support movie format Webm (VP9)
Languages Korean/Japanese/English
-3 -
2. GENERAL SPECIFICATIONS
*¹The detection distance or face recognition speed may vary depending on the usage
environment.

HLT-SDBF1
Confidential
-4 -
Note.
(1) The detection distance or face recognition speed may vary depending on
the usage environment.
3. STANDARD CONDITIONS OF EVALUATION
(1) Environment Temperature 25℃±2 ℃
Humidity 60％±5％[RH]
We can adopt temperature range 15 ℃～35 ℃,humidity range
45％～65％[RH] If it occurs no doubt about judgment.
(2) Environment of Operating Condition
5℃to +35℃, below 65%RH (without dew, frost)
(3) Evaluation
Use HLDS standard measuring equipment.

HLT-SDBF1
Confidential
-5 -
4. STANDARD PERFORMANCE
Detection Quality Validation Metrics
Item Spec. Remark
Detection distance
(Face/Thermal/Mask) 0.3m ~ 0.8m (Recommendation : 0.5m)
Thermal detection range 32 ~ 42℃(±0.3℃)
Face registration number About 1,000 people
Detection time
(Face/Thermal/Mask each.) Under 5sec
※For Mask & Thermal detection metric test methodology, refer to “HLDS SAFE PASS
PLUS User Manual".

HLT-SDBF1
Confidential
-6 -
4. STANDARD PERFORMANCE
Software Function Validation Metrics
Item Spec. Remark
Normal Performance Test
1. Change password
2. Log-In
3. Device setting
4. Device operating
5. Face recognition
6. ChangeAccount
On/Off by function, change of setting
value and confirmation of operation
※Environment Temperature 25℃±2 ℃
Humidity 60％ ± 5 ％[RH]
Temperature measurement
Repeat measurement during 2 hours (5
times / sets) every 30 minutes using
blackbody. (Under ±0.3℃)
※Environment Temperature 25℃±2 ℃
Humidity 60％ ± 5 ％[RH]
※Distance between TSB1 & blackbody
is 50cm.
Face registration
1. With Mask : Up to 80%
2. Without Mask : Up to 90%
※Environment Temperature 25℃±2 ℃
Humidity 60％ ± 5 ％[RH]
※When the face is aligned with the
indicator line.
QR Code
1. QR code + Face recognition
2. Check QR code only
: Save QR code only KR COVID QR
(Naver, Kakao, PASS)
※Environment Temperature 25℃±2 ℃
Humidity 60％ ± 5 ％[RH]
※When the QR is aligned with the
indicator line. (Check QR code only case)
※For Mask & Thermal detection metric test methodology, refer to “HLDS SAFE PASS
PLUS User Manual ".

HLT-SDBF1
Confidential
-7 -
4. STANDARD PERFORMANCE
Software Function Validation Metrics
Item Spec. Remark
Mask detection
Up to 95%
※Environment Temperature 25℃±2 ℃
Humidity 60％ ± 5 ％[RH]
※When the face is aligned with the
indicator line.
Information Display
1. Video play
- Format : WEBM(VP9)
- File size : Maximum 150MB
- Resolution : 540 x 1586 (pixel)
※Interruption may occur depending
on the state of the file.
2. Image display
- Format : JPG, PNG
- File size : Maximum 10MB
- Resolution : 540 x 1586 (pixel)
※Environment Temperature 5℃to
+35℃, below 65%RH (without dew, frost)
※For Mask & Thermal detection metric test methodology, refer to “HLDS SAFE PASS
PLUS User Manual ".

HLT-SDBF1
Confidential
-8 -
4. STANDARD PERFORMANCE
Software Function Validation Metrics
Item Spec. Remark
Web Server (PC)
1. User Management
- Check function operation.
(IndividualAdd, Collective Add &
Edit, Show, Delete function)
2. Device Setting
- Check function operation.
(Volume, LED brightness, Log,
Software update)
3. Heat Check
- Check function operation.
(Show visitor list, Save list)
4. Display
- Check function operation.
(Video & Image upload,
manage play list etc.)
※For Mask & Thermal detection metric test methodology, refer to “HLDS SAFE PASS
PLUS User Manual ".

HLT-SDBF1
Confidential
- 9 -
5. RELIABILITY
Examination item Quantity Examination condition
High temperature
storage test 2
Should be measured after following conditions
Leave it for 48hours in 60℃
Leave it for 16hours normal temp. and
humidity
Low temperature
storage test 2
Should be measured after following conditions
Leave it for 48hours in -20℃
Leave it for 16hours normal temp. and
humidity
Temperature cycling
test 1
Should be measured after following conditions
Leave in temp. cycle for 10 cycles.
→1 cycle: -20℃(1hour)<->60℃(1Hour)
Leave it for 16hours normal temp. and
humidity
High temperature and
high humidity storage
test 2
Should be measured after following conditions
Leave it for 48 hours in 60℃,85%
Leave it for 16hours normal temp. and
humidity
Package drop test 1 Box Free-fall at 6 face in 50cm.
Package vibration test 1 Box 10~500Hz, Double amplitude,
every 40 mins in X,Y and Z directions 1.5G
ESD 3Non operation(Turn off) contact 6kV, Air 8kV
OperationAir 8kV
※NOTE1. No condensation during above test.
※NOTE2. The drop test of a single unit is not guaranteed.

HLT-SDBF1
Confidential
-10 -
Environment
Temperature 25℃±2 ℃
Humidity 60％ ± 5 % [RH]
We can adopt temperature range 15 ℃～35 ℃
,humidity range
45％~75％[RH,] If it occurs no doubt about
judgment.
10,950Hrs
6. LIFE TEST
※10,950Hrs : 3 Years x 365 days x 10Hrs
※M.T.B.F conversion diagram
1) Confidence Level : 90%
2) Total Test Time : T = ∑𝑁(t * n) t : Real test time of each unit
n=1 n : Number of unit
3) Acceleration Factor (-E/K)*(1/T1 - 1/T2) (-E/K)*(1/45 - 1/25)
AF = EXP = EXP = 4.34
“*E : Activity Energy (0.6eV) K : Boltzman Const.(0.00008617)”
T1 : Test Temp.(Absolute Temp.) T2: Standard Temp. (Absolute Temp.)
4) Estimated Failure constant : Ef =2.3 (According to distribution factor of Poisson)
5) M.T.B.F
17520POH Duty 62.5%
MTBF = (T ÷Ef) x AF = ((t x n) ÷Ef) x AF1
t = (MTBF x Ef) ÷(n x AF1)
= ((17520 x 0.625) x 2.3) ÷(15 x 4.34)
= About 390.5 Hours = About 16.3 days
※Test Condition(MTBF) : 40℃chamber, 15 units
Temperature measurement before/after test (thermal sensor evaluation),
LCD illuminance measurement (dark room condition),
Speaker Sound check, RGB performance, and appearance check

HLT-SDBF1
Confidential
7. PACKING SPECIFICATION
- 11 -

HLT-SDBF1
Confidential
-12 -
8. HANDLING
(1) Do not disassemble this Thermal Sensing Board.
(2) Do not leave this Thermal Sensing Board in high temperature and
humidity.
(3) Do not shock to this Thermal Sensing Board.
(4) Do not install outdoors. (indoor use only)
(5) Install the product in a safe place so that it does not fall over.
(6) Do not install the product near a heat source such as an air conditioner or
heater.
(7) Do not apply excessive force to the button or the screen, or press it with a
pointed tool.
(8) Do not install the product in a place exposed to direct sunlight (sunlight,
electric lamp, etc.).
※Please refer to “HLDS Thermal Sensing Board User Manual" for details.

HLT-SDBF1
Confidential
9. ATTACHMENT
-13 -

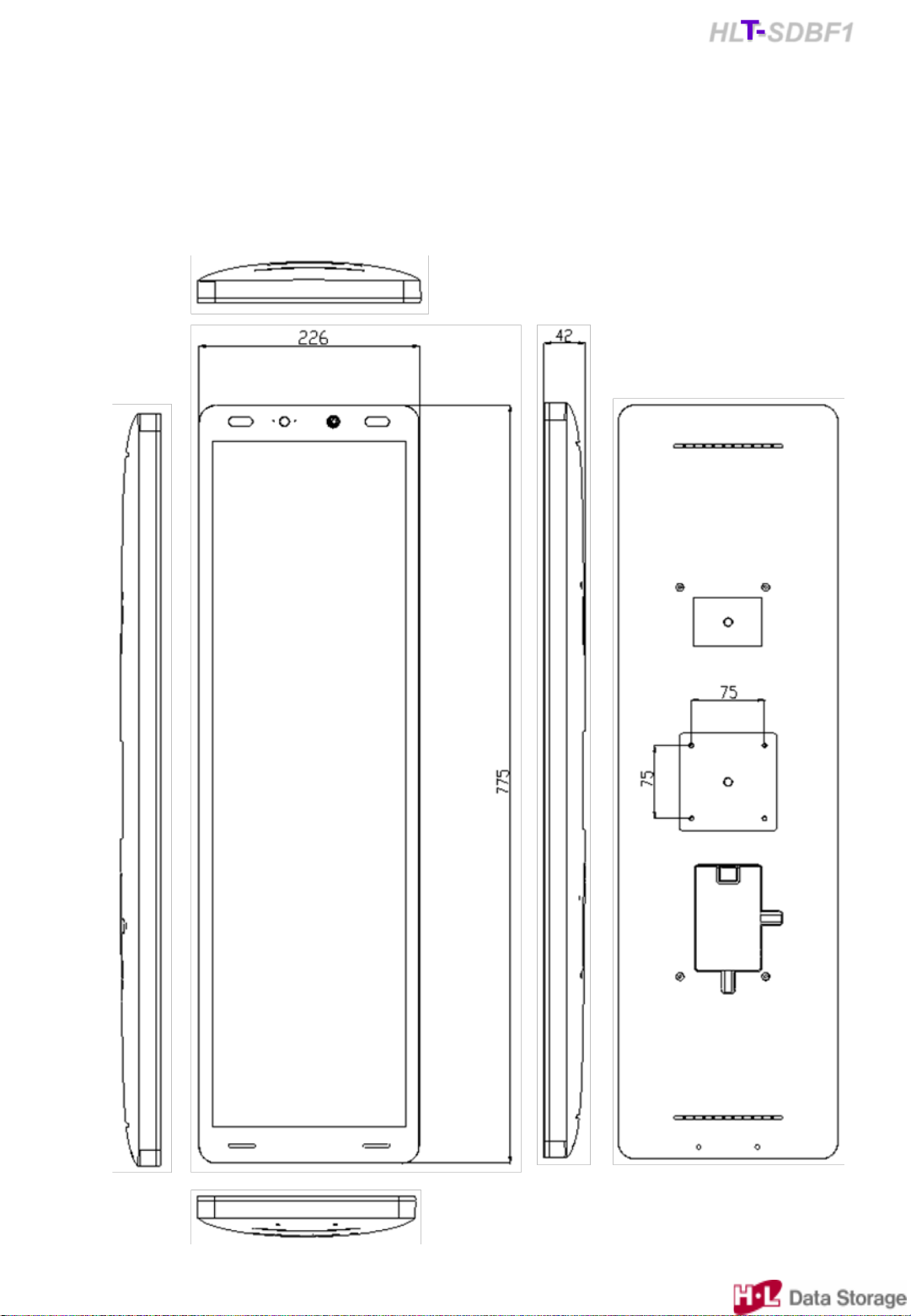

Fig. 1 APPEARANCE DIAGRAM

HLT-SDBF1
Confidential

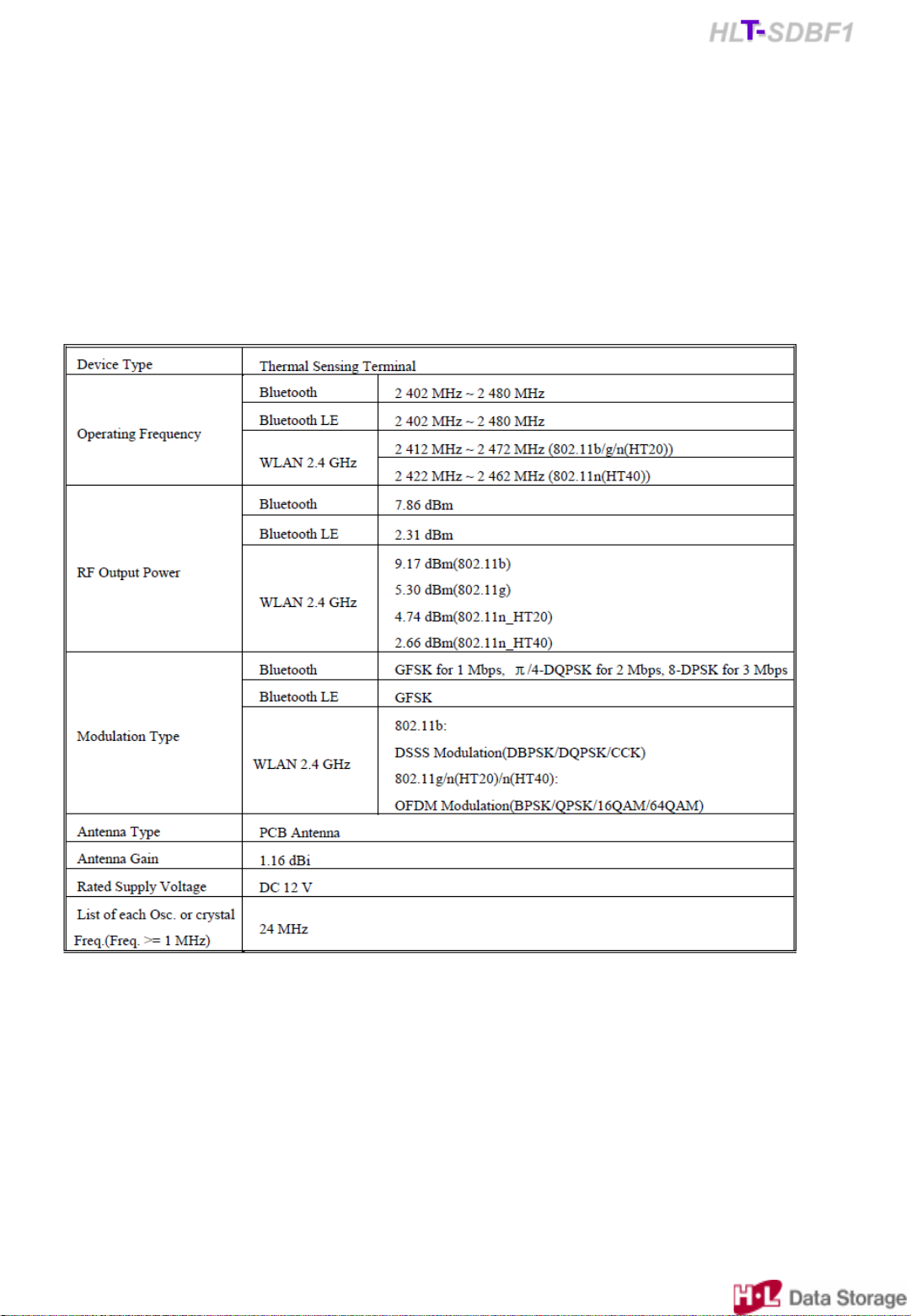

Product Description
Manufacturer information
Manufacturer name: Hitachi-LG Data Storage Korea, Inc.
Address: 189, Gasandigital1-ro, Geumcheon-gu, Seoul, Korea
Contact name: youngjae.lee
e-mail: [email protected]
Mobile: [phone]

FCC Information to User
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is con-nected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution
Modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
FCC Compliance Information : This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20 centimeters between the radiator and your body. This
transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
