Habitat HTE-01 User manual

Installation & Pairing Manual
Smarter Control Solutions.

i
This page is intentionally left blank.

ii
Safety Instructions
Please read these instructions carefully BEFORE INSTALLING and using the
HTE-01 Thermostat. Keep this guide in a safe place for future reference.
• Installation and repairs are to be performed by a qualied contractor
in strict accordance with the requirements of state and local
regulating agencies. In the absence of local requirements, follow
ANSI/NFPA 70, National Electric Code.
• The HTE-01 Thermostat may be used with a 24 VAC power source or
battery power only. DO NOT APPLY supply voltage above 30 VAC.
• DO NOT expose the HTE-01 Thermostat to voltage uctuations of
more than ±2.4 VAC (±10% of nominal power rating).
• DO NOT install the HTE-01 Thermostat in a bathroom or area of
excessive moisture.
• DO NOT expose the HTE-01 Thermostat or HTM-01 Base Module
to water.
• DO NOT store the HTE-01/HTM-01 where temperatures drop below
-20°F (-4°C) or exceed 122°F (60°C).
• DO NOT operate the HTE-01/HTM-01 in temperatures below 32°F
(0°C) or above 113°F (45°C).
• DO NOT use solvents or aggressive cleaning agents to clean these
devices. A dry, soft cloth is recommended.

iii iii
About This Manual
This manual uses special attention icons to alert the reader of important
safety concerns, information important to reliable operation of the controls
or helpful installation/setup information.
Safety: Indicates a condition which may cause severe personal
injury, death, or major property damage.
Important Information: Indicates information which requires
special attention for correct operation of the control.
Your Benet: Indicates helpful installation or setup information.
For operating instructions, refer to the
Operation Manual.
For programming instructions, refer to the
Programming Guide.
Documentation

iv
Habitat Technologies
330 East 38th Street, Suite 530
New York, NY 10016-0444
Customer Service
Toll Free: 1-800-717-1682
Web Site: www.habitattechnologies.com
[email protected]
Manual Table of Contents
Safety Instructions ii
About This Manual iii
What’s in the Box 1
Device Overview 2
System Dip Switch Conguration 3
HTM-01 Base Module Installation 4-6
LED Status Indication 7
HTE-01 Thermostat Installation 8
Power Installation 9
Boot Screen Display 10
Device Pairing 11-12
Home Screen/Controls 13-16
Appendix A - Wiring Diagrams 17-21
Appendix B - Warranty Information 22-23
Appendix C - Specications 24
Appendix D - Compliance 25-26
Designed and Engineered in New York
U.S. registered Trademark, Patents pending
Copyright 2020, All Rights Reserved.
Thermostat
HTE-01
Module
HTM-01

1
What’s In The Box
BEFORE BEGINNING installation, conrm that all parts are present in
the package:
HTE-01 Thermostat
with Mounting Plate
(2) AA Alkaline Batteries
HTM-01 Base Module
Wiring Harness
(2) Mounting Screws
(2) Wall Anchors
HTM-01 Base Module
with Double-sided
Mounting Tape
HTM-01 Base Module
Water Leak Sensor Cable

2
Device Overview
A single Model HTE-01 thermostat can control up to eight air conditioning
units equipped with Model HTM-01 base modules. The range between the
thermostat and the base modules can be up to approximately 50 feet
through standard building materials.
PTAC - Packaged Terminal AC
WSHP - Water-Source Heat Pump
HWSHP - Hybrid Water-Source Heat Pump
FCU - Fan Coil / Mini-Split Unit
UNI - Unitary AC / Furnace
The HTE-01 thermostat and HTM-
01 base module are paired when
supplied as a set from the factory.
If base modules are added or if
pairing is required in the eld, see
pages 11-12 for the device pairing
procedure.

3
For heat pump installations, dip switch #6 must be set to match the
appliance changeover valve. Refer to appliance manufacturers sys-
tem specications for required setting.
- ON = “B” – Cooling is default, switches over to Heat
- OFF = “O” – Heating is default, switches over to Cool
If more than one appliance type (dip switch 1-5) is selected,
error code will be displayed.
System Dip Switch Congurations
1 – PTAC (Packaged Terminal Unit)
Factory Default
2 – FCU
(Fan Coil Unit / Mini-Split)
3 – WSHP
(Water-Source Heat Pump)
4 – HWSHP
(Hybrid Water Source Heat Pump)
5 – UNTY
(Unitary AC/Furnace)
6 – O/B Terminal Selection
(Heat Pump Only)

4
HTM-01 Base Module Installation
• Mount the Base Module: Using the double-sided adhesive backing on
the Base Module mount it to a convenient location on the appliance.
Avoid mounting the HTM-01 Base Module in locations near line
voltage power conduits.
DO NOT locate the Base Module in locations where exposure to
water or dirt/grease are likely.
DO NOT mount the Base Module in locations where temperatures
may exceed 104°F (40°C).
For best results, assure that the harness is long enough to
reach the intended location before mounting the base module.
• Wire the Base Module: Using the Base Module Wiring Harness
provided, wire the Base Module to the appliance. Choose the
appropriate wiring diagram from Appendix A based on: System Type,
Heating/Cooling Stages and Fan Speeds.
Double-sided
Adhesive
Status LED
PAIR Button
RJ-45 HTZ-01
Connector
Water Leak Sensor
Cable Connection
Wiring Harness
Connection

5
For best results, the HTM-01 base module is to be mounted in a convenient
location on the HVAC unit where there is no sheet metal between the base
module and the thermostat. The HTM-01 can be mounted on the inside of
an enclosure behind louvers or grill (Figure 1). For units with a sheet metal
cabinet, mount the HTM-01 on the outside of the cabinet (Figure 2).
Figure 1 – Units with louvers, grill
or plastic cover – Inside Cabinet
Figure 2 – Units with sheet metal
enclosures – Outside Cabinet

6
For HVAC units with an open bottom, place as close to the bottom as
possible while avoiding places where furnishings or cleaning equipment can
cause damage (Figure 3).
Figure 3 – Units with open bottoms – Inside Cabinet

7
LED Status Indication State Description
Flashing
Green Pairing Base module is seeking to pair with the thermostat.
Green Paired Base module is paired with the thermostat.
Red Not
Paired
Base module is not paired with a
thermostat.
2 Red
Flashes then
Pause
Alarm
Base module indicating an alarm (Water
Leak, Smoke or CO2) accompanied by
descriptive text on the thermostat display.
Flashing
Red
Identify
Mode
Base module is in identify mode initiated by
the thermostat or web application.
Alternating
Green/Red
Factory
Reset
Hold the PAIR button for 10 seconds and
it begins to ash. Release and press again
briey to reset.
x y
Flashing
xtimes
Green then
ytimes Red
Firmware
Version
Indicates version x.y (eg. 2 green then 7
green = version 2.7.) Press and release PAIR
button within 10 seconds of power up.
nFlash Red
ntimes
Base
Module
Number
Indicates base module number (1-8). Press
and release PAIR button more than 10 sec-
onds after power up.
The following table shows the base module state corresponding to the
LED Status Indication.
LED Status Indication
2

8
HTE-01 Thermostat Installation
Mount the Thermostat: Remove Mounting Plate and mount it
approximately 4-5 feet above the oor. Select an area with average
temperature and good air circulation.
BE SURE that the UP symbol is correctly oriented.
DO NOT MOUNT the thermostat near any heat source, behind
doors or curtains, in corners, in direct sunlight, in areas of high
humidity or where water is present.
AVOID mounting the Thermostat on an exterior wall.

9
DO NOT OVERTIGHTEN
the terminal screws.
If using 24 VAC supply wiring, be sure that the wire goes through
the opening in the Mounting Plate before mounting.
FOR 24 VAC INSTALLATIONS, insert the low voltage supply wires into the
terminations provided and tighten the screws.

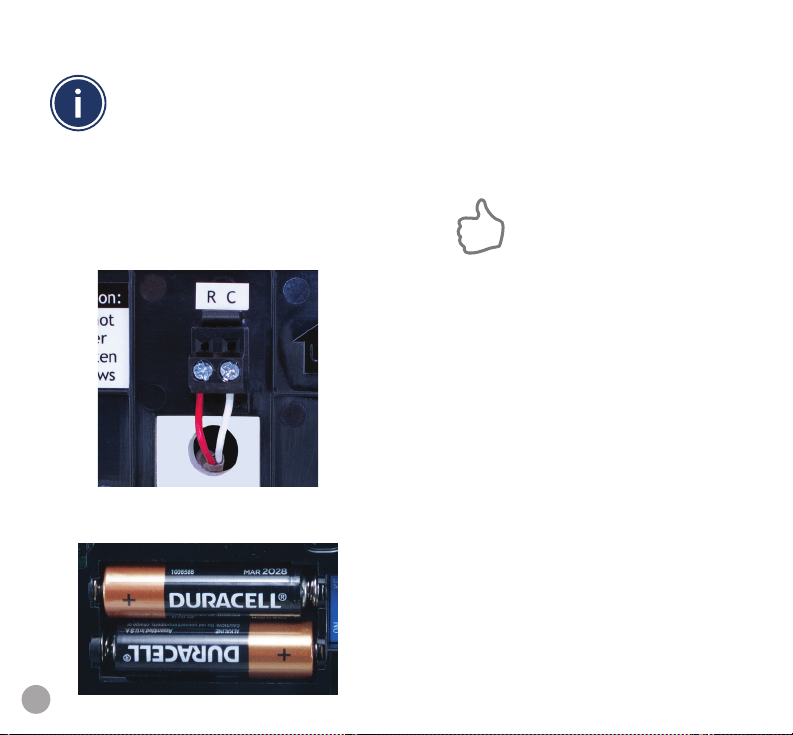

Power Installation
Hardwired Installation
Battery Installation
Battery installation is optional if
Thermostat is hardwired, “R” and “C”
terminal connected to 24 volt only
power.
Wire Specications: Shielded or non-
shielded 18-22 gauge thermostat wire.
Please insert 2 AA Alkaline batteries
(included.) High performance
lithium batteries may be used and
are recommended on commercial
applications.

10
Boot Screen Display
If more than 1 dip switch (1-5)
is set to “ON” the following error
message is displayed.
When the HTE-01
Thermostat is rst
powered, all segments
are briey displayed.
Next, the rmware
version is displayed
for 2 seconds.
Then the display
briey shows the
system type which
is dependent on the
dip switch settings.

11
Device Pairing
The HTE-01 Thermostat and the HTM-01 Base Module that were shipped
together were paired at the factory for convenience. To add additional
base modules, use the following procedure.
1. Hold down the Fan, Mode, and
buttons for more than 3
seconds to initiate the Pairing
process on the HTE-01 Thermostat
and set the 10-minute countdown
timer in action. This will allow
pairing of up to eight base
modules.
Note: To exit the Pairing process
hold the “Mode” and “Fan” button
until a beep is played.
2. To initiate the Pairing process on
each HTM-01 base module, press
and hold the PAIR button for
between 3 & 10 seconds until the
connection status LED ashes
green. The table on page 7 shows
the HTM-01 base module State
that corresponds to the LED Status
Indication.
Status LED
PAIR Button

12
Pairing Setup Display
PAIRED
UNPAIRED
Number of
Paired Modules
Pairing process
countdown time
After the boot sequence, the
HTE-01 thermostat begins the
pairing process with a 10 minute
countdown timer.
As the HTE-01 Thermostat pairs with each HTM-01 Base Module the
number of paired modules is displayed. A maximum of 8 base modules
can be paired with each thermostat.
If there are eight base-modules already paired with the thermostat,
will be displayed for 3 seconds before returning to the previous
screen.
Note: New modules will always be assigned to the lowest available number.

13
Home Screen
1
2
3
4
5
6
7
9
10
11
12
13
14
8

14
1
Pairing status indicator:
Connected
Not connected
8Time display1
2
WIFI status indicator (only shown
when WIFI module is used)
Connected
Not Connected
9
Override status indicator1:
Override – Temporary Override
Perm. Override – Permanent
Override
3
Thermostat Battery power indicator
status, only shown when on battery
power used.
Full Half Low Replace
10
Schedule running indicator:
Schedule – Schedule running1
(Blank) No Schedule
4System type 11 Set point
5Room temperature 12 Celsius or Fahrenheit units
6Mode status 13 Emergency heat indication
7Additional system type text 14 Fan speed indication
1 - Schedule must be activated for the time & schedule status to be displayed.
See the Habitat programming guide for information on setting up a schedule.

15
HTE-01 Thermostat Controls
1
2
3
4
5
Front
View
Bottom
Side View
