INTRODUCTION
Thank you for purchasing this product.
You may already be familiar with using a similar product, but
please take time to read these instructions, they have been
written to ensure you get the very best from your purchase.
Safetyis Important
To ensure your safety and the safety of others, please ensure
you read all these instructions paying particular attention to
the Product safety and the Electrical Safety information
before you operate product.
Keep this information in a safe place for future reference.
UNPACKING
Retain packaging in which the microwave oven was supplied
so that in the event that the equipment needs to be returned it
can be suitably repacked.
Open the packaging carefully and remove each item for inspection.
Remove any protective film covering the microwave. Do not use a knife or
sharp object otherwise you risk damaging the surface.
Check that all items have been supplied. The items supplied for this model of
microwave oven are:
Microwave oven
Glass turntable
Rotating axis
User guide (this publication)
Inspect the microwave oven and power lead for any damage. If any damage is
found do not use the oven. Contact the dealer where the product was
purchased.
Read these instructions before using the oven.
www.haden.com

03.
PRECAUTIONS
To avoid possible exposure to microwave energy observe the following
instructions. It is important that you do not disarm or tamper with the safety
interlocks since this can result in harmful exposure to microwave energy.
Do not place any objects between the front of the microwave oven and
the door, or allow residues to accumulate on the sealing surfaces.
Do not operate the oven if it is damaged in any way. It is particularly
important that the oven door closes properly and that there is no
damage to the (a) door-such as dents,(b)its hinges and latches or (c)
the door seals and sealing surfaces.
Do not install the oven over equipment that produces heat, such as a
range cooker or cooking hob. Failure to follow this instruction could
damage the microwave oven and would make the warranty void.
Do not block the air intake and outlet vents. Do not place anything on
top of the oven. Failure to comply can damage the oven.
Do not remove the feet from the bottom of the oven.
Never remove the mica cover that is installed to the oven inner right
wall. This cover protects the magnetron.
Requirements
Ensure the voltage and frequency on the rating label of the oven is the same as
that of the household power supply.
Place the oven as far from TVs and radios as possible, operation of the
microwave oven can cause interference to your TV and radio reception.
Select a horizontal surface that provides enough open space for the oven inlet
and outlet vents and is strong enough to support the weight of the microwave
oven.
Route the mains lead away from all hot and sharp surfaces. Do not trap the
lead under the microwave.
Plug your oven into a standard outlet socket wired up as shown in the section
entitled important safety instructions at the end of this guide.
www.haden.com

04.
INSTALLATION
Installation of microwave oven
1) To ensure sufficient ventilation, the distance of the back of microwave to the
wall should be at least 10cm, the side to the wall should be at least 5cm, the
free distance above the top surface at least 20 cm.
2) Do not place any objects on the top of microwave oven.
3) The position of the oven shall be such that it is far from the TV, Radio or
antenna as picture disturbance or noise may occur.
4) The appliance must be positioned so that the plug is accessible.
5) The microwave oven is intended to be used freestanding and shall not be
placed in a cabinet.
side
side
www.haden.com

05.
IMPORTANT SAFETY INSTRUCTIONS
Power source
You should only plug your microwave
50Hz supply.
oven into a 110 - 120 AC
Using the oven
WHEN USING ELECTRICAL APPLIANCES BASIC SAFETY
PRECAUTIONS SHOULD BE FOLLOWED, INCLUDING THE
FOLLOWING:
WARNING – To reduce the risk of burns, electric shock, fire,
injury to persons, or exposure to excessive microwave energy:
Read all instructions before using the appliance.
Read and follow the specific "PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY" found on page 5.
This appliance must be grounded. Connect only to properly
grounded outlet. See "GROUNDING INSTRUCTIONS"
found on page 6.
Install or locate this appliance only in accordance with the
provided installation instructions.
Some products such as whole eggs and sealed containers –
for example, closed glass jars – are able to explode and
should not be heated in this oven.
Use this appliance only for its intended use as described in the
manual. Do not use corrosive chemicals or vapors in this appl-
iance. This type of oven is specifically designed to heat, cook,
or dry food. It is not designed for industrial or laboratory use.
As with any appliance, close supervision is necessary when
used by children.
Do not operate this appliance if it has a damaged cord or plug,
if it is not working properly, or if it has been damaged or
dropped.
www.haden.com

06.
This appliance should be serviced only by qualified service
personnel. Contact nearest authorized service facility for
examination, repair, or adjustment.
Do not cover or block any openings on the appliance.
Do not store this appliance outdoors. Do not use this product
near water – for example, near a kitchen sink, in a wet
basement, near a swimming pool, or similar locations.
Do not immerse cord or plug in water.
Keep cord away from heated surfaces.
Do not let cord hang over edge of table or counter.
When cleaning surfaces of door and oven that comes together
on closing the door, use only mild, nonabrasive soaps, or
detergents applied with a sponge or soft cloth.
To reduce the risk of fire in the oven cavity:
i) Do not overcook food. Carefully attend appliance when paper,
plastic, or other combustible materials are placed inside the oven
to facilitate cooking.
ii) Remove wire twist-ties from paper or plastic bags before
placing bag in oven.
iii) If materials inside the oven ignite, keep oven door closed, turn
oven off, and disconnect the power cord, or shut off power at the
fuse or circuit breaker panel.
iv) Do not use the cavity for storage purposes. Do not leave paper
products, cooking utensils, or food in the cavity when not in use.
Liquids, such as water, coffee, or tea are able to be overheated
beyond the boiling point without appearing to be boiling. Visible
bubbling or boiling when the container is removed from the
microwave oven is not always present. THIS COULD RESULT
IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN
THE CONTAINER IS DISTURBED OR A UTENSIL IS
INSERTED INTO THE LIQUID.
www.haden.com

07.
Notice for extension cord:
a) A short power-supply cord is provided to reduce the risks
resulting from becoming entangled in or tripping over a longer
cord.
b) Longer cord sets or extension cords are available and may
be used if care is exercised in their use.
c) If a long cord or extension cord is used:
1) The marked electrical rating of the cord set or extension
cord should be at least as great as the electrical rating of the
appliance.
2) The extension cord must be a grounding-type 3-wire cord.
3) The longer cord should be arranged so that it will not drape
over the counter top or tabletop where it can be pulled on by
children or tripped over unintentionally.
Read all instructions before using.
Make sure the voltage in your living area corresponding to the
one shown on the rating label of the appliance. And the wall
socket is properly grounded.
TO reduce the risk of fire in the oven cavity:
a. DO not overcook the food.
b. Remove wire twist -ties from paper or plastic bags before
placing bags in the oven.
c. Do not heat oil or fat for deep drying as the temperature of
oil cannot be controlled.

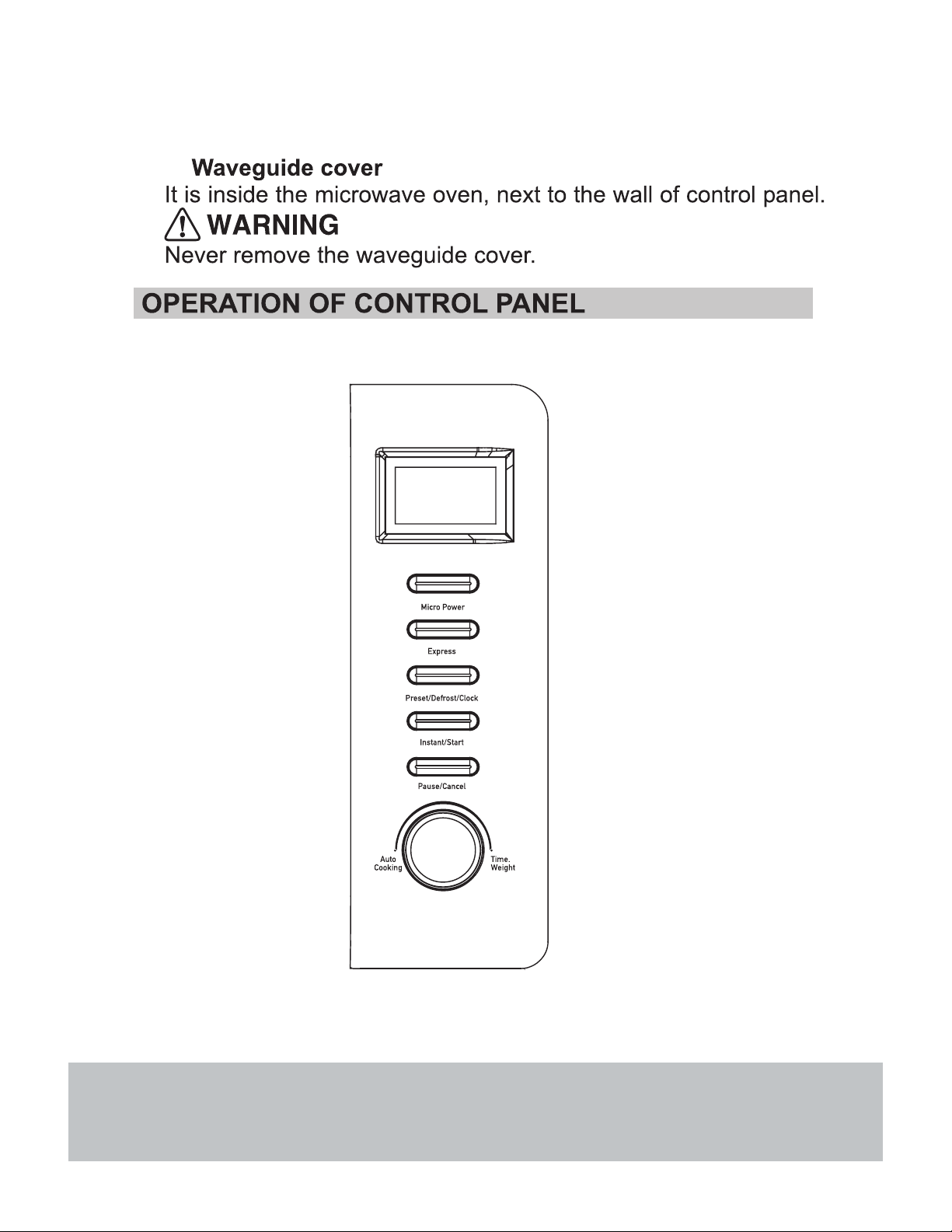

d. After use wipe the waveguide cover with a damp cloth,
followed by dry cloth to remove any food splashes and grease.
Built -up grease may overheat and begin to cause smoke or
catch fire.
e. If materials inside the oven should smoke or ignite, keep oven
door closed, turn oven off and disconnect the power supply.
f. Close supervision is necessary when using disposable
containers made from plastic, paper or other combustible
material.
THE FOLLOWING BASIC PRECAUTIONS SHOULD ALWAYS
BE FOLLOWED WHEN USING ELECTRICAL APPLIANCE:
www.haden.com

08.
TO reduce the risk of explosion and sudden boiling:
a. Do not place sealed containers in the oven. Baby bottles
fitted with a screw cap or teat are considered to be sealed
containers.
b. When boiling liquid in the oven, use the wide -mouthed
container and stand about 20 seconds at the end of cooking
to avoid delayed eruptive boiling of liquids.
c. Potatoes, sausage and chestnut should be peeled or pierced
before cooking. Eggs in their shell, whole hard -boiled eggs
should not be heated in microwave ovens since they may
explode, even after microwave heating has ended.
d. The cooked liquid should not be removed out immediately.
Several moments should be waited before removing. In order
to avoid possible hazards caused by delayed eruptive boiling
of 1iquids.
e. The contents of feeding bottles and baby food jars are to be
stirred or shaken and the temperature is to be checked before
consumption, in order to avoid burns.
Never operate the oven further if the door or door seals is
damaged or the oven is malfunctioned or supply cord is
damaged. Return the appliance to the nearest authorised
service center for repair and maintenance. Never try to
adjust or repair the oven yourself.
If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a qualified technician in
order to avoid a shock hazard.
After cooking, the container is very hot. Using gloves to take
out the food and avoid steam burns by directing steam away
from the face and hands.
Slowly lift the furthest edge of dishes cover and microwave
plastic wrap and carefully open popcorn and oven cooking
bags away from the face.
TO prevent the turntable from breaking:
a. Let the turntable cool down before cleaning.
b. Do not place hot foods or utensils on the cold turntable.
c. Do not place frozen foods or utensils on the hot turntable.
www.haden.com

09.
Make sure the utensils do not touch the interior walls during
cooking.
Failure to maintain the oven in a clean condition could lead to
deterioration of the surface that could adversely affect the life
of the appliance and possibly result in a hazardous situation.
Only use utensils that are suitable for use in microwave ovens.
Do not store food or any other things inside the oven.
Do not operate the oven without any liquid or food inside the
oven. This would do damage the oven.
This appliance is not intended for using by young children or
infirm persons without supervision.
When the appliance is operated in the combination mode,
children should only use the oven under adult supervision
due to the temperatures generated.
Any accessories not recommended by the manufacturer may
cause injuries to persons.
Do not use outdoors.
Save these instructions.
WARNING: If the door or door seals are damaged, the oven
must not be operated until it has been repaired by a competent
person.
WARNING: It is hazardous for anyone other than a competent
person to carry out any service or repair operation that involves
the removal of a cover which gives protection against exposure
to microwave energy.
WARNING: Liquids and other foods must not be heated sealed
container since they are liable to explode.
www.haden.com

10.
WARNING: Only allow children to use the oven without
supervision when adequate instructions have been given
so that the child is able to use the oven in a safe way and
understands the hazards of improper use.
Only use utensils that are suitable for use in microwave ovens.
When heating food in plastic or paper containers, keep an eye
on the oven due to the possibility of ignition.
If smoke is observed, switch off or unplug the appliance and
keep the door closed in order to stifle any flames.
Microwave heating of beverages can result in delayed eruptive
boiling, therefore care must be taken when handling the container.
The contents of feeding bottles and baby food jars shall be
stirred or shaken and the temperature checked before
consumption, in order to avoid burns .
Eggs in their shell and whole hard -boiled eggs should not be
heated in microwave ovens since they may explode, even after
microwave heating has ended.
The oven should be cleaned regularly and any food deposits
removed.
Failure to maintain the oven in a clean condition could lead to
deterioration of the surface that could adversely affect the life
of the appliance and possibly result in a hazardous situation.
During use the appliance becomes hot. Care should be taken
to avoid touching heating elements inside the oven.
WARNING: Accessible parts may become hot during use.
Young children should be kept away.
Do not use harsh abrasive cleaners or sharp metal scrapers to
clean the oven door glass since they can scratch the surface,
which may result in shattering of the glass.
www.haden.com

This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure that they do not play
with the appliance.
The appliances are not intended to be operated by means of
an external timer or separate remote -control system.
The temperature of accessible surfaces may be high when the
appliance is operating.
(a) Do not attempt to operate this oven with the door open since
open-door operation can result in harmful exposure to microwave
energy. It is important not to defeat or tamper with the safety
interlocks.
(b) Do not place any object between the oven front face and the
door or allow soil or cleaner residue to accumulate on sealing
surfaces.
(c) Do not operate the oven if it is damaged. It is particularly
important that the oven door close properly and that there is
no damage to the:
(1) door (bent),
(2) hinges and latches (broken or loosened),
(3) door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone
except properly qualified service personnel.
SAVE THESE INSTRUCTIONS.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
11.
www.haden.com

12.
www.haden.com

13.
7)Outer cover
Used for wrapping and protecting the internal structural parts
and electrical components of the whole machine.
8)
www.haden.com

14.
1. START
After the power is turned on, the display will flash 3 times,
then enter the standby state.
2. “AUTO COOKING/TIME/WEIGHT” KNOB
When setting the cooking program, you can increase or decrease
the cooking time and food weight by turning the “Auto Cooking/
Time/Weight” knob. In standby mode, you can select a variety
of automatic menus by turning the knob "Auto Cooking/Time/
Weight" knob.
3. “PAUSE/CANCEL” FUNCTION
Press the “Pause/Cancel” button to cancel the set fire, cooking
or defrosting procedure. When cooking, press the “Pause/Cancel”
button once to pause, and press twice to cancel the procedure.
When setting the cooking procedure, press this button to cancel
the current setting.
4. AUTO REMINDER
When the cooking or defrost process is completed, you will hear
3 beeps. If the door is not opened or “Pause/Cancel” button is
not pressed, the microwave will beep once every 3 minutes.
5. TIMER FUNCTION SETTING
In standby mode, press the "Clock" button for 3 seconds to enter
the clock setting state, turn the "Time" knob to set the hour, press
the "Clock" button once to enter the minute setting, turn the "Time"
knob to set the minute, after setting the minute, finally press the
"Clock" button to confirm the completion of the clock setting.
6. MICROWAVE COOKING
Press the "Micro Power" button, to select 100P (high power),
80P (medium high power), 60P (medium power), 40P (medium
low power) and 20P (low power). After selecting the fire power,
turn the "Time" knob to set the cooking time, which can set the
maximum time as 60 minutes. After setting the time, press the
"Start" button to start. After cooking, there will be a beep sound
prompt.
www.haden.com

1) The max time which can be set is 60 minutes.
2) Never operate the oven empty. Do not use metal utensils to
avoid damage to the microwave oven or danger.
3) During the operation, if you take out the food, close the oven
door and press the “Start” button again, the preset procedure
will continue.
4) If you intend to remove the food before preset time, you must
press “Pause/Cancel” button once to clear the preset procedure
to avoid unintended operation of next time use.
5) In order to avoid the long-term high-power work affecting the
life of the microwave oven, after a certain period of high-power
work. It will automatically reduce the power.
15.
www.haden.com

16.
7. EXPRESS
In standby mode, press “Express” button LED display will cycle
to show 0:30, 1:00, 1:30. After selection, press the "Start" button
to start the microwave oven. The microwave oven works at high
power. After cooking, there will be a beep sound prompt.
8. DEFROST
Press the "Defrost" button, and the display will cycle to show d.1、
d.2 and d.3. After selecting the defrosting mode, turn the "Weight"
knob to select the weight. After selecting the weight, press the
"Start" button to start. During the defrosting process, there will
be a beep to remind the user to turn over the food; after the
defrosting, there will be a beep sound prompt.
www.haden.com

d.1 For defrostingmeat,the weight range from -3.5 70.0 oz
d.2 For defrosting poultry,the weight range from 7.0-98.0 oz
d.3 For defrosting seafood,the weight range from3.5 -31.5 oz
17.
www.haden.com
9. AUTO COOKING
There are 12 automatic menus A.1、A.2、A.3、A.4、A.5、A.6、
A.7、A.8. A.9、A10、A11、A12. In the standby mode, turn the
“Auto Cooking” knob to select the wanted menu. After selecting,
press “Start” button to select the weight by turning the knob.
Buzzing sound will notify the completion of the operation.
Display Menu Weight
A-01 Popcorn
A-02 Potato
A-03 Vegetable
A-04 Meat
Cooking weight（3.0oz，3.5oz）
Cooking weight（16.0oz，24.0oz）
Cooking weight（3.5oz,7.0oz,10.5oz,14.0oz,
18.0oz）
Cooking weight（6.5oz,10.5oz,14.5oz,18.5oz,
20.5oz,24.0oz）

18.
www.haden.com
1) The above procedure is designed according to the temperature
of food at 20-25 °C. If the food is at different temperatures, the
cooking effect will be different. Please adjust it according to the
actual situation.
2) When cooking potatoes, etc., it is recommended to cover the
food with a layer of wrap to prevent evaporation of water during
cooking.
3) The shape, weight and temperature of the food will affect the
cooking effect. When using the automatic cooking menu program,
please follow the conditions mentioned. If the cooking effect is
not satisfactory, please adjust it yourself.
A-05 Fish
A-06 Chicken
A-07 Reheat
A-08 Beverage
Cooking weight（6.5oz,10.5oz,14.5oz,18.5oz,
20.5oz,24.0oz）
Cooking weight（6.5oz,10.5oz,14.5oz,18.5oz,
20.5oz,24.0oz）
Cooking weight（7.0oz,14.0oz,21.0oz,28.0oz,
35.0oz）
Cooking weight（8.5oz，17.0oz）
A-09 Rice
A-10 Pasta
A-11 Bread
A-12 Pizza
Cooking weight（3.5oz,7.0oz,10.5oz,14.0oz,
18.0oz）
Cooking weight（3.5oz,7.0oz,10.5oz,14.0oz,
18.0oz）
Cooking weight（3.5oz,7.0oz,10.5oz,14.0oz,
18.0oz）
Cooking weight（1 piece，2pieces）
