Haden HSBI05W - X User manual

To request a service call Tel. [phone]
3.17.01.02.080.00 / UO
•Repair of the appliance due to the e󰀨ects of a lack of cleaning such as dirt, mould,
grease, spillages and odours or due to the e󰀨ects of limescale.
•Any blockages to pump or lter in washing machines and dish washers.
•Punctured evaporafors and lack of cleaning (e.g.. blocked gas jets)
•Any parts which are tted to the product which are not original manufacturer’s parts
•Operation at incorrect voltage.
•No Fault Found.
•Scratches and chips to ceramic hob glass surface resulting in the use of
inappropriate cooking utensils.
•Noise, vibration or steam resulting in the operation of the appliance. This includes
steam from washer, dryer, dishwasher and ovens, running of oven fans, drain pumps.
•Being used in a non-domestic environment, second hand, or those used by several
people in communal areas. A service charge could be made if a fault is not a mechani-
cal or electrical manufacturing fault.
Disclaimer
•The manufacturer will not be held responsible for any damages resulting from
inappropriate usage of the appliance.
•The Guarantee is valid in the United Kingdom and the Republic of Ireland only.
•The Guarantee is non-transferable and only relates to the original purchaser of this
appliance.
•Where deemed necessary by Haden for an appliance to be exchanged within the
guarantee period, the new appliance will be covered by the original guarantee
period and will not be subject to a new guarantee.
•Haden reserve the right to inspect the appliance before exchange/replacement can
take place.
•Haden disclaims any liability for consequential loss or damage.
•This Guarantee does not in any way diminish your statufory or legal rights.
Manufacturer
HADEN
Sabichi Homewares Limited
Sabichi House
5 Wandsworth Road,
Perivale,
Middlesex
UB6 7JD
Service Hotline: [phone]
Email: [e-mail]
User's
Manual
Built-in Electrical Oven
HSBI05W - X
HSBI08W - X
To request a service call Tel. [phone]

To request a service call Tel. [phone]
1
CONTENTS
General warranty conditions
Installation
Operation
Maintenance and cleaning
Technical specications
Attention
• Read carefully the user’s manual before use and installation of the
appliance.
• Keep the user’s manual for future use.
• This appliance is not designed for industrial or laboratory use. Use
this appliance only for its intended use.
THESE INSTRUCTIONS MUST BE FOLLOWED:
Remove all internal and external packing materials from the appliance
and check for transportation damage.
In case of damage, do not operate the appliance and contact your
authorised service provider.
Keep children away from all packaging, which may cause danger.
Prior to installation, ensure that the main voltage conditions and the
adjustment of the appliance are compatible.
This appliance must not be used to heat a room.
This appliance must be installed and connected in accordance with
current installation regulations.
Particular attention should be given to the relevant requirements
regarding ventilation.
The use of cooking appliances results in the production of heat and
moisture in the room in which it is installed. Ensure that the kitchen
is well ventilated: keep natural ventilation holes open or install a
mechanical ventilation device (mechanical extractor hood). Prolonged
intensive use of the appliance may call for additional ventilation, for
example opening of a window, or increasing the level of mechanical
ventilation where present.
To request a service call Tel. [phone]
14
Product Guarantee information:
Your Haden product is covered by Guarantee for 24 months from the date of
the original purchase. Please ensure you register your product and keep
your receipt (proof of purchase) and serial number in a safe place.
You can register your Haden product by calling 01759 487830
What is covered?
•Electrical and mechanical faults deriving from faulty materials defective components or
a manufacturing defect.
•Replacement functional parts.
•Labour costs of an approved Haden engineer.
Your Haden Guarantee covers domestic use at residential addresses and is
subject to the following conditions.
Guarantee exclusions:
•Transit / delivery damage or cold weather damage.
•Incorrect installation:
Please ensure that your Haden appliance has been correctly and safely connected
to mains supplied electricity, gas and water and drainage as appropriate and in
accordance with the instruction manual. Gas appliances must be properly installed by
a qualied Gas Safe (or BORD GAIS) installer. LPG conversions will be covered only if
a copy of the necessary certication is provided at the time of registration by a qualied
Gas Safe (or BORD GAIS) installer. We recommend that all electric cooking products,
washing machines and dishwashers are installed by a qualied plumber / electrical
appliance installer.
•Repair of, or interference with, the product by any person not authorised by
the manufacturer to carry out service.
•Improper use or abuse.
•Accidental damage.
•Reversal of door or door handles on cooling appliances.
•Repair of replacement of any cosmetic or consumable parts such as bulbs, plugs,
fuses, cables, lters and attachments, control knobs, aps, container lids,
handles, glass and wire shelves, rubber hoses, plastic door shelves and any
accessories for example Oven baking trays and shelves. These include any parts
which have become worn, discoloured or damaged, including damage by incorrect use
or cleaning.

To request a service call Tel. [phone]
13
GENERAL WARRANTY CONDITIONS:
This appliance is under warranty covering only the replacement of the
defective parts and free of charge repair during the period of the warranty.
Please keep your receipt to resent to our Authorised Service Provider before a
repair can be booked.
The connection and installation of the appliance can only be carried out by
authorised service personnel.
This appliance must be grounded.
Problems arising due to improper installation are not covered by the warranty.
Unauthorised repair or modication of the appliance invalidates the warranty.
lnformation concerning disposal
Disposal of packaging
The packaging protects your appliance from damage during transit. All
utilised materials are environmentally safe and recyclable. Please help us by
disposing of the packaging in an environmentally friendly manner. Please ask
your dealer or enquire at your local authority about current means of disposal.
Disposal of your old appliance
0ld appliances are not worthless rubbish! Valuable raw materials can be
reclaimed by recycling old appliances.
This appliance is identied according to the European guideline 2012/19/EU
on waste electrical and electronic equipment-WEEE. The directive species
the framework for an EU-wide valid return and re-use of old appliances.
Compliant with WEEE Regulations.
To request a service call Tel. [phone]
2
This appliance is not intended for use by people (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless it is under supervision or having
been given instructions concerning the use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
In the case that the power cable must be replaced, the replacement
must be made ONLY by, an authorised service person.
Installation work must be performed in accordance with national wiring
standards, by authorised service personnel ONLY.
INSTALLATION
• This appliance must be installed in full accordance with national standards
and regulations, please refer to national and local instructions.
• This appliance must be installed in a cabinet designed for an oven
• Install the appliance in a position where the oven door can be opened
freely.
• Install the appliance away from inammable materials.
• Make sure that the main voltage matches the details on the rating plate.
• Before connecting this appliance ensure that all knobs are set to the “O”
position.
• Ensure that, there is nothing inside the oven then, leave the oven door
open and set the thermostat to the “maximum” temperature level and oven
selector knob to the “upper/lower” position for 10 minutes.
• Switch o󰀨 the oven and leave it to cool down.
• The same procedure is required for the Grill leaving the door open.
• Set the knob to the “Grill” position and operate for 10 minutes.
• Switch o󰀨 the grill and leave it to cool down.
When you use the appliance for the rst time a temporary smell and
form of smoke will occur, this is due to the protective grease on the
heating elements, This is normal.
Following the rst use of the appliance, the smell will go away as the
elements will be free from the protective grease layer.
During this operation, ensure that the room is well ventilated.
• Once you are sure that your oven is totally cooled down, clean the oven
by wiping it with a damp cloth or sponge.

To request a service call Tel. [phone]
3
INSTALLING INTO THE KITCHEN CABINET
INTRODUCTION

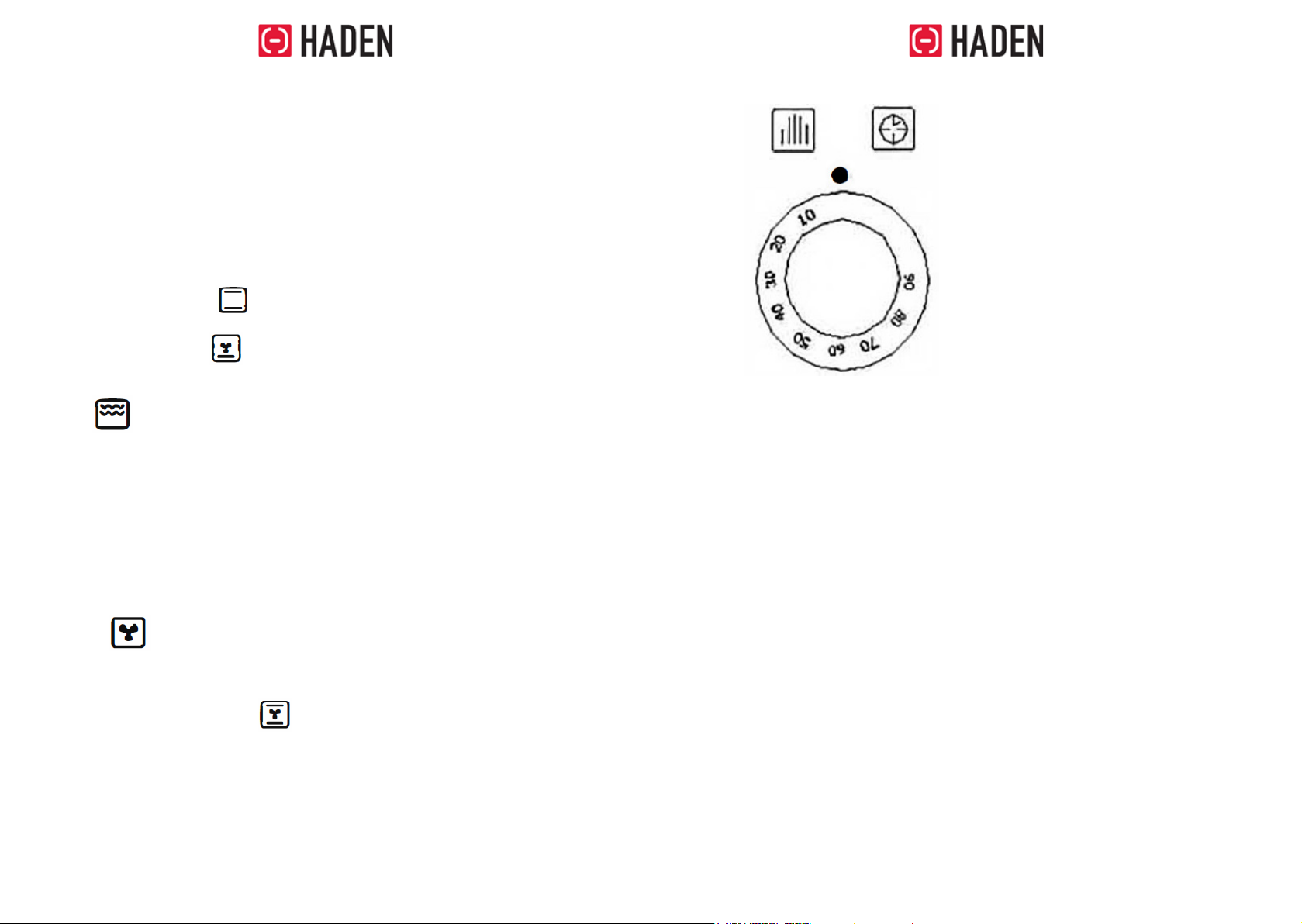

CONTROL PANEL
To request a service call Tel. [phone]
12
TECHNICAL SPECIFICATIONS
TECHNICAL FEATURES HSBI05W - X HSBI08W - X
Type per model Multifunction oven with Mechanical Timer
Dimensions (net) 595x599x570
Voltage 220-240 V AC
Total power 2077 W
Upper heater 1000 W
Lower heater 1000 W
Grill 2000 W
Turbo heater
Oven lamp 15 W
Thermostat 50-185 C
Oven Capacity 65
Net weight Kg. 32.550
Timer mechanical 0-90 minutes
Defrost feature Yes
Cooling fan Yes
Regulation (EU) 65/2014
Brand HADEN
Model HSBI05W - X HSBI08W - X
Construction Built-in Oven
Number of cavities Nbr. 1
Energy e󰀩ciency index cavity I EEI 103
Energy e󰀩ciency class cavity I A
Energy consumption conventional heating, cavity I kWh/cycle 0.86
Energy consumption fan forced heating, cavity I kWh/cycle 0.83
Heat source cavity I Electric
Volume cavity I 61
Energy e󰀩ciency index cavity II EEI
Energy e󰀩ciency class cavity II
Energy consumption conventional heating, cavity II kWh/cycle
Energy consumption fan forced heating, cavity II kWh/cycle
Heat source cavity II
Volume cavity II

To request a service call Tel. [phone]
11
Maintenance and cleaning
• Disconnect the appliance from the mains power before maintenance and cleaning.
• Please wait until the appliance completely cools down.
• The appliance must only be cleaned with a damp cloth or sponge.
• Never use abrasive powder.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door
glass, as they can scratch the surface, which may result in shattering of the glass.
• Steam cleaners must not to be used for cleaning or any other purposes.
• The enamelled parts can be cleaned with soapy water and a soft clean cloth.
• In order to prevent damage do not scrape dirt o󰀨 the control panel with sharp tools
that may scratch and cause damage.
CAUTION:
ENSURE THAT THE APPLIANCE IS DISCONNECTED FROM THE POWER SUPPLY
(SWITCHED OFF), BEFORE CLEANING OR REPLACING THE OVEN LAMP, TO
AVOID THE POSSIBILITY OF ELECTRIC SHOCK.
The oven door is also removable for easy cleaning.
First open the oven door completely, ip up the hinge catch on the hook of both sides of the door.
Grasp the door with both hands, raise a little and pull it backwards.
Following cleaning or maintenance, do not forget to re-do the hinge catches after placing the
oven door back to its housing.
To extend the economical life of your appliance, take regular care and always keep the oven door
open until the oven gets completely dry.
Any spillage should be removed from the lid before opening and hob surface and should be
allowed to cool before closing the lid.
Particularly, pay attention not to pour water on the appliance during operation, and always avoid
contact with acid or alkaline containing substances, such as vinegar, lemon, juice, salt etc. if this
occurs, wipe and clean immediately paying attention to the hot parts of the appliance
To request a service call Tel. [phone]
4
ATTENTION
• Do not place your cooking utensils (baking tin, baking
pan, drip tray etc.) or aluminum foil at the bottom of the
oven. This can cause damage to the enamel surface of
the oven due to high temperature.
• During use the appliance becomes hot. Care should be
taken to avoid touching the heating elements inside the
oven.
• Warning: Accessible parts may become hot during use.
Young children should be kept away, your oven can be
used as a grill with the door open.
• Cleaning: The oven must be switched o󰀨 before
removing the guard, after cleaning the guard must be
replaced in accordance with the instructions.
• Lamp for illumination: Warning ensure that the appliance
is switched o󰀨 before replacing and/or cleaning the lamp
to avoid the possibility of electric shock.
• This appliance must be installed in accordance with
british standards.

To request a service call Tel. [phone]
5
Oven
The oven heat is adjustable between min. and max. by means of the thermostat control
knob.
The signal lamp will indicate the operation of the heaters. Upon reaching the desired
temperature level, the signal lamp will turn o󰀨. The thermostat will maintain the
temperature level inside the oven, during the cooking process.
Before cooking, it is advised to pre-heat the oven for ve minutes.
The inner lamp of the oven comes on when the oven control knob is used to select a
function.
CAUTION:
Upper and lower Heater
This function is for cooking both with the upper and lower heater at the same time.
Lower Heater with Fan
This function, applies more heat to the base of your dish, you may also use this
function to warm your plates.
Grill
When the grill function is used, open the door of the oven and attach the heat deec-
tion panel (supplied with the oven) to the door of the oven.
This way, you will avoid possible damage to the control panel and also prevent
overheating of the control knobs. Hence, the door of the oven will stay slightly open
during grilling process.
By choosing the Grill position, the double power heater will operate.
You will receive that charcoal cooked taste, while grilling meat, chicken or sh.
It is advised to pre-heat the Grill for 5 to 10 minutes.
To prevent sticking, place the meat, chicken or sh on an oiled grid and place it on the
upper shelf of the oven, while placing another tray on the lower shelf of the oven to
collect any dripping fats or oil.
Defrost
Place the frozen food on the middle of the grid on the third shelf of the oven,
to ensure air circulation. Another tray should be placed on the lower shelf, to collect
dripping water. Close the lid and select the defrost position.
Classical Cooking with Turbo
With this function, the turbo fan works with the lower and upper heaters of your oven.
This is advised tor cakes and cookies with short baking times and produces a consitent
temperature throughot the oven. Always pre-heat the oven in this mode.
OPERATION
To request a service call Tel. [phone]
10
USING THE MECHANICAL TIMER
Turn the time, knob, clock-wise.
Set the desired minutes.
Select the correct temperature and function for cooking.
The oven will start operating.
The timer will count down the minutes then the oven will be turned o󰀨 automatical/y,
when the timer knob comes to the ( • ) position.
The oven will not operate unless the timer knob is at ( • ) position.
By choosing the ‘M’ manual step; the oven will operate as long as the timer knob is at
‘M’ position.
To stop the cooking process, the thermostat knob should be set back to ( • ) position.
Do not forgst to set the tlmer knob trom ‘M’ back to ( • ) poslllon, otherwlse your oven
will keep operatlng.

To request a service call Tel. [phone]
9

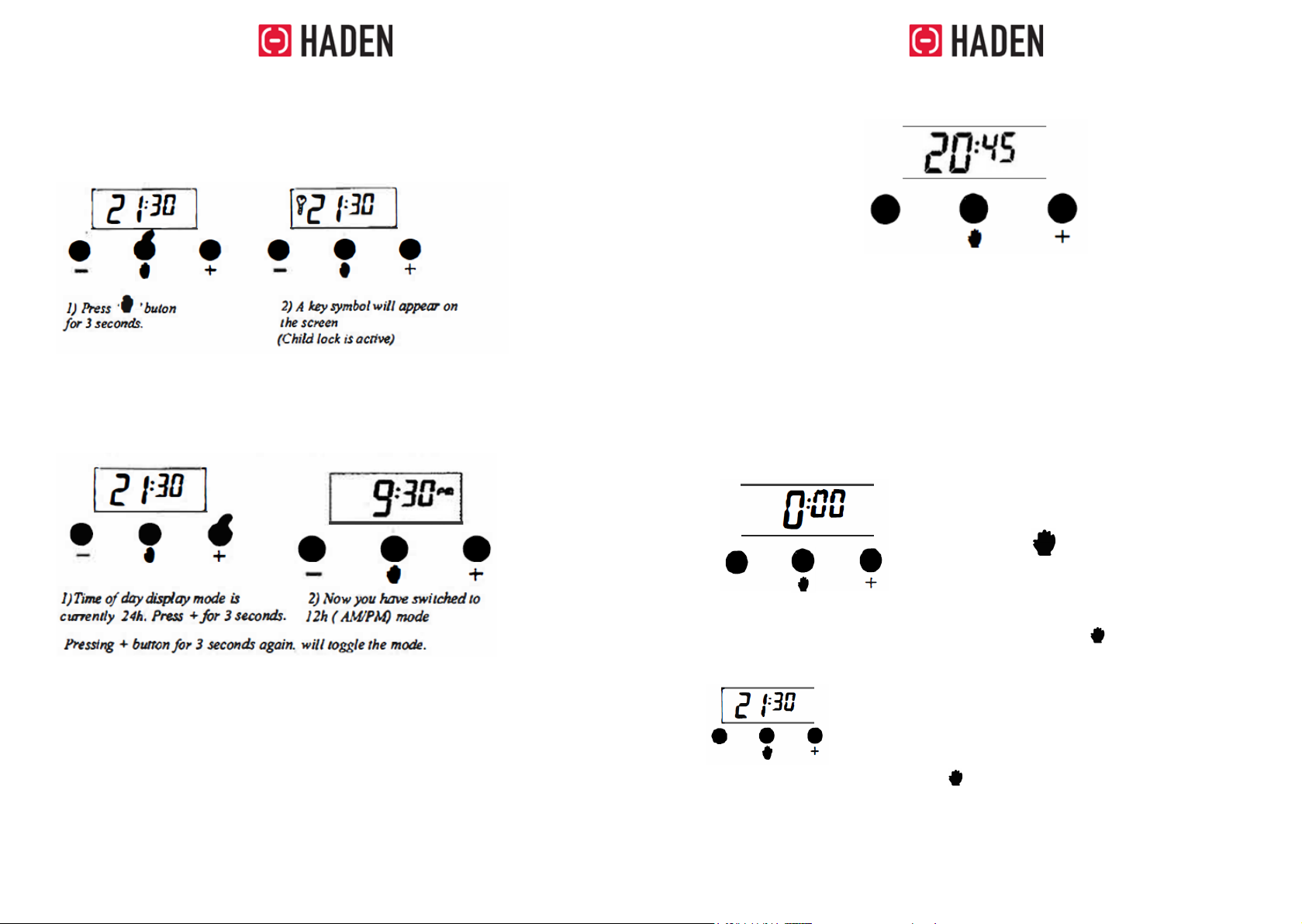

CHILD LOCK
When activated after a cooking program is entered, the buttons get locked, ie. pressıng
the button! will have no e󰀨ect. This is to prevent your child interrupting or disturbing a
cooking program whıch is in progress. . . . .
When activated when no cooking program is in progress, agaın ıhe buttons are locked
but ın addıtıon, the oven is inoperative. This is to prevent your child from activating the
oven accidentally.
To cancel child lock mode, repeat this process.
Note:The buzzer sound can be stopped by pressing and releasing the - button
without cancelling the function itself
CLOCK MODE 12/24 HOUR
You may select 12h or 24h ( AM/PM) time of day display.
Note: The factory setting is 24h mode. Long power os results in this mode ..
BUZZER TONE ADJUSTMENT
You may adjust the buzzer tone of the timer in the following way:
1) Pressing the (-) button, you can hear thc currently set tone.
2) Releasing (-) and then pressing again, you can hear thc next available ( total 3) tone.
3) The last sound heared will be your selected one.
Note: the factory setting is ıhe maximıım leve ( highest frequency) A long interup-
tion of power may result in reloading ıhis setting.
To request a service call Tel. [phone]
6
USING THE DIGITAL TIMER
Overview
This electronic timer, enables you to have food ready to serve at a desired time.
This is done by programing the cooking time and the ready time.
It can also be used as an alarn clock, where you program the time after which the
buzzer will sound.
POWER UP:
On power up, the clock will show (0:00) and auto will be ashing on the screen. The
timer cannot be programmed until the clock is set.
To do this you must enter manual mode.
MANUAL MODE
To enter manual mode
Press this button
TIME OF DAY ADJUSTMENT
You can only adjust the displayed time, if no automatic cooking program is in progress.
Enter manual mode (explained before). Press and release the button until the double
points between the hours and minutes ash. Using the + and - buttons, you can adjust
the time of day. Long presses of these buttons will enable fast adjustment.
After 5 seconds the double points will
stop ashing and the time is set.
Note: On power on the rst press of brings you into time of day adjustment
mode

To request a service call Tel. [phone]
7

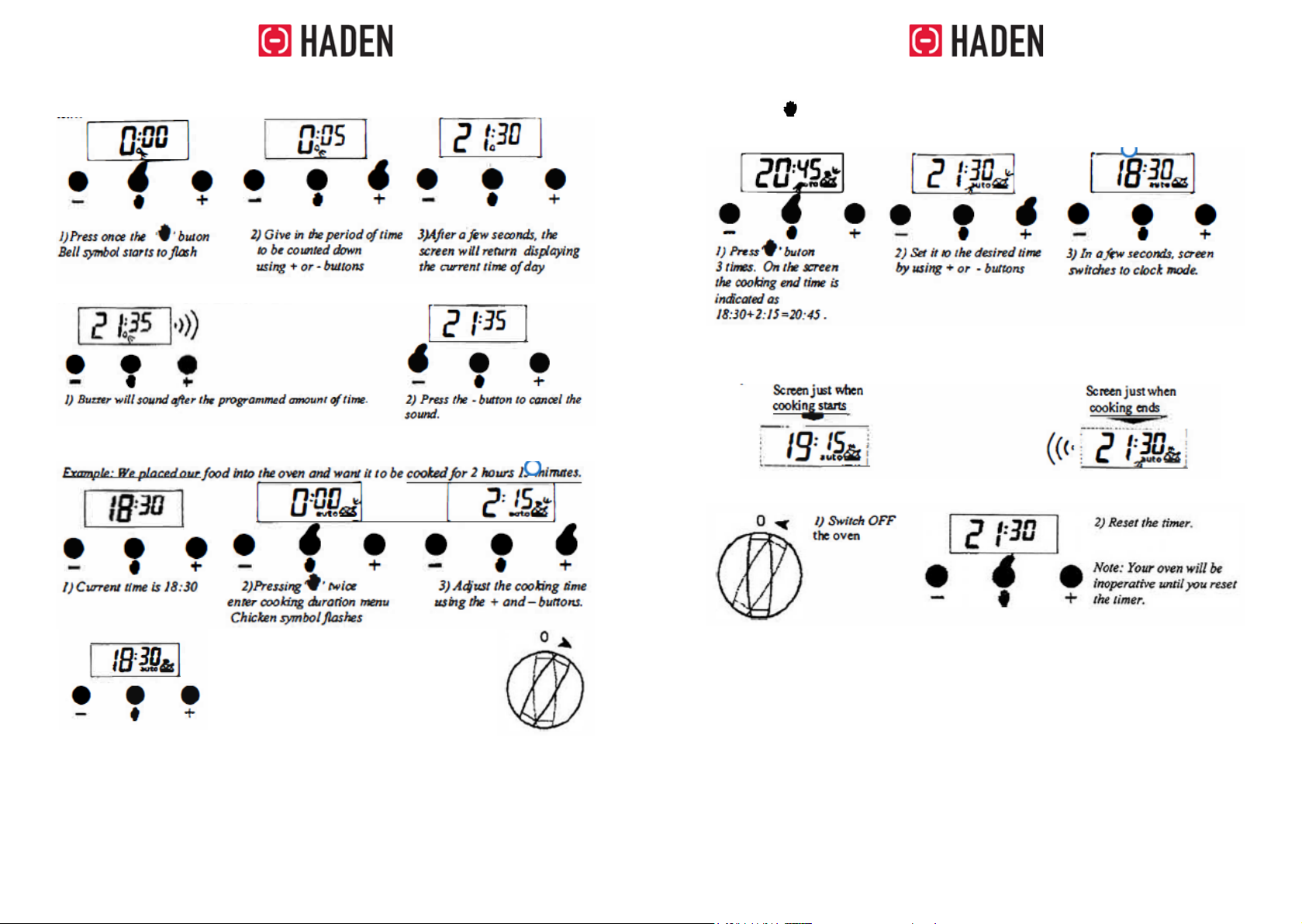

ADJUSTING THE BUZZER ALARM
With this feature, you can program how much time should elapse before the buzzer
sounds
CANCELLING THE BUZZER ALARM
AUTOMATIC COOKING PROGRAM
lf you want to start cooking imınediately, you just have to give in the cooking tiıne.
Now, you have prograınmed your oven to
cook the food for 2 hours and I5 minutes.
Please do not forget to set the function
and/or the temperature knobs of your
oven to appropriate positions.
After a few seconds, the sceen
will indicate that
cooking has started and show
the current time of day.
Note: You may cancel automatic
cooking at any time by setting the
cooking duration to zero.
To request a service call Tel. [phone]
8
SETTING THE FOOD READY TIME
In the previous example, cooking started immediately after entering the cooking period.
By pressing 3 times, you will see the cooking end time (when the food will be ready)
and also adjust this time. ln the example below, the ready time will be shifted to 21:30.
We now have programmed our oven to have the food ready at 21:30. Since the
cooking time was preprogramrned as 2 hours and 15 minutes, your oven will start
cooking at 19:15, so the food is ready at 21:30.
When automatic cooking is completed, the buzzer alarm will sound, for 7 minuıes or
untill stopped.
In the example shown, cooking time was programmed rst, the ready time was
calculated automatically. It is also possible to program the ready time rst. In this case,
the cooking time will be calculated automatically.
IN CASE OF MAINS POWER LOSS
Mains power losses excluding short time periods, will bring your oven into OFF mode.
The clock will appear as a ashing 0:00 together with the ‘A’ symbol. Any cooking pro-
gramın in progress will also be cancelled. Enter the manual mode and adjust the clock
using + or - buttons.
Note: if you do not intend to use your oven right now, make sure that that the
controll knob is in OFF posiıion.
