HAEGER NORTH POLE-220 User manual

NORTH POLE -220
RE-22W.020A (White) * RE-22S.021A (inox)
Double door fridge Frigorífico de duas portas
Frigorífico doble puerta Réfrigérateur double porte
Instructions Manual
Manual de Instruções
Manual de Instrucciones
Manuel d’instructions

Fig.1
Fig.2
Fig.3

1
WARNING
This appliance is intended to be used in household and similar applications such as
staff kitchen areas in shop, offices and other working environments; farm houses and
by guests in hotels, motels and other residential environments; bed and breakfast
type environments; catering and similar non-retail applications.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
Do not store explosive substances such as aerosol cans with a flammable propellant
in this appliance. The appliance has to be unplugged after use and before carrying out
user maintenance on the appliance.
Warning:Keep ventilation openings, in the appliance enclosure or in the built-
in structure, clear of obstruction.
Warning:Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the manufacturer.
Warning:Do not damage the refrigerator circuit.
Warning:Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type recommended by the
manufacturer.
Warning:Please dispose the refrigerator according to local regulations because
it uses flammable blowing gas and refrigerator.
Warning:When positioning the appliance, ensure the supply cord is not
trapped or damaged.
Warning:Do not locate multiple portable socket-outlets or portable power
supplies at the rear of the appliance.
Do not use extension cord or ungrounded (two prong) adapters.
Danger:Risk of child entrapment. Before you throw away your old refrigerator
or freezer:
-Take off the doors.
-Leave the shelves in place so that children may not easily climb inside.
The refrigerator must be disconnected from the source of electrical supply before
attempting the installation of accessory.

2
Refrigerant and cyclopentane foaming material used for refrigerator are
flammable. Therefore, when the refrigerator is scrapped, it shall be kept away from
any fire source and be recovered by a special recovering company with
corresponding qualification other than be disposed by combustion, so as to prevent
damage to the environment or any other harm.
This appliance can be used by children aged from 8 years and above and people
with impaired physical, sensory or mental abilities or with a lack of experience and
knowledge provided that they are supervised or have received instruction in the safe
use of this device, and about the resulting hazards. Cleaning and user maintenance
shall not be made by children without supervision. Children aged from 3 to 8 years
are allowed to load and unload appliance.
Children should be supervised to ensure that they do not play with the
appliance. Children below the age of 3 must be kept away from the appliance unless
they are under continuous adult supervision.
Toavoid contamination of food, please respect the following instructions:
-Opening the door for long periods can cause a significant increase of the
temperature in the compartments of the appliance.
-Clean regularly surfaces that can come in contact with food and accessible
drainage systems.
-Store raw meat and fish in suitable containers in the refrigerator, so that it is not
in contact with or drip onto other food.
-Two - - star frozen-food compartments are suitable for storing pre-frozen food,
storing or making ice cream and making ice cubes.
-One - -, two - - and three-star - - compartments are not suitable for the
freezing of fresh food.
-If the refrigerating appliance is left empty for long periods, switch off, defrost,
clean, dry, and leave the door open to prevent mould developing within the
appliance.
Warning: Risk of fire / flammable materials

English
3
Dear costumer
Thank you for having chosen a HÆGER product.
The HÆGER products have been produced to think about the welfare of the consumer
privileging the most raised standards of quality, functionality and assign. We are sure you will
be happy with this appliance.
Your new appliance is designed exclusively for domestic use.
To ensure best use of your appliance, carefully read the instructions handbook which contains a
description of the appliance and advice on storing and preserving food.
Keep this handbook for future reference and pass them on to whoever might acquire the
appliance at a future date.
Before using the appliance
1. After unpacking, make sure that the appliance is undamaged and that the door closes
properly. Any damage must be reported to your dealer within 24 hours after delivery of
the appliance.
2. Wait at least two hours before switching the appliance on in order to ensure the
refrigerant circuit is fully efficient.
3. Installation of the appliance and electrical connections must be carried out by a qualified
electrician, in accordance with the manufacturer's instructions and local safety
regulations
4. Clean the inside of the appliance before using it.
Special Instructions
If this appliance is to replace an old refrigerator with a lock, break or remove the lock as safety
measure before storing it, to protect children while playing might lock them inside.
Old refrigerators and freezers contain insulation gases and refrigerant, which must be disposed
of properly. Please ensure that the refrigeration tubing is not damaged.
Warning: This refrigerator contains isobutane (R600a); this refrigerant gas is
CFC-free but combustible. When transporting, installing, cleaning and
repairing the refrigerator, take care not to damage any parts of the
refrigeration circuit to prevent the risk of gas leaks. In case of damage, do not
use naked lights and ventilate the room containing the appliance appropriately.
Safety Precautions
The manufacturer declines all responsibility in case of failure to comply with the following
precautions:
•Never put a damaged appliance into operation, if in doubt, contact your dealer.

English
4
•The appliance must be installed and connected to the electrical mains in full compliance
with the instructions provided in the handbook. The electrical connection conditions must
be as specified on the nameplate. The appliance's electrical safety is only guaranteed if the
household electrical system is earthed in accordance with the relevant regulations.
•Make sure that all repairs and servicing are only carried out by a qualified technician.
Always disconnect the appliance from the electrical mains in case of breakdown and
maintenance, when changing light-bulbs or during cleaning. Never defrost using electrical
devices or steam cleaners. Never remove frost or ice with sharp items, as this may cause
irreparable damage to the walls of the refrigerator.
•Never attempt to move the refrigerator by pulling on the door or the handle.
•High-alcohol drinks must only be stored sealed and vertical. Never store liquids in cans or
glass containers in the freezer compartment, especially if they contain added carbon
dioxide. Never store products containing gases, flammable propellants or explosive
substances in the freezer. There is always explosion hazard!
•The use of electrical appliances (such as ice-cream makers or whisks) inside the appliance is
forbidden.
•To ensure the refrigerator operates correctly, never obstruct or cover the air ducts in any
way.
•Never touch frozen products taken straight from the freezer or put them in your mouth.
There is burn hazard due to the very low temperatures.
•Never eat or drink foods which look or smell strange.
•This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children unless they are older 8
years and supervised.
•In case of electricity blackout, open the door(s) as little as possible. Once partly or
completely thawed, frozen foods must not be re-frozen.
Intended use
The appliance is specifically constructed for domestic use and is therefore suitable for the
refrigeration and storage of fresh and frozen foods and the production of ice-cubes. The
appliance has not been designed or manufactured for professional use. The manufacturer
declines all responsibility for damage deriving from improper use of the appliance. The
refrigerator has undergone the necessary tests on the tightness of the refrigeration circuit and
complies with the safety regulations for electrical appliances.
Warming: The manufacturer declines all responsibility for injury or damage
caused by failure to comply with the above regulations or deriving from
tampering with even just one part of the appliance and the use of non-
original spare parts.

English
5
Installation and connection
Choosing the site
•Always place the refrigerator in a dry place with satisfactory ventilation. Never expose it to
direct sunlight or install it outdoors. Depending on its climate class (stated on the
nameplate inside the refrigerator compartment), the appliance can be used in different
temperature conditions:
Class
Ambient temperature
SN (Subnormal)
from +10 °C to +32 °C
N (Normal)
from +16 °C to +32 °C
ST (Subtropical)
from +16 °C to +38 °C
T (Tropical)
from +16 °C to +43 °C
•Never place the refrigerator close to heat sources. If this is unavoidable, a suitable
insulating panel must be used to allow the appliance to function properly. Otherwise, place
the appliance at least 3 cm from electric or gas cookers and at least 30 cm from
combustion or radiation heating systems.
•To allow proper cooling of the condenser, the refrigerator must not be placed too close to
the wall. If the refrigerator is installed underneath a wall cupboard, the distance between
the two must be at least 5 cm.
•Take care not to scratch or damage the floor when installing the appliance on parquet or
linoleum. If necessary, when positioning slide the refrigerator over pieces of wood or a mat
to the point decided for connection to the electrical mains.
Positioning and levelling the appliance
Place the fridge on a stable and level floor. In case the floor is not perfectly level, use the two
adjustable feet on the front part of the fridge. To ensure major stability, easier movement and
a correct positioning of the product, two additional wheels are present at the rear. In any case
we recommend moving the fridge very carefully in order to avoid floor damage (especially in
case of wooden floor).
Electrical connection
Before switching the refrigerator on for the first time, leave it vertical for at least two hours.
Then connect the appliance's power supply lead to a mains socket with earth contact, installed
in accordance with electrical safety regulations. The rated voltage and frequency are stated on
the nameplate. The appliance must be connected to the electrical mains and earthed in
compliance with the relevant regulations and requirements. The appliance is able to withstand
short fluctuations in voltage of no more than 15% less or 10% more than the rated voltage
stated on the nameplate. If the power supply lead has to be replaced, this operation must only
be carried out by a qualified technician. The socket must be accessible after the appliance has
been placed.

English
6

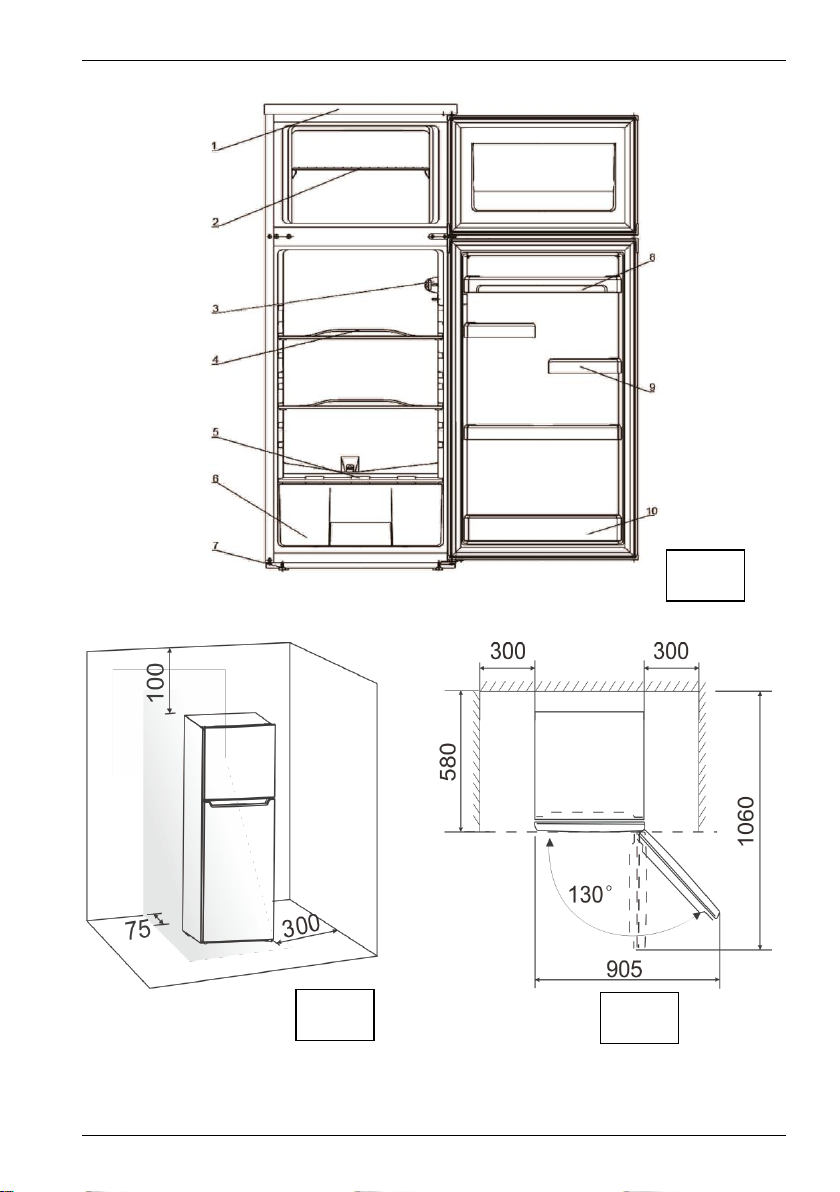

Product Description
1. Top cover (some models)
2. Wire shelf for freezer compartment
3. Thermostat + light
4. Glass shelf
5. Cover for vegetable box
6. Vegetable box
7. Adjustable feet
8. Door rack + egg tray
9. Short rack
10. Bottle balcony
Shelves (Glass rack)
Each refrigerator comes complete with several shelves which can be set at different heights by
placing them on the runners provided. Each shelf has a safety fitting to prevent it from being
pulled completely out or accidentally removed. To remove it from the appliance, lift it at the
back and extract it. Then change the position of the shelf or shelves as you require. For easy
removal of all internal accessories, the door has to be opened completely.
Refrigerator compartment defrosting water drain
The rear of the refrigerator compartment, underneath the refrigerating plate, has a channel
and a hole for collecting the defrosting water. To ensure the refrigerator can function properly,
take care never to block this hole. It is best to check and clean it fairly regularly using a piece of
stiff wire.
Fruit and vegetable box
This container is at the bottom of the refrigerator compartment, which is fitted with a glass
shelf to cover fresh foods that require constant humidity for optimum storage.
Door shelves and containers
The inside of the door is fitted with special shelves and boxes to take eggs, butter, dairy
products, tubes, preserves and other small packages. The bottom of the door has a shelf to
take vertical bottles.
All door shelves and boxes can be removed for cleaning. To remove the shelves, tap upward
with your hand first, on one side of the insertion zone and then on the other side. Do not place
excessively heavy bottles on the bottle shelf. Place bottles on the shelf gently when loading
them. When removing bottles do not pull them in a diagonal direction as this may over-strain
the retainer rod.
Inside lighting
When the refrigerator door is opened, the light comes on; it remains on until the door is
completely closed again. The light comes on even if the refrigerator thermostat is set on "0"
(stop), meaning that the refrigerator is switched off.
Arranging foods inside the refrigerator compartment
•Arrange the foods on the various shelves, taking care that they have an airtight wrapping
or cover. This precaution will:
-conserve foods' fragrance, moisture and freshness;

English
7
-prevent the cross-contamination of foods with different aromas and tastes;
-prevent the humidity level inside the refrigerator becoming too high because of the
normal breathing of food (especially fresh fruit and vegetables). In some operating
conditions (rise in ambient temperature and humidity, more frequent opening of the
door) this might cause condensation to form on the shelves.
•Use only containers approved for food storage. Always allow hot foods and drinks to cool
to room temperature before placing them inside the refrigerator.
•Never store explosive substances in the appliance and only store high-alcohol drinks firmly
sealed and vertical.
Setting and selecting the operating temperature
•The knob in the top right-hand corner of the refrigerator is used to set
the operating temperature both in the refrigerator and in the freezer.
•When the knob is turned to 0 ("stop"), the appliance is switched off.
•The operating settings are from 1 to 5.
•There is no direct correspondence between the setting chosen and the
temperature in the two sections of the appliance. Increasing the setting number reduces
the temperature inside the appliance. Only use the highest settings (4-5) if absolutely
necessary: with these settings, the temperatures inside the refrigerator compartment may
be close to 0°C and electricity consumption will be higher. In normal operating conditions,
a medium-low setting (2-3) is recommended. This will provide effective storage of the fresh
foods in the refrigerator compartment and of the frozen foods in the freezer compartment.
Important: Changes in weather conditions (temperature and humidity) and
the frequency with which the doors of the two separate compartments are
opened may affect the refrigerator's operating temperatures.
Setting and selecting the freezer operating temperature
24 hours before freezing a large amount of fresh foods turn the thermostat to 5 setting. After
the 24 hours have passed, insert the fresh foods and turn the thermostat knob to the setting of
your choice.
Freezing foods
•For proper storage and freezing, fruit and vegetables should be packed in portions of not
more than 1 kg and meat and fish up to a max. of 2kg. Small packages of food freeze more
quickly, giving better conservation of their nutrients and flavour, even after thawing and
preparation.
•Use only freezer bags, aluminium film, food-approved polyethylene film and freezer
containers. Do not use paper bags, non-food approved cellophane bags, shopping bags or
used freezer bags.
•Pack foods in airtight packs and try to expel all the air. If using bags, close the packs with
the elastic bands or plastic-coated wire strips provided.

English
8
•Always cool hot foods to room temperature before placing them in the freezer and do not
allow frozen foods to touch fresh foods for freezing.
•Always mark packs with the date of freezing, quantity and type of food and make sure that
foods are fresh and in good condition.
Storing frozen foods
•When purchasing frozen foods, always take care that the pack is not damaged, that the
product is not past its sell-by date and that the thermometer of the freezer in which the
products are displayed for sale does not show a temperature above -18°C. Also note the
temperature advice, storage period and modes of consumption stated by the producer.
•Purchased foods should also be protected using suitable insulated containers during
transportation to eliminate the risk of thawing. An increase in temperature might reduce
their storage life and adversely affect their quality.
•Do not purchase frozen foods which are carrying too much frost; they might already have
been thawed.
Thawing frozen foods
•Partially thawed foods should be eaten as soon as possible. Low temperatures preserve
foods, but they do not destroy the micro-organisms which are activated after thawing,
which may cause the stored foods to deteriorate. If thawed foods smell and look normal,
they can be cooked and if required re-frozen once they have cooled.
•Depending on their type and intended use, frozen foods can be thawed correctly at room
temperature, in the refrigerator, in an electric oven (conventional or fan), or in a
microwave oven using the relevant function.
Making ice-cubes
Fill the tray provided 2/3 full of water or any other liquid you wish to freeze. Place it in the
freezer compartment, making sure that its bottom is dry so that it will not stick to the shelf of
the compartment. To detach the ice-cubes, twist the tray slightly or place it under running
water for a few seconds.
Maintenance and Cleaning
Defrosting the refrigerator compartment
The refrigerator compartment has automatic defrosting. During normal operation of the
refrigerator, frost forms on its back wall when the compressor is working and dissolves when it
is not in operation. When the compressor is not working, the frost which has built up on the
back-wall melts and the water flows into the opening provided in the bottom of the body of
the refrigerator. From here, it flows into the tray on the compressor, where it evaporates.
Warning: the amount of ice which forms on the back wall may vary with
changes in weather conditions (temperature and humidity), the frequency
with which the door is opened, the appliance's operating temperatures and
the amount of fresh foods stored inside (especially fruit and vegetables).
