INSTRUCTION MANUAL
L-612
Belt & Disc Linisher Sander (240V)
150 x 1220mm (W x L) Belt
L108
Page 1
Instructions Manual for L-612 (L108)
04/08/2017

MODEL: L-612
OPERATION MANUAL AND PARTS LIST
BELT-DISC SANDER
Page 2
Instructions Manual for L-612 (L108)
04/08/2017

General Machinery Safety Instructions
1. Read the entire Manual before starting
machinery. Machinery may cause serious injury if
not correctly used.
2. Always use correct hearing protection when
operating machinery. Machinery noise may cause
permanent hearing damage.
3. Machinery must never be used when tired, or
under the influence of drugs or alcohol. When
running machinery you must be alert at all times.
4. Wear correct Clothing. At all times remove all loose
clothing, necklaces, rings, jewelry, etc. Long hair
must be contained in a hair net. Non-slip protective
footwear must be worn.
5. Always wear correct respirators around fumes
or dust when operating machinery. Machinery
fumes & dust can cause serious respiratory illness.
Dust extractors must be used where applicable.
6. Always wear correct safety glasses. When
machining you must use the correct eye protection
to prevent injuring your eyes.
7. Keep work clean and make sure you have good
lighting. Cluttered and dark shadows may cause
accidents.
8. Personnel must be properly trained or well
supervised when operating machinery. Make
sure you have clear and safe understanding of the
machine you are operating.
9. Keep children and visitors away. Make sure
children and visitors are at a safe distance for you
work area.
10. Keep your workshop childproof. Use padlocks,
Turn off master power switches and remove start
switch keys.
11. Never leave machine unattended. Turn power off
and wait till machine has come to a complete stop
before leaving the machine unattended.
12. Make a safe working environment. Do not use
machine in a damp, wet area, or where flammable
or noxious fumes may exist.
13. Disconnect main power before service
machine. Make sure power switch is in the off
position before re-connecting.
14. Use correct amperage extension cords.
Undersized extension cords overheat and lose
power. Replace extension cords if they become
damaged.
15. Keep machine well maintained. Keep blades
sharp and clean for best and safest performance.
Follow instructions when lubricating and changing
accessories.
16. Keep machine well guarded. Make sure guards
on machine are in place and are all working
correctly.
17. Do not overreach. Keep proper footing and
balance at all times.
18. Secure workpiece. Use clamps or a vice to
hold the workpiece where practical. Keeping the
workpiece secure will free up your hand to operate
the machine and will protect hand from injury.
19. Check machine over before operating. Check
machine for damaged parts, loose bolts, Keys and
wrenches left on machine and any other conditions
that may effect the machines operation. Repair and
replace damaged parts.
20. Use recommended accessories. Refer to
instruction manual or ask correct service officer
when using accessories. The use of improper
accessories may cause the risk of injury.
21. Do not force machinery. Work at the speed and
capacity at which the machine or accessory was
designed.
22. Use correct lifting practice. Always use the
correct lifting methods when using machinery.
Incorrect lifting methods can cause serious injury.
23. Lock mobile bases. Make sure any mobile bases
are locked before using machine.
24. Allergic reactions. Certain metal shavings and
cutting fluids may cause an ellergic reaction in
people and animals, especially when cutting as the
fumes can be inhaled. Make sure you know what
type of metal and cutting fluid you will be exposed
to and how to avoid contamination.
25. Call for help. If at any time you experience
difficulties, stop the machine and call you nearest
branch service department for help.
Machinery House
requires you to read this entire Manual before using this machine.
Page 3
Instructions Manual for L-612 (L108)
04/08/2017

Linisher/Disc Sander Safety Instructions
1. Maintenance. Make sure the sander is turned
off and disconnect from the main power supply
and make sure all moving parts have come to a
complete stop before any inspection, adjustment or
maintenance is carried out.
2. Sander Condition. Sander must be maintained for
a proper working condition. Never operate a sander
that has damaged or worn parts. Scheduled routine
maintenance should performed on a scheduled
basis.
3. Disc/Belt Condition. Never operate a sander with
a damaged or badly worn disc or belt. Replace if
required.
4. Disc/Belt Rotation. Be aware of the Disc and Belt
rotation when sanding.
5. Hand Hazard. Keep hands and fingers clear from
moving parts. Serious injury can occur.
6. Leaving a sander Unattended. Always turn the
sander off and make sure all moving parts have
come to a complete stop before leaving the sander.
Do not leave sander running unattended for any
reason.
7. Avoiding Entanglement. Sander guards must be
used at all times. Remove loose clothing, belts, or
jewelry items. Never wear gloves while machine is
in operation. Tie up long hair and use the correct
hair nets to avoid any entanglement with the sander
moving parts.
8. Understand the machines controls. Make sure you
understand the use and operation of all controls.
9. Power outage. In the event of a power failure during
use of the Linisher, turn off all switches to avoid
possible sudden start up once power is restored.
10. Work area hazards. Keep the area around the
sander clean from oil, tools, chips. Pay attention to
other persons in the area and know what is going
on around the area to ensure unintended accidents.
11. Workpiece Handling. Never hold small workpieces
with your fingers during a cut. Always support/feed
the workpiece with push stick, table support, vice,
or some sort of clamping fixture.
12. Hearing protection and hazards. Always wear
hearing protection as noise generated from sander
and workpiece vibration can cause permanent
hearing loss over time.
13. Dust hazards. Always wear dust mask or respirator
and eye protection when sanding. Use a dust
collector as well to keep dust to a minimum.
14. Feeding material. Always feed material evenly and
smoothly against the direction of rotation. Never
use excessive force when sanding or serious injury
can occur.
15. Job Material. Check material prior to sanding for
nails, staple and other objects that make cause any
danger when sanding.
16. Starting position/speed. Never turn the sander
on when the workpiece is resting on the disc or
belt. Allow disc and belt to reach full speed before
sanding.
17. Disc sanding. Keep workpiece down toward the
table whilst sanding. Workpiece may cause serious
injury if not held correctly.
18. Guards. Do not operate sander without the correct
guards in place.
19. Stopping the Disc/Belt. Do not stop or slow the
Disc or Belt with your hand or workpiece. Allow the
machine to stop on its own.
20. Wood dust may cause allergic reactions. Make
sure you know what type of dust you are exposed
to as it may cause you an allergic reaction. Always
wear an approved respirator.
21. Call for help. If at any time you experience
difficulties, stop the machine and call you nearest
branch service department for help.
Machinery House
requires you to read this entire Manual before using this machine.
Page 4
Instructions Manual for L-612 (L108)
04/08/2017

Manager:
Hazard
Linisher-Disc Sander
D
MEDIUM
CUTTING, STABBING,
Authorised and signed by:
NEW MACHINERY HAZARD IDENTIFICATION, ASSESSMENT & CONTROL
STRIKING
MEDIUM
Wear appropriate protective clothing.
Item
C
Safety officer:
O
Must be connected to a dust extraction.
PLANT SAFETY PROGRAM
No.
Hazard
Identification
Developed in Co-operation Between A.W.I.S.A and Australia Chamber of Manufactures
This program is based upon the Safe Work Australia, Code of Practice - Managing Risks of Plant in the Workplace ( WHSA 2011 No10 )
Assessment
MEDIUM
H
OTHER HAZARDS, NOISE,
ELECTRICAL
F
ENTANGLEMENT
PUNCTURING
SHEARING
Do not adjust or clean machine until the machine has fully stopped.
A
HIGH
Risk Control Strategies
(Recommended for Purchase / Buyer / User)
Isolate power to machine prior to any checks or maintenance being carried out.
Eliminate, avoid loose clothing / Long hair etc.
Make sure all guard are secured shut when machine is on.
Wear safety glasses.
Always keep gap between table and disc to a minimum.
DUST.
MEDIUM
Remove all loose objects around moving parts.
Always sand on the down stroke of the disc's rotation.
LOW
E
FRICTION
MEDIUM
Keep hands and body clear from sanding disc/belt.
Plant Safety Program to be read in conjunction with manufactures instructions
Ensure belts are in good condition and at correct tension.
Stand clear of moving parts on machine.
All electrical enclosures should only be opened with a tool that is not to be kept with the machine.
Wear hearing protection as required.
Revised Date:
www.machineryhouse.com.au
www.machineryhouse.co.nz
12th March 2012
Page 5
Instructions Manual for L-612 (L108)
04/08/2017

Page 6
Instructions Manual for L-612 (L108)
04/08/2017

Page 7
Instructions Manual for L-612 (L108)
04/08/2017

Page 8
Instructions Manual for L-612 (L108)
04/08/2017

Page 9

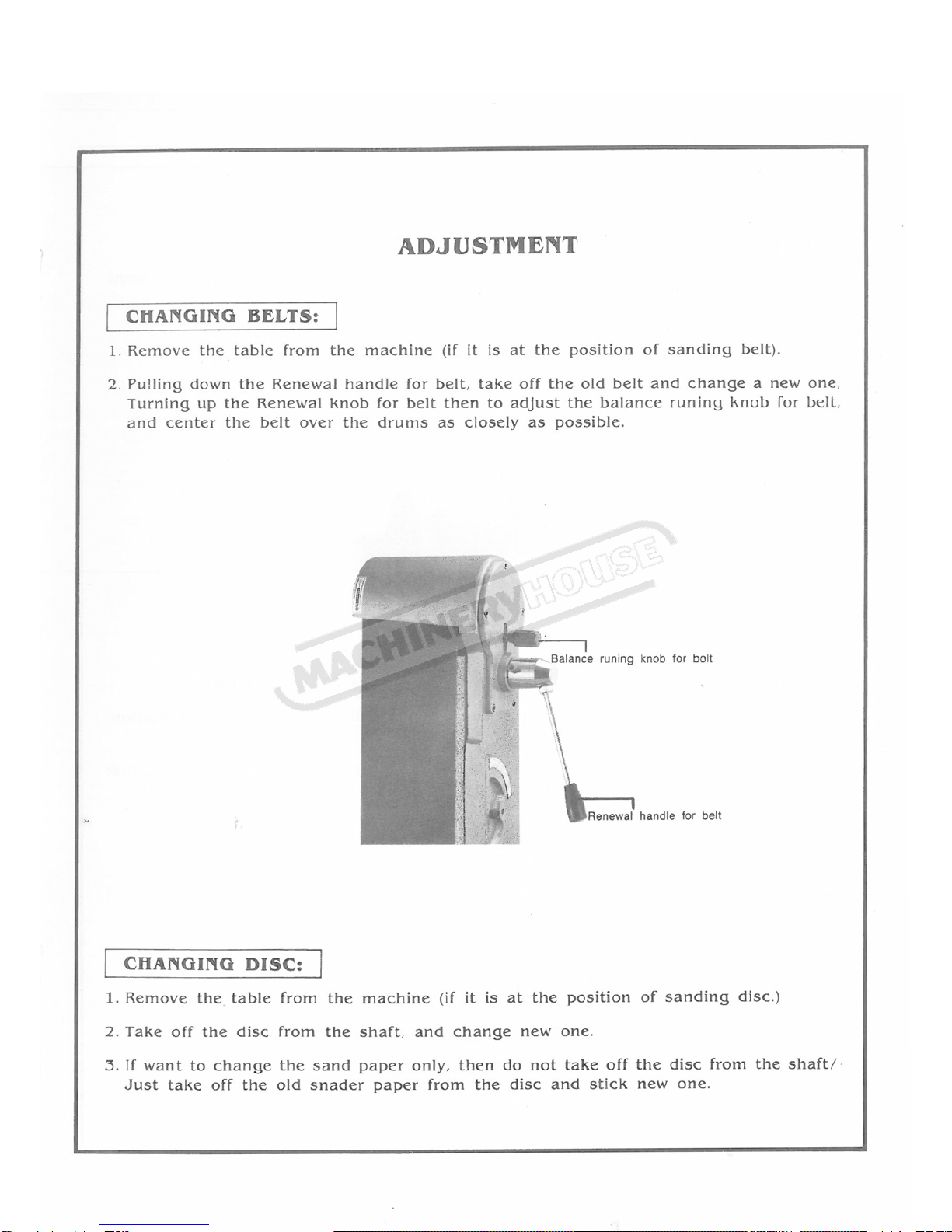

Instructions Manual for L-612 (L108)
04/08/2017

Page 10

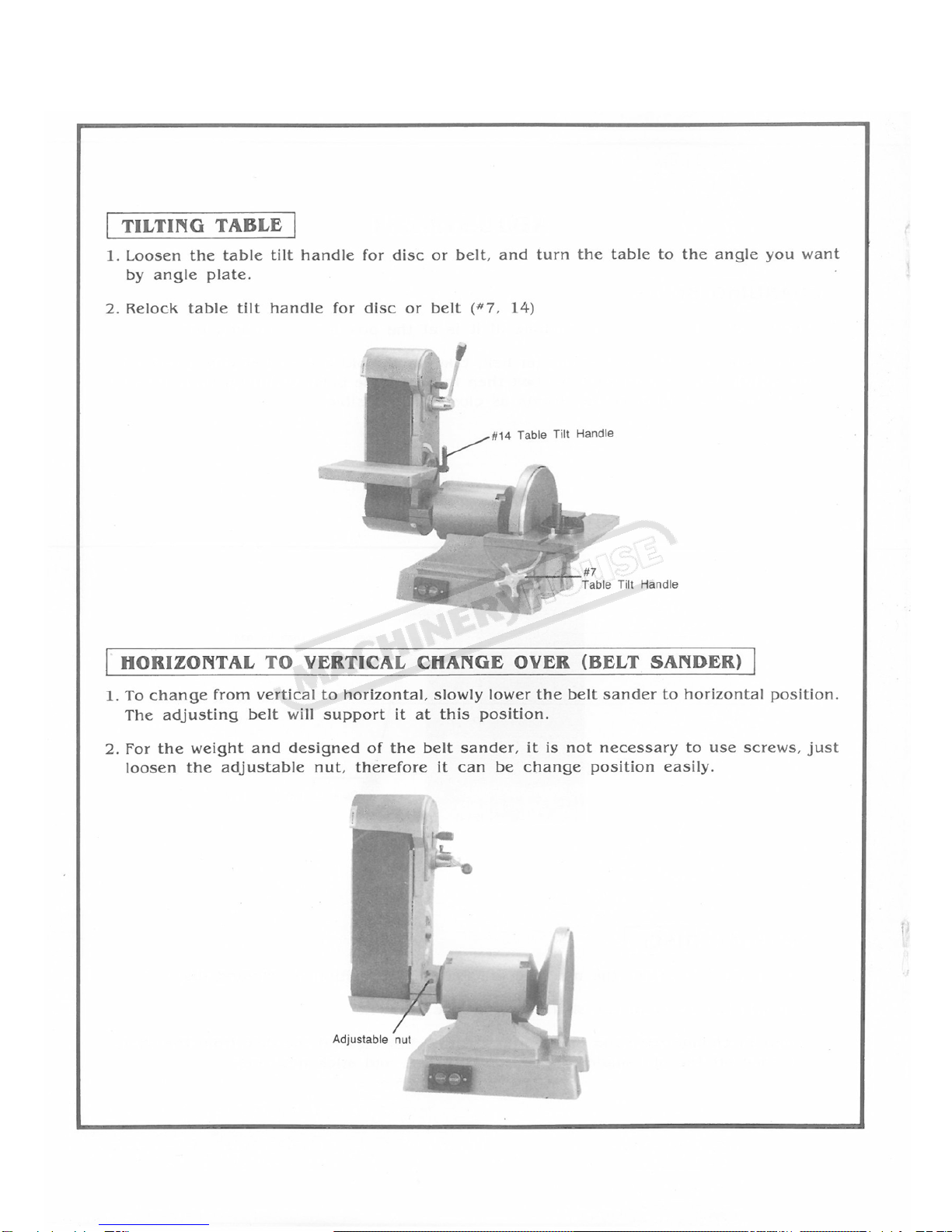

Instructions Manual for L-612 (L108)
04/08/2017

Page 11
Instructions Manual for L-612 (L108)
04/08/2017

Page 12
Instructions Manual for L-612 (L108)
04/08/2017

Page 13

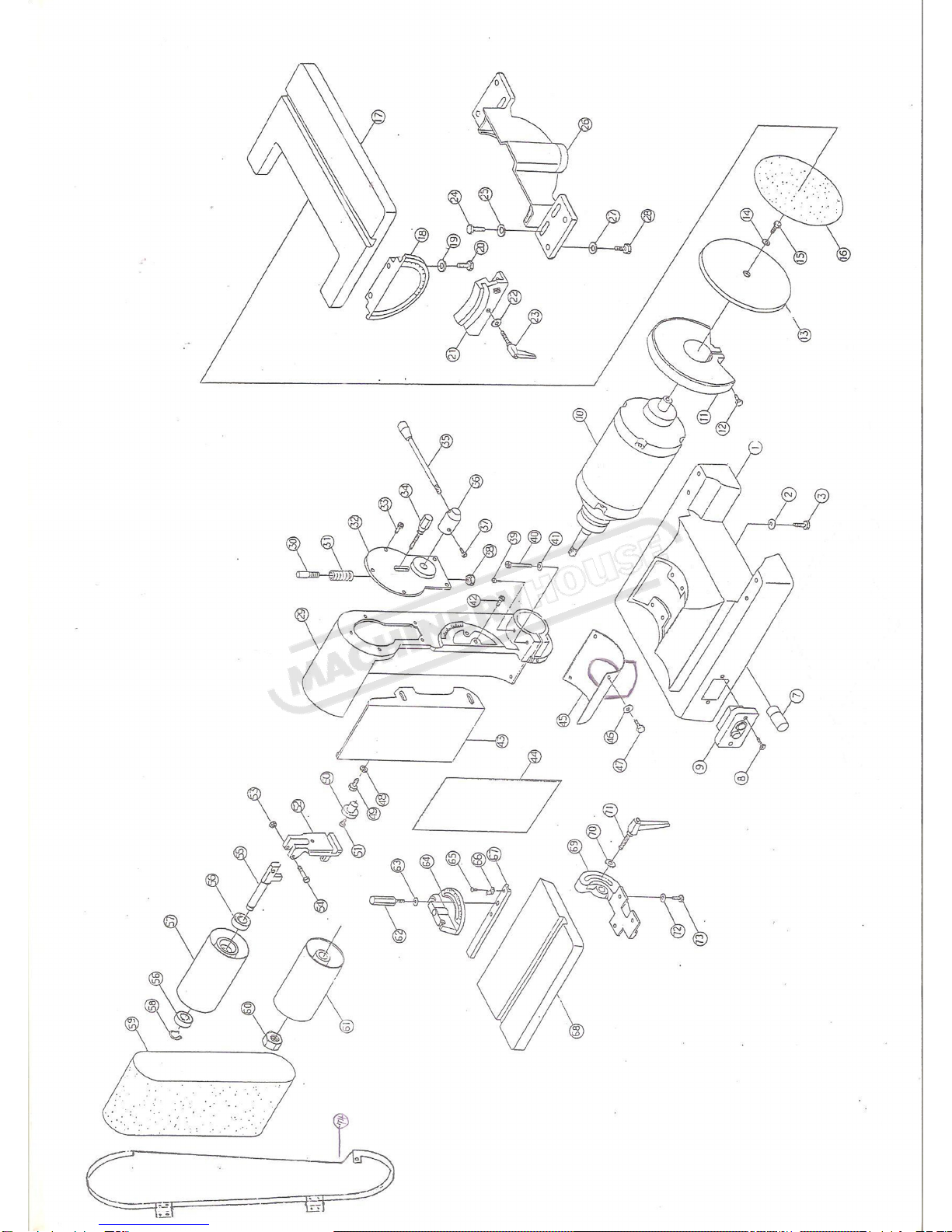

Instructions Manual for L-612 (L108)
04/08/2017

Page 14
Instructions Manual for L-612 (L108)
04/08/2017

L108 L612 Linisher Assembling rear disc guard and Assembly of machine on stand 9-11-15
Please find packed with the machine an extra sheet
metal guard that is to be bolted behind the sanding
disk, using the two screws provided in the packaging
with the guard,
Also
Please note: When mounting Machine to stand,
to fit your Dust hose onto under the Disk table.
The machine is to overhang as shown below…
