Hafele 539.30.530 User manual

1
INSTRUCTION
MANUAL
SINK DISHWASHER
Products Applied: 539.30.530
English

2
QUICK USER GUIDE
Starting A Wash
1. Discard scraps
Scrape large food particles off and remove
any foreign objects.
2. Load dishes carefully
To help with wash performance, arrange
dishes so they are evenly spaced and not
nesting.
1. Add detergent
Detergent must be added before the dishes
placed in the machine
Add the recommended quantity of
dishwasher-specific detergent to the sink.
2. Choose the appropriate program and
start washing
After closing the door, please gently press the
dot position on the drawing to ensure that the
door is closed.

3
CONTENTS
01
SAFETY INFORMATION
02
PRODUCT DESCRIPTION
Product Overview
Control Panel
03
USING YOUR DISHWASHER
Water Softener
Preparing And Loading Dishes
Basket Use Tips
Adding Detergent
04
OPERATING THE APPLIANCE
Wash Cycle Table
Starting A Cycle Wash
Washing Fruits Or Vegetables
Changing The Program Mid-cycle
Forget To Add A Dish?
05
MAINTENANCE AND CLEANING
External Care
Internal Care
Caring For The Dishwasher
06
INSTALLATION INSTRUCTION
Product Dimensions
Parts supplied
Installation Precautions
Installation Information
Installing Your Dishwasher
07
TROUBLESHOOTING TIPS
Error Codes

4
01 SAFETY INSTRUCTIONS
WARNING
READ ALL INSTRUCTIONS BEFORE USE
It is your responsibility to use caution when installing, maintaining, and operating your
dishwasher.
Hafele will not be liable for any damage resulting from improper use.
This is the safety alert symbol. This symbol alerts you to potential hazards that can result in
property damage or serious bodily harm, even death.
The safety alert symbol will be followed by either the word KWARNINGi or KCAUTIONi then
an important safety message. These words mean:
WARNING: Indicates the possibility of serious bodily harm or death.
CAUTION: Indicates the possibility of injury or damage to property.
Basic Safety Precautions
This appliance is intended to be used in household and similar applications such as:
- staff kitchen areas in shops, offices and other working environments;
- farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.
•This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge providing
they have been given supervision or instruction concerning use of the appliance in a safe way
and understand the hazards involved.
•Children should not play with the appliance. Cleaning and user maintenance should not
be done by children without supervision.(For EN60335-1)
•This appliance is not intended for use by persons (including children ) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction regarding the use of the appliance by a person responsible
for their safety. (For IEC60335-1 )
•Packaging material could be dangerous for children!
•This appliance is for indoor household use only.
•To protect against the risk of electrical shock, do not immerse the unit, cord or plug in
water or other liquid.
•Unplug before cleaning and performing maintenance on the appliance.

5
•Do not use the dishwasher before it is fully installed.
•Do not operate the dishwasher without all the enclosures fixed in place.
•The sharp edges of knives and utensils with sharp points should not face upwards.
•Dishwasher detergent is dangerous. Avoid skin and eye contact. A d rawer should not be
left open after detergent has been loaded.
•When emptying the dishwasher, check that all the detergent has been dissolved.
•The inlet water hose supplied must be used. Do not reuse a u sed or old hose.
•The power cable must be safely routed. If it is ever damaged, it must be replaced with a
similar item by a registered electrician.
•An earthed 3 p in socket must be used. C onsult a registered electrician if there is doubt
regarding the earth connection.
Product Disposal
Hafele supports the recycling of all suitable materials to reduce waste and the negative effects on
the environment.
•The packaging can be recycled.
•If the product is to be disposed of, do this responsibly at your local Council Waste Depot.
•DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such
waste separately for special treatment is necessary.

6
02 PRODUCT DESCRIPTION
IMPORTANT:
To get the best performance from your dishwasher, read all operating instructions before using it
for the first time.
Product Overview

7
Control Panel
Operation (Button)
1. Power
To turn on your dishwasher, the screen will light up.
2. Water level
selector
To select the water level for fruit and vegetable washing.
3. Strength
selector
To select the strength of fruit and vegetable washing.
4. Washing
program
Touch the buttons to select a program, corresponding indicator will be lit.
Fruit & Vegetable
Used to clean fruits, vegetables, shells, etc.
This program need to set the water level and strength.
Rapid
A shorter wash for lightly soiled loads that do not need drying.
Intensive
For heaviest soiled crockery, and normally soiled pots, pans, dishes etc. With
dried-on food.
ECO
This is standard program, it is suitable to clean normally soiled tableware
and it is the most efficient program in terms of its combined energy and
water consumption for that type of tableware.
5. Child lock
This option allows you to lock the buttons on the control panel, so children
cannot accidently start the dishwasher by pressing the buttons on the panel.
Only the Power button remains active.
To lock or unlock the buttons on the control panel, press and hold the Fruit
& Vegetable button+ Rapid button for 2 seconds simultaneously.
6. Start/Pause
To start the selected washing program or pause it when the dishwasher is
operating.

8
Display
7
To show selected water level and intensity.
8
To show the time reminding, error code, child lock indication, temperature, washing
stage etc.
9
To show selected washing program.
10
If the " 9b " indicator is lit, it means the dishwasher is low on dishwasher salt and needs
to be refilled.
03 USING YOUR DISHWASHER
Water Softener
The water softener must be set manually, using the water hardness dial.
The water softener is designed to remove minerals and salts from the water, which
would have a detrimental or adverse effect on the operation of the appliance.
The more minerals there are, the harder your water is.
The softener should be adjusted according to the hardness of the water in your area.
Your local Water Authority can advise you on the hardness of the water in your area.

9
Adjusting salt consumption
Please follow the steps below for adjustment in salt consumption.
1. Switch on the appliance.
2. Within 60 seconds after step 1, touch the Start/Pause button for more than 5 seconds to
start the water softener set model within 60seconds after the appliance was switched on.
3. Touch the Start/Pause button to select the proper set according to your local environment,
the sets will change in the following sequence: H1->H2->H3->H4->H5->H6.
4. Without any operation in five seconds, the machine will exit from set mode. The water
softener level is memorized by the program.
WATER HARDNESS
Water softener level
Salt consumption
(gram/cycle)
German
"dH
French "
fH
British
“Clarke
Mmol/l
0 - 5
0 - 9
0 - 6
0 - 0.94
H1
0
6 - 11
10 - 20
7 - 14
1.0 - 2.0
H2
9
12 - 17
21 - 30
15 - 21
2.1 - 3.0
H3
12
18 - 22
31 - 40
22 - 28
3.1 - 4.0
H4
20
23 - 34
41 - 60
29 - 42
4.1 - 6.0
H5
30
35 - 55
61 - 98
43 - 69
6.1 - 9.8
H6
60
1°H=1.25 °Clarke=1.78 °fH=0.178mmol/l
The manufactory setting: H3
Contact your local water board for information on the hardness of your water supply.

10
Loading the salt into the softener
WARNING:
Only use salt specifically designed for dishwashers use!
Every other type of salt not specifically designed for dishwasher use, especially table salt, will
damage the water softener. In case of damages caused by the use of unsuitable salt the
manufacturer does not give any warranty nor is liable for any damages caused.
Only fill with salt before running a cycle.
This will prevent any grains of salt or salty water, which may have been spilled, remaining on
the bottom of the machine for any period of time, which may causecorrosion.
The salt container is located the lower basket. Please follow the steps below for adding
dishwasher salt:
Remove the lower basket and unscrew the reservoir cap.
2. Place the end of the funnel (supplied) into the hole and pour in about 1kg of dishwasher
salt.
3. Fill the salt container to its maximum limitwith water, It is normal for a small amount of
water to come out of the salt container.
4. After filling the container, screw back the cap tightly.
5. The salt warning light will stop being after the salt container has been filled with salt.
6. Immediately after filling the salt into the salt container, a washing program should be
started (We suggest to use a short program). Otherwise the filter system, pump or other
important parts of the machine may be damaged by salty water. This is out of warranty.
NOTE:
The salt container must only be refilled when the salt warning light ( ) in the control
panel comes on. Depending on how well the salt dissolves, the salt warning light may
still be on even though the salt container is filled.
If salt has spilled, run a soak or quick program to remove it.

11
Preparing And Loading Dishes
Consider buying utensils which are identified as dishwasher-proof.
•For particular items, select a program with the lowest possible temperature.
•To prevent damage, do not take glass and cutlery out of the dishwasher immediately after
the program has ended.
For washing the following cutlery/dishes
Are not suitable
•Cutlery with wooden, horn china or mother-of-pearl handles
•Plastic items that are not heat resistant
•Older cutlery with glued parts that are not temperature resistant
•Bonded cutlery items or dishes
•Pewter or copper items
•Crystal glass
•Steel items subject to rusting
•Wooden platters
•Items made from synthetic fibres
Are of limited suitability
Some types of glasses can become dull after a large number of washes
•Silver and aluminum parts have a tendency to discolour during washing
•Glazed patterns may fade if machine washed frequently
Recommendations for loading the dishwasher
Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans.It is not
necessary to rinse the dishes under running water.
For best performance of the dishwasher, follow these loading guidelines.
Place objects in the dishwasher in following way:
•Items such as cups, glasses, pots/pans, etc. are faced downwards.
•Curved items, or ones with recesses, should be loaded on a slant so that water can run off.
•All utensils are stacked securely and can not tip over.
•Be sure that no wash items protrude through the basket base where they will likely foul
the spray arm.

12
•Load hollow items such as cups, glasses, pans etc. With the opening facing downwards
so that water cannot collect in the container or a deep base.
Dishes and items of cutlery must not lie inside one another, or cover each other.
•To avoid damage, glasses should not touch one another.
•Please do not overload your dishwasher. This is important for good results and for
reasonable consumption of energy.
NOTE:
Very small items should not be washed in the dishwasher as they could easily fall through the
basket.
CAUTION:
Items will be hot! To prevent damage, do not take glass and cutlery out of the dishwasher for
around 15 minutes after the program has ended.

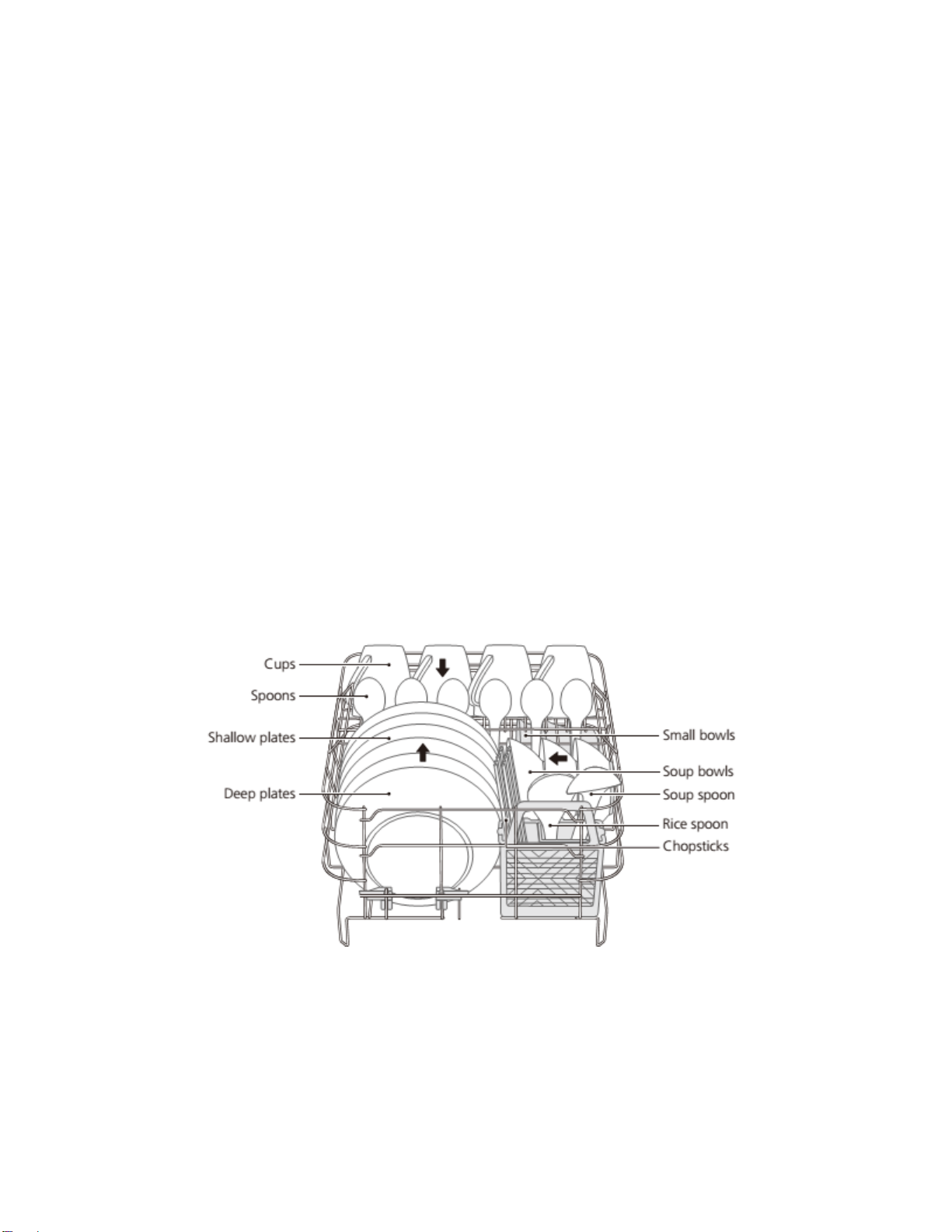

Loading the dishwasher
The loading pattern in the illustration is recommended for the design of basket.
NOTE:
Cups and glasses face downwards.
Plates face the back of each other, as do side plates, soup plates and saucers.
WARNING:
Always load sharp utensils with the sharp point down!
Do not let any item extend through the bottom.

13
Basket Use Tips
Folding spikes of basket
The basket has four folding spikes. You can adjust the angle of the folding spikes in the basket to
four different positions to math the size and shape of your dishes.
Cup rack
When you need to use the cup rack, you can place the cup rack as follows.
You can reverse the steps when placing high items.
1. Turn the cup rack
counterclockwise to the
vertical
2. Lift up the cup rack
3. Turn the cup rack
counterclockwise and secure
it.
Fruit and vegetable basket
When cleaning fruits and vegetables, use the fruit and vegetable basket instead of the dishes
basket.
Water level scale
(Choose the water level according to the
actual situation)

14
Adding Detergent
The chemicals in Dishwasher Detergent are necessary to remove, dissolve
and help dispose of all the soils from the wash load. Only specific Electric
Dishwasher Detergent is capable of doing this.
WARNING:
Detergent must be added before the dishes to be placed in the machine
Dishwasher detergent is dangerous. Avoid skin and eye contact
Keep the dishwasher detergent out of reach of children.
Keep it sealed in a dry place.

15
04 OPERATING THE APPLIANCE
Wash Cycle Table
The table below shows which programs are best for the levels of food residue on them and how
much detergent is needed. It also show various information about the programs.
Program
Description Of
Cycle
Detergent
Pre/Main
Running
Time(min)
Energy Water (Kwh) (L)
Wash(65"C)
Rinse
Rinse(60C)
18g/1 piece
29
0.55
6.5
Wash(65C)
Rinse
Rinse
Rinse(65C)
Drying
18g/1 piece
82
0.77
8.5
Pre-wash
Wash(45C)
Rinse(65C)
Drying
18g/1 piece
115
0.62
6.5
NOTE:
EN 50242: This program is the test cycle. The information for comparability test in accordance
with EN 50242.
Water
level
Gentle
Running
Time(min)
Moderate
Running
Time(min)
Strong
Running
Time(min)
Low
16
Grape
Crayfish
17
Shell
18
Middle
Strawberry
blueberry
Cherry
19
Tomato
20
Potato
Apple
21
High
22
Vegetable
leaves
23
Broccoli
24
*The strength and water level of the fruit and vegetable selection in the table are only for
reference.

16

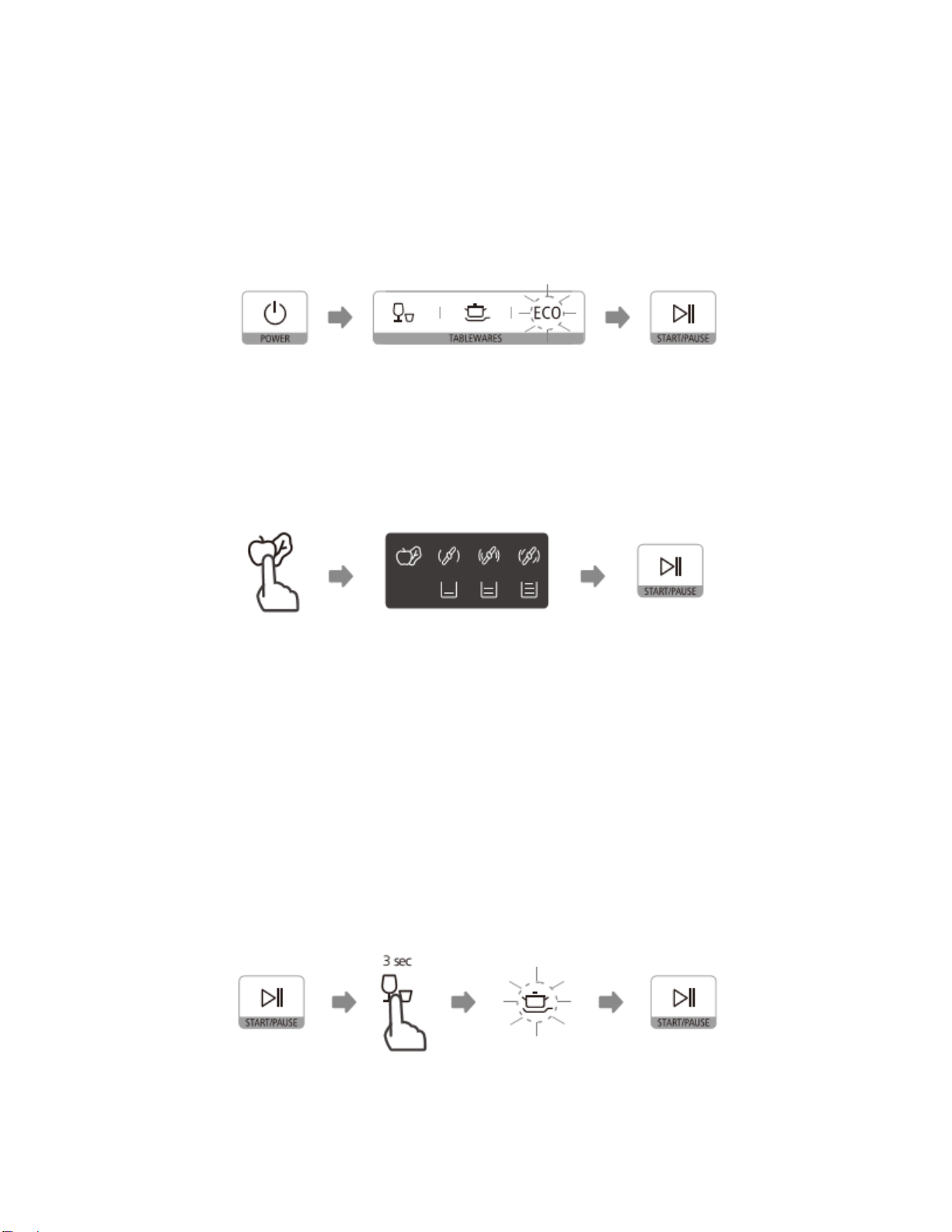

Starting A Cycle Wash
1. Insert the plug into the socket. Make sure that the water supply is turned on to full
pressure.
2. Touch the Power button for 3 seconds to turn on the dishwasher.
3. Choose a program, the response light will turn on.
4. Touch the Start/Pause button, the display ":" blinks. The program starts running.
Washing Fruits Or Vegetables
1. After turning on the dishwasher, touch the Fruit & Vegetable button
2. Touch the Water level selector button and Strength selector button to set the appropriate
water level washing intensity.
3. Touch the Start/pause button, the display “:” blinks. The program starts running.
Changing The Program Mid-cycle
A wash cycle can only be changed if it has been running for a short time otherwise, the detergent
may have already been released and the dishwasher may have already drained the wash water. If
this is the case, the dishwasher needs to be reset and the detergent must be refilled. To reset the
dishwasher, follow the instructions below:
1. Press the Start/Pause button to pause the washing.
2. Press any Program button for more than 3 seconds, the dishwasher will enter standby
mode.
3. Select the desired program.
4. Press the Start/Pause button.

17
Forget To Add A Dish?
A forgotten dish can be added any time before the detergent dispenser opens. If this is the case,
follow the instructions below:
1. Press the Start/Pause button to pause the washing.
2. After the spray arms stop working, you can open the door completely.
3. Add the forgotten dishes.
4. Close the door.
5. Press the Start/Pause button after 10 seconds, the dishwasher will start.
CAUTION:
It is dangerous to open the drawer mid-cycle, as hot steam may scald you.
Forced Drainage
In standby mode, you can touch and hold the Rapid button + ECO button for 3 seconds
simultaneously to drain the water tank.

18
05 MAINTENANCE AND CLEANING
Keeping your dishwasher clean improves its performance, reduces unnecessary repairs, and
lengthens its life.
WARNING:
Disconnect the dishwasher from the power supply (unplug or switch off at the circuit breaker)
and allow all its parts to cool before any cleaning or maintenance.
External Care
It's best to clean spills on the outside of your dishwasher as they occur. Use a soft, damp cloth on
the control panel to gently wipe away spills and dust. Do not clean the dishwasher by sprinkling
water over it and avoid letting water come into contact with any of the electrical parts.
Internal Care
Filtering system
The filtering system in the base of the wash cabinet traps coarse debris from the washing cycle.
The collected coarse debris may cause the filters to clog. Check the condition of the filters
regularly and clean them if necessary under running water. Follow the steps below to clean the
filters.
CAUTION:
Do not over tighten the filters. Put the filters back in sequence securely, otherwise coarse
debris could get into the system and cause a blockage.
NEVER use the dishwasher without filters in place. Improper replacement of the filter
may reduce the performance level of the appliance and damage dishes and utensils.
1. Hold the cylindrical filter and rotate it
anticlockwise to unlock the filter.
Lift the filter upwards and out of the
dishwasher.
2. Split the filter system into three parts.

19
3. Larger food remnants can be cleaned by
rinsing the filter under running water.
For a more thorough clean, use a soft cleaning
brush.
4. Reassemble the filter in the reverse order of
the disassembly, replace the filter insert, and
rotate clockwise to the close arrow.
Spray arms
If you are in a hard water area, it is necessary to clean the spray arms regularly for hard water
chemicals will clog the spray arm jets and bearings.
To clean the spray arms, follow the instructions below:
1. After removing the basket, pull out the
spray arm upward.
Wash the arms in sopay and warm water and
use a soft brush to clean the jets.
After cleaning, replace it in the opposite
direction.
Caring For The Dishwasher
Frost precaution
If you live in a region that is where the inside temperature can drop below zero, care needs to be
taken to avoid possible damage if the water in the dishwasher freezes.
1. Turn off the mains power to the dishwasher.
2. Turn off the water supply and disconnect the Water Inlet Hose. Drain the water inside the
hose then reconnect.
3. Remove the course filters in the tubs and soak up all water possible with a sponge. Then
re-assemble.
Cleaning
Only use gentle cleaning products on the exterior of the dishwasher, no solvents or abraisive
compounds.
Long term storage

20
Disconnect the power supply and the water supply.
Remove the coarse filters and soak up all water possible with a sponge.
This reduces the chance of any odours developing inside the tubs.
